USER MANUAL M12 363120 MILWAUKEE

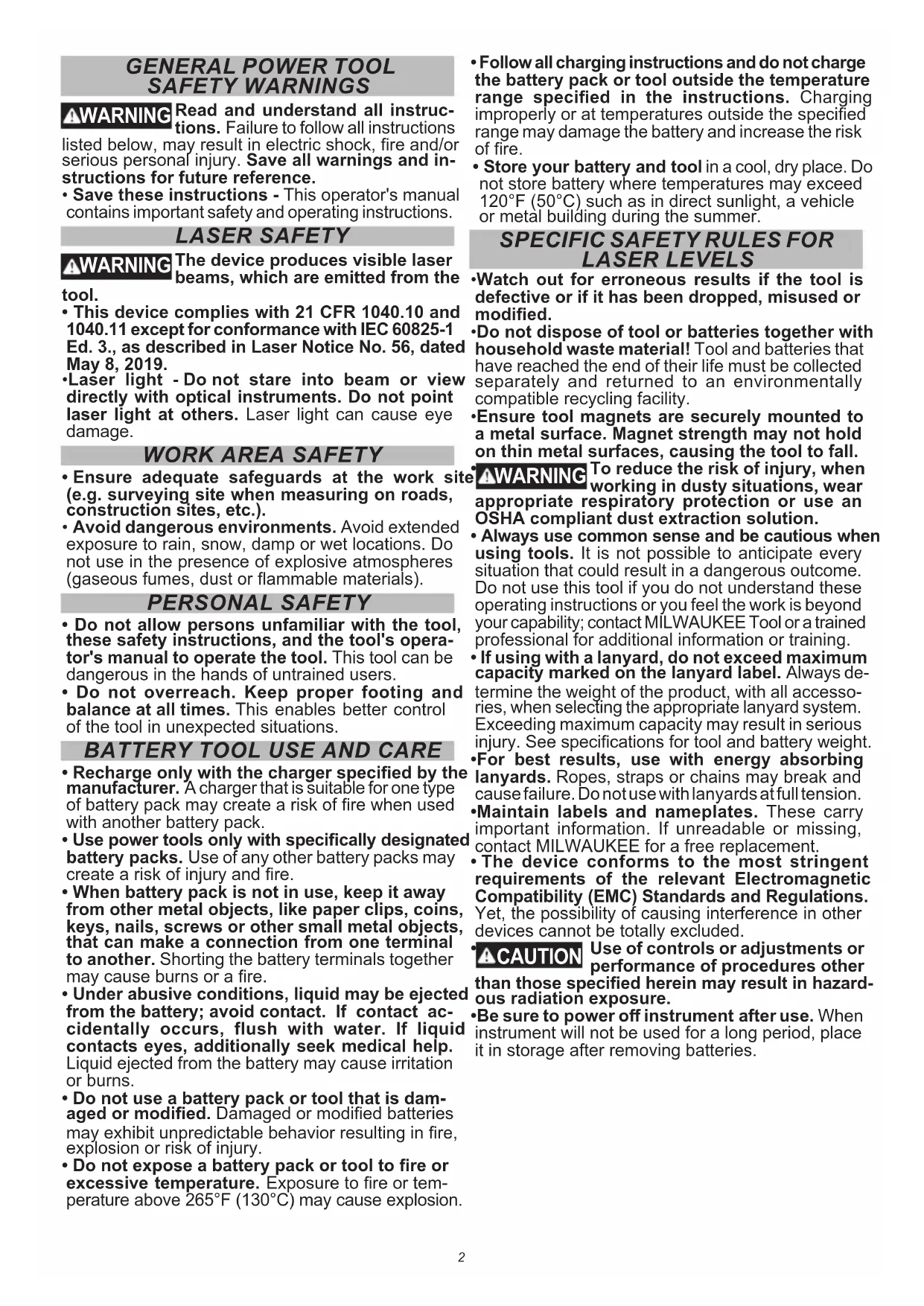

SAFETY WARNINGS WARNING Read and understand all instruc- tions. Failure to follow all instructions listed below, may result in electric shock, re and/or serious personal injury. Save all warnings and in- structions for future reference.

  • Save these instructions - This operator's manual contains important safety and operating instructions. LASER SAFETY WARNING The device produces visible laser beams, which are emitted from the tool.
  • This device complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019.
  • Laser light - Do not stare into beam or view directly with optical instruments. Do not point laser light at others. Laser light can cause eye damage.
  • Ensure adequate safeguards at the work site (e.g. surveying site when measuring on roads, construction sites, etc.).
  • Avoid dangerous environments. Avoid extended exposure to rain, snow, damp or wet locations. Do not use in the presence of explosive atmospheres (gaseous fumes, dust or ammable materials). PERSONAL SAFETY
  • Do not allow persons unfamiliar with the tool, these safety instructions, and the tool's opera- tor's manual to operate the tool. This tool can be dangerous in the hands of untrained users.
  • Do not overreach. Keep proper footing and balance at all times. This enables better control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

  • Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.
  • Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re.
  • When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.
  • Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact ac- cidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
  • Do not use a battery pack or tool that is dam- aged or modied. Damaged or modied batteries may exhibit unpredictable behavior resulting in re, explosion or risk of injury.
  • Do not expose a battery pack or tool to re or excessive temperature. Exposure to re or tem- perature above 265°F (130°C) may cause explosion.
  • Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specied in the instructions. Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re.
  • Store your battery and tool in a cool, dry place. Do not store battery where temperatures may exceed 120°F (50°C) such as in direct sunlight, a vehicle or metal building during the summer.
  • Watch out for erroneous results if the tool is defective or if it has been dropped, misused or modied.
  • Do not dispose of tool or batteries together with household waste material! Tool and batteries that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.
  • Ensure tool magnets are securely mounted to a metal surface. Magnet strength may not hold on thin metal surfaces, causing the tool to fall.

WARNING To reduce the risk of injury, when working in dusty situations, wear appropriate respiratory protection or use an OSHA compliant dust extraction solution.

  • Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact MILWAUKEE Tool or a trained professional for additional information or training.
  • If using with a lanyard, do not exceed maximum capacity marked on the lanyard label. Always de- termine the weight of the product, with all accesso- ries, when selecting the appropriate lanyard system. Exceeding maximum capacity may result in serious injury. See specications for tool and battery weight.
  • For best results, use with energy absorbing lanyards. Ropes, straps or chains may break and cause failure. Do not use with lanyards at full tension.

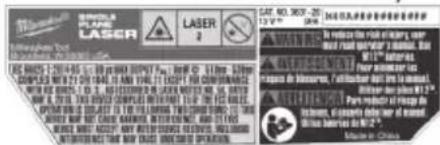

  • Maintain labels and nameplates. These carry important information. If unreadable or missing, contact MILWAUKEE for a free replacement.
  • The device conforms to the most stringent requirements of the relevant Electromagnetic Compatibility (EMC) Standards and Regulations. Yet, the possibility of causing interference in other devices cannot be totally excluded.

CAUTION Use of controls or adjustments or performance of procedures other than those specied herein may result in hazard- ous radiation exposure.

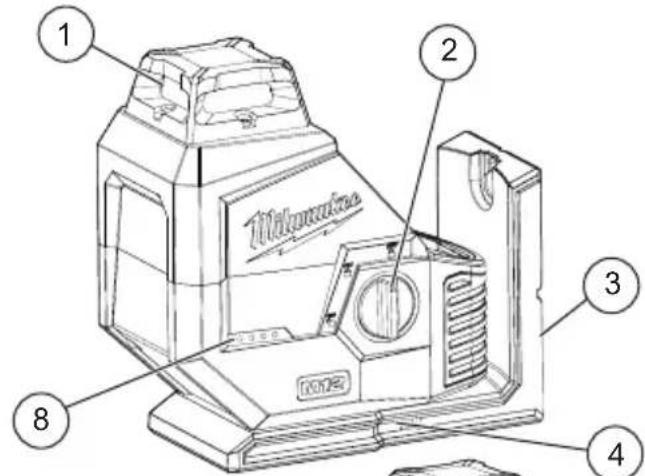

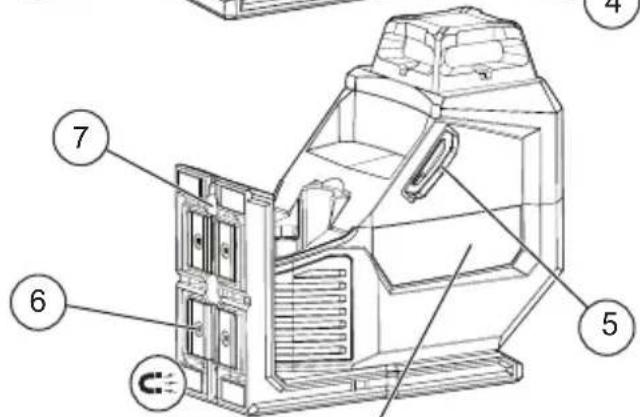

  • Be sure to power o󰀨 instrument after use. When instrument will not be used for a long period, place it in storage after removing batteries.3 FUNCTIONAL DESCRIPTION

2. Locking power dial

5. Lanyard attachment

ASSEMBLY WARNING Recharge only with the charger specied for the battery. For spe- cic charging instructions, read the operator's manual supplied with your charger and battery. Removing/Inserting the Battery To remove the battery, push in the release buttons and pull the battery pack away from the tool. WARNING Always lock the tool or remove the battery pack any time the tool is not in use. To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place. WARNING Only use accessories specically recommended for this tool. Others may be hazardous. Power Save Mode Power save mode is indicated by dimmed laser beams. Visual range is decreased in power save mode. The tool will automatically switch to power save mode if less than 7% of battery charge remains. *When automatically switched to power save mode due to low battery, the tool cannot be switched back to normal mode until the battery is charged/replaced. Federal Communications Commission WARNING Changes or modications to this unit not expressly ap- proved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful in- terference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or televi- sion reception, which can be determined by turning the equipment o󰀨 and on, the user is encouraged to try to correct the interference by one or more of the following measures:

  • Reorient or relocate the receiving antenna.
  • Increase the separation between the equipment and receiver.

≤ 50 µs Wavelength.......................................... 510-530 nm Beam Divergence ........................................... 3 rad Working Range .................................. 125' (Radius) Range with Detector .......................... 165' (Radius) Accuracy ...............................................±1/8" @ 33' Settle Time ......................................... < 3 Seconds Tripod Mount ..................................1/4"-20, 5/8"-11 Ingress Protection............................................ IP54 Drop Rating .......................................................1 m Leveling ............Auto ±°4 side to side, front to back Bare Tool Weight ........................................2.03 lbs Weight ........................................................2.91 lbs (With heaviest compatible battery pack) Storage Temp ....................................-4°F to 120°F Recommended Ambient Operating Temperature .................. 14°F to 104°F SYMBOLOGY Volts Direct Current Laser Radiation Do not stare into beam Class 2 laser product Magnets Read operator's manual4 ON Turns ON the laser and unlocks the pendu- lum to enable self-leveling. ON Turns ON the laser but does not unlock the pendulum (self leveling is disabled). The laser line will ash once every 8 seconds to indicate that the projected line are not level. NOTE: The ON mode disables self- leveling and therefore is not intended for projecting a level line. OFF Turns OFF the laser and locks the pen- dulum. When not in use, turn o󰀨 the tool and store the Laser Level in the protective carrying case. Using the Laser Level

1. For best results, place the tool on a work surface

  • level (within 4 degrees of true level)
  • 90° to the work area

2. Turn on the tool.

3. The tool will self-level when placed on surfaces

within 4 degrees of true level when dial is unlocked and on.

4. The tool is ready once the emitted line are continu-

ous and no longer moving on the work surface.

5. If the tool cannot achieve a level state (i.e., the

work surface is > 4 degrees o󰀨 true level), the laser line will ash rapidly (3 ashes per second). Relocate or adjust the work surface. Troubleshooting If the tool does not turn on:

  • Ensure battery is installed properly. Fuel gauge should indicate remaining charge when correctly installed.
  • Ensure battery is charged.
  • Ensure the tool's internal temperature is within speci- ed operating ranges. If stored in excessive heat or cold, allow at least 2 hours to acclimate to ambient temperature before turning on the tool. If problem persists, please contact a MILWAUKEE service facility for support.

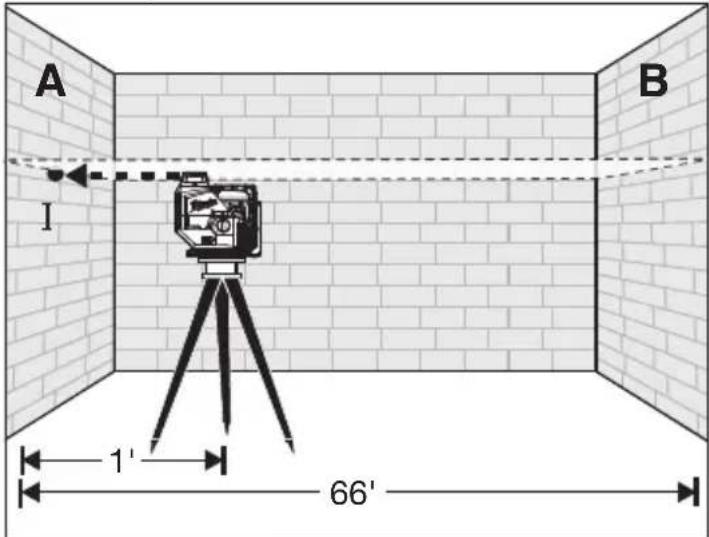

ACCURACY FIELD CHECK

NOTICE Perform the Accuracy Field Check procedure immediately upon unboxing of each new Laser Level and before exposure to jobsite conditions. See "Accuracy Field Check" for information. Should any deviation from listed product accuracy be found, please con- tact a MILWAUKEE service facility. Failure to do so could result in rejection of warranty claim. Inuences on Accuracy Ambient temperature gradients can impact laser accuracy. For accurate and repeatable results, the following procedure should be conducted with the laser elevated o󰀨 the ground and placed in the center of the working area. Abusive treatment of the Laser Level, such as exces- sive impacts from drop, can also lead to deviations in product accuracy. Therefore, it is recommended to conduct the Field Check procedure after any impact or before complet- ing any critical jobs. Fuel Gauge The fuel gauge is displayed continuously when the tool is ON. When less than 7% of charge is left, 1 light continuous ashing on the fuel gauge until the tool shut o󰀨.. To signal the end of charge, 1 light on the fuel gauge will ash 4 times and the tool will not run. Charge the battery pack. If the tool becomes too hot, the fuel gauge lights will ash and the tool will not run. Allow the tool to cool down. WARNING To reduce the risk of injury or dam- age, securely mount/attach the laser before starting an operation. Injury/damage may occur if the laser falls. Mounting/Adjusting the Laser Level The pivot bracket can be used to mount the laser level in multiple ways:

  • Use the embedded magnets to secure the laser level to steel studs, steel beams, etc.
  • Use the keyhole slot to hang the laser level on the wall with a nail or screw.
  • Set the laser level on a at surface.
  • Position the laser and/or wall mount on a stable surface.

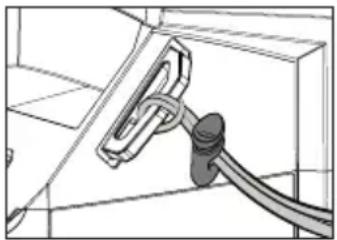

  • Use the 1/4"-20 or 5/8"-11 threaded insert to mount on a tripod. Lanyard Attachments Use MILWAUKEE Lanyards to help reduce the risks associated with dropped tools. Complies with ANSI/ ISEA 121:2018.

1. Follow instructions pro-

vided with tool lanyard.

2. The lanyard will create

a secure anchor point for use. WARNING! Do not exceed maximum capacity marked on the lanyard label. Exceeding maximum capacity may result in serious injury or death. OPERATION WARNING To reduce the risk of injury or tem- porary e󰀨ects on vision, do not look directly into the laser when it is on. CAUTION Use of controls or adjustments or performance of procedures other than those specied herein may result in hazard- ous radiation exposure. NOTICE Perform the Accuracy Field Check procedure immediately upon unboxing of each new Laser Level and before exposure to jobsite conditions. See "Accuracy Field Check" for information. Turning On/O󰀨 To turn on the laser and unlock the pendulum, rotate the On/O󰀨 dial to the desired position. The remain- ing battery life will be displayed. WARNING! Do not look directly into laser apertures. Horizontal level line will immediately be emitted from aperture in the laser housing.5 Horizontal Height AccuracyA free measuring distance of approximately 66' on a rm surface between two walls or structures A and B is required for this check.It is also suggested to mount the Laser Level to a Tripod for easy adjustment. 1. Securely mount the tool within 1' of wall A. 66' A B 2. Turn the tool to ON.3. Direct the front laser beam against the nearest wall A and allow to self-level. Mark the center of the horizontal line on the wall (point I).4. Rotate the full tool with bracket 180° without changing the height, allow it to self-level, and mark the center of the horizontal line on the opposite wall B (point II). A B

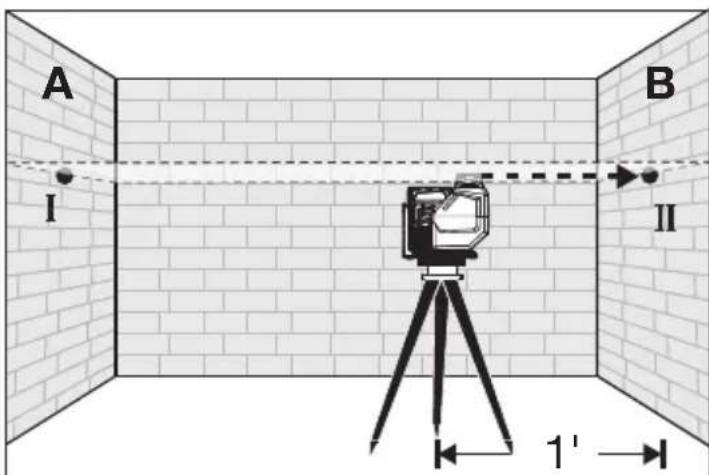

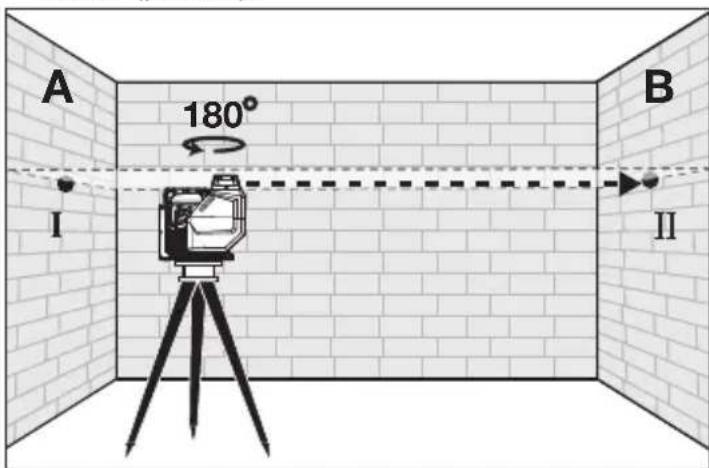

5. Move the tool within 1' of wall B. Turn the tool to

ON. Adjust the height of the tool (using the tripod or by adding shims, if required) such that the hori-zontal line is projected exactly against the previous marked point II on wall B. Allow the tool to self-level. A B

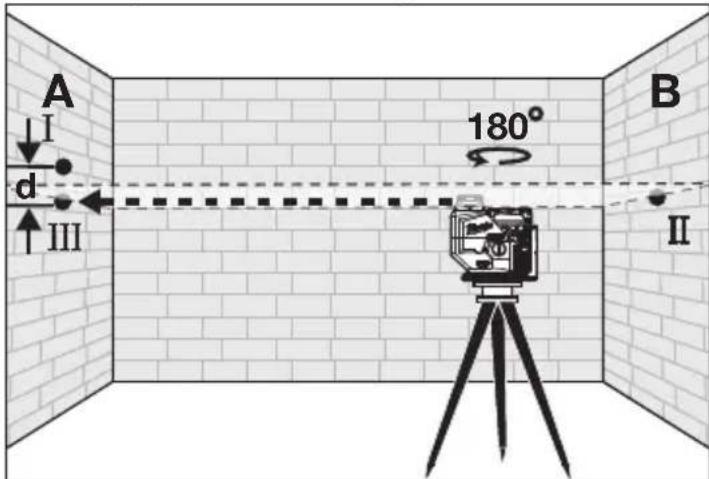

6. Rotate the full tool with bracket 180° without changing the height, allow it to self-level, and mark the center of horizontal line on wall A (point III). Point III should be aligned as vertically above or below point I on wall A as possible.

7. The distance between points I and III on wall A is the height deviation (d) of the tool. This distance should not exceed 1/8" (max.) at 33' (1/2" at 132'). For the Measuring distance of 2 x 66' = 132', the maximum allowable deviation (d) is: 132' x ±1/8" ÷ 33' = ±1/2". MAINTENANCE WARNING To reduce the risk of injury, always remove the battery before perform-ing any maintenance. Never disassemble the tool. Maintain Laser LevelMaintain tools. If damaged, have the tool repaired before use. Accidents may be caused by poorly maintained tools. WARNING To reduce the risk of personal in-jury and damage, never immerse your tool in liquid or allow a liquid to ow inside them.CleaningKeep tool clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use ammable or combustible solvents around tools.Cleaning the LensesBlow o󰀨 loose particles with clean compressed air. Carefully wipe the surface with a cotton swab moist-ened with water.RepairsThis tool has limited serviceable parts. Do not open housing or disassemble tool. For repairs, return the tool, battery pack and charger to the nearest autho-rized service center. ACCESSORIES WARNING Use tools only with specifically designated accessories. Use of any other accessories may create risk of injury.6

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878) Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeetool.com Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions. Email: metproductsupport@milwaukeetool.com Become a Heavy Duty Club Member at www.milwaukeetool.com to receive important notications regarding your tool purchases.

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeetool.ca

LIMITED WARRANTY USA & CANADA

Every MILWAUKEE power tool* (see exceptions below) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of ve (5) years** after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, altera tions, abuse, normal wear and tear, lack of maintenance, or accidents.Normal Wear: Many power tools need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bum pers, driver blades, pistons, strikers, lifters, and bumper cover washers.*This warranty does not cover Air Nailers & Staplers; Airless Paint Sprayer; Cordless Battery Packs; Gasoline Driven Portable Power Generators; Hand Tools; Hoist – Electric, Lever & Hand Chain; M12™ Heated Gear; Reconditioned Product; and Test & Measurement Products. There are separate and distinct warranties available for these products.**The warranty period for Job Site Radios, M12™ Power Port, M18™ Power Source, Jobsite Fan and Trade Titan™ Industrial Work Carts is one (1) year from the date of purchase. The warranty period for the M18 FUEL™ 1” D-Handle High Torque Impact Wrenches, Drain Cleaning Cables, AIRSNAKE™ Drain Cleaning Air Gun Accessories, REDLITHIUM™ USB Laser Levels and TRAPSNAKE™ 25' Auger w/ CABLE DRIVE™ is two (2) years from the date of purchase. The war ranty period for the M18™ Compact Heat Gun, 8 Gallon Dust Extractor, M18™ Framing Nailers, M18 FUEL™ 1/2" Ext. Anvil Controlled Torque Impact Wrench w/ ONE-KEY™, M18 FUEL™ 1" High Torque Impact Wrench w/ ONE-KEY™, M18 FUEL™ 2 Gal. Compact Quiet Compres sor, M12™ Laser Levels, 165' Laser Detector, M12™ 23GA Pin Nailer, M18 FUEL™ 1/4" Blind Rivet Tool w/ ONE-KEY™, M12 FUEL™ Low Speed Tire Bu󰀨er, M18 FUEL™ Dual Action Random Orbital Polishers, and the M18™ Utility Fencing Stapler is three (3) years from the date of purchase. The warranty period for the LED in the LED Work Light and the LED Upgrade Bulb for the Work Light is the lifetime of the product subject to the limitations above. If during normal use the LED or LED Bulb fails, the part will be replaced free of charge. Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of pur chase is provided at the time warranty service is requested.ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON TRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CON SEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICU LAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WARRANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.This warranty applies to product sold in the U.S.A. and Canada only.Please consult the ‘Service Center Search’ in the Parts & Service sec tion of MILWAUKEE’s website www.milwaukeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a Milwaukee electric power tool. RÈGLES DE SÉCURITÉ GÉNÉRALES

Monday-Friday, 7:00 AM - 4:30 PM CST www.milwaukeetool.ca
