M12™ 360° 3-PLANE LASER

LASER A TROIS PLANS DE 360° M12™

LÁSER DE 3 MODOS 360° M12™

WARNING To reduce the risk of injury, user must read and understand operator's manual.

Read and understand all instructions. Failure to follow all instructions

listed below, may result in electric shock, fire and/or serious personal injury. Save all warnings and instructions for future reference.

- Save these instructions - This operator's manual contains important safety and operating instructions.

LASER SAFETY

WARNING

The device produces visible laser beams, which are emitted from the tool.

- This device complies with 21 CFR 1040.10 and 1040.11 except for conformance with IEC 60825-1 Ed. 3., as described in Laser Notice No. 56, dated May 8, 2019.

- Laser light - Do not stare into beam or view directly with optical instruments. Do not point laser light at others. Laser light can cause eye damage.

WORK AREA SAFETY

• Ensure adequate safeguards at the work s (e.g. surveying site when measuring on roads, construction sites, etc.).
• Avoid dangerous environments. Avoid extended exposure to rain, snow, damp or wet locations. Do not use in the presence of explosive atmospheres (gaseous fumes, dust or flammable materials).

PERSONAL SAFETY

• Do not allow persons unfamiliar with the tool, these safety instructions, and the tool's operator's manual to operate the tool. This tool can be dangerous in the hands of untrained users.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the tool in unexpected situations.

BATTERY TOOL USE AND CARE

- Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

- Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

- Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265^ (130°C) may cause explosion.
• Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
• STORE YOUR BATTERY AND TOOL in a cool, dry place. Do not store battery where temperatures may exceed 120^ (50°C) such as in direct sunlight, a vehicle or metal building during the summer.

SPECIFIC SAFETY RULES FOR LASER LEVELS

- Watch out for erroneous results if the tool is defective or if it has been dropped, misused or modified.

- Do not dispose of tool or batteries together with household waste material! Tool and batteries that have reached the end of their life must be collected separately and returned to an environmentally compatible recycling facility.

- Ensure tool magnets are securely mounted to a metal surface. Magnet strength may not hold on thin metal surfaces, causing the tool to fall.

- Always use common sense and be cautious when using tools. It is not possible to anticipate every situation that could result in a dangerous outcome. Do not use this tool if you do not understand these operating instructions or you feel the work is beyond your capability; contact Milwaukee Tool or a trained professional for additional information or training.

- Maintain labels and nameplates. These carry important information. If unreadable or missing, contact MILWAUKEE for a free replacement.

- The device conforms to the most stringent requirements of the relevant Electromagnetic Compatibility (EMC) Standards and Regulations. Yet, the possibility of causing interference in other devices cannot be totally excluded.

* CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

- Be sure to power off instrument after use. When instrument will not be used for a long period, place it in storage after removing batteries.

Federal Communications Commission

WARNING

Changes or modifications to this unit not expressly ap-

proved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Consult the dealer or an experienced radio/TV technician for help.

SPECIFICATIONS

Cat. No....3632-20

Volts.... 12 DC

Battery Type M12™

Charger Type....M12™

Laser....Class 2

Max Power.... P_AVG ≤ 8 mW

Frequency....10 KHz

Pulse Duration Normal Mode .... T _p ≤ 80 μs

Pulse Duration Power Save.... T _p ≤ 50 μs

Wavelength.... 510-530 nm

Beam Divergence....3 rad

Storage Temp....-4°F to 120°F

Working Range....125

Range with Detector....165'

Accuracy....±1/8" @ 33'

Settle Time .... < 3 Seconds

Tripod Mount 1/4"-20, 5/8"-11

Ingress Protection.... IP54

Drop Rating 1 m

Leveling ....Auto ±°4 side to side, front to back

Recommended Ambient

Operating Temperature 14°F to 104°F

SYMBOLOGY

Direct Current

LASER RADIATION DO NOT STARE INTO BEAM PRODUCT

Magnets

Read operator's manual

FUNCTIONAL DESCRIPTION

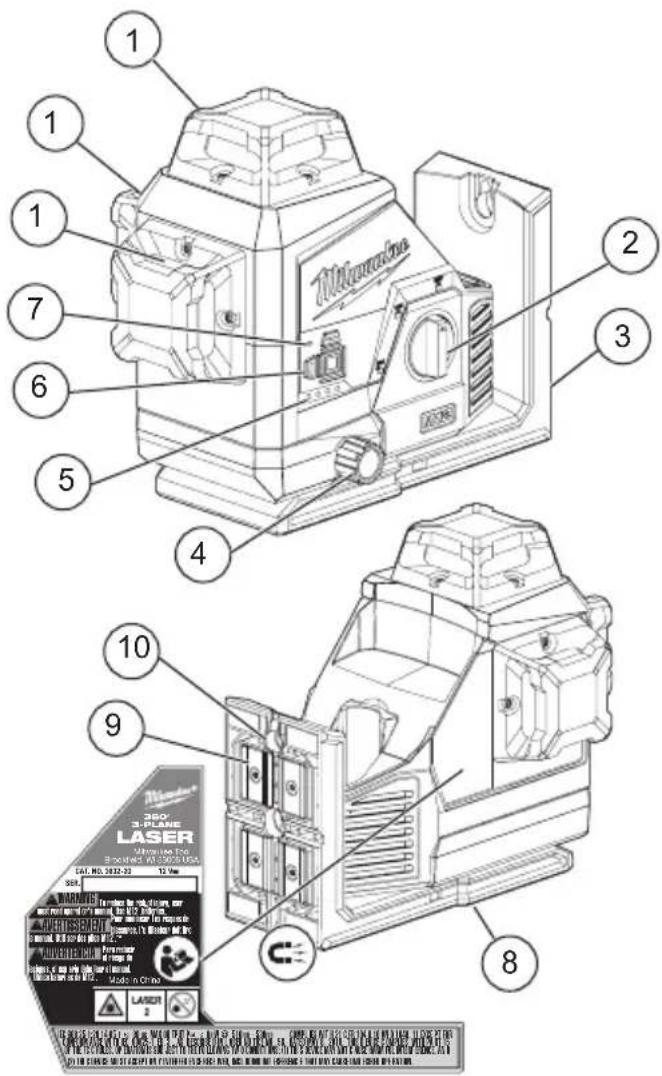

1. Laser apertures
2. On/Off dial
3. Pivot Bracket
4. Micro adjust

5. Fuel gauge

6. Plane selector buttons

7. Power on indicator
8. Threaded inserts
9. Magnets
10. Nail/Screw hole

1 2 3 4 5 6 7 8 9 10 Laser 2 3 Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser Laser

WARNING

Recharge only with the charger specified for the battery. For spe-ng instructions, read the operator's lied with your charger and battery.

Removing/Inserting the Battery

To remove the battery, push in the release buttons and pull the battery pack away from the tool.

WARNING

Always remove battery pack before changing or removing accessories.

To insert the battery, slide the pack into the body of the tool. Make sure it latches securely into place.

WARNING

Only use accessories specifically recommended for this tool. Others dous.

Power Save

Use power save mode to extend the battery run time. Power save mode is indicated by dimmed laser beams and the Power ON indicator pulsing. Visual range is decreased in power save mode. To turn power save mode ON or OFF, press and hold any plane selector button for 3 seconds. The tool will automatically switch to power save mode if less than 7% of battery charge remains.

Fuel Gauge

To determine the amount of charge left in the battery, turn the tool ON. The Fuel Gauge will light up for 2-3 seconds. When less than 10% of charge is left, 1 light on the fuel gauge will flash 4 times.

To signal the end of charge, 1 light on the fuel gauge will flash 8 times and the tool will not run. Charge the battery pack.

If the battery becomes too hot, the fuel gauge lights will flash and the tool will not run. Allow the battery to cool down.

*When automatically switched to power save mode due to low battery, the tool cannot be switched back to normal mode until the battery is charged/replaced.

WARNING

To reduce the risk of injury or damage, securely mount/attach the starting an operation. Injury/damage the laser falls.

Mounting/Adjusting the Laser Level

The pivot bracket can be used to mount the laser level in multiple ways:

• Use the embedded magnets to secure the laser level to steel studs, steel beams, etc.
• Use the keyhole slot to hang the laser level on the wall with a nail or screw.
• Set the laser level on a flat surface.
• Position the laser and/or wall mount on a stable surface.
• Use the 1/4"-20 or 5/8"-11 threaded insert to mount on a tripod.
• Once the level is mounted, use the micro adjustment knobs to fine tune the vertical lines.

WARNING

To reduce the risk of injury or temporary effects on vision, do not into the laser when it is on.

look directly

Use of controls or adjustments or performance of procedures other specified herein may result in hazard-exposure.

NOTICE

Perform the Accuracy Field Check procedure immediately upon unboxing new Laser Level and before exposure to conditions. See "Accuracy Field Check" nation.

Turning On/Off

To turn on the laser and unlock the pendulum, rotate the On/Off dial to the desired position. The remaining battery life will be displayed. WARNING! Do not look directly into laser apertures. Power on indicator will display, and horizontal level line will immediately be emitted from aperture in the laser housing.

ON

Turns ON the laser and unlocks the pendulum to enable self-leveling.

ON

Turns ON the laser but does not unlock the pendulum (self leveling is disabled). The laser lines will flash once every 8 seconds to indicate that the projected lines are not level or plumb.

NOTICE: The ON mode disables self-leveling and therefore is not intended for projecting a level or plumb line.

OFF

Turns OFF the laser and locks the pendulum. When not in use, turn off the tool and store the Laser Level in the protective carrying case.

Use the PLANE SELECTOR buttons to turn on/off individual planes. Default is horizontal or last used plane(s).

Horizontal plane

Front vertical plane

Side vertical plane

3 lasers blink rapidly when all planes are turned off, laser is ON, unlocked and tilted.

Using the Laser Level

1. For best results, place the tool on a work surface that is:

2. sturdy
   • level (within 4 degrees of true level)

3. free of vibrations

4. 90^ to the work area

5. Turn on the tool and press the desired Plane Selector button(s).

6. The tool will self-level when placed on surfaces within 4 degrees of true level when dial is unlocked and on.
7. The tool is ready once the emitted lines are continuous and no longer moving on the work surface.
8. If the tool cannot achieve a level state (i.e., the work surface is > 4 degrees off true level), the laser points will flash rapidly (3 flashes per second). Relocate or adjust the work surface.

Troubleshooting

If the tool does not turn on:

• Ensure battery is installed properly. Fuel gauge should indicate remaining charge when correctly installed.
• Ensure battery is charged.
• Ensure the tool's internal temperature is within specified operating ranges. If stored in excessive heat or cold, allow at least 2 hours to acclimate to ambient temperature before turning on the tool. If problem persists, please contact a MILWAUKEE service facility for support.

ACCURACY FIELD CHECK

NOTICE Perform the Accuracy Field Check procedure immediately upon unboxing of each new Laser Level and before exposure to jobsite conditions. See "Accuracy Field Check" for information. Should any deviation from listed product accuracy be found, please contact a MILWAUKEE service facility. Failure to do so could result in rejection of warranty claim.

Influences on Accuracy

Ambient temperature gradients can impact laser accuracy. For accurate and repeatable results, the following procedure should be conducted with the laser elevated off the ground and placed in the center of the working area.

Abusive treatment of the Laser Level, such as excessive impacts from drop, can also lead to deviations in product accuracy.

Therefore, it is recommended to conduct the Field Check procedure after any impact or before completing any critical jobs.

Horizontal Height Accuracy

A free measuring distance of approximately 66' on a firm surface between two walls or structures A and B is required for this check.

It is also suggested to mount the Laser Level to a Tripod for easy adjustment.

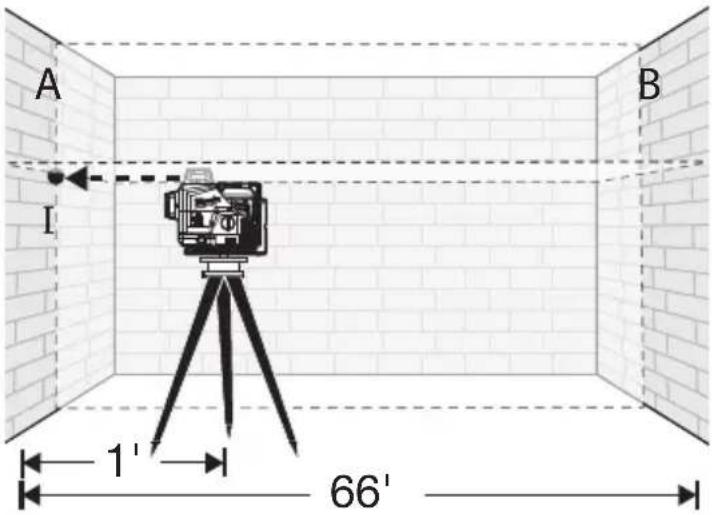

1. Securely mount the tool within 1' of wall A.

A B I 1' 66'

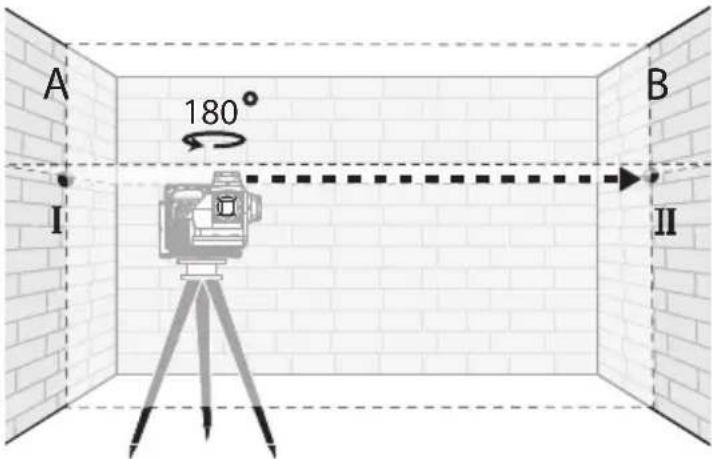

1. Turn the tool to ON. Turn on Horizontal Plane and Side Vertical Plane.
2. Direct the front laser beams against the nearest wall A and allow to self-level. Mark the center of where the horizontal and vertical lines cross on the wall (point I).
3. Rotate the tool 180^ without changing the height, allow it to self-level, and mark the center of where the horizontal and vertical lines cross on the opposite wall B (point II).

A 180° I B II

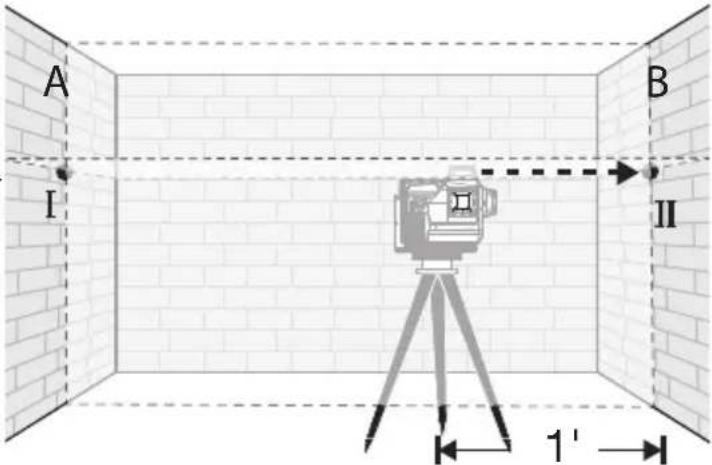

1. Move the tool within 1' of wall B. Turn the tool to ON. Turn on Horizontal Plane and Side Vertical Plane. Align intersection of the horizontal and vertical lines in the general direction of point II on wall B.

A I B II 1' 1

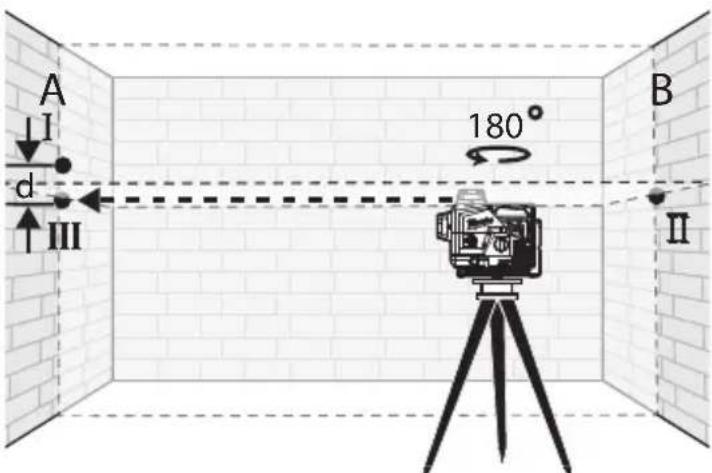

1. Adjust the height of the tool (using the tripod or by adding shims, if required) such that the intersection of the vertical and horizontal lines are projected exactly against the previously marked point II on wall B. Allow the tool to self-level.
2. Rotate the tool 180° without changing the height, allow it to self-level, and mark the intersection of the laser lines on wall A (point III). Point III should be aligned as vertically above or below point I on wall A as possible.

A ↓ d III 180° B II

1. The distance between points I and III on wall A is the height deviation (d) of the tool. This distance should not exceed 1/8" (max.) at 33' (1/2" at 132'). For the Measuring distance of 2 x 66' = 132', the maximum allowable deviation (d) is: 132' x ±1/8" ÷ 33' = ±1/2".

Vertical Leveling Accuracy

A door opening with approximately 8' of space on each side of the opening is required for this check.

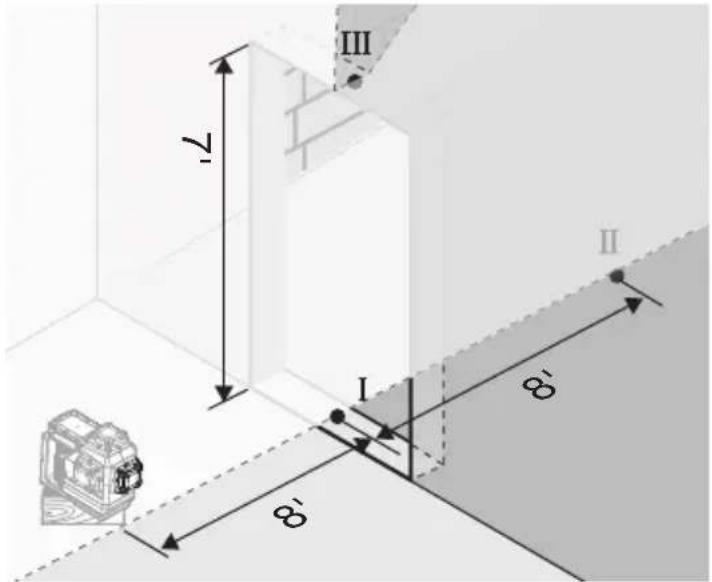

1. Securely mount the tool 8' from one side of the door opening.
2. Turn the tool to ON. Turn on one Vertical Plane.
3. Position the tool with the laser line towards the door opening. Allow the tool to self-level.
4. Mark the center of the vertical laser line on the floor in the middle of the door opening (point I), at a distance of 8' beyond the door opening (point II), and at the upper edge of the door opening (point III).

Ⅲ 7 Ⅱ I 8' 8'

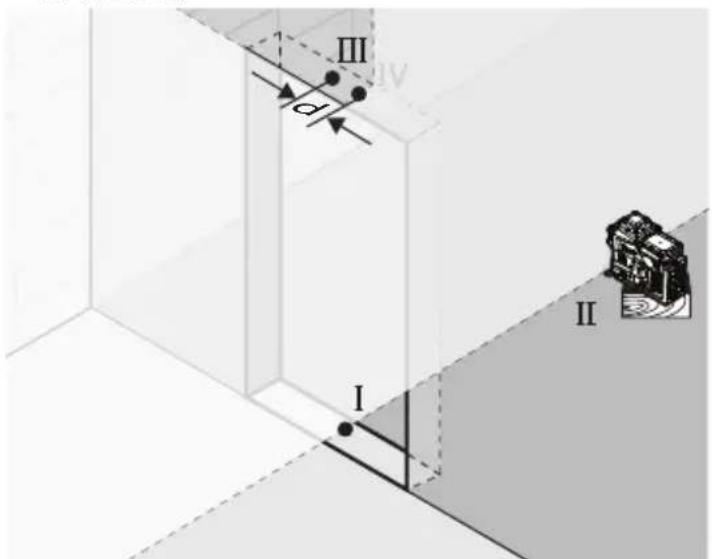

1. Move the laser level directly behind point II on the other side of the door. Align the same vertical laser line so the center is directly aligned with points I and II.
2. Mark the center of the vertical line at the upper edge of the door opening (point IV).
3. Measure the height of the door opening.
4. The distance between points III and IV on the upper door opening is the vertical deviation (d) of the tool.

III d I II

1. The maximum vertical deviation (d) is: dmax = 2X H (door opening) x ±1/8" ÷ 33'

Example: for a door opening height of 7', the maximum permitted deviation (d) is: dmax = 2 x 7' x ±1/8" ÷ 33' = ±0.05"

Therefore, the measurement between points III and IV on the upper door opening should not exceed 0.05" in a 7' doorway.

1. Repeat process with other Vertical Plane.

MAINTENANCE

⚠ WARNING To reduce the risk of injury, always remove the battery before performing any maintenance. Never disassemble the tool.

Maintain Laser Level

Maintain tools. If damaged, have the tool repaired before use. Accidents may be caused by poorly maintained tools.

⚠ WARNING To reduce the risk of personal injury and damage, never immerse your tool in liquid or allow a liquid to flow inside them.

Cleaning

Clean dust and debris from any vents. Keep tool clean, dry and free of oil or grease. Use only mild soap and a damp cloth to clean, since certain cleaning agents and solvents are harmful to plastics and other insulated parts. Some of these include gasoline, turpentine, lacquer thinner, paint thinner, chlorinated cleaning solvents, ammonia and household detergents containing ammonia. Never use flammable or combustible solvents around tools.

Cleaning the Lenses

Blow off loose particles with clean compressed air. Carefully wipe the surface with a cotton swab moistened with water.

Repairs

For repairs, return the tool, battery pack and charger to the nearest authorized service center.

ACCESSORIES

AWARNING Use tools only with specifically designated accessories. Use of any other accessories may create risk of injury.

SERVICE - UNITED STATES

1-800-SAWDUST (1.800.729.3878)

Monday-Friday, 7:00 AM - 6:30 PM CST or visit www.milwaukeeetool.com

Contact Corporate After Sales Service Technical Support with technical, service/repair, or warranty questions.

Email: [e-mail]

Become a Heavy Duty Club Member at www.milwaukeeetool.com to receive important notifications regarding your tool purchases.

SERVICE - CANADA

Milwaukee Tool (Canada) Ltd 1.800.268.4015

Monday-Friday, 7:00 AM - 4:30 PM CST or visit www.milwaukeeetool.ca

LIMITEDWARRANTY USA&CANADA

Every MILWAUKEE power tool* (see exceptions below) is warranted to the original purchaser only to be free from defects in material and workmanship. Subject to certain exceptions, MILWAUKEE will repair or replace any part on an electric power tool which, after examination, is determined by MILWAUKEE to be defective in material or workmanship for a period of five (5) years** after the date of purchase unless otherwise noted. Return of the power tool to a MILWAUKEE factory Service Center location or MILWAUKEE Authorized Service Station, freight prepaid and insured, is required. A copy of the proof of purchase should be included with the return product. This warranty does not apply to damage that MILWAUKEE determines to be from repairs made or attempted by anyone other than MILWAUKEE authorized personnel, misuse, alterations, abuse, normal wear and tear, lack of maintenance, or accidents.

Normal Wear: Many power tools need periodic parts replacement and service to achieve best performance. This warranty does not cover repair when normal use has exhausted the life of a part including, but not limited to, chucks, brushes, cords, saw shoes, blade clamps, o-rings, seals, bumpers, driver blades, pistons, strikers, lifters, and bumper cover washers.

*This warranty does not cover Air Nailers & Staplers; Airless Paint Sprayer; Cordless Battery Packs; Gasoline Driven Portable Power Generators; Hand Tools; Hoist – Electric, Lever & Hand Chain; M12™ Heat- ed Gear; Reconditioned Product; and Test & Measurement Products. There are separate and distinct warranties available for these products. **The warranty period for Job Site Radios, M12™ Power Port, M18™ Power Source, Jobsite Fan and Trade Titan™ Industrial Work Carts is one (1) year from the date of purchase. The warranty period for the M18 FUEL™ 1" D-Handle High Torque Impact Wrenches, Drain Cleaning Cables, AIRSNAKE™ Drain Cleaning Air Gun Accessories, REDLITHIUM™ USB Laser Levels, TRAPSNAKE™ 25' Auger w/ CABLE DRIVE™, FORCE LOGIC™ Press Tool Accessories and Green Cross Line Laser is two (2) years from the date of purchase. The warranty period for the M18™ Compact Heat Gun, 8 Gallon Dust Extractor, M18™ Framing Nailers, M18 FUEL™ 1/2" Ext. Anvil Controlled Torque Impact Wrench w/ ONE-KEY™, M18 FUEL™ 1" High Torque Impact Wrench w/ ONE-KEY™, M18 FUEL™ 2 Gal. Compact Quiet Compressor, M12™ Laser Levels, 165' Laser Detector, M12™ 23GA Pin Nailer, M18 FUEL™ 1/4" Blind Rivet Tool w/ ONE-KEY™, M12 FUEL™ Low Speed Tire Buffer, M18 FUEL™ Random Orbital Polish- ers, M18™ Utility Fencing Stapler, and the 72" Laser Tripod is three (3) years from the date of purchase. The warranty period for the LED in the LED Work Light and the LED Upgrade Bulb for the Work Light is the lifetime of the product subject to the limitations above. If during normal use the LED or LED Bulb fails, the part will be replaced free of charge. Warranty Registration is not necessary to obtain the applicable warranty on a MILWAUKEE power tool product. The manufacturing date of the product will be used to determine the warranty period if no proof of purchase is provided at the time warranty service is requested. ACCEPTANCE OF THE EXCLUSIVE REPAIR AND REPLACEMENT REMEDIES DESCRIBED HEREIN IS A CONDITION OF THE CON-TRACT FOR THE PURCHASE OF EVERY MILWAUKEE PRODUCT. IF YOU DO NOT AGREE TO THIS CONDITION, YOU SHOULD NOT PURCHASE THE PRODUCT. IN NO EVENT SHALL MILWAUKEE BE LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL OR PUNITIVE DAMAGES, OR FOR ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A CONSE-QUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING, BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS. SOME STATES DO NOT ALLOW THE EX-CLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THIS WARRANTY IS EXCLUSIVE AND IN LIEU OF ALL OTHER EXPRESS WARRANTIES, WRITTEN OR ORAL. TO THE EXTENT PERMITTED BY LAW, MILWAUKEE DISCLAIMS ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR USE OR PURPOSE; TO THE EXTENT SUCH DISCLAIMER IS NOT PERMITTED BY LAW, SUCH IMPLIED WAR- RANTIES ARE LIMITED TO THE DURATION OF THE APPLICABLE EXPRESS WARRANTY AS DESCRIBED ABOVE. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WAR- RANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU, THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

This warranty applies to product sold in the U.S.A. and Canada only. Please consult the 'Service Center Search' in the Parts & Service section of MILWAUKEE's website www.milwaukeeetool.com or call 1.800.SAWDUST (1.800.729.3878) to locate your nearest service facility for warranty and non-warranty service on a Milwaukee electric power tool.
