USER MANUAL CLUB2810IP AFX

WITH Pixel Group Control - IP65

PROJECTEUR PAR A LED RGBW 28 X 10W AVEC

CONTROLE PAR QUARTIERS - IP65

LED PAR STRAHLER 28 X 10W RGBW

Download the manual in other languages

Designed by LOTRONIC S.A.

Rue F. Englert 17·Bt 2

B-1480 Tubize

CONNECTORS (fig. 1)

DISPLAY (fig. 2)

INSTALLATION DIAGRAM (fig. 3) FIXTURE LINKING (fig. 4)

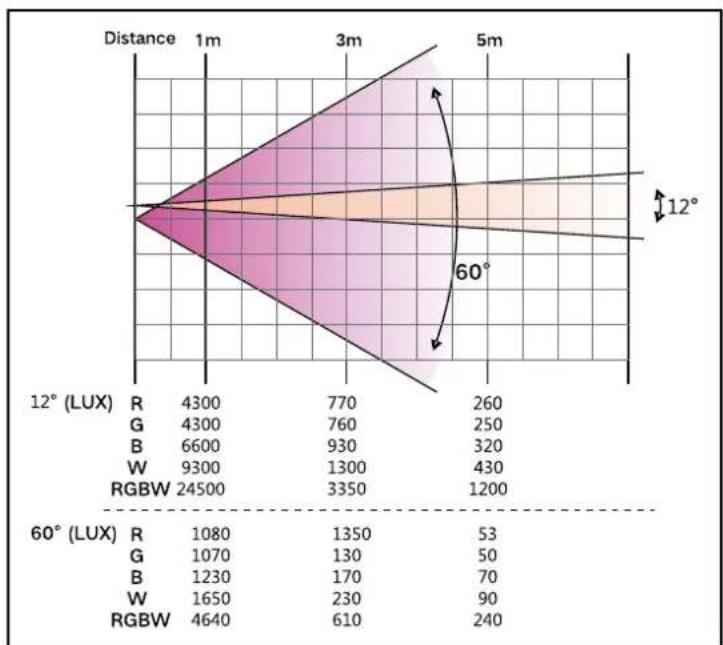

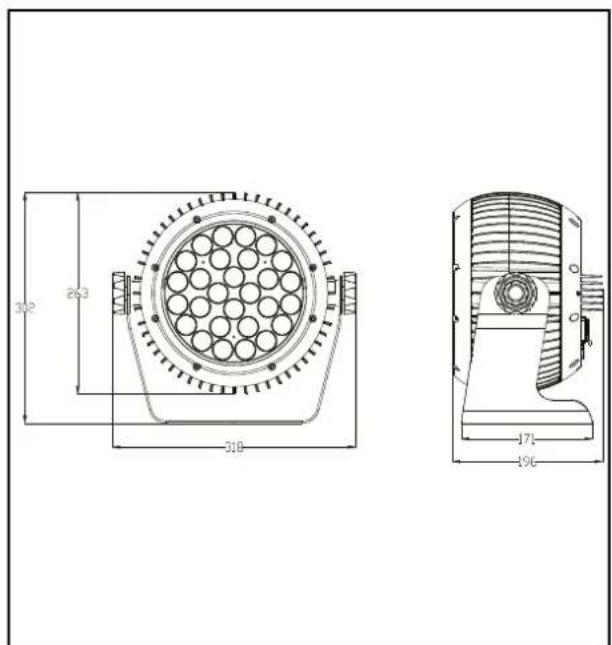

PHOTOMETRIC DIAGRAM (fig. 5) DIMENSIONS (fig. 6)

DMX CHANNELS

CH13	CH29
1	1		Dimmer
		0..255	Dimmer 0%...100%
2	2		Shutter
		0..31	Shutter closed
		32..63	shutter open
		64..95	Strobe effect slow to fast
		96..127	shutter open
		128..159	Pulse-effect in sequences slow to fast
		160..191	shutter open
		192..223	Random strobe effect slow to fast
		224..255	shutter open
3	3		Red
		0..255	0-100% Red dimmer from dark to bright
4	4		Green
		0..255	0-100% Green dimmer from dark to bright
5	5		Blue
		0..255	0-100% Blue dimmer from dark to bright
6	6		White
		0..255	0-100% White dimmer from dark to bright
7	7		Focus
		0..255	In(near) to out(far)
	8		Red1
		0..255	Red in pixel 1 saturation control (0-100%)
	9		Green1
		0..255	Red in pixel 1 saturation control (0-100%)
	10		Blue1
		0..255	Red in pixel 1 saturation control (0-100%)
	11		White1
		0..255	Red in pixel 1 saturation control (0-100%)
	12		Red2
		0..255	Red in pixel 2 saturation control (0-100%)
	13		Green2
		0..255	Red in pixel 2 saturation control (0-100%)
	14		Blue2
		0..255	Red in pixel 2 saturation control (0-100%)
	15		White2
		0..255	Red in pixel 2 saturation control (0-100%)
	16		Red3
		0..255	Red in pixel 3 saturation control (0-100%)
	17		Green3
		0..255	Red in pixel 3 saturation control (0-100%)
	18		Blue3
		0..255	Red in pixel 3 saturation control (0-100%)
	19		White3
		0..255	Red in pixel 3 saturation control (0-100%)
	20		Red4
		0..255	Red in pixel 4 saturation control (0-100%)
	21		Green4
		0..255	Red in pixel 4 saturation control (0-100%)
	22		Blue4
		0..255	Red in pixel 4 saturation control (0-100%)
	23		White4
		0..255	Red in pixel 4 saturation control (0-100%)
8	24		Macro Color
		0..15	No Function
		16..31	Red
		32..47	Green
		48..63	Blue
		64..79	White
		80..95	Red+Green
		96..111	Red+Blue
		112..127	Red+White
		128..143	Green+Blue
		144..159	Green+White
		160..175	Blue+Wtihe
		176..191	R+G+B
		192..207	R+G+B+W
		208..212	2700K
		213..217	3200K
		218..222	3500K
		223..227	5000K
		228..232	5500K
		233..237	6000K
		238..242	6500K
		243..247	7000K
		248..255	8000K
9	25		Color Temp
		0..15	No Function
		16..45	Below 3200K
		46..75	3200K - 3500K
		76..105	3500K - 5000K
		106..135	5000K - 5500K
		136..165	5500K - 6000K
		166..195	6000K - 6500K
		196..225	6500K - 7000K
		226..255	7000K - 8000K
10	26		Macro RUN
		0..15	No function
		16..31	Macro Run 1
		32..47	Macro Run 2
		48..63	Macro Run 3
		64..79	Macro Run 4
		80..95	Macro Run 5
		96..111	Macro Run 6
		112..127	Macro Run 7
		128..143	Macro Run 8
		144..159	Macro Sound 1
		160..175	Macro Sound 2
		176..191	Macro Sound 3
		192..207	Macro Sound 4
		208..223	Macro Sound 5
		224..239	Macro Sound 6
		240..255	Macro Sound 7
11	27		Macro Speed
		0..255	Macro Speed from Slow To Fast
12	28		Dynamic Rotate
		0..15	No function
		16..31	Dynamic Rotate 1
		32..47	Dynamic Rotate 2
		48..63	Dynamic Rotate 3
		64..79	Dynamic Rotate 4
		80..95	Dynamic Rotate 5
		96..111	Dynamic Rotate 6
		112..127	Dynamic Rotate 7
		128..143	Dynamic Rotate 8
		144..159	Dynamic Rotate 9
		160..175	Dynamic Rotate 10
		176..191	Dynamic Rotate 11
		192..207	Dynamic Rotate 12
		208..223	Dynamic Rotate 13
		224..239	Dynamic Rotate 14
		240..255	Dynamic Rotate 15
13	29		Dynamic Rotate Speed
		0..255	from Slow To Fast

USER MANUAL

FEATURES

• Waterproof to IP65
  28x10W RGBW LED
  13/29 DMX channels
• Smooth electronic linear zoom 12 - 60^
  CTB & CTO, linear colour temperature adjustment from 2800-8000oK
• Strobe & pulse strobe effect
• Auto, DMX, master-slave, music and remote controlled operation
  Powercon in-/outputs
• IR remote control included

EXPLANATION OF SYMBOLS

The triangle containing a lightning symbol is used to indicate whenever your health is at risk (due to electrocution, for example).

An exclamation mark in a triangle indicates particular risks in handling or operating the appliance.

The unit complies with UK standards.

Protection class I. Requires an earth connection

Minimum distance between the appliance and other objects

Don't stare into the light beam

CAUTION DO NOT OPEN THE HOUSING SHOCK HAZARD

SAFETY RECOMMENDATIONS

• Please read these instructions carefully, they include important information about the installation, usage and maintenance of this product.
• Please keep this User Guide for future reference.
• Always make sure that you are connecting to the proper voltage, and that the line voltage you are connecting to is not higher than that stated on the bottom of the fixture.
• The appliance is part of class I and must exclusively connected to an earthed mains outlet.
• Make sure there are no flammable materials close to the unit while operating.
• The unit must be installed in a location with adequate ventilation, at least 20in (50cm) from adjacent surfaces. Be sure that no ventilation slots are blocked.
• The minimum distance luminaire from that part of the luminaire or lamp to the lighted object is 0.5m .
• The max. ambient temperature (Ta) is 40^ . Don't operate the fixture at higher temperatures.
• The surface temperature of the unit may reach up to 85^ . DO NOT TOUCH the housing bare-hand during its operation. Turn off the power and allow about 20 minutes for the unit to cool down before replacing or servicing.
• DO NOT OPEN the unit within 5 minutes after switching off.

• In the event of a serious operating problem, stop using the unit immediately. Never try to repair the unit by yourself. Repairs carried out by unskilled people can lead to damage or malfunction. Please contact the nearest authorized technical assistance center. Always use the same type of spare parts.

• Make sure the power cord is never crimped or damaged.

• Avoid direct eye exposure to the light source while it is on as sensitive persons may suffer an epileptic shock (especially meant for epileptics)!
  The product is for decorative purposes only and not suitable as a household room illumination.
• If the external flexible cable or cord of this luminaire is damaged, it shall be exclusively replaced by the manufacturer or his service agent or a similar qualified person in order to avoid a hazard
• The lenses, housing or ultraviolet filter must be replaced if they are visibly damaged.
• Please note that the lamp of this device cannot be replaced. If the lamp is faulty, the unit must be discarded

DISCONNECT DEVICE

Please note that the unit DOES NOT have an ON/OFF switch. Please unplug the unit to remove complete the power from the internal circuits before cleaning or servicing. Therefore, the disconnect device shall remain readily accessible.

FUSE REPLACEMENT

Disconnect the power cord before replacing a fuse and always replace with the same type fuse.

With a screwdriver wedge the fuse holder out of its housing.

Remove the damaged fuse from its holder and replace with exactly the same type of fuse.

Insert the fuse holder back in its place and reconnect power.

Warning: If after replacing the fuse you continue to blow fuses, STOP using the unit. Contact customer support for further instructions. Continuing to use the unit may cause serious damage.

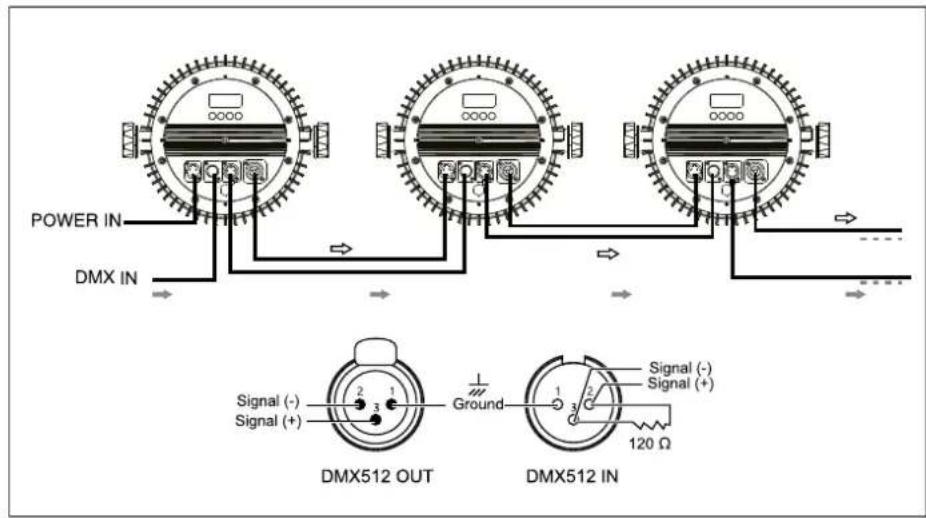

FIXTURE LINKING (FIG4)

You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all fixtures on a serial data link determines the number of fixtures that the data link can support.

Important: Fixtures on a serial/data link must be daisy chained in one single line.

DATA CABLING

To link fixtures together you must use data cables. If you choose to create your own cable, please use data-grade cables that can carry a high quality signal and are less prone to electromagnetic interference.

DMX CONNECTOR CONFIGURATION

Termination reduces signal errors. To avoid signal transmission problems and interference, it is always advisable to connect a DMX signal terminator.

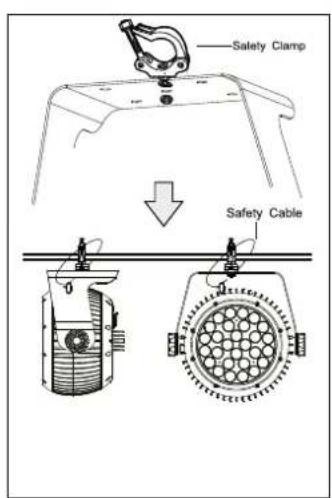

INSTALLATION (FIG.3)

The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. Always ensure that the structure to which you are attaching the unit is secure and is able to support a weight of 10 times of the unit's weight.

The installation must always be secured with a secondary safety attachment, e.g. an appropriate safety rope. Never stand directly below the device when mounting, removing or servicing the fixture. This fixture may be mounted in any position provided there is adequate room for ventilation.

POWERLINK

Connect a POWERCON cable from the POWER OUT connector of the 1st unit to the POWER IN connector of the second unit, etc.

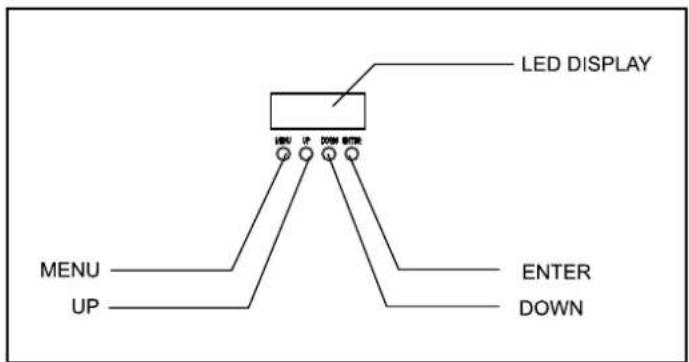

CONTROL PANEL (FIG. 2)

To access the main menu press the MENU button. Press the UP or DOWN buttons until you reach function you wish to change. When you reach the function you wish to change, press the ENTER button. When a function is selected, use the UP or DOWN buttons to change the function settings. Once your changes are made, press the ENTER button.

Check the following function table :

MENU DESCRIPTION
RUN MODE	ADDR	VALU A00	1~A XXX (AXXX) DMX address setting
		SLAV Slave setting
	AUTO	Program1	ALON /(AU-A)	SP_1~SP_5(Speed)	Auto-run (alone)
		... Program8	MAST /AU-M)		Auto-run (Master)
	SOUN Program1-7		ALONE Sound control (alone)
			MASTER Sound control (Master)
SET	MIC M-00-99% Mic sensitivity setting
	LOAD ON/OFF Reload data
	VERSION V-2.0 Software version
	CAL	Code (password: 088) Input password
		CH03-CH06 Calibration
DMX	CH13				13CH
	CH29				29CH
REST	ON/OFF				Reset to factory default
MANU	RXXX	000-255			Red dimmer
	GXXX	000-255			Green dimmer
	BXXX	000-255			Blue dimmer
	WXXX	000-255			White dimmer
	FOCU 000-255		Manual ZOOM control
TEMP TXXX			Current temperature

DMX channel chart: please refer to page 3-5

IR REMOTE CONTROLLER

Please operate the remote control within a distance of 6m and 30^ between the remote and the appliance. Aim the remote at the sensor. Remove all obstacles between the remote and the sensor. The remote control might not work properly if the sensor is exposed to strong sunshine.

If the remote control doesn't work properly, please check the batteries.

INSTALLING THE BATTERIES IN THE REMOTE CONTROL

• Place the remote face down on a flat surface.
• Push the compartment cover into the direction of the arrow.
• Slide the battery compartment open.
• Remove the old battery and install the new one (CR2025) with the plus (+) symbol facing up.
  Gently slide the battery compartment closed. It locks automatically.

RECOMMENDATIONS FOR BATTERIES

This symbol indicates that used batteries should not be disposed of with household waste but deposed correctly in accordance with your local regulations..

Batteries shall not be exposed to excessive heat such as sunshine, fire or the like.

When the internal batteries are not to be used, remove them to avoid damage caused by battery leakage or corrosion.

ATTENTION: Danger of explosion if battery is incorrectly placed. Only replace by the same or equivalent type.

WARNING : Do not swallow the battery. Danger of chemical burns. Keep new and old batteries out of the reach of children.

If the battery compartment doesn't close properly, stop using the product and keep it out of the reach of children.

If you are in doubt whether the batteries have been swallowed or introduced into any other part of the body, contact immediately a doctor.

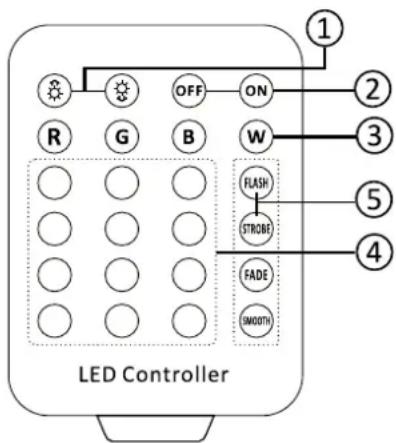

REMOTE CONTROL

NOTE: PLEASE SET THE UNIT TO MODE -> ADDR, OTHERWISE THE REMOTE CONTROL WILL NOT WORK

1. BRIGHTNESS & SPEED adjustment: Press brightness and speed in programme mode

or to set the

1. ON/OFF of the LEDs.
2. SELECT BASIC COLOR:

R:Red
G:Green
B:Blue
W:White

1. COLOUR BUTTONS: For constant lighting of one colour, press the corresponding button.
2. SELECT AN INTERNAL PROGRAMME

FLASH:Colour change
STROBE: Colour strobe
FADE: Colour fade

CLEANING AND USING FREQUENCY OF PRODUCT

Please make sure that the light is power off before dismantling or maintaining, it's very important to keep the light clean. Frequent cleaning will ensure maximum brightness output, but also prolong the life time. It's suggested to use the high quality, professional glass detergent and soft cloth to clean the light. It's not allowed to use alcohol or chemical solvent.

The front objective lens requires weekly cleaning as smoke-fluid tends to build up residues, thus reducing the light output very quickly. The cooling fans should be cleaned monthly.

The inner part of the light should be cleaned by vacuum cleaner or an air-jet at least once a year.

Important! Check the air filters periodically and clean before they become clogged!

Clean the two air filters that are placed in the fixture's covers and two in the fixture's base. Use a vacuum cleaner, compressed air or wash and dry them before they put them back.

After replacing the air filters, reset the elapsed time counter in the menu "Information" (Information -> Air Filters -> Elapsed time.)

When the light doesn't work, please check if the fuse is burnt out or not. If it is, the same fuse should be replaced, find out the faulty and restart the light. But please note the repair must be handled by professional.

TECHNICAL SPECIFICATIONS

Power Supply 90-240V~50/60Hz

Consumption 285W

Light source 28 x 10W RGBW LED

Dimensions 318 x 196 x 263mm

Weight 7.2kg
