QWLSD011 - Screwdriver HOTO - Free user manual and instructions

Product Type	Cordless Electric Screwdriver
Brand	HOTO
Model	QWLSD011
Rated Voltage	3.6 V
Max Torque in Electric Mode	4 N·m
Max Torque in Manual Mode	8 N·m
No-load Speed	220 rpm
Charging Time	Less than 150 minutes
Battery Type	Built-in Lithium-ion
Dimensions (L x W x H)	46.2 x 120.2 x 211 mm
Net Weight	Approx 651.4 g
Operating Temperature	-10°C to 50°C
Storage Temperature	-20°C to 60°C
Charging Port	USB Type-C
Included Bits	24 long bits C6.3 x 25 mm, 1 long bit C6.3 x 50 mm, 1 extension rod 60 mm, flat heads SL4/SL6
Torque Levels	3 levels (I: low, II: medium, III: high)
Lighting	Built-in LED, turns on automatically
Rotation Direction	Forward/Reverse (tightening/loosening)
Maintenance	Clean with a dry cloth; do not immerse in water
Spare Parts	Screwdriver bits (consumables)
Certifications	CE

Frequently Asked Questions - QWLSD011 HOTO

How to turn on the HOTO QWLSD011 screwdriver?

Turn the torque adjustment knob to levels I, II or III, then press the forward/reverse rotation button to start. Release the button to pause.

What to do if the indicator flashes red?

The flashing red indicator means the battery is low (less than 20%). Plug the screwdriver into a suitable charger via the USB Type-C port.

How to charge the screwdriver battery?

Use a USB Type-C cable (not included) connected to a 5V power adapter. Plug the cable into the charging port. The white indicator flashes during charging and stays solid when complete. Charging time is less than 150 minutes.

How to change the rotation direction?

Press the end marked '^' of the forward/reverse rotation button to tighten a screw, and press the 'v' end to remove it.

What are the available torque levels?

The torque adjustment knob offers three levels: I (low torque), II (medium torque) and III (high torque). Turn the knob to select the level suitable for your work.

How to install a screwdriver bit?

Insert the bit (size C6.3 x 25 mm or other compatible) into the bit holder until it clicks. To remove, simply pull it out.

How to open the storage case?

Slide the top cover by pushing its raised part in the direction of the arrow. To close, align the cover with the arrow on the bottom case and place it on the slot; it locks automatically with a magnet.

What accessories are included in the kit?

The kit contains: 24 long bits C6.3 x 25 mm, 1 long bit C6.3 x 50 mm, 1 extension rod 60 mm, flat heads SL4 and SL6, and a storage case.

What to do if the screwdriver does not work after pressing the button?

First check the battery charge: if the indicator flashes red, recharge it. If the battery is full, make sure the torque knob is on I, II or III. If the problem persists, contact after-sales service.

How to clean and maintain the HOTO screwdriver?

Clean the tool with a dry, clean cloth. Do not use water or solvents. The screwdriver bits are consumables and should be replaced if worn. Store the tool in its case away from humidity.

USER MANUAL QWLSD011 HOTO

Read this manual carefully before use, and retain it for future reference.

Thank you for purchasing the HOTO 3.6V Screwdriver Kit.

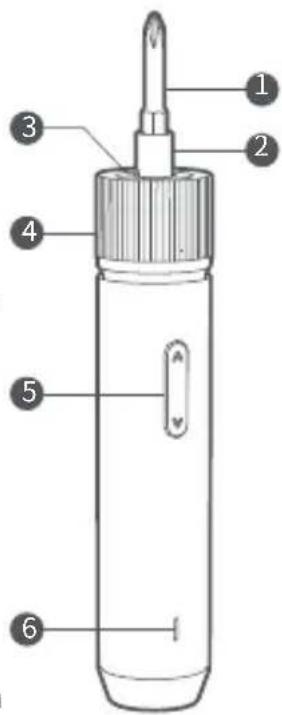

1 Screwdriver Bit

2 Bit Holder

3 Light

Torque Knob

5 Forward/Reverse rotation button

6 Charging Indicator

7 Type-C Charging Port

02 How to Use

Turning the product on/off

• Turn the torque knob to level I, II, or III then press the forward/reverse rotation button to start the screwdriver.
• Release the forward/reverse rotation button to pause the screwdriver.

Turning the light on/off

• The light automatically turns on when the screwdriver is turned on.
- The light will turn off 10 seconds after the forward/reverse rotation button is released.

Forward/Reverse rotation button

• Press the ^end of the rotation button to tighten a screw.
• Press the √ end of the rotation button to remove a screw.

Torque knob

• When the torque knob is set to level I, it is in low torque mode.
• When the torque knob is set to level II, it is in medium torque mode.
• When the torque knob is set to level III, it is in high torque mode.

Indicator status

• If the battery level drops below 20% when the screwdriver is in use, the indicator will blink red quickly, and it will turn off three seconds after the button is released.
• When charging, the indicator will slowly blink white.
• When the battery is fully charged, the indicator will stay white.

This screwdriver is equipped with a universal Type-C charging port.

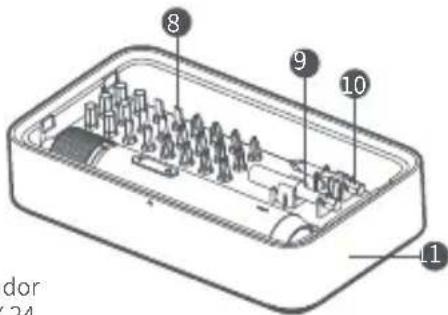

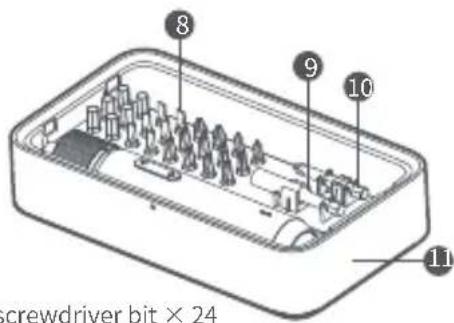

8 C6.3 × 25 mm Long screwdriver bit × 24
9 60 mm Extension rod × 1
10 C6.3 × 50 mm Long screwdriver bit × 1
11 Bottom case
12 Upper cover

Line drawing of a rectangular electronic device with labeled parts (1 and 12), no text or symbols present.

How to open and close the storage box

• Slide the upper cover by pushing its raised part in the direction of the arrow.
  • To use HOTO electric screwdriver kit, rotate the upper cover in the direction of the arrow to open the storage box.
  • After use, store the tool and accessories in the bottom case of the storage box. Align the upper cover with the arrow on the bottom case, place the upper cover on the corresponding slot on the bottom case, and the upper cover will be automatically locked by magnetic absorption.

Simple line drawing of a rectangular object with a small arrow and dimension lines, no text or symbols present.

Line drawing of a rectangular electronic device with internal components and a handle (no text or symbols)

Note: The screwdriver bits are consumables.

04 General Power Tool Safety Warnings

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work Area Safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
• Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
• Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
- Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
- Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
- Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
- If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal Safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
• Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
• Remove any adjusting key or wrench before turning the power tool on. A wrench or a key le attached to a rotating part of the power tool may result in personal injury.
• Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
• Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

Power Tool Use And Care

• Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
• Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
• Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
• Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a hazardous situation.

- Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

Battery tool use and care

• Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
• Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
• When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
• Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
• Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.
• Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.

- Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

Service

- Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

- Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

SAFETY WARNINGS FOR BATTERY PACK

• Do not dismantle, open or shred cells or battery pack.
• Do not expose battery pack to heat or fire. Avoid storage in direct sunlight.
• Do not subject battery pack to mechanical shock.
• In the event of battery leaking, do not allow the liquid to come into contact with the skin or eyes. If contact has been made, wash the affected area with copious amounts of water and seek medical advice.
• Seek medical advice immediately if a cell or battery pack has been swallowed.
• Keep battery pack clean and dry.
• Wipe the battery pack terminals with a clean dry cloth if they become dirty.
• Battery pack needs to be charged before use. Always refer to this instruction and use the correct charging procedure.
• Do not maintain battery pack on charge when not in use.
• After extended periods of storage, it may be necessary to charge and discharge the battery pack several times to obtain maximum performance.
• Battery pack gives its best performance when it is operated at normal room temperature (20 °C ± 5 °C).
• When disposing of battery packs, keep battery packs of different electrochemical systems separate from each other.
• Retain the original product literature for future reference.
• Dispose of properly.

All products bearing this symbol are waste electrical and electronic equipment (WEEE as in directive 2012/19/EU) which should not be mixed with unsorted

household waste. Instead, you should protect human health and the environment by handing over your waste equipment to a designated collection point for the recycling of waste electrical and electronic equipment, appointed by the government or local authorities. Correct disposal and recycling will help prevent potential negative consequences to the environment and human health. Please contact the installer or local authorities for more information about the location as well as terms and conditions of such collection points.

CE

We Shanghai HOTO Technology Co., Ltd., hereby, declares that this equipment is in compliance with the e Directives and European Norms, and amendments.

Federal Communications Commission Supplier's Declaration of Conformity

This supplier's declaration of conformity is hereby for Product: HOTO 3.6V Screwdriver Kit

Model Number(s): QWLSD011

Brand/Trade: HOTO

We declare that the above mentioned device has been tested and found in compliance with CFR 47 Part 15 Regulation.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

Representative of Responsible Party for SDoC

Company: Shanghai HOTO Technology Co., Ltd.

Address: Building 45, No.50 Moganshan Road, Putuo

District, Shanghai, China

Country: China

Telephone No.: 400-021-8696

05 Troubleshooting

Fault

^1 Indicator blinking red when the on/off switch is pressed
2 The product doesn't work after pressing the on/off switch
^3 Bit cannot be installed
4 Battery won't charge

Cause

-1 Low battery power
^2 No battery power
3 Bit size doesn't match the size of the bit holder
4 The USB cable isn't plugged in or specified charging cable isn't being used

Solution

^1 Charge the battery
-2 Charge the battery
-3 Use an appropriate bit
4 Use the specified charging cable; 5 V power adapter needs to be used. Check whether the charging indicator is on.

06 Specifications

Model: QWLSD011
Maximum Torque in Electric Mode: 4 N·m
Maximum Torque in Manual Mode: 8 N·m
Item Dimensions: 46.2 × 120.2 × 211 mm
Main Unit Net Weight: Approx. 651.4 g
Rated Voltage: 3.6 V = 6 A (MAX)
Operating Temperature: 4°C to 40°C
Storage Temperature: -20°C to 60°C
Bit Size: C6.3 × 25 mm
Flat Head: SL4/SL6
Cross Head: PH1/PH2/PH3
Hex: H2/H2.5/H3/H4/H5/H6
Torx: T9/T10/T15/T20/T25
Pozidriv: PZ1/PZ2
Square: S1/S2
Triangular: 2.3
U Shape: 2.6
TW Shape: TW1
C6.3 × 50 mm Long Screwdriver Bit PH2 × 1
60 mm Extension Rod × 1
Rotation per Minute (Unloaded): 220 rpm
Charging Time: < 150 min

Manufacturer: Shanghai HOTO Technology Co., Ltd.

Address: Building 45, No. 50 Moganshan Rd, Putuo District, Shanghai, PRC, 200060.

DECLARATION OF CONFORMITY

EU Declaration of Conformity

We

Shanghai HOTO Technology Co., Ltd.

Declare that the product:

HOTO 3.6V Screwdriver Kit / QWLSD011

Complies with the essential health and safety requirements of the

following directives:

2014/30/EU Electromagnetic Compatibility directive References to

the following harmonized standard were made:

EN55014-1:2021

EN55014-2: 2021

EN 61000-3-2:2019/A1:2021

EN 61000-3-3:2013/A2:2021

20011/65/EU+ (EU) 2015/863 Restrictions of the Use of Certain

Hazardous Substances in Electrical and Electronic Equipment

Authorised signatory and technical file holder:

Shanghai HOTO Technology Co., Ltd.

Building 45, No.50 Moganshan Road, Shanghai, China

DECLARATION OF CONFORMITY

UK Declaration of Conformity

We

Shanghai HOTO Technology Co., Ltd.

Declare that the product:

HOTO 3.6V Screwdriver Kit / QWLSD011

Complies with the essential health and safety requirements of the

following directives:

Electromagnetic Compatibility Regulations 2016 Electromagnetic

Compatibility directive References to the following harmonized

standard were made:

BS EN55014-1: 2021

BS EN55014-2: 2021

BS EN IEC61000-3-2:2019/A1:2021

BS EN IEC61000-3-3:2013/A2:2021

Electronic Equipment Regulations 2012 (S.I. 2012/3032) (as amended)

Restrictions of the Use of Certain Hazardous Substances in

Electrical and Electronic Equipment

Authorised signatory and technical file holder:

Shanghai HOTO Technology Co., Ltd.

Building 45, No.50 Moganshan Road, Shanghai, China

Stay tuned to our social media (@hoto_official)

01 Produktübersicht

Technical line drawing of a rectangular electronic device with labeled components (no text or symbols beyond labels)

• To use HOTO electric screwdriver kit, rotate the upper cover in the direction of the arrow to open the storage box.

Simple line drawing of a rectangular block with a small internal feature and an upward arrow, no text or symbols present.

Diagram of a rectangular device with internal components and a curved arrow indicating rotation (no text or symbols)

Note: The screwdriver bits are consumables.

Note: The screwdriver bits are consumables.

Perilla de Torque

This screwdriver is equipped with a universal Type-C charging port.

8 Puntas de destornillador largas C6.3 x 25 mm X 24
9 Varilla de extensión de 60 mm X
10 Punta de destornillador larga C6.3 X 50 mm X 1
1 Funda inferior
12 Tapa superior

Simple line drawing of a rectangular block with an arrow indicating upward motion (no text or symbols)

Technical line drawing of a mechanical component with internal parts and a curved arrow indicating motion (no text or symbols)

Note: The screwdriver bits are consumables.

04 General Power Tool Safety Warnings

Isometric line drawing of a rectangular electronic device with a labeled component (no text or symbols present)

Simple line drawing of a rectangular object with a curved arrow indicating direction (no text or symbols)

Line drawing of a rectangular device with internal components and a labeled 'r Tool' (no other text or symbols)

03 Conservazione

Sicurezza elettrica

- Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130°C may cause explosion.

Tête cruciforme: PH1/PH2/PH3

Hex: H2/H2.5/H3/H4/H5/H6

Torx: T9/T10/T15/T20/T25

Pozidriv: PZ1/PZ2

Carré: S1/S2

Triangulaire: 2.3

Forme en U: 2.6

Forme en TW: TW1

Embout de tournevis long C6.3 x 50 mm PH2

Molette de couple

Line drawing of a rectangular electronic device with a labeled component (no text or symbols present)

Simple line drawing of a rectangular object with a double-headed arrow indicating upward motion (no text or symbols)

Tête cruciforme: PH1/PH2/PH3

Hex: H2/H2.5/H3/H4/H5/H6

Torx: T9/T10/T15/T20/T25

Pozidriv: PZ1/PZ2

Carré: S1/S2

Triangulaire:2.3

Forme en U: 2.6

Forme en TW: TW1

Embout de tournevis long C6.3 x 50 mm PH2 x 1
