USER MANUAL Silas TL210DD12 TOTO

BEFORE INSTALLATION INCLUDED PARTS Adjustable Wrench Screwdriver Observe all local plumbing codes. Make sure the water supply is shut off. Read these instructions carefully to ensure proper installation. TOTO reserves the right to update product design without notice. Check to make sure you have the following parts indicated below:

• Actual product may vary in appearance depending on model. TL220DD1 shown. Drain Assembly Spout Assembly* Handle Assembly* (2X) Drain Lift Rod* Base Ring and Gasket (Vivian Models Only) Spout Mounting Hardware Valve Hardware Set (2X) Valve Assembly (2X)4 ENGLISH INSTALLATION PROCEDURE - Valves

2. Pass the valve up through the

installation hole. Insert the gasket and fasten the collar to the valve body until it stops.

3. Fixate the valve by threading the

mounting nut up the valve until hand tight. Tighten the retaining screws equally to secure. Do not overtighten!

4. Repeat steps 1-3 for remaining valve.

NOTE: Hoses to connect valve inlets to water supply lines not included. Washer Mounting Nut Gasket Collar Gasket Mounting Screws Washer Mounting Nut Gasket Collar Gasket Mounting Screws INSTALLATION PROCEDURE - Spout

5. Place gasket under spout.

NOTE: If installing a Vivian model, place the gasket under the décor ring and place over mounting hole. Pass the supply hoses and mounting stud through the mounting hole until the spout comes to rest. Spout* Base Ring (Vivian Models Only) Gasket Spout Gasket Collar Mounting Screws Gasket Décor Ring (Vivian models only) Washer(Metal)MountingNutGasket(Rubber)

1. Thread a mounting nut to the bottom

of the valve. Place a washer and gasket as shown. NOTE: the hot water valve has a red marking on side of body. Gasket (Rubber) Washer (Metal) Mounting Nut5 ENGLISH

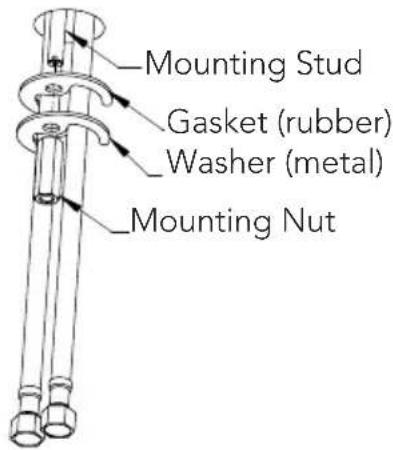

6. Orient the spout as needed. From

below the mounting surface, place the crescent shaped gasket and washer over the mounting stud as shown. Fasten the mounting nut to the stud to secure the spout. Tighten with wrench as needed.

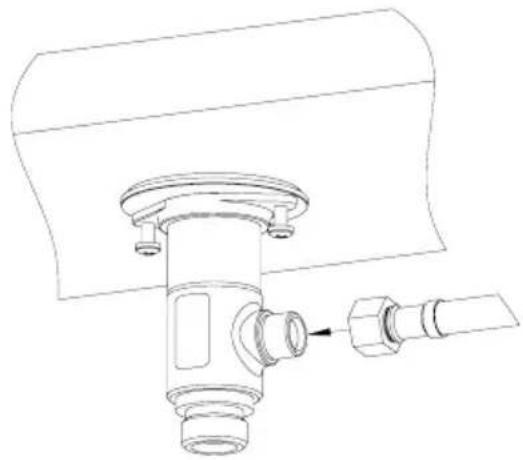

7. Connect each hose to the side port

of each valve. Tighten with wrench. NOTE: If wrapping the hose(s) in a loop is needed, be careful not to crimp the hose at any point as this could restrict the water flow. INSTALLATION PROCEDURE - Handles

8. Orient handle assembly and lower

onto the exposed portion of valve until engaged. Rotate the base (dome) of the handle assembly to fasten it to the valve. Repeat for other handle assembly. NOTE: If handles do not line up exactly as desired, remove handle from valve and reinstall one (1) notch over (on valve). Fine adjustment may be done by slightly rotating valve from underneath installed surface.

9. Insert the drain lift rod through the

opening in the spout. Drain Lift Rod* Drain Lift Rod Handle Assembly* Valve Valve Handle Assembly* INSTALLATION PROCEDURE - Spout Washer (Metal)Gasket (Rubber)Mounting NutMounting Stud Mounting Stud Gasket (rubber) Washer (metal) Mounting Nut6 ENGLISH INSTALLATION PROCEDURE - Drain

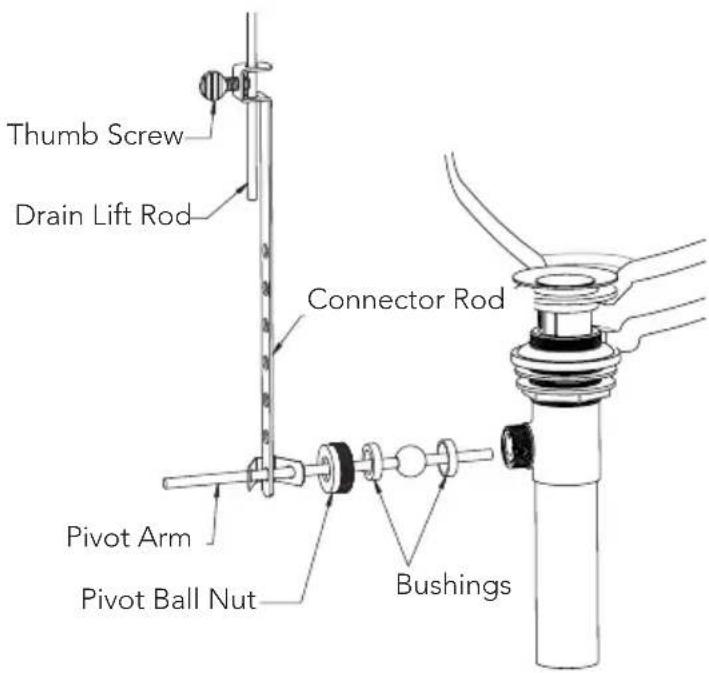

11. Prepare the pivot arm by

placing one bushing on each side of the pivot ball as shown. Insert the short end of the rod into the drain body and through the eyelet hole in the plunger. Fasten the pivot ball nut to secure. Insert the drain lift rod through the two (2) holes in the square end of the connector rod. Slide the connector rod up the drain lift rod to a suitable location so that the pivot arm can pass through one of the mounting holes as shown.

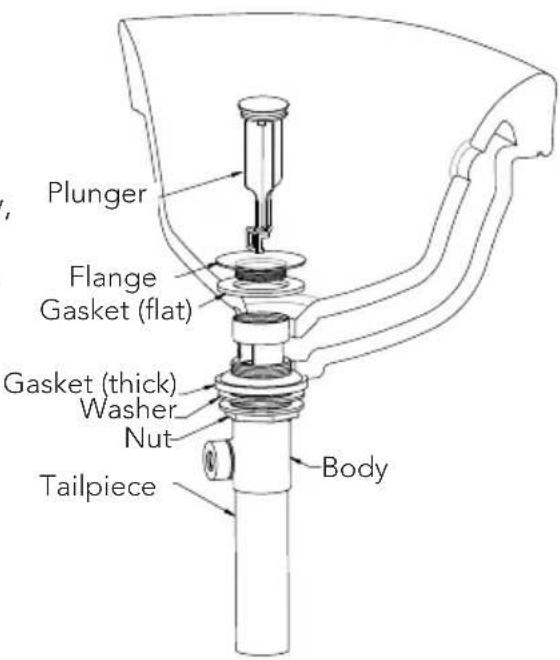

10. Remove the plunger, flange and

gasket (flat) from the drain assembly by unfastening the flange and pulling these parts from the drain. Insert the drain body up through the drain hole from below the lavatory. If necessary, turn the nut and push the washer and gasket (thick) down to allow for clearance. While holding the drain body in place, fasten the flange to the drain body from the top. Ensure that the gasket (flat) is between the flange and the lavatory as shown. Once the flange is fully seated, turn the nut below the lavatory up until a good seal if formed. Do not overtighten! Reinsert the plunger if needed. Secure the connector rod to the pivot arm using the spring clamp. One end of the spring clamp will need to be on the pivot arm before the connector rod is assembled. Tighten the thumb screw in the connector rod to secure it to the drain lift rod. Conduct tests to ensure all the linkages are working properly and no leaking occurs. Adjust if needed. Bushings Pivot Ball Nut Thumb Screw Drain Lift Rod Connector Rod Pivot Arm Plunger Flange Tailpiece Body Nut Washer Gasket (thick) Plunger Flange Gasket (flat) Gasket (thick) Washer Nut Tailpiece Body7 ENGLISH WARRANTY

warrants its residential faucets and bathroom accessories (“Product") to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.

2. TOTO’s obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at

TOTO’s option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.

3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc. b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or imp roper care, cleaning, or maintenance of the Product. c. Damage or loss resulting from sediments or foreign matter contained in a water system. d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product. e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate. f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

4. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty

registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

5. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants

the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.

6. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY

FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.

7. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a

TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser’s location or pay to transport the Product to a service facility. THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PROD- UCT OR FOR OTHER INCIDENTAL, SPECIAL OR

DIMENSIONS BRUTES Deck Thickness 1-3/4" [44mm] Max. 4-5/16" 109mm 1-1/4"-1-3/8" [32-35mm] Hole 2-7/8" 73mm 6-12" [152-305mm] 1-3/8"-1-1/2" [35-39mm] Hole 1/2" NPSM 1/2" NPSM COLD HOT

Close Close Open Open 6-3/4" 172mm 3-3/8" 86mm 5-3/16" 131mm

1-5/8" 41mm 2-1/8"54mm1-5/16"34mm1-1/4"32mm Deck Thickness 1-3/4" [44mm] Max. 4-5/16" 109mm 1-1/4"-1-3/8" [32-35mm] Hole 2-7/8" 73mm 6-12" [52-305mm] 1-3/8"-1-1/2" [35-39mm] Hole 1/2" NPSM 1/2" NPSM COLD HOT

Open Open 6-3/4" 172mm 3-3/8" 86mm 5-3/16" 131mm

DIMENSIONS BRUTES 3-3/16" 81mm 2-7/8" 73mm Deck Thickness1-3/4" [44mm] Max.4-5/16"109mm1-3/8"-1-1/2"[35-39mm]Hole 1-1/4"-1-3/8" [32-35mm]Hole 6-12" [52-305mm]1/2" NPSM1/2" NPSM COLD HOT

Close Close Open Open 6-3/4"172mm3-3/8"86mm5-3/16"131mm221-5/8"41mm2-1/8"54mm1-5/16"34mm1-1/4"32mm 3-3/16" 81mm 2-7/8" 73mm Deck Thickness 1-3/4" [44mm] Max. 4-5/16" 109mm 1-3/8"-1-1/2" [35-39mm] Hole 1-1/4"-1-3/8" [32-35mm] Hole 6-12" [52-305mm] 1/2" NPSM 1/2" NPSM COLD HOT

Close Close Open Open 6-3/4" 172mm 3-3/8" 86mm 5-3/16" 131mm

DIMENSIONS BRUTES 6-12" [52-305mm] 3-1/16" 79mm 4-5/16" 109mm 1-5/16”-1-7/16" [33-37mm] Mounting Hole 2-1/8" 54mm 2-1/8" 54mm 2-11/16" 69mm 1/2" NPSM COLD HOT 7-5/8" 194mm Deck Thickness 1-3/4" [44mm] Max.

5-5/16" 135mm 6-1/16" 154mm 4-1/4" 108mm 2-1/8"54mm1-5/16"34mm1-1/4"32mm

Close Open 6-12" [52-305mm] 3-1/16" 79mm 4-5/16" 109mm 1-5/16”-1-7/16" [33-37mm] Mounting Hole 2-1/8" 54mm 2-1/8" 54mm 2-11/16" 69mm 1/2" NPSM COLD HOT 7-5/8" 194mm Deck Thickness 1-3/4" [44mm] Max.

5-5/16" 135mm 6-1/16" 154mm 4-1/4" 108mm 2-1/8" 54mm 1-5/16" 34mm 1-1/4" 32mm

Close Open23 TL230DD

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES /

DIMENSIONS BRUTES 4-5/16" 109mm 6-12" [152-305mm] 2-1/4" 58mm 2-5/16" 59mm 1-5/16-1-7/16" [33-37mm] Mounting Hole 2-15/16" 75mm 2-13/16" 72mm 1/2" NPSM HOT COLD

Close Open Close Open Deck Thickness 1-3/4" [44mm] Max. 3-5/8" 92mm 7-5/16" 186mm 5-5/16" 135mm 2-7/16" 63mm

2-1/8" 54mm 1-5/16" 34mm 1-1/4" 32mmTOTO U.S.A., Inc. 1155 Southern Road, Morrow, Georgia 30260 Tel: [phone] Fax: [phone] www.totousa.com 0GU4208 Rev G Warranty Registration and Inquiry For product warranty registration, TOTO U.S.A. Inc. recommends online warranty registration. Please visit our web site http://www.totousa.com. If you have questions regarding warranty policy or coverage, please con- tact TOTO U.S.A. Inc., Customer Service Department, 1155 Southern Road, Morrow, GA 30260 [phone] or [phone] when calling from outside of U.S.A.
