Brand	TOTO
Model	TLS01309U
Product Type	Wall-mounted faucet
Minimum supply pressure	20 psi (138 kPa) dynamic
Maximum supply pressure	80 psi (551 kPa) static
Water supply connection	1/2" NPT
Ambient temperature	32~104°F (0~40°C)
Maximum humidity	90% RH
Maximum flow rate	1.2 gal/min (4.5 L/min)
Main material	Chrome-plated brass (estimated)
Installation	Recessed in wall, tiling required
Required tools	Keyhole saw, screwdriver, level, adhesive caulk
Included parts	Faucet body, handle, escutcheon, screws, O-ring, plaster protection
Maintenance	Clean with non-abrasive products, rinse with clean water
Prohibited cleaners	Hydrochloric, formic, acetic, phosphoric acid; abrasive powders
Periodic inspection	Every month: leaks, tightening, loosening
Warranty	3 years from date of purchase for original purchaser
Warranty area	North, Central and South America
Warranty repair	Contact TOTO or an authorized service center

Frequently Asked Questions - TLS01309U TOTO

What is the required water pressure for the TOTO TLS01309U faucet?

The minimum dynamic pressure is 20 psi (138 kPa) and the maximum static pressure is 80 psi (551 kPa).

How to install the wall-mounted faucet TLS01309U?

Installation requires a wall recess. Follow the procedure: connect the body to the plumbing, secure it with screws, install the protective sleeve, then mount the handle and spout. Ensure tiling is done after adhesive dries.

What cleaning products to use for this faucet?

Use a neutral cleaner. Avoid acids (hydrochloric, formic, acetic, phosphoric) and abrasives (powders, steel wool). Spray onto a cloth, never directly on the faucet.

How to maintain the TOTO faucet?

Check monthly for leaks and tightness. If the handle is loose, tighten the hex nut under the faucet. If problems persist, contact a professional.

What is the warranty period?

The warranty is 3 years from the date of purchase for the original purchaser, covering defects in materials and workmanship.

What to do in case of a leak?

Check water supply connections. If a leak persists, turn off the water and contact a plumber or TOTO customer service.

Can I use acidic cleaners to descale the faucet?

No, acids (hydrochloric, formic, acetic) can irreparably damage surfaces. Use only products recommended for this type of faucet.

How to adjust the water flow?

The TLS01309U faucet has a maximum flow rate of 1.2 gal/min. Adjustment is not described in the manual; consult a professional if necessary.

Is the faucet suitable for outdoor installation?

No, ambient temperature must be between 32°F and 104°F (0-40°C). Do not use below 0°C to prevent freezing.

How to get spare parts?

Contact a TOTO distributor or customer service. The warranty covers defective parts for 3 years. Keep your proof of purchase.

USER MANUAL TLS01309U TOTO

Wall Mount Single Lavatory Facet

TABLE OF CONTENTS

Thanks for Choosing TOTO!......2 Installation Procedure......4Warnings......2 Care and Cleaning......8Before Installation......2 Maintenance......8Included Parts......3 Warranty......9Tools You Will Need......3 Rough-In Dimensions......34Specifications......3

THANK YOU FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

WARNING

For safe operation of the faucet, please observe the following:■ Operating Pressure:· Minimum Pressure.....20 psi (138 kPa), dynamic· Maximum Pressure.....80 psi (551 kPa), static■ Do not use the product at an ambient temperature below 32°F (0°C)

BEFORE INSTALLATION

■ Observe all local plumbing codes.■ Before installing the faucet, be sure to thoroughly flush the supply pipes of dirt and debris.■ Make sure the water supply is shut off at the stop valve.■ Read these instructions carefully to ensure proper installation.TOTO reserves the right to update product design without notice.

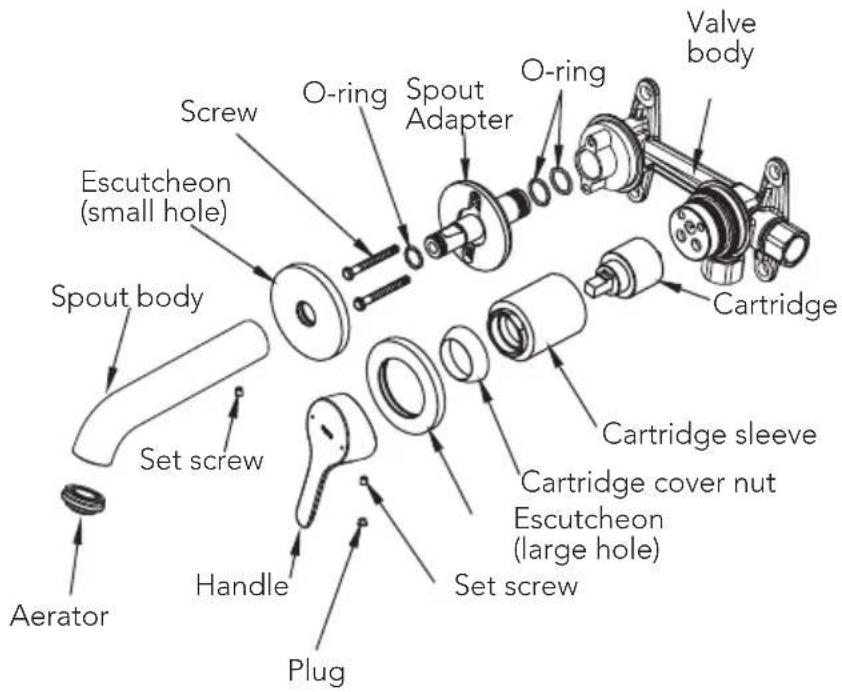

INCLUDED PARTS

Check to make sure you have the following parts indicated below:

Vapor barrier (2 pieces)

Hex wrench (2.5mm)

TOOLS YOU WILL NEED

Hack Saw

Screwdriver

Adhesive Caulk

Fixing Screw

Level

Silicone Caulk

SPECIFICATIONS

Water Supply Pressure	Minimum required: 20 psi (138 kPa) (Flowing)
	Maximum allowed: 80 psi (551 kPa)
Water Supply Connection 1/2"	NPT
Ambient Temperature 32~104°F (0~40°C)
Humidity Max. 90% RH
Flow Rate Maximum 1.2 gallon/min (4.5 L/min)

INSTALLATION PROCEDURE

Installation of the Main Body

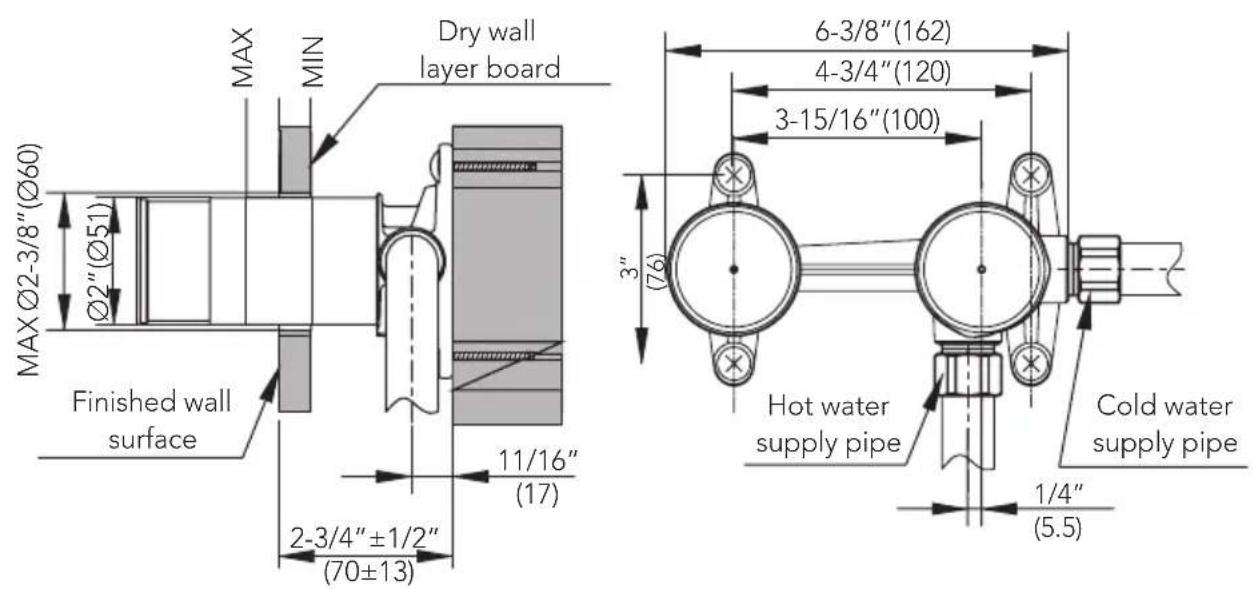

1. Connect the main body of faucet to corresponding plumbing. Perforate the wall in accordance with the illustrated dimension. Otherwise, it might cause a problem when installing the faucet.

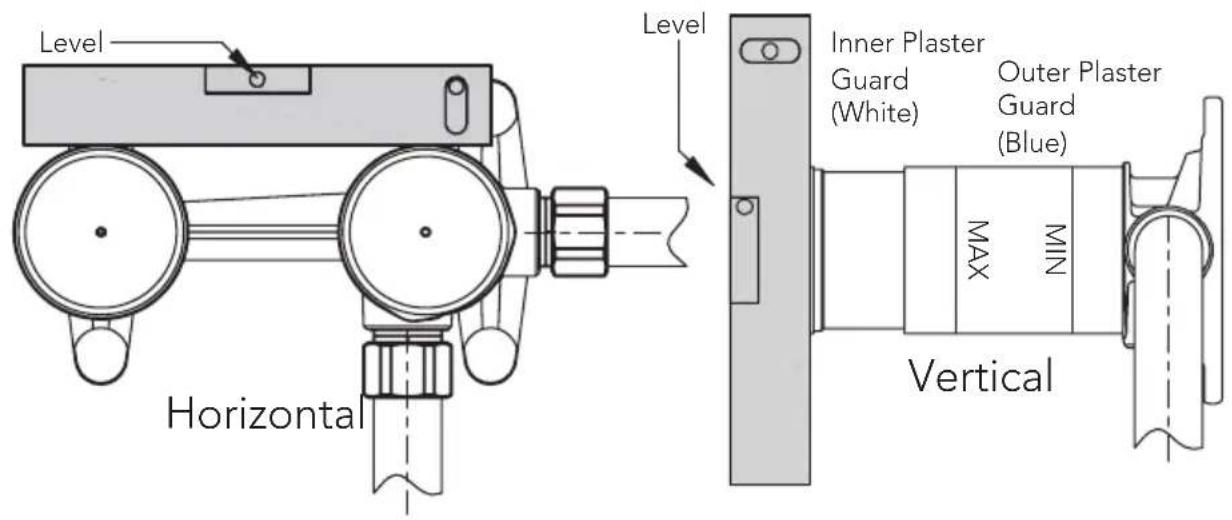

NOTE: Calibrate the wall embedded body with a level to keep it's horizontal direction and vertical direction at optimum.

Dry wall installation

As shown in the figure, use screws (not provided) to secure the product on the wall.

INSTALLATION PROCEDURE

NOTE

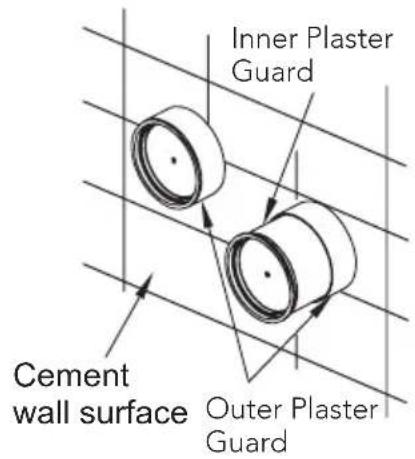

• When mounting the wall embedded body, do not remove the outer plaster guard or the inner plaster guard.
  Pay attention to the embedding depth of the wall embedded body to ensure that the finished wall surface is between the marks MIN and MAX on the protective plaster guard.
• Connect the inlet pipe to the wall embedded body. Make sure that each connection does not leak and then apply cementment padding.

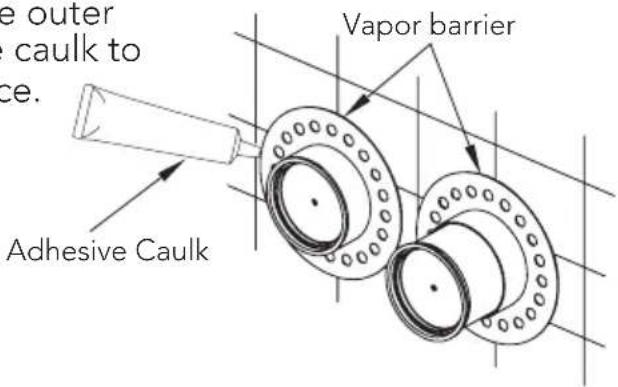

1. Get the vapor barrier through the outer plaster guard and use the adhesive caulk to paste it onto the cement wall surface.

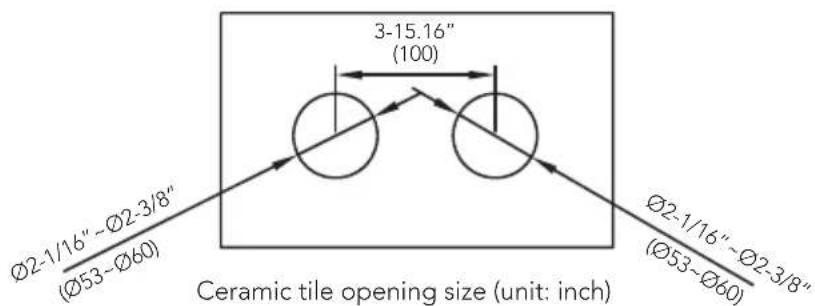

1. After the adhesive is completely dried, fix the tile. (Ceramic tile opening size below).

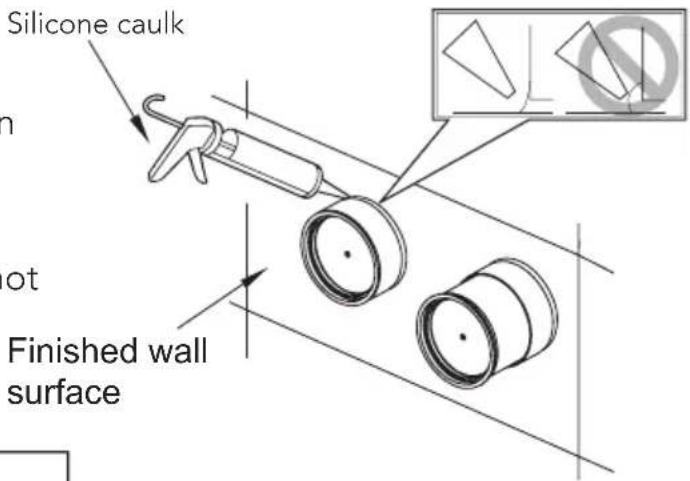

When applying adhesive between the outer plaster guard and the gap on the wall, make sure it is evenly coated with silicone caulk and that the adhesive surface is not convex to the wall.

INSTALLATION PROCEDURE

Installation of Spout and Handle

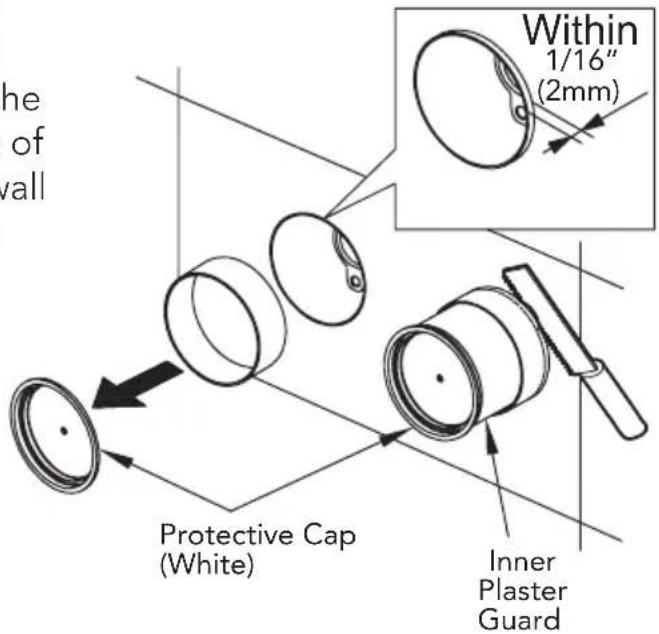

1. Cut off the outer plaster guard with a hack saw and ensure that the interval between the raised edge of the outer plaster guard and the wall surface is within 2mm . (The edge shall not sink in the wall surface)

NOTE

• Do not hurt the inner plaster guard when cutting to avoid damaging the internal cartridge sleeve.

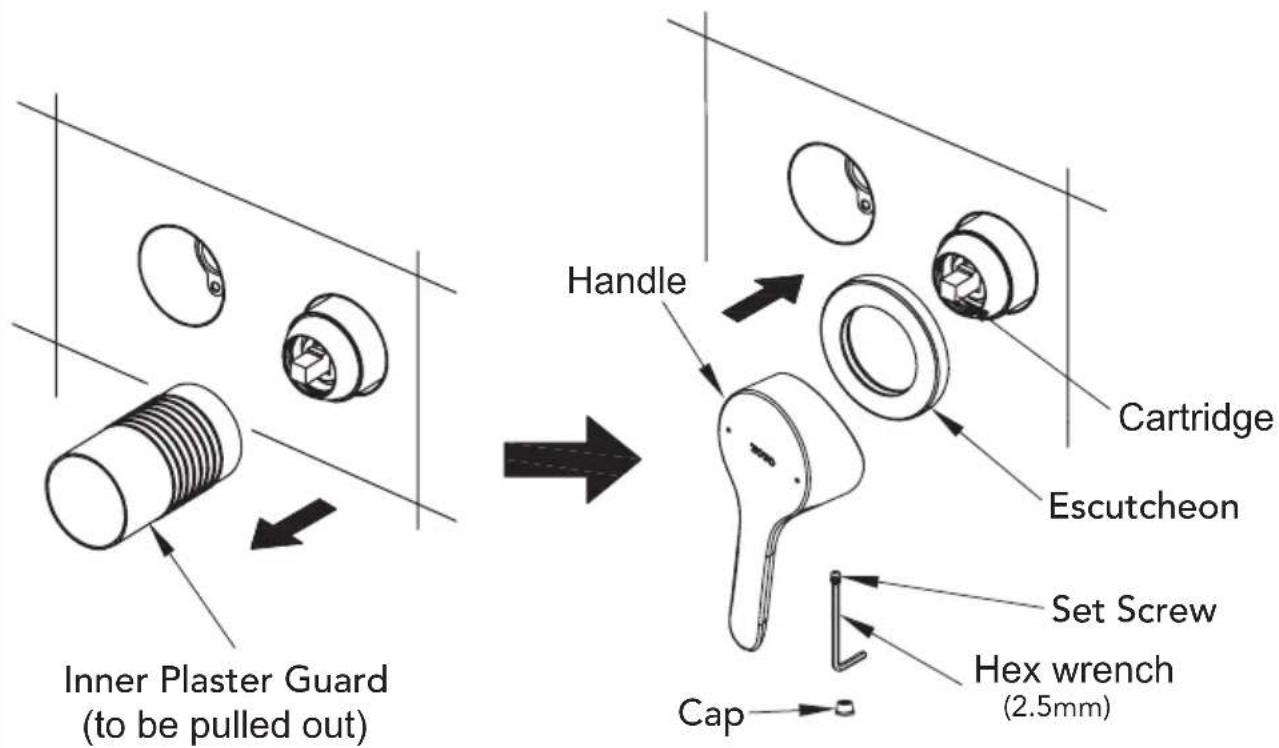

1. Installation of handle part:

a. Pull out the inner plaster guard (Note: the inner plaster guard does not work anymore after mounting is finished).
b. Cap the cartridge sleeve with the escutcheon near the wall surface. (Note: Apply a small amount of soap water on the O-Ring inside the escutcheon for lubrication in order to facilitate mounting).
c. Mount the handle onto the cartridge and use the screw to fix it and mount the cap at the position of the set screw hole.

INSTALLATION PROCEDURE

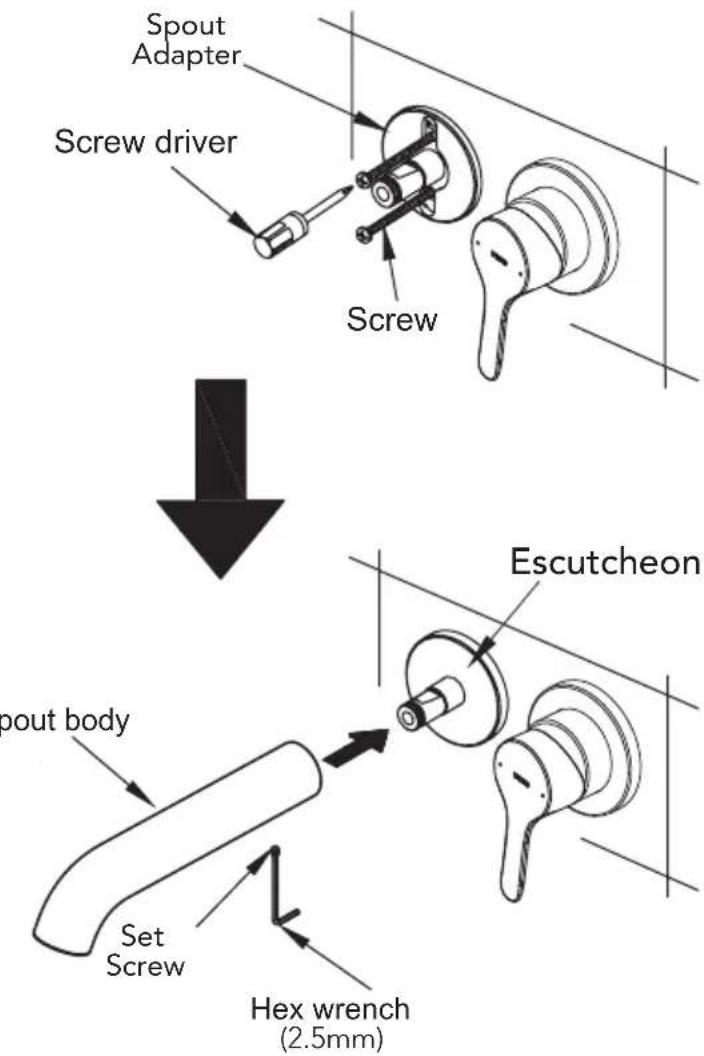

Installation of the Spout

(a) Insert the spout adapter into the valve body and secure with provided screws.
(b) Install escutcheon onto the spout adapter. Remove (unscrew) set screw from spout body. Install spout body onto the spout adapter. Align the position of the escutcheon & spout body. Secure with provided set screw.

CARE AND CLEANING

Clean the parts regularly to prevent the accumulation of dirt and lime-scale. For daily cleaning, use a neutral cleaner.

Acids are necessary ingredients of cleaning materials for removing lime.

However, please pay attention to the following points when cleaning fittings:

Only use cleaning materials which are explicitly recommended for this type of application.
- Never use cleaning materials which contain hydrochloric, formic or acetic acid, as they may cause considerable damage.
- Do not use phosphoric acid as it can also cause damage.

• Never use cleaning materials or appliances with an abrasive effect, such as cleaning powders, sponges or microfiber cloths.
  Please follow the cleaning material manufacturer's instructions.
• When using spray cleaners, spray first onto a soft cloth or sponge. Never spray directly onto the fittings, as drops could enter openings and gaps, which can then cause damage.
  After cleaning, rinse thoroughly with clean water to remove any cleaner residue.
• Components with damaged surfaces must be exchanged, otherwise this can cause an injury. Damage caused by improper treatment will not be covered by our warranty.

MAINTENANCE

Check your faucet at least once a month for the following potential problems and to do the following maintenance procedures:

Inspect for Leakage

• Check all water connections for signs of leakage.

Looseness of the product

• Check for any parts that seem abnormal such as being loose as compared when you first began using the product.

Tighten the Spout and Handle Assembly

If the spout is loose, tighten the hexagonal nut underneath the spout.

If you continue to use the product with loose piping, load is applied to the pipe(s) and may result in water leakage.

If you leave any abnormality like looseness unfixed, part(s) may break or plated surfaces may crack whereby injuring you.

If you find a loose part, remove the cap and retighten the screw that anchors the main body. In case the looseness cannot be repaired, ask your dealer or seller for repairs (subject to billing).

WARRANTY

1. TOTO oav'Prodctto bedrefoaefetscrt and soap dispens
   materials and workmanship during normal use when properly installed and serviced, for a period of three (3) years from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a liquid soap system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

1. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com is required. TOTO encourages registration upon purchase and failure to register will not diminish your limited warranty rights.
2. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
3. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shallconstitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCurred BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTYES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

NOTE: Unit for dimensions = inches Dimension in () is mm.

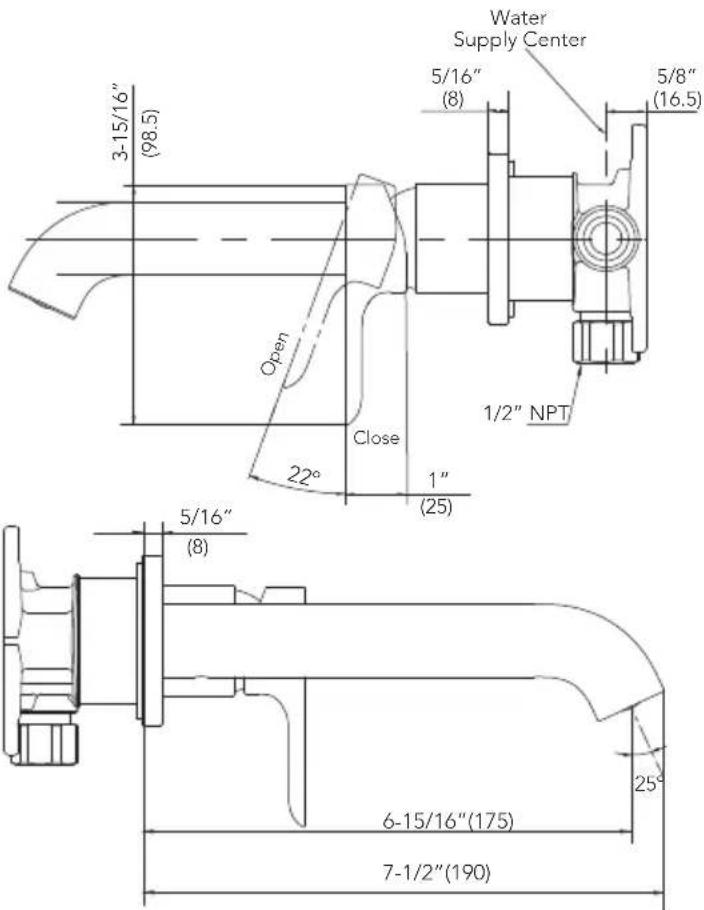

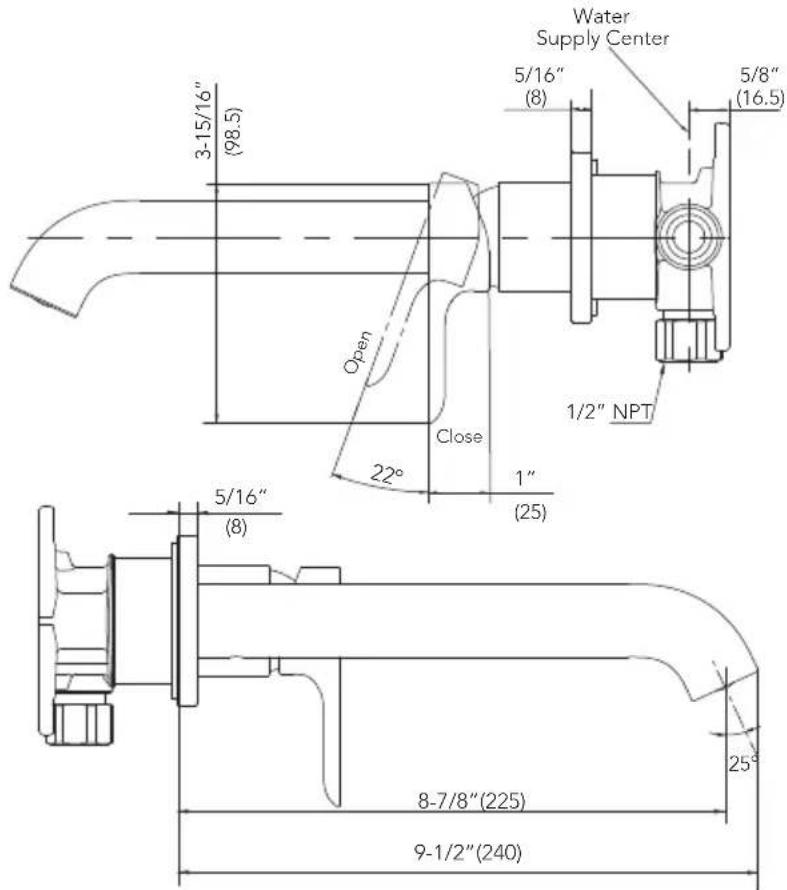

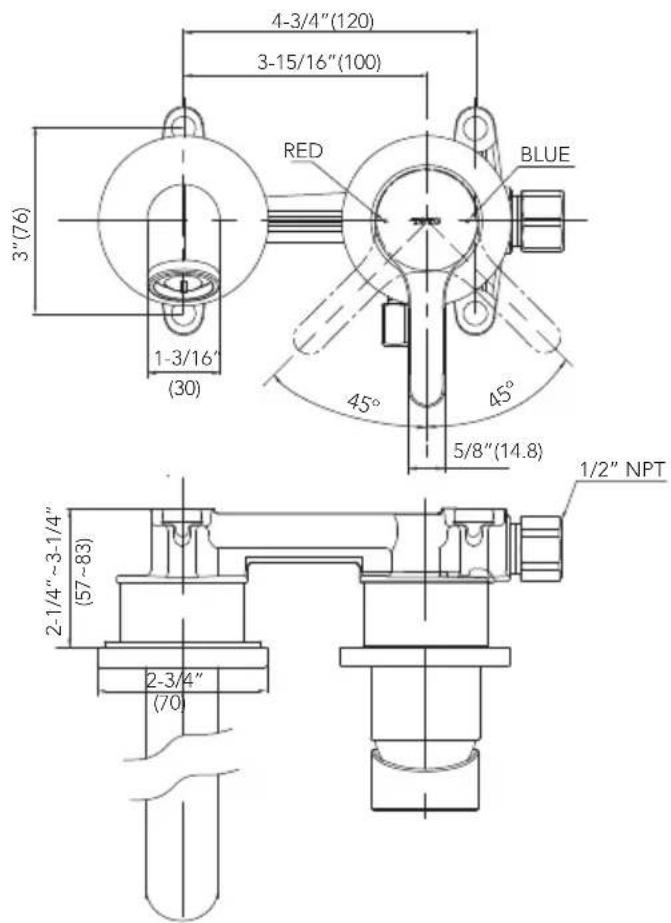

ROUGH-IN DIMENSIONS / BOSQUEJO ROBINETTERIE BRUTE / DIMENSOES APROXIMADAS

TLS01310U

NOTE: Unit for dimensions = inches

Dimension in () is mm.

TOTO

TOTO U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4297

Rev A
