USER MANUAL Vivian TL220DD1 TOTO

Installation and Owner's Manual

Widespread Lavatory Faucet

Line drawing of two types of cates or flanges, one with a handle and the other with a curved handle (no text or symbols)

TL220DD

Vivian™

Line drawing of two bathroom fixtures: a double pendulum and a faucet (no text or symbols)

Line drawing of a classic gavel with handle and base (no text or symbols)

TL220DD1

Silas™

Line drawing of a pair of bathroom fixtures (no text or symbols)

Line drawing of a conical mechanical device with handle and base (no text or symbols)

TL210DD

TABLE OF CONTENTS

Thank You for Choosing TOTO! 3

Care And Cleaning 3

Warnings....3

Common Tools Needed....4

Before Installation 4

Included Parts 4

Installation Procedure....5-7

Warranty....8

Rough-In Dimensions 21-23

Spare Parts 24-27

THANK YOU FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

CARE & CLEANING

Your new faucet is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty.

WARNINGS

For safe operation of the faucet, please observe the following:

■ Operating Pressure:

■ Minimum Pressure .....20 psi (0.14 MPa), dynamic

■ Maximum Pressure ....80 psi (0.55 MPa), static

■ Do not use the product at an ambient temperature below 32 °F ( 0 °C ).

COMMON TOOLS NEEDED

Line drawing of an adjustable wrench (no text or symbols)

Adjustable Wrench

Illustration of two screwdrivers with threaded spines (no text or symbols)

Screwdriver

BEFORE INSTALLATION

■ Observe all local plumbing codes.
■ Make sure the water supply is shut off.
- Read these instructions carefully to ensure proper installation.
■ TOTO reserves the right to update product design without notice.
■ Check to make sure you have the following parts indicated below:

INCLUDED PARTS

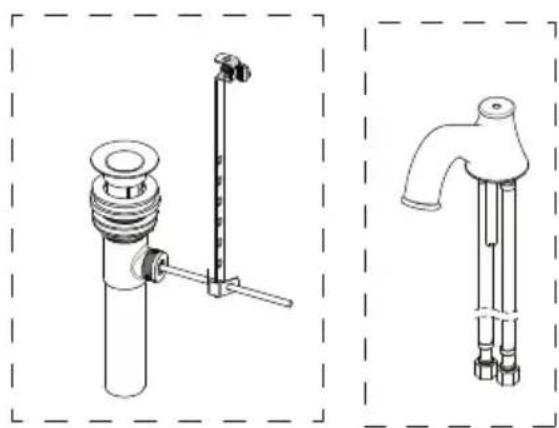

Drain Assembly Spout Assembly*

Technical line drawings of two different plumbing fixtures (no text or symbols present)

Handle Assembly ^* (2X)

Line drawing of a laboratory glassware device with a handle and base (no text or symbols)

Valve Hardware Set (2X)

Technical line drawing of four different mechanical components arranged vertically within a dashed border (no text or symbols)

Technical line drawings of a mechanical component, including a cylindrical pin and two circular rings (no text or symbols)

Drain Lift Rod*

Two concentric circular rings, one solid and one dashed, with no text or symbols present.

Base Ring and Gasket (Vivian Models Only)

Three technical line drawings of mechanical components: a cylindrical pin, a curved bracket with circular holes, and a separate cylindrical part (no text or symbols)

Spout Mounting Hardware

Technical line drawing of a cylindrical mechanical component with flanges and a central hub (no text or symbols)

Valve Assembly (2X)
* Actual product may vary in appearance depending on model. TL220DD1 shown.

INSTALLATION PROCEDURE - Valves

1. Thread a mounting nut to the bottom of the valve. Place a washer and gasket as shown.

NOTE: the hot water valve has a red marking on side of body.

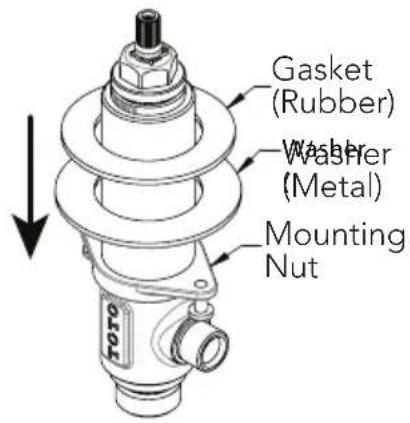

Gasket (Rubber) Washer (Metal) Mounting Nut

1. Pass the valve up through the installation hole.

Insert the gasket and fasten the collar to the valve body until it stops.

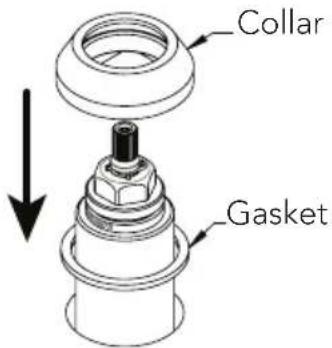

Collar Gasket

1. Fixate the valve by threading the mounting nut up the valve until hand tight. Tighten the retaining screws equally to secure.

Do not overtighten!

Mounting Screws g

1. Repeat steps 1-3 for remaining valve.

NOTE: Hoses to connect valve inlets to water supply lines not included.

INSTALLATION PROCEDURE - Spout

1. Place gasket under spout.

NOTE: If installing a Vivian model, place the gasket under the décor ring and place over mounting hole.

Pass the supply hoses and mounting stud through the mounting hole until the spout comes to rest.

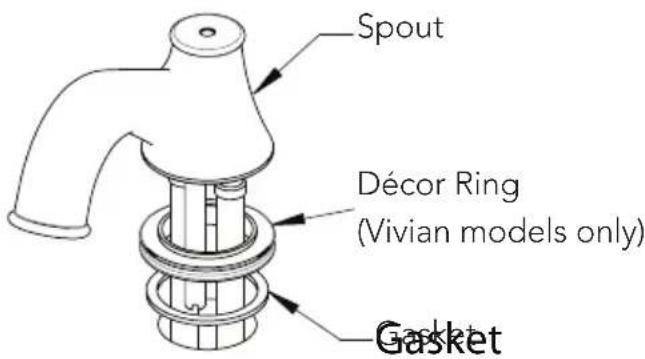

Spout Décor Ring (Vivian models only) Gasket

INSTALLATION PROCEDURE - Spout

1. Orient the spout as needed. From below the mounting surface, place the crescent shaped gasket and washer over the mounting stud as shown.

Fasten the mounting nut to the stud to secure the spout. Tighten with wrench as needed.

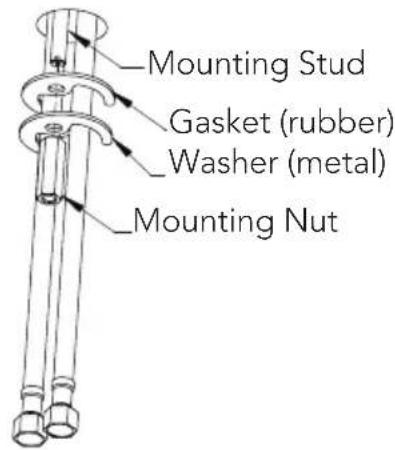

Mounting Stud Gasket (rubber) Washer (metal) Mounting Nut

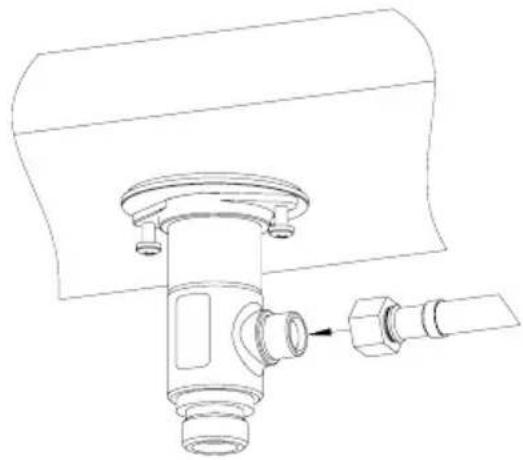

1. Connect each hose to the side port of each valve. Tighten with wrench.

NOTE: If wrapping the hose(s) in a loop is needed, be careful not to crimp the hose at any point as this could restrict the water flow.

Technical line drawing of a mechanical assembly with no visible text or symbols

INSTALLATION PROCEDURE - Handles

1. Orient handle assembly and lower onto the exposed portion of valve until engaged. Rotate the base (dome) of the handle assembly to fasten it to the valve.

Repeat for other handle assembly.

NOTE: If handles do not line up exactly as desired, remove handle from valve and reinstall one (1) notch over (on valve). Fine adjustment may be done by slightly rotating valve from underneath installed surface.

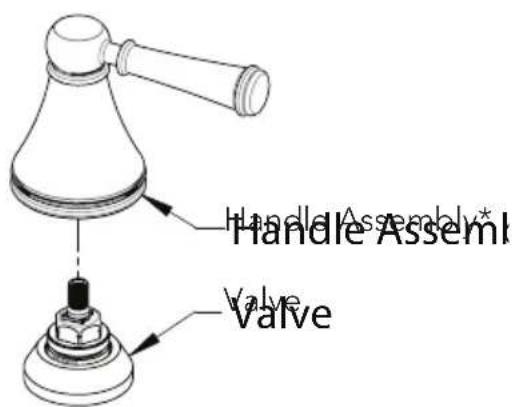

Handle Assembly* Valve Valve

1. Insert the drain lift rod through the opening in the spout.

Drain Lift Rod

INSTALLATION PROCEDURE - Drain

1. Remove the plunger, flange and gasket (flat) from the drain assembly by unfastening the flange and pulling these parts from the drain.

Insert the drain body up through the drain hole from below the lavatory. If necessary, turn the nut and push the washer and gasket (thick) down to allow for clearance.

While holding the drain body in place, fasten the flange to the drain body from the top. Ensure that the gasket (flat) is between the flange and the lavatory as shown. Once the flange is fully seated, turn the nut below the lavatory up until a good seal if formed. Do not overtighten!

Reinsert the plunger if needed.

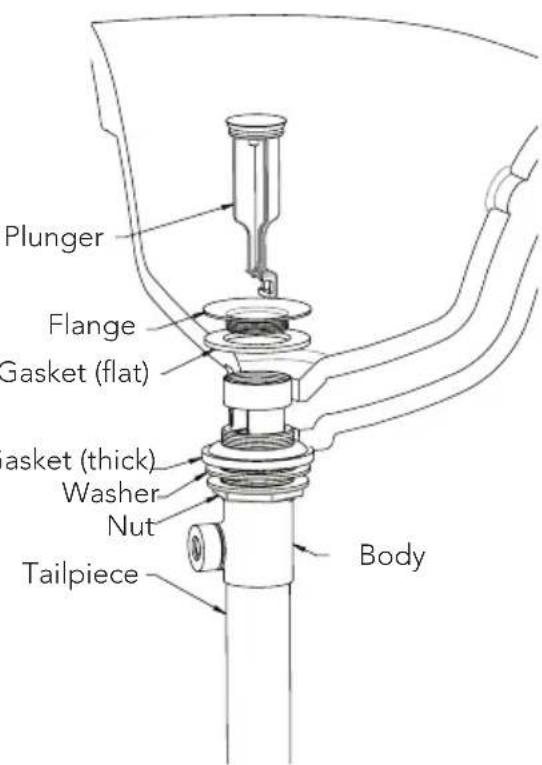

Plunger Flange Gasket (flat) gasket (thick) Washer Nut Tailpiece Body

1. Prepare the pivot arm by placing one bushing on each side of the pivot ball as shown.

Insert the short end of the rod into the drain body and through the eyelet hole in the plunger. Fasten the pivot ball nut to secure.

Insert the drain lift rod through the two (2) holes in the square end of the connector rod.

Slide the connector rod up the drain lift rod to a suitable location so that the pivot arm can pass through one of the mounting holes as shown.

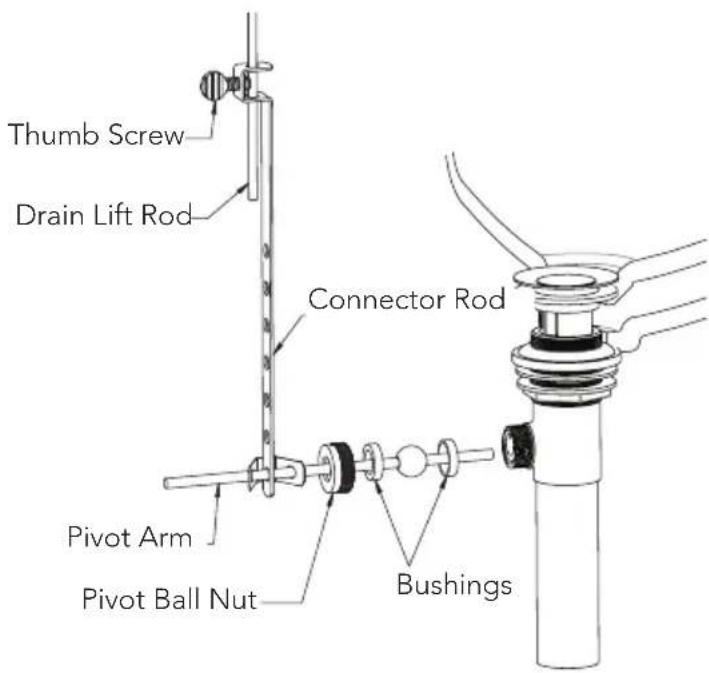

Thumb Screw Drain Lift Rod Connector Rod Pivot Arm Pivot Ball Nut Bushings

Secure the connector rod to the pivot arm using the spring clamp. One end of the spring clamp will need to be on the pivot arm before the connector rod is assembled.

Tighten the thumb screw in the connector rod to secure it to the drain lift rod.

Conduct tests to ensure all the linkages are working properly and no leaking occurs. Adjust if needed.

WARRANTY

1. TOTO ^® warrants its residential faucets and bathroom accessories ("Product") to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

1. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
2. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
3. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
4. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLU-

Line drawing of an adjustable wrench (no text or symbols)

Llave Ajustable

Illustration of two screwdrivers with threaded spines (no text or symbols)

Destornillador

Technical line drawing of a mechanical component with a cylindrical shaft and threaded end (no text or symbols)

Line drawing of a faucet with multiple legs and a central handle, enclosed in a dashed border (no text or symbols)

Montaje de la manija*(2X)

Line drawing of a laboratory glassware device with a handle and base (no text or symbols)

Technical line drawing of a mechanical assembly with multiple cylindrical components and a flanged base (no text or symbols)

Simple line drawing of two stacked rings, no text or symbols present

Three technical line drawings of mechanical components: a curved ring, a circular hole, and a cylindrical rod (no text or symbols)

Technical line drawing of a cylindrical mechanical component with a protruding shaft (no text or symbols)

Simple line drawing of a mechanical component with a cylindrical top and base (no text or symbols)

Tornillos de Montage

Technical line drawing of a mechanical assembly with no visible text or symbols

Line drawing of a faucet with a handle and valve (no text or symbols)

Line drawing of an adjustable wrench (no text or symbols)

Clé à molette

Line drawing of two screwdrivers with threaded spiers (no text or symbols)

Tournevis

AVANT DE COMMENCER

Technical line drawing of a mechanical assembly with a cylindrical component and vertical rod (no text or symbols)

Technical diagram of a mechanical component with labeled parts and directional arrow indicating assembly or flow.

Joint (caoutchouc)

Col Joint

Simple line drawing of a mechanical component with a base and top (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Line drawing of a faucet with a handle and valve (no text or symbols)

Insert the drain lift rod through the two (2) holes in the square end of the connector rod.

2-11/16" [69mm] Ø2-1/8" [54mm] 3-1/16" [79mm] Ø2-1/8" [54mm] 6-12" [52-305mm] 1/2" NPSM HOT COLD Mounting Hole Ø 1-5/16"-1-7/16" [33.37mm] Open 90° Close Open 90° Close

Ø1-1/4" [32mm] Ø2-1/8" [54mm] Ø1-5/16" [34mm] 1-3/4" [44mm] Max. Deck Thickness 4-1/4" [108mm] 7-5/8" [194mm] 5-5/16" [135mm] 6-1/16" [154mm]

SPARE PARTS / PIEZAS DE REPUESTO / PIÈCES DE RECHANGE

TL220DD

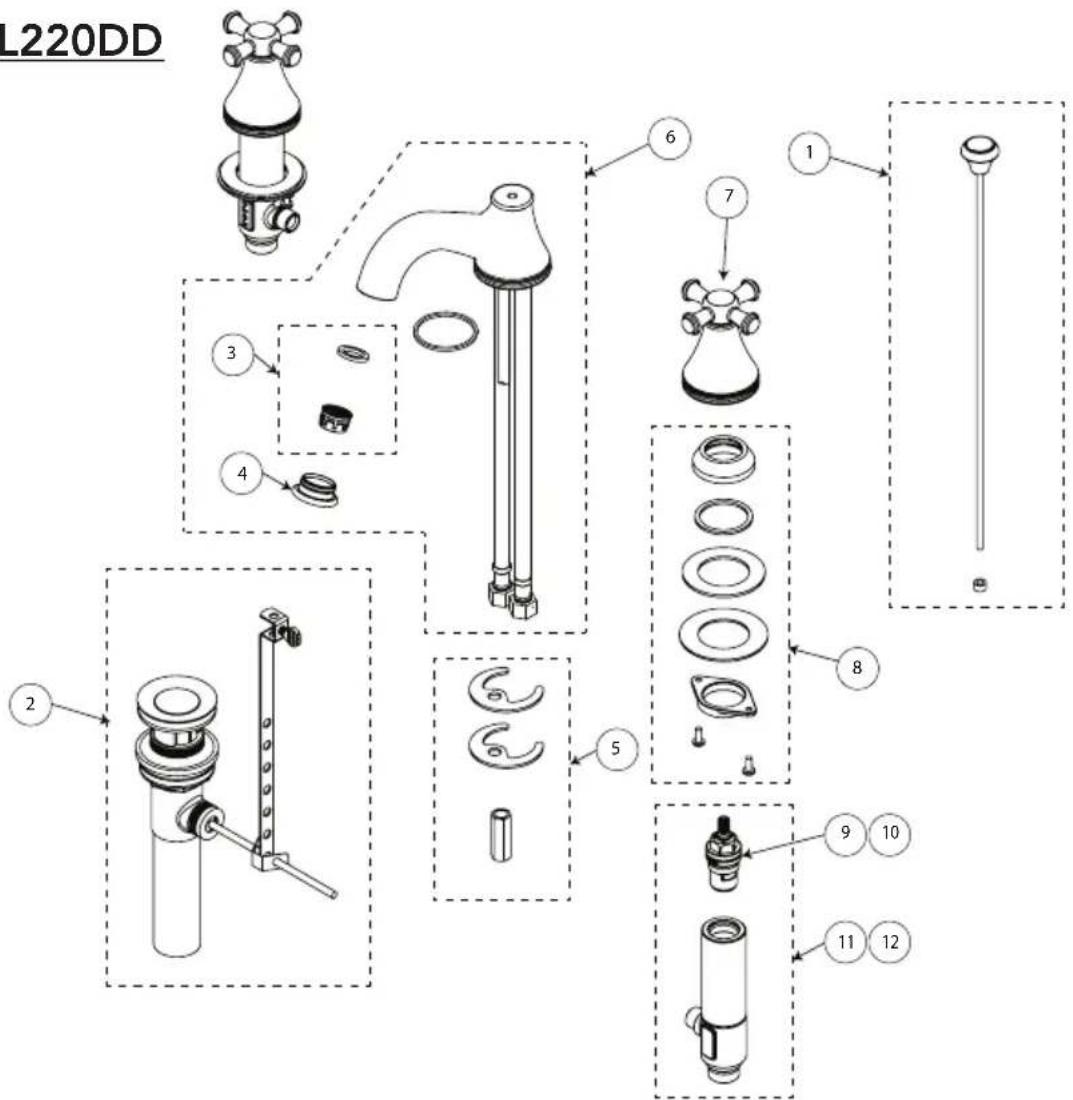

L220DD 1 2 3 4 5 6 7 8 9 10 11 12

No.	Description Descripción Description
1* Lift	Rod and Knob Barra y perilla de	elevación Tige de levage et bouton
2*	Drain Assembly Asemblaje de D	Desagüe Système de Vidage
3 Aerator and Gasket Aireador con llave	Aérateur avec clé
4*	Aerator Housing Cubierta del areador Logement de l'aérateur
5	Spout Mounting Hardware Herramientas para el montaje del surtidor		Matériel de montage du bec
6* Spout Assembly Montaje del cuerpo Assemblage du corps
7*	Handle Assembly	Montaje de la manija	Assemblage de la poignée
8	Valve Hardware Set	Juego de herramientas de la válvula	Ensemble du matériel de la valve
9	Cartridge - Hot Cartucho - caliente Cartouche - Chaud
10	Cartridge - Cold	Cartucho - frío	Cartouche - Froid
11	Valve - Hot	Válvula - caliente	Valve - Chaud
12	Valve - Cold	Válvula - frío	Valve - Froid

* Specify the finish when ordering replacement parts.

TOTO® U.S.A., Inc. 1155 Southern Road,

Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4208

Rev Date: 10/11
