USER MANUAL DVX PSW218 DB Technologies
USER MANUAL - Section 1

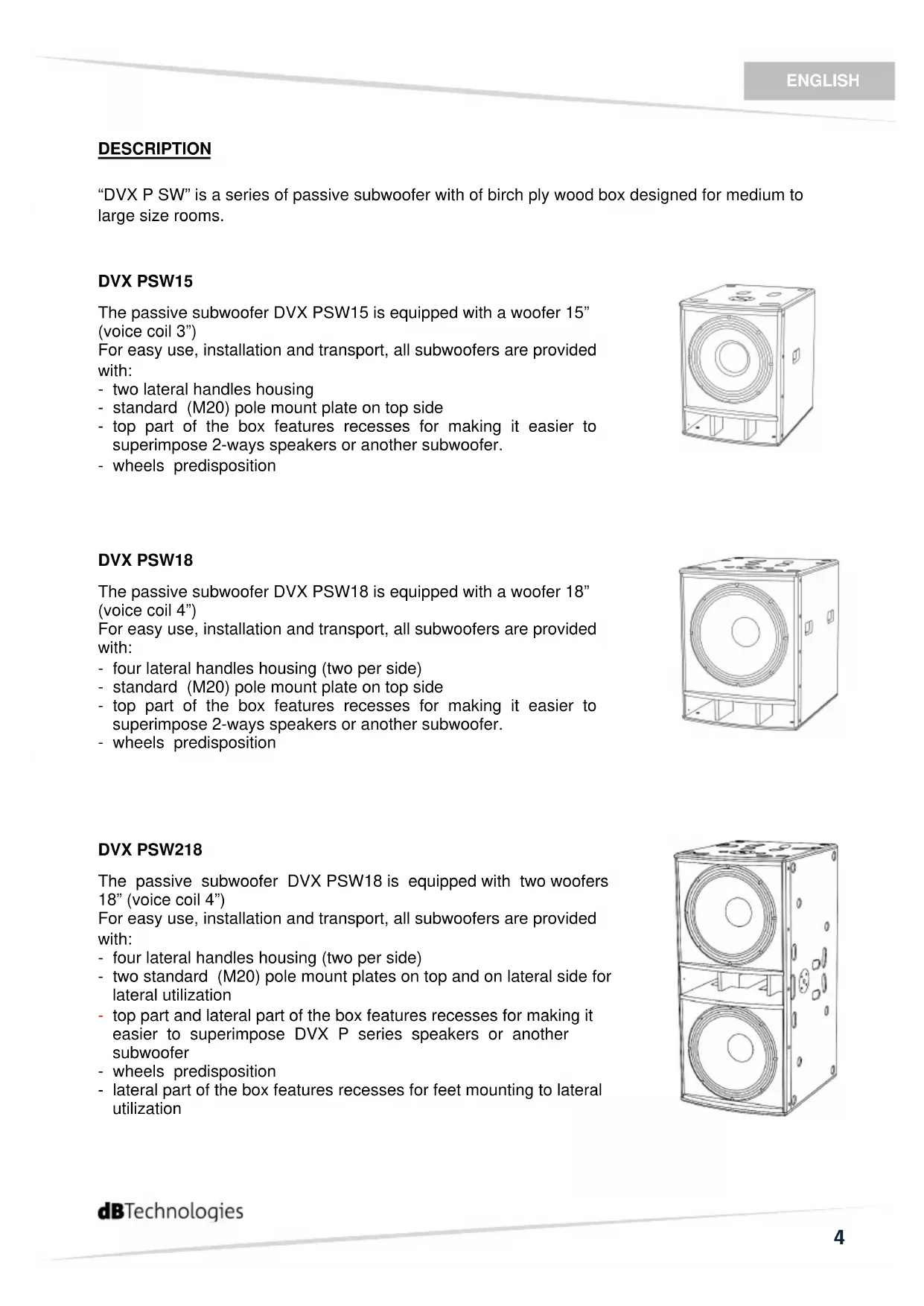

"DVX P SW" is a series of passive subwoofer with of birch ply wood box designed for medium to large size rooms.
DVX PSW15
The passive subwoofer DVX PSW15 is equipped with a woofer 15" (voice coil 3")
For easy use, installation and transport, all subwoofoers are provided with:
- two lateral handles housing
- standard (M20) pole mount plate on top side
- top part of the box features recesses for making it easier to superimpose 2-ways speakers or another subwoofer.
- wheels predisposition

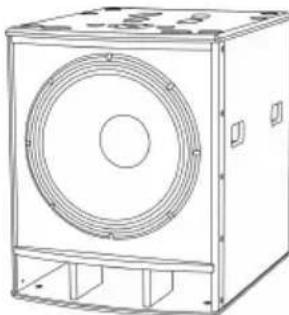

DVX PSW18
The passive subwoofer DVX PSW18 is equipped with a woofer 18" (voice coil 4")
For easy use, installation and transport, all subwoofoers are provided with:
- four lateral handles housing (two per side)
- standard (M20) pole mount plate on top side
- top part of the box features recesses for making it easier to superimpose 2-ways speakers or another subwoofer.
- wheels predisposition

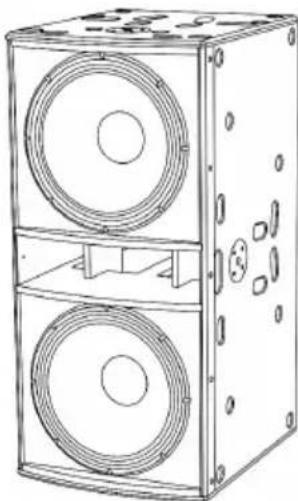

DVXPSW218
The passive subwoofer DVX PSW18 is equipped with two woofers 18" (voice coil 4")
For easy use, installation and transport, all subwoofoers are provided with:
- four lateral handles housing (two per side)
- two standard (M20) pole mount plates on top and on lateral side for lateral utilization
- top part and lateral part of the box features recesses for making it easier to superimpose DVX P series speakers or another subwoofer
- wheels predisposition
- lateral part of the box features recesses for feet mounting to lateral utilization

CONNECTIONS

WARNING
To avoid electric shocks, ensure that your amplifier is switched off when you plug in the loudspeaker. Before turning on the loudspeaker, be sure that the connections are correct to avoid short circuits or wrong connections.

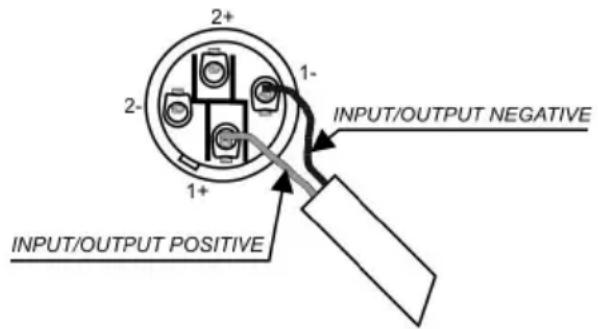

The connection panel at the back of the loudspeaker features two 4 pole Speakon connectors: the first socket is the sound signal input socket and the second socket may function as an output terminal for the connection with another loudspeaker.
The connections are:
1+ for the positive signal
1- for the negative signal (ground)
2+ not connected
2- not connected

If you wish to send the amplified signal from one loudspeaker to the other, be sure that the nominal impedance resulting from the connection is never lower than the minimum impedance of the power amplifier. This is done to prevent overheating or, worse, damages to the amplifier.
The loudspeakers DVX PSW15, DVX PSW18 have a nominal input impedance of 8 ohms, and the loudspeaker DVX PSW218 has a nominal input impedance of 4 ohms and these must be taken into account when making the connections.
TECHNICAL SPECIFICATION
| DVX PSW15 DVX PSW18 DVX PSW218 | |||
| System | Passive | Passive | Passive |
| RMS Power | 500W | 1000W | 2000W |
| Peak Power | 1000W | 2000W | 4000W |
| Frequency Response (-10dB) | 35Hz-200Hz | 28Hz-200Hz | 28Hz-200Hz |
| (-6dB) | 40Hz-200Hz | 32Hz-200Hz | 32Hz-200Hz |
| Sound pressure (SPL) | 132dBmax | 134dBmax | 140dBmax |
| Components | 1 Woofer 15" | 1 Woofer 18" | 2 Woofers 18" |
| 3" Coil | 4" Coil | 4" Coil | |
| Impedence | 8ohm | 8ohm | 4ohm |
| Audio connector | 2 x SPEAKON | 2 x SPEAKON | 2 x SPEAKON |
| In parallel | In parallel | In parallel | |
| Dimensions (WxHxD) | 470x627x600mm | 565x710x700mm | 565x1207x700mm |
| 18.5x24.7x23.6inch. | 22.2x27.9x27.5 inch. | 22.2x47.52x27.5 inch. | |
| Weight | 30.9Kg | 44.1Kg | 74.2Kg |
| 68.1lbs | 97.2lbs | 163lbs | |
| Meccanic | |||
| Box material | Birch ply wood | Birch ply wood | Birch ply wood |
| Color | Black | Black | Black |
| Handle | 2 x housing (1 per side) | 4 x housing (2 per side) | 4 x housing (2 per side) |
| Pole mount plate | M20 (alluminium) | M20 (alluminium) | 2 x M20 (alluminium) |
| Front grille | Perforated metal plate | Perforated metal plate | Perforated metal plate |
| 1.5mm | 1.5mm | 1.5mm | |
| DVX PSW15 DVX PSW218 | |
| Pole mount plate Handle Handle | Pole mount plate Handle Handle Handle Handle |
| DVX PSW18 | |
| Pole mount plate Handle Handle | Pole mount plate Handle Handle Handle Handle |
LOUDSPEAKER INSTALLATION

WARNING
Make sure that the loudspeaker is securely installed in a stable position to avoid any injuries or damages to persons or property.
For safety reasons do not place one loudspeaker on top of another without proper fastening systems. Before install the loudspeaker check all the components for damages, deformations, missing or damaged parts that may compromise safety during installation.
If you use the loudspeakers outdoors avoid places that are exposed to bad weather.

WARNING

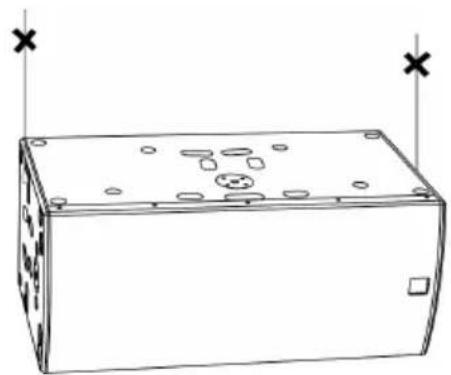

Never use the handles to hang the speaker!
Use the handles only to move the single speaker!



dBTechnologies
BESCHREIBUNG
DIMENSIONI - DIMENSIONS
ABMESSAGENG - DIMENSIONS

DVXPSW15







DVXPSW18






DIMENSIONI - DIMENSIONS ABMESSAGENGEN - DIMENSIONS

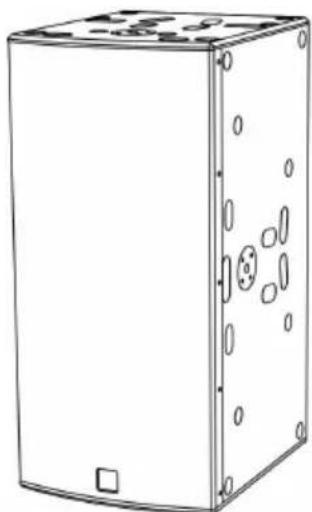

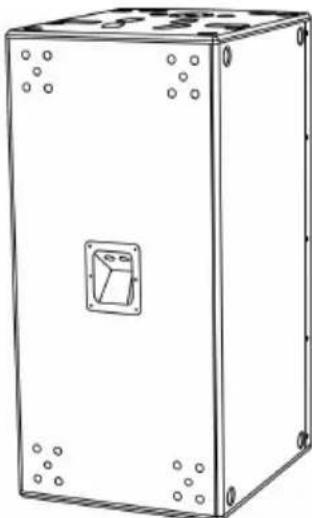

DVX PSW218







SCHEMA A BLOCCHI - BLOCK DIAGRAM
SAFETY INSTRUCTIONS FOR ACCESSORIES
Contact dB Technologies for accessories to be used with speakers.
Will not accept any responsibility when inappropriate accessories or not suitable additional devices are used.
ACCESSORI - ACCESSORIES
ZUBEHÖR - ACCESSORIES
KIT RUOTE
WHEELS KIT




Note: It is possible to mount 4 rubber feet on the side for bookshelf use (provided)
