WB-VIOX205V - Speaker Stand DB Technologies - Free user manual and instructions

Product Type	Speaker Stand
Brand	DB Technologies
Model	WB-VIOX205V
Material	Steel
Weight	5.5 kg
Max Load Capacity	60 kg
Height Range	1.2 m to 2.0 m
Base Diameter	500 mm
Pole Diameter	35 mm
Base Type	Tripod with spread legs
Foldable	Yes
Folded Dimensions	800 x 120 x 120 mm
Color	Black
Adjustment Mechanism	Clamp with locking pin
Mounting Type	35 mm pole adapter
Included Accessories	Safety strap, carrying bag
Usage	Indoor / Outdoor
Warranty	2 years
Maintenance	Clean with damp cloth, check screws periodically
Safety Features	Locking height clamp, non-slip feet

Frequently Asked Questions - WB-VIOX205V DB Technologies

How do I assemble the WB-VIOX205V speaker stand?

Unfold the tripod legs fully until they lock into place. Extend the upper pole to the desired height and tighten the clamp. Attach the speaker using the 35mm pole adapter.

What is the maximum weight capacity?

The stand supports up to 60 kg. Do not exceed this limit to ensure safety.

Can I adjust the height?

Yes, the height is adjustable from 1.2 m to 2.0 m using the locking clamp.

Is the stand compatible with all speakers?

It is designed for speakers with a 35 mm pole mount. Check your speaker's mounting diameter.

How do I ensure stability?

Place the stand on a flat surface, fully extend the tripod legs, and secure the height clamp. Use the included safety strap for extra stability.

What is the weight of the stand?

The stand weighs approximately 5.5 kg, making it portable yet sturdy.

Can the stand be folded for transport?

Yes, it folds compactly to 800 x 120 x 120 mm and comes with a carrying bag.

What material is the stand made of?

It is constructed from steel for durability and painted black.

How do I clean the stand?

Wipe with a soft damp cloth. Avoid abrasive cleaners. Periodically check and tighten all screws and clamps.

Is the stand suitable for outdoor use?

Yes, it can be used outdoors, but avoid prolonged exposure to rain. The non-slip feet provide grip on various surfaces.

USER MANUAL WB-VIOX205V DB Technologies

ISTRUZIONI DI UTILIZZO STAFFA ORIZZONTALE WB-VIOX205V WB-VIOX205V HORIZONTAL BRACKET INSTRUCTIONS

DESCRIZIONE: Staffe a muro per l'installazione verticale dello speaker VIOX-205 DESCRIPTION: Wall brackets for the vertical installation of VIOX-205 speaker.

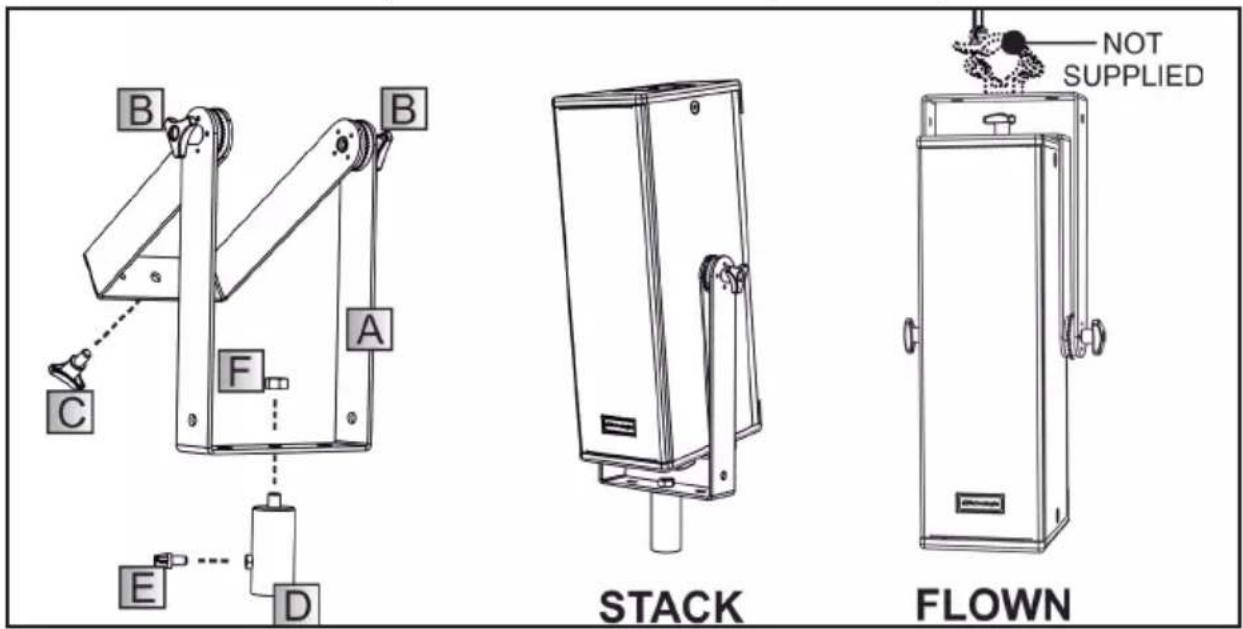

The bracket allows the STACK mounting (on a not supplied tripode stand), or the FLOWN one with the use of not supplied auxiliary equipment (ex. ALISCAFF, TV-SPIGOT) not supplied. In the following page the STACK case is illustrated.

CAUTION: Only qualified personnel may use the WB-VIOX205V brackets. To prevent hazards to people, animals and/or objects, make sure that the installation is stable and secure. Follow the safety regulations and laws of the country in which you use the product. Install the product as described in these instructions. To use this accessory safely, check that it is working and intact before use.

VERIFICARE (SE PRESENTE) L'ULTIMA REVISIONE DI QUESTO DOCUMENTO SUL SITO WWW.DBTECHNOLOGIES.COM CHECK (IF ANY) THE LATEST VERSION OF THIS DOCUMENT ON WWW.DBTECHNOLOGIES.COM

A.E.B. Industriale Srl Via Brodolini, 8 Località Crespellano 40053 VALSAMOGGIA BOLOGNA (ITALIA) Tel [phone] Fax [phone] www.dbtechnologies.com [e-mail]

dBTechnologies

INSTALLAZIONE (ESEMPIO STACK) INSTALLATION (STACK EXAMPLE)

CASO FLOWN: see also the FLOWN picture in the previous page. Instead of using the pole adapter, an ALISCAFF or TV-SPIGOT equipment (not supplied) is used.

Features, specification and appearance of products are subject to change without notice.dBTechnologies reserves the right to make changes or improve ments in design or manufacturing without assuming any obligation change or improve products previously manufactured.
