Brand	Blaupunkt
Model	5EE64350
Product type	Ceramic glass hob
Cooking zones	4 radiant burners
Zone diameters	145 mm (x2), 180 mm, 210 mm
Residual heat indicators	Yes (indicator lights)
Power supply	230-240 V ~ 50 Hz
Installation	Built-in worktop (min. thickness 20 mm)
Surface material	Ceramic glass
Safety	Crack protection, automatic shut-off in case of overheating, do not use unattended
Cleaning	Soft cloth or special stove cleaner, no steam or abrasives
Product dimensions (W x D)	Approximately 590 x 520 mm (estimate)
Weight	Approximately 8 kg (estimate)
Number of pages of the manual	36
Available languages	FR, DA, DE, EN, ES, IT, NL, SV

Frequently Asked Questions - 5EE64350 BLAUPUNKT

How to use the cooking zones?

Turn the corresponding knob clockwise to the desired power level. To switch off, turn the knob back to the off position (0).

What types of pans to use?

Use pans with a flat bottom and a diameter suitable for the zone. Avoid enamelled or rough bases that could scratch the ceramic glass.

How to clean the hob?

Allow to cool, then clean with a soft cloth or a special ceramic glass cleaner. Never use a steam cleaner, abrasive sponges or chlorine-based products.

What to do if a cooking zone does not heat up?

Check that the hob is properly powered, that the knob is not set to 0, and that the main switch is on. If the problem persists, contact after-sales service.

What are the important safety instructions?

Do not leave cooking unattended, especially with oil. Do not use the hob if the surface is cracked. Keep children under 8 years away.

How to install the hob?

Installation must be carried out by a professional. Cut the worktop according to the indicated dimensions, place the seal, then fix the hob with the clamps provided.

The hob makes noise, is this normal?

Slight humming or whistling is normal during operation. If the noise is loud or unusual, check that the pans are suitable.

Can I use an external timer?

No, the appliance is not designed to be used with a timer or remote control system.

What to do in case of sugar or sweet food splashes?

Clean immediately, as hot sugar can severely damage the ceramic glass surface.

Where to find the rating plate?

The rating plate is usually located under the hob or in the manual. Note the codes before contacting customer service.

USER MANUAL 5EE64350 BLAUPUNKT

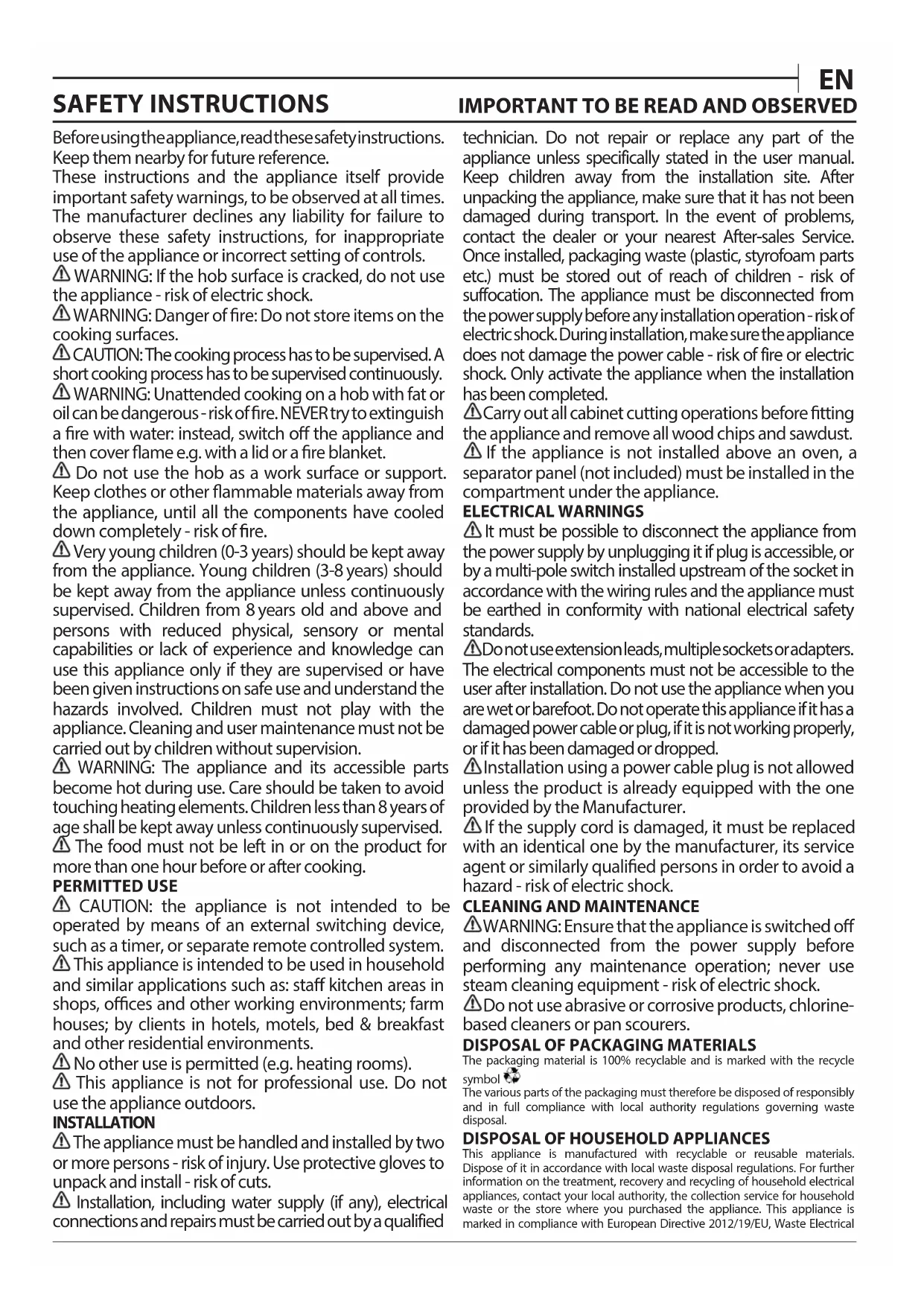

Before using the appliance, read these safety instructions. Keep them nearby for future reference.

These instructions and the appliance itself provide important safety warnings, to be observed at all times. The manufacturer declines any liability for failure to observe these safety instructions, for inappropriate use of the appliance or incorrect setting of controls.

WARNING: If the hob surface is cracked, do not use the appliance - risk of electric shock.

WARNING: Danger of fire: Do not store items on the cooking surfaces.

CAUTION: The cooking process has to be supervised. A short cooking process has to be supervised continuously.

WARNING: Unattended cooking on a hob with fat or oil can be dangerous - risk of fire. NEVER try to extinguish a fire with water: instead, switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Do not use the hob as a work surface or support. Keep clothes or other flammable materials away from the appliance, until all the components have cooled down completely - risk of fire.

Very young children (0-3 years) should be kept away from the appliance. Young children (3-8 years) should be kept away from the appliance unless continuously supervised. Children from 8 years old and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge can use this appliance only if they are supervised or have been given instructions on safe use and understand the hazards involved. Children must not play with the appliance. Cleaning and user maintenance must not be carried out by children without supervision.

WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

The food must not be left in or on the product for more than one hour before or after cooking.

PERMITTED USE

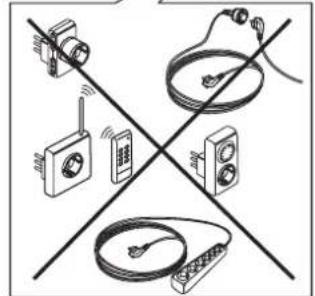

CAUTION: the appliance is not intended to be operated by means of an external switching device, such as a timer, or separate remote controlled system.

This appliance is intended to be used in household and similar applications such as: staff kitchen areas in shops, offices and other working environments; farm houses; by clients in hotels, motels, bed & breakfast and other residential environments.

No other use is permitted (e.g. heating rooms).

This appliance is not for professional use. Do not use the appliance outdoors.

INSTALLATION

The appliance must be handled and installed by two or more persons - risk of injury. Use protective gloves to unpack and install - risk of cuts.

Installation, including water supply (if any), electrical connections and repairs must be carried out by a qualified

technician. Do not repair or replace any part of the appliance unless specifically stated in the user manual. Keep children away from the installation site. After unpacking the appliance, make sure that it has not been damaged during transport. In the event of problems, contact the dealer or your nearest After-sales Service. Once installed, packaging waste (plastic, styrofoam parts etc.) must be stored out of reach of children - risk of suffocation. The appliance must be disconnected from the power supply before any installation operation - risk of electric shock. During installation, make sure the appliance does not damage the power cable - risk of fire or electric shock. Only activate the appliance when the installation has been completed.

Carry out all cabinet cutting operations before fitting the appliance and remove all wood chips and sawdust.
If the appliance is not installed above an oven, a separator panel (not included) must be installed in the compartment under the appliance.

ELECTRICALWARNINGS

It must be possible to disconnect the appliance from the power supply by unplugging it if plug is accessible, or by a multi-pole switch installed upstream of the socket in accordance with the wiring rules and the appliance must be earthed in conformity with national electrical safety standards.
Donotuseextensionleads,multiple sockets or adapters. The electrical components must not be accessible to the user after installation.Do not use the appliance when you are wet or barefoot.Do not operate this appliance if it has a damaged power cable or plug,if it is not working properly, or if it has been damaged or dropped.
Installation using a power cable plug is not allowed unless the product is already equipped with the one provided by the Manufacturer.
If the supply cord is damaged, it must be replaced with an identical one by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard - risk of electric shock.

CLEANING AND MAINTENANCE

WARNING: Ensure that the appliance is switched off and disconnected from the power supply before performing any maintenance operation; never use steam cleaning equipment - risk of electric shock.
Do not use abrasive or corrosive products, chlorine-based cleaners or pan scourers.

DISPOSAL OF PACKAGING MATERIALS

The packaging material is 100% recyclable and is marked with the recycle

symbol

The various parts of the packaging must therefore be disposed of responsibly and in full compliance with local authority regulations governing waste disposal.

DISPOSAL OF HOUSEHOLD APPLIANCES

This appliance is manufactured with recyclable or reusable materials. Dispos of it in accordance with local waste disposal regulations. For further information on the treatment, recovery and recycling of household electrical appliances, contact your local authority, the collection service for household waste or the store where you purchased the appliance. This appliance is marked in compliance with European Directive 2012/19/EU, Waste Electrical

and Electronic Equipment (WEEE) and with the Waste Electrical and Electronic Equipment regulations 2013 (as amended).

By ensuring this product is disposed of correctly, you will help prevent negative consequences for the environment and human health.

The symbol on the product or on the accompanying documentation indicates that it should not be treated as domestic waste but must be taken to an appropriate collection center for the recycling of electrical and electronic equipment.

ENERGY SAVING TIPS

Make the most of your hot plate's residual heat by switching it off a few minutes before you finish cooking.

The base of your pot or pan should cover the hot plate completely; a container that is smaller than the hot plate will cause energy to be wasted.

Cover your pots and pans with tight-fitting lids while cooking and use as little water as possible. Cooking with the lid off will greatly increase energy consumption.

Use only flat-bottomed pots and pans.

DECLARATION OF CONFORMITY

This appliance meets Ecodesign requirements of European Regulation 66/2014 and The Ecodesign for Energy-Related Products and Energy Information (Amendment) (EU Exit) Regulations 2019 in compliance with the European standard EN 60350-2.

The information related to low power mode of the appliance in accordance with Regulation (EU) 2023/826 can be found in the following link: https://docs. emeaappliance-docs.eu..

• The cooktop must be set into a worktop at least 20mm deep.
• There must be nothing between the cooktop and the oven (cross rails, brackets, etc.).
• For built-in dimensions and installation, see the picture in this paragraph.

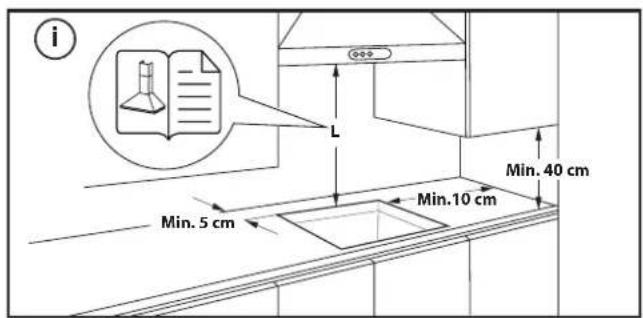

  A minimum distance must be maintained between the hob and the hood above it. Please refer to the user manual of the hood for more information.
  Apply the supplied gasket to the cooktop (unless it has already been fitted), after having cleaned its surface.
• Do not install the cooktop near a dishwasher or washing machine, so that the electronic circuits do not come into contact with steam or moisture, which could damage them.
  If an oven is installed beneath the cooktop, make sure that it is equipped with a cooling system. If the temperature of the electronic circuits exceeds the maximum permitted temperature, the cooktop will switch off automatically; in this case, wait for a few minutes until the internal temperature of the electronic circuits reaches a tolerable level, at which point it will be possible to switch the hob on again.
  ATTENTION: to install the hob on other surfaces than wood (marble, plastic, ceramic, stone, etc.) remember to ask After Sales Service for the fixing plates (fig. 2) Code 4819 404 78697.

PLACING THE HOB

Important: remove any protective film before installing the hob.

Make sure that the opening in the worktop for the hob is cut according to the dimensions given in the drawing, paying attention to the tolerance range. The hob should not be forced into the worktop. Forcing the glass-ceramic top may cause it to crack (even at a later date)!

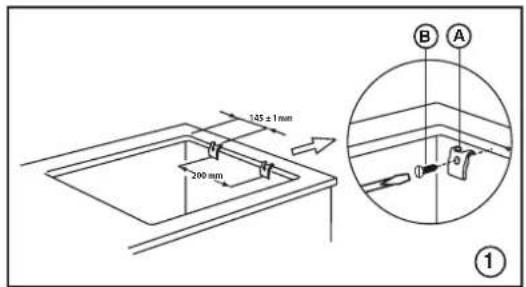

If the worktop is made of wood, use the spring clips and screws provided. Secure the spring clips (A) (fig. 1) with the screws provided (B) (fig. 1) as shown, paying attention to the specified distances. Fit the hob into the worktop.

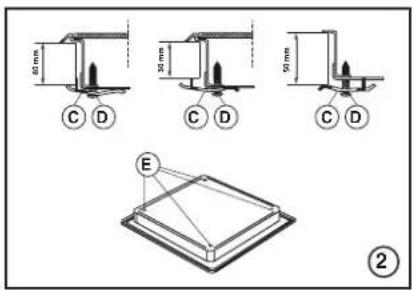

If the worktop is made of marble, plastic, ceramic, stone, etc., the hob must be secured with special brackets (C) (fig. 2). Fit the hob into the worktop (fig. 1). Place the 4 brackets (C) in position in accordance with the thickness of the worktop as shown in fig. 2. Fasten the 4 screws (D) in the positions (E) (fig. 2).

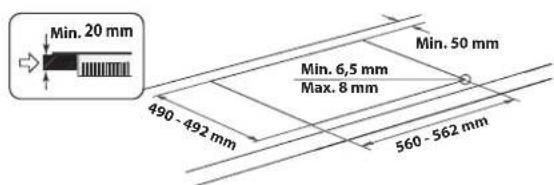

DIMENSIONS AND DISTANCES TO BE MAINTAINED

REMOVING THE HOB:

To remove the hob, first, disconnect it from the electric supply. It is strongly recommended to free the underneath part from the oven, drawer, separator, or other. It allows the technician to access the lower part of the hob to unfasten the four clips with a screwdriver, lift the hob and remove it, avoiding any worktop damage.

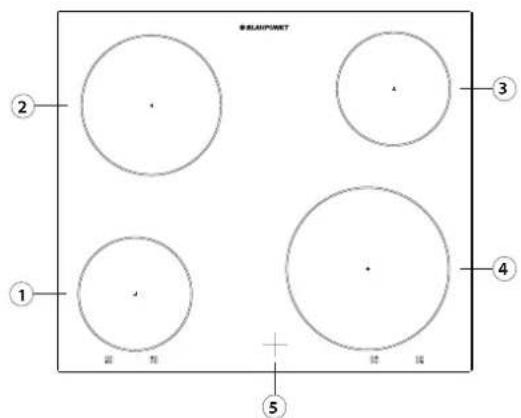

PRODUCT DESCRIPTION

1. Radiant cooking zone 0 145 mm
2. Radiant cooking zone 180mm
3. Radiant cooking zone 145mm
4. Radiant cooking zone 210 mm
5. Residual heat indicator lamps

FIRST TIME USE

Before use, remove:
adhesives stuck on the hob
cardboard guards and protective plastic film;

• check whether the hob has been damaged during transport. If in doubt, contact the After Sales Service.

DAILYUSE

SWITCHING THE HOB ON/OFF

The cooktop control knobs are on the control panel on the oven.

To use the hob turn the knob(s) clockwise and position it (them) on the required power setting or symbol (each number/symbol corresponds to a different power setting/function).

To switch off the hob return the knob(s) to position "0".

The hob is fitted with residual heat indicators. These light up when the cooking zones reach temperatures that could cause burns. These indicators remain

alight after the cooking zones are switched off, and turn off only when the zones are no longer hot enough to be dangerous.

Cooktop functions are explained in the separate oven "Product Description Sheet".

IMPORTANT: To avoid a permanent damage the hob:

• do not use pots with bottoms that are not flat;
• do not use metal pots with enamelled bottom.

CLEANING AND MAINTENANCE

Disconnect the appliance from the power supply.

• Do not use steam cleaning equipment.
• Do not use abrasive sponges or scouring pads as they may damage the glass.
• After each use, clean the hob (when it is cool) to remove any deposits and stains from food residue.

TROUBLESHOOTING

If the hob will not operate correctly, before calling the After-Sales Service, refer to the Troubleshooting Guide to determine the problem.

• Read and follow the instructions given in the section "Daily use".
• Check that the electricity supply has not been shut off.
• Turn the hob off and on again, to make sure that the problem has been solved.

• Make sure that the knob is not turned to "0".

• Sugar or foods with high sugar content can damage the hob and must be immediately removed.
  Salt, sugar and sand could scratch the glass surface.

• Use a soft cloth, absorbent kitchen paper or a specific hob cleaner (follow the Manufacturer's instructions).

• Spills of liquid in the cooking zones can cause the pots to move or vibrate.
  After cleaning the hob, dry thoroughly.

• Turn the multi-pole switch to "Off" for a few minutes and then turn it back to "On".

• The hob will not switch off: disconnect the hob immediately from the power supply.

If after the above checks the fault still occurs, get in touch with the nearest After Sales Service.

When contacting our After-sales Service, please state the codes provided on your product's identification plate.

adhesives stuck on the hob;
cardboard guards and protective plastic film;
