USING YOUR DISHWASHER

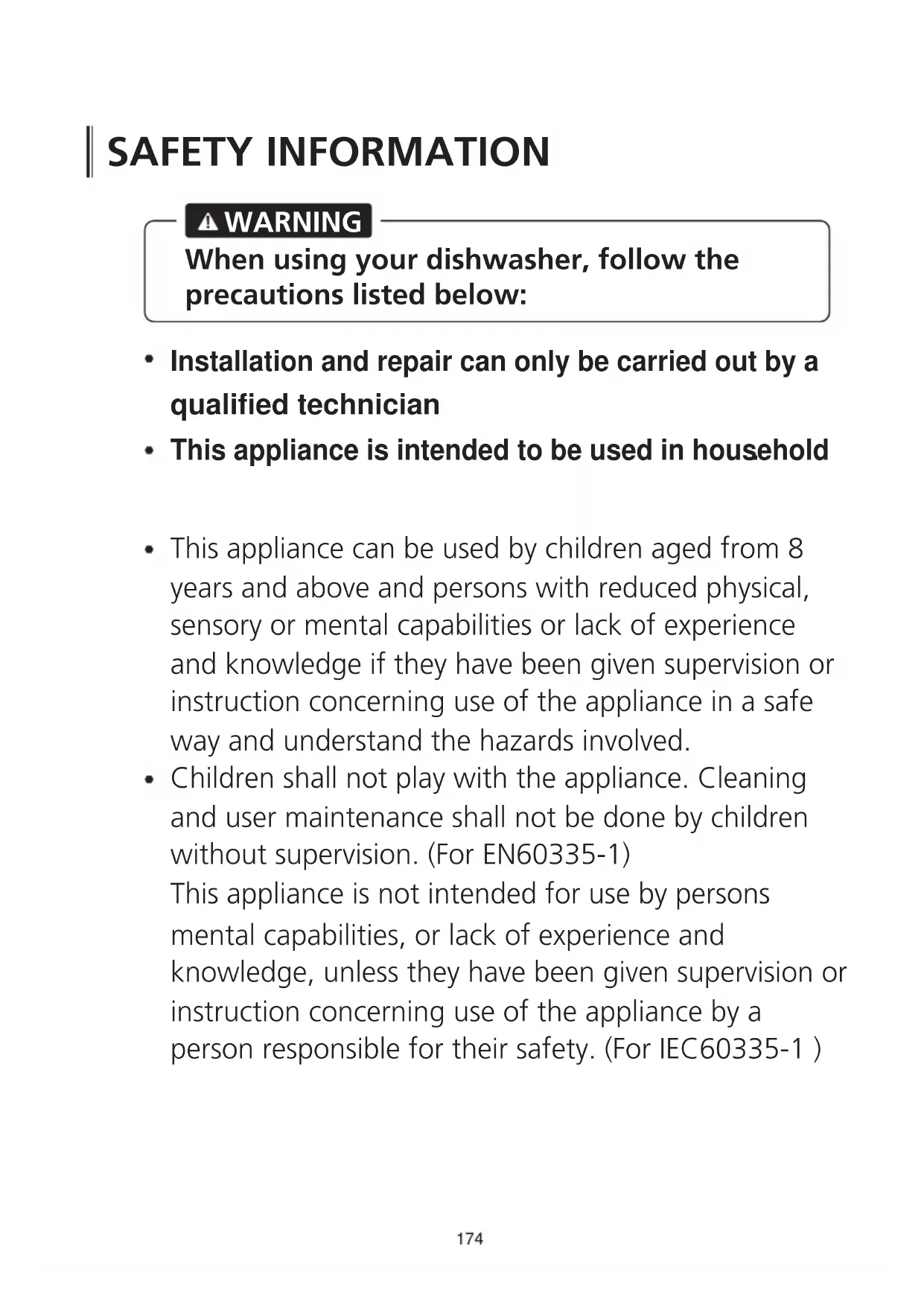

CONTENTSSAFETY INFORMATION WARNING When using your dishwasher, follow the precautions listed below: Installation and repair can only be carried out by a qualified technician This appliance is intended to be used in household

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children without supervision. (For EN60335-1) This appliance is not intended for use by persons mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (For IEC60335-1 )

174Packaging material could be dangerous for children! This appliance is for indoor household use only. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid. Please unplug before cleaning and performing maintenance on the appliance. Use a soft cloth moistened with mild soap, and then use a dry cloth to wipe it again. Earthing Instructions This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the risk of an electric shock by providing a path of least resistance of electric current. This appliance is equipped with an earthing conductor plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local codes and ordinances. Improper connection of the equipment-earthing conductor can result in the risk of an electric shock. Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded.

175Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician. Do not abuse, sit on, or stand on the door or dish rack of the dishwasher. Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out. Do not place any heavy objects on or stand on the door when it is open. The appliance could tip forward. When loading items to be washed:

1) Locate sharp items so that they are not likely to

damage the door seal;

2) Warning: Knives and other utensils with sharp

points must be loaded in the basket with their points facing down or placed in a horizontal position. Some dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact with the skin and eyes and keep children away from the dishwasher when the door is open. Check that the detergent powder is empty after completion of the wash cycle.

176Do not wash plastic items unless they are marked “dishwasher safe” or the equivalent. For unmarked plastic items not so marked, check the manufacturer's recommendations. Use only detergent and rinse agents recommended for use in an automatic dishwasher. Never use soap, laundry detergent, or hand washing detergent in your dishwasher. The door should not be left open, since this could increase the risk of tripping. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard. During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls. The appliance needs to be connected to the main water valve using new hose sets. Old sets should not be reused. To save energy, in stand by mode, the appliance will switch off automatically while there is no any operation in 30 minutes . The maximum number of place settings to be washed is 14. The maximum permissible inlet water pressure is 1MPa. The minimum permissible inlet water pressure is 0.04MPa.

177Disposal For disposing of package and the appliance please go to a recycling center. Therefore cut off the power supply cable and make the door closing device unusable. Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office and your household waste disposal service. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

178PRODUCT OVERVIEW IMPORTANT: Top spray arm Dispenser Filter assembly Lower spray arm Inner pipe Salt container Cutlery rack Lower basket Upper basket Upper spray arm Cup rack an exceptional clean. corners of the dishwasher, ensuring every item receives separate rotating axes to maximize water spray to all The breakthrough innovative spray arm uses two

before using it for the first time. To get the best performance from your dishwasher, read all operating instructions Annexed documents of Warnings 1 and Warnings 2 and PANEL mounting template and plinth and installation, are attached to this manual. They must be taken into account by both the installer and the user.

179Loading The Salt Into The Softener Only use salt specifically designed for dishwashers use!Every other type of salt not specifically designed for dishwasher use, especially table salt, will damage the water softener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused. Only fill with salt before running a cycle.This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion. WARNING Always use salt intended for dishwasher use.The salt container is located beneath the lower basket and should be filled as explained in the following:If your model does not have any water softener, you may skip this section. NOTE:

USING YOUR DISHWASHER

Before using your dishwasher :Inside Outside1. Set the water softener 2. Loading the salt Into the softener3. Loading the basket4. Fill the dispenser

1801. Remove the lower basket and unscrew the reservoir cap.

2. Place the end of the funnel (supplied) into the hole and pour in about 1.5kg of

3. Fill the salt container to its maximum limit with water, It is normal for a small

amount of water to come out of the salt container.

4. After filling the container, screw back the cap tightly.

5. The salt warning light will stop being after the salt container has been filled with salt.

6. Immediately after filling the salt into the salt container, a washing program should

be started (We suggest to use a short program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty. NOTE: The salt container must only be refilled when the salt warning light ( ) in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled. If there is no salt warning light in the control panel (for some Models), you can estimate when to fill the salt into the softener by the cycles that the dishwasher has run. If salt has spilled, run a soak or quick program to remove it. Please follow the steps below for adding dishwasher salt:

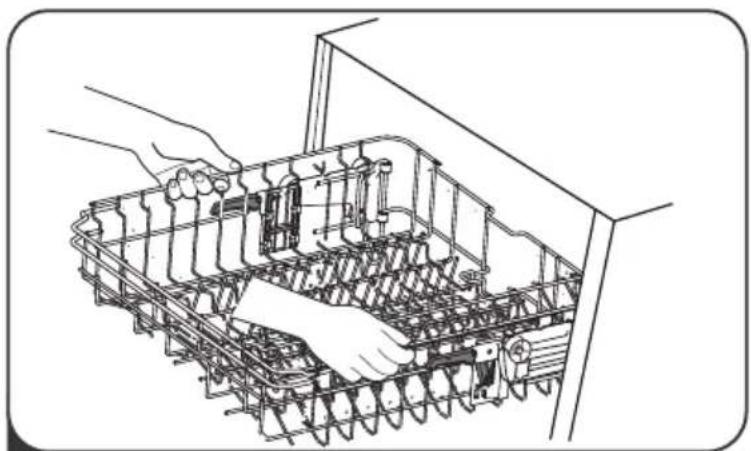

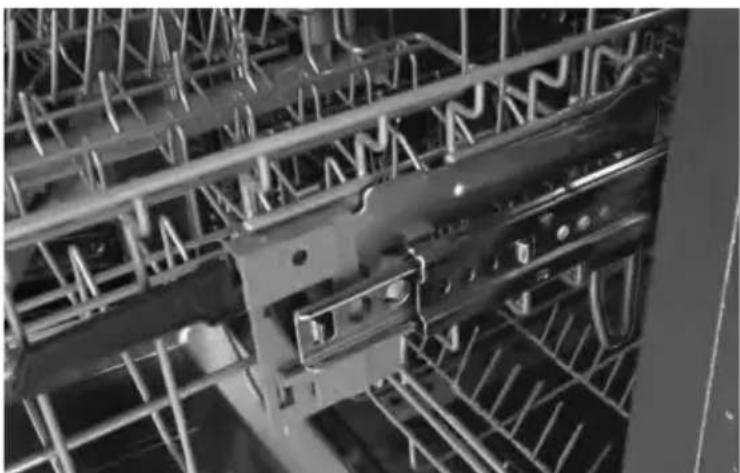

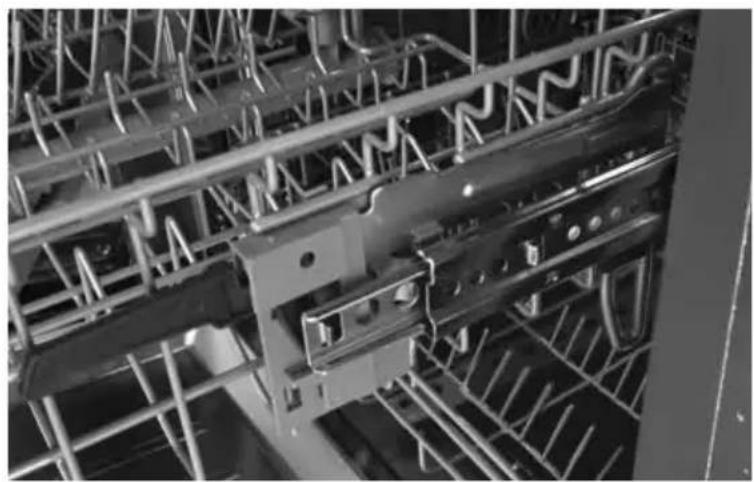

181Adjusting the upper basket Basket Used Tips To raise the the upper basket at the center of each side until the basket locks into place in the upper position. It is not necessary to lift the adjuster handle. upper basket just lift , To lower the lift the adjust handles on each side to release the basket and lower it to the lower position. upper basket,

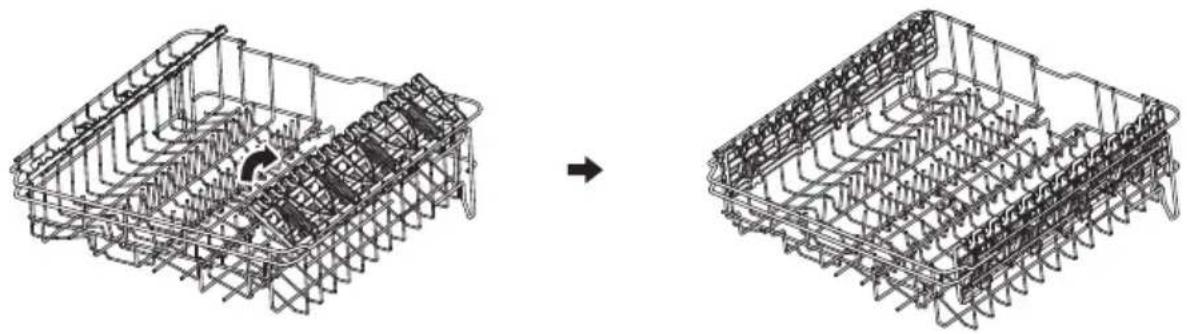

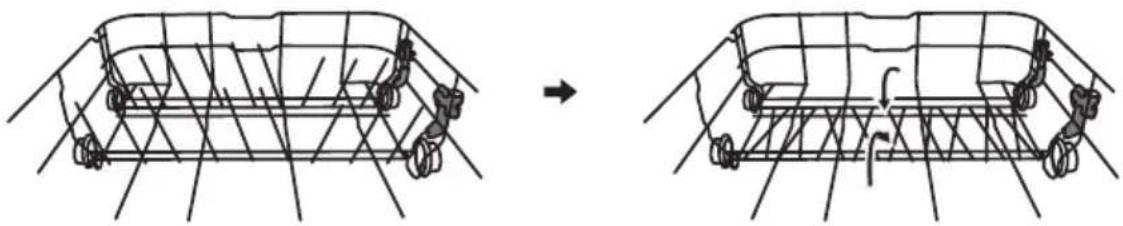

2To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use. Folding back the rack shelves The spikes of the lower basket are used for holding plates and a platter. They can be lowered to make more room for large items. raise upwards fold backwards Folding back the cup shelves You can load cups or glasses onto the glass support. This is also very convenient for washing wine glasses. Hang your wine glasses onto the pegs of the glass support. Please determine the position according to the size of the wine glasses. Small glasses are placed on the left side of the upper basket, and middle glasses are placed on the right side. Small glass Middle glass ＜120 mm ＜180 mm (with the third tray) ＜250 mm (without the third tray)

183Water Softener The water softener must be set manually, using the water hardness dial. The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The more minerals there are, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area. Adjusting salt consumption The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

1. Open the door and switch on the appliance

4. Without operation in 5 seconds or press the Power button to complete the setup

and exit the setup mode.

ress the button for more than 5 seconds to start the water softener set model within 60 seconds after the appliance was switched on; Press the button to select the proper set according to your local environment, the sets will change in the following sequence: H3->H4->H5->H6->H1->H2->H3; Please follow the steps below for adjustment in salt consumption. dH=1.25 Clarke=1.78 fH=0.178mmol/l

French French Mmol/lMmol/lWater softener levelWater softener levelBritish ClarkeBritish Clarke WATER HARDNESS

184NOTE: If your model does not have any water softener, you may skip this section.Water Softener Preparing And Loading Dishes For washing the following cutlery/dishesAre not suitable The hardness of the water varies from place to place. If hard water is used in the dishwasher, immediately after the program has ended.To prevent damage, do not take glass and cutlery out of the dishwasher For particular items, select a program with the lowest possible temperature. Consider buying utensils which are identified as dishwasher-proof.the set success.Without operation in 5 seconds or press the Power button to exit the set model,

dishwasher uses.D1->D2->D3->D4->D5->D1. The higher the number, the more rinse aid the using habits, the sets will change in the following sequence:Press the Program “ ” button to select the proper set according to your3.aid indication blinks as 1Hz frequency.seconds, and then press the Delay “ + ” button to enter the set model,the rinse Within 60 seconds after step 1, press the Program “ ” button more than 5 2. Glazed patterns may fade if machine washed frequentlySilver and aluminum parts have a tendency to discolour during washing Some types of glasses can become dull after a large number of washes Are of limited suitabilityItems made from synthetic fibresWooden plattersSteel items subject to rustingCrystal glassPewter or cooper itemsBonded cutlery items or dishesOlder cutlery with glued parts that are not temperature resistantPlastic items that are not heat resistantCutlery with wooden, horn china or mother-of-pearl handlesOpen the door, power on the dishwasher by plugging in;1.designed to adjust the consumption by user. Follow the below steps.To achieve a better drying performance with limited rinse aid, the dishwasher is Adjusting the rinse aid reservoirdesigned to eliminate lime and minerals from the water.The appliance is equipped with a special softener that uses a salt containerspecifically deposits will form on the dishes and utensils.

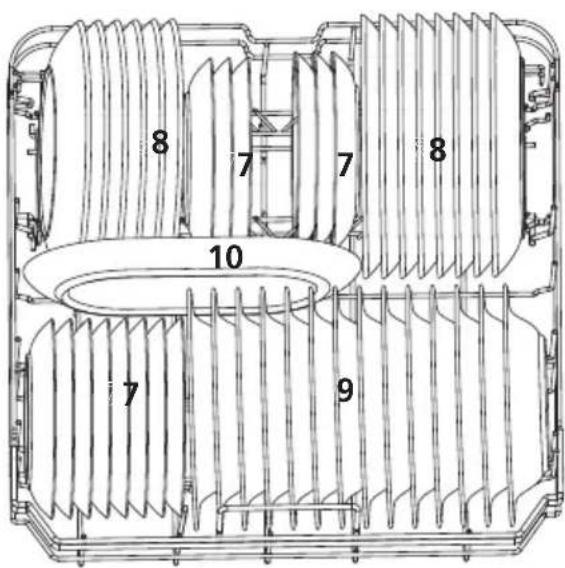

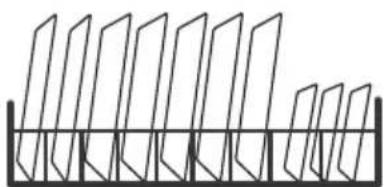

185Items such as cups, glasses, pots/pans, etc. are faced downwards. Curved items, or ones with recesses, should be loaded aslant so that water can run off. All utensils are stacked securely and can not tip over. All utensils are placed in the way that the spray arms can rotate freely during washing. Load hollow items such as cups, glasses, pans etc. With the opening facing downwards so that water cannot collect in the container or a deep base. Dishes and items of cutlery must not lie inside one another, or cover each other. To avoid damage, glasses should not touch one another. The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups. Long bladed knives stored in an upright position are a potential hazard! Long and / or sharp items of cutlery such as carving knives must be positioned horizontally in the upper basket. Please do not overload your dishwasher. This is important for good results and for reasonable consumption of energy. NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket. To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket upper basket. first, followed by the Removing the dishes WARNING Items will be hot! To prevent damage, do not take glass and cutlery out of the dishwasher for around 15 minutes after the program has ended. Recommendations for loading the dishwasher Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans. It is not necessary to rinse the dishes under running water. For best performance of the dishwasher, follow these loading guidelines. Place objects in the dishwasher in following way: (Features and appearance of baskets and cutlery baskets may vary from your model.)

186Loading the upper basket The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as they are not too dirty).Position the dishes and cookware so that they will not get moved by the spray of water. WARNING Do not let any item extend through the bottom. Always load sharp utensils with the sharp point down! Loading the cutlery basket Cutlery should be placed in the cutlery rack separatelyfrom each other in the appropriate positions, and do make sure the utensils do not nest together, this may cause bad performance. Loading the lower basket We suggest that you place large items and the most difficult to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below. It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.The maximum diameter advised for plates in front of the detergent dispenser is of 19 cm, this not to hamper the opening of it.

washing loading please load the baskets ns on page 27

187The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rinse aids. WARNING Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance. Function Of The Rinse Aid And Detergent Function of detergent The chemical ingredients that compose the detergent are necessary to remove, crush and dispense all dirt out of the dishwasher. Most of the commercial quality detergents are suitable for this purpose. WARNING Proper Use of DetergentUse only detergent specifically made for dishwashers use. Keep your detergent fresh and dry. Don't put powdered detergent into the dispenser until you are ready to wash dishes.Dishwasher detergent is corrosive!Keep dishwasher detergent out of the reach of children. When to refill the rinse aid The regularity of the dispenser needing to be refilled depends on how often dishes are washed and the rinse aid setting used. The Low Rinse Aid indicator ( ) will be lit when more rinse aid is needed. Do not overfill the rinse aid dispenser.

Close the cap after all.

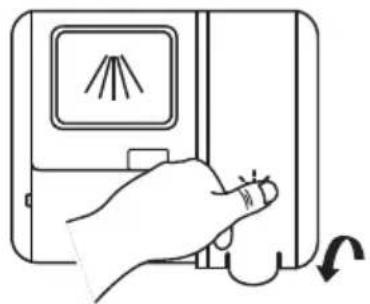

Remove the rinse reservoir cap by lifting up the handle .Pour the rinse aid into the dispenser, being careful not to overfill.

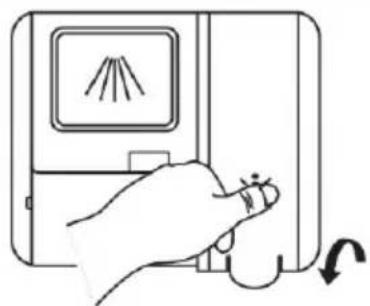

Please choose an open way according to the actual situation.1. Open the cap by sliding the release catch.2. Open the cap by pressing down the release catch.Add detergent into the larger cavity (A) for the main wash cycle . For better cleaning result, especially if you have very dirt items, pour a small amount of detergent onto the door.The additional detergent will activate during the pre-wash phase. Close the flap by sliding it to the front and then pressing it down.AASliding it to the rightPress down

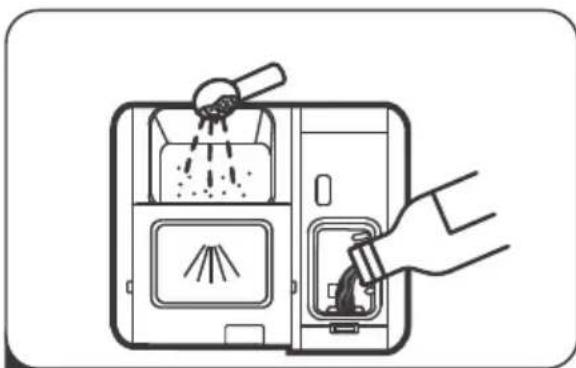

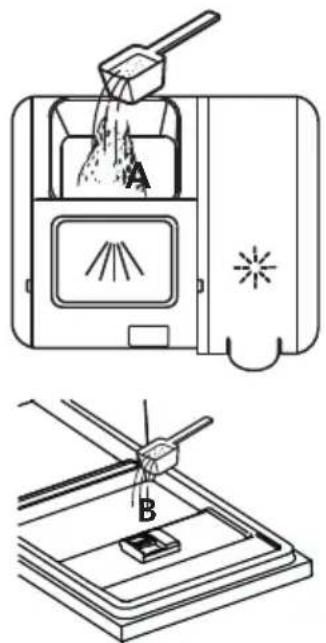

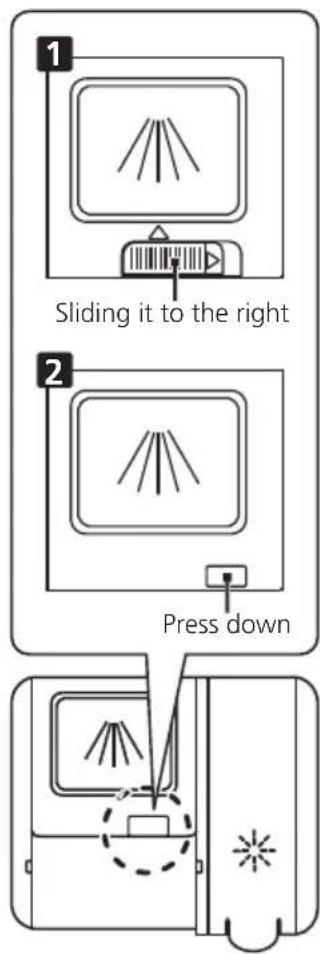

Filling The Detergent Dispenser NOTE: Be aware that depending on the soiling of water, setting may be different.Please observe the manufacturer's recommendations on the detergent packaging.

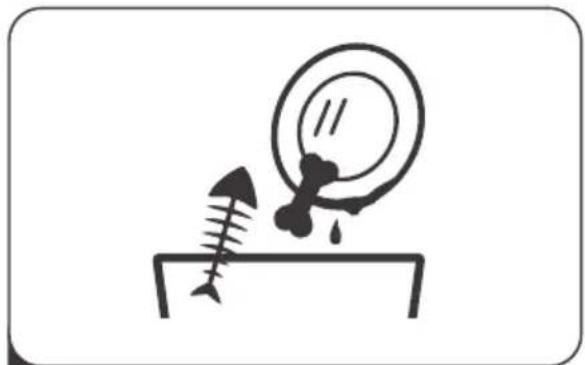

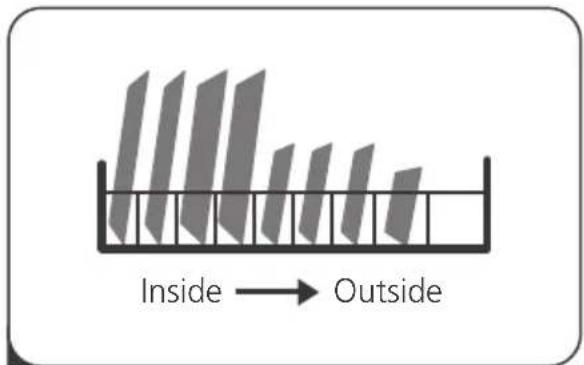

QUICK USER GUIDEPlease read the corresponding content on the instruction manual for detailed operating method. Removing the larger residue on the cutlery Loading the baskets Filling the dispenser Selecting a program and running the dishwasherInside Outside Install the dishwasher(Please check the section “INSTALLATION INSTRUCTION ” on page 45)

191CONTROL PANEL Operation (Button)PowerDelay -/+FunctionPress the button to turn on your dishwasher,the screen lights up.Press the “+”button to add the delay time or press the “-”button to decrease the delay time, maximum 24 hours delay can be defined.Press the button to select a function, corresponding indicator will be lit.

Alt Press the button to select either upper basket or lower basket loaded, and the response indicators will be lit.

Program Press the “ ” or “ ” button to select a program, and the corresponding indicator will be lit.

192Water Faucet Salt Rinse AidIf the “ ” indicator is lit, it means the dishwasher is low on dishwasher rinse aid and requires a refill. ECO This is standard program, it is suitable to clean normally soiled tableware and it is the most efficient program in terms of its combined energy and water consumption for that type of tableware.GlassFor lightly soiled crockery and glass.90 minFor normally soiled loads that need quick wash. PartyFor lightly soiled loads, such as glasses, crystal and fine china.Self-CleaningThis program provides an effective cleaning of the dishwasher itself.Program indicator If the “ ” indicator is lit, it means the dishwasher is low on dishwasher salt and needs to be refilled.Warning indicator If the “ ” indicator is lit, it means the water faucet closed. Auto For lightly, normally or heavily soiled crockery with or without dried-on food.HygieneWith the anitize option selected, the water temperature is increased to 70 ˚C for high temperature sanitization. For normally soiled loads, such as pots, plates, glasses and lightly soiled pans.NormalScreen

Energy Save When you have less plates to wash ,you can choose it. ( It can only be used with Normal, ECO, Glass, 90 min ) Upper Lower When you select Lower, only the lower rack nozzle is activated. The upper nozzle will not operate. When you select Upper, only the upper rack nozzle is activated. The lower nozzle will not operate. Alt indicator

Screen8 To show the reminding time and delay time, error codes etc. Extra Cleaning To wash very dirty, hard to clean dishes. ( It can only be used with Hygiene, Normal, ECO, Glass, 90 min ) Extra Drying To dry dishes more completely. ( It can only be used with Hygiene, Normal, ECO, Glass, 90 min ) Express Reduce the program time. ( It can only be used with Hygiene, Normal, ECO, Glass, 90 min ) Operating light When the dishwasher is running, a blue light indicating operation will be projected onto the floor. It will be displayed in the lower right area.

Cups Small serving bowlMedium serving bowlSaucersGlassesLarge serving bowl Item Number

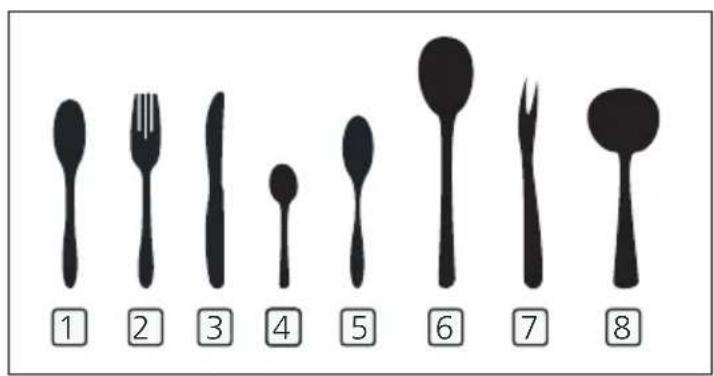

Soup spoonsForksKnivesTeaspoonsDessert spoonsServing spoonsServing forksGravy ladles Item NumberInformation for comparability tests in accordance with EN 50242Capacity: 14 place settingsPosition of the upper basket: lower positionProgram: ECORinse aid setting: 6Softener setting: H3

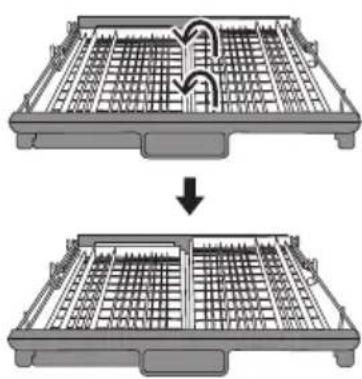

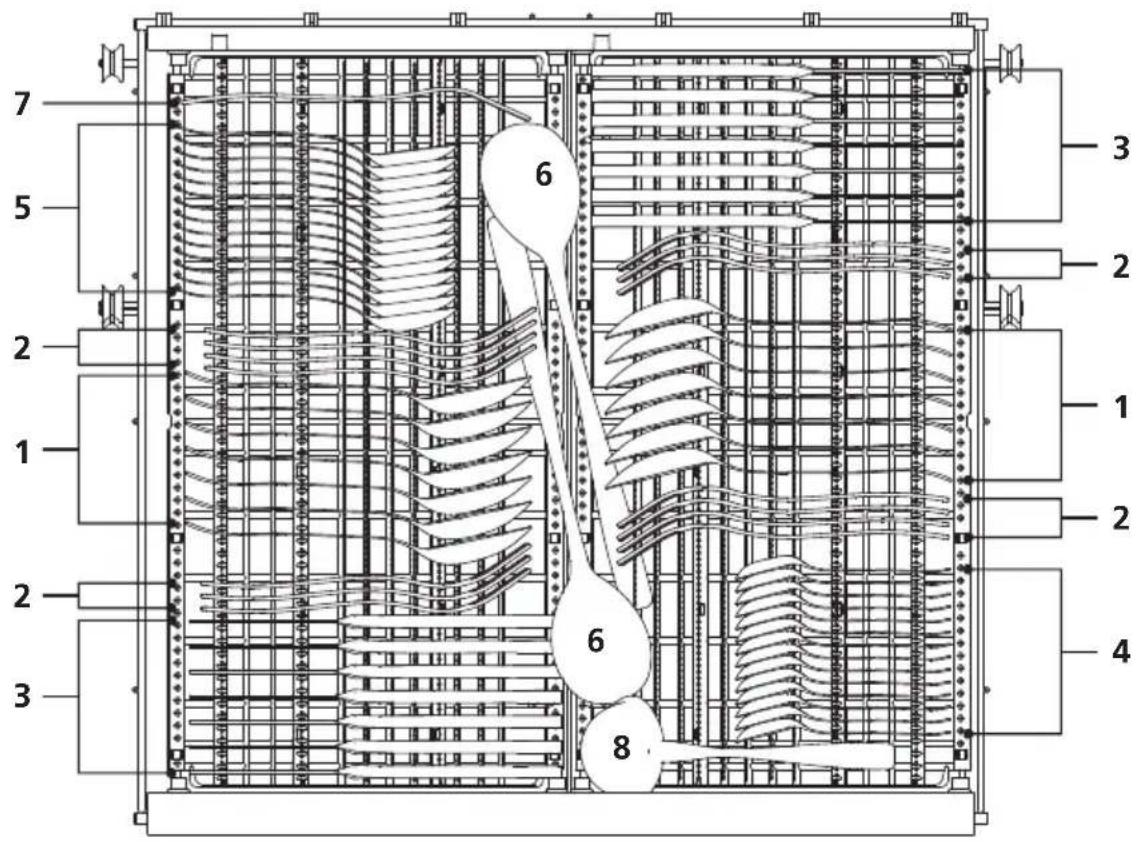

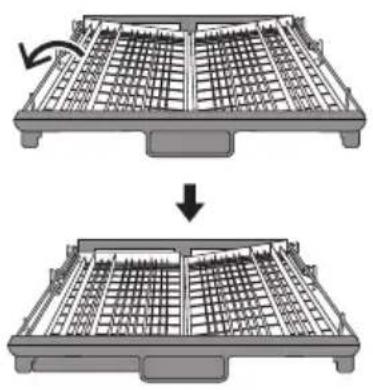

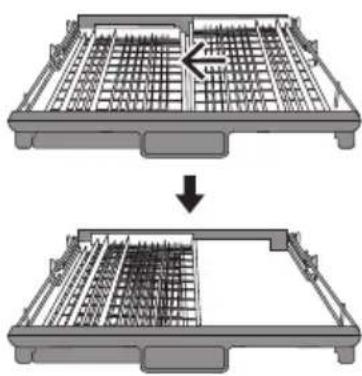

196Cutlery Rack Used Tips Lift the left basket up, adjust it to lower position, left basket is flat and right basket is sideling. Lift the right basket up, both left and right baskets are flat. Move the right basket from right to left, two basket are overlapping.Remove the right basket from the tray, only has the left basket. WVa

197PROGRAMMING THE DISHWASHER

The table below shows which programs are best for the levels of food residue on them and how much detergent is needed. It also show various information about the programs. () Means: need to fill rinse into the Rinse-Aid Dispenser. Program Description Of Cycle Detergent Pre/Main Energy (kW/h) Water (L) Rinse Aid Auto Pre-wash (45 °C) AutoWash (45-55 °C) Rinse Rinse (65 °C) Drying 5/30 g 1 o 2 pieces 0,9-1.2 11-15

Note EN 50242: This program is the test cycle. The information for comparability test in accordance with EN 50242.

Running TimeStarting A Cycle Wash 1. Draw out the lower and upper basket, load the dishes and push them back. It is commended to load the lower basket first, then the upper one.2. Pour in the detergent.3. Insert the plug into the socket. The power supply refer to last page”Product fiche”. Make sure that the water supply is turned on to full pressure. 4. Open the door, Press the power button. 5. Press the Program “ ” button or “ ” button to choose a program, the response light will turn on. Then close the door, the dishwasher will start its cycle. Changing The Program Mid-cycle A wash cycle can only be changed if it has been running for a short time otherwise, the detergent may have already been released and the dishwasher may have already drained the wash water. If this is the case, the dishwasher needs to be reset and the detergent dispenser must be refilled. To reset the dishwasher, follow the instructions below: you can open the door completely.2. Press Program “ ” button more than three seconds the machine will be in stand by state.3. You can change the program to the desired cycle setting. Open the door a little to stop the dishwasher, after the spray arm stop working, 3 sec

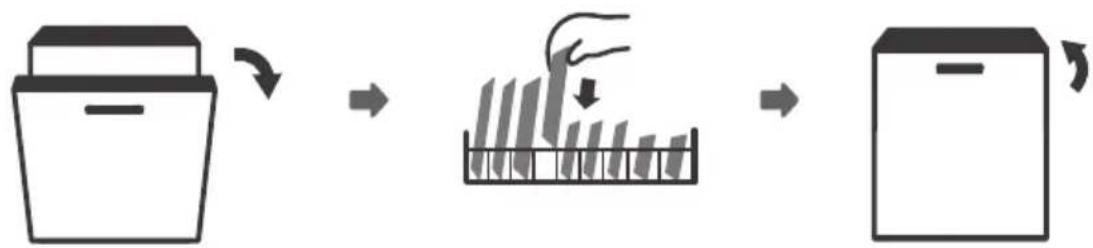

199Forget To Add A Dish? A forgotten dish can be added any time before the detergent dispenser opens. If this is the case, follow the instructions below:

1. Open the door a little to stop the washing.

2. After the spray arms stop working, you can open the door completely.

3. Add the forgotten dishes.

4. Close the door. The dishwasher will start after 10 seconds.

WARNING It is dangerous to open the door mid-cycle, as hot steam may scald you.

External Care The door and the door seal Clean the door seals regularly with a soft damp cloth to remove food deposits.When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. These surfaces are outside the wash cabinet and are not accessed by water from the spray arms. Any deposits should be wiped off before the door is closed. The control panel If cleaning is required, the control panel should be wiped with a soft damp cloth only.To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.Never use abrasive cleaners or scouring pads on the outer surfaces because they may scratch the finish. Some paper towels may also scratch or leave marks on the surface. WARNING Internal Care Filtering system The filtering system in the base of the wash cabinet retains coarse debris from the washing cycle. The collected coarse debris may cause the filters to clog. Check the condition of the filters regularly and clean them if necessary under running water.Follow the steps below to clean the filters in the wash cabinet. NOTE: Pictures are only for reference, different models of the filtering system and spray arms may be different.

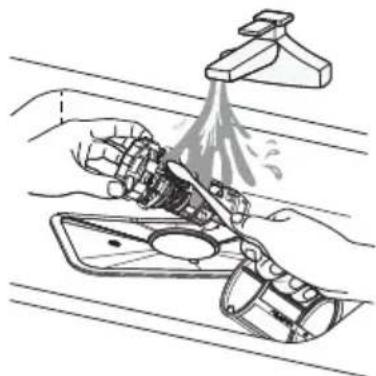

Hold the coarse filter and rotate it anticlockwise to unlock the filter.Lift the filter upwards and out of the dishwasher.The fine filter can be pulled off the bottom of the filter assembly.The coarse filter can be detached from the main filter by gently squeezing the tabs at the top and pulling it away. Larger food remnants can be cleaned by rinsing the filter under running water.For a more thorough clean, use a soft cleaning brush.Reassemble the filters in the reverse order of the disassembly, replace the filter insert, and rotate clockwise to the close arrow.Do not over tighten the filters. Put the filters back in sequence securely, otherwise coarse debris could get into the system and cause a blockage.Never use the dishwasher without filters in place. Improper replacement of the filter may reduce the performance level of the appliance and damage dishes and utensils. WARNING Main filter Main filter Coarse filterCoarse filterFine filterOpenOpen

202Spray arms Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly. It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray arm jets and bearings. To clean the spray arms, follow the instructions below:

To remove the lower spray arm, pull out the spray arm upward.

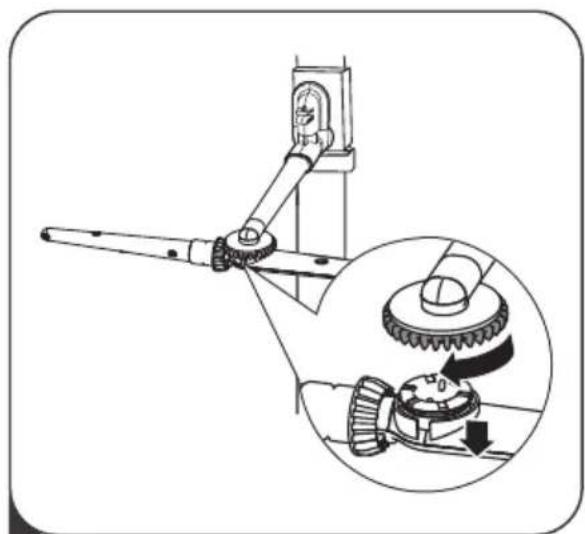

To remove the upper spray arm, hold the nut in the center still and rotate the spray arm clockwise to remove it.

203Caring For The Dishwasher Frost precaution Please take frost protection measures on the dishwasher in winter. Every time after washing cycles, please operate as follows:

1. Cut off the electrical power to the dishwasher at the supply source.

2. Turn off the water supply and disconnect the water inlet pipe from the water valve.

3. Drain the water from the inlet pipe and water valve. (Use a pan to gather the water)

4. Reconnect the water inlet pipe to the water valve.

5. Remove the filter at the bottom of the tub and use a sponge to soak up water in

the sump. After every wash After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odors are not trapped inside. Remove the plug Before cleaning or performing maintenance, always remove the plug from the socket. No solvents or abrasive cleaning To clean the exterior and rubber parts of the dishwasher, do not use solvents or abrasive cleaning products. Only use a cloth with warm soapy water. To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers. When not in use for a longtime It is recommend that you run a wash cycle with the dishwasher empty and then remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odors from forming within the appliance. Moving the appliance If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back. Seals One of the factors that cause odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring. 204TROUBLESHOOTING TIPS Before Calling For Service Reviewing the charts on the following pages may save you from calling for service. Problem Possible Causes What To Do Dishwasher doesn't start Fuse blown, or the circuit break tripped. Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher. Power supply is not turned on. Make sure the dishwasher is turned on and the door is closed securely. Make sure the power cord is properly plugged into the wall socket. Check that the water supply is connected properly and the water is turned on. Door of dishwasher not properly closed. Make sure to close the door properly and latch it. Water not pumped form dishwasher Twisted or trapped drain hose. Filter clogged. Kitchen sink clogged. Check the drain hose. Check coarse the filter. Check the kitchen sink to make sure it is draining well. If the problem is the kitchen sink that is not draining , you may need a plumber rather than a serviceman for dishwashers. Suds in the tub Wrong detergent. Water pressure is low Use only the special dishwasher detergent to avoid suds. If this occurs, open the dishwasher and let suds evaporate. Add 1 gallon of cold water to the bottom of the dishwasher. Close the dishwasher door, then select any cycle. Initially, the dishwasher will drain out the water. Open the door after draining stage is complete and check if the suds have disappeared. Repeat if necessary. 205Spilled rinse-aid. Always wipe up rinse-aid spills immediately. Stained tub interior Detergent with colourant may have been used. Make sure that the detergent has no colourant. White film on inside surface Hard water minerals. To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves. Never use any other cleaner than dishwasher detergent otherwise, it may cause foaming or suds. There are rust stains on cutlery The affected items are not corrosion resistant. A program was not run after dishwasher salt was added. Traces of salt have gotten into the wash cycle. Always run a wash program without any crockery after adding salt. Do not select the Turbo function (if present), after adding dishwasher salt. The lid of the softer is loose. Check the softener lid is secure. Problem Possible Causes What To Do Avoid washing items that are not corrosion resistant in the dishwasher. Knocking noise in the dishwasher A spray arm is knocking against an item in a basket Interrupt the program and rearrange the items which are obstructing the spray arm. Rattling noise in the dishwasher Items of crockery are loose in the dishwasher. Interrupt the program and rearrange the items of crockery. Knocking noise in the water pipes This may be caused by on-site installation or the cross-section of the piping. This has no influence on the dishwasher function. If in doubt, contact a qualified plumber. The dishes are not clean The dishes were not loaded correctly. See PART “Preparing And Loading Dishes” page 17. The program was not powerful enough. Select a more intensive program. 206Not enough detergent was dispensed. Use more detergent, or change your detergent. Items are blocking the movement of the spray arms. Rearrange the items so that the spray can rotate freely. The filter combination is not clean or is not correctly fitted in the base of wash cabinet. This may cause the spray arm jets to get blocked. Clean and/or fit the filter correctly. Clean the spray arm jets. Cloudiness on glassware. Combination of soft water and too much detergent. Use less detergent if you have soft water and select a shorter cycle to wash the glassware and to get them clean. Problem Possible Causes What To Do The dishes are not clean. White spots appear on dishes and glasses. Add more detergent. Black or grey marks on dishes Aluminium utensils have rubbed against dishes Use a mild abrasive cleaner to eliminate those marks. Hard water area can cause limescale deposits. Improper loading Load the dishwasher as suggested in the directions. Dishes are removed too soon Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can come out. Take out the dishes until the inside temperature is safe to touch. Unload the lower basket first to prevent the dropping water from the upper basket. Detergent left in dispenser Dishes block detergent dispenser Re-loading the dishes properly. The dishes aren't drying Wrong program has been selected. With a short program, the washing temperature is lower, decreasing cleaning performance. Choose a program with a long washing time. Use of cutlery with a low-quality coating. Water drainage is more difficult with these items. Cutlery or dishes of this type are not suitable for washing in the dishwasher. The dishes aren't drying 207ERROR CODES If there is a malfunction, the dishwasher will display error codes to identify these: Codes Meanings Possible Causes WARNING If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher. Longer inlet time. Not reaching required temperature. Overflow. Malfunction of heating element .Some element of dishwasher leaks .

Faucets is not opened, or water intake is restricted,or water pressure is too low.

Open circuit or break of distributary valve.Failure of orientation of distributary valve. PCB or motor fail.Washing control system fail. Open circuit or break wiring for the communication.Failure of communication between main PCB with display pcb.

INOXPAN S.L. appreciates your trust in our brand, Pando, distinguished by its Quality, Design and Innovation, loyal to its origins and commitments.

This appliance covers 2 years guaranty from its purchasing date covering any manufacturing defect affecting its fine performance. To grant the same is mandatory to show Invoice or purchasing ticket to the Pando Customer Service authorized engineer. During the above mentioned period of time the Company is committed to replace or repair free of charge parts and labor faulty in origin, as well as any expense due to said service or replacement and until a fine performance is achieved.

EXCEPTIONS ON THE WARRANTY:

This warranty shall not cover or it may be subjected to termination, before any of the situations described further below. In these cases the end user is meant to cover for any parts and/or pieces cost involved as well as labor and customer service travel expenses: - Appliance malfunction or damage caused by missing any instructions, recommendations and/or standards shown in the User’s Manual and Installation Manual. - Damage in the device, furniture or external elements caused by inappropriate installation or use of the device and its connecting parts, as main’s cable, water intake or water drain connection - Whenever the device is use for not domestic use, purpose for which the appliance is not prepared. - Any Installation or performance, clean up or product maintenance check up. - Malfunction or damages produced by carriage and/or handling made by any non authorized outside staff than the official PANDO Customer Service. - Any scratch, dents or aesthetical flaws appearing due to installation, handling or inappropriate use. - Aesthetic components due to time use or tear, as panels, filters, trays, rails and accessories. - Rust or stains on Stainless Steel or painting produced by a wrong application or exposition without protection to corrosive elements as inappropriate or inadequate cleaning products. - Aesthetical damages or corrosion on the machine inside walls and accessory elements and /or door device, produced by non appropriate cleaning products, or inappropriate and inadequate use of products intended for cleaning holding tanks like salt, rinse aid, or detergent, not following the advise given in the User’s Manual. - Malfunction and damages produced by external agents; as anomalies on main’s supply, natural disasters, atmospheric or geological phenomena, storms, lightning, floods, bugs, or any animal, etc - Malfunction or internal and/or external damage caused by water chemical effects as lime- like for instance in the water pump. - Lack of easy and safe access to product disassembly from the furniture, as well as from main supply, water and drain associated, or in case the furniture parts impeding an easy disassembly, in which case the end user is liable to arrange an easy access, covering any labor and transport expenses in case Pando Customer Service may require of further time or second service call due to inaccessibility.

INOXPAN, S.L. is expressly excluded of any liability before eventual damages directly or indirectly to people or materials caused by inappropriate handling of the appliance. PANDO Official authorised Customer Service Contact Details: SPAIN, PORTUGAL AND ANDORRA: OTHER COUNTRIES:

https://www.pando.es/fr/service-apres-vente/TECHNICAL INFORMATION Height (H) Width (W) Depth (D1) Depth (D2) 815mm 598mm 550mm (with the door closed) 1150mm (with the door opened 90°)

220 min 1760-2100W Sheet of household dishwasher according to EU Directive 1016/2010 & 1059/2010: Brand Type / Description Standard place settings Energy efficiency class Annual energy consumption Energy consumption of the standard cleaning cycle Power consumption of off-mode Power consumption of left-on mode Annual water consumption Drying efficiency class Standard cleaning cycle Program duration of the standard cleaning cycle Noise level Mounting Power consumption Rated voltage / frequency A + + + (highest efficiency) to D (lowest efficiency) Energy consumption based on 280 standard cleaning cycles using cold water fill and the consumption of the low power modes. Actual energy consumption will depend on how the appliance is used. Water consumption based on 280 standard cleaning cycles. Actual water consumption will depend on how the appliance is used. A (highest efficiency) to G (lowest efficiency) This program is suitable for cleaning soiled normally soiled tableware and that it is the most efficient program in terms of its combined energy and water consumption for that type of tableware. NOTE：

integral cookingINSTALLATION INSTRUCTION Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only insert the plug into an electrical socket which is earthed properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.Electrical requirementsElectrical connectionEnsure that proper earthing exists before use About Power Connection WARNINGFor personal safety:Do not use an extension cord or an adapter plug with this appliance.Do not, under any circumstances, cut or remove the earthing connection from the power cord.The installation of the pipes and electrical equipments should be done by professionals. Attention WARNINGElectrical Shock Hazard Disconnect electrical power before installing dishwasher.Failure to do so could result in death or electrical shock.Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10A/13A/16A, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

214Water Supply And Drain Cold water connection Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in place. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure that the water is clear. This precaution is needed to avoid the risk of the water inlet to be blocked and damage the appliance. safety supply hose ordinary supply hose About the safety supply hose The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water. How to connect the safety supply hose

1. Pull The safety supply hoses completely out from storage compartment located at

2. Tighter the screws of the safety supply hose to the faucet with thread 3/4inch.

3. Turn water fully on before starting the dishwasher.

WARNING A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged. How to disconnect the safety supply hose

1. Turn off the water.

2. Unscrew the safety supply hose from the faucet.

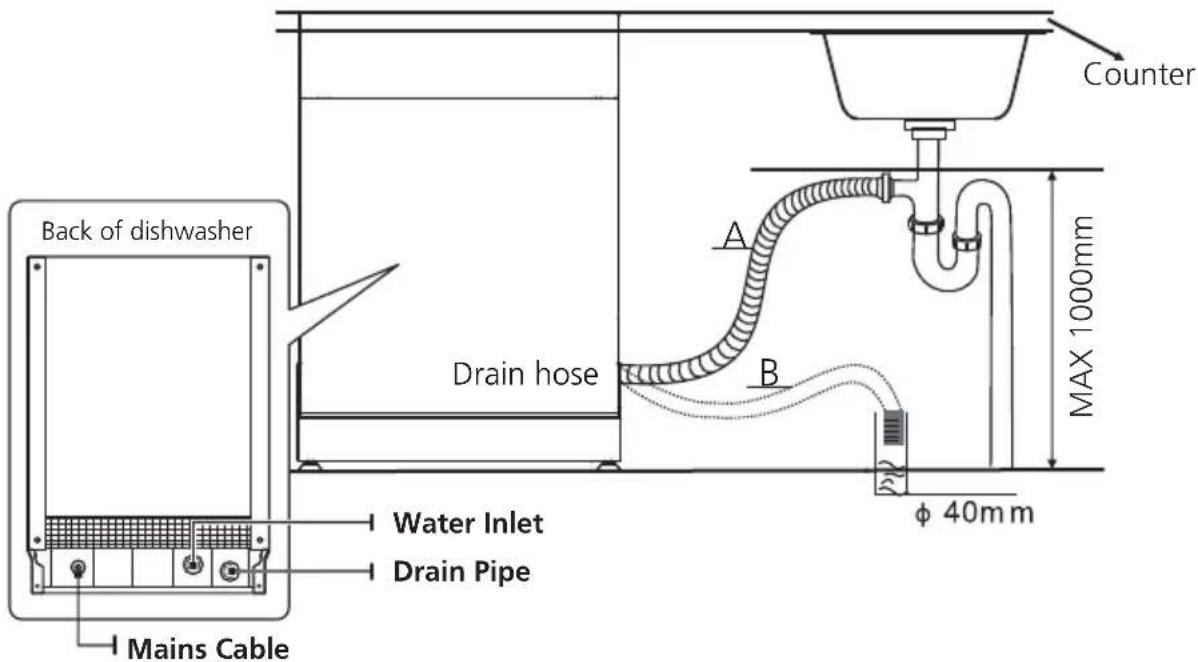

215Connection Of Drain Hoses Please securely fix the drain hose in either position A or position B

MAX 1000mm CounterDrain hose Insert the drain hose into a drain pipe with a minimum diameter of 4 cm, or let it run into the sink, making sure to avoid bending or crimping it. The height of drain pipe must be less than 1000mm. The free end of the hose must not be immersed in water to avoid the back flow of it. Extension hose Water outlet How to drain excess water from hoses Syphon connection If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink. Connect the water drain hose. The drain hose must be correctly fitted to avoid water leaks. Ensure that the water drain hose is not kinked or squashed. The waste connection must be at a height less than 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed . If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 meters; otherwise the cleaning effect of the dishwasher could be reduced. Back of dishwasherWater InletDrain PipeMains Cable

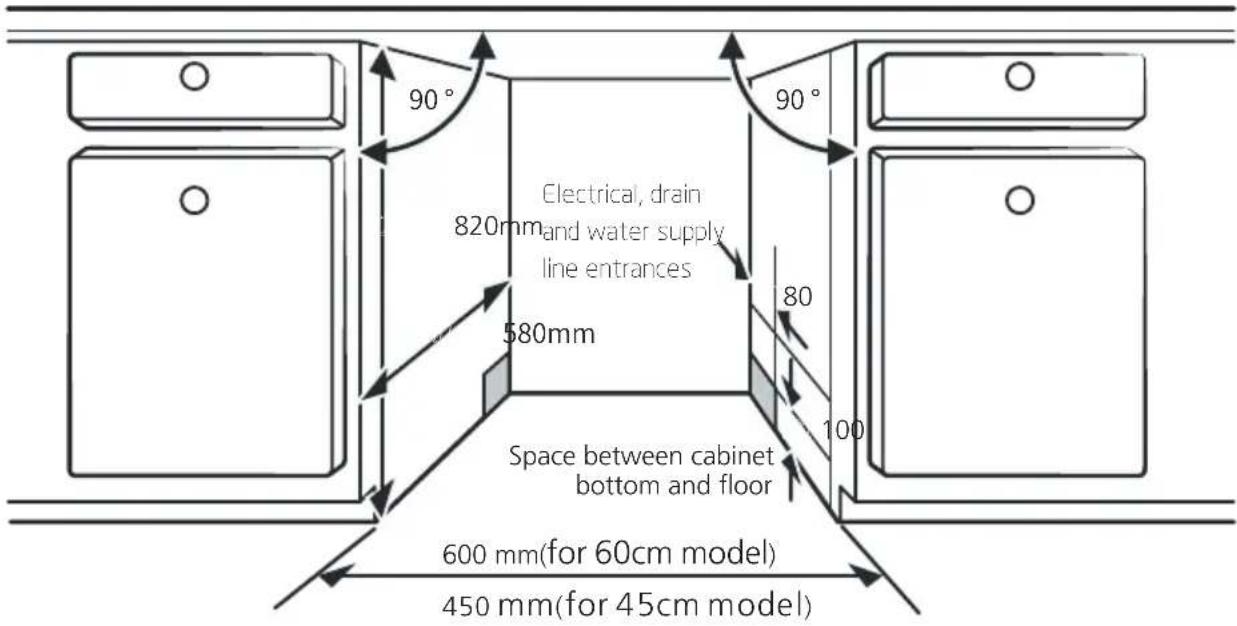

216Position The Appliance Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or walls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation. Levelling the appliance Once the appliance is positioned for levelling, the height of the dishwasher may be altered via adjustment of the screwing level of the feet.In any case,the appliance should not be inclined more than 2°. NOTE: Only apply to the free standing dishwasher. Built-In Installation Step 1. Selecting the best location for the dishwasher The installation position of dishwasher should be near the existing inlet and drain hoses and power cord.Illustrations of cabinet dimensions and installation position of the dishwasher.1. Less than 5 mm between the top of dishwasher and cabinet and the outer door aligned to cabinet. 90 ° 90 ° 580mm580mm820mm820mm100100Electrical, drain and water supply line entrancesElectrical, drain and water supply line entrancesSpace between cabinet bottom and floorSpace between cabinet bottom and floor600 mm(for 60cm model) 450 mm(for 45cm model) o o o o

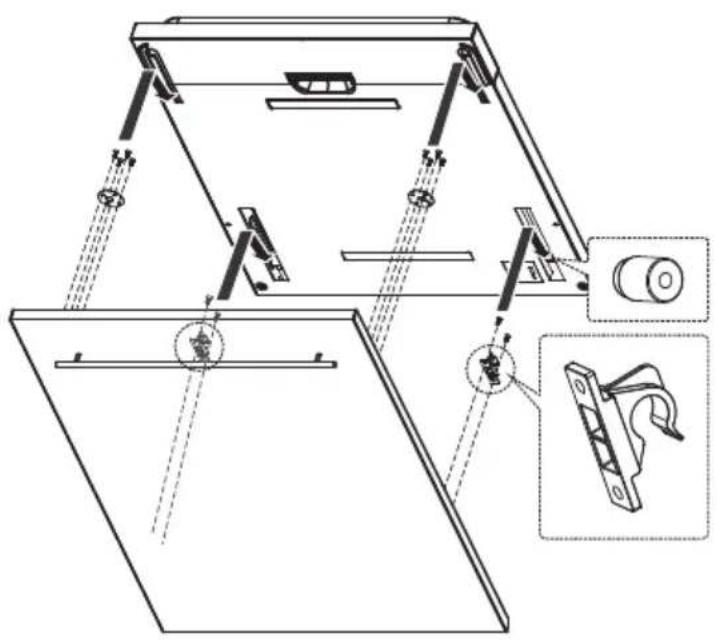

217Step 2. Aesthetic panel's dimensions and installation

2. If dishwasher is in stalled at the corner of the cabinet,

there should be some space when the door is opened. CabinetDishwasherDoor of dishwasherMinimum space of 50mm NOTE: Depending on where your electrical outlet is, you may need to cut a hole in the opposite cabinet side. The aesthetic wooden panel could be processed according to the installation drawings. The aesthetic wooden panel could be processed according to the installation drawings. Install the hook on the aesthetic wooden panel (see figure 4A) and put the hook into the slot of the outer door of dishwasher (see figure 4B). After positioning of the panel , press top of the aesthetic wooden panel to make sure that the plastic hook are fastened.

Built-in model Weight feature for decorative and sliding door.

1. Affix the condensation strip under the work surface of cabinet. Please ensure the

condensation strip is flush with edge of work surface. (Step 2)

2. Connect the inlet hose to the cold water supply.

3. Connect the drain hose.

4. Connect the power cord.

5. Place the dishwasher into position. (Step 4)

6. Level the dishwasher. The rear food can be adjusted from the front of the

dishwasher by turning the Philips screw in the middle of the base of dishwasher use an Philips screw. To adjust the front feet, use a flat screw driver and turn the front feet until the dishwasher is level. (Step 5 to Step 6)

7. Install the furniture door to the outer door of the dishwasher. (Step 7 to Step 9)

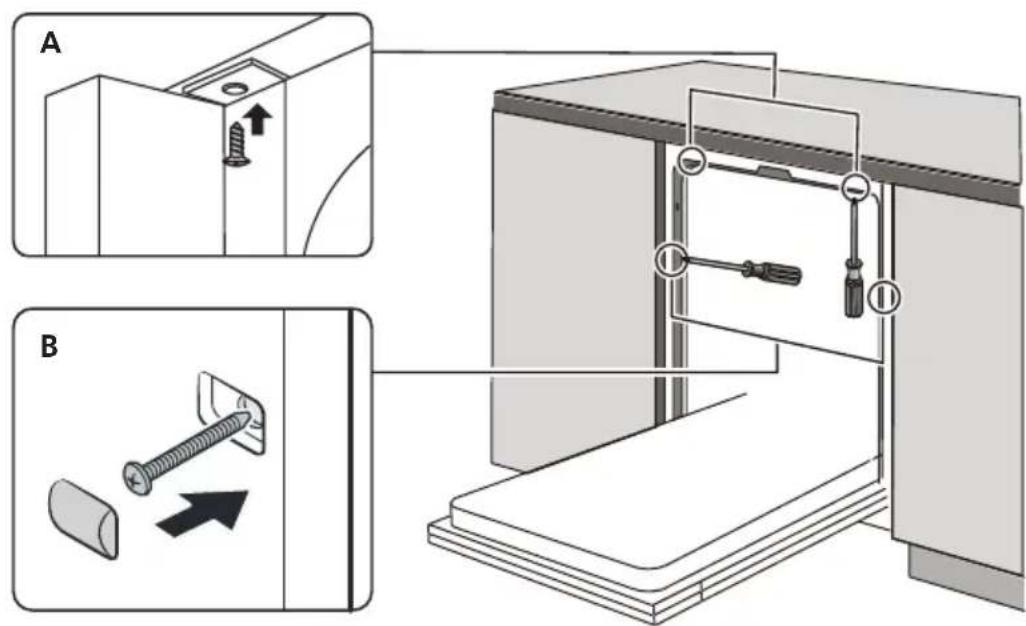

8. The dishwasher must be secured in place. There are two ways to do this:

A. Wood / MDF work surface: Put the installation hook into the slot of the side plane and secure it to the work surface with the wood screws. B. Marble or granite work top: Fix the side with Screw. Please refer to the specified installation steps in the installation drawings. Please refer to the specified installation steps in the installation drawings.

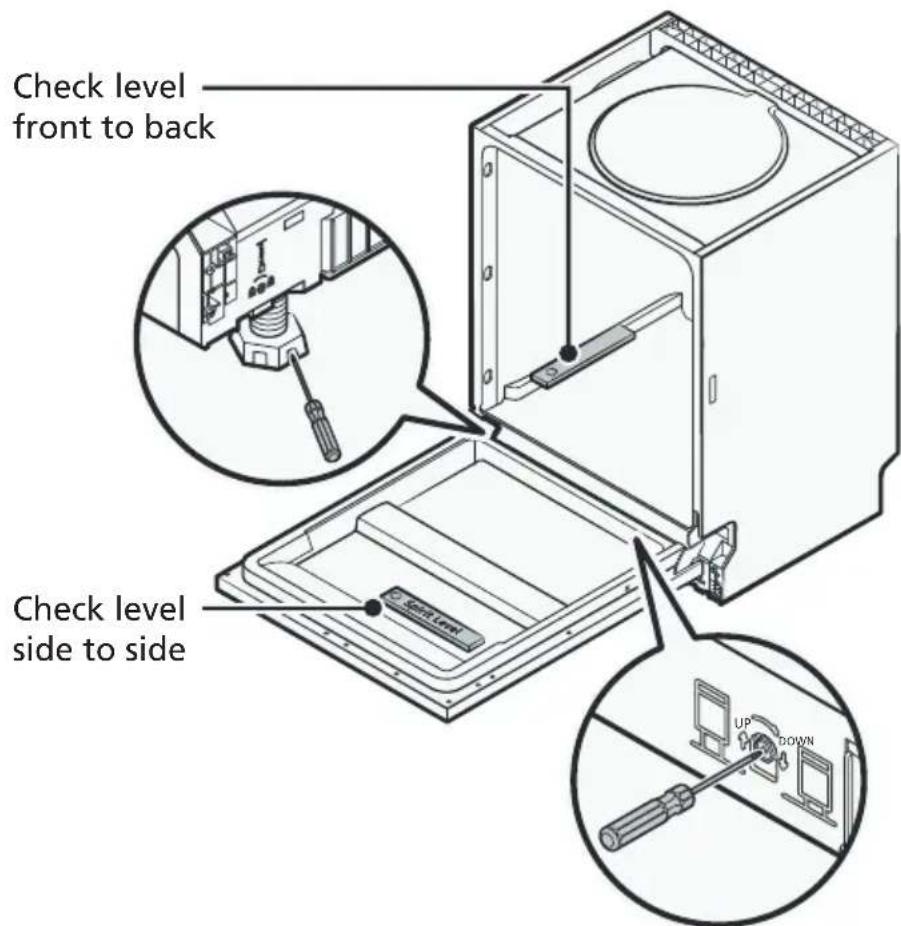

219UP DOWN Check level front to back Check level side to side Step 4. Levelling the dishwasher Dishwasher must be level for proper dish rack operation and wash performance. Place a spirit level on door and rack track inside the tub as shown to check that the dishwasher is level. Level the dishwasher by adjusting the three levelling legs individually. When level the dishwasher, please pay attention not to let the dishwasher tip over.

The maximum adjustment height of the feet is 50 mm. NOTE:

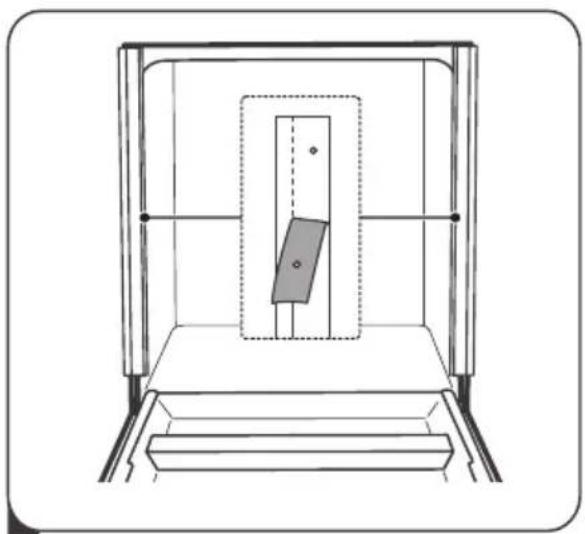

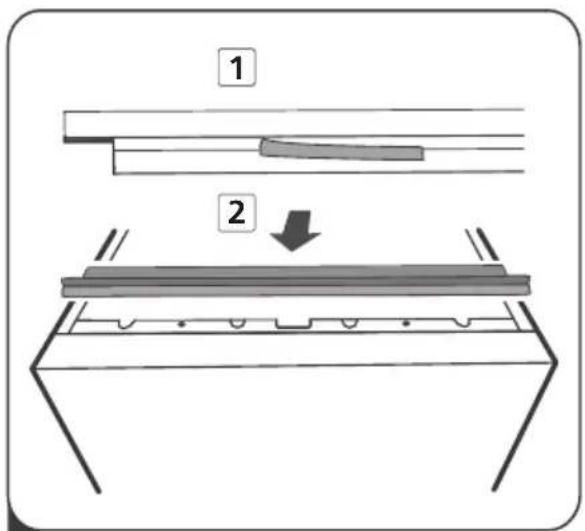

Remove the protection from the sound-absorbing strip, then fix the strip on the frame.Take away the four screws form the right and left side plates. Remove the protection from thesound-absorbing strips, then stick the strips to the side plates, pleasealign to the hole postion. Screw on the screws after all.
