70 Platinum 3G - Graphic tablet ARCHOS - Free user manual and instructions

Product type	Touchscreen tablet
Brand	ARCHOS
Model	70 Platinum 3G
Screen size	7 inches
Operating system	Android 6.0 (Marshmallow)
Processor	Quad-core 1.3 GHz
RAM memory	1 GB
Internal storage	8 GB (expandable via microSD)
Front camera	Yes
Rear camera	Yes
Connectivity	3G, Wi-Fi 802.11 b/g/n, Bluetooth 4.0
Sensors	Accelerometer
Battery	Rechargeable lithium-ion, 3000 mAh
Dimensions (L x W x H)	190 x 110 x 10 mm
Weight	300 g
Power supply	Power adapter 5V/1A via micro-USB
Care and cleaning	Clean with a soft, dry cloth. Do not use abrasive products.
Safety	Do not expose to moisture, shocks, or extreme temperatures.
Spare parts and repairability	Contact ARCHOS customer service for any repairs. No spare parts provided.
General information	Limited one-year warranty. Declaration of conformity available at archos.com.

Frequently Asked Questions - 70 Platinum 3G ARCHOS

How to insert the SIM card and microSD card?

Turn off the tablet. Remove the back cover using the notch. Slide the SIM card into the SIM slot with the magnetic side facing down. Slide the microSD card into the dedicated slot with the magnetic side facing down. Replace the back cover.

How to reset the tablet to factory settings?

Go to Settings > Backup and reset > Reset device. Confirm the operation. All data will be erased.

How to update the Android system?

Go to Settings > About tablet > Update. If an update is available, follow the on-screen instructions.

How to take a screenshot?

Simultaneously press the Power button and the Volume down button for 2 seconds. The screenshot will be saved in the gallery.

How to connect to a Wi-Fi network?

Go to Settings > Wi-Fi. Turn on Wi-Fi, select your network, and enter the password if required.

How to save battery?

Reduce screen brightness, disable Wi-Fi and Bluetooth when not in use, and close background applications via Settings > Apps.

How to use the camera?

Open the Camera app from the home screen or app drawer. Press the shutter to take a photo or hold to record a video.

How to install apps from the Google Play Store?

Open the Google Play Store app. Sign in with your Google account. Search for the desired app and tap Install.

How to transfer files between the tablet and a computer?

Connect the tablet to the computer via a micro-USB cable. On the tablet, select File transfer (MTP) mode from the notifications. The computer will detect the tablet as a storage device.

How to lock the screen with a password?

Go to Settings > Security > Screen lock. Choose a lock type (password, pattern, etc.) and follow the instructions.

USER MANUAL 70 Platinum 3G ARCHOS

Congratulations for the purchase of an ARCHOS device! This quick start guide helps you to start using your device properly. If you have more questions concerning the use of your device, visit us at:

twitter.com/archos

www.facebook.com/archos

Blog

https://blog.archos.com/

http://faq.archos.com/

www.archos.com, click Support > After-sales support

www.archos.com, click Support > Downloads > Declaration of conformity

As we are often updating and improving our products, your device's software may have a slightly different appearance or modified functionality than presented in this quick start guide.

Unboxing

Front view of a blank tablet device with no visible text or symbols on the screen

ARCHOS 70 Platinum 3G

Quick start guide

Warranty, legal and safety notice

Charger adapter

Coiled black cable with a small connector icon (no text or symbols)

Charging cable

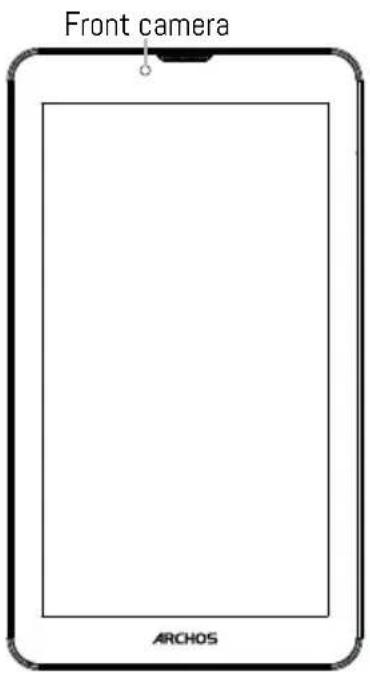

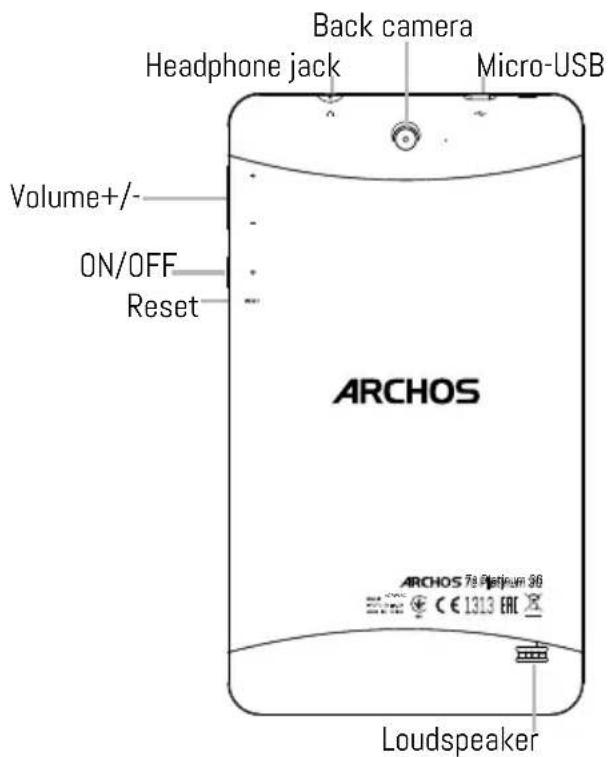

Describing your device

Your device is running Android 6.0 operating system. Updates could be offered to improve the device's performance. To check if any update is available, go to: Settings > About tablet > Check for update.

Starting up

Charging your battery completely

Plug the charging cable in the Micro-USB port and the adapter in a power outlet.

Leave the device until the battery is fully charged.

Turning ON

1. Press and hold the ON/OFF button to turn on the device.
2. Follow the instructions to set up your device: language, WiFi, copy your data, enter your name, set up email, protect your phone, notifications to be shown, Google services, third party apps.

NOTE: You can skip some steps and define them later from the Settings app.

Inserting SIM & Micro-SD cards

WARNING: Make sure to turn off your device before inserting the SIM & memory cards.

Opening: Use the notch to remove the back cover.

Do not bend or twist the back cover excessively. Doing so may damage the cover.

Inserting a SIM card: For your SIM card, slide it facing downwards in the slot.

Inserting a Memory card: Slide it facing downwards in the slot micro-SD

Closing: Replace the back cover clicking it back into position.

Simple circular diagram with a horizontal line, a black circle, and directional arrows (no text or symbols)

Hints & tips

Moving a home screen item: Touch and hold your finger onto it until the positioning gridlines appear, then slide it to the desired location, and release your finger.

Removing a home screen item: Touch and hold it, slide your finger towards the top of the screen and drop it over the Remove icon.

Uninstalling an item: From the All apps screens, touch and hold it, slide your finger towards the top of the screen and drop it over Uninstall bin.

Creating application folders: Drop one app icon over another on a home screen and the two icons will be combined.

Changing your wallpaper: Hold your finger on a home screen at an empty location, then choose from the list: Wallpaper.

Widgets: Hold your finger on a home screen at an empty location, then choose from the list: Widgets.

Securing your device: Define a lock screen to protect your privacy. Select the Settings app, then Security. Choose a screen lock.

Android device manager: When your device is lost, you can use the android device manager page (https://www.google.com/android/devicemanager) to erase all your contents, to lock the device, to locate the device or to make it ring.

Scheduled power on&off: Schedule power on & off to set when the device turns off and turn on. For example, you can set it for sleep time.

Troubleshooting

-If your device is frozen:

Press the ON/OFF button for 10 seconds.

-If your device doesn't turn on:

1. Charge your device.

2. Press the ON/OFF button for 10 seconds.

-If your device functioning is too slow:

Close all apps which are not currently used.

-If your WiFi reception is too low:

Make sure you are not far from the WiFi hotspot.

Update the firmware of the device: http://www.archos.com/support.

Reset and redefine your connection parameters.

Contact your WiFi connection provider.

-If your device has dysfunctions:

Reinitialize your device. Go to Settings > Backup & reset > Factory data reset. If you can't have access to the settings for any reason, consult our FAQs about the reinitialization process.

For more answers about your technical difficulties, do not hesitate to visit: faq.archos.com

EN

Contactez-nous

www.archos.com, click Support > After-sales support

Front view of a blank tablet device with no visible text or symbols on the screen or body

ARCHOS 70 Platinum 3G

Coiled black cable with a small connector icon (no text or symbols)

Câble de charge

Simple circular diagram with a black circle, downward arrow, and horizontal lines (no text or symbols)

Trucs & astuces

Front view of a blank tablet device with no visible text or symbols on the screen or body

ARCHOS 70 Platinum 3G

Benutzerhandbuch

Simple circular diagram with a horizontal line, two circles, and a downward arrow, no text or symbols present.

Hinweise & Tipps

Front view line drawing of a tablet device with no text or symbols on the screen or body

ARCHOS 70 Platinum 3G

Guía de usuario

Coiled black cable with a small connector icon (no text or symbols)

Cable de carga

Simple circular diagram with a central circle, two arrows pointing downward and one solid circle, intersected by horizontal lines (no text or symbols)

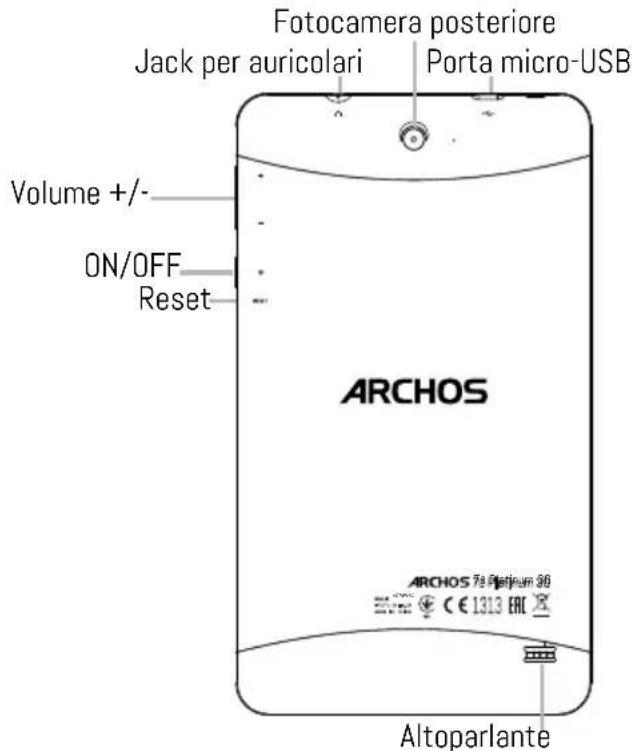

Simple line drawing of a tablet device with no text or symbols on the screen or body

ARCHOS 70 Platinum 3G

Guida dell'utente

Coiled black cable with a small connector icon (no text or symbols)

Cavo di caricamento

Front view of a rectangular tablet device with a blank screen and 'ARCHOS' text at the bottom (no other visible text or symbols)

Front view of a blank tablet device with no visible text or symbols on the screen

ARCHOS 70 Platinum 3G

Coiled black cable with a small connector icon (no text or symbols)

Oplaadkabel

Front view of a rectangular tablet device with a blank screen and 'ARCHOS' text at the bottom (no other visible text or symbols)

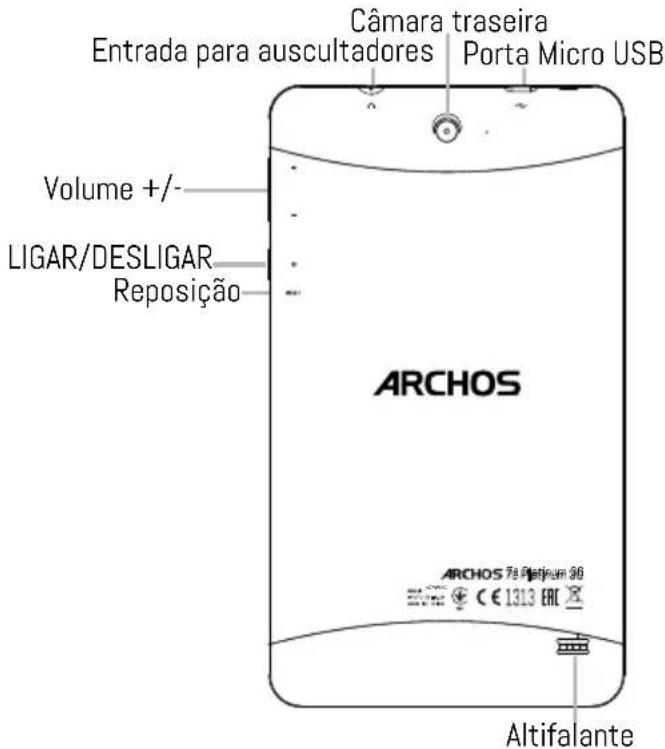

Front view line drawing of a tablet device with no text or symbols on the screen or body

ARCHOS 70 Platinum 3G

Guia do usuário

Simple circular diagram with horizontal lines and symbols (no readable text or labels)

Truques e dicas

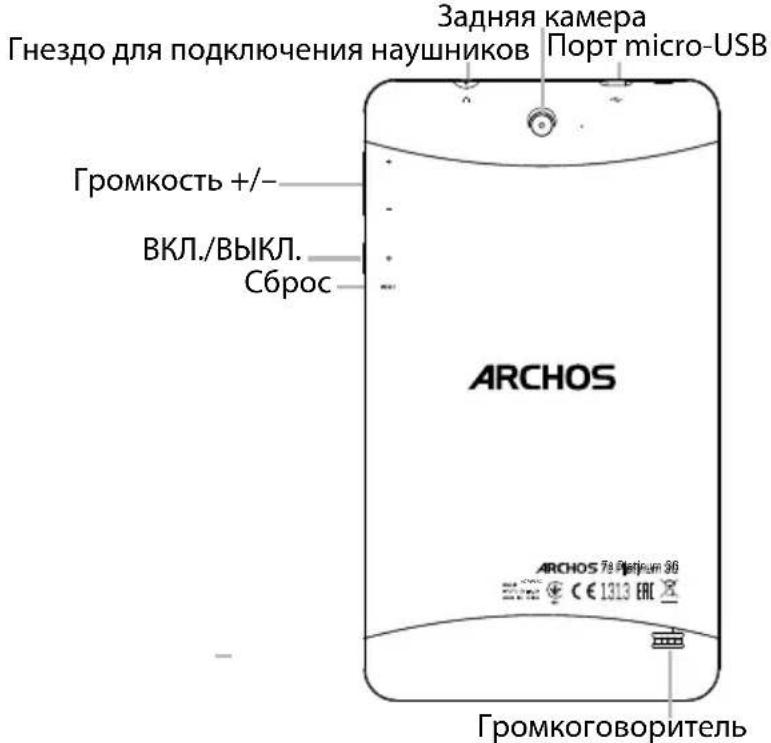

Front view of a blank tablet device with no visible text or symbols on the screen

ARCHOS 70 Platinum 3G

Краткое руководство

Simple line drawing of a USB cable with a connector (no text or symbols)

Front view of a rectangular tablet device with a blank screen and 'ARCHOS' text at the bottom (no other visible text or symbols)

Simple circular diagram with a horizontal line, a black circle, and a downward arrow (no text or symbols)

Front view line drawing of a tablet device with no text or symbols on the screen or body

ARCHOS 70 Platinum 3G

Coiled black cable with a small connector icon (no text or symbols)

Kabel do ładowania

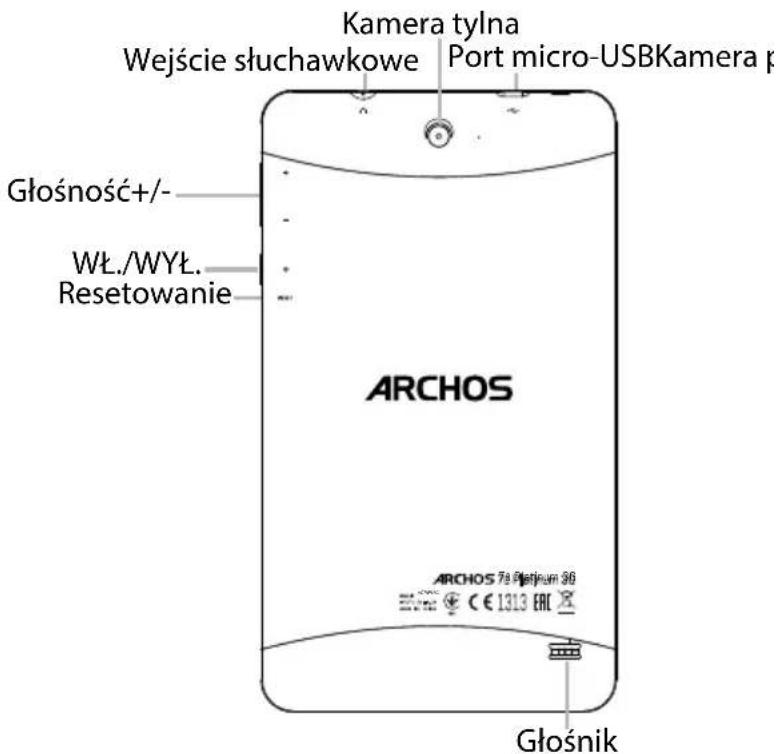

Opis urządzenia

Front view of a rectangular tablet device with a blank screen and 'ARCHOS' label at the bottom (no other text or symbols)

51

Simple circular diagram with a horizontal line, a black circle, and a downward arrow, no text or symbols present.

Wskazówki i porady

Simple line drawing of a tablet device with no text or symbols on the screen or body

ARCHOS 70 Platinum 3G

Coiled black cable with a small connector icon (no text or symbols)

Töltőkábel

A készülék leírása

Simple circular diagram with a horizontal line, a black circle, and a downward arrow (no text or symbols)

Ötletek és tippek

Front view of a blank tablet device with no visible text or symbols on the screen

ARCHOS 70 Platinum 3G

Quick start guide

Front view of a rectangular tablet device with 'ARCHOS' branding on the front face (no other text or symbols visible)

Simple circular diagram with a black circle, downward arrow, and horizontal lines (no text or symbols)

Підказки та поради

National restrictions

This device is intended for home and office use in all EU countries (and other countries following the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:

Country Restriction Reason/remark

Bulgaria None General authorization required for outdoor use and public service

France Outdoor use limited to 10 mW e.i.r.p. within the band 2454-2483.5 MHz Military Radiolocation use. Refarming of the 2.4 GHz band has been ongoing in recent years to allow current relaxed regulation. Full implementation planned 2012

Italy None If used outside of own premises, general authorization is required.

Luxembourg None General authorization required for network and service supply (not for spectrum)

Norway Implemented This subsection does not apply for the geographical aera within a radius of 20 km from the centre of Ny-Alesund

Russian None Only for indoor applications

Federation

Note: Frequency 2454-2483.5MHZ are restricted to indoor use in France.

Consult the declaration of conformity on http://www.archos.com/products/declaration_conformity.html Archos company (Contact address: ARCHOS SA 12 Rue Ampere 91430 Igny France) declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC: http://www.archos.com/support/download/conformity/CE_DOC_AC70PL3G.pdf

After the laboratory measurements, the SAR values for this mobile are:

0.205 W/kg 10g Head SAR

1.491 W/kg 10g Body SAR

CE1313032
