CL Companion 10x30 B - Binoculars SWAROVSKI OPTIK - Free user manual and instructions

Product Type	Binoculars
Brand	Swarovski Optik
Model	CL Companion 10x30 B
Magnification	10x
Objective Lens Diameter	30 mm
Diopter Correction	Adjustable via wheel (compensates for differences in visual acuity)
Focusing	Central focusing wheel
Interpupillary Distance	Adjustable (no specific value provided)
Eyecups	Rotating, suitable for eyeglass wearers
Included Accessories	Functional case, strap (or side straps), cleaning cloth
Strap Attachment	Rotary button system, tool-free fixation
Protective Covers	Eyepiece and objective, removable
Cleaning	Special microfiber cloth, washable in warm soapy water
Housing Care	Soft, damp cloth; do not use the cleaning cloth
Optics Care	Brush for large particles, then breath and special cloth
Storage	In the case, dry and ventilated place; dry if wet; in humid areas, use waterproof case with Silica gel
Safety	Never look at the sun; do not use while walking; avoid impacts
Repairs	Only by SWAROVSKI OPTIK (Austria or North America)
Warranty	10 years international (5 years labor included)
User Manual	Available in multiple languages (FR, EN, DE, etc.)

Frequently Asked Questions - CL Companion 10x30 B SWAROVSKI OPTIK

How to attach the strap to the CL Companion binoculars?

Press the button inward and turn it 90 degrees counterclockwise. Remove the pin, thread the strap through the ring, then insert the pin until it clicks. Put the button back by turning clockwise until it clicks.

How to adjust the diopter correction?

First focus with the left eye using the focusing wheel. Then, with the right eye, turn the diopter correction wheel (located on the focusing wheel) until the image is sharp.

Can I use the binoculars with glasses?

Yes. Turn the eyecups clockwise to the stop to adapt for eyeglass wearers. Without glasses, turn them counterclockwise.

How to clean the binocular lenses?

First remove large particles with a brush. Lightly moisten the surface with your breath, then clean with the provided microfiber cloth. Never use the cloth on the housing.

What to do if the binoculars get wet?

Dry them thoroughly before storing. In humid areas, store them in a waterproof case with a moisture absorber (such as Silica gel).

How to adjust the interpupillary distance?

Spread or bring the two barrels together until you see a single circular image without disturbing shadows.

What accessories come with the binoculars?

A functional case, a strap (or side straps depending on type), and a cleaning cloth.

Does the warranty cover accidental damage?

No. The warranty only covers material and manufacturing defects. Damage from improper use, impacts, or normal wear (eyecups, strap, case) is excluded.

Where can I get my binoculars repaired?

Repairs must be carried out by SWAROVSKI OPTIK in Absam (Austria) or by SWAROVSKI OPTIK North America. Contact an authorized dealer or send the device directly.

Can I replace the protective covers?

Yes, the eyepiece and objective covers are removable and replaceable. They are available from authorized dealers.

USER MANUAL CL Companion 10x30 B SWAROVSKI OPTIK

Labeled diagram of binoculars with numbered parts for identification

Diagram of a mechanical component with a circular arrow and textured surface, no visible text or symbols

Diagram of a mechanical component with a circular dial and arrow indicator (no text or symbols)

Diagram of a conical object with three arrows indicating upward and downward motion (no text or symbols)

Line drawing of a pair of eyeglasses with a downward arrow indicating motion (no text or symbols)

Diagram showing a mechanical component with a knob and fan assembly (no text or symbols)

Diagram of a fan or impeller device with a circular arrow pointing to the blade (no text or symbols present)

Diagram of a mechanical device with two circular components and directional arrows indicating motion (no text or symbols)

Diagram of a mechanical device with two circular components and directional arrows indicating motion (no text or symbols)

Illustration of two handbikes with binoculars and a bird flying around them, showing rotational motion (no text or symbols)

Illustration of hands holding binoculars with a circular dial on the screen (no text or symbols)

Diagram of a circular mechanical component with radial slots and an arrow indicating direction (no text or symbols)

Medical illustration of a surgical instrument with labeled parts (no text or symbols present)

Anatomical diagram of a human eye with numbered parts and labeled structures

Technical diagram showing mechanical assembly steps with labeled parts and motion arrows

Diagram showing mechanical components with rotating arrows indicating motion (no text or symbols)

Illustration of a hand holding a cylindrical object with a string, no text or symbols present

Illustration of a person using a sun to interact with a device, no text or symbols present

Simple line drawing of binoculars with a diagonal line and a circle, no text or symbols present.

Illustration of a hand holding a device with a circular symbol overlay (no text or symbols present)

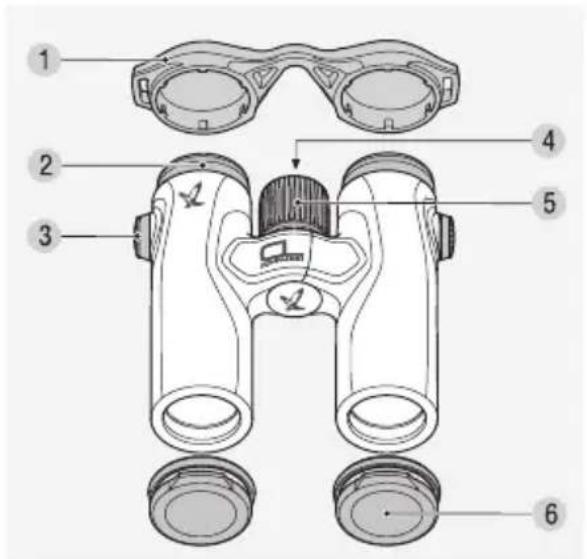

Labeled diagram of binoculars with numbered parts for identification

1 Eyepiece cover
2 Twist-in eyecup
3 Strap connector cover

4 Dioptric compensation
5 Focusing wheel
6 Objective lens cover

Supplied with the CL Companion:

Field bag, carrying strap or side strap (depending on the model), lens-cleaning cloth.

The strap is not attached to the CL Companion during delivery. You can easily attach the strap or special accessories.

2. ATTACHING THE STRAP

Diagram of a mechanical component with a circular arrow and textured surface (no text or symbols)

Press the button inwards and turn it counterclockwise (90°).

Diagram of a mechanical component with a circular housing and a dial indicator (no text or symbols)

Pull out the button.

Diagram of a conical object with three arrows indicating direction, no text or symbols present

Detach the pin from the ring.

Illustration of a pair of eyeglasses with a vertical screwdriver and downward arrow indicating motion (no text or symbols)

To attach the eyepiece cover, first pull the strap through the loop of the cover.

click

Align the button pin with the strap connector ring and press until it clicks.

Diagram showing a mechanical component with a knob inserted into a housing, connected to a fan-like device (no text or symbols present)

Insert the button strap into the buttonhole on the binoculars.

Diagram of a fan blade with a circular arrow indicating rotation (no text or symbols)

Press the pin in firmly and turn slightly clockwise until it clicks.

Note:

If the pin can no longer be turned without pressing it, it is securely in place.

3. OPERATION

3.1 ADJUSTMENT OF THE TWIST-IN EYE CUPS

Diagram of a mechanical device with rotating components and a central cylindrical component (no text or symbols)

Use without

eyeglasses:

Turn both eye cups (counter-clockwise) until they stop.

Diagram of a device with two circular arrows indicating rotational or bidirectional motion (no text or symbols)

Use with

eyeglasses:

Turn both eye cups clockwise until they stop.

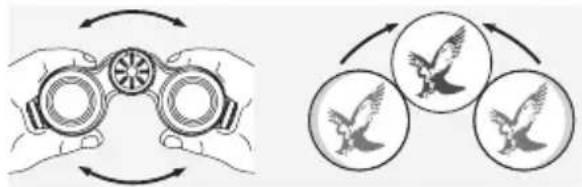

3.2 ADJUSTMENT OF INTERPUPILLARY DISTANCE

To see a single round image, turn the two halves of the binoculars until no irritating shadows can be seen.

Illustration of two handbikes with binoculars and three bird flying within circular frames (no text or symbols)

3.3 ADJUSTMENT OF FOCUSING

Illustration of two hands holding binoculars with a circular dial on the screen (no text or symbols)

It is possible to bring every subject into focus from the shortest adjustment distance (see technical data sheet) to infinity by

turning the focusing wheel.

3.4 DIOPTRIC COMPENSATION

To achieve optimal image quality, the possibly varying visual acuity between the left and right eye must be corrected.

Diagram of a circular mechanical component with radial slots and an arrow indicating direction (no text or symbols)

Use with equal acuity of both eyes:

The dioptric compensation is set to "zero".

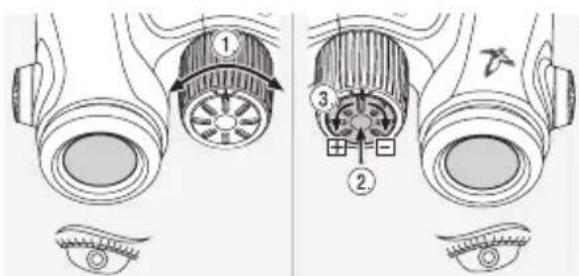

Use with varying acuity of both eyes:

1. Look through the left ocular with your left eye and turn the focusing wheel to focus sharply on a selected object.
2. Now, using your right eye, look at the same object through the right eyepiece and use the dioptric compensation to set the optimal image sharpness. For that purpose, press on the dioptric compensation on the focusing wheel and turn the dioptric compensation left or right until the image is sharp.

Anatomical diagram of human eye and nasal cavity structures with numbered labels indicating different regions or zones.

4. ASSEMBLY INSTRUCTIONS FOR OBJECTIVE LENS COVER

Technical diagram showing mechanical assembly steps with labeled components and motion indicators

5. MAINTENANCE AND CARE

5.1 LENS-CLEANING CLOTH

You can clean high sensitive lens surfaces with the enclosed special microfibre cloth. It is suitable for objective lens, ocular lens and spectacles.

Please keep the cloth clean, as dirt can damage the lens surface. If the cloth becomes soiled it can be washed in lukewarm soapy water and left to dry. Please only use for cleaning lens surfaces!

5.2 CLEANING

We have designed all elements and surfaces to require little care. To ensure the long-lasting optical brilliance of your binoculars, you should keep the glass surfaces free of dirt, oil and grease. When cleaning the lenses, first remove larger particles with an optical lens brush. For the subsequent thorough cleaning we recommend breathing onto the lens surface to form a coat of condensation and then cleaning it with a soft, moist cloth.

The housing is best cleansed with a soft, moist cloth (don't use the lens-cleaning cloth).

Diagram showing mechanical components with rotating arrows indicating motion (no text or symbols)

Illustration of a hand holding a cylindrical object with a handle, no text or symbols present

In the event of hard-to-remove dirt (e.g. sand) the eye cups can be unscrewed and cleaned easily.

5.3 STORAGE

You should keep your binoculars in its bag in a well-ventilated, dry place.

If the instrument is wet, it must be dried prior to storage.

In tropical regions or regions with a high degree of humidity the

best place to store the instrument in is an air-tight receptacle along with a moisture-absorbing agent (e.g. silica gel).

6. FOR YOUR SAFETY!

Illustration of a person using a protractor with a sun symbol above their head (no text or symbols present)

Never look at the sun with the binoculars! This leads to injury of your eyes!

Never look through the binoculars when walking! You could encounter obstacles!

Simple line drawing of two binoculars with a diagonal line and a crossed-out circle (no text or symbols)

Please protect your binoculars from jolts and jars.

Illustration of a hand holding a device with a circular symbol overlay (no text or symbols present)

Repair and service work shall only be carried out by either SWAROVSKI OPTIK Absam (Austria) or SWAROVSKI OPTIK

North America and any work by non-authorised parties shall render the warranty void.
