XR65A95K - TV SONY - Free user manual and instructions

Product type	OLED TV
Brand	Sony
Model	XR65A95K
Screen size (diagonal)	163.9 cm (65 inches)
Display resolution	3840 × 2160 pixels
Dimensions with stand (W × H × D)	144.4 × 85.1 × 30.1 cm
Weight with stand	40.9 kg
Power supply	220-240 V AC, 50 Hz
Standby power consumption	0.50 W
Audio output	20 W + 20 W + 10 W + 10 W
Wireless connectivity	Wi-Fi 802.11a/b/g/n/ac, Bluetooth 4.2
HDMI inputs	4 (HDCP 2.3)
USB ports	2 (1 × USB 2.0, 1 × USB 3.2 Gen 1)
Main functions	Google Assistant, voice search, panel refresh, pixel shift
Optional wall mount	SU-WL850 / SU-WL450
Installation precautions	Ventilation space: 10 cm around, 30 cm above; indoor use only
Operating temperature	0 °C to 40 °C
Operating humidity	10% to 80% RH (no condensation)
Screen maintenance	Avoid prolonged static images; use panel refresh max once a year
Safety	Anti-tip attachment recommended; do not obstruct ventilation openings
Repairability	Spare parts available via Sony support; regular software update recommended

Frequently Asked Questions - XR65A95K SONY

How to restart the TV if it freezes?

Press the Power button on the remote control for about 5 seconds. If this does not work, unplug the power cord, press the power button on the TV, wait 2 minutes, then plug it back in.

What to do if the remote control stops working?

Replace the batteries. If the problem persists, check that the remote sensor is not obstructed and that the TV is powered on.

How to access the built-in Help Guide?

Press the → (Input select) button on the remote, then select [Help]. If [Help] does not appear, select [Edit] and add it.

The parental lock password is lost, how to reset it?

Enter the PIN code 9999 as the default password, then set a new PIN code.

How to reduce the risk of image retention on the OLED screen?

Avoid displaying static images (logos, black bars) for long periods. Use [Wide Mode] to fill the screen and activate the Pixel Shift function. Turn off the TV normally after use.

When should a panel refresh be performed?

Only when image retention is very visible. Do not perform it more than once a year, as it may reduce the panel's lifespan. The refresh takes about one hour and requires an ambient temperature between 10 °C and 40 °C.

How to update the TV software?

Connect the TV to the Internet, then go to Settings > Software update. Sony recommends performing updates regularly to benefit from new features and improvements.

How to install the TV on the wall?

Use the optional Sony wall mount (SU-WL850 or SU-WL450). Follow ventilation clearances: at least 10 cm around and 30 cm above. M6 screws (not supplied) must be 9 to 13 mm long.

What to do if the screen darkens while viewing a still image?

This is normal: the brightness decreases automatically to prevent image retention. It is not a malfunction. The image will return to normal as soon as the content changes.

How to use Google Assistant on this TV?

Press the Google Assistant or Microphone button on the remote. Follow the on-screen instructions. An Internet connection and a Google account are required. The built-in microphone must be activated via the BUILT-IN MIC SWITCH.

USER MANUAL XR65A95K SONY

Illustration of a remote control with a house icon and a question mark on a grid screen (no text or symbols)

BRAVIA XR

Reference Guide	GB
Guide de référence	FR
Guía de referencia	ES
Referentiegids	NL
Referenzanleitung	DE
Guia de referência	PT
Guida di riferimento	IT
Referensmaterial	SE
Referencevejledning	DK
Viiteopas	FI
Referanseveiledning	NO
Przewodnik	PL
Referenční příručka	CZ
Referenčná príručka	SK
Felhasználói útmutató	HU
Ghid de referință	RO
Информация за продукта	BG
Обдньоç αναφοράς	GR
Başvuru Kılavuzu	TR

About Manuals

This TV comes with the following manuals. Please retain the manuals for future reference.

Setup Guide

• TV installation and setup.

Reference Guide (this manual) / Safety Documentation

- Safety information, remote control, troubleshooting, wall-mount installation, specification, etc.

Help Guide (On screen Manual)

• Settings, functions, Internet connection, troubleshooting, etc.
• To open it, press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].

- You can refer to the Help Guide with your smartphone.

https://rd1.sony.net/help/tv/jaep1/h_aep/

Note

• Before operating the TV, please read the "Safety Information".
• Read the supplied safety documentation for additional safety information.
• Images and illustrations used in the Setup Guide and this manual are for reference only and may differ from the actual product.
• The "x"/"xx" that appears in the model name corresponds to a numeric digit, related to design, colour or TV system.

IMPORTANT NOTICE

Notice for Radio Equipment

Hereby, Sony Corporation declares that the radio equipment types XR-65A95K, XR-55A95K are in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://compliance.sony.eu

Hereby, Sony Corporation declares that the radio equipment types XR-65A95K, XR-55A95K are in compliance with the UK relevant statutory requirements. The full text of the declaration of conformity is available at the following internet address: https://compliance.sony.co.uk

For this radio equipment, the following restrictions on putting into service or of requirements for authorization of use apply in AT, BE, HR, CY, CZ, DK, EE, FI, FR, DE, EL, HU, IE, IT, LV, LT, LU, MT, NL, PL, PT, SK, SI, ES, SE, UK, UK (NI), IS, LI, NO, CH, BG, RO, TR, AL, BA, MK, MD, RS, ME, Kosovo: 5150 - 5350 MHz band is restricted to indoor operations only.

Safety Information

Transporting

• Before transporting the TV set, disconnect all cables.
• Before transporting the TV set, remove the stand cover and terminal covers.
• Two or more persons are needed to transport a large TV set.
• When transporting the TV set by hand, hold it as shown below. Do not put stress on the panel and the frame around the screen.
• When lifting or moving the TV set, hold it firmly from the bottom.

Diagram showing two people handling a large screen with a 'NO/XX' symbol, indicating no change or rejection.

∅/X

• When handling or mounting the TV set, do not lay down the TV.

Diagram of an electronic component with a prohibition symbol (no text or labels present)

• When transporting the TV set, do not subject it to jolts or excessive vibration.
• When transporting the TV set for repairs or when moving, pack it using the original carton and packing material.

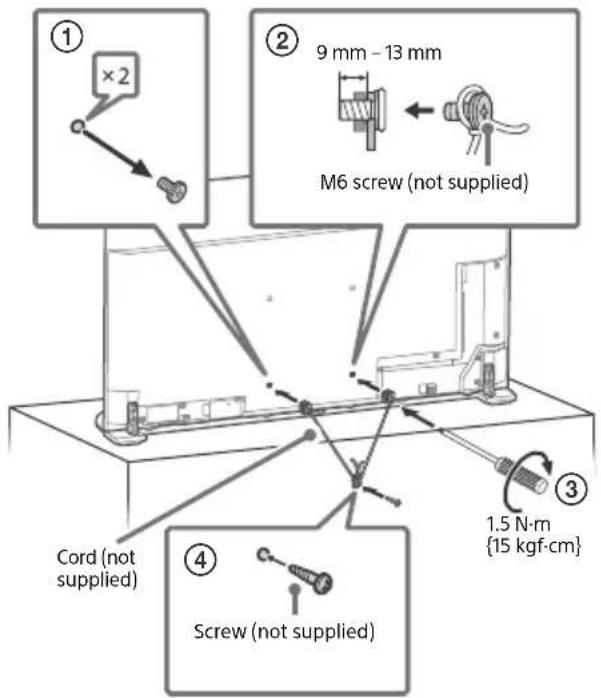

Topple prevention

① ×2 ② 9 mm - 13 mm M6 screw (not supplied) ③ 1.5 N·m {15 kgf·cm} Cord (not supplied) ④ Screw (not supplied)

Ventilation

• Never cover the ventilation holes or insert anything into the cabinet.
• Leave space around the TV set as shown below.
• It is strongly recommended that you use a Sony Wall-Mount Bracket in order to provide adequate air-circulation.

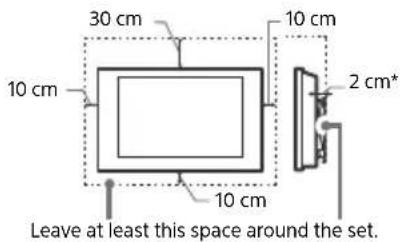

Installed on the wall

30 cm 10 cm 10 cm 10 cm 2 cm* Leave at least this space around the set.

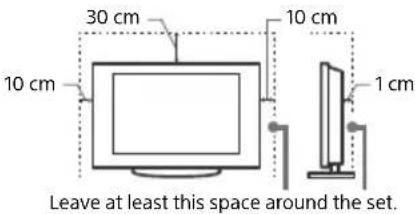

Installed with stand

30 cm 10 cm 10 cm 1 cm Leave at least this space around the set.

* 1 cm for SU-WL8xx only.

• To ensure proper ventilation and prevent the collection of dirt or dust:
— Do not lay the TV set flat, install upside down, backwards, or sideways.
— Do not place the TV set on a shelf, rug, bed or in a closet.
— Do not cover the TV set with a cloth, such as curtains, or items such as newspapers, etc.

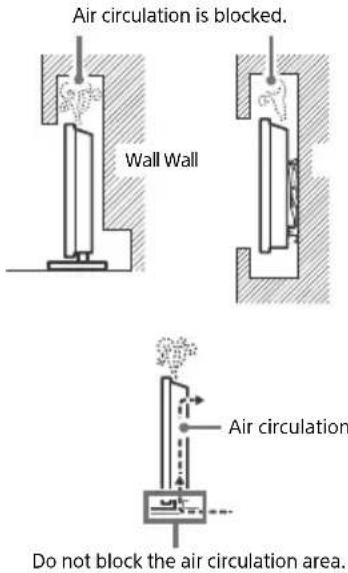

— Do not install the TV set as shown below.

Air circulation is blocked. Wall Wall Air circulation Do not block the air circulation area.

Protecting the TV Screen (OLED TV)

Precautions to Protect the Screen from Damage

Image retention

OLED TV's are susceptible to image retention (burn-in) due to the characteristics of the materials used. Image retention may occur if images are displayed in the same location on the screen repeatedly or over extended periods of time. This is not a malfunction of the TV. Avoid displaying images that may cause image retention.

The following are examples of images that may cause image retention:

• Content with black bars either on the top and bottom and/or the left and right sides of the screen. (for example, Letterboxed, 4:3 screen, Standard definition)
  • Static images such as photos.
• On-screen menus, programme guides, channel logos etc.
  • Static content from applications.
• On-screen tickers, such as those used for news and headlines.

To reduce the risk of image retention:

• Sony recommends that you turn off the TV normally by pressing the power button on the remote control or the TV.
• Fill the screen by changing [Wide mode] to eliminate the black bars. Select [Wide mode] other than [Normal].
• Turn off the OSD (On Screen Display) by pressing 123 (Control menu) button and select [Info], and turn off the menus from connected equipment.
• Avoid displaying static images with bright colours (including white), clocks or logos on any portion of the screen.
• Set the picture settings based on the ambient conditions. The Standard Picture is recommended for home use and when viewing content that often displays the station logos, etc.

The TV has following features to help reduce/prevent image retention.

Panel refresh

A panel refresh will adjust the panel uniformity. Panel refresh can be performed and should only be used when image retention is very noticeable.

Caution:

• The Panel refresh function may affect the panel. Do not perform Panel refresh more than once a year as it may affect the usable life of the panel.
• Panel refresh takes about one hour to complete.

• A red, green, or blue line may be displayed on the screen during the Panel refresh, this is not a malfunction of the TV.

• Panel refresh will only work when the room temperature is between 10 °C and 40 °C.

• The effectiveness of a panel refresh may vary depending on the image retention condition.

Pixel shift

Automatically moves the image on the screen to prevent image retention.

Other feature

The screen brightness is automatically reduced when displaying still images, clocks, bright colours or logos etc.

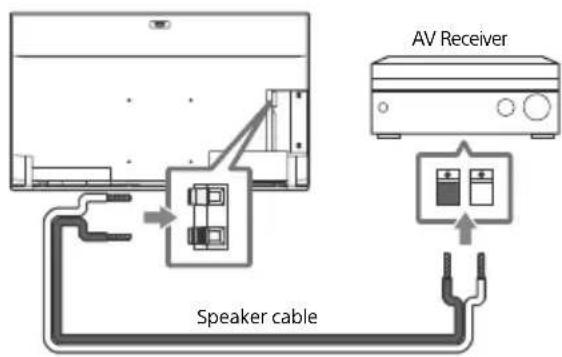

Using TV as Centre Speaker

Note

- Before connecting cables, disconnect the mains lead of both TV and AV receiver.

AV Receiver Speaker cable

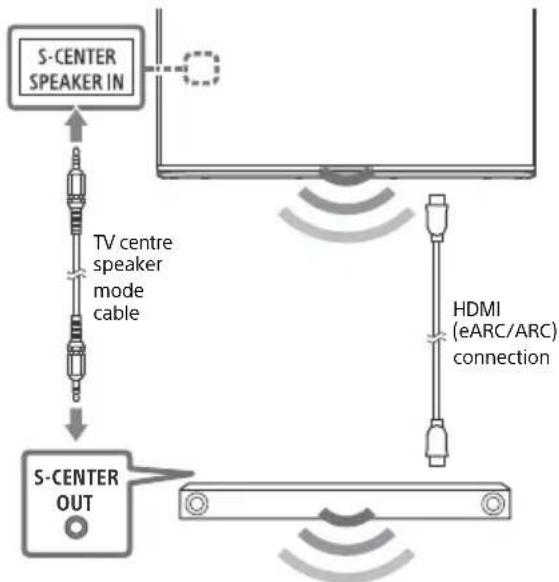

Using TV as Part of Audio System

Note

• Before connecting cables, disconnect the mains lead of both TV and AV receiver.
• Refer to the instruction manual of the Audio system with S-CENTER OUT terminal for detail.


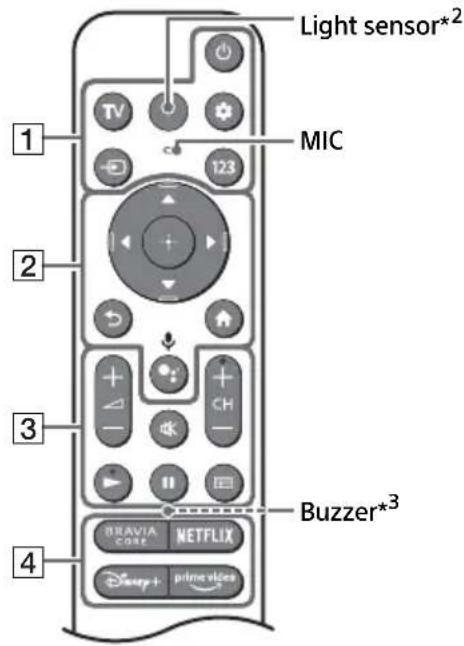

Remote Control and TV

The remote control shape, layout, availability and function of remote control buttons may vary depending on your region/country/TV model/TV settings ^*1 .

Light sensor*2 MIC 1 2 3 4 Buzzer*3 BRAVIA CORE NETFLIX Disney+ prime video

1 ⏻(Power)

TV: Display TV channel list or switch to input.

(Qquick settings): Display Quick Settings.
→ (Input select): Display and select the input source, etc.

123 (Control menu): Display the Control menu.

2 ▲ / ▼ / ◀ / ▶ / ⊕: On screen menu navigation and selection.

(Back)
Home

• (Google Assistant) / ↓(Microphone): Use Google Assistant ^45 or voice search ^*5 .

3 +/ - (Volume)

(Mute)^*6
CH + / - (Channel)
/

(Guide): Display the digital programme guide of TV or TV box ^4 .

4 App buttons

5 ⏻(Power)

(It can be found by removing the side cover)

6 BUILT-IN MIC SWITCH: Turn on/off the built-in MIC. (It can be found by removing the side cover)

7 Built-in MIC ^458 : To enable the built-in MIC, press the Google Assistant/microphone button on the remote control and follow the on-screen instructions.

⑧ Remote Control sensor / Ambient light sensor / LED

*1 For other remote control models, refer to the online Help Guide for details.
*2 The remote control backlight will illuminate when the light sensor detects the ambient light is low. Automatic illumination of the backlight can be turned off.
*3 The buzzer will emit a sound when you use the remote finder function. Refer to the online Help Guide for details.
*4 Only for limited region/country/model/language.
*5 Google Assistant or voice search requires an Internet connection.
*6 Accessibility shortcut is available by pressing and holding o(Mute).
*7 [TV box setup] setting is required.
*8 Power consumption will increase when the built-in MIC is enabled as it is always listening.

For more information, refer to the Help Guide.

Press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].

Using the Camera and Microphone Unit (supplied)

A software update may be required to use the Camera and Microphone Unit. For the latest information about software updates for your TV, visit:

https://www.sony.eu/support

Troubleshooting

General troubleshooting for issues like: black screen, no sound, frozen picture, TV does not respond, or network is lost, do the following steps.

1 Restart your TV by pressing the power button on the remote control for about five seconds. The TV will restart. If the TV does not recover, try unplugging the mains lead then press the power button on the TV and release it. Wait for two minutes, and plug in the mains lead. Or, press the power button on the TV for about 40 seconds until the TV turns off.
2 Refer to the Help menu shown below.
3 Connect your TV to the Internet and perform a software update. Sony recommends you to keep your TV software updated. Software updates provide new features and performance improvements.
4 Visit Sony support website (information provided at the end of this manual).

When you plug in the TV, the TV may not be able to turn on for a while even if you press the power button on the remote control or the TV.

It takes time to initialize the system. Wait for about one minute, then operate it again.

The remote control does not function.

- Replace the batteries.

The parental lock password has been forgotten.

- Enter 9999 for the PIN and enter the new PIN.

The screen becomes darker while watching TV.

- If the whole image or part of the image remains still, the screen brightness will be gradually reduced to prevent image retention. This is not a malfunction of the TV.

You are concerned about image retention.

If the same image is displayed repeatedly or for long periods of time, image retention may occur. To reduce image retention, we recommend that you turn off the TV normally by pressing the power button on the remote control or the TV.

Note

• Perform Panel refresh only when image retention is particularly noticeable. Avoid performing Panel refresh more than once a year because it may affect the usable life of the panel.
• Images that include clocks, logos and bright colours (including white) easily cause image retention. Avoid displaying these types of images for long periods of time, otherwise image retention may occur.

A red, green, or blue line appears on the screen.

- The Panel refresh has been performed. A red, green, or blue line may be displayed on the screen during the Panel refresh. This is not a malfunction of the TV. Panel refresh starts after the TV is turned off and takes about one hour to complete.

The message [Panel refresh did not finish...] is displayed.

When i) the TV is turned on, ii) the mains lead is unplugged, or iii) the room temperature falls outside of the range between 10 °C and 40 °C during the Panel refresh, the Panel refresh is not completed. Please avoid the above three conditions during the Panel refresh.

For more information on troubleshooting, refer to the Help Guide.

Press (Input select) on the remote control and select [Help]. If [Help] does not exist, select [Edit] and add [Help].

Specifications

System

Panel system: OLED (Organic Light Emitting Diode) Panel

TV system: Depend on your country/area selection/TV model

Analogue: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satellite: DVB-S/DVB-S2

Colour system: PAL/SECAM/NTSC3.58 (Video only)/NTSC4.43 (Video only)

Channel coverage: Depend on your country/area selection/TV model

Analogue: UHF/VHF/Cable

Digital: UHF/VHF/Cable

Satellite: Intermediate Frequency

950-2150 MHz

Sound output: 20 W + 20 W + 10 W + 10 W

Wireless technology

Protocol IEEE 802.11a/b/g/n/ac

Bluetooth® Version 4.2

Frequency range Output power
Wireless LAN (TV)
2400-2483.5 MHz	< 20.0 dBm
5150-5250 MHz	< 23.0 dBm
5250-5350 MHz	< 20.0 dBm
5470-5725 MHz	< 20.0 dBm
5725-5850 MHz	< 13.9 dBm
Bluetooth®(TV)
2400-2483.5 MHz < 10	0 dBm
Bluetooth®(RMF-TX900U)
2400-2483.5 MHz < 10	0 dBm

Input/Output jacks

Antenna (aerial)/cable

75 ohm external terminal for VHF/UHF

Satellite antenna

Female F Type Connector, 75 ohm.

DiSEqC 1.0, LNB 13 V/18 V & 22 kHz tone, Single

Cable Distribution EN50494.

- / AV IN / S-CENTER SPEAKER IN

Video/Audio input (mini jack)

S-centre speaker input (mini jack)

HDMI IN 1/2/3/4 (HDCP 2.3-compatible)

Video:

4096 × 2160p (50, 60 Hz)* ^1 * ^2 , 4096 × 2160p

(24 Hz) ^1 , 3840 × 2160p (50, 60 Hz) ^2 , 3840 ×

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Formats*3

3840 × 2160p (100, 120 Hz)* ^2*4

Audio:

In eARC (Enhanced Audio Return Channel)

mode

Refer to the online Help Guide for details.

Except eARC mode

5.1 channel linear PCM: 32/44.1/48/88.2/

96/176.4/192 kHz 16/20/24 bits, Dolby

Audio, Dolby Atmos, DTS

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3 only)*5

In eARC mode

Refer to the online Help Guide for details.

In ARC mode

Two channel linear PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

DIGITAL AUDIO OUT (OPTICAL)

Digital optical jack (Two channel linear PCM:

48 kHz 16 bits, Dolby Audio, DTS)

1, 2(HDD REC)* 6

USB device port (•2 USB HDD device for REC feature)

USB port 1 supports High Speed USB (USB 2.0)

USB port 2 supports Super Speed USB (USB 3.2

Gen 1)

CAM (Conditional Access Module) slot

LAN

10BASE-T/100BASE-TX connector (Depending on the operating environment of the network, connection speed may differ. The communication rate and quality are not guaranteed.)

CENTER SPEAKER IN

Centre speaker input terminal

Camera and Microphone Unit

Camera and Microphone Unit terminal

Power, Product Fiche and others

Power requirements

220 V - 240 V AC, 50 Hz

Screen size (measured diagonally) (Approx.)

XR-65A9xK: 163.9 cm / 65 inches

XR-55A9xK: 138.8 cm / 55 inches

Standby power consumption ^7*8

0.50 W

Display resolution (horizontal × vertical) (pixels)

3840×2160

Output rating

500 mA (for USB 1), 900 mA (for USB 2)

Dimensions (Approx.) (w × h × d) (cm)

with Table-Top Stand (with camera)

Front position style:

XR-65A9xK: 144.4 × 85.1 × 30.1

XR-55A9xK: 122.5 × 72.8 × 28.0

Back position style:

XR-65A9xK: 144.4 × 87.7 × 28.2

XR-55A9xK: 122.5 × 75.3 × 26.5

without Table-Top Stand (with camera)

XR-65A9xK: 144.4 × 85.2 × 5.6

XR-55A9xK: 122.5 × 72.9 × 5.6

Stand width (Approx.) (cm)

XR-65A9xK: 144.1

XR-55A9xK: 122.2

Mass (Approx.) (kg)

with Table-Top Stand (with camera)

XR-65A9xK: 40.9

XR-55A9xK: 31

without Table-Top Stand (without camera)

XR-65A9xK: 27

XR-55A9xK: 21.2

Others

Optional accessories

Wall-Mount Bracket: SU-WL850 / SU-WL450

Screw diameter and length:

9 mm - 13 mm

Screw (M6) Wall-Mount Bracket TV's rear cover

Operating temperature: 0 °C - 40 °C

Operating humidity: 10% - 80% RH

(non-condensing)

*1 When 4096 × 2160p is input and [Wide mode] is set to [Normal], the resolution is displayed as 3840 × 2160p . To display 4096 × 2160p , set [Wide mode] setting to [Full 1] or [Full 2].

*2 Refer to the on screen menu to set [HDMI signal format].

*3 Refer to the online Help Guide for details.

*4 HDMI IN 3 & 4 only. Use the Ultra High Speed HDMI Cable to connect.

*5 Connect your audio system to the HDMI IN 3 to route TV audio to your audio system.

*6 Function not available in Italy.

*7 Specified standby power is reached after the TV finishes necessary internal processes.
*8 Standby power consumption will increase when your TV is connected to the network.

Note

• Optional accessories availability depends on countries/region/TV model/stock.
• Design and specifications are subject to change without notice.
• Subscriptions for services and applications may be required and additional terms, conditions and/or charges may apply when using Google Assistant.
• Product fiche in this manual is for COMMISSION DELEGATED REGULATION (EU) 1062/2010. Refer to its website for (EU) 2019/2013 information.

Product registration number

(COMMISSION DELEGATED

https://rd1.sony.net/help/tv/jaep1/h_aep/

Remarque

Diagram showing two people handling a device with a 'No/Yes' symbol, indicating no change or rejection.

Ø/×

Isometric technical drawing of a rectangular electronic component with internal structure (no text or symbols)

https://www.sony.eu/support

Dépannage

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formats PC ^4

3840 × 2160p (100, 120 Hz)*2*4

Audio :

En mode eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (HDMI IN 3

uniquement)*5

En mode eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Nota

Diagram showing two people handling a large screen with a 'No/Yes' symbol, indicating absence or rejection.

∅/X

Isometric line drawing of a rectangular electronic component or enclosure with internal components (no text or symbols)

https://www.sony.eu/support

Digital: UHF/VHF/Cable

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos de PC ^4

3840 × 2160p (100, 120 Hz) ^2*4

Audio:

En el modo eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (solo HDMI IN 3)*5

En el modo eARC

→ DIGITAL AUDIO OUT (OPTICAL)

Toma digital óptica (PCM lineal de dos canales: 48 kHz 16 bits, Dolby Audio, DTS)

1, 2(HDD REC)* 6

https://rd1.sony.net/help/tv/jaep1/h_aep/

Opmerkingen

Diagram showing two people handling a device with a checkmark and prohibition symbol, indicating no protection or rejection.

∅/X

Technical line drawing of a rectangular electronic component with internal structure and mounting holes, no text or symbols present.

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formaten*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

In eARC (Enhanced Audio Return

Channel)-modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (alleen HDMI IN 3)*5

In eARC-modus

Tweekanaals lineaire PCM: 48 kHz 16 bits,

Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

Afmetingen (ong.) (b × h × d) (cm)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Hinweis

Diagram showing two people handling a device with a checkmark and prohibition symbol, indicating no protection or rejection.

∅/X

Diagram of a device casing with internal components and a prohibition symbol (no text or labels)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Computerformate ^*3

3840 × 2160p (100, 120 Hz) ^2*4

Audio:

Im eARC (Enhanced Audio Return

Channel)-Modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (nur HDMI IN 3)*5

Im eARC-Modus

DIGITAL AUDIO OUT (OPTICAL)

High-Speed-USB (USB 2.0)

SuperSpeed-USB (USB 3.2 Gen 1)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Nota

https://compliance.sony.eu

Diagram showing two people handling a monitor with a checkmark and a prohibition symbol crossed out, indicating no protection or rejection.

∅/X

Isometric line drawing of a rectangular electronic component with internal structure (no text or symbols)

※ (Sem som)*6 CH + / - (Canal) ▶ / ||

(Guia): Apresenta o guia de programas digital de TV ou o TV box de cabo ^*7 .

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formatos PC ^*3

3840 × 2160p (100, 120 Hz) ^2*4

Áudio:

No modo eARC (Enhanced Audio Return Channel)

→ DIGITAL AUDIO OUT (OPTICAL)

Tomada digital ótica (PCM linear de dois canais: 48 kHz 16 bits, Dolby Audio, DTS)

1, 2(HDD REC)\* 6

https://rd1.sony.net/help/tv/jaep1/h_aep/

Nota

Diagram showing two people handling a device with a checkmark and prohibition symbol indicating no protection or rejection.

Technical line drawing of a rectangular electronic component with internal structure and mounting holes, no text or symbols present.

https://www.sony.eu/support

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, Formati PC ^*3

3840 × 2160p (100, 120 Hz) ^2*4

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (solo HDMI IN 3)*5

In modalità eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Obs!

Diagram showing two people handling a device with a checkmark and prohibition symbol below

∅/X

Diagram of an electronic component with a prohibition symbol (no text or labels present)

https://www.sony.eu/support

Felsökning

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-format*3

3840 × 2160p (100, 120 Hz)*2*4

Ljud:

I eARC (Enhanced Audio Return

Channel)-läge

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Endast HDMI IN 3)*5

I eARC-läge

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Bemærk

Diagram showing two people handling a device with a checkmark and prohibition symbol, indicating no protection or rejection.

Ø/×

Technical line drawing of a rectangular electronic component with internal structure (no text or symbols)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Pc-formater*3

3840 × 2160p (100, 120 Hz)* ^2*4

Lyd:

I eARC (Enhanced Audio Return

Channel)-tilstand

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (kun HDMI IN 3)*

I eARC-tilstand

DIGITAL AUDIO OUT (OPTICAL)

Digitalt optisk stik (to-kanals lineær PCM:

48 kHz 16 bit, Dolby Audio, DTS)

1, 2(HDD REC)* 6

USB-port (• 2 USB HDD-enhed for

REC-funktion)

USB-port 1 understøtter High Speed USB (USB 2.0)

USB-port 2 understøtter Super Speed USB (USB 3.2 Gen 1)

CAM (Conditional Access Module)-holder

LAN

10BASE-T/100BASE-TX-stik

500 mA (for USB 1), 900 mA (for USB 2)

Mål (Ca.) (b × h × d) (cm)

Stil for frontposition:

XR-65A9xK: 144,4 × 85,1 × 30,1

Stil for bagposition:

https://rd1.sony.net/help/tv/jaep1/h_aep/

Huomautus

Diagram showing two people handling a device with a checkmark and a prohibition symbol crossed out.

∅/X

Diagram of an electronic device casing with no visible text or symbols, including a prohibition symbol (no readable text or labels)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-muodot ^*3

3840 × 2160p (100, 120 Hz)* ^2*4

Audio:

eARC (Enhanced Audio Return

Channel)-tilassa

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Vain HDMI IN 3)*5

eARC-tilassa

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Merknader

Diagram showing two people handling a device with a checkmark and a prohibition symbol crossed out.

Ø/×

Diagram of an electronic component with a prohibition symbol (no text or labels present)

* 1 cm bare for SU-WL8xx.

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

PC-formater*3

3840 × 2160p (100, 120 Hz)* ^2*4

Lyd:

I eARC (Enhanced Audio Return

Channel)-modus

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (kun HDMI IN 3) ^5

I eARC-modus

DIGITAL AUDIO OUT (OPTICAL)

Digital optisk kontakt (tokanals lineær PCM:

48 kHz 16 biter, Dolby Audio, DTS)

1, 2(HDD REC)*

6

500 mA (for USB 1), 900 mA (for USB 2)

Mål (ca.) (b × h × d) (cm)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Uwaga

https://compliance.sony.eu

Diagram showing two people handling a device with a checkmark and a prohibition symbol crossed out.

∅/X

Diagram of an electronic component with no visible text or symbols, including a prohibition symbol (no readable text or labels)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, formaty

komputerowe*3

3840 × 2160p (100, 120 Hz) ^2*4

Audio:

W trybie eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (tylko HDMI IN 3)*5

W trybie eARC

DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Poznámka

Diagram showing two people exchanging a device with a prohibition symbol and 'No/Yes' text, indicating no prohibition or rejection.

∅/X

Diagram of an electronic component with a switch symbol (no text or labels present)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC formáty ^3

3840 × 2160p (100, 120 Hz) ^2*4

Audio:

V režimu eARC (Enhanced Audio Return

Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (pouze HDMI IN 3)*5

V režimu eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Poznámka

Diagram showing two people handling a device with a checkmark and prohibition symbol indicating no protection or rejection.

∅/X

Technical diagram of a rectangular electronic component with internal circuitry and mounting holes, no text or symbols present.

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formáty PC*3

3840 × 2160p (100, 120 Hz) ^2*4

Audio:

V režime eARC (Enhanced Audio Return

Channel)

Podrobnosti nájdete v online Príručke.

Okrem režimu eARC

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Len model HDMI IN 3) ^5

V režime eARC

Podrobnosti nájdete v online Príručke.

V režime ARC

Dvojkanálový lineárny PCM: 48 kHz 16 bitov,

Dolby Audio, Dolby Atmos, DTS

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Diagram showing two people handling a device with a prohibition symbol and checkmark, indicating no protection or rejection.

Ø/×

Technical line drawing of a rectangular electronic component with internal structure (no text or symbols)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

formátumok*3

3840 × 2160p (100, 120 Hz)*2*4

Audio:

eARC (Enhanced Audio Return Channel)

üzemmódban

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (csak HDMI IN 3)*5

eARC üzemmódban

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Notă

INFORMATIE IMPORTANTĂ

Diagram showing two people handling a device with a checkmark and prohibition symbol, likely for safety or compliance instructions.

∅/X

Isometric line drawing of a rectangular electronic component or enclosure with internal compartments (no text or symbols)

Analogic: B/G, D/K, I

Digital: DVB-T/DVB-C/DVB-T2

Satelit: DVB-S/DVB-S2

Sistem culoare: PAL/SECAM/NTSC3.58 (Numai video)/NTSC4.43 (Numai video)

Analogic: UHF/VHF/Cablu

Digital: UHF/VHF/Cablu

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p,

Formate PC*3

3840 × 2160p (100, 120 Hz) ^2*4

Audio:

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (Numai HDMI IN 3)*5

În modul eARC

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Забележка

Diagram showing two people handling a device with a checkmark and a prohibition symbol crossed out.

∅/X

Isometric line drawing of a rectangular electronic component with internal structure (no text or symbols)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC формати*³

3840 × 2160p (100, 120 Hz)*2*4

Аудио:

В режим eARC (Enhanced Audio Return Channel)

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (camo HDMI IN 3)*5

В режим eARC

→ DIGITAL AUDIO OUT (OPTICAL)

Цифров оптичен жак (Двуканален линеен PCM: 48 kHz 16 бита, Dolby Audio, DTS)

1, 2(HDD REC) ^* 6

https://rd1.sony.net/help/tv/jaep1/h_aep/

Σημείωση

Diagram showing two people handling a device with a checkmark and prohibition symbol, indicating cancellation or rejection.

∅/X

Diagram of an electronic component with a prohibition symbol (no text or labels present)

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Μορφές υπολογιστή*³

3840 × 2160p (100, 120 Hz) ^24

'Ηχος:

eARC/ARC (Enhanced Audio Return Channel/

→ DIGITAL AUDIO OUT (OPTICAL)

https://rd1.sony.net/help/tv/jaep1/h_aep/

Güvenlik Bilgileri

Nakliye

Diagram showing two people handling a device with a checkmark and prohibition symbol indicating disapproval or rejection.

∅/X

Isometric line drawing of a rectangular electronic device with internal components (no text or symbols)

Dijital: UHF/VHF/Kablolu

Uydu: Ara Frekans 950-2150 MHz

2160p (24, 25, 30 Hz), 1080p (30, 50, 60, 100,

120 Hz), 1080/24p, 1080i (50, 60 Hz), 720p

(30, 50, 60 Hz), 720/24p, 576p, 480p, PC

Formatlari*3

3840 × 2160p (100, 120 Hz)*2*4

Ses:

eARC (Enhanced Audio Return Channel)

modunda

eARC/ARC (Enhanced Audio Return Channel/

Audio Return Channel) (sadece HDMI IN 3)*5

eARC modunda

→ DIGITAL AUDIO OUT (OPTICAL)

https://www.sony.eu/support
