74277 - Knife HAMILTON BEACH - Free user manual and instructions

Product Type	Electric Knife
Brand	Hamilton Beach
Model	74277
Use	Household
Power	120 V ~ 60 Hz, polarized plug
Blades	2 stainless steel blades, serrated and alternating
Control	Trigger on/off (press and hold to operate)
Safety	Unplug before handling; sharp blades, handle by plastic guard
Blade cleaning	Warm soapy water, rinse and dry thoroughly
Handle cleaning	Wipe with a damp cloth, dry thoroughly
Maintenance	Serrated blades do not require home sharpening; replacement blades available
Included accessories	Protective sleeve, storage case
Functions	Slice meats, poultry, fish, fruits, vegetables, pastries
Warranty	1 year (U.S.) or 5 years (Canada) from date of purchase
Customer service	Hamilton Beach Brands, Inc. or hamiltonbeach.ca

Frequently Asked Questions - 74277 HAMILTON BEACH

How do I insert the blades into the knife?

First assemble the two blades by sliding the rivet of one blade into the hole of the other until it locks. Hold the blades by the plastic guard, cutting edge down, then slide them into the handle until they snap into place. Make sure the knife is unplugged before handling.

How do I clean the blades?

Unplug the knife, press the blade release button, then remove the blades by holding them by the plastic guard. Carefully separate the blades. Wash them in warm soapy water, rinse, and dry completely before storing in the protective sleeve.

Can I cut bones with this knife?

No, the knife is not designed to cut bones. It is best to cut around bones. Never attempt to slice through bones or frozen foods.

Are the blades removable?

Yes, the blades are removable. To remove them, unplug the knife, firmly press the blade release button, then gently pull on the plastic guard. Then separate the blades by sliding them against each other.

Can I wash the knife handle with water?

No, never immerse the handle, cord, or plug in water. Clean the handle and cord with a damp cloth and dry thoroughly.

What should I do if the knife does not work?

Check that the appliance is plugged in and the outlet is working. If the problem persists, contact Hamilton Beach customer service. Do not attempt to repair the appliance yourself; any repairs must be done by an authorized service center.

Where can I buy replacement blades?

Replacement blades can be purchased at hamiltonbeach.com or from customer service. The serrated stainless steel blades do not require home sharpening.

How should I store the knife?

After cleaning and drying, immediately place the blades in the protective sleeve. Place the handle and all blades in the provided storage case and close the lid.

What is the warranty for the Hamilton Beach 74277?

The warranty is 1 year in the United States and 5 years in Canada from the date of purchase, against defects in materials and workmanship. Proof of purchase is required.

Can I use the knife for frozen foods?

No, do not slice frozen foods. Let meats rest about 15 minutes after cooking before slicing for best results.

USER MANUAL 74277 HAMILTON BEACH

For recipes, tips, product information and

registration:

hamiltonbeach.com

Open to US customers only • Ce concours

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not immerse motor unit, cord, or plug in water or other liquid. Do not operate knife in water or under running water.
6. Turn the appliance OFF (9) then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. Disconnect when changing blades. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contact with moving parts.

8. Carefully route the power supply cord to avoid damage from the knife blades while cutting.

9. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Contact Customer Service for information on examination, repair, or adjustment as set forth in the Limited Warranty.

10. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
11. Do not use outdoors.
12. Do not let cord hang over edge of table or counter or touch hot surfaces, including stove
13. Do not place on or near a hot gas or electric burner, or in a heated oven.
14. Check that the appliance is OFF (O) before plugging cord into wall outlet. To disconnect, turn the control to OFF (Q) then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
15. Do not use appliance for other than intended purpose.
16. Blades are sharp. Handle carefully. Always handle blades with hand away from cutting edge. (See illustration in "How to Assemble and Use.") Always store blades with cutting edge away from you.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

A WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

2

The motor of this electric knife does not require any lubrication or oil. Any other servicing should be performed by an authorized service center. Call the toll-free customer assistance number for information.

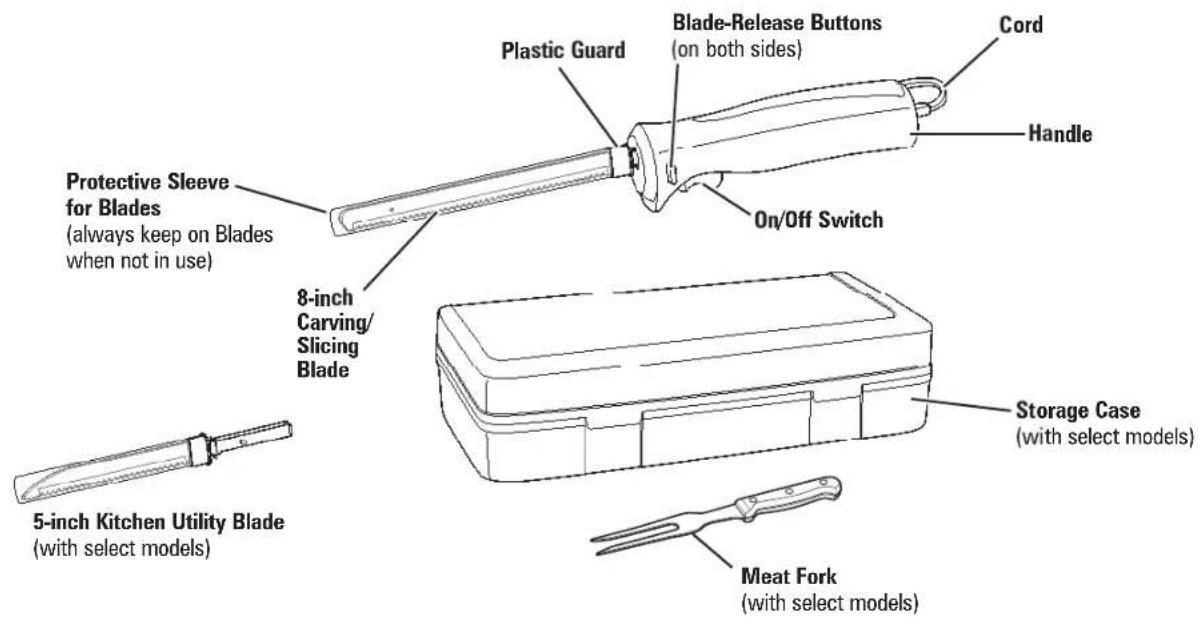

Parts and Features

Before first use: Handle carefully. Blades are sharp. Wash blades in hot, soapy water. Rinse; then dry thoroughly.

To order parts: hamiltonbeach.com

How to Assemble and Use

AWARNING Cut Hazard. Handle blades by side opposite the cutting edge. Unplug cord before inserting, removing, or cleaning blades. Unplug cord when knife is

not in use.

This Electric Knife comes with stainless steel blade sets with reciprocating, serrated blades. It is perfect for slicing a variety of foods including cooked meats, poultry, fresh fish, fruits, vegetables and bakery items.

1. Unplug.
2. If Blades are separated, pick up by Plastic Guard. Slide rivet on one Blade into keyhole slot in other Blade until they are locked together.
3. Holding Blades together at base of the Blade with cutting edge down, slide into Handle until both blades click into place.
4. Plug into outlet.
5. Hold Knife by Handle. Press ON/OFF Switch like a trigger to operate. You must hold the "On" switch for Knife to operate.
6. To stop, release Switch.

How to Clean and Store

WARNING Cut Hazard. Handle blades by side opposite the cutting edge. Unplug cord before inserting, removing, or cleaning blades. Unplug cord when knife is

not in

1. Unplug.
2. Firmly push both Blade-Release Buttons. Grasp Plastic Guard, with hand away from cutting edge, and carefully pull until Blades release.
3. Carefully separate Blades by sliding apart to disengage rivet from keyhole.
4. Wash Blades in hot, soapy water. Rinse and dry thoroughly.

Hints for Best Results

• Move Knife through food. Do not use a back-and-forth sawing motion.

• Let meats stand 15 minutes after cooking and before slicing. Slice down to and around bone. Do not attempt to slice through bone. Do not cut through frozen foods.

• After washing and drying, immediately place Blades into Protective Sleeve for storage.

• To clean Handle and cord, wipe with a damp cloth and then dry thoroughly.

• Place Handle and all Blades inside the Storage Case and close lid.

• Stainless steel serrated blades should stay sharp. Do not attempt to sharpen serrated Blades. Replacement Blades may be purchased at hamiltonbeach.com.

• Always clean Blades between cuttings of different food items to avoid cross-contamination of foods.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please write Hamilton Beach Brands, Inc., Customer Service Department, 4421 Waterfront Dr., Glen Allen, VA 23060, or visit hamiltonbeach.com/customer-service in the U.S. or hamiltonbeach.ca/ customer-service in Canada. For faster service, locate the model, type, and series numbers on your appliance.
