74250R - Knife HAMILTON BEACH - Free user manual and instructions

Product Type	Electric Knife
Brand	Hamilton Beach
Model	74250R
Recommended Uses	Cooked Meats, Poultry, Fish, Fruits, Vegetables, Pastries
Blade Type	Stainless Steel Serrated Blades (2 interlocking blades)
Power Supply	120 V, 60 Hz, polarized plug
Power	100 W (estimated)
Cord Length	1.8 m (estimated)
Weight	0.5 kg (estimated)
Dimensions (L x W x H)	30 x 8 x 6 cm (estimated)
Handle Material	Plastic
Control Type	On/Off Trigger (hold required)
Safety	Do not immerse motor, unplug before cleaning, blades are very sharp
Cleaning Blades	Warm soapy water, rinse, dry, store in protective sleeve
Cleaning Handle and Cord	Wipe with a damp cloth, dry
Lubrication	None required
Replacement Parts	Replacement blades available (contact customer service)
Customer Service (Canada)	1.800.267.2826
Customer Service (United States)	1.800.851.8900
Warranty (Canada)	5 years
Warranty (United States)	1 year

Frequently Asked Questions - 74250R HAMILTON BEACH

How to assemble the blades of the Hamilton Beach 74250R knife?

Make sure the appliance is unplugged. Hold the blades by the plastic stop, cutting edge away. Slide the rivet of one blade into the hole of the other until it locks. Then insert the blades together into the handle until they click into place.

How to turn the knife on and off?

The knife operates with a trigger. To turn on, press and hold the switch. To turn off, release the switch.

Can I cut bones with this knife?

No, the knife is not designed to cut bones. It is intended for slicing cooked meat, poultry, fish, fruits, vegetables, and pastries.

How to clean the blades?

Always unplug the knife before cleaning. Separate the blades by pressing the release button. Wash them in warm soapy water, rinse and dry thoroughly. Immediately store in the protective sleeve.

Does the motor require lubrication?

No, the motor requires no lubrication or oil.

How to get replacement blades?

You can order replacement blades by calling customer service: Canada 1.800.267.2826, United States 1.800.851.8900.

What to do if the knife does not work?

Check that the appliance is properly plugged in and the outlet works. If the problem persists, contact customer service. Do not attempt to repair yourself.

Can I use the knife to cut frozen foods?

No, do not cut frozen foods. The knife is designed for cooked or fresh foods.

How to safely store the blades?

After cleaning and drying, place the blades in the provided protective sleeve, cutting edge away from you, and store them out of reach of children.

What is the warranty period for the Hamilton Beach 74250R?

The warranty is 5 years in Canada and 1 year in the United States, from the original purchase date, against defects in materials and workmanship.

USER MANUAL 74250R HAMILTON BEACH

Visit www.hamiltonbeach.com for our complete line of products and Use and Care Guides - as well as delicious recipes, tips, and to register your product online.

Questions Please call us - our friendly associates are ready to help. USA:1.800.851.8900

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. This appliance is not intended for use by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they are closely supervised and instructed concerning use of the appliance by a person responsible for their safety.
3. This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.
4. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance.
5. To protect against risk of electrical shock, do not immerse motor unit, cord, or plug in water or other liquid. Do not operate knife in water or under running water.
6. Turn the appliance OFF, then unplug from outlet when not in use, before putting on or taking off parts, and before cleaning. Disconnect when changing blades. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
7. Avoid contact with moving parts.

8. Carefully route the power supply cord to avoid damage from the knife blades while cutting.

9. Do not operate any appliance with a damaged supply cord or plug, or after the appliance malfunctions or has been dropped or damaged in any manner. Supply cord replacement and repairs must be conducted by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard. Call the provided customer service number for information on examination, repair, or adjustment.

10. The use of attachments not recommended or sold by the appliance manufacturer may cause fire, electric shock, or injury.
11. Do not use outdoors.
12. Do not place on or near a hot gas or electric burner, or in a heated oven.
13. Do not let cord hang over edge of table or counter. Do not let cord contact hot surfaces, including stove.
14. Blades are sharp. Handle carefully. Always handle blades with hand away from cutting edge. (See illustration in "How to Assemble and Use"). Always store blades with cutting edge away from you.
15. Check that the appliance is OFF ( before plugging cord into wall outlet. To disconnect, turn the control to OFF ( then remove plug from wall outlet. To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
16. Do not use appliance for other than intended purpose.

SAVE THESE INSTRUCTIONS

Other Consumer Safety Information

This appliance is intended for household use only.

WARNING Electrical Shock Hazard: This appliance is provided with a polarized plug (one wide blade) to reduce the risk of electric shock. The plug fits only one way into a polarized outlet. Do not defeat the safety purpose of the plug by modifying the plug in any way or by using an adapter. If the plug does not fit fully into the outlet, reverse the plug. If it still does not fit, have an electrician replace the outlet.

The motor of this electric knife does not require any lubrication or oil. Any other servicing should be performed by an authorized service center. Call the toll-free customer assistance number for information.

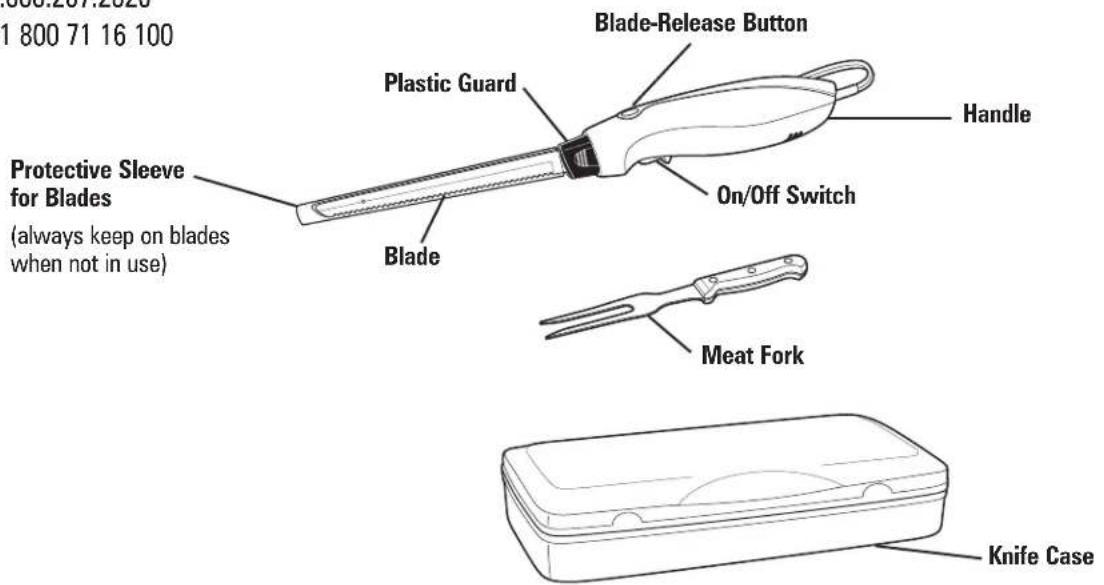

Parts and Features

Before First Use: Handle carefully. Blades are sharp. Wash blades in hot, soapy water. Rinse; then dry thoroughly.

To order parts:

US:1.800.851.8900

www.hamiltonbeach.com

Canada: 1.800.267.2826

Mexico: 01 800 71 16 100

How to Assemble and Use

WARNING Blade Hazard. Handle blades by side opposite the cutting edge. Unplug cord before inserting, removing, or cleaning blades. Unplug cord when knife is not in use.

This electric knife is perfect for slicing a wide variety of foods including cooked meats, poultry, fish, fruits, vegetables and bakery items.

Before First Use: Wash blades in hot, soapy water. Rinse; then dry thoroughly.

1. Unplug.

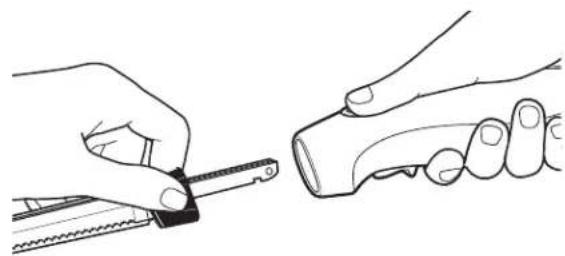

2. If blades are separated, pick up by the plastic guard. Slide the rivet on one blade into the keyhole slot in the other blade until they are locked together.
3. Holding blades together at the base of the blade with cutting edge down, slide into handle until both blades click into place.
4. Plug into outlet.
5. Hold knife by handle. Pull ON/OFF switch like a trigger to operate. You must hold the switch "On" for the knife to operate.
6. To stop, release the switch.

How to Clean and Store

WARNING Blade Hazard. Handle blades by side opposite the cutting edge. Unplug cord before inserting, removing, or cleaning blades. Unplug cord when knife is not in use.

1. Unplug.
2. Firmly push down blade-release button. Grasp plastic guard, with hand away from cutting edge, and carefully pull until blades release.
3. Carefully separate blades by sliding apart to disengage rivet from keyhole.

Hints for Best Results

Move knife through food. Do not use a back-and-forth sawing motion.

Let meats stand 15 minutes after cooking and before slicing. Slice down to and around bone. Do not attempt to slice through bone. Do not cut through frozen foods.

Do not attempt to sharpen serrated blades at home. Replacement blades may be purchased.

Always clean blades between cuttings of different food items to avoid cross-contamination of foods.

1. Wash blades in hot, soapy water. Rinse and dry thoroughly.
2. After washing and drying, immediately place blades into the protective sleeve for storage.
3. To clean handle and cord, wipe with a damp cloth and then dry thoroughly.

Limited Warranty

This warranty applies to products purchased and used in the U.S. and Canada. This is the only express warranty for this product and is in lieu of any other warranty or condition.

This product is warranted to be free from defects in material and workmanship for a period of five (5) years from the date of original purchase in Canada and one (1) year from the date of original purchase in the U.S. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning a product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value.

This warranty does not cover glass, filters, wear from normal use, use not in conformity with the printed directions, or damage to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales receipt, as proof of purchase is required to make a warranty claim. This warranty is void if the product is used for other than single-family household use or subjected to any voltage and waveform other than as specified on the rating label (e.g., 120V 60Hz ).

We exclude all claims for special, incidental, and consequential damages caused by breach of express or implied warranty. All liability is limited to the amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability or fitness for a particular purpose, is disclaimed except to the extent prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. This warranty gives you specific legal rights. You may have other legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental, or consequential damages, so the foregoing limitations may not apply to you.

To make a warranty claim, do not return this appliance to the store. Please call 1.800.851.8900 in the U.S. or 1.800.267.2826 in Canada or visit hamiltonbeach.com in the U.S. or hamiltonbeach.ca in Canada. For faster service, locate the model, type, and series numbers on your appliance.
