K 7 Power Control - Pressure washer Kärcher - Free user manual and instructions

Product type	High-pressure cleaner
Brand	Kärcher
Model	K 7 Power Control
Supply voltage	230 V ~ 50 Hz
Power consumption	3.0 kW
Protection rating	IPX5
Protection class	I
Recommended fuse	16 A (slow-blow)
Operating pressure	15 MPa
Maximum pressure	18 MPa
Water flow rate	9.2 l/min
Maximum flow rate	10 l/min
Detergent flow rate	0.3 l/min
Max. supply temperature	60 °C
Max. suction height	0.5 m
Dimensions (L × W × H)	458 × 330 × 666 mm
Operating weight	19.1 kg
Sound pressure level	80 dB(A)
Sound power level	96 dB(A)
Auto-stop function	Yes
Motor thermal protection	Yes
Detergent system	Plug 'n' Clean
Included spray lances	Vario Power + Rotabuse

Frequently Asked Questions - K 7 Power Control Kärcher

How to use detergent with the K 7 Power Control?

To use the detergent, remove the cap of the Plug 'n' Clean bottle and insert it upside down into the intended connection. Use the Vario Power lance and turn it to the MIX position. Spray the detergent onto the dry surface, let it act without drying, then rinse with the high-pressure jet.

What to do if the appliance does not pressurize?

First check that the water tap is fully open and the supply flow is sufficient (min. 12 l/min). Clean the strainer in the water supply connection. Bleed the appliance by operating without a lance for max. 2 minutes. If the problem persists, check the nozzle: clean it with a pin.

How to bleed air from the appliance?

Turn on the appliance without connecting a lance. Press the gun trigger and wait until water comes out without bubbles (max. 2 minutes). Release the trigger and lock it. In suction mode, observe the max. suction height of 0.5 m.

How to clean the water inlet filter?

Unplug the appliance and remove the coupling from the water supply connection. Use flat pliers to remove the strainer. Clean it under running water and replace it. Check that it is not damaged before reinstalling.

What are important safety precautions?

Never direct the high-pressure jet at people, animals, live electrical equipment, or the appliance itself. Use the gun lock during breaks. Always disconnect the mains plug before any maintenance. Keep a distance of at least 30 cm from painted surfaces.

How to store the appliance for winter?

Completely drain the appliance: turn off the water supply, disconnect the hose from the gun, run the appliance for 1 minute to expel residual water, then turn it off. Store the appliance and accessories in a frost-free location.

What types of lances are supplied?

The K 7 Power Control is supplied with two lances: the Vario Power lance for everyday tasks (adjustable pressure) and the Rotabuse lance for stubborn dirt (rotary jet).

How to transport the appliance?

For hand transport, use the carrying handles. For pulling, extend the telescopic handle until it clicks. Before laying the appliance down, remove the detergent bottle and close it. Ensure the appliance does not slide in the vehicle.

The appliance does not start, what should I do?

Check that the plug is connected and the voltage matches the rating plate. If the motor is overloaded (thermal protection triggered), turn off the appliance, let it cool for 1 hour, then try again. If the problem persists, contact the after-sales service.

Where to find spare parts?

Use only original Kärcher accessories and spare parts. They guarantee safe operation. Visit www.kaercher.com or contact your authorized dealer for references.

USER MANUAL K 7 Power Control Kärcher

Medical illustration showing a surgical procedure on an insect, with arrows indicating movement and mesh patterns (no text or symbols)

Close-up of a car fuel plug connector with a magnified inset showing internal cable (no text or symbols visible)

Close-up of a mechanical device with a tool inserted, showing internal components and a magnified view of the component (no text or symbols visible)

Close-up of a yellow fuel pump nozzle with black cable, showing internal components and a close-up of its lock mechanism (no text or symbols)

Inhalt

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Contents

General notes	10
Environmental protection	11
Intended use	11
Accessories and spare parts	11
Scope of delivery	11
Description of the device	11
Safety devices	11
Symbols on the device	11
Assembly	11
Initial startup	12
Operation	12
Transport	13
Storage	13
Care and service	13
Troubleshooting guide	13
Warranty	14
Technical data	14
EU Declaration of Conformity	14

General notes

Read these original operating instructions and the enclosed safety instructions before using the device for the first

time. Proceed accordingly.

Keep both books for future reference or for future owners.

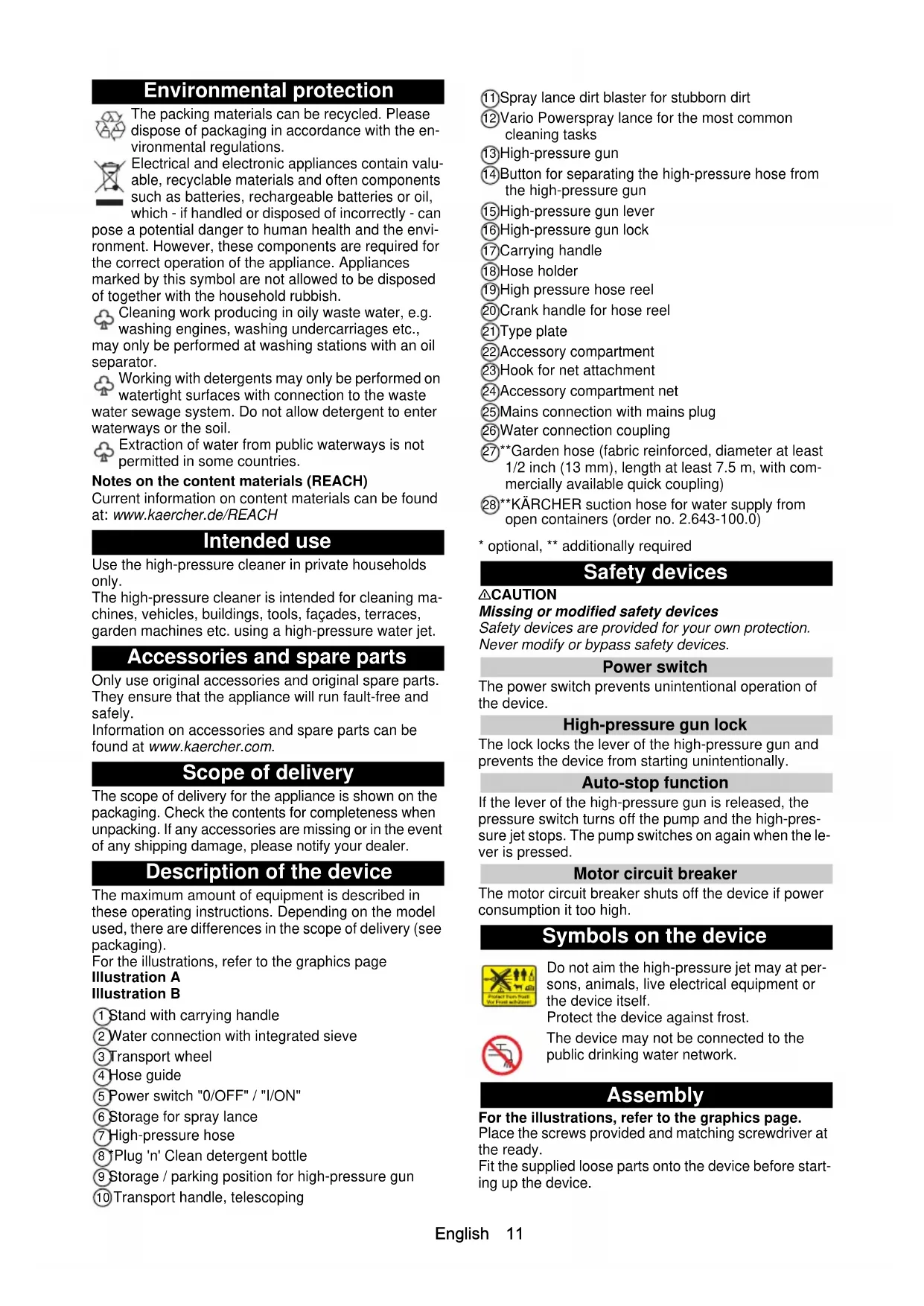

Environmental protection

The packing materials can be recycled. Please dispose of packaging in accordance with the environmental regulations.

Electrical and electronic appliances contain valuable, recyclable materials and often components such as batteries, rechargeable batteries or oil, which - if handled or disposed of incorrectly - can a potential danger to human health and the envi-ent. However, these components are required for correct operation of the appliance. Appliances led by this symbol are not allowed to be disposed together with the household rubbish.

Cleaning work producing in oily waste water, e.g. washing engines, washing undercarriages etc., or only be performed at washing stations with an oil larator.

Working with detergents may only be performed on watertight surfaces with connection to the waste or sewage system. Do not allow detergent to enter erways or the soil.

Extraction of water from public waterways is not permitted in some countries.

Notes on the content materials (REACH)

Current information on content materials can be found at: www.kaercher.de/REACH

Intended use

Use the high-pressure cleaner in private households only.

The high-pressure cleaner is intended for cleaning machines, vehicles, buildings, tools, façades, terraces, garden machines etc. using a high-pressure water jet.

Accessories and spare parts

Only use original accessories and original spare parts. They ensure that the appliance will run fault-free and safely.

Information on accessories and spare parts can be found at www.kaercher.com.

Scope of delivery

The scope of delivery for the appliance is shown on the packaging. Check the contents for completeness when unpacking. If any accessories are missing or in the event of any shipping damage, please notify your dealer.

Description of the device

The maximum amount of equipment is described in these operating instructions. Depending on the model used, there are differences in the scope of delivery (see packaging).

For the illustrations, refer to the graphics page

Illustration A

Illustration B

① Stand with carrying handle
② Water connection with integrated sieve
③ Transport wheel
④ Hose guide
⑤ Power switch "0/OFF" / "I/ON"
⑥ Storage for spray lance
⑦ High-pressure hose
⑧*Plug 'n' Clean detergent bottle
⑨ Storage / parking position for high-pressure gun
⑩ Transport handle, telescoping

⑪ Spray lance dirt blaster for stubborn dirt
⑫ Vario Powerspray lance for the most common cleaning tasks
13 High-pressure gun
⑭Button for separating the high-pressure hose from the high-pressure gun
⑮High-pressure gun lever
⑯High-pressure gun lock
17 Carrying handle
⑱Hose holder
⑲High pressure hose reel
20 Crank handle for hose reel
21Type plate
22 Accessory compartment
23 Hook for net attachment
24 Accessory compartment net
25 Mains connection with mains plug
26 Water connection coupling
27**Garden hose (fabric reinforced, diameter at least 1/2 inch (13 mm), length at least 7.5 m, with commercially available quick coupling)
(28)**KÄRCHER suction hose for water supply from open containers (order no. 2.643-100.0)

* optional, ** additionally required

Safety devices

△CAUTION

Missing or modified safety devices

Safety devices are provided for your own protection.

Never modify or bypass safety devices.

Power switch

The power switch prevents unintentional operation of the device.

High-pressure gun lock

The lock locks the lever of the high-pressure gun and prevents the device from starting unintentionally.

Auto-stop function

If the lever of the high-pressure gun is released, the pressure switch turns off the pump and the high-pressure jet stops. The pump switches on again when the lever is pressed.

Motor circuit breaker

The motor circuit breaker shuts off the device if power consumption it too high.

Symbols on the device

Do not aim the high-pressure jet may at persons, animals, live electrical equipment or the device itself.

Protect the device against frost.

The device may not be connected to the public drinking water network.

Assembly

For the illustrations, refer to the graphics page.

Place the screws provided and matching screwdriver at the ready.

Fit the supplied loose parts onto the device before starting up the device.

Mounting the accessory net

1. Hang the accessory net on the hooks. Illustration C

Push the high-pressure hose through the hose guide

1. Insert the high-pressure hose through the hose guide from the rear. Illustration D

Installing the water connection coupling

1. Screw the water connection coupling onto the water connection on the device. Illustration E

Initial startup

Note

Take care not to exceed the maximum permissible mains impedance at the connection point (see chapter Technical data).

Contact your electricity supplier in the case of any uncertainties regarding the mains grid impedance at your electrical connection point.

1. Place the device on a flat and level surface.
2. For devices with a hose reel: Completely unwind the high-pressure hose from the hose reel.
3. For devices without a hose reel: Unwind the high-pressure hose completely and eliminate any loops and twists.
4. Pull the high-pressure hose all the way forwards through the hose guide.
5. Insert the high-pressure hose into the high-pressure gun until it audibly latches into place.

Note

Take care to ensure the correct alignment of the nipple. Illustration F

1. Check for a secure connection by pulling on the high-pressure hose.

2. Plug the mains plug into a mains socket.

Water supply

For the connection values, see the type plate or chapter Technical data.

Observe the water distribution company regulations.

ATTENTION

Damage through contaminated water

Contamination in the water can damage the pump and the accessories.

KÄRCHER recommends using the KÄRCHER water filter for protection(special accessory, order number 4.730-059).

Connection to the water line

ATTENTION

Hose coupling with Aquastop on the water connection of the device

Damage to the pump

Never use a hose coupling with Aquastop on the water connection of the device.

You can use an Aquastop coupling on the tap.

1. Plug the garden hose onto the water connection coupling.

2. Connect the garden hose to the water line.

3. Open the water tap fully. Illustration G

Sucking water from open containers

When used with the KÄRCHER suction hose with check valve (special accessory, order number 2.643-100) this high-pressure cleaner is suitable for sucking up surface water, e.g. from rain barrels or ponds (for the maximum suction height see chapter Technical data).

The water connection coupling is not required for vacuuming operation.

1. Fill the suction hose with water.

2. Screw the suction hose onto the device water connection and hang it in a water source (e.g. water butt).

Vent the device

1. Switch the device on "I/ON".

2. Unlock the lever of the high-pressure gun.

3. Press the lever of the high-pressure gun. The device switches on.

4. Allow the device for run a maximum of 2 minutes until the water escaping from the high-pressure gun is free of air bubbles.

5. Release the lever of the high-pressure gun.

6. Lock the lever of the high-pressure gun.

Operation

ATTENTION

Pump running dry

Damage to the device

If pressure does not build up in the device after 2 minutes then switch the device off and proceed according to the instructions in chapter Troubleshooting guide.

High-pressure operation

ATTENTION

Damage to painted or sensitive surfaces

Surfaces can be damaged when the jet is too close to the surface or an unsuitable spray lance is used.

Maintain a minimum spray distance of 30 cm when cleaning painted surfaces.

Do not clean car tyres, paint or sensitive surfaces such as wood with the dirt grinder.

1. Insert a spray lance into the high-pressure gun and lock it by turning it 90°.

Illustration H

1. Switch the device on ("I/ON").

2. Unlock the lever of the high-pressure gun.

3. Press the lever of the high-pressure gun. The device switches on.

4. Turn the Vario Power spray lance until the required pressure level is shown on the pressure indicator.

Operation with detergent

⚠️DANGER

Failure to adhere to the safety data sheet

Incorrect handling of the detergent can seriously damage your health

Observe the safety data sheet of the detergent manufacturer, in particular the instructions on personal protective equipment.

Note

Detergent can only be mixed into the jet at low pressure.

Note

A Plug 'n' Clean detergent bottle is required for operating with detergent. KÄRCHER detergent can be purchased ready to use in a Plug 'n' Clean detergent bottle.

1. Remove the cover from the Plug 'n' Clean detergent bottle.

2. Plug the detergent bottle into the Plug 'n' Clean detergent connection with the opening facing down. Illustration I

3. Use the Vario Power spray lance.

4. Turn the spray lance towards "MIX" until "MIX" is displayed on the high-pressure gun. The detergent solution is mixed with the water jet during operation.

Recommended cleaning method

1. Spray the detergent sparingly on the dry surface and let it work for a while (do not let it dry).
2. Rinse off the loosened dirt with the high-pressure jet.

After operation with detergent

1. Pull the Plug 'n' Clean detergent bottle out of the mount and close it with the cap before transporting the device lying down.
2. Store the detergent bottle in the holder with the lid facing up.
3. Flush the device with clear water for approx. 30 seconds.

Interrupting operation

1. Release the lever of the high-pressure gun. The device switches off when the lever is released. The high pressure in the system is retained.
2. Lock the lever of the high-pressure gun. Illustration J
3. Place the high-pressure gun with the spray lance in the parking position.
4. Switch the device off "0/OFF" during work breaks longer than 5 minutes.

Ending operation

△CAUTION

Pressure in the system

Injuries from high-pressure water escaping uncontrollably

Only disconnect the high-pressure hose from the high-pressure gun or the device when the system is fully depressurised.

1. Release the lever of the high-pressure gun.
2. Close the water tap.
3. Press the lever of the high-pressure gun for 30 seconds. The pressure remaining in the system is discharged.
4. Release the lever of the high-pressure gun.
5. Lock the lever of the high-pressure gun.
6. Disconnect the device from the water supply.
7. Switch off the device "0/OFF".
8. Pull the mains plug out of the socket.

Transport

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during transportation.

Carrying the device

1. Lift and carry the device by the carrying handles.

Pulling the device

1. Pull the transport handle out until it audibly latches into place.
2. Pull the device via the transport handle.

Transporting the device in a vehicle

1. Before transporting lying down, pull the Plug 'n' Clean detergent bottle out of the mount and close it with the cap.
2. Secure the device against slipping and tipping over.

Storage

△CAUTION

Failure to observe the weight

Risk of injury and damage

Be aware of the weight of the device during storage.

Storing the device

1. Place the device on a level surface.
2. Disconnect the spray lance from the high-pressure gun.
3. Press the separation button on the high-pressure gun and disconnect the high-pressure hose from the high-pressure gun.

ATTENTION

Damage to the high-pressure hose

Damage to the high-pressure hose through incorrect direction of rotation

Observe the correct direction of rotation of the hose reel when winding on the hose.

1. For devices with a hose reel: Use the crank handle to turn the hose reel anticlockwise and coil up the high-pressure hose.
2. For devices without a hose reel: Store the high-pressure hose on the device.
3. Store the mains connection cable and accessories on the device.

Observe the additional instructions before storing the device for a longer period of time, see chapter Care and service.

Frost protection

ATTENTION

Danger of frost

Incompletely emptied devices can be destroyed by frost.

Completely empty the device and accessories.

Protect the device from frost.

The following requirements must be satisfied:

● The device is disconnected from the water supply.
- The high-pressure gun is disconnected from the high-pressure hose.

1. Switch the device on "I/ON".

2. Wait for a maximum of 1 minute until no more water escapes from the high-pressure hose.

3. Switch off the device.

4. Store the device in a frost-protected room, together with all accessories.

Care and service

DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

The device is maintenance-free, i.e. you do not need to perform any maintenance work.

Clean the sieve in the water connection

ATTENTION

Damaged sieve in the water connection

Damage to the device through contaminated water Check the sieve for damage before inserting it in the water connection.

If necessary, clean the sieve in the water connection.

1. Remove the water connection coupling.
2. Pull the sieve out using flat pliers.
3. Clean the sieve under running water. Illustration K
4. Insert the sieve into the water connection.

Troubleshooting guide

Malfunctions often have simple causes that you can remedy yourself using the following overview. When in doubt, or in the case of malfunctions not mentioned here, please contact your authorised Customer Service.

△DANGER

Danger of electric shock

Injuries due to touching live parts

Switch off the device.

Remove the mains plug.

Device not running

1. Press the lever of the high-pressure gun. The device switches on.
2. Check that the voltage specified on the type plate corresponds to the voltage of the power source.
3. Check the mains connection cable for damage.
4. If the motor is overloaded and the motor circuit breaker has triggered:

a Switch off the device "0/OFF".
b Allow the device to cool down for 1 hour.
c Switch the device on "I/ON" and resume operation.

Have the device checked by Customer Service if this fault occurs repeatedly.

The device does not start up, the motor buzzes

Voltage drop due to a weak mains grid or when using an extension cable

1. When switching on, first press the lever on the high-pressure gun and then switch on the device "I/ON".

Device does not reach required pressure

The water supply is too low

1. Open the water tap fully.
2. Check the water inlet for an adequate flow rate.
   The sieve in the water connection is dirty.
3. Pull the sieve in the water connection out using flat pliers.
4. Clean the sieve under running water.
   Air is in the device.
5. Vent the device:

a Switch on the device without a connected spray lance for a maximum of 2 minutes.
b Press the high-pressure gun and wait until the water escaping from the high-pressure gun is free of air bubbles.
c Connect the spray lance.
d Observe the maximum suction height during suction operation (see chapter Technical data).

Strong pressure fluctuations

1. Clean the high-pressure nozzle:

a Use a needle to remove dirt from the nozzle drill.
b Rinse the high-pressure nozzle from the front with water.

1. Check the water supply volume.

Device leaking

1. The device leaks a small amount for technical reasons. If the leak is severe, request authorised Customer Service.

Detergent is not sucked in

1. Use the Vario Power spray lance and turn it to "MIX".
2. Check that the Plug 'n' Clean detergent bottle is sitting correctly with the opening facing down in the detergent connection.

Warranty

The warranty conditions issued by our relevant sales company apply in all countries. We shall remedy possible malfunctions on your appliance within the warranty period free of cost, provided that a material or manufacturing defect is the cause. In a warranty case, please contact your dealer (with the purchase receipt) or the next authorised customer service site.

(See overleaf for the address)

Technical data

	K 7 Power Premium Power
Electrical connection
Voltage	V		230
Phase ~ 1 1
Frequency Hz 50	50
Maximum permissible mains grid impedance	Ω	0,394 + j0,246	0,394 + j0,246
Power rating	kW	3,0 3,0
Degree of protection		IPX5	IPX5
Protection class		I	I
Power protection (slow-blowing)	A	16	16
Water connection
Feed pressure (max.) MPa	1,2 1,2
Input temperature (max.)	°C	60	60
Input amount (min.)	l/min	12	12
Suction height (max.) m	0,5 0,5
Device performance data
Operating pressure	MPa	15	15
Max. permissible pressure	MPa	18	18
Water flow rate	l/min	9,2 9,2
Maximum flow rate	l/min	10	10
Detergent flow rate	l/min	0,3 0,3
High-pressure gun recoil force	N	27	27
Dimensions and weights
Typical operating weight	kg	19,1	19,5
Length	mm	458 459
Width	mm	330 330
Height	mm	666 666
Determined values in acc. with EN 60335-2-79
Hand-arm vibration value	m/s ^2	<2,5	<2,5
Uncertainty K	m/s ^2	0,6 0,6
Sound pressure level L _pA	dB(A)	80	80
Uncertainty K _pA	dB(A)	3 3
Sound power level L _WA + KdB(A) uncertainty _WA	96		96

Subject to technical modifications.

EU Declaration of Conformity

We hereby declare that the machine described below complies with the relevant basic safety and health requirements in the EU Directives, both in its basic design and construction as well as in the version placed in circulation by us. This declaration is invalidated by any changes made to the machine that are not approved by us.

Product: High-pressure cleaner

Type: 1.317-xxx

Currently applicable EU Directives

2000/14/EC

2014/30/EU

2006/42/EC (+2009/127/EC)

2011/65/EU

Harmonised standards used

EN 50581

EN 55014-1:2017

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-11: 2000

EN 62233: 2008

Conformity evaluation procedure used

2000/14/EC: Annex V

Sound power level dB(A)

Measured: 93

Guaranteed: 96

The undersigned act on behalf and under the power of attorney of the company management.

H. Jenner

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Documentation supervisor:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Ph.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Contenu

c Raccorder la lance.

2006/42/CE (+2009/127/CE)

2011/65/EU

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/08/2020

Inhoud

De watertoevoer is te klein

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

2006/42/CE (+2009/127/CE)

2011/65/UE

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01/08/2020

Índice

2006/42/CE (+2009/127/CE)

2011/65/UE

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 01/08/2020

Indhold

2006/42/EF (+2009/127/EF)

2011/65/EU

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Indhold

Generelle merknader 43

Miljøvern.... 43

2006/42/EF (+2009/127/EF)

2011/65/EU

Anvendte harmoniserte standarder

EN 50581

EN 55014-1:2017

EN 55014-2: 2015

EN 603351

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-11: 2000

EN 62233: 2008

2000/14/EF: Vedlegg V

Lydeffektnivå dB(A)

Målt: 93

Garantert: 96

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tlf.: [phone]

Winnenden, 2020/08/01

Innehåll

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

D-71364 Winnenden (Germany)

Tfn: [phone]

Fax: [phone]

Winnenden, 2020-08-01

Sisältö

Yleisiä ohjeita 52

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Puh.: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tηλ.: [phone]

Φαξ: [phone]

Winnenden, 2020/08/01

İçindekiler

2006/42/AT (+2009/127/AT)

2011/65/AT

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2020/08/01

Содержание

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

Winnenden, 2020/08/01

Obsah

Obecné pokyny 76

2006/42/ES (+2009/127/ES)

2011/65/EU

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2020/08/01

Kazalo

2006/42/ES (+2009/127/ES)

2011/65/EÜ

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 1. 8. 2020

Spis treści

2006/42/WE (+2009/127/WE)

2011/65/UE

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Directive UE relevante

2000/14/UE

2014/30/UE

2006/42/UE (+2009/127/UE)

2011/65/UE

Norme armonizate aplicate

EN 50581

EN 55014-1:2017

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-11: 2000

EN 62233: 2008

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germania)

Tel.: [phone]

Fax: [phone]

Winnenden, 2020/08/01

Obsah

2006/42/ES (+2009/127/ES)

2011/65/EÚ

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel.: [phone]

Fax: [phone]

Winnenden, 01.08.2020

Sadržaj

2006/42/EZ (+2009/127/EZ)

2011/65/EU

Primijenjene uskladene norme

EN 50581

EN 55014-1:2017

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-11:2000

EN 62233: 2008

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Opunomoćenik za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Njemačka)

Tel.: [phone]

Telefaks: [phone]

Winnenden, 1.8.2020.

Sadržaj

Opšte napomene.... 104

2006/42/EZ (+2009/127/EZ)

2011/65/EU

Primenjene harmonizovane norme

EN 50581

EN 55014-1:2017

EN 55014-2: 2015

EN 60335-1

EN 60335-2-79

EN 61000-3-2: 2014

EN 61000-3-11: 2000

EN 62233: 2008

Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Lice ovlašćeno za dokumentaciju:

S. Reiser

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28 - 40

71364 Winnenden (Germany)

Tel.: [phone]

Winnenden, 2020/08/01

Съдържание

Общи указания 108

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

Виненден, 2020/08/01

Sisukord

⑤ Seadmelüliti "0/OFF" / "I/ON"

⑥ Joatoru hoidik

7 Körgsurvevoolik

Toode: Körgsurvepesur

Tüüp: 1.317-xxx

2006/42/EÜ (+2009/127/EÜ)

2011/65/EL

Chairman of the Board of Management

S. Reiser

Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Tel: [phone]

Winnenden, 2020/08/01

Saturs

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

71364 Winnenden (Germany)

Тел.: [phone]

Факс: [phone]

H. Jenner
Chairman of the Board of Management

S. Reiser
Director Regulatory Affairs & Certification

Winnenden, 2020/08/01

Black and white line drawing of a hand giving a thumbs-up gesture (no text or symbols)

THANK YOU!

MERCI! DANKE! iGRACIAS!

Register your product and benefit from many advantages.

www.kaercher.com/welcome

Rate your product and tell us your opinion.

Icon showing a gear and wrench inside a square frame (no text or symbols)

www.kaercher.com/dealersearch

Alfred Kärcher SE & Co. KG

Alfred-Kärcher-Str. 28-40

71364 Winnenden (Germany)
