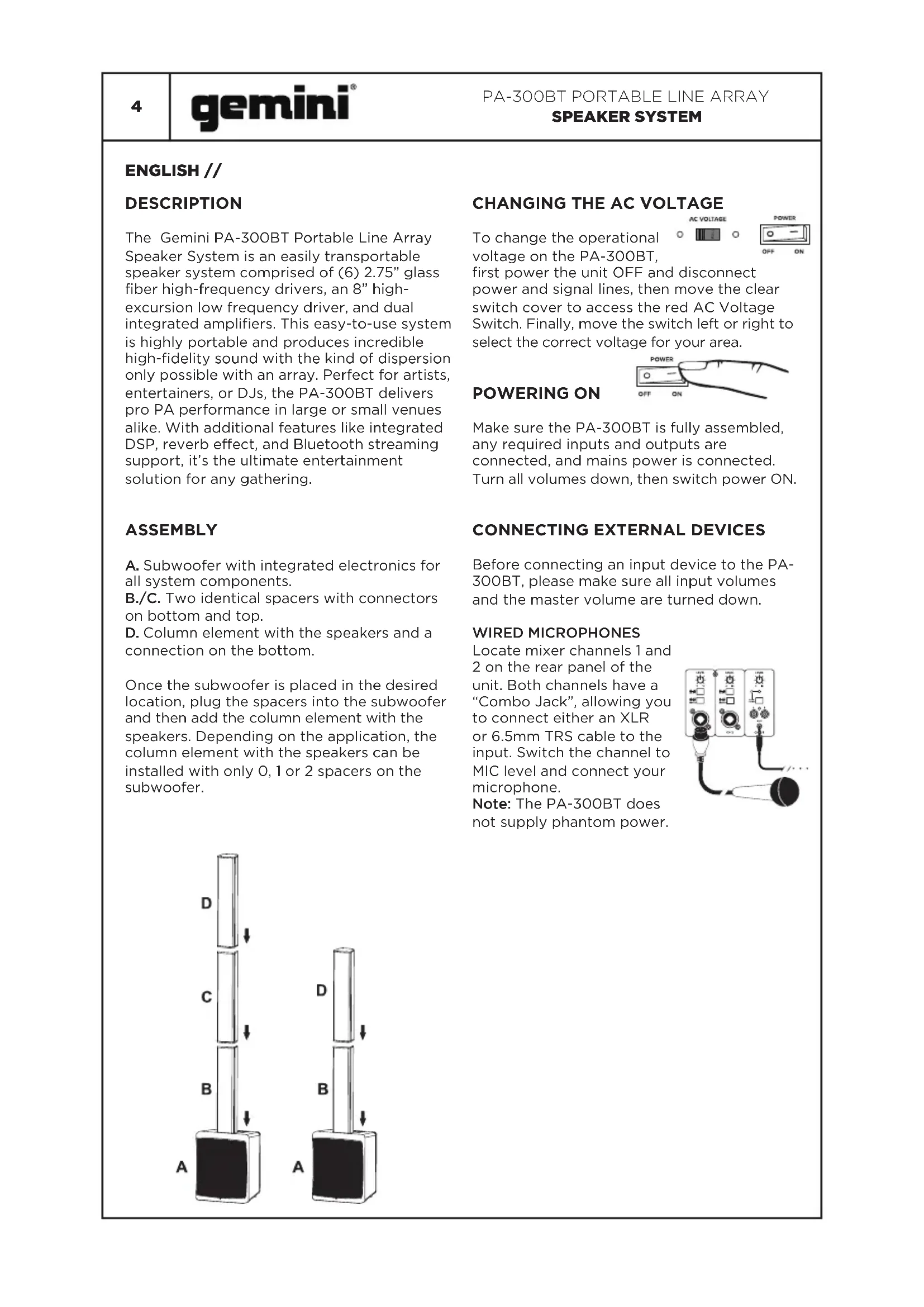

SPEAKER SYSTEM ENGLISH // DESCRIPTION The Gemini PA-300BT Portable Line Array Speaker System is an easily transportable speaker system comprised of (6) 2.75” glass ber high-frequency drivers, an 8” high- excursion low frequency driver, and dual integrated ampliers. This easy-to-use system is highly portable and produces incredible high-delity sound with the kind of dispersion only possible with an array. Perfect for artists, entertainers, or DJs, the PA-300BT delivers pro PA performance in large or small venues alike. With additional features like integrated DSP, reverb effect, and Bluetooth streaming support, it’s the ultimate entertainment solution for any gathering. ASSEMBLY A. Subwoofer with integrated electronics for all system components. B./C. Two identical spacers with connectors on bottom and top. D. Column element with the speakers and a connection on the bottom. Once the subwoofer is placed in the desired location, plug the spacers into the subwoofer and then add the column element with the speakers. Depending on the application, the column element with the speakers can be installed with only 0, 1 or 2 spacers on the subwoofer.

CHANGING THE AC VOLTAGE

To change the operational voltage on the PA-300BT, rst power the unit OFF and disconnect power and signal lines, then move the clear switch cover to access the red AC Voltage Switch. Finally, move the switch left or right to select the correct voltage for your area. POWERING ON Make sure the PA-300BT is fully assembled, any required inputs and outputs are connected, and mains power is connected. Turn all volumes down, then switch power ON.

CONNECTING EXTERNAL DEVICES

Before connecting an input device to the PA- 300BT, please make sure all input volumes and the master volume are turned down. WIRED MICROPHONES Locate mixer channels 1 and 2 on the rear panel of the unit. Both channels have a “Combo Jack”, allowing you to connect either an XLR or 6.5mm TRS cable to the input. Switch the channel to MIC level and connect your microphone. Note: The PA-300BT does not supply phantom power.5

Mixer channels 1 and 2 on the rear panel of the unit are used to connect balanced line sources as well as microphones. Switch the channel to LINE level and connect your device. This type of connection would typically be used to connect professional gear like mixers or electronic instruments. AUX INPUT Locate mixer channel 3/4 and nd at the bottom a 3.5mm TRS Jack. This type of connection is commonly used to connect the unit to the headphones output of a mobile device. RCA INPUT Just above the AUX Jack on mixer channel 3/4 are the RCA jacks. This type of connection is typically used to connect devices like CD or DVD players. Note: Left and right channels are color coded white and red. BLUETOOTH PAIRING

• The PA-300BT can accept streaming audio from any Bluetooth-equipped portable device. First, make sure Bluetooth is enabled on your portable device. Locate channels 3/4 on the back of the PA-300BT and press the BLUETOOTH button. You will hear a tone and a blue LED will begin to ash to indicate the unit is in PAIRING mode.

• On your mobile device, search for a Bluetooth device called “PA-300BT” and select it to pair. Once pairing is complete, you will hear another series of tones, and the blue LED will light solid. Your mobile device is now connected and ready to stream music. ADDITIONAL SPEAKER If you would like to connect another speaker to the PA-300BT (for instance, another PA-300BT to form a stereo pair), rst locate the MIC OUT XLR Jack on the rear of the unit. Connect a standard XLR cable from the MIX OUT Jack to the input of the additional speaker.

USING THE INTERNAL MIXER

MASTER VOLUME The master volume is the main volume control on the PA-300BT. Use it to control the overall level of the PA-300BT.

This LED is located directly underneath the MASTER VOLUME knob. When the PA- 300BT is powered on, this LED will light green. While the unit is operational, if this LED lights red that indicates the unit is being overdriven and the volume should be turned down immediately. CHANNEL VOLUMES At the top of each mixer channel is the LEVEL or VOLUME CONTROL for that channel. These knobs control the relative volume of that channel only. So, if you wanted to (for instance) lower the level of the AUX IN in relation to one of the microphones, you would turn down the LEVEL of channel 3.

These switches, located under the volume controls for channels 1 and 2, are used to set the input to the appropriate level for the connected device. If plugging in a mic, set the switch to MIC (and vice versa). REVERB SWITCH On mixer channels 1 and 2 there is a REVERB ON/OFF switch. When in the ON position, a reverb effect is added to that channel. This is commonly used on microphones and acoustic instruments to add more depth.

This knob, located under the MASTER VOLUME knob, controls the strength of the reverb effect. Turning this knob clockwise increases the strength of the reverb. DSP PRESETS The PA-300BT DSP is like a computerized EQ with presets. The PRESET DSP button allows you to change between music, live, Hi Fi or speech presets. OUT

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe

3. Follow the instructions.

4. Observe all safety warnings. Never remove

safety warnings or other information from the equipment.

5. Use the equipment only in the intended manner

and for the intended purpose.

6. Use only sufciently stable and compatible

stands and/or mounts (for xed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall.

7. During installation, observe the applicable safety

regulations for your country.

8. Never install and operate the equipment near

radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that it is cooled sufciently and cannot overheat.

9. Never place sources of ignition, e.g., burning

candles, on the equipment.

10. Ventilation slits must not be blocked.

11. Keep a minimum distance of 20 cm around and

12. Do not use this equipment in the immediate

vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this equipment to ammable materials, uids or gases. Avoid direct sunlight!

13. Make certain that dripping or splashed water

cannot enter the equipment. Do not place containers lled with liquids, such as vases or drinking vessels, on the equipment.

14. Make certain that objects cannot fall into the

15. Use this equipment only with the accessories

recommended and intended by the manufacturer.

16. Do not open or modify this equipment.

17. After connecting the equipment, check all cables

to prevent damage or accidents, e.g., due to tripping hazards.

18. During transport, make certain that the

equipment cannot fall and possibly cause property damage and personal injuries.

19. If your equipment is no longer functioning

properly, if uids or objects have gotten inside the equipment or if it has been damaged in another way, switch it OFF immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualied personnel.

20. Clean the equipment using a dry cloth.

21. Comply with all applicable disposal laws in your

country. During disposal of packaging, please separate plastic and paper/cardboard.

22. Plastic bags must be kept out of reach of

23. Please note that changes or modications not

expressly approved by the party responsible for compliance could void the user´s authority to operate the equipment.

24. CAUTION: If the power cord of the device is

equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.

25. If the equipment has been exposed to strong

uctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.

26. Before connecting the equipment to the power

outlet, rst verify that the mains voltage and frequency match the values specied on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not t in your wall outlet, contact your electrician.

27. Do not step on the power cord. Make certain

that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.

28. When connecting the equipment, make certain

that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.

29. Whenever possible, avoid switching the

equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.

30. IMPORTANT INFORMATION: Replace fuses only

with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorized service center.

31. To disconnect the equipment from the power

mains completely, unplug the power cord or power adapter from the power outlet.

32. Unplug the power cord and power adapter from

the power outlet if there is a risk of a lightning strike or before extended periods of disuse. To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualied service personnel. The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock. The warning triangle with exclamation mark indicates important operating and maintenance instructions. CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS! This device is meant for professional use. Hearing damage due to high volume and prolonged exposure: When in use, this product can produce high sound- pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes more than 90dB.7
