Product Type	Rechargeable Portable Line Array Speaker System
Brand	Gemini
Model	WRX900TOGO
Dimensions (Assembled)	1980 × 320 × 300 mm
Weight	13.7 kg
AC Power Supply	110-240 V AC, 50/60 Hz
DC Power Supply	12-36 V DC, 60 W max
Battery	Lithium-ion 26 V / 5200 mAh
Battery Life	Up to 6 hours
Charging Time	Approximately 3 hours
Amplification Type	Class D
RMS Power	300 W + 300 W
Peak Power	1200 W + 1200 W
Frequency Response	35 Hz - 20 kHz
Max SPL (Peak at 1 m)	> 121 dB
Dispersion	90° × 12° / -45°
High-Frequency Drivers	6 × 2.75" fiberglass, neodymium magnet
Low-Frequency Driver	1 × 8" subwoofer, ferrite magnet
Inputs	2 combo XLR/TRS channels (MIC/LINE), 1 AUX 3.5 mm input, 1 stereo RCA input
Output	1 MIX XLR output for additional speaker
Bluetooth	Audio streaming, device name: WRX-900TOGO
DSP	Presets: Live, Hi-Fi, Vocal
Reverb	Switchable per channel, intensity adjustment
Indicators	Power/Limit LED (green/red), battery status (4 LEDs)
Material	Fiberglass for drivers, robust construction
Maintenance	Clean with a dry cloth
Safety	Do not open, avoid water, use recommended accessories
Repairability	Repair by qualified personnel only

Frequently Asked Questions - WRX900TOGO GEMINI

How to assemble the WRX900TOGO system?

Place the subwoofer at the desired location. Insert the spacers into the subwoofer, then add the column element with the speakers. Depending on the application, you can use 0, 1, or 2 spacers.

How to connect a microphone?

Plug your microphone into one of the channels 1 or 2 using the XLR/TRS combo connector. Set the MIC/LINE switch to MIC. Adjust the channel volume and enable reverb if desired.

How to pair a Bluetooth device?

Make sure Bluetooth is enabled on your device. On the rear panel, press the Bluetooth button on channel 3/4. A blue LED flashes. Search for "WRX-900TOGO" in your device's Bluetooth list and select it. Once paired, the LED stays on.

What to do if the Power/Limit LED turns red?

The red LED indicates that the unit is clipping (limiting). Immediately lower the master volume or the channel volumes to avoid damaging the speakers.

How to recharge the internal battery?

Connect the AC power cable to the speaker's AC input. The battery will charge automatically. Charging time is approximately 3 hours. You can also use a 12-36V DC source (60W max).

Can I use an external battery?

Yes, the WRX900TOGO can operate and charge from a 12-36V DC source, such as a car battery. Ensure the power supply provides up to 60W maximum.

What is the power output of the system?

The system delivers 300W RMS per channel (600W RMS total) and a peak power of 1200W per channel (2400W peak total). Amplification is Class D.

How to connect an additional speaker?

Use the MIX XLR output at the back of the unit. Connect a standard XLR cable from this output to the input of another speaker (e.g., a second WRX900TOGO for a stereo pair).

How to clean the system?

Use a dry cloth to clean the exterior. Never use liquids or abrasive products. Ensure the device is unplugged before cleaning.

What DSP presets are available?

The DSP offers three presets: Live (for live performances), Hi-Fi (for high-quality listening), and Vocal (to enhance vocals). Use the DSP PRESET button to switch between them.

USER MANUAL WRX900TOGO GEMINI

At Gemini, our highest priority is making your experience unforgettable.

Need help with setting up, troubleshooting, or looking for some tips?

We're here for you, Monday through Friday 9AM-5PM EST.

[e-mail]

1-844-GEMINI9

www.geminisound.com

@GeminiSoundHQ

2	gemini® WRX-900TOGO PORTABLE RECHARGEABLE LINE ARRAY SPEAKER SYSTEM
INDEX
ENGLISH //
CONTENTS	2	ITALIANO //
FUNCTION	3	DESCrizIONE	20
DESCRIPTION	4	MONTAGGIO	20
ASSEMBLY	4	MODIFICA DELLA TENSIONA CAEIN	20
CHANGING THE AC VOLTAGE	4	ACCENSIONE	20
POWERING ON	4	COLLEGAMENTO DI DISPOSITIVI ESTERNI	20
CONNECTING EXTERNAL DEVICES	4	UTILIZZO DEL MISCELATORE INTERNO	21
Wired MICROPHONE	4	AVVERTENZE E PRECAUZIONI	22
BALANCED LINE LEVEL SOURCE	5	SPECIFICHE	23
AUX INPUT	5
RCA JACKS	5
BLUETOOTH PAIRING	5	CONTENTS ENGLISH // Please ensure that you fi nd these accessories included with your WRX-900TOGO speaker: (3) Column Components (1) Base Component (1) IEC Power Cable (1) Operation Manual
ADDITIONAL SPEAKER	5
USING THE INTERNAL MIXER	5
MASTER VOLUME	5
POWER/LIMIT LED	5
CHANNEL VOLUMES	5
MIC/LINE SWITCH	5
REVERB SWITCH	5
REVERB AMOUNT	5
DSP PRESETS	5
WARNINGS AND PRECAUTIONS	6	CONTENIDO ESPÁÑOL // Asegúrese de encontrar estas accesos incluidos con su bocina WRX-900TOGO: (3) Componentes de columna (1) Componente base (1) Cable de alimentación IEC (1) Manual de operación
SPECIFICATIONS	7
WARRANTY AND REPAIR	20
LIMITED WARRANTY	20
RETURN/REPAIR	20
ESPÁÑOL //
DESCRIPICón	8
MONTAJE	8
CAMBIANDO EL VOLTAJE AC	8
ENCENDIDO	8
CONEXión DE DISPOSITIVOS EXTERNOS	8
UTILIZANDO EL MEZCLADOR INTERNERO	9
ADVERTENCIAS Y PRECAUZONES	10
PRESUPUESTO	11
FRANÇAIS //
DESCRIPTION	12
ASSEMBLEEE	12
CHANGEMENT DE LA TENSION AC	12	Veuillez vous assurer que ces accessoires sont inclus avec votre enceinte WRX-900TOGO: (3) Composants de colonne (1) Composant de base (1) Câble d'alimentation CEI (1) Manuel d'opération
ALIMENTATION	12
RACCORDEMENT DE DISPOSITIFS EX-TERNES	12
UTILISATION DU MÉLANGEUR INTERNE	14
AVENTISSEMENTSSET PRECAUTIONS CACTÉTÍQUES	15
DEutsche //
BESCHREIBUNG	16
VERSAMMLUNG	16
ÄNDERUNG DER AC-SSPANUNG	16	INHALT DEutsche // Bette stellen Sie sicher, dass Sie dieses mit Ihr dem WRX-900TOGO-Lautsprecher mitgelieferte Zubehör fi nden: (3) Säulenkomponenten (1) Basiskomponente (1) IEC-Stromkabel (1) Bedienungsanleitung
EINSCHALTEN	16
EXTERNE GERÄTE VERBINDEN	16
VERWENDUNG DES INTERNEN MISCHERS	17
WARNUNGEN UND VORSICHTSMASSNAHMAN	18
SPEZifikATIONEN	19

FUNCTION

ENGLISH //

1. Jack or XLR MIC Input
2. Reverb Switch
3. MIC/LINE Switch
4. MIC/LINE Volume
5. AUX/RCA Volume
6. Bluetooth Pair
7. Master Volume
8. Preset DSP Switch
9. POWER/Limit LED
10. XLR MIX Output
11. Reverb Volume
12. RCA Input
13. AUX Input
14. AC Input
15. Power Switch
16. DC 12~36V In
17. Battery Status

FUNCTIONES

ESPNOL //

1. Jack o XLR MIC Input
2. Interruptor de Reverberación
3. Interruptor MIC/LINE
4. Volumen MIC/LINE
5. Volumen AUX/RCA
6. Par de Bluetooth
7. Volumen Principal
8. Interruptor DSP predefi nido
9. LED de Potencia/Limite
10. Salida MIX XLR
11. Reverb Volumen
12. Entrada RCA
13. Entrada Auxiliar
14. Entrada de CA
15. Interruptor de Alimentación
16. DC 12 ~ 36V In
17. Estado de la Bateriaia

FONCTIONS

FRANCAIS //

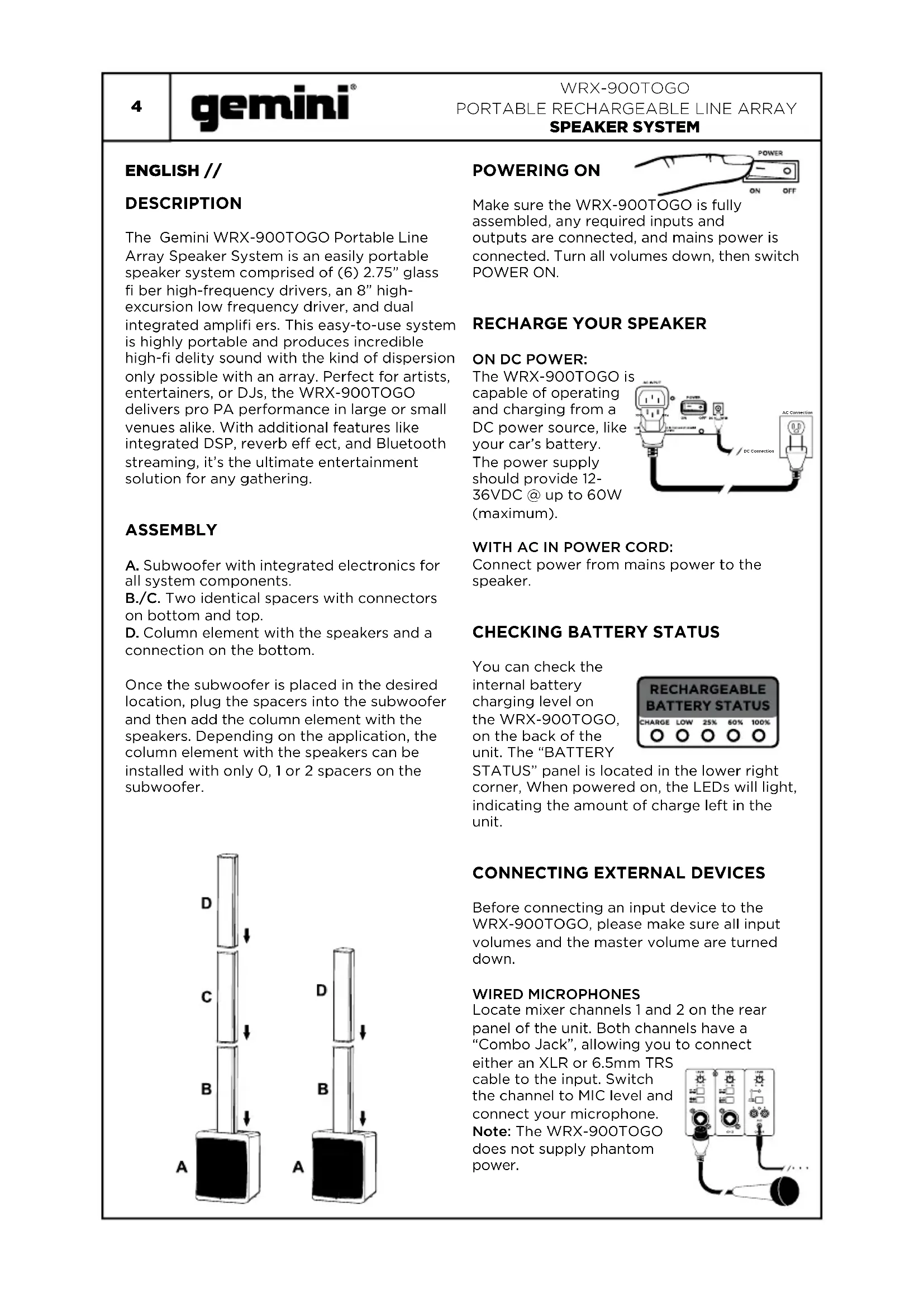

The Gemini WRX-900TOGO Portable Line Array Speaker System is an easily portable speaker system comprised of (6) 2.75" glass fi ber high-frequency drivers, an 8" high-excursion low frequency driver, and dual integrated amplifiers. This easy-to-use system is highly portable and produces incredible high-fi delity sound with the kind of dispersion only possible with an array. Perfect for artists, entertainers, or DJs, the WRX-900TOGO delivers pro PA performance in large or small venues alike. With additional features like integrated DSP, reverb effect, and Bluetooth streaming, it's the ultimate entertainment solution for any gathering.

ASSEMBLY

A. Subwoofer with integrated electronics for all system components.
B./C. Two identical spacers with connectors on bottom and top.
D. Column element with the speakers and a connection on the bottom.

Once the subwoofer is placed in the desired location, plug the spacers into the subwoofer and then add the column element with the speakers. Depending on the application, the column element with the speakers can be installed with only 0, 1 or 2 spacers on the subwoofer.

POWERING ON

Make sure the WRX-900TOGO is fully assembled, any required inputs and outputs are connected, and mains power is connected. Turn all volumes down, then switch POWER ON.

The WRX-900TOGO is capable of operating and charging from a DC power source, like your car's battery. The power supply should provide 12-36VDC @ up to 60W (maximum).

WITH AC IN POWER CORD:

Connect power from mains power to the speaker.

CHECKING BATTERY STATUS

You can check the internal battery charging level on the WRX-900TOGO, on the back of the unit. The "BATTERY

STATUS" panel is located in the lower right corner, When powered on, the LEDs will light, indicating the amount of charge left in the unit.

CONNECTING EXTERNAL DEVICES

Before connecting an input device to the WRX-900TOGO, please make sure all input volumes and the master volume are turned down.

WIRED MICROPHONES

Locate mixer channels 1 and 2 on the rear panel of the unit. Both channels have a "Combo Jack", allowing you to connect

either an XLR or 6.5mm TRS cable to the input. Switch the channel to MIC level and connect your microphone.

Note: The WRX-900TOGO does not supply phantom power.

BALANCED LINE LEVEL SOURCE

Mixer channels 1 and 2 on the rear panel of the unit are used to connect balanced

line sources as well as

microphones. Switch the channel to LINE level and connect your device. This type of connection would typically be used to connect professional gear like mixers or electronic instruments.

AUX INPUT

Locate mixer channel 3/4 and find at the bottom a 3.5mm TRS Jack. This type of connection is commonly used to connect the unit to the headphones output of a mobile device.

RCA INPUT

Just above the AUX Jack on mixer channel 3/4 are the RCA jacks. This type of connection is typically used to connect devices like CD or DVD players.

Note: Left and right channels are color coded white and red.

BLUETOOTH PAIRING

• The WRX-900TOGO can accept streaming audio from any Bluetooth-equipped portable device. First, make sure Bluetooth

is enabled on your portable device. Locate channels 3/4 on the back of the WRX-900TOGO and press the BLUETOOTH button. You will hear a tone and a blue LED will begin to flash to indicate the unit is in PAIRING m

• On your mobile device, search for a Bluetooth device called "WRX-900TOGO"

and select it to pair. Once pairing is complete, you will hear another series of tones, and the blue LED will light solid. Your mobile device is now connected and ready to stream music.

ADDITIONAL SPEAKER

If you would like to connect another speaker to the WRX-900TOGO (for instance, another WRX-900TOGO to form a stereo pair), first locate the MIC OUT XLR Jack on the rear of the unit. Connect a standard XLR cable from the MIX OUT Jack to the input of the additional speaker.

USING THE INTERNAL MIXER

MASTER VOLUME

The master volume is the main volume control on the WRX-900TOGO.Use it to control the overall level of the WRX-900TOGO.

POWER/LIMIT LED

This LED is located directly underneath the MASTER VOLUME knob. When the WRX-900TOGO is powered on, this LED will light green. While the unit is operational, if this LED lights red that indicates the unit is being overdriven and the volume should be turned down immediately.

CHANNEL VOLUMES

At the top of each mixer channel is the LEVEL or VOLUME CONTROL for that channel. These knobs control the relative volume of that channel only. So, if you wanted to (for instance) lower the level of the AUX IN in relation to one of the microphones, you would turn down the LEVEL of channel 3.

MIC/LINE SWITCH

These switches, located under the volume controls for channels 1 and 2, are used to set the input to the appropriate level for the connected device. If plugging in a mic, set the switch to MIC (and vice versa).

REVERB SWITCH

On mixer channels 1 and 2 there is a REVERB ON/OFF switch. When in the ON position, a reverb effect is added to that channel. This is commonly used on microphones and acoustic instruments to add more depth.

REVERB KNOB

This knob, located under the MASTER VOLUME knob, controls the strength of the reverb effect. Turning this knob clockwise increases the strength of the reverb.

DSP PRESETS

The WRX-900TOGO DSP is like a computerized EQ with presets. The PRESET DSP button allows you to change between music, live, Hi Fi or speech presets.

ENGLISH //

WARNING AND PRECAUTIONS

PREVENTIVE MEASURES

1. Please read these instructions carefully.
2. Keep all information and instructions in a safe place.
3. Follow the instructions.
4. Observe all safety warnings. Never remove safety warnings or other information from the equipment.
5. Use the equipment only in the intended manner and for the intended purpose.
6. Use only sufficiently stable and compatible stands and/or mounts (for fi xed installations). Make certain that wall mounts are properly installed and secured. Make certain that the equipment is installed securely and cannot fall
7. During installation, observe the applicable safety regulations for your country.
8. Never install and operate the equipment near radiators, heat registers, ovens or other sources of heat. Make certain that the equipment is always installed so that it is cooled sufficiently and cannot overheat.
9. Never place sources of ignition, e.g., burning candles, on the equipment.
10. Ventilation slits must not be blocked.
11. Keep a minimum distance of 20~cm around and above the device.
12. Do not use this equipment in the immediate vicinity of water (does not apply to special outdoor equipment - in this case, observe the special instructions noted below). Do not expose this equipment to flammable materials, fluids or gases. Avoid direct sunlight!
13. Make certain that dripping or splashed water cannot enter the equipment. Do not place containers filled with liquids, such as vases or drinking vessels, on the equipment.
14. Make certain that objects cannot fall into the device.
15. Use this equipment only with the accessories recommended and intended by the manufacturer.
16. Do not open or modify this equipment.
17. After connecting the equipment, check all cables to prevent damage or accidents, e.g., due to tripping hazards.
18. During transport, make certain that the equipment cannot fall and possibly cause property damage and personal injuries.
19. If your equipment is no longer functioning properly, if fluids or objects have gotten inside the equipment or if it has been damaged in another way, switch it OFF immediately and unplug it from the mains outlet (if it is a powered device). This equipment may only be repaired by authorized, qualified personnel.
20. Clean the equipment using a dry cloth.
21. Comply with all applicable disposal laws in your country. During disposal of packaging, please separate plastic and paper/cardboard.
22. Plastic bags must be kept out of reach of children.
23. Please note that changes or modifi cations not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

FOR EQUIPMENT THAT Connects TO THE POWER MAINS

1. CAUTION: If the power cord of the device is equipped with an earthing contact, then it must be connected to an outlet with a protective ground. Never deactivate the protective ground of a power cord.
2. If the equipment has been exposed to strong fluctuations in temperature (for example, after transport), do not switch it on immediately. Moisture and condensation could damage the equipment. Do not switch on the equipment until it has reached room temperature.
3. Before connecting the equipment to the power outlet, first verify that the mains voltage and frequency match the values specified on the equipment. If the equipment has a voltage selection switch, connect the equipment to the power outlet only if the equipment values and the mains power values match. If the included power cord or power adapter does not fit in your wall outlet, contact your electrician.
4. Do not step on the power cord. Make certain that the power cable does not become kinked, especially at the mains outlet and/or power adapter and the equipment connector.
5. When connecting the equipment, make certain that the power cord or power adapter is always freely accessible. Always disconnect the equipment from the power supply if the equipment is not in use or if you want to clean the equipment. Always unplug the power cord and power adapter from the power outlet at the plug or adapter and not by pulling on the cord. Never touch the power cord and power adapter with wet hands.
6. Whenever possible, avoid switching the equipment on and off in quick succession because otherwise this can shorten the useful life of the equipment.
7. IMPORTANT INFORMATION: Replace fuses only with fuses of the same type and rating. If a fuse blows repeatedly, please contact an authorized service center.
8. To disconnect the equipment from the power mains completely, unplug the power cord or power adapter from the power outlet.
9. Unplug the power cord and power adapter from the power outlet if there is a risk of a lightning strike or before extended periods of disuse.

To reduce the risk of electric shock, do not remove cover (or back). There are no user serviceable parts inside. Maintenance and repairs should be exclusively carried out by qualified service personnel.

The warning triangle with lightning symbol indicates dangerous uninsulated voltage inside the unit, which may cause an electrical shock. The warning triangle with exclamation mark indicates important operating and maintenance instructions.

CAUTION! HIGH VOLUMES IN AUDIO PRODUCTS!

This device is meant for professional use. Hearing damage due to high volume and prolonged exposure: When in use, this product can produce high sound-pressure levels (SPL) that can lead to irreversible hearing damage in performers, employees, and audience members. For this reason, avoid prolonged exposure to volumes more than 90dB.

WRX-900TOGO PORTABLE RECHARGEABLE LINE ARRAY SPEAKER SYSTEM		gemini	7
SPECIFICATIONS
ACOUSTIC PERFORMANCE
Frequency Response	35Hz-20KHz
Max Peak SPL (@1m)	Better than 121dB
Crossover Point	200Hz
Dispersion	90°×12°/-45°
Input Impedance	4 ohms
HIGH FREQUENCY SECTION
Type	Mini line array
Size	6 x 2.75"
Cone Material	Glass Fiber
Magnet Size	1"
Magnet Material	Neodymium
LOW FREQUENCY SECTION
Type	System Subwoofer
Size	8"
Magnet Size	40 OZ
Magnet Material	Ferrite
Voice Coil Diameter	2"
AMPLIFIER PERFORMANCE SYSTEM
Rated Power RMS	300W+300W (RMS)
Rated Power Peak	1200W+1200W(Peak)
THD	<0.5%
Type	Class D
Line Input Gain	-2dBu
Mic Input Gain	-38dBu
Cooling	Convection
POWER
AC Voltage	110V-240V 50/60HZ
DC Voltage	12-36VDC 60W Max
Battery	Lithium Ion 26V/5200mAh
	Up to 6 hours
	3 hours to recharge
DIMENSIONS PACKAGED
Dimensions (H×W×D)	495×395×625mm
	19.49×15.55×24.60 inch
Weight	15.93 Kg. / 35.1 Lbs
DIMENSIONS
Dimensions (H×W×D)	1980×320×300mm
	77.95×12.6×11.8 inch
Weight	13.7 Kg. / 30.2 Lbs

ESPANOL //

DESCRIPCION

Once the subwoofer is placed in the desired location, plug the spacers into the subwoofer and then add the column element with the speakers. Depending on the application, the column element with the speakers can be installed with only 0, 1 or 2 spacers on the subwoofer.

ACCENSIONE

WARRANTY AND REPAIR:

All Gemini products are designed and manufactured to the highest standards in the industry. With proper care and maintenance, your product will provide years of reliable service.

LIMITED WARRANTY

A. Gemini guarantees its products to be free from defects in materials and workmanship for one (1) year from the original purchase date. Exceptions: Laser assemblies on CD Players, cartridges, and crossfaders are covered for 90 days.
B. This limited warranty does not cover damage or failure caused by abuse, misuse, abnormal use, faulty installation, improper maintenance or any repairs other than those provided by an authorized Gemini Service Center.
C. There are no obligations of liability on the part of Gemini for consequential damages arising out of or in connection with the use or performance of the product or other indirect damages with respect to loss of property, revenues, of profit, or costs of removal, installation, or reinstallation. All implied warranties for Gemini, including implied warranties for fitness, are limited in duration to one (1) year from the original date of purchase, unless otherwise mandated by local statutes.

RETURN/REPAIR

A. In the U.S.A., please call our helpful Customer Service Representatives at [phone], and they will be happy to give you a Return Authorization Number (RA#) and the address of an authorized service center closest to you.
B. After receiving an RA#, include a copy of the original sales receipt, with defective product and a description of the defect. Send by insured freight to: Gemini and use the address provided by your customer service representative. Your RA# must be written on the outside of the package, or processing will

be delayed indefinitely!

C. Service covered under warranty will be paid for by Gemini and returned to you. For non-warrantied products, Gemini will repair your unit after payment is received. Repair charges do not include return freight. Freight charges will be added to the repair charges.
D. On warranty service, you pay for shipping to Gemini, we pay for return shipping within the continental United States. Alaska, Hawaii, Puerto Rico, Canada, Bahamas, and the Virgin Islands will be charged for freight.
E. Please allow 2-3 weeks for return of your product.

Under normal circumstances your product will spend no more than 10 working days at Gemini. We are not responsible for shipping times.

IN THE USA:

If you experience problems with this unit, call 732-346-0061 for Gemini customer service.

Do not attempt to return this equipment to your dealer.

Parts of the design of this product may be protected by worldwide patents. Information in this manual is subject to change without notice and does not represent a commitment on the part of the vendor. Gemini shall not be liable for any loss or damage whatsoever arising from the use of information or any error contained in this manual. No part of this manual may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, electrical, mechanical, optical, chemical, including photocopying and recording, for any purpose without the express written permission of Gemini. It is recommended that all maintenance and service on this product is performed by Gemini or its authorized agents. Gemini will not accept liability for loss or damage caused by maintenance or repair performed by unauthorized personnel.

Gemini Worldwide Headquarters

107 Trumbull Street, Building F8 • Elizabeth, NJ 07206 • USA • Tel: [phone] • Fax: [phone]

© Innovative Concepts and Design LLC, All Rights Reserved.
