USER MANUAL 917615 SILVERLINE
750W Clean & Dirty Water Pump
FR Pompe submersible pour eaux claires et usées 750 W
DE Rein- und Schmutzwasser-Tauchpumpe, 750 W
ES Bomba sumergible para aguas limpias y residuales 750 W
IT Pompa sommersa acque chiare e acque sporche 750 W
NL 750W Schoon- en vuilwaterpomp
PL Pompa zanurzeniowa do zanieczyszczonej i czystej wody 750 W
UK-917615/EU-952371

Register online: silverlinetools.com


silverlinetools.com


A

B



Fig.1

Fig. II

Fig. III
English .06
Français 12
Deutsch............18
Espanol. 24
Italiano.........30
Nederlands .36
Polski 42
Introduction
Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.
Description of Symbols
The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Wear head protection.

Wear hand protection.

Read instruction manual.

Always disconnect from the power supply when adjusting, changing accessories, cleaning, carrying out maintenance and when not in use!

Risk of electrocution!

Conforms to relevant legislation and safety standards.

Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Class I construction (protective earth)
Technical Abbreviations Key
| V Volts | |
| ~, AC Alternating current | |
| A, mA Ampere, milli-Amp | |
| \( r_b \) | No load speed |
| °Degrees | |
| Ø Diameter | |
| Hz Hertz | |
| W, kW Watt, kilowatt | |
| /min or min-1 | Operations per minute |
Specification
Voltage: 230V~,50Hz
Power: 750W
No load speed: 3000rpm
Max flow rate: 13,000L/hr
Maximum head height: 9m
Minimum water level: 150mm
Maximum submersion depth: 7m
Maximum water temp: 35°C
Output hose connection: 1", 1½", 1½" (25mm, 32mm, 38mm)
Cable length: 10m
Ingress protection: .IPX8
Protection class:
Dimensions (L x W x H): 180 x 160 x 370mm
Weight: 5.5kg
Maximum particle size: 1mm/8mm/35mm
As part of our ongoing product development, specifications of Silverline products may alter without notice.
Carefully read and understand this manual and any label attached to the tool before use. Keep these instructions with the product for future reference. Ensure all persons who use this product are fully acquainted with this manual.
Even when used as prescribed it is not possible to eliminate all residual risk factors. Use with caution. If you are at all unsure of the correct and safe manner in which to use this tool, do not attempt to use it.
General Safety
WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Specific Safety Electric Water Pump Safety
- The pump must always be transported, used, submerged, and stored vertically. Only carry the pump by the lifting handle. Never carry, lift or submerge the pump by its power cable
- This product is not designed for continuous use. Excessive usage will shorten service life and invalidate the warranty
DO NOT use this pump with substances other than water - Sand and other abrasive material suspended in the liquid causes increased wear and reduces the pump's output capacity
NEVER use this pump when ambient temperatures are close to freezing
DO NOT attempt to operate the pump below the minimum water level as this will cause permanent damage
This device contains dangerous voltages. Never remove any part of the casing - Inspect the power cable and extension cord before every use to ensure they are in good condition. ALWAYS have a damaged cable/extension cable replaced by an authorised Silverline service centre. ONLY use extensions with suitable cross section and outdoors rating. NEVER pull the cable to disconnect it from the power socket. NEVER carry the tool by its cable. NEVER touch live power cables or plug sockets with wet hands. Keep the cable away from heat, oil, solvents and sharp edges
- ALWAYS observe local laws and regulations when connecting submersible pumps to the power supply. Consult a qualified electrician when necessary
- This pump must be operated exclusively on power points that are protected by an RCD with a maximum tripping current of 30mA and a maximum delay of 40ms
DO NOT use this pump in swimming pools or ponds that are occupied - Pollution of the liquid could occur due to leakage of lubricants

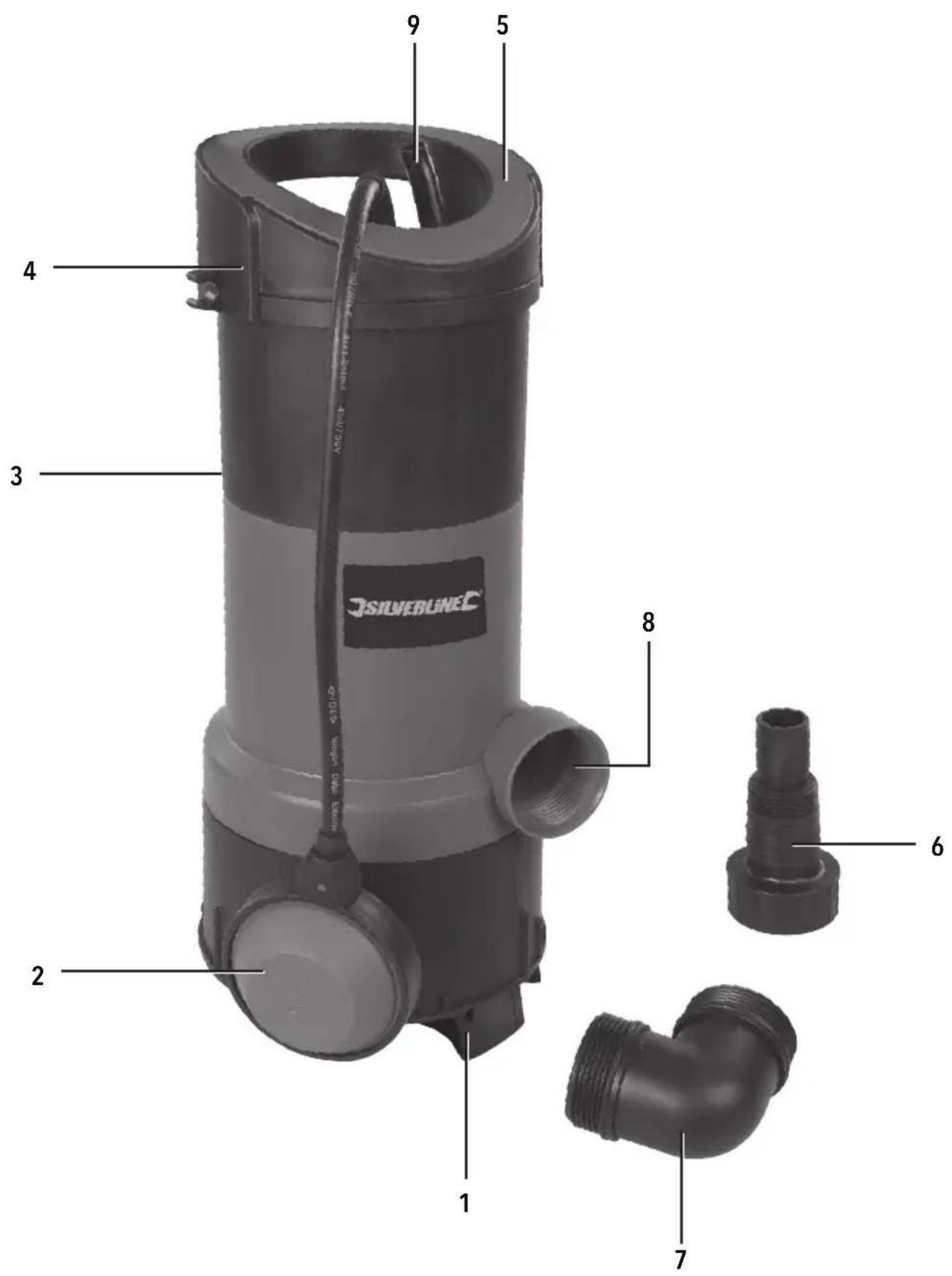

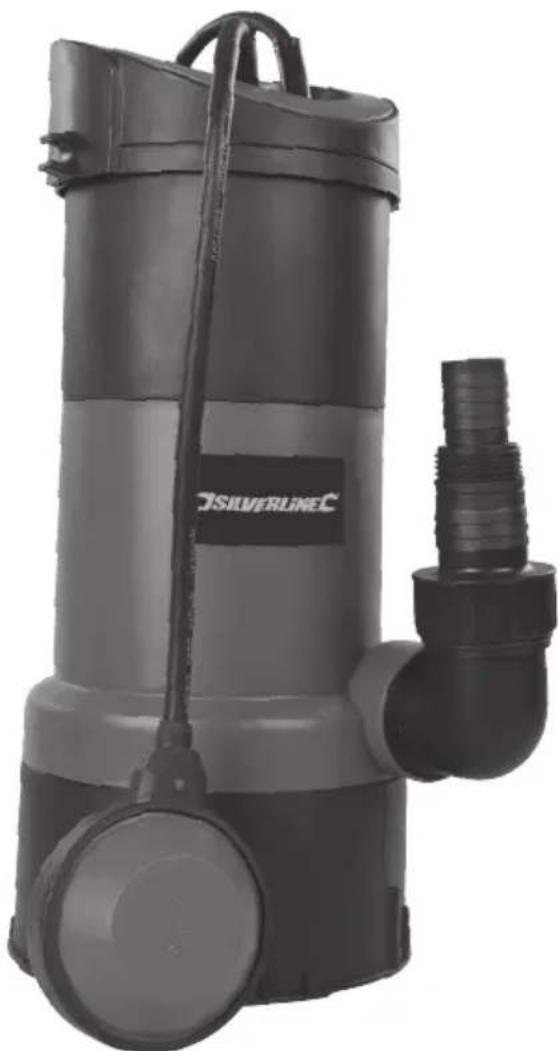

Product Familiarisation
1 Vater Inlets
2 Float Switch
3 Ar Vent Valve (Unseen)
4 Float Switch Lock
5 Liking Handle
6 Hose Connector
7 Water Outlet Elbow Connector
8 Water Outlet
9 Power Cord
Intended Use
Submersible pump designed for domestic, time-limited operation around the house and garden, predominantly for draining containers, boats and yachts; transferring liquids; aerating and circulating water; and extracting water from wells.
Unpacking Your Tool
- Carefully unpack and inspect your tool. Fully familiarise yourself with all its features and functions
- Ensure all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool
- Ensure all packaging materials are removed from the product. Ensure the water inlet and outlet are clear before use
Before Use
Note: The pump is fully submersible to the depth and maximum temperature listed in 'Specification', into clean or slightly contaminated water (see 'Specification' for maximum particle size), swimming pool and soapy water.
Attaching the outlet hose
- Screw the Outlet Elbow Connector (7) into the Water Outlet (8)
This pump features a Hose Connector (6) that is compatible with multiple hose diameters: 38mm (1-1/2"), 32mm (1-1/4") and 25mm (1") (Fig. III)
Note: 38mm (1-1/2") hose must be used to achieve maximum delivery capacity (as stated in 'Specification').
- Decide which hose diameter you are going to use and determine where on the Hose Connector (6) this diameter hose is fastened
-

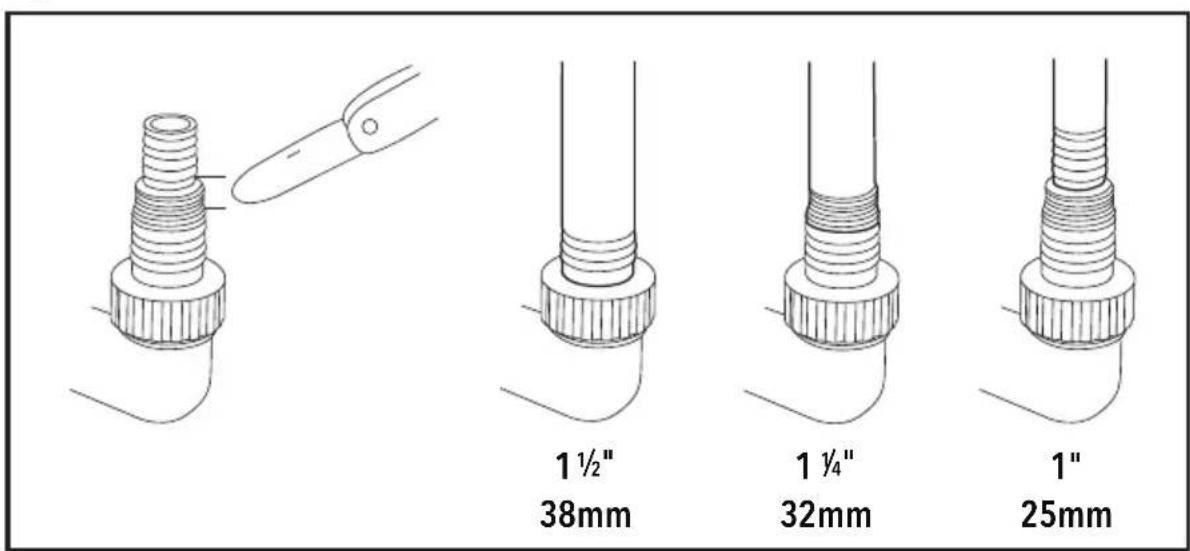

Cut off the smaller steps of the Hose Connector that are not needed, using a suitable knife (not included). This removes unnecessary flow restrictions and ensures maximum pump capacity and water flow (Fig. III)
-
Fit the hose on to the Hose Connector and secure with a hose clip (not included)
Note: It is recommended to use stainless steel hose clips to prevent corrosion.
Setting up the pump
- Attach a suitable rope to the Lifting Handle (5), to lower the pump into the water, to adjust its position when submerged, and to lift the pump back out of the water
- Locate a position for submerging the pump where the float switch can move freely if automatic operation is required
- Ensure a safe path for the power cable, where it cannot be damaged, does not pose a hazard, and where it can safely reach the mains power supply (also see 'Electrical connection')
- Observe the maximum head height (see 'Specification'). Keep the hose as short and straight as possible. Ensure it does not kink as this would restrict the water flow
IMPORTANT: Kinked or otherwise obstructed hoses lead to reduced pump capacity and may lead to pump damage through overheating.
Setting the pump base height
The pump base can be set at different heights to provide flow and filter control
To adjust the height :
- Slide the spring loaded base out the bottom of the tool (Image A)
- Turn the base to the desired flow setting (Image B)
- Release the base and ensure it is locked in position
Adjusting the Float Switch
To adjust the cut in and cut out height, attach the Float Switch (2) cable to the Float Switch Lock (4) at the required length (Fig. 1)
Submerging & lifting the pump
The pump must be submerged below the water level (see 'Specification')
- Use the rope attached to the Lifting Handle (5) to position the pump underwater. NEVER attempt to move the pump by pulling or manipulating the power cable
- Ensure that the pump sits vertically on even ground. Check that the Water Inlets (1) are not obscured in any way. If the bottom surface is soft, the pump should be supported on a flat object or be suspended using the rope attached to the handle
- ONLY use the rope to lift the pump out of the water after use
Electrical connection
WARNING: NEVER touch the power cable, plug or mains socket with wet hands.
WARNING: This pump will operate immediately once it is supplied with power. It will also switch ON when dry if the Float Switch (2) is in certain positions; this must be avoided to prevent damage to the device and potential user injury.
- Always check the pump, the power cable and plug, before each operation. DO NOT use if you detect any damage or wear, and have the cable replaced by an authorised Silverline service centre
- The power cable MUST be connected to a plug socket that is located well above water level, protected from flooding
- If using an extension lead, only use compatible, outdoors rated extensions with waterproof joints
- ONLY connect this pump to compatible plug sockets with suitable ingress protection (outdoor rated)
- Connect this pump exclusively to power points protected by a RCD with a maximum tripping current of 30mA and a maximum delay of 40ms
Note: According to VDE, the use of electrical pumps in garden ponds, fountains and swimming pools is only permitted if the pump is operated via an RCD. Installation regulations according to VDE 0100, part 072, have to be observed. If in doubt, please contact a qualified electrician.
Operation
WARNING: Only use when sufficiently submerged in water. Remove from the water when not in use.
WARNING: Do not use this pump, and remove from liquid, when temperatures are close to the point of freezing.
WARNING: Do not allow the pump to operate continuously for more than 5 hours at a time. After 5 hours, disconnect and allow to fully cool.
Note: This pump is protected by a built-in thermal motor protector. It will switch OFF if overheating occurs. Once sufficiently cooled, the motor will automatically switch ON again.
Note: This pump is equipped with an automatic de-aerating device, which removes air from the pump. If the water level drops below the Air Vent Valve (3), a small amount of water will penetrate through the Air Vent Valve. This is not a defect of the pump, but serves to remove air from the pump.
Float Switch operation
- After set up is complete and the pump is connected to the power supply, it will operate automatically and will start pumping provided the water level is sufficient
- As the water level drops to minimum safe level, the pump will automatically switch OFF
Manual operation
To manually operate the pump, connect to the power supply and manually lift the Float Switch (2) to switch the pump ON
WARNING: Dry-running operation causes increased wear and is to be avoided. The pump must be immediately switched OFF when water fails to flow.
Note: In case the pump was allowed to nearly run dry, it may not start to pump water again, once water levels are restored. In this case, switch the pump OFF for a short time and back on. This will restore proper operation of the Air Vent Valve (3).
Accessories
- Accessories including water hoses and hose clips are available from your Silverline dealer
- Spare parts can be obtained from toolsparesonline.com
Maintenance
WARNING: Always disconnect the pump from the power supply before carrying out any maintenance.
General inspection
Regularly check that all the fixing screws are tight. They may vibrate loose over time
- Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool
Cleaning
- Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the machine's service life
- Remove mud, debris and other dirt after use, and ALWAYS rinse thoroughly with clean fresh water
Removing obstructions
WARNING: Ensure the pump is disconnected from the power supply before attempting to remove obstructions. Wear adequate personal protective equipment, including eye protection and cut-proof gloves.
- In the event of obstructions or dirt inside the Water Inlets (1), the suction base can be removed for cleaning (Fig. II):
-

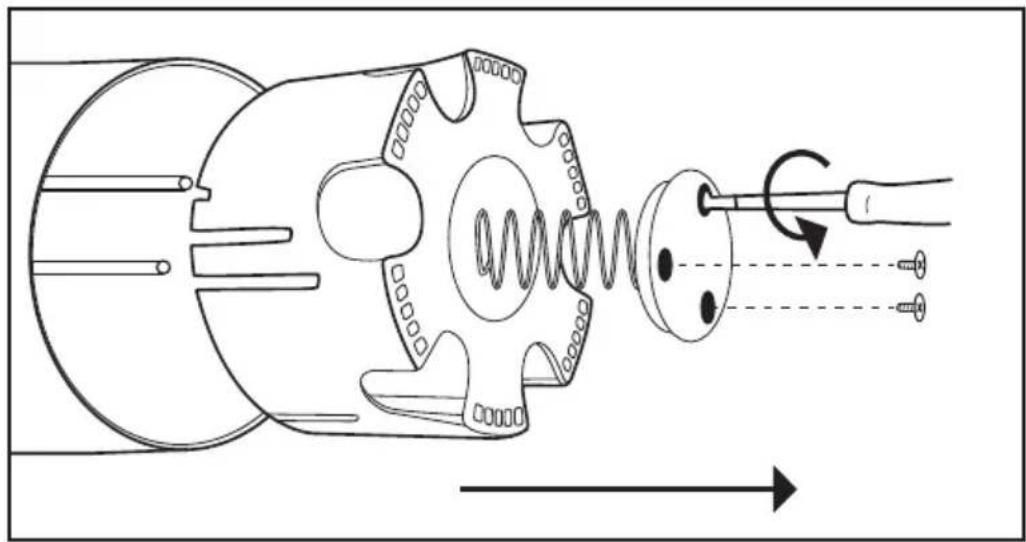

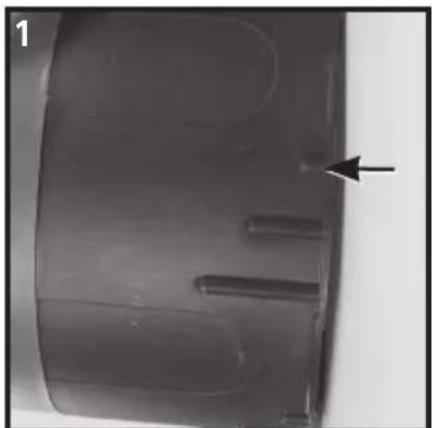

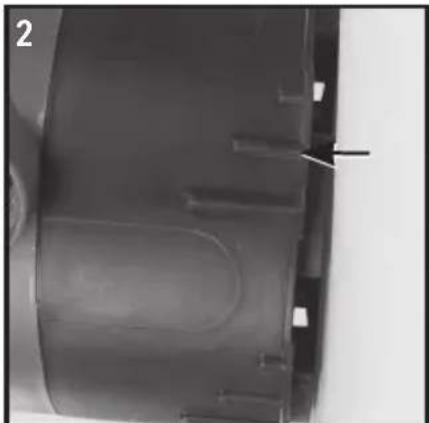

Remove the 3 screws in the base, using a suitable Phillips screwdriver (not included)
-

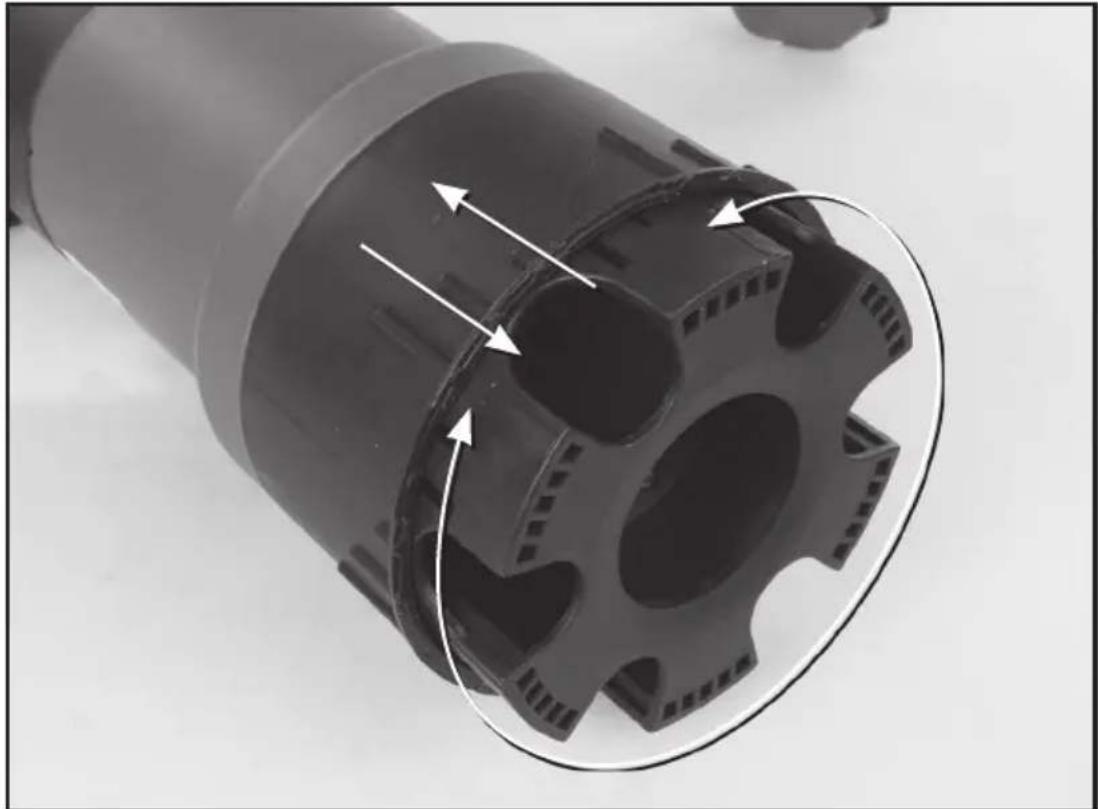

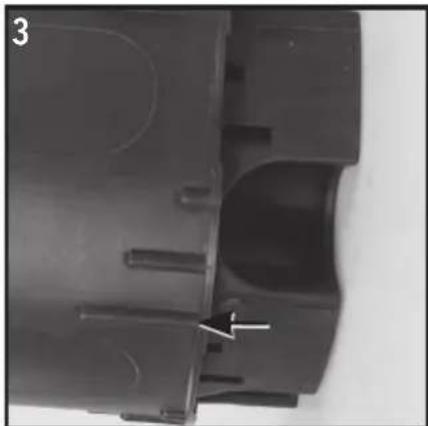

Pull the base off the pump body

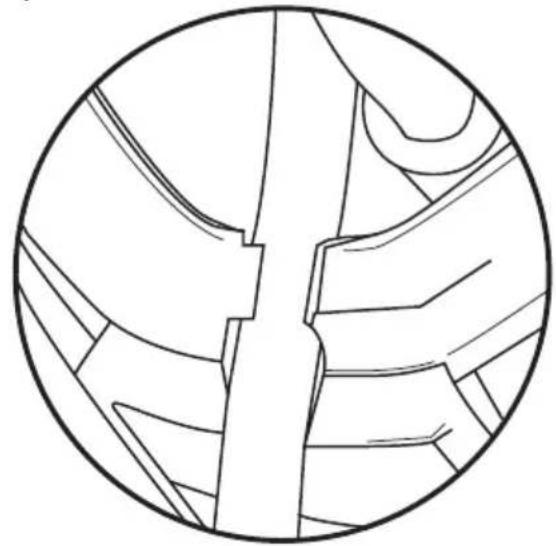

- Clean around the impeller and inspect for damage
Note: If the impeller is damaged, it must be replaced by an authorised Silverline service centre. - Refit the base and screws, and retighten
Contact
For technical or repair service advice, please contact the helpline on (+44) 1935 382 222
Web: silverlinetools.com/en-GB/Support
Address:
Toolstream Ltd.
Boundary Way
Lufton Trading Estate
Yeovil, Somerset
BA22 8HZ,United Kingdom
Storage
WARNING: DO NOT leave this pump submerged when not in use. Drain remaining water and dry completely before storage.
- Store this tool carefully in a secure, dry, frost-free place out of the reach of children
Disposal
Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.
- Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
- Contact your local waste disposal authority for information on the correct way to dispose of power tools
Troubleshooting
| Problem Possible cause Solution | ||
| Pump is running, but does not deliver water | Output hose kinked or clogged Ensure hose is clean and not kinked | |
| Air blockages in the suction base | Wait for max. 1 minute for the pump to automatically de- aerate over the Vent Valve (3). If necessary, switch OFF for a few seconds and start again | |
| Impeller clogged Clean impeller (see 'Maintenance') | ||
| Impeller damaged Contact your dealer or an authorised Silverline service centre | ||
| Water level falls below the minimum when pump starts Submerge pump deeper | ||
| Pump does not start or suddenly stops during operation | Motor overheated; thermal overload protection has switched OFF | Disconnect from power supply immediately and investigate the cause; clean impeller (see 'Maintenance'); observe max. temperature of 35°C |
| No power Check fuses and electric connections; consult qualified electrician if necessary | ||
| Dirt particles are jammed in the suction base Clean suction base | ||
| Pump runs, but output suddenly decreases or ceases | Suction base is clogged Clean suction base | |
| If the above troubleshooting solutions fail, contact your dealer or an authorised Silverline service centre. | ||
Silverline Tools Guarantee
This Silverline product comes with a 3 year guarantee
Register this product at www.silverinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.
Registering your purchase
Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:
- Your personal details
Details of the product and purchase information
Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.
Terms & Conditions
Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.
PLEASE KEEP YOUR SALES RECEIPT
If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.
If this product develops a fault after the 30 day period, return it to:
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
The guarantee claim must be submitted during the guarantee period.
You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.
You must provide precise details of the fault requiring correction.
Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.
Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.
All work will be carried out by Silverline Tools or its authorized repair agents.
The repair or replacement of the product will not extend the period of guarantee
Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.
Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.
The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
What is covered:
The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.
If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.
Use of this product in the EU.
What is not covered:
Silverline Tools does not guarantee repairs required as a result of:
Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.
The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.
Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.
Use of the product for anything other than normal domestic purposes.
Change or modification of the product in any way.
Use of parts and accessories which are not genuine Silverline Tools components.
Faulty installation (except installed by Silverline Tools).
Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.
Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.
Introduction
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, GroBbritannien
Caracteristicas techniques
- Mantenga la herramienta siempre limpia. La suciedad y el polvoSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEOSEO SEOEEOSEAO
Retire los restos de barro y sucedad despues de cada uso. Limpie la bomba con agua limpa.
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU,GB
Output hose connection: 25 mm, 32 mm, 38 mm
Kabel lengte: 10 m
Beschermingsniveau: IPX8
Beschermingsklasse:
Afmetingen (Lx B x H): 180 x 160 x 370 mm
Gewicht: 5,5 kg
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU,GB
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
GB 3 Year Guarantee. Register online within 30 days. Terms and Conditions apply.
