USER MANUAL SC07M21A0V1 SAMSUNG

• Before operating this unit, please read the instructions carefully.
• For indoor use only.

SAMSUNG

PREPARATION

Safety information 3

Important safety instructions 4

INSTALLATION

Name of the parts 10

Accessories 11

OPERATIONS

Using the vacuum cleaner 12

Using the body 12

Using the handle 12

Using the brushes 13

MAINTENANCE

Cleaning and maintaining 14

When to empty the dustbin 14

Cleaning the dustbin 14

Cleaning the dust filter 15

Cleaning the outlet filter 15

Cleaning the brush 16

Cleaning the pipe 16

Cleaning the hose 16

Storing the vacuum cleaner 16

APPENDICES

Notes and cautions 17

In use 17

Cleaning and maintenance 17

Troubleshooting 18

Product information 19

Safety information

• Before operating the appliance, please read this manual thoroughly and retain it for your reference.
• Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

Caution/Warning symbols used

⚠ WARNING

Indicates that a danger of death or serious injury exists.

CAUTION

Indicates that a risk of personal injury or material damage exists.

Other symbols used

NOTE

Indicates that the following text contains additional important information.

- For information on Samsung's environmental commitments and product specific regulatory obligations e.g. REACH (WEEE, Batteries) visit: samsung.com/uk/aboutsamsung/samsungelectronics/corporatecitizenship/data_corner.html

Important safety instructions

When using an electrical appliance, basic precautions should be observed, including the following:

WARNING

This vacuum cleaner is designed for household use only.

Use the vacuum cleaner only for its intended use as described in these instructions.

Always install the filters in the correct position as shown in this manual.

Failure to meet these requirements could cause damage to the internal parts and void your warranty.

Please contact the manufacturer or service agent for a replacement.

General

• Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
• Children should be supervised to ensure that they do not play with the appliance. Do not allow the vacuum cleaner to run unattended at any time.

Power related

• Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before emptying the dustbin. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.
• The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
• The use of an extension cord is not recommended.

• Please prevent any risk of electric shock or fire.

• Do not damage the power cord.

• Do not pull the power cord too hard or touch the power plug with wet hands.
• Do not use a power source other than the national rated voltage and also do not use a multi outlet to supply power to number of devices at the same time.

- Do not leave the power cord carelessly on the floor.

- Do not use a damaged power plug, power cord or loose power outlet.

- Turn off the power before connecting or disconnecting the power plug to the power outlet and make sure your fingers don't come in contact with the pins of the power plug.

- Do not disassemble or modify the vacuum cleaner. When power cord is damaged, contact the manufacturer or service agent to get it replaced by certified repairman.

- Clean dust or any foreign matters on the pin and contact part of the power plug.

- Unplug the cleaner when not in use. Turn off the power switch before unplugging.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

In use

• Don't carry the vacuum cleaner by holding the hose. Use the handle on the vacuum cleaner set for lifting or carrying vacuum cleaner.
• Unplug the cleaner when not in use. Turn off the power switch before unplugging.
• Do not use outdoors, or on wet rugs or surfaces.
• Do not use this product outdoors since it's designed for household use only.

- There is a risk of malfunction or damage.

* Outdoor cleaning : Stone, Cement

* A billiard room : Powder of a chalk

* An aseptic room of a hospital

- Do not use the vacuum cleaner to suction up liquids(such as water), blades, pins or embers.

- There is a risk of malfunction or damage.

• Be sure children do not touch the vacuum cleaner when you use it.
• The children may get burned if the body is overheated.

- Do not mount or make any physical impacts on the body.

- It may result in injury or damage.

- Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.

• Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts.
• Do not block the suction or the exhaust port.
• Do not use the vacuum cleaner without a dustbin and filters in place.
• Do not use worn, deformed or damaged filters. Insert filter properly.
• It can be a reason of penetration of dust and debris into motor.
• If there's any gas leak or when using combustible sprays such as a dust remover, do not touch the power outlet and open the windows to ventilate the room.

- There is a risk of explosion or fire.

• Do not use this vacuum cleaner to clean building waste and debris, toner of laser printer. Regularly keep the filters in clean conditions to prevent of collecting fine dust in them.
• Dry carpet cleaners or fresheners, powders and fine dust such as flour should be only vacuumed in very small amounts.
• Use extra care when cleaning on stairs.
• Do not use to suction up water.
• Do not immerse in water for cleaning.
• The hose should be checked regularly and must not be used if damaged.
• Hold plug when rewinding onto cord reel. Do not allow plug to whip when rewinding.

Cleaning and maintenance

- Do not lift or carry the vacuum cleaner putting a brush in the groove for storage.

- Never twist dust filter after washing.

- It can be a reason of deformation or damage filter.

- Use a dry cloth or towel to clean the body and make sure to unplug the vacuum cleaner before cleaning. Do not spray water directly or use volatile materials (such as benzen, thinner or alcohol) or combustible sprays (such as a dust remover) for cleaning.

- If water or other liquid gets into the product and causes malfunction, turn off the vacuum cleaner, unplug the power plug and then consult a service agent.

- Do not use alkaline or industrial detergents, air fresheners or (acetic) acids to clean the washable parts of the vacuum cleaner. (Refer to the following table.)

- It may cause damage, deformation or discoloration of the plastic parts.

The washable parts Dustbin of the body, Dust filter
Available detergent Neutral detergent Kitchen cleaner
Unavailable detergent Alk	aline detergent Bleach, Mold cleaner, etc.
	Acid detergent Paraffin oil, Emulsifier, etc.
	Industrial detergent NV-I, PB-I, Opti, Alcohol, Acetone, Benzene, Thinner, etc.
	Air freshener Air freshener(Spray)
	Oil Animal or vegetable oil
	Etc.	Edible acetic acid, Vinegar, Glacial acetic acid, etc.

- Do not stand on the hose assembly. Do not put weight on the hose.

CAUTION

In use

• Do not use the pipe for anything other than its intended purpose.
• It may result in injury or damage.
• Do not pull the power cord fully and hold the power cord with one hand when rewinding it.
• If you try to pull it fully, power cord can be damaged and if you don't hold the power cord while rewinding, it may lose control and cause injury or damage to people or objects around it.
• If any abnormal sounds, smells or smoke come from the vacuum cleaner, immediately unplug the power plug and contact a service agent.
• There is a risk of fire or electric shock.
• Do not use the vacuum cleaner in any places near heating appliances (such as stove), combustible spray or flammable materials.
• It may cause fire or deformation of the product.
• Empty the dustbin before it is full in order to maintain the best efficiency.

Cleaning and maintenance

- Unplug the vacuum cleaner if you do not use it for a long time.

- It may cause electric shock or fire.

Name of the parts

Product design may differ depending on the models.

Diagram of a vacuum cleaner with labeled parts, showing exploded view and component insertion instructions.

01 Pipe
02 Handle control
03 Hose
04 Dustbin
05 Power button

06 Cord rewind button / Carry handle
07 Power cord
08 Outlet filter
09 Anti-Tangle Turbine (Cyclone Force)

Accessories

Accessories may differ depending on the models.

Line drawing of a flexible electrical plug with a coiled cable (no text or symbols)

Line drawing of a cylindrical object with a flanged end and central shaft (no text or symbols)

Line drawing of a handheld vacuum cleaner device (no text or symbols)

Hose Pipe 2-step brush

Simple line drawing of a mechanical component with a handle and base (no text or symbols)

Eco Hard Floor 2-in-1 accessory User manual

Using the vacuum cleaner

Suction control may differ depending on the models.

Using the body

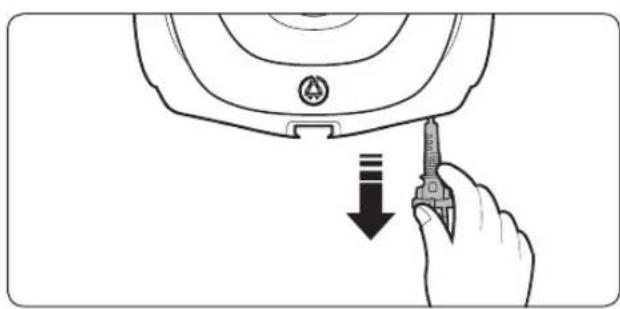

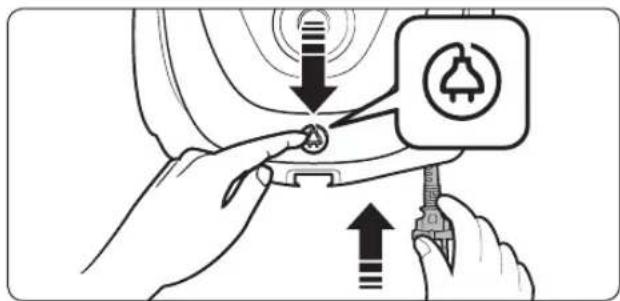

Power cord

Line drawing of a hand using a tool to press down a circular device component (no text or symbols)

Diagram illustrating a mechanical or electrical component being adjusted with a bell icon, showing force application and assembly steps.

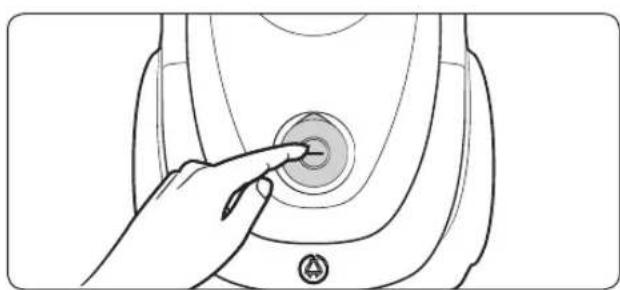

On/Off

Line drawing of a hand pressing a button on a device component (no text or symbols)

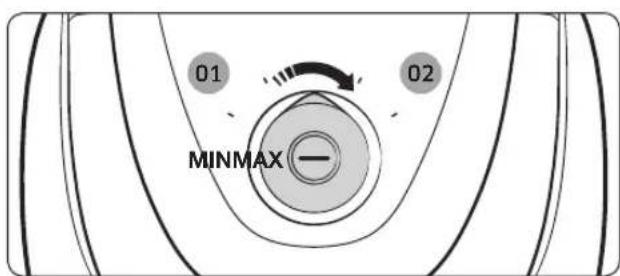

Suction control

01 02 MINMAX

01 Low suction power

02 High suction power

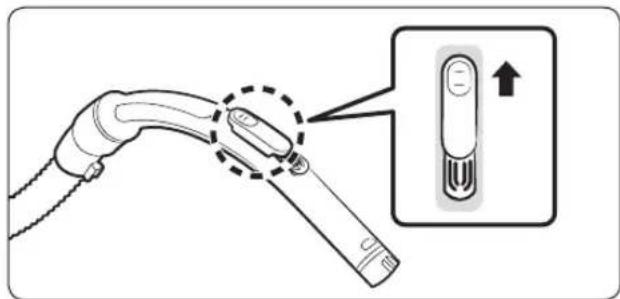

Using the handle

Diagram showing a cable connector being inserted into a device, with an arrow indicating the insertion direction.

NOTE

• To vacuum fabrics, push the cover downward to reduce suction.
- The handle does not control the power of the product.

Using the brushes

Illustration of a cozy living room with numbered furniture and a sofa, showing interior decor and furniture placement.

Where to use the brushes

Line drawing of a vacuum cleaner with a handle and arrow indicating motion (no text or symbols)

① 2-step brush

* Floor

Carpet

Illustration of a hand using a tool to lift a rectangular object, with an arrow indicating motion (no text or symbols)

② Eco Hard Floor

Diagram of a curved mechanical device with two side brackets and directional arrows indicating motion (no text or symbols)

③ Dusting brush

Diagram of a curved medical device with two inserted tubes and directional arrows indicating movement (no text or symbols)

④ Crevice tool

Cleaning and maintaining

You must unplug the vacuum cleaner before cleaning it.

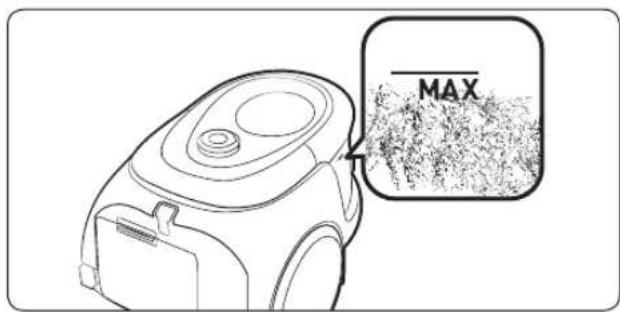

When to empty the dustbin

MAX

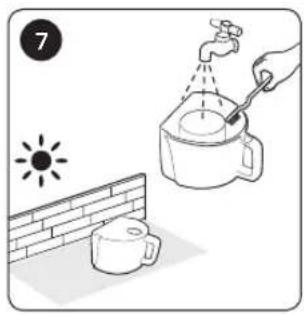

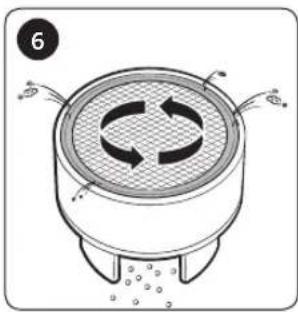

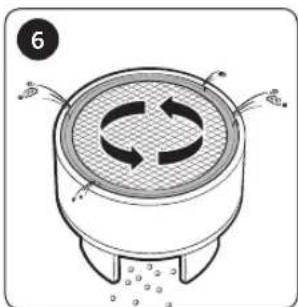

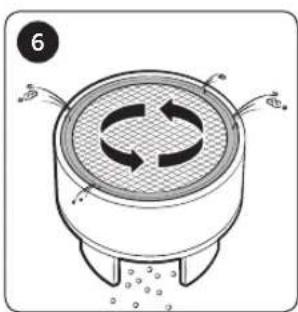

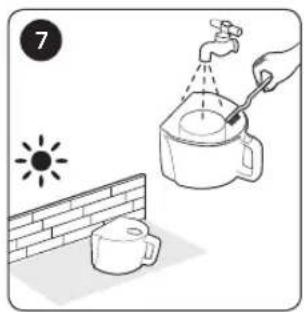

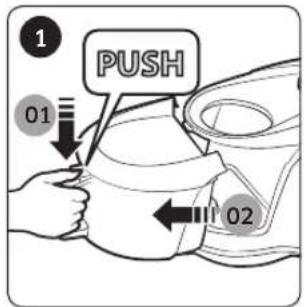

Cleaning the dustbin

Clean the dustbin if there is a lot of dust in the bin.

1 PUSH 01 02

Line drawing of a kitchen appliance with lid and handle (no text or symbols)

Line drawing of a bucket pouring liquid into a container (no text or symbols)

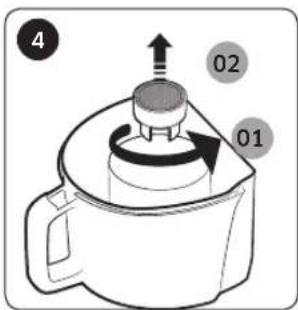

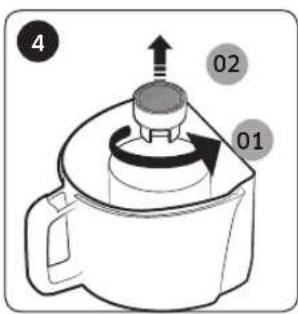

4 02 01

Hand placing a circular object into a cylindrical container on a pedestal (no text or symbols visible)

Diagram of a steamer with circular arrows indicating rotation, no text or symbols present

Illustration showing a person pouring water from a cup onto a coffee mug, with a sun and brick wall background (no text or symbols)

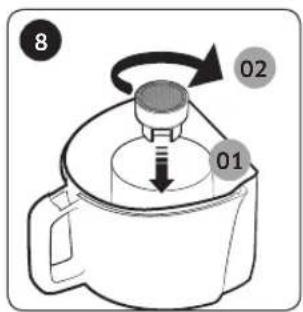

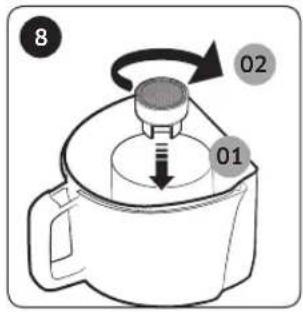

8 02 01

Line drawing of a coffee maker with lid and handle (no text or symbols)

10 Click

* Anti-Tangle Turbine(Cyclone Force) - Based on internal testing. Tested at the turbine fan using a mix of hair, pet hair on Floor.

CAUTION

- If tool is required for cleaning, please be careful not to damage the mesh.

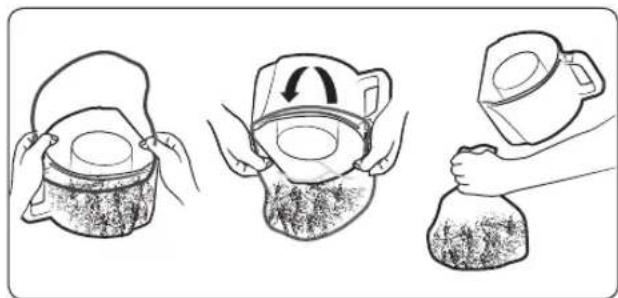

How to empty the dustbin easily

Illustration of three steps of a person's cupping and pouring process, showing different methods (no text or symbols)

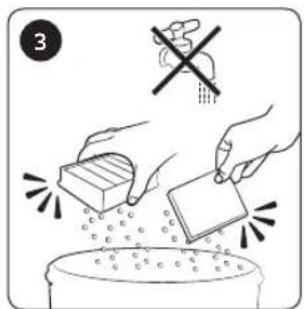

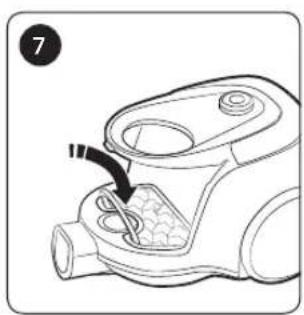

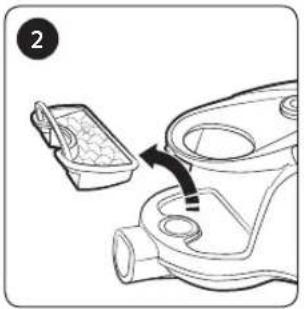

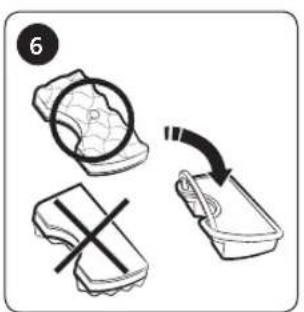

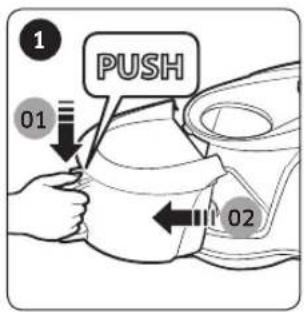

Cleaning the dust filter

1 PUSH 01 02

Diagram of a mechanical component with a container and arrow indicating direction (no text or symbols)

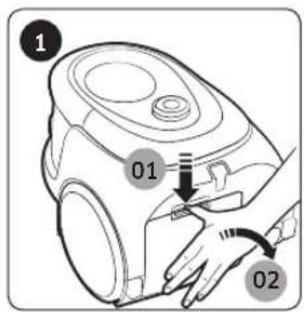

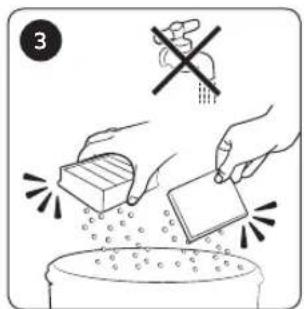

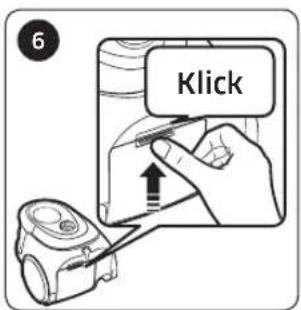

Cleaning the outlet filter

1 01 02

Diagram showing a hand holding a textured object next to a container with a brush, no text or symbols present

Illustration of a hand cleaning a bucket with a cloth, showing dust and spray (no text or symbols)

3


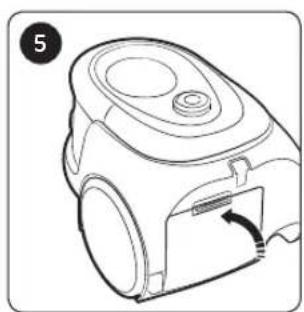

5

6

Line drawing of a vacuum cleaner device with a scroll wheel and directional arrow (no text or symbols)

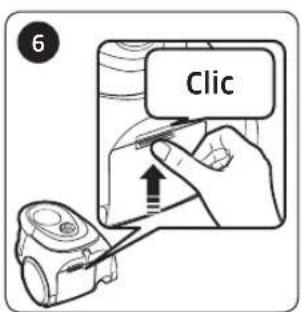

6 Click

Line drawing of a vacuum cleaner with a handle and internal components (no text or symbols)

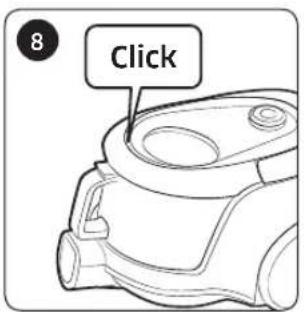

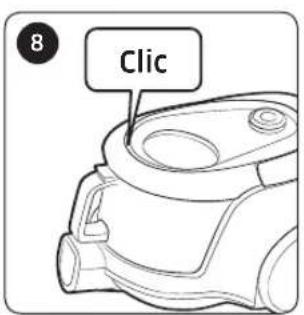

8 Click

CAUTION

- Make sure the dust filter is completely dry before putting it back into the vacuum cleaner. Allow 12 hours for it to dry.

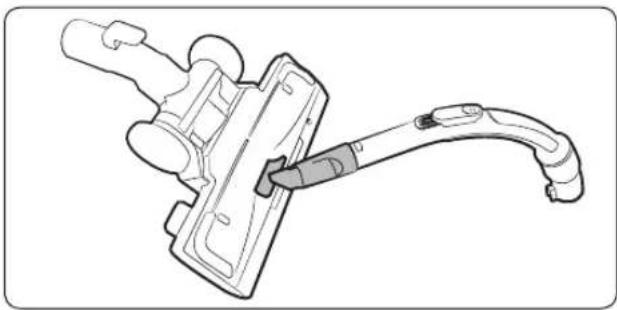

Cleaning the brush

Technical line drawing of a mechanical assembly with no visible text or symbols

2-step brush
* Cleaning method for the 2-step and Eco Hard Floor brushes is the same.

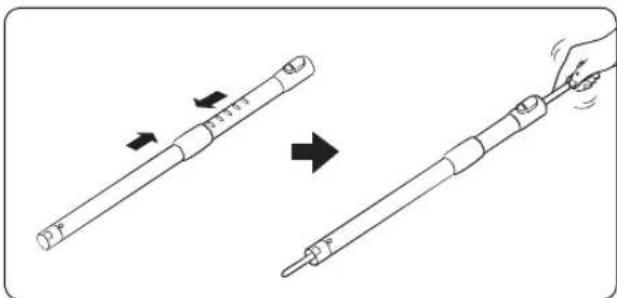

Cleaning the pipe

Diagram showing two types of soldering tools with arrows indicating direction and change in tip position

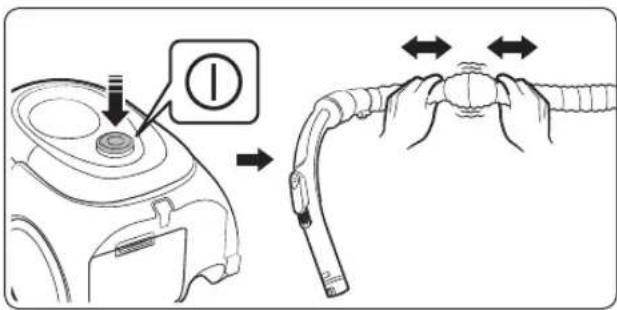

Cleaning the hose

Diagram illustrating a hand holding a hose with directional arrows and a labeled component, likely illustrating a medical or cosmetic procedure.

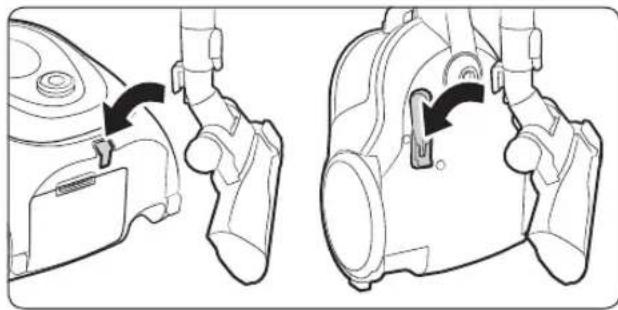

Storing the vacuum cleaner

Technical line drawing of a vacuum cleaner's internal components, showing two views with arrows indicating assembly (no text or symbols present)

In use

NOTE

• Product features may vary according to model.
• When you use the dusting brush or crevice tool, you may feel vibration from the vacuum cleaner.

CAUTION

• When removing the power plug from the electrical outlet, grasp the plug, not the cord.
• Please do not press the button of dustbin handle when carrying the vacuum cleaner.
• For storage of the product, park the floor nozzle in the small groove on the bottom of the body.

Cleaning and maintenance

NOTE

• To clean the dust filter, add neutral detergent into lukewarm water and soak the filter for 30 minutes before washing it.
• Do not wash the outlet filter with water.
• To maintain the best performance of the outlet filter, replace it once a year.
• To prevent floors from scratches, inspect condition of the brush and replace it if it is worn down.

• Replacement filters are available at your local Samsung service agent.

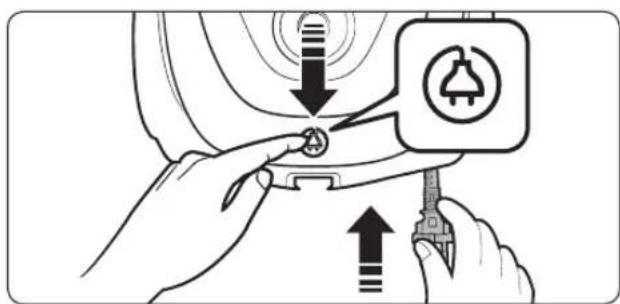

• Hold the power cord and then press the Cord rewind button since you can get injured if the power cord may lose control while rewinding it.

• If the power cord is not rewinding well, press the Cord rewind button again after pulling the power cord about 2 \~ 3 m.
  • To empty and clean the dustbin, you may rinse the dustbin with cold water.
• When suction power is noticeably reduced continuously, please clean the dust filter by referring to the "Cleaning the dust filter" section.

CAUTION

• Make sure the dust filter is completely dry before putting it back into the vacuum cleaner.
• Allow 12 hours for it to dry.

- Dry the dust filter in the shade, not under sunlight, to prevent transformation or discoloration.

- When suction is noticeably reduced continuously or vacuum cleaner abnormally overheats, please clean the outlet filter.

- Suction may reduce noticeably due to wrong reassembling of the dust filter.

- Please contact a nearest service agent if you cannot remove foreign matters from the hose.

- Store the vacuum cleaner in the shade to prevent deformation or discoloration.

Symptom Checklist
Motor does not start. • Check the cable, the power plug and outlet.
Suction force is gradually decreasing.	• Check if there is any blockage, and remove it if required.• Please check the filters, and if required, clean as illustrated in this manual.- If filters are out of condition, replace them with new ones.
Cord does not rewind fully.	• Pull the power cord out 2 - 3 m and press the Cord rewind button.
Body overheating	• Check the filters, and clean as illustrated in this manual if required.
Static electricity discharge.	• Reduce suction.• This may also occur when air in the room is very dry. Ventilate the room so that air humidity becomes normal.
During using, stop the unit.	• This vacuum cleaner has a special thermostat that protects the motor in case of its overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Check the vacuum cleaner for possible source of overheating such as a full dustbin, a blocked hose, pipe, or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner.
Noise from the vacuum cleaner increases and the suction power is weak.	• Disassemble the anti-tangle turbine inside the dustbin and remove dust in it.• After cleaning the anti-tangle turbine, reassemble it correctly in the dustbin.

• This Vacuum cleaner is approved the following.
• Electromagnetic Compatibility Directive : 2004/108/EEC
• Low Voltage Directive : 2006/95/EC

[English]

According to Commission Regulation (EU) No 666/2013

A	Supplier Samsung Electronics	Co., Ltd.
B	Model SC05M211*S* SC05M2	11*V* SC07M21A*V*
C	Annual Energy Consumption (kWh/yr)	22.0 22.0	28.0
D	Sound Power Level (dBA) 79	79 80
E	Rated Input Power (W) 500	500 650
F	Type General purpose vacuum cleaner

1 Indicative annual energy consumption (kWh per year), based on 50 cleaning tasks. Actual annual energy consumption will depend on how the appliance is used.
2 Measurements for power consumption and performance are based on methods in EN 60312 - 1 and EN 60704.

Notes

• Declared energy efficiency and cleaning performance class on carpet can be met with the enclosed 2-Step Brush.
• When the hard floor has joints and gaps, please use the enclosed "Eco Hard Floor" brush which is designed to meet the energy efficiency and cleaning performance class on hard floor with joints and gaps.
• The values have been determined according to the prescribed measuring process(in accordance with EN60312 - 1).

Eco Hard Floor

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country Customer Care Center Web Site
Switzerland	0800 726 78 64 (0800-SAMSUNG)	www.samsung.com/ch/support (German)www.samsung.com/ch_fr/support (French)
AUSTRIA 08	800 72 67 864 (0800-SAMSUNG) www	samsung.com/at/support

Staubsauger

Benutzerhandbuch

Serie SC05M21**** / SC07M21****

Diagram of a vacuum cleaner with labeled parts, showing exploded view and component insertion instructions.

Line drawing of a flexible electrical plug with a coiled cable (no text or symbols)

Line drawing of a cylindrical object with a flanged end and central shaft (no text or symbols)

Line drawing of a handheld vacuum cleaner device (no text or symbols)

Simple line drawing of a mechanical component with a handle and base (no text or symbols)

Line drawing of a hand holding a tool interacting with a circular device (no text or symbols)

Diagram illustrating a mechanical or electrical component with directional arrows and a warning sign, likely indicating process steps or safety instructions.

Netztaste

Line drawing of a hand pressing a button on a device component (no text or symbols)

Diagram showing a cable connector being inserted into a device, with an inset highlighting the insertion point.

HINWEIS

Illustration of a cozy living room with numbered furniture placement, including a sofa, rug, and wall-mounted bookshelves.

Line drawing of a handheld vacuum cleaner with a handle and arrow indicating motion (no text or symbols)

Illustration of a mop handle with an arrow indicating direction (no text or symbols)

② Eco- Hartbodenbürste

Diagram of a curved mechanical device with two side brackets and directional arrows indicating motion (no text or symbols)

③ Staubbürste

Diagram of a curved medical device with directional arrows indicating movement or force (no text or symbols)

④ Flachdüse

Line drawing of a kitchen appliance with lid and handle (no text or symbols)

Line drawing of a bucket with a lid and spout, no text or symbols present

4 02 01

Line drawing of a hand holding a cylindrical object on a pedestal (no text or symbols)

Diagram of a steamer with circular arrows indicating circulation (no text or symbols)

Illustration showing a person pouring water from a cup onto a brick wall, with sun and another mug nearby (no text or symbols)

8 02 01

Line drawing of a coffee maker with lid and handle (no text or symbols)

10 Klick

Illustration of three steps of a person's cupping and pouring process (no text or symbols)

Diagram of a mechanical component with a small inset showing internal components and an arrow indicating direction (no text or symbols)

Diagram showing a hand holding a textured object next to a container with an arrow indicating rotation (no text or symbols)

Illustration of a hand cleaning a bucket with a cloth, showing dust and spray (no text or symbols)

3

5

6

Line drawing of a vacuum cleaner device with a scroll wheel and directional arrow (no text or symbols)

6 Klick

Line drawing of a vacuum cleaner with a handle and internal components (no text or symbols)

8 Klick

VORSICHT

Technical line drawing of a mechanical assembly with no visible text or symbols

Zweistufenbürste

Diagram showing two mechanical components with arrows indicating motion, one being rotated and the other being twisted.

Diagram showing a device with a numbered component and a close-up of its cable being held, with directional arrows indicating movement.

Technical line drawing of a mechanical device with two views showing internal components and a close-up view (no text or symbols)

Diagram of a vacuum cleaner with labeled parts, showing exploded view and component insertion instructions.

Line drawing of a flexible electrical plug with a coiled cable (no text or symbols)

Line drawing of a cylindrical object with a flanged end and central shaft (no text or symbols)

Line drawing of a handheld vacuum cleaner device (no text or symbols)

Flexible Tuyau Brosse 2 positions

Simple line drawing of a mechanical component with a handle and base (no text or symbols)

Line drawing of a hand using a tool to press down a circular component, with no text or symbols present.

Diagram illustrating a mechanical or electrical component being adjusted with a bell icon, showing force application and assembly steps.

Marche/Arrêt

Line drawing of a hand pressing a button on a device component (no text or symbols)

Diagram showing a cable connector being inserted into a device, with an arrow indicating the insertion direction.

NOTE

Illustration of a cozy living room with numbered furniture and a sofa, showing interior decor and furniture placement.

Line drawing of a vacuum cleaner with an arrow indicating motion (no text or symbols)

① Brosse 2 positions

* Sol

Moquette

Illustration of a hand using a tool to lift a rectangular object, with an arrow indicating motion (no text or symbols)

② Sol dur Éco

Diagram of a curved mechanical device with two side brackets and directional arrows indicating motion (no text or symbols)

Diagram of a curved medical device with two inserted tubes and directional arrows indicating movement (no text or symbols)

④ Suceur plat

Line drawing of a kitchen appliance with lid and handle (no text or symbols)

Line drawing of a bucket pouring liquid into a container (no text or symbols)

4 02 01

Line drawing of a hand holding a mechanical component over a cylindrical housing (no text or symbols)

Diagram of a steamer with circular arrows indicating rotation, no text or symbols present

Illustration showing a person watering a cup with a hand pouring water from a bottle, next to a sun and a mug (no text or symbols)

8 02 01

Line drawing of a steamer with lid and handle (no text or symbols)

10 Clic

Illustration of three steps of a person's cupping process: holding cup, opening cup, and pouring into a bag (no text or symbols)

Diagram of a mechanical component with a small inset showing internal components and an arrow indicating direction (no text or symbols)

Illustration of a cleaning tool with a meshed part and a curved arrow indicating rotation (no text or symbols)

Illustration of a hand cleaning a bucket with a cloth and dust (no text or symbols)

3

5

6

Line drawing of a vacuum cleaner device with a scroll wheel and directional arrow (no text or symbols)

6 Clic

Line drawing of a vacuum cleaner with a handle and outlet (no text or symbols)

8 Clic

ATTENTION

Technical line drawing of a mechanical assembly with no visible text or symbols

Brosse 2 positions

Diagram showing two types of electrical probes with arrows indicating direction, one being open and the other being closed.

Diagram showing a hand holding a cable with directional arrows indicating movement or force, alongside a device component with a labeled button.

Technical line drawing of a two-step robotic device with black arrows indicating motion (no text or symbols)

Black-and-white photo of a modern lounge chair with curved armrests and a pair of headphones on the backrest, no visible text or symbols.

SAMSUNG

PREPARAZIONE

Diagram of a vacuum cleaner with labeled parts, showing exploded and assembled views with numbered labels.

Line drawing of a flexible electrical plug with a coiled cable (no text or symbols)

Line drawing of a cylindrical object with a flanged end and central shaft (no text or symbols)

Line drawing of a handheld vacuum cleaner device (no text or symbols)

Tubo flessibile Tubo rigido Spazzola 2-step

Simple line drawing of a mechanical component with a handle and base (no text or symbols)

Line drawing of a hand using a tool to press down a circular component, with no text or symbols present.

Diagram illustrating a mechanical or electrical component with directional arrows and a warning symbol, likely indicating process steps or installation.

On/Off

Line drawing of a hand pressing a button on a device component (no text or symbols)

Diagram showing a connector being inserted into a device, with an inset highlighting the insertion point.

NOTA

Illustration of a cozy living room with numbered furniture and a sofa, showing interior decor and furniture placement.

Line drawing of a vacuum cleaner with a handle and arrow indicating motion (no text or symbols)

① Spazzola 2-step

* Pavimento

Tappeti/Moquette

Illustration of a mop handle with an arrow indicating direction (no text or symbols)

② Pavimenti Eco

Diagram of a curved mechanical device with two side brackets and directional arrows indicating motion (no text or symbols)

③DSpazzola polvere

Diagram of a curved medical device with two inserted tubes and directional arrows indicating movement (no text or symbols)

Line drawing of a coffee maker with lid and side panel (no text or symbols)

Line drawing of a mechanical device pouring liquid into a container (no text or symbols)

4 02 01

Line drawing of a hand placing a cylindrical object into a container (no text or symbols)

Diagram of a circular steamer with three curved arrows indicating rotation, mounted on a base (no text or symbols)

Illustration showing a person watering a cup with a hand pouring water from a bottle, next to a sun and a mug (no text or symbols)

8 02 01

Line drawing of a steamer with lid and handle (no text or symbols)

10 Clic

Illustration of three steps of a person's cupping technique: holding cup, opening cup, and pouring into a bag (no text or symbols)

Diagram of a mechanical component with a small inset showing internal components and an arrow indicating rotation (no text or symbols)

Diagram showing a hand holding a textured object next to a container with a curved arrow indicating rotation (no text or symbols)

Illustration of a hand cleaning a bucket with a cloth, showing dust and spray (no text or symbols)

3

5

6

Line drawing of a vacuum cleaner device with a scroll wheel and directional arrow (no text or symbols)

6 Clic

Line drawing of a vacuum cleaner with a handle and internal components (no text or symbols)

8 Clic

ATTENZIONE

Technical line drawing of a mechanical assembly with no visible text or symbols

Diagram illustrating the process of a pen or tool with directional arrows indicating movement and change.

Diagram illustrating a medical procedure for inserting a tube into a device, with labeled parts and directional arrows.

Technical line drawing of a vacuum cleaner's internal components, showing two views with arrows indicating assembly (no text or symbols present)

Utilizzo

NOTA

Technical line drawing of a mechanical component labeled 'Pavimenti Eco' (no other text or symbols)
