USER MANUAL SC8430 SAMSUNG

Line drawing of a vacuum cleaner device with no text or symbols

3D rendering of a vacuum cleaner (no text or symbols visible)

3D rendered image of a metallic tool or bracket with a handle and circular top (no text or symbols)

Illustration of a vacuum cleaner with a handle and base (no text or symbols)

3D rendered image of a mechanical T-joint component (no text or symbols visible)

Simple line drawing of a tray with two objects, no text or symbols present

Safety warning illustration showing a person using a device to mark the hazard, with an exclamation mark and a hand holding a circular object.

Illustration of a vacuum cleaner with handle and control panel (no text or symbols)

Illustration of a hand pressing down on a vacuum cleaner's side panel, showing the foot and cable (no text or symbols)

2-2 NETSNOER

Illustration of a hand pressing down on a small electric vacuum cleaner with a power plug (no text or symbols)

NB

(AAN (MIN) → MID → MAX → UIT)

Diagram of a curved mechanical or electrical component with directional arrows indicating motion (no text or symbols)

Simple line drawing of a cylindrical object with a handle and internal structure (no text or symbols)

Illustration of a cylindrical tool with a blue arrow indicating motion or force (no text or symbols)

Line drawing of a hand holding a soldering iron with a handle and tip (no text or symbols)

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

Illustration of a person using a mobile phone to clean a sofa (no text or symbols)

Illustration of a handheld vacuum cleaner with a handle and lever (no text or symbols)

Diagram showing a mechanical device with a magnified inset illustrating the rotation of a component (no text or symbols present)

Diagram of a vacuum cleaner inside a grid box with an inset showing the component being turned (no text or symbols present)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to cut or mark a wooden cutting board (no text or symbols visible)

Illustration of a vacuum cleaner (no text or symbols visible)

Illustration of a mechanical clamp or tool with a handle and connector (no text or symbols visible)

Diagram of a vacuum cleaner with two views of the component (no text or symbols present)

Mechanical assembly diagram showing a valve mechanism with directional arrows and a close-up inset (no text or symbols)

Illustration of a portable air purifier and its internal components with a light source icon (no text or symbols)

Illustration of a hand using a vacuum cleaner to adjust the lid (no text or symbols present)

Illustration of hands using a tool to press or install a circular component, with no visible text or symbols.

Illustration of a hand pouring liquid into a trash bin with granular material (no text or symbols)

Illustration of a hand pressing down on a circular component with a pointer (no text or symbols)

Three-step illustration showing hands pouring liquid into a mug, a lid with a lid, and a bag filled with tea leaves (no text or symbols)

Safety warning illustration showing a hand using a power plug to switch an electrical outlet with warning symbols

NB

Illustration of hands using a water tap to clean or wash the cup (no text or symbols)

4 STOFRESERVOIR REINIGEN

4-1.WANNEER MOET U HET STOFRESERVOIR REINIGEN

Illustration of a mechanical clamp or fixture mounted on a base with a 10cm scale indicator (no text or symbols present)

Diagram showing two views of a device's front panel with labeled buttons and icons, including 'MIN' and 'MAX' labels.

Illustration showing two steps of a hand holding a device, labeled with numbers ① and ② indicating different states or states.

Illustration of hands assembling a shoe with a magnified inset showing the detail (no text or symbols)

Illustration of a hand holding a small object with a magnified inset showing a circular detail (no text or symbols)

Illustration of hands washing a leaf with a faucet above (no text or symbols)

Illustration of a brick wall with sunlight illuminating the corner and two abstract curved shapes below (no text or symbols)

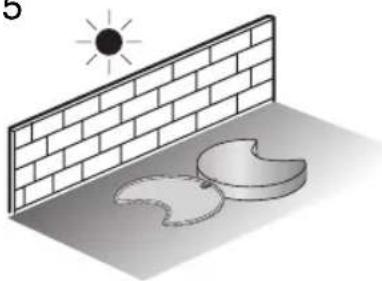

Laat de spons en de filter drogen in de schaduw, langer dan 12 uur.

6

Illustration of hands using a tool to clean or inspect a surface, with a warning symbol and magnified detail (no text or symbols present)

Illustration of a hand using a mechanical device to adjust a component, with no visible text or symbols.

Illustration of a hand holding a small appliance with a handle, showing internal components (no text or symbols)

Illustration showing two steps of a vacuum cleaner: adding a lid to a cup and adding a cloth to a lid, with a hand holding the cup.

Illustration of a hand using a brush to clean or adjust the interior of a vacuum cleaner (no text or symbols present)

Illustration of a hand holding a vacuum cleaner with a textured lid and ventilation grille (no text or symbols)

Line drawing of a hand inserting a component into a vacuum cleaner (no text or symbols)

Illustration of a hand using a gridded tool to clean or store items on a trash can (no text or symbols)

Illustration of a hand holding a small device with a handle, showing no text or symbols on the device itself.

Illustration showing two steps: one lifting a small block, the other handling a rectangular block over a trash can (no text or symbols present)

Illustration of a handheld tool with exploded view showing internal components (no text or symbols)

TYPE BATTERIJ: Formaat AA

OPMERKING

Line drawing of a vacuum cleaner device with no visible text or symbols

* Before operating this unit, please read the instructions carefully. * Indoor use only.

Register your product at www.samsung.com/register

IMPORTANT SAFEGUARDS

1. Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.
2. WARNING: Do not use the vacuum cleaner when rug or floor is wet.
   Do not use to suck up water.
3. Close supervision is necessary when any appliance is used by or near children. Do not allow the vacuum cleaner to be used as a toy. Do not allow the vacuum cleaner to run unattended at any time. Use the vacuum cleaner only for its intended use as described in these instructions.
4. Do not use the vacuum cleaner without a dust bin. Empty the dust bin before it is full in order to maintain the best efficiency.
5. Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.
6. Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts. Do not stand on the hose assembly. Do not put weight on the hose. Do not block the suction or the exhaust port.
7. Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before changing the dust bag or dust container. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.
8. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
   Children should be supervised to ensure that they do not play with the appliance.
9. The plug must be removed from the socket outlet before cleaning or maintaining the appliance.
10. The use of an extension cord is not recommended.
11. If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.
12. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.
13. Don't carry the vacuum cleaner by holding the hose.
    Use the handle on the vacuum cleaner set.

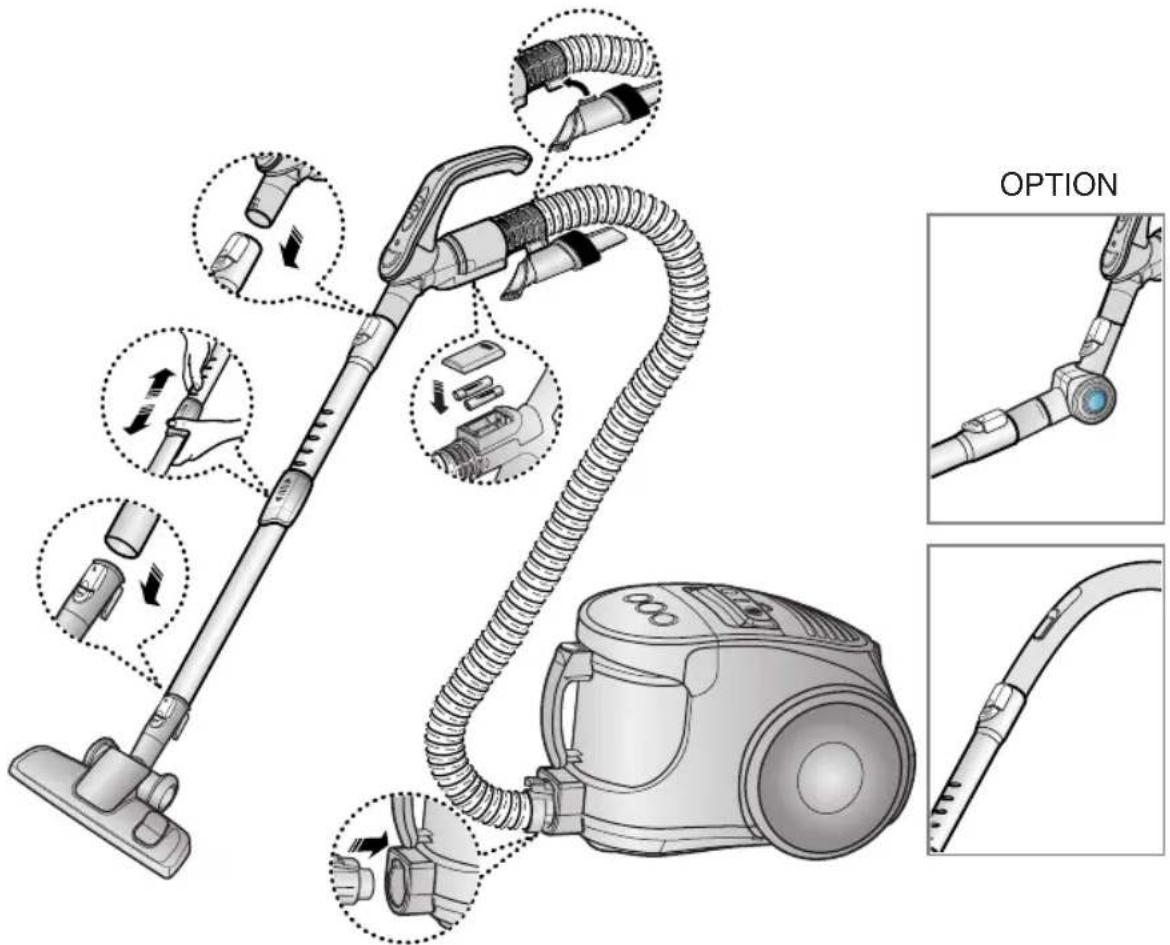

1 ASSEMBLING THE CLEANER

OPTION

OPTION

Illustration of a vacuum cleaner (no text or symbols visible)

Simple 3D illustration of a mechanical lever or pivot (no text or symbols)

Illustration of a vacuum cleaner with a handle and base (no text or symbols)

3D rendering of a mechanical T-joint component (no text or symbols visible)

Simple line drawing of a tray with three rectangular objects, no text or symbols present

▶ Features may vary according to model.

Safety warning illustration showing a person using a device to test a shock, with an exclamation mark and hazard symbol.

CAUTION : Please do not use dust bin handle when carrying machine.

Illustration of a vacuum cleaner with handle and control panel (no text or symbols)

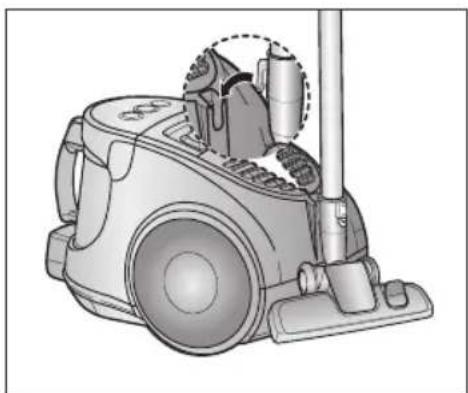

For storage, park the floor nozzle.

Diagram showing two views of a hand using a vacuum cleaner, with one foot and the other on the side, indicating mechanical or electrical contact details.

NOTE When removing the plug from the electrical outlet, grasp the plug, not the cord.

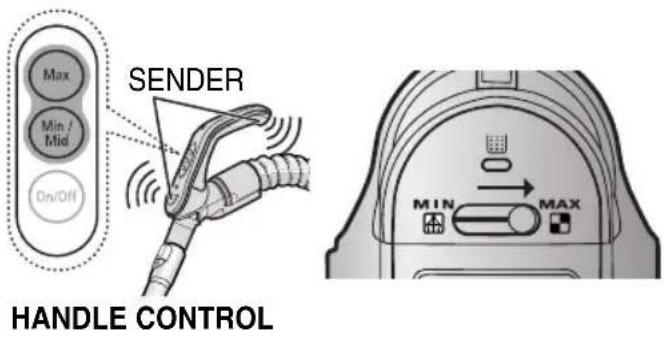

2-3 POWER CONTROL (INFRARED CONTROL)

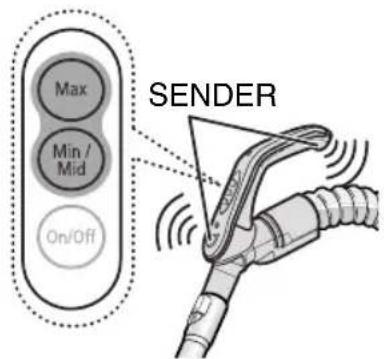

1) REMOTE CONTROL TYPE

• HOSE


Max Min / Mid On/Off SENDER

HANDLE CONTROL

1. Vacuum cleaner ON/OFF

Press the ON/OFF button to operate the vacuum cleaner.

Press again to stop the vacuum cleaner.

1. Vacuum cleaner MIN/MID

Press the MIN/MID button to operate the vacuum at a low level (for curtain cleaning, etc.).

Press again to operate the vacuum in a MID mode.

1. Using at MAX

Press the MAX button to operate the vacuum at maximum intake.

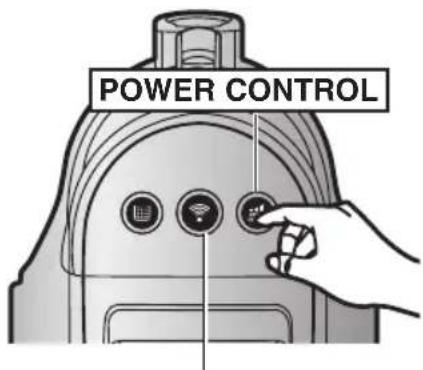

• BODY
  OPTIONAL - DIGITAL SIGNAL


POWER CONTROL

RECEIVER

Press the power control button repeatedly to select the correct mode.

$$ (\text { ON(MIN) } \rightarrow \text { MID } \rightarrow \text { MAX } \rightarrow \text { OFF }) $$

NOTE : If the remote handle control is not working, the cleaner can be operated using the control button on the body of the machine.

2) BODY-CONTROL TYPE

• HOSE


Illustration of a curved mechanical component with directional arrows indicating motion (no text or symbols)

To reduce suction for cleaning draperies, small rugs, and other light fabrics, pull the tap air until the hole is open.

• BODY


MIN MAX

MIN = For delicate surface e.g. net curtains.

MAX = For hard floors and heavily soiled carpets.

2-4 HOW TO USE AND MAINTAIN THE ACCESSORIES

▶ Features may vary according to model.

PIPE

Simple line drawing of a cylindrical object with a handle and internal structure (no text or symbols)

Illustration of a cylindrical tool with a blue arrow indicating compression or force (no text or symbols)

Adjust the length of the telescopic pipe by sliding the length control button located in the center of the telescopic pipe back and forth.

Line drawing of a hand holding a test tube with a flame, no text or symbols present

To check for blockages, separate the telescopic pipe and adjust to shorten. This allows for easier removal of waste clogging the tube.

ACCESSORY

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

Push the accessory on to the end of the hose handle.

Pull out and turn the dust- ing brush for cleaning deli- cate areas.

To use the upholstery tool, push the accessory on to the end of the hose handle in the opposite direction.

ELBOW EXTENDING TUBE (OPTION)

Illustration of two mechanical pipe fittings with numbered parts (no text or symbols)

Illustration of a person using a handheld device to clean or wash a blue surface, with no text or symbols present.

1. Connect the elbow extending tube to connecting part for hose knob and telescopic pipe.
2. Fit the telescopic pipe to the lower part of the elbow extending tube.
3. Press the PUSH button.
4. With the PUSH button pressed, the elbow extending tube is folded.
5. Using the elbow extending tube allows hard to reach areas (e.g. under furniture) to be cleaned without having to kneel down.

OPTION

Illustration of a handheld vacuum cleaner with a handle and lever (no text or symbols)

▶ Carpet Cleaning
▶ Floor Cleaning

Illustration of a mechanical device with a magnified inset showing a rotating component (no text or symbols)

Diagram of a mechanical device with a magnified inset showing a rotating component (no text or symbols)

Adjust the inlet lever according to the floor surface.

Illustration of a hand using a tool to lift a wooden plank (no text or symbols)

Remove waste matter completely if the inlet is blocked.

OPTION

Vacuum dust in wide area at once

Illustration of a hand using a tool to cut or spread a mechanical component (no text or symbols visible)

Remove waste matter completely if the inlet is blocked.

OPTION

Illustration of a vacuum cleaner (no text or symbols visible)

For improved pick-up of pet hair and fibre on carpets

Frequent vacuuming of hair or pet fur may cause a falling-off of the rotation due to matters tangled around the drum. In this case, clean the drum with care.

1 2 3

Push the Open button of the transparent screen cover to separate the cover.

Remove the brushbar from the transparent screen.

Remove waste matter such as dust and hair tangled around the brushbar using scissors.

Illustration of a mechanical device with lever and handle (no text or symbols)

Technical illustration of a vacuum cleaner with a handle and side view (no text or symbols)

Mechanical assembly diagram showing a component being inserted into parts, with two views of the handle (no text or labels present)

Remove dust inside the brush housing using a dry duster or crevice tool.

Insert brushbar into rotating belt and assemble.

Click the transparent screen cover back into place to reassemble.

OPTION

Brush for blanket

For picking up pet hair and fibre on upholstery and bed linen.

Clogs on turbine keeps brush from turning, and in this case, take care of it.

Turbine Brush

Remove waste matter com- pletely when inlet is blocked.

Turn the lock button to 'UNLOCK', and remove waste matter.

Mechanical assembly diagram showing a valve mechanism with directional arrows and a close-up inset (no text or symbols)

To reassemble, align the cover to the front of the main body and close. After closing the cover, ensure that the lock button is turned to the 'LOCK' position.

Warning: Use for bedclothes only. Be cautious not to damage brush during unclogging.

3 EMPTYING THE DUST BIN

123

Illustration of a portable air purifier and its internal components with a highlighted indicator light (no text or symbols)

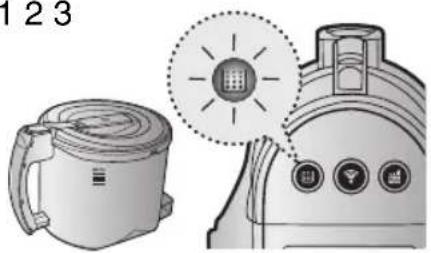

Once dust reaches the dust full mark, or once the dust full light is on, empty the dust bin.

Illustration of a hand using a vacuum cleaner to adjust the lid (no text or symbols present)

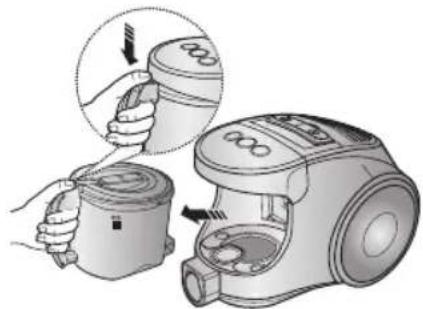

Take the dust bin out by pressing the button.

Illustration of hands holding a lid and a container with an arrow indicating motion (no text or symbols)

Separate the dust bin cover.

4

Illustration of a hand pouring liquid into a trash bin with granular material (no text or symbols)

Throw away dust in the bin.

5

Illustration of a hand holding a lid above a cup with a screwdriver inserted (no text or symbols)

Close the dust bin cover.

6

CLICK

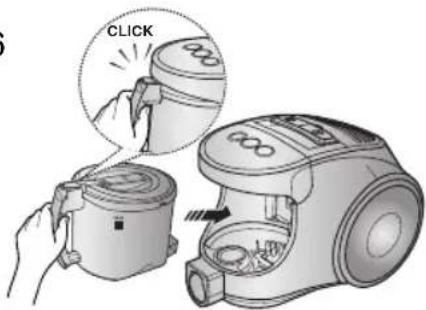

Before use, push the dust bin into the main body of the vacuum cleaner until you hear the "click" sound.

• Empty into a plastic bag (recommended for asthma/allergy sufferers)


Three-step illustration showing hands pouring liquid into a mug, a lid with a curved arrow, and a bag filled with tea leaves (no text or symbols)

Safety warning symbol and electrical diagram showing a hand using a power plug to adjust an electrical outlet with a warning sign.

You may rinse the dust bin with cold water

Illustration of hands using a water tap to clean or wash the cup (no text or symbols)

4 CLEANING THE DUST PACK

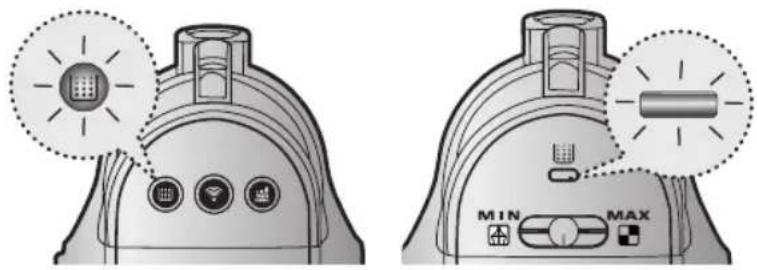

4-1. WHEN TO CLEAN THE DUST PACK

- If suction is noticeably reduced during cleaning, please check the dust pack as indicated below.

Max Min / Mid On/OFF SENDER HANDLE CONTROL MIN MAX

Turn the vacuum power to 'MAX'

Illustration of a mechanical clamp or fixture mounted on a base with a 10cm scale indicator (no text or symbols present)

If the filter check indicator turns red with the inlet floating 10 cm above flat floor, clean it.

Diagram showing two views of a device's front panel with icons and labels, highlighting smart lighting effects.

When the indicator light comes on, please empty the Dust Pack(4-2) as shown in the following illustrations.

4-2 CLEANING THE DUST PACK

1

Illustration showing two steps of a hand holding a device, labeled with numbers ① and ② indicating different states or states.

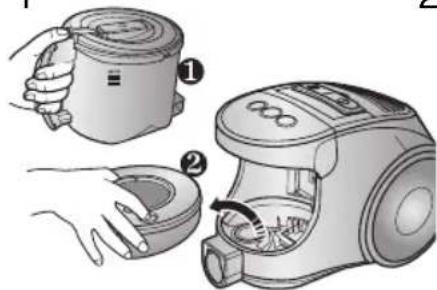

Remove the dust bin and dust pack as shown.

2

Illustration of hands assembling a shoe with a magnified inset showing the detail (no text or symbols)

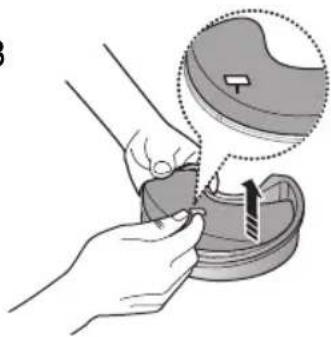

Remove the fixed frame of the dust pack cover.

3

Illustration of a hand holding a small object with a magnified inset showing a circular detail (no text or symbols)

Remove the sponge and filter from the dust pack.

4

Illustration of hands washing a leaf with a faucet above (no text or symbols)

Wash the sponge and the filter of the dust pack with water.

5

Illustration of a sun shining on a brick wall and a curved surface (no text or symbols)

Let the sponge and filter dry in the shade for more than 12 hours.

6

Illustration of hands using a tool to clean or inspect a surface, with a warning symbol and magnified detail (no text or symbols present)

Put the sponge and filter into the dust pack.

Illustration of a hand using a mechanical device to adjust a component, with no visible text or symbols.

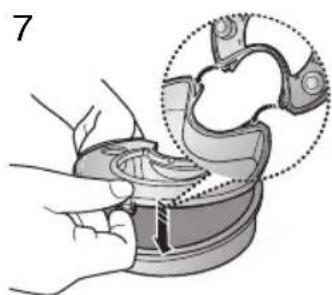

Before reassembly, align the dust pack cover and dust pack correctly.

8

Illustration of a hand holding a small appliance with a handle, showing internal components (no text or symbols)

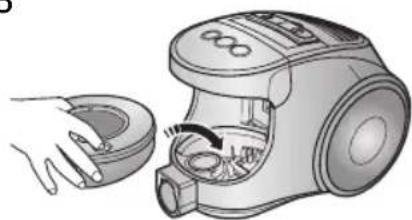

Put the assembled dust pack into the main body.

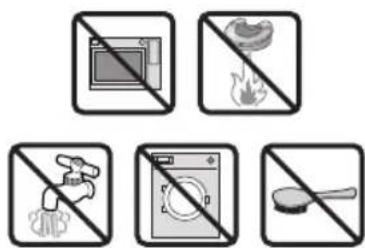

Image showing six prohibition symbols: a microwave, fire, kitchen, washing machine, and spoon.

NOTE : Make sure the filter is completely dry before putting it back into the vacuum cleaner. Allow 12 hours for it to dry.

5 CLEANING THE MOTOR PROTECTION FILTER

Illustration showing two steps of a hand holding a cup and a vacuum cleaner with labeled parts.

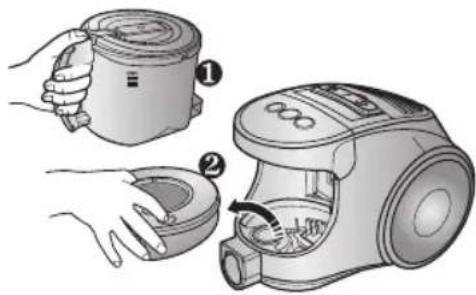

Take out both the dust bin and the dust pack.

Illustration of a hand using a brush to clean or adjust the interior of a vacuum cleaner (no text or symbols visible)

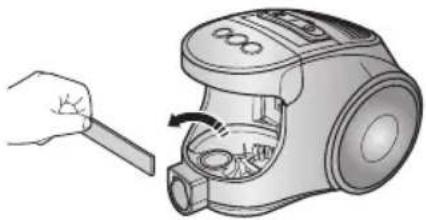

Remove the motor protection filter from the vacuum cleaner.
Shake and tap the dust from it and put back in machine.

6 CLEANING THE OUTLET FILTER

Illustration of a hand holding a small electronic device with a button, no text or symbols visible

Press the fixed frame part at the back of the main body to remove.

Illustration of a hand inserting a small electronic device into a vacuum cleaner (no text or symbols visible)

Pull out the HEPA Filter using the tab.

Illustration of a hand using a gridded tool to lift a trash can (no text or symbols)

Dust the HEPA filter.

Illustration of a hand holding a small device next to a vacuum cleaner (no text or symbols visible)

Put the HEPA filter into the main body until you hear a 'click' sound.

OPTION - MICRO CARBON FILTER

Illustration of hands assembling a small block with a handle, showing mechanical assembly (no text or symbols)

Illustration of a hand placing a rectangular block into a trash bin (no text or symbols)

Remove and replace the blocked outlet filter.
NOTE : Replacement filters are available at your local Samsung distributor.

7 CHANGE THE BATTERY(OPTIONAL)

Illustration of a mechanical tool with exploded view and component details (no text or symbols)

BATTERY TYPE : AA Size

NOTE

1. When the vacuum cleaner does not work, replace the batteries. If the problem persists, please contact our authorized dealer.
2. Use 2 batteries of size AA.

WARNING

1. Never disassemble or recharge the batteries.

2. Never heat up the batteries or throw them into fire.

3. Do not reverse (+),(-) poles.

4. Dispose of the batteries properly.

- IF YOU HAVE A PROBLEM

PROBLEM CAUSE REMEDY
Motor does not start.	No power supply. Thermal cut-out.	Check cable, plug and socket. Leave to cool.
Suction force is gradually decreasing.	Nozzle, suction hose or tube is blocked.	Check for blockage and remove it.
Cord does not rewind fully. Check that the cord is not twisted or wound unevenly.		Pull the cord out 2-3m and push the cord rewind button.
Vacuum cleaner does not pick up dirt.	Crack or hole in hose.	Check hose and replace if required.
Low or decreasing suction	Filter is full of dust.	Please check filter and, if necessary, clean as illustrated in the instructions.

This Vacuum cleaner is approved the following.

EMC Directive : 2004/108/EEC

Low Voltage Safety Directive : 2006/95/EC

SAMSUNG

ASPIRATEUR

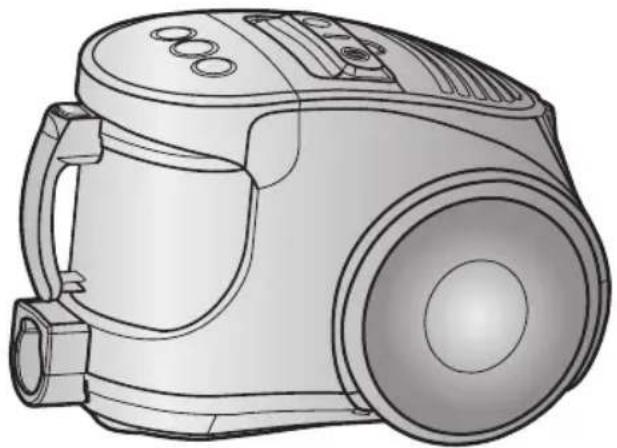

Line drawing of a vacuum cleaner device with no text or symbols

Five grayscale illustrations of different vacuum cleaner designs, including a brush and lever mechanism (no text or symbols)

Safety warning illustration showing a person using a device to mark the hazard, with an exclamation mark and a hand holding a circular object.

Illustration of a vacuum cleaner with handle and control panel (no text or symbols)

Illustration of a hand pressing down on a vacuum cleaner's air vent (no text or symbols)

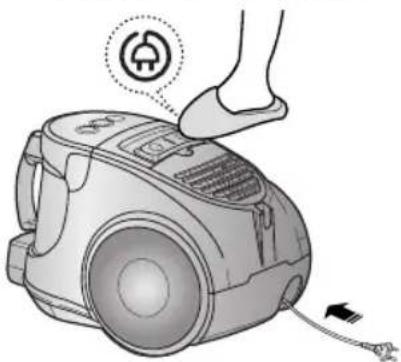

2-2 CORDON D'ALIMENTATION

Illustration of a hand pressing down on a small electric vacuum cleaner with a power plug (no text or symbols)

REMARQUE

Diagram of a curved mechanical or electrical component with directional arrows indicating motion (no text or symbols)

MIN = Pour tissus fragiles (rideaux, etc.).

Simple line drawing of a cylindrical tool or probe with a handle and pointed tip (no text or symbols)

Illustration of a cylindrical tool with a blue arrow indicating compression or force direction (no text or symbols)

Line drawing of a hand holding a soldering iron with visible soldering tip and tip (no text or symbols)

Diagram of a robotic arm with directional arrows indicating movement or force (no text or symbols)

Illustration of a person using a handheld vacuum cleaner to clean a sofa (no text or symbols)

Illustration of a handheld vacuum cleaner with a handle and base (no text or symbols)

▶ Nettoyage des tapis
▶ Nettoyage des car-relages

Diagram showing a mechanical component with a circular arrow indicating rotation or change (no text or symbols present)

Diagram of a mechanical component with a magnified inset showing rotation and adjustment (no text or symbols)

Illustration of a hand using a tool to clean or repair a mechanical component (no text or symbols visible)

Illustration of a hand using a tool to cut or spread a wooden plank, with no visible text or symbols.

Illustration of a vacuum cleaner (no text or symbols visible)

Illustration of a mechanical device with a handle and internal components (no text or symbols)

Mechanical component diagram showing a lever and housing assembly (no text or symbols)

Mechanical component diagram showing a base with two views of a handle and a tool, no text or symbols present.

Mechanical assembly diagram showing a hand operating a device with a magnified inset (no text or symbols)

Illustration of a stylized robot head with a dotted circle highlighting a lightbulb (no text or symbols present)

Illustration of a hand using a vacuum cleaner to adjust the interior space (no text or symbols present)

Illustration of a hand using a tool to press or install a mechanical component, with no visible text or symbols.

Illustration of a hand pouring liquid into a trash bin with scattered debris (no text or symbols)

Illustration of hands using a tool to lift a cup into a container (no text or symbols)

Illustration of two hands holding a large cup filled with food items (no text or symbols visible)

Illustration of a medical device with a cap and bulb, showing hands interacting with a textured surface (no text or symbols)

pour les

Safety warning illustration showing a hand using a tool to mark electrical hazard, with a warning symbol and a magnified view of the shield.

NOTE

Illustration of hands using a faucet to prevent water discharge from a pot (no text or symbols)

Illustration of a mechanical device with a 10cm measurement label on a surface (no text or symbols beyond the scale indicator)

Diagram showing two views of a portable device with labeled buttons and icons, including 'MIN' and 'MAX' labels.

Illustration showing two steps of a hand holding a device, labeled with numbers ① and ② indicating different states or states.

2

Illustration of hands assembling a shoe with a magnified inset showing the detail (no text or symbols)

3

Illustration of a hand holding a small object with a magnified inset showing a circular detail (no text or symbols)

Illustration of hands washing a leaf with a faucet above (no text or symbols)

Illustration of a brick wall with sunlight illuminating the corner and two abstract curved shapes below (no text or symbols)

Illustration of hands using a tool to clean or inspect a surface, with a warning symbol and magnified detail (no text or symbols present)

Illustration of a hand using a mechanical device to adjust a component, with no visible text or symbols.

Illustration of a hand holding a small appliance with a handle, showing internal components (no text or symbols)

Illustration showing two steps of a vacuum cleaner: adding a cup to a lid and adding a brush to a cloth.

Illustration of a hand using a brush to clean or adjust the interior of a vacuum cleaner (no text or symbols present)

Illustration of a hand holding a vacuum cleaner device (no text or symbols visible)

Illustration of a hand inserting a grid into a vacuum cleaner (no text or symbols)

Retirez le mentonnet du filtre HEPA.

Illustration of a hand using a tool to remove or clean a trash bin (no text or symbols)

Illustration of a hand using a handheld device to press down a vacuum cleaner's air vent (no text or symbols visible)

Illustration showing two steps: one lifting a block with directional arrows, the other pressing down on a cylindrical container (no text or symbols)

Illustration of a handheld device with attached components (no text or symbols visible)

TYPE DE PILES : Taille AA

NOTE
