USER MANUAL DR704S PIONEER

Thank you for buying this PIONEER product. Please read through these operating instructions so you will know how to operate your unit properly. After you have finished reading the instructions, put them away in a safe place for future reference.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EX-POSE THIS APPLIANCE TO RAIN OR MOISTURE.

IMPORTANT NOTICE:
RECORD THE MODEL NUMBER AND SERIAL NUMBER OF THIS EQUIPMENT BELOW. THE NUMBERS ARE ON THE TOP PANEL.
MODEL NO. DR-A14S
SERIAL NO.
KEEP THESE NUMBERS FOR FUTURE USE.

Deutsch

Italiano

IMPORTANT

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO PREVENT THE RISK OF ELECTRIC SHOCK,DO NOT REMOVE COVER (OR BACK).NO USERSERVICEABLEPARTSINSIDE.REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

This product complies with the EMC Directives (89/336/EEC, 92/31/EEC) and CE Marking Directive (93/68/EEC).

To ensure your personal safety and to maximize the full operating potential of your Drive, read and follow these safety precautions:

ENVIRONMENT - Please do not use the unit at places with much dust, high temperature, or high humidity. Please use the unit at a place where it is not subjected to vibrations or shocks.

POWER - Power-off your system and attached hardware devices before installation.

READ INSTRUCTIONS - Read all safety and operating instructions before the Drive is operated.

RETAIN INSTRUCTIONS - Retain the safety and operating instructions for future reference.

FOLLOW INSTRUCTIONS - Follow all operating and use instructions.

HEED WARNINGS - All warnings must be adhered to.

CLEANING - DO NOT use liquid, aerosol cleaners, or alcohol. Use only a damp cloth to clean the exterior housing.

WATER AND MOISTURE - DO NOT use this product near water.

POWER SOURCES - Operate this product from the type of power source indicated on the marking label. If you are not sure of the type of power available, consult your Authorized Pioneer Dealer.

OVERLOADING - DO NOT overload wall outlets and extension cords. Doing so can result in fire or electric shock.

OBJECT AND LIQUID ENTRY - Never push objects of any kind into this product. Touching dangerous voltage points may cause a short resulting in fire or electric shock. Do not spill liquid of any kind on this product.

CONDENSATION - Moisture will form in the operating section of the product causing performance to be impaired if it is brought from cool surroundings into a warmer environment. If you are moving the unit to a location with a warmer temperature, let the product stand for 1-2 hours in the new location before turning it back on.

SERVICING - Do not attempt to repair this product yourself. Opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel. (Refer to the enclosed Service and Support Card.)

IMPORTANT

CAUTION

This product contains a laser diode of higher class than 1. To ensure continued safety, do not remove any covers or attempt to gain access to the inside of the product.

Refer all servicing to qualified personnel.

The following caution label appears on your unit.

Location: on top of the cover

CLASS 1 LASER PRODUCT LASER KLASSE 1

For pluggable equipment the socket-outlet shall be installed near the equipment and shall be easily accessible.

RADIO SIGNAL INTERFERENCE - This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

[For Canadian model]

This Class B digital apparatus meets all requirements of the Canadian Interference-Caising Equipment Regulations.

LASER DIODE - This product contains a laser diode. To assure continued safety, DO NOT remove any convers or attempt to gain access to the inside of the product.

CAUTION:

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

CAUTION:

USE OF OPTICAL INSTRUMENTS WITH THIS PRODUCT WILL INCREASE EYE HAZARD.

Information to User

Alteration or modifications carried out without appropriate authorization may invalidate the user's right to operate the equipment.

The Generation of Acoustical Noise Is Less Than 70dB.

(ISO7779/DIN45635)

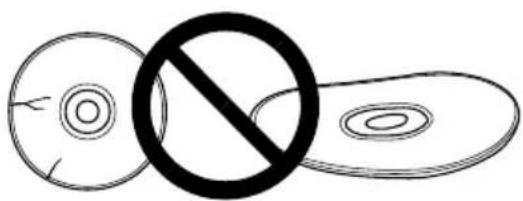

DO NOT use damaged, cracked, or warped discs. If they break inside the unit, they may damage the optics. Discs rotate at high speed inside the changing mechanism.

DO NOT use non-standard discs, as these may adversely influence this unit and other equipment.

DO NOT play a CD having other shape than a circular disc, such as heart shaped disc. Otherwise malfunction may occur.

The enclosed device driver is for use with MS-DOS/Windows 3.XX. This driver is not required for use with Windows 95.

• MS-DOS and Windows are trademarks of Microsoft Corporation.

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Product Name: CD-ROM DRIVE UNIT

Model Number: DR-A14S

Responsible Party Name: PIONEER ELECTRONICS SERVICE, INC.

Address: 1925 E. DOMINGUEZ ST. LONG BEACH, CA 90810 U.S.A.

Phone: [phone]

Transfer rate (sustained):

2,100 kBytes/sec. - 5,400 kBytes/sec. (CAV 36X max)

High-speed access

Random average: 70 ms

Low vibration mechanism

ATAPI correspondence

CD Extra, Video CD, CD-I Ready and CD-XA Ready support

CD-RW disc reading

NOTES:

This product can read out CD-RW disc data. Note the following:

(1) A little longer time is needed to sense a CD-RW disc when the operation starts, compared with normal CD-ROM discs.
(2) The read-out speed of CD-RW discs is usually 4 times higher than that of normal discs. However, according to the quality of the disc or under extremely hot or cold conditions, the player may reduce the speed of rotation of the disc during read-out. (Because the reproduced signal level from CD-RW discs is lower than that of normal discs.)
(3) Blank discs, discs where you failed to write data or discs where session close processing has not been made - these discs cannot be used.
(4) The operations may not start or the data may not be read out under the following conditions: The quality of the recorded signal has deteriorated due to the dirt or scratches on the disc, or frequently rewrote discs.

If you fail to start the operation, take out the disc and reinsert it to try again to start.

Correspondence to Kodak Photo CD (single and multisession)
Conforming to MPC-3 specifications
Half-height size
-Slot in loading
- Windows 95 and Windows 98 (Plug and Play) supported

*Windows is a trademark of Microsoft Corporation.

Precautions on plying CD singles (8 cm Discs)

(1) When playing CD singles (8 cm discs), always use the adapter for 8 cm discs. Before loading the disc into the CD-ROM drive unit, be sure to check that it is secured properly by the catches of the adapter. If discs have been inserted without the adapter by mistake, remove the disc immediately by pressing the eject button. If the disc does not come out with one press, press another time.
(2) Use 8 cm disc adapters labeled with the COMBACT mark (recommended standard product). Do not use adapters which cause the disc to idle, nor adapters which are bent or curved.

Illustrations are provided in this chapter as a visual introduction to the Drive.

Please Familiarize yourself with these illustrations and refer to them when necessary to complete the installation and operation of the unit.

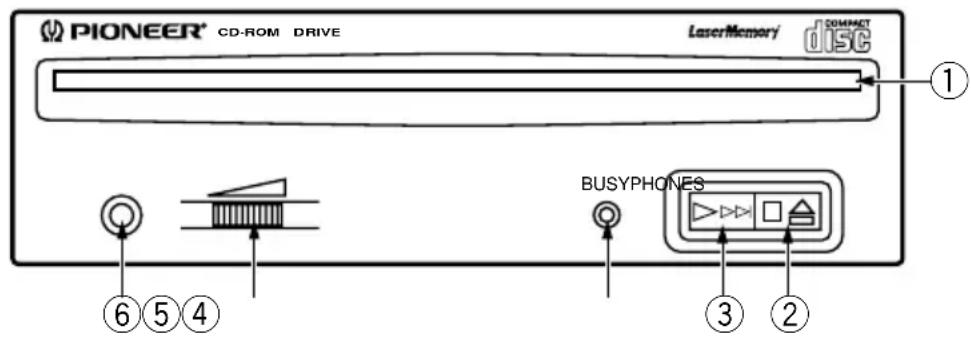

FRONTVIEW

Fig. 1

①Disc loading slot

Insert the CD-ROM with the label facing up.

When using 8 cm discs, attach a CD adapter (available at stores) to the disc, and insert the disc into the disc loading slot.

②Stop (■)/Eject (▲) button

This button is used to eject the disc. When this button is pressed once during playback of an audio disc, the playback will be stopped, and when it is pressed in stopped condition, the disc will be ejected.

③ Play () /Skip ( 口) button

This is used for direct playback of audio discs. When an audio disc is inserted and this button is pressed, play status will be reached, and when this button is pressed in play status, the playback will skip to the next track. Data discs will not be played back.

④BUSY indicator

This flashes during data access.

Volume Control (headphone level)

This is used to adjust the volume level of the headphone jack.

⑥Headphone jack (PHONES)

This is a stereo minijack for headphones.

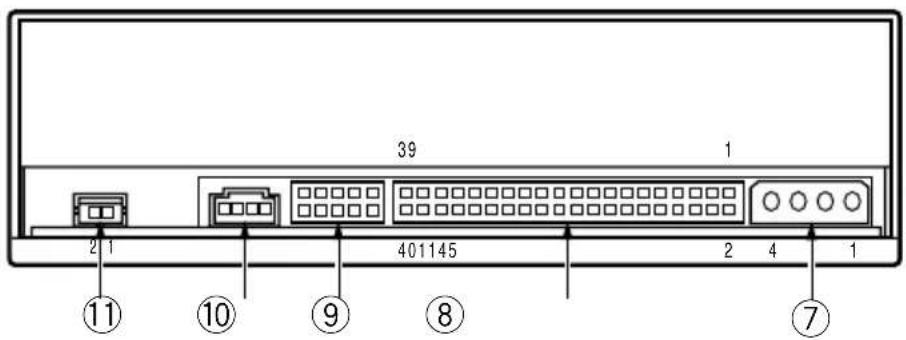

REAR VIEW

Fig. 2

⑦DC Input

This is the power supply input for DC +5V and +12V .

Pin Name Function

1 + 12 Power supply input for DC +12 V.

2 G Ground.

3 G Ground.

4 + 5 Power supply input for DC +5 V.

⑧Host IDE Interface

This is a 40 pin I/O connector according to the ATA specifications.

⑨Device Configuration Jumper

This is the jumper switch for selection of the drive use mode and supporting PC. Short-circuit socket is attached for the setting

attached : on not attached : off

Pin	Name	Function
1	MASTER*	on	The drive is used in master mode.
2	SLAVE	on	The drive is used in slave mode.
3	CABLE SELECT	on	Mode for drive setting by CABLE SELECT of the IDE interface.
4			Reserved.
5			Reserved.

• Only MASTER is ON at the time of shipping from the plant.

⑩Audio Output

This is a connector for output of analog audio.

As a Molex 70553 type connector is used, select a matching connection cable.

Pin	Name	Function
1	L	Left channel audio output.
2 G	Ground.
3 G	Ground.
4 R	Right channel audio output.

⑪Digital Audio Output

This is a connector for output of digital audio signal.

Pin	Name Function
1	GND	Ground.
2	Digital Out	Digital audio signal output.

8

En

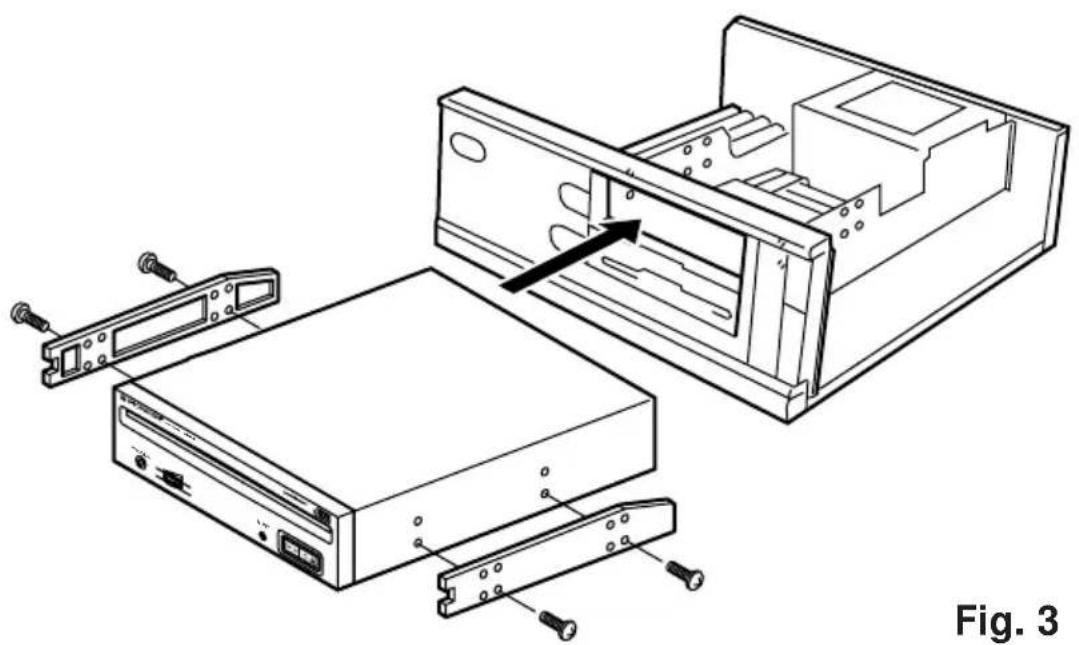

Fig. 3

• Switch off the power of the personal computer and remove the cover or the front panel.
• Remove the blank panel installed at the front of the 5.25 inch slot. Installation is not possible when there is no empty slot.
• Install the fixation slide rails on the drive. (If slide rails are required, contact the shop where you bought the computer or the computer manufacturer.)
• Insert the drive into the slot.
• If fixing is required, fix the drive according to the instruction manual for the computer.

Use mounting screws with a length of 5mm (3/16 in.) or less. Use of long screws may damage the drive.

Install the drive after the power supply of the personal computer has been switched off.

When the mounting screws are loose etc., the vibrations from disc rotation can generate a ripping noise, so that the screws should be tightened securely.

The drive installation method differs according to the computer type. For details, please refer to the manuals of your computer.

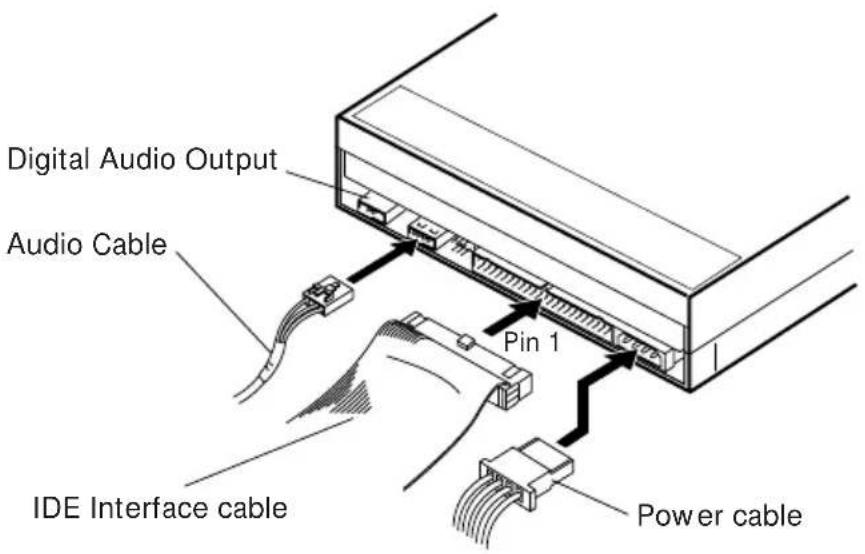

Fig. 4

• Switch off the power supply of the personal computer.
• Connect the power supply cable from the personal computer. At the time of connection, please pay attention to the cable polarity.
• Connect the IDE interface cable. At this time, confirm that the pin 1 of the IDE connector is connected correctly to pin 1 of the cable.
• When a sound board is used, connect the audio output with an audio cable to the sound board.

WARNING

The power supply of the personal computer always must be switched off before cables are connected.

[General functions]

Disc diameter 12 cm (4.72 in), 8 cm (3.15 in)

Transfer rate

Sustained 2,100 - 5,400 kBytes/sec*

• The data transfer rate may not be output for some disc conditions (scratches, etc.).

Seek time

Line 0.7 Vrms ± 0.1 Vrms (at 10 kΩ load)

[Others]

Power supply DC +12 V, 0.9 A (peak), 0.55 A (normal)

(With the built-in terminator) DC +5 V, 1.2 A (peak), 0.75 A (normal)

External dimensions 148 (W) x 42.3 (H) x 207.5 (D) mm

5-27/32 (W) x 1-11/16 (H) x 8-6/32 (D) in

Weight 0.97 kg (2.1 lb)

Operation temperature +5^ to +45^ (41^ to 113^)

Operation humidity 5% to 85% (no condensation)

Storage temperature -40°C to +60°C (-40°F to 140°F)

Storage humidity 5% to 90% (no condensation)

[Accessories]

• Software device drive disk x 1
• Short-circuit socket x 2
• Audio cable x 1
• Mounting screw x 4
• Operating instructions x 1
• Installation instructions x 1

NOTE:

Specifications and design subject to possible modifications without notice, due to improvements.

INSTRUCTIONS DE SECURITE

CLASS 1 LASER PRODUCT
LASER KLASSE 1

2.100 KO/sec. - 5.400 KO/sec. (CAV maximale: 36X)

CLASS 1 LASER PRODUCT
LASER KLASSE 1

(Maximum fur CAV 36X)

CLASS 1 LASER PRODUCT LASER KLASSE 1

2.100 kByte/sec. - 5.400 kByte/sec. (CAV 36X max)
