PLG 20 B1 - Battery charger PARKSIDE - Free user manual and instructions

Product type	Battery charger
Brand	Parkside
Model	PLG 20 B1
Input voltage	230–240 V~
Input frequency	50 Hz
Input power	65 W
Output voltage	21.5 V
Output current	2.4 A
Compatible battery types	Parkside X20 V-Team : PAP 20 B1, PAP 20 B2, PAP 20 B3, PAPS 204 A1, PAPS 208 A1
Charging time (2.0 Ah)	60 minutes
Charging time (4.0 Ah)	120 minutes
Charging time (8.0 Ah)	210 minutes
Net weight	0.315 kg
Protection class	II (double insulation)
Internal fuse	T3.15A
Charging temperature	+4 to +40 °C
Operating temperature	+4 to +40 °C
Storage temperature	+20 to +26 °C
Wall mounting	Yes, mounting holes spaced 76.2 mm apart
Warranty	3 years

Frequently Asked Questions - PLG 20 B1 PARKSIDE

What types of batteries can I charge with the PLG 20 B1?

The PLG 20 B1 charger is compatible only with Parkside X20 V-Team batteries, including models PAP 20 B1, PAP 20 B2, PAP 20 B3, PAPS 204 A1 and PAPS 208 A1. Never charge non-rechargeable batteries.

How to interpret the charging indicators?

The steady red light indicates that the battery is charging. The steady green light means the battery is fully charged. If both lights flash, the battery is defective. If only the red light flashes, the battery is too cold or too hot. The steady green light without a battery indicates the charger is ready.

Can I leave the battery charging overnight?

Yes, you can leave the battery charging safely. The charger stops automatically when the battery is full. The manual states that interrupting the charging process does not damage the battery.

What to do if the red LED flashes?

A single red flash indicates the battery is too hot or too cold. Remove the battery and let it return to a temperature between +4 and +40 °C before recharging.

How to clean the charger?

Unplug the charger before cleaning. Use a dry cloth to clean the exterior surfaces. For ventilation openings, use a soft brush. Do not use chemical or abrasive products, and avoid liquid entering the interior.

Can I use the charger outdoors?

No, the PLG 20 B1 charger is designed for indoor use only in dry rooms. Protect it from moisture and do not expose it to rain.

How to mount the charger on the wall?

The charger can be fixed to the wall using the two mounting holes underneath the device. Drill two holes 76.2 mm apart, insert wall plugs and screw in round head screws (diameter 7-8 mm) leaving the head protruding about 8 mm. Then hang the charger by the holes.

What to do if the charger does not work?

First check that the mains socket is powered and the power cord is not damaged. If the problem persists, contact Parkside after-sales service at 0800904879 (France) or by email at [e-mail]. Have your receipt and IAN number ready.

What is the warranty period of the charger?

The warranty is 3 years from the date of purchase. It covers material and manufacturing defects, but not normal wear. Keep the receipt as proof of purchase.

Can I charge batteries of other brands?

No, the charger is exclusively designed for Parkside X20 V-Team batteries. Charging other types of batteries can be dangerous and damage the device. Follow the safety instructions.

USER MANUAL PLG 20 B1 PARKSIDE

Operation and safety notes

FR BE

20 V CHARGEUR 2,4 A

Icon set showing an information symbol and a folded document with arrows indicating rotation or change.

DE/AT/CH	Seite	5
GB/IE	Page		32
FR/BE	Page		53
NL/BE	Página		79
PL	Strona	102
CZ	Strana	125
SK	Strana	147
ES	Página	170
DK	Side		19
IT	Pagina	215
HU	Oldal	239

A

Technical diagram of a mobile phone module with labeled components including ports, cables, and connectors

All Parkside tools and the chargers PLG 20 A1/PLG 20 A2/PLG 20 A3/PLG 20 B1/PLG 20 C3/PDSLG 20 A1 of the X 20 V Team series are compatible with the PAP 20 A1/PAP 20 A2/PAP 20 A3/PAP 20 B1/PAP 20 B3 battery pack.

Silhouette of a person sorting trash into a bin (no text or symbols)

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

Gerät entsorgen

Warnings and symbols

used ...... Page 33

Introduction..... Page 35

Intended use..... Page 36

Scope of delivery ..... Page 36

Parts description..... Page 36

Technical data. . . . . . . . . . Page 37

Safety notes ...... Page 39

Operation..... Page 42

Charging the battery pack . Page 42

Charging status ..... Page 43

Wall mounting..... Page 44

Cleaning and care .... Page 45

Disposal..... Page 46

Simplified EU declaration of

conformity..... Page 48

Warranty Page 48

Warranty claim procedure. . Page 50

Service.... Page 52

Warnings and symbols used The following warnings are used in this instruction manual, on the packaging and on the rating label:
	Read the instruction manual.
	Follow the warnings and safety notes!
	Use in dry indoor rooms only.
	Alternating current/voltage
	Direct current/voltage
	Protection class II (double insulation)
	Fuse
	This symbol in combination with the word “Info” provides additional useful information.
	Safety-relevant information and other notesInstructions for use
	CE mark indicates conformity with relevant EU directives applicable for this product.

20V BATTERY CHARGER 2.4A

● Introduction

We congratulate you on the purchase of your new product. You have chosen a high quality product. The instructions for use are part of the product. They contain important information concerning safety, use and disposal. Before using the product, please familiarise yourself with all of the safety information and instructions for use. Only use the product as described and for the specified applications. If you pass the product on to anyone else, please ensure that you also pass on all the documentation with it.

Intended use

This product is exclusively intended for charging Parkside 20 V batteries of X 20 V Team series.

The product is not intended for commercial use. Any other usage or modification of the product is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no responsibility for damage(s) attributable to misuse.

- Scope of delivery

1 Charger

1 Instruction manual

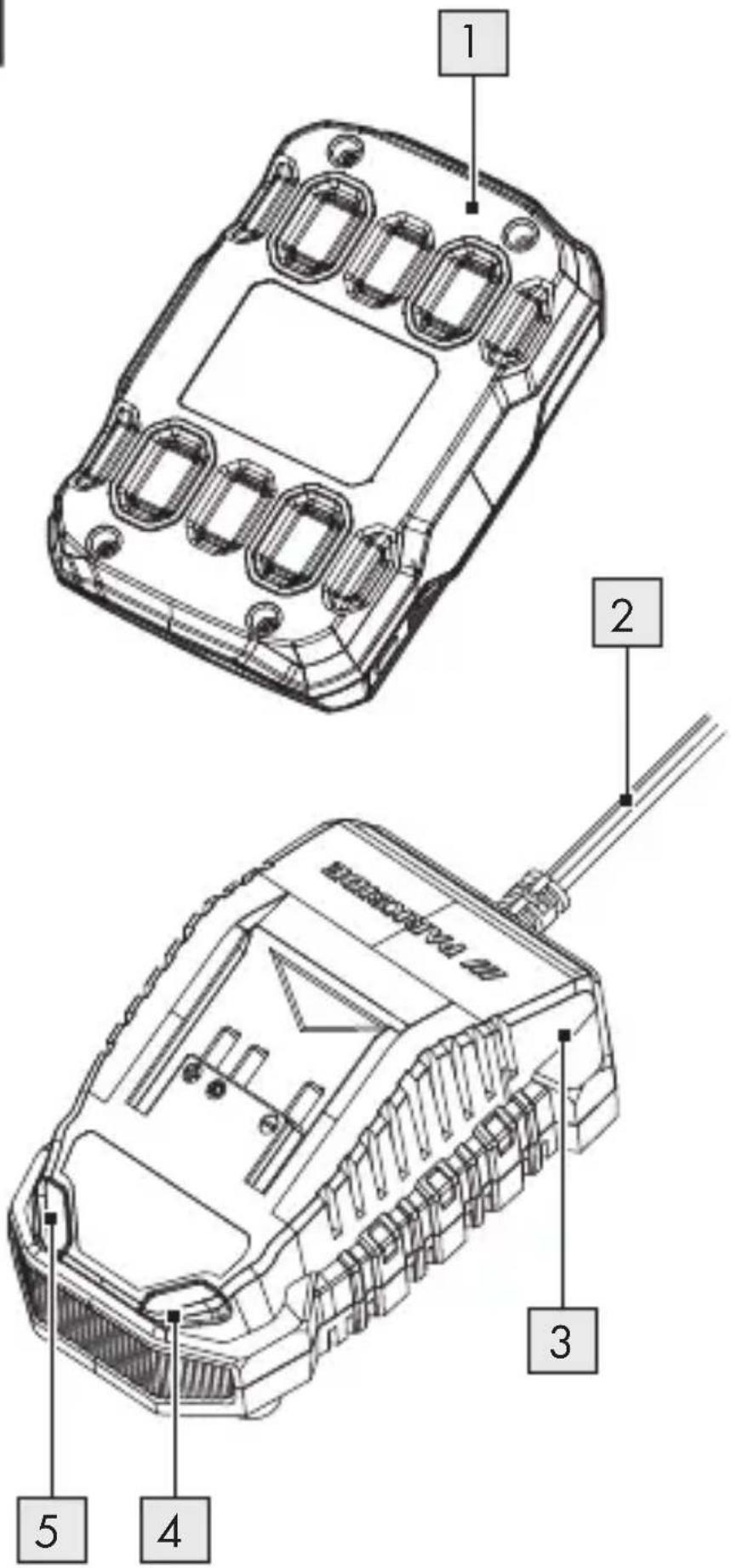

Parts description

1 Battery pack*
2 Mains cord with mains plug
3 Charger
4 Charging control LED – Red
5 Charging control LED – Green
6 Mounting holes (underside)

* Battery pack not included

Technical data

Charger: PLG 20 C1

Input:

Rated voltage: 230–240 V\~

Rated frequency: 50 Hz

Rated power

consumption: 65 W

Fuse (internal): 3.15 A

Output:

Rated voltage: 21.5 V

Rated current: 2.4 A

Battery pack type*	Charging time
PAP 20 B1, PAP 20 B2, 2.0 Ah	60 minutes
PAP 20 B3, PAPS 204 A1, 4.0 Ah	120 minutes
PAPS 208 A1, 8.0 Ah	210 minutes

Protection class:

II/☐ (double insulation)

* Battery pack not included

Customers can order compatible replacement batteries and chargers from Lidl online shops for the following countries:

Germany (lidl.de), France (lidl.fr), Belgium (lidl.be), Czech Republic (lidl.cz), Netherlands (lidl.nl), Poland (lidl.pl), Slovakia (lidl.sk), Spain (lidl.es)

Customers from all other countries can order from www.optimex-shop.com.

Net weight: 0.315 kg

Recommended ambient temperature:

While charging: +4 to +40 °C

During operation: +4 to +40 °C

During storage: +20 to +26 °C

Safety notes

This product can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the product in a safe way and understand the hazards involved.

Children shall not play with the product. Cleaning and user maintenance shall not be made

by children without supervision.

- Do not charge regular or non-rechargeable batteries.

Disregarding this instruction is hazardous.

If the mains cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

■ Protect the electrical parts against moisture.

Do not immerse such parts in water or other liquids to avoid electrical shock. Never hold the

product under running water. Pay attention to the instructions provided for cleaning, maintenance and repair.

The product is suitable for indoor use only.

⚠️ ATTENTION! This charger is only designed for charging following battery pack types:

Parkside 20 V battery pack
PAP 20 B1 2 Ah	5 cells
PAP 20 B2 2 Ah	5 cells
PAP 20 B3 4 Ah	10 cells
PAPS 204 A1 4 Ah	5 cells
PAPS 208 A1 8 Ah	10 cells

Operation

● Charging the battery pack

i INFO:

The battery pa1 may be charged at any time without reducing the service life.
- Interrupting the charging process does not damage the battery pack.
- Charge the battery pa1 before use when it is at medium or low charging level.

1. Insert the battery pack 1 into the charger 3.
2. Connect the mains plug 2 to a socket-outlet.
3. When the battery pack is fully charged, remove the battery pack from the charger. Disconnect the mains plug from the socket-outlet.

Charging status

The charging control LEDs (green 5 and red 4) indicate the status of the charger 3 and the battery pack 1 (Fig. A):

LED Status
Red LED lights up Battery pack charging
Green LED 5 lights up	Battery pack 1 fully charged
Green and red LED 4 flash	Battery pack defective
Red LED flashes Battery pack too cold or too warm
Green LED 5 lights up (without battery pack)	Charger 3 ready for use

Wall mounting

WARNING! RISK OF INJURY AND DAMAGE!

- When drilling, be careful not to damage any supply lines. Use suitable search devices to find the supply lines or consult the installation plan for guidance.

■ Contact with electrical cables can lead to electric shock and fire.
- Contact with a gas pipe can result in an explosion.
■ Damage to a water pipe can lead to property damage and electric shock.

INFO:

The charg 3 can be used either free-standing or mounted on the wall.

1) Drill 2 holes in the wall with a spacing of 76.2 mm.
2) Place 2 dowels into the holes.
3) Screw 2 round-head screws with screw head diameter of 7 to 8 mm into the dowels. Leave the screw head protruding at a distance of approx.

8 mm from the wall.

4) Hang the charger 3 on the screws using the mounting holes 6 located on the underside of the charger (Fig. B). The charging control LEDs (green 5 and red 4) have to be located on the lower end of the charger when the charger is mounted on the wall.

● Cleaning and care

NOTICE! RISK OF DAMAGE!

- Do not use chemical, alkaline, abrasive or other aggressive detergents or disinfectants to clean this product as they might be harmful to its surfaces.

i INFO:

- Regular and proper cleaning will help ensure safe use and prolong the service life of the product. - Never allow fluids to get into the product.

- Keep the product clean, dry and free from oil or grease. Remove debris from it after each use and before storage.

□ Clean the product with a dry cloth. Use a soft brush for areas that are hard to reach.

□ Always keep the vents clear. Clean the air vents after every use with a cloth and soft brush.

● Disposal

The packaging is made of environmentally friendly materials, which may be disposed of through your local recycling facilities.

Observe the marking of the packaging materials for waste separation, which are marked with abbreviations (a) and numbers (b) with following meaning: 1–7: plastics/20–22: paper and fibreboard/80–98: composite materials.

Product:

The product and packaging materials are recyclable and are subject to extended producer responsibility.

Dispose them separately, following the illustrated Info-tri (sorting information), for better waste treatment.

The Triman logo is valid in France only.

Silhouette of a person throwing trash into a bin (no text or symbols)

Contact your local refuse disposal authority for more details of how to dispose of your worn- out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

● Simplified EU declaration of conformity

CE mark indicates conformity with relevant EU directives applicable for this product.

Warranty

The product has been manufactured to strict quality guidelines and meticulously examined before delivery. In the event of material or manufacturing defects you have legal rights against the retailer of this product. Your legal rights are not limited in any way by our warranty detailed below.

The warranty for this product is 3 years from the date of purchase. The warranty period begins on the date of purchase. Keep the original sales receipt in a safe location as this document is required as proof of purchase.

Any damage or defects already present at the time of purchase must be reported without delay after unpacking the product.

Should the product show any fault in materials or manufacture within 3 years from the date of purchase, we will repair or replace it – at our choice – free of charge to you. The warranty period is not extended as a result of a claim being granted. This also applies to replaced and repaired parts.

This warranty becomes void if the product has been damaged, or used or maintained improperly.

The warranty covers material or manufacturing defects. This warranty does not cover product parts subject to normal wear and tear, thus considered consumables (e.g. batteries, tubes, cartridges), nor damage to fragile parts, e.g. switches or glass parts.

● Warranty claim procedure

So that your request can be processed quickly, please observe the following instructions:

For all inquiries, please have the receipt and item number (IAN 479372_2410) ready as proof of purchase.

The article number can be taken from the identification label on the product, engraving on the product, the front cover of your manual (at the bottom left), or the sticker on the back or bottom of the product.

If malfunctions or other defects arise, first contact the service department indicated below by phone or email.

You can then send a product recorded as defective to the communicated service address postage-free, making sure to enclose proof of purchase (receipt) and information on the details of the defect and when it occurred.

You can download and view this and numerous other manuals at parkside-diy.com. This QR code takes you directly to parkside-diy.com. Choose your country and use the search screen to search for the operating instructions. Entering the item number (IAN) 479372_2410 takes you to the operating instructions for your item.

PDF ONLINE parkside-diy.com

Service
