KIN70P1XV - Basket BERTAZZONI - Free user manual and instructions

Brand	Bertazzoni
Model	KIN70P1XV
Product type	Extractor hood
Installation type	Built-in or wall-mounted (ducted or recirculating)
Supply voltage	220-240 V ~
Frequency	50/60 Hz
Number of speeds	4 (including one timed boost speed)
Lighting	LED (risk group 1 according to IEC/EN62471 at 20 cm)
Grease filter	Dishwasher-safe, clean every 2 months
Charcoal filter	Non-washable, replace every 4 months (or more often based on usage)
Minimum safety distance	650 mm above the cooking surface (follow the manufacturer's instructions of the cooktop)
Exhaust duct diameter	Minimum 120 mm
Electrical protection class	Class I (earthing required)
Child safety	Yes (use under supervision recommended)
Maintenance	Clean the exterior with a damp cloth and mild detergent
Spare parts	Filters and lamps available by contacting customer service
Repairability	Replace defective components by qualified personnel
Warranty	Refer to general terms and conditions of sale
User manual	Available for free download at notice-facile.com

Frequently Asked Questions - KIN70P1XV BERTAZZONI

What is the minimum distance between the hood and the cooking surface?

The minimum safety distance is 650 mm. However, if the gas cooktop instructions specify a greater distance, you must follow that.

How to clean the grease filters of the hood?

The grease filters should be cleaned every 2 months (or more often in case of intensive use). They are dishwasher-safe. Use a mild detergent and let them dry before reinstalling.

When should the charcoal filter be replaced?

The charcoal filter should be replaced approximately every 4 months of operation, or more often if usage is intense. It is neither washable nor regenerable.

What to do if the power cord is damaged?

Do not use the hood. Have the cord replaced by the manufacturer or a certified technician to avoid any risk of electric shock.

Can I use the hood with a gas cooktop?

Yes, but ensure the room is properly ventilated to prevent backflow of combustion gases. Negative pressure must not exceed 0.04 mbar.

How does the speed adjustment work?

Briefly press T1 for speed 1, T2 for speed 2, T3 for speed 3. For the boost speed (4th), press and hold T3 for 2 seconds; it stops automatically after 6 minutes.

Are the hood lights replaceable?

Yes, but replacement must be carried out by an authorized after-sales service. The lamps are LED type (risk group 1 at 20 cm).

Why does the hood not turn on?

First check the power supply (outlet, circuit breaker). Make sure the plug is properly connected. If the problem persists, contact a qualified technician.

Can the hood operate in recirculation mode?

Yes, simply install a charcoal filter (not supplied) so that the hood recirculates the air without external exhaust. Follow local regulations.

Where can I download the full manual?

The manual is available for free download at notice-facile.com. You can also view it online or request a translation.

USER MANUAL KIN70P1XV BERTAZZONI

Technical line drawing of a mechanical component with no visible text or symbols

BERTAZZO ITALIA

IT 3
DE 7
EN 11
FR 14
NL 18
ES 22
DA 26
FI 30
NO 33
SV 36
PL 39

Illustration of a hand holding a small object with an arrow indicating rotation (no text or symbols)

T1 T2 T3 L

Illustration of a hand pressing a square on a tablet screen, with an arrow indicating the press direction (no text or symbols)

T1 T2 T3 L

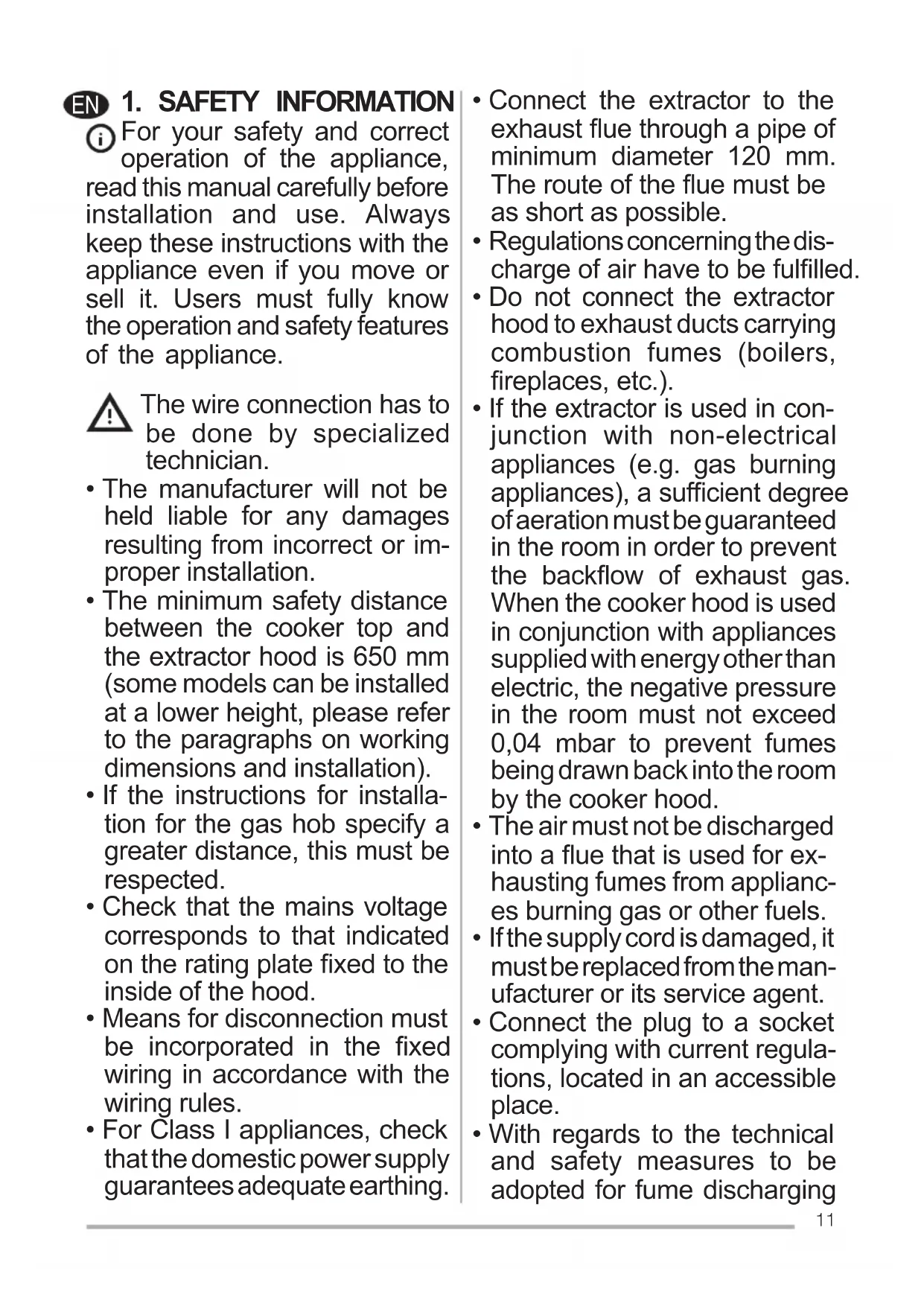

For your safety and correct operation of the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

The wire connection has to be done by specialized technician.

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum safety distance between the cooker top and the extractor hood is 650 mm (some models can be installed at a lower height, please refer to the paragraphs on working dimensions and installation).
• If the instructions for installation for the gas hob specify a greater distance, this must be respected.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.
• Means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120 mm. The route of the flue must be as short as possible.

• Regulations concerning the discharge of air have to be fulfilled.
• Do not connect the extractor hood to exhaust ducts carrying combustion fumes (boilers, fireplaces, etc.).
• If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent the backflow of exhaust gas. When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0,04 mbar to prevent fumes being drawn back into the room by the cooker hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• If the supply cord is damaged, it must be replaced from the manufacturer or its service agent.
• Connect the plug to a socket complying with current regulations, located in an accessible place.
• With regards to the technical and safety measures to be adopted for fume discharging

it is important to closely follow the regulations provided by the local authorities.

WARNING: Before installing the Hood, remove the protective films.

- Use only screws and small parts in support of the hood.

WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not look directly at the light through optical devices (binoculars, magnifying glasses...).

- Do not flambè under the range hood; risk of fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised to ensure that they do not play with the appliance.

- The appliance is not to be used by persons (including children) with reduced physical, sensory

or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Accessible parts may become hot when used with cooking appliances.

- Clean and/or replace the Filters after the specified time period (Fire hazard). See paragraph Care and Cleaning.

- There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).

- The symbol ☒ on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste

disposal service or the shop where you purchased the product.

2. USE

• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

3. CARE AND CLEANING

- The Activated charcoal filter is not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently for particularly heavy usage (W).

W N N

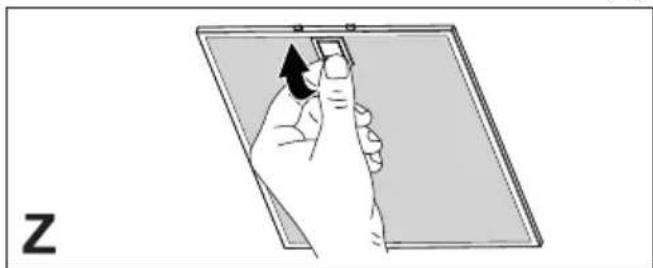

- The Grease filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher (Z).

Illustration of a hand inserting a component into a device panel, with no visible text or symbols

- Clean the hood using a damp cloth and a neutral liquid detergent.

4. CONTROLS

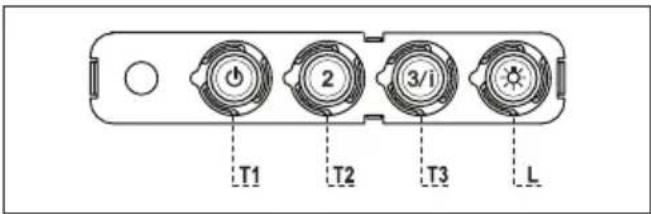

T1 T2 T3 L

BUTTON LED FUNCTIONS
T1 Speed	On Turns	the Motor on at Speed one.
		Turns the Motor off.
T2 Speed	On Turns	the Motor on at Speed two.
T3 Speed	Fixed When pressed briefly, turns the Motor on at Speed three.
	Flashing Pressed for 2 Seconds. Activates Speed four with a timer set to 6 minutes, after which it returns to the speed that was set previously. Suitable to deal with maximum levels of cooking fumes.
L Light Turns the Lighting System on and off.

Warning: Button T1 turns the motor off, after first passing to speed one.

5. LIGHTING

• Lamps in risk group 1 under IEC/EN62471 at a distance of 20cm and in exempt from risk group under IEC/EN62471 at a distance of 30cm.
• For replacement contact technical support ("To purchase contact technical support").
