USER MANUAL KIN30XV BERTAZZONI

INSTALLATION AND USER MANUAL

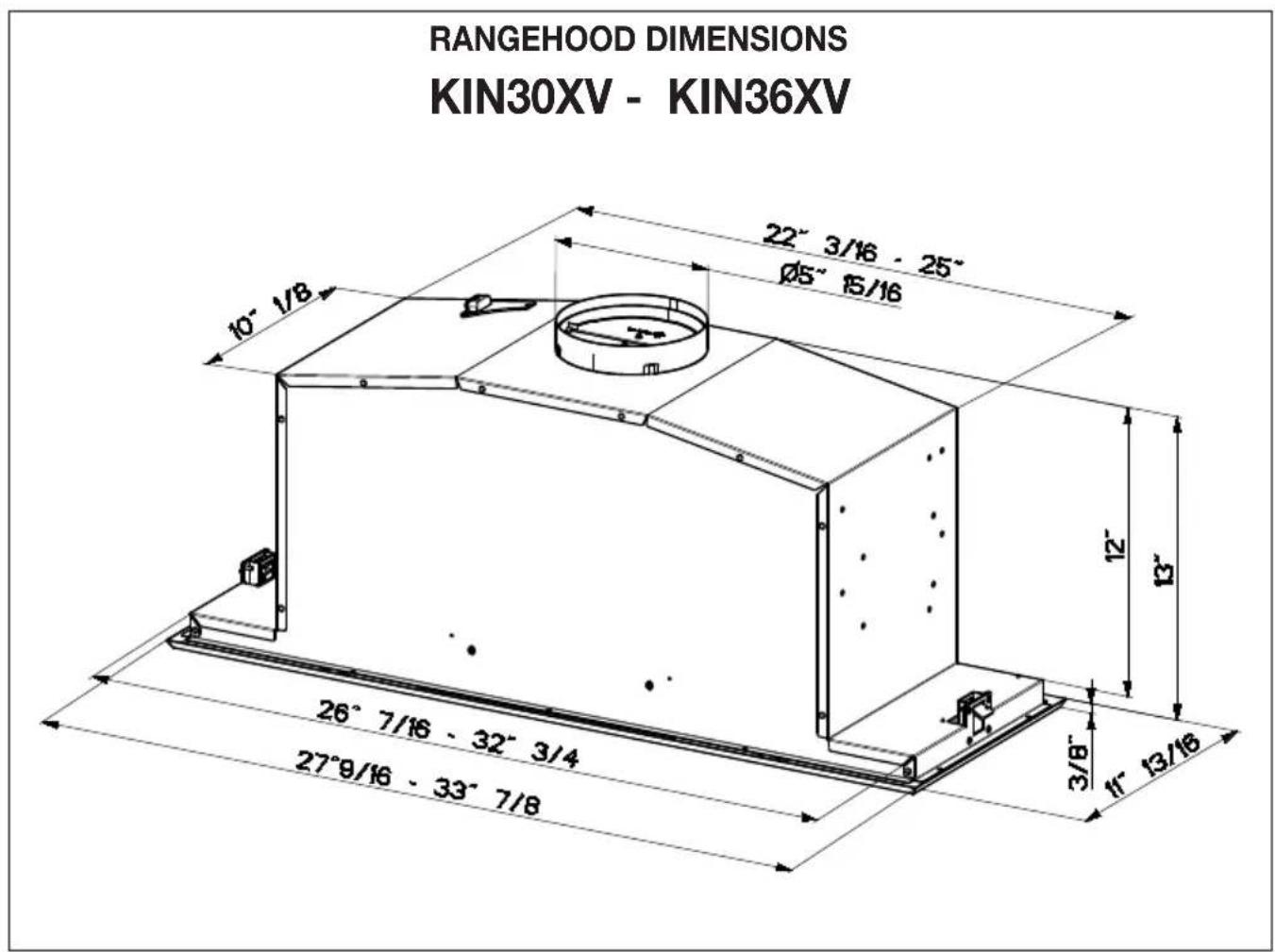

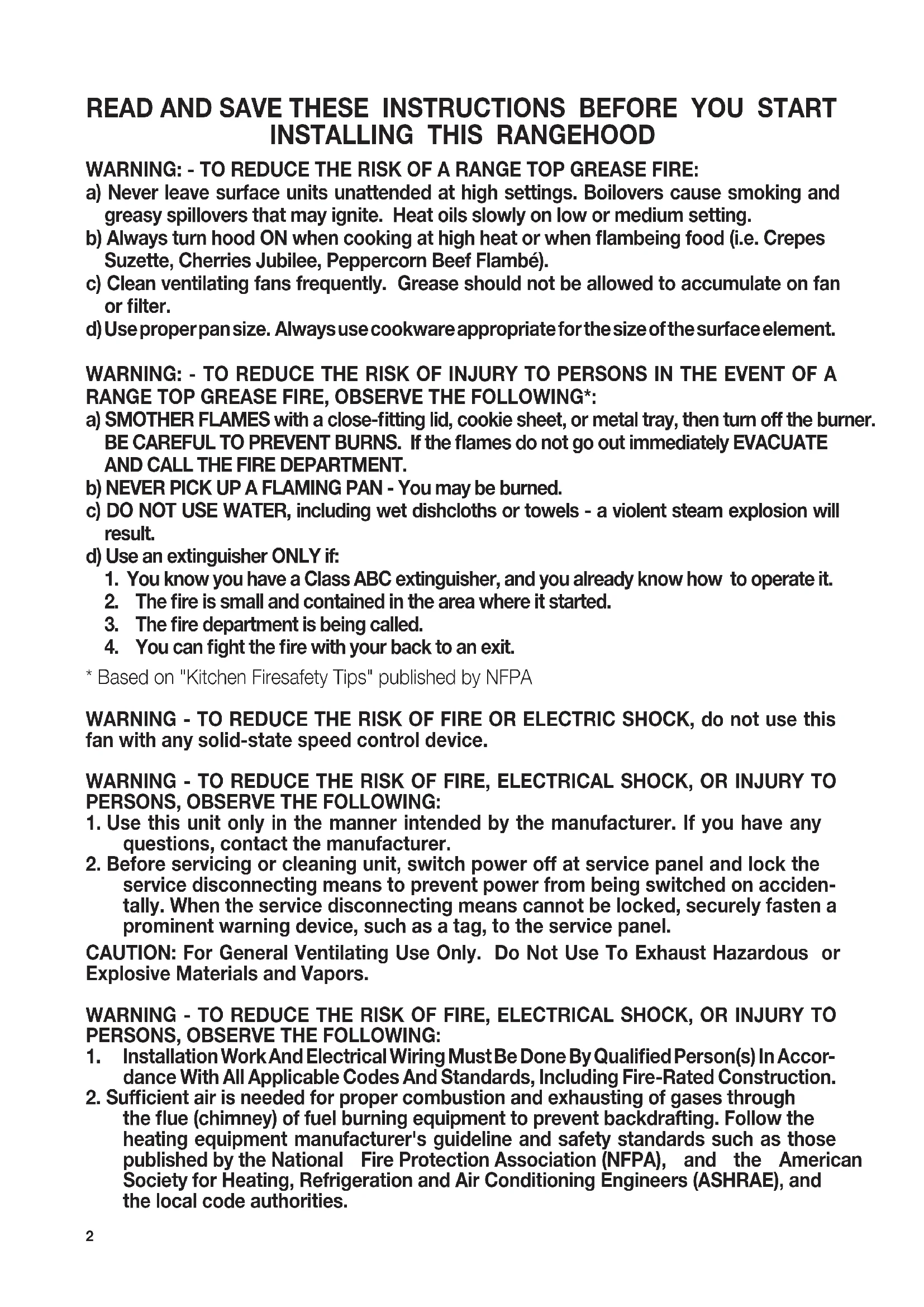

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium setting. b)AlwaysturnhoodONwhencookingathighheatorwhenambeingfood(i.e.Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé). c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan orlter. d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

1. You know you have a Class ABC extinguisher, and you already know how to operate it.

2. Thereissmallandcontainedintheareawhereitstarted.

3. Theredepartmentisbeingcalled.

4. Youcanghttherewithyourbacktoanexit.

• Based on "Kitchen Firesafety Tips" published by NFPA WARNING - TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, do not use this fan with any solid-state speed control device. WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. Use this unit only in the manner intended by the manufacturer. If you have any

questions, contact the manufacturer.

2. Before servicing or cleaning unit, switch power off at service panel and lock the

service disconnecting means to prevent power from being switched on acciden- tally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel. CAUTION: For General Ventilating Use Only. Do Not Use To Exhaust Hazardous or Explosive Materials and Vapors. WARNING - TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:

1. InstallationWorkAndElectricalWiringMustBeDoneByQualiedPerson(s)InAccor-

dance With All Applicable Codes And Standards, Including Fire-Rated Construction.

2. Sufcientairisneededforpropercombustionandexhaustingofgasesthrough

theue(chimney)offuelburningequipmenttopreventbackdrafting.Followthe heating equipment manufacturer's guideline and safety standards such as those publishedbytheNational FireProtectionAssociation(NFPA), and the American SocietyforHeating,RefrigerationandAirConditioningEngineers(ASHRAE),and the local code authorities.3

1. When cutting or drilling into wall or ceiling, do not damage electrical wiring and

other hidden utilities.

2. Ducted fans must always be vented to the outdoors.

ALL WALL AND FLOOR OPENINGS WHERE THE RANGEHOOD IS INSTALLED MUST BE SEALED. This rangehood requires at least 24" of clearance between the bottom of the rangehood and the cooking surface or countertop. This hood has been approved by UL at this distance from the cooktop. This minimum clearance may be higher depending on local building codes. For gas cooktops and combination ranges, a minimum of 30" is recommended and may be required. Overhead cabinets on both sides of this unit must be a minimum of 18" above the cooking surface or countertop. Consult the cooktop or range installation instructions given by the manufacturer before making any cutouts. MOBILE HOME INSTALLATION The installation of this rangehood must conform to the Manufactured Home Construction and Safety Standards, Title 24 CFR, Part 3280 (formerly Federal Standard for Mobile Home Construction and Safety, Title 24, HUD, Part 280). See Electrical Requirements.

• Venting system MUST terminate outside the home.

• DO NOT terminate the ductwork in an attic or other enclosed space.

• DO NOT use 4" laundry-type wall caps.

• Flexible-type ductwork is not recommended.

• DO NOT obstruct the ow of combustion and ventilation air.

• Failure to follow venting requirements may result in a re. WARNING

VENTING REQUIREMENTS Determine which venting method is best for your application. Ductwork can extend either through the wall or the roof. The length of the ductwork and the number of elbows should be kept to a minimum to provide efcient performance. The size of the ductwork should be uniform. Do not install two elbows together. Use duct tape to seal all joints in the ductwork system. Use caulking to seal exterior wall or oor opening around the cap. Flexible ductwork is not recommended. Flexible ductwork creates back pressure and air turbulence that greatly reduces performance. Make sure there is proper clearance within the wall or oor for exhaust duct before making cutouts. Do not cut a joist or stud unless absolutely necessary. If a joist or stud must be cut, then a supporting frame must be constructed. WARNING - To Reduce The Risk Of Fire, Use Only Metal Ductwork. CAUTION-Toreduceriskofreandtoproperlyexhaustair,besuretoductairoutside–Do not vent exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages. Cold Weather installations An additional back draft damper should be installed to minimize backward cold air ow and a non- metallic thermal break should be installed to minimize conduction of outside temperatures as part of the vent system. The damper should be on the cold air side of the thermal break. The break should be as close as possible to where the vent system enters the heated portion of the house.4

• Electrical ground is required on this rangehood.

• If cold water pipe is interrupted by plastic, nonmetallic gaskets or other materials, DO NOT use for grounding.

• DO NOT ground to a gas pipe.

• DO NOT have a fuse in the neutral or grounding circuit. A fuse in the neutral or grounding circuit could result in electrical shock.

• Check with a qualied electrician if you are in doubt as to whether the rangehood is properly grounded.

• Failure to follow electrical requirements may result in a re. WARNING

StateofCaliforniaProposition65Warning(USonly) WARNING This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov ELECTRICAL REQUIREMENTS A 120 volt, 60 Hz AC-only electrical supply is required on a separate 15 amp fused circuit. A time-delay fuse or circuit breaker is recommended. The fuse must be sized per local codes in accordance with the electrical rating of this unit as specied on the serial/rating plate located inside the unit near the eld wiring compartment.5

MAIN PARTSMAIN PARTS

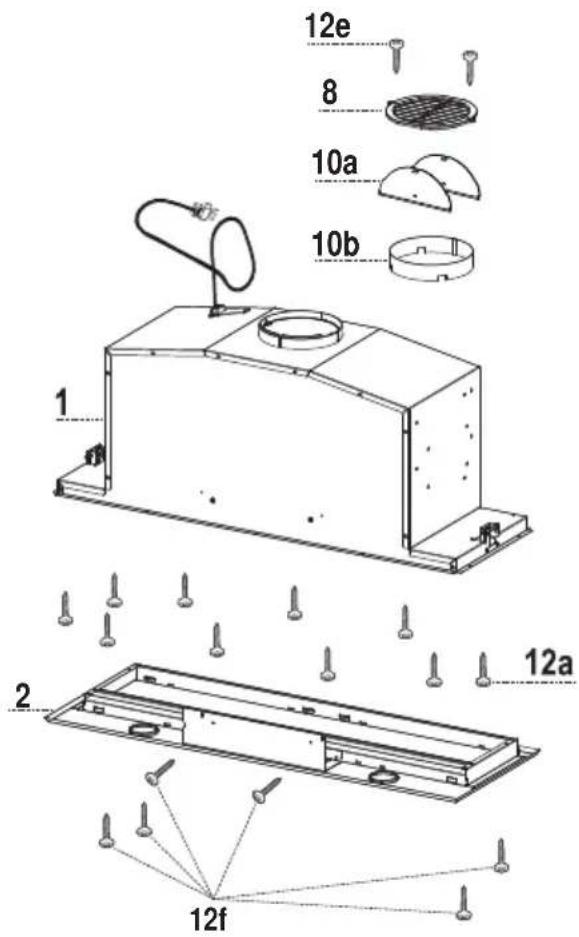

Components Ref. Qty. Product Components 1 1 Hood Body, complete with: Con- trols, Light, Filters, Blower. 2 1 Frame 8 1 Recirculation Vent Grill 10a 2 Damperaps 10b 1 Metallic damper ring Ref. Qty. Installation Components 12a 10 Screws (for hood installation) 12e 2 Screws 1/8"x3/8" (for Recircula tion Vent Grill mounting) 12f 6 Screws 1/8"x5/16" torx (for frame mounting) Qty. Documentation 1 Instruction Manual Parts needed - 6" Round Metal ductwork.

Choose your ducting method Requires purchase of Activated Charcoal Accessory Rear Top

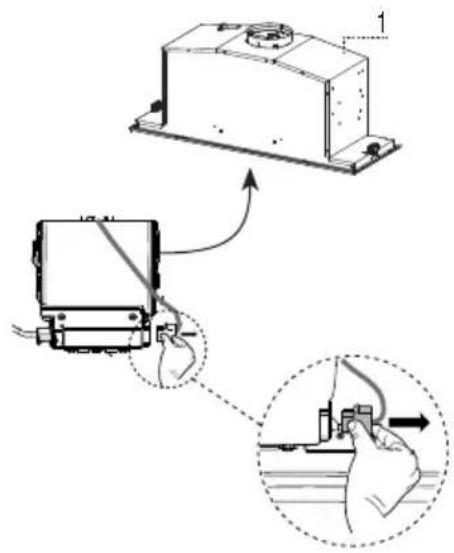

The Electrical Connection Cable must be disconnected rst before installation; Disconnect the Electrical Connector asshowninthegure.Depressthe two tabs on the side of the Electrical Connector using your hand and a smallatheadscrewdriverandpulloff. Install the rangehood (FollowthesestepsbeforeattemptingtoinstalltheInsert)

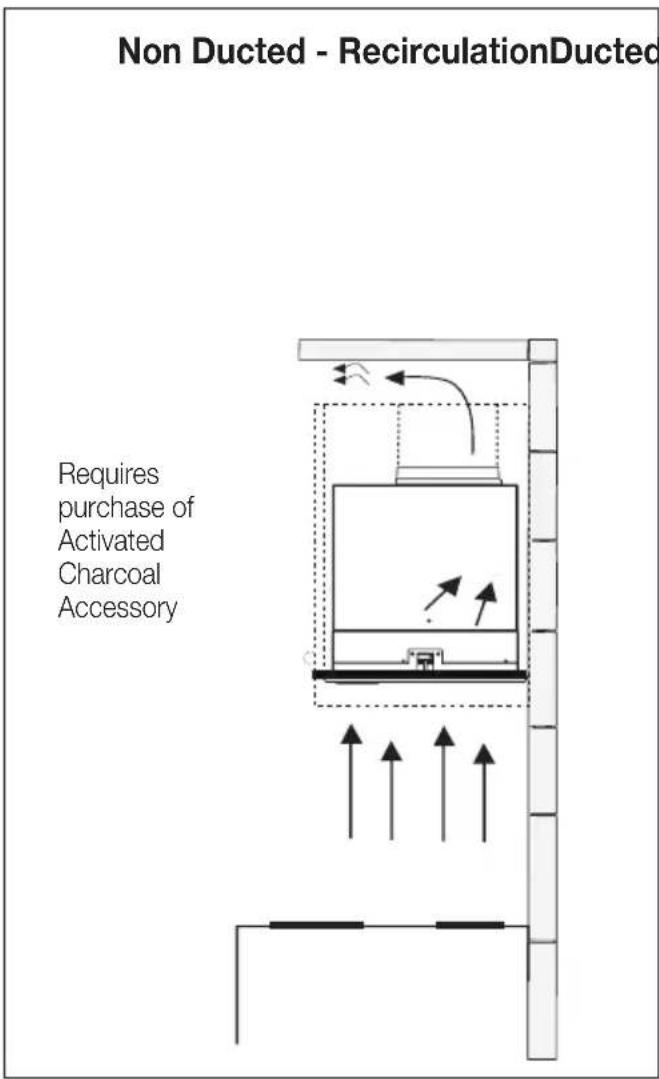

Non Ducted - RecirculationDucted Venting Installation

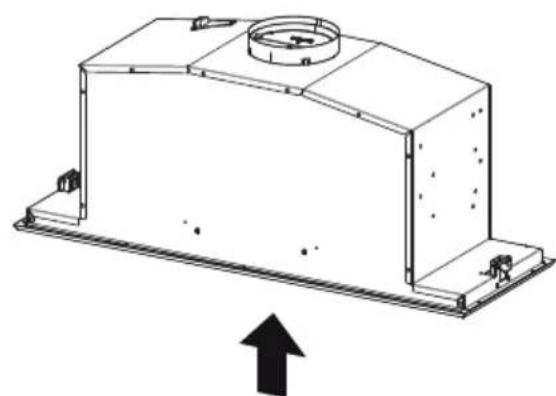

The Hood can be installed directly on the underside of the wall unit (Minimum 24" - 30" from the Cooking Surface). Create an opening in the bottom of the wall unit, as shown. Insert the hood until the side supports snap into place. Fasten using the 10 screws 12a provided. Lock in position by tightening the screws Vf from underneath the hood. Removegreaseltersandsetaside. Screw the Frame into place using the 6 screws 12f(1/8"x5/16" torx), reconnect the wires to the Connector) removed previously. Replace the metalgreaselters. 10 1/8” 1/2”

Choose your ducting method Ducted Venting Installation

Non Ducted - Recirculation Option Install Roof or Wall Cap purchased sep- arately. Connect the 6" metal ductwork to the Roof or Wall Cap and then attach ductwork. Seal with foil tape.

For Non-Ducted Recirculation venting route the ductwork to a location above the hood where the discharge is vented back into the room. Use the included Recirculation Vent Grill to cover the opening. Secure the grill with the 2 screws provided in the Install Kit. Fit a streight tube at least 15" in lenght from the Hood air outlet to the wall unit. Required Charcoal Filter kit sku #901531Durable charcoal lter kit sku #901532 10a

10b 12e Install metal damper ring (10b) included with the Hood. Install the damper aps (10a) that are included with hood by snapping the tabs into place inside the top of the hood before connecting ductwork.10 Max. 33 7/16”

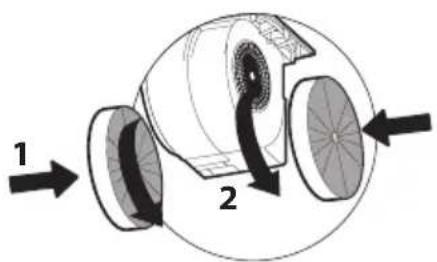

For Non-Ducted Recirculation Option Attach each charcoal lter to the black grid on each side of the blower. Press the charcoal lter tightly to the black grid on the blower side and rotate the lter clockwise (towards the front of the insert hood) until it locks into place. Turn counterclockwise (towards the back of the insert hood) to remove. Required Charcoal Filter kit sku #901531 Durable charcoal lter kit sku #901532 GROUNDING INSTRUCTIONS This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current. This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded. WARNING - Improper grounding can result in a risk of electric shock. Consult a qualied electrician if the grounding instruc- tions are not completely understood, or if doubt exists as to whether the appliance is properly grounded. Do not use an extension cord. If the power supply cord is too short, have a qualied electrician install an outlet near the appliance. ELECTRICAL INSTALLATION

WITH CONNECTION CABLE

WARNING - "The supply cord shall be accessible for inspection after installation".

Replace the grease lters removed previously.

T1 T2 T3 T4 L LT1 T2 T3 T4 For Best Results Start the rangehood several minutes before cooking to develop proper airow. Allow the rangehood to operate for several minutes after cooking is complete to clear all smoke and odors from the kitchen. T1. Fan off button:turn the blower Off. The fan can be operated by pressing any of the fan setting buttons. Hold down this button for 2 seconds to activate Delay off function which will keep the fan on for 15 minutes and automatically shut off.

. Fan settings buttons: Low speed. T3. Fan settings buttons: Medium speed. T4. Fan settings buttons: High speed / Intensive speed. Hold down the button for 2 seconds to activate the intensive speed, which is timed to run for 6 minutes. At the end of this time it will automatically return to the speed set before.Suitable to deal with maximum levels of cooking fumes.

. Light button: On/Off switch for the lights. NOTE: If your product has had a CFM adjustment, refer to the CFM adjustment manual for the infor- mation. Some motor speeds or functions may be reduced.13 Cleaningmetalgreaselters Themetalgreaselterscanbecleanedinhotdetergentsolution orwashedinthedishwasher.Theyshouldbecleanedevery 2monthsuse,ormorefrequentlyifuseisparticularlyheavy.

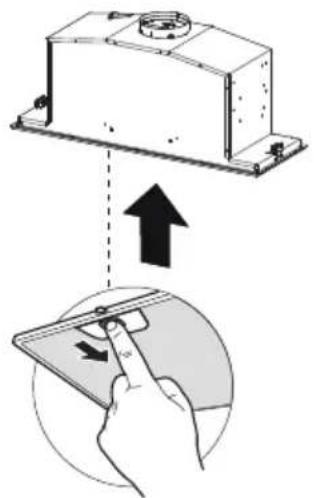

• Removethelter,pushingthelevertowardsthebackofthe unit and at the same time pulling downward.

• Washthelterwithoutbendingit,leaveittodrythoroughly beforereplacing(ifthesurfaceofthelterchangescolor overtime,thiswillhaveabsolutelynoeffectonitsefciency).

• Replace, taking care to ensure that the handle faces forward.

• Cleaning in dishwasher may dull the nish of the metal greaselter.

• Nowatercanbepresentinltersbeforeinstallingbackinhood. Replacing Activated Charcoal Filter TheActivatedCharcoalFiltersarenotwashableandcannot be regenerated, and should be replaced approximately every4monthsofoperation,ormorefrequentlywithheavy usage.

• RemovetheFilter,pushingittowardsthebackoftheunit and at the same time pulling downward.

• RemovethesaturatedActivatedCharcoalFilters,asindi- cated (A).

• Fit the new Filters, as indicated (B).

• Replace, taking care to ensure that the handle faces forwards. Caution: "When used in recirculation mode, to Reduce theRiskofFireandShockuseonlyconversionkitModel CharcoalFilterkitsku#901531;Durablecharcoallterkit sku #901532". Please contact the retailer that sold you the product to purchasecarbonltersabove. Lighting unit

• Replace the lamp with a new one of the same type, making sure that you insert the two pins properly into the housings on the lamp holder. Gu10 self-ballasted led lamps – listed in accordance with ul 1993/ nmx-j-578/1-ance/csa c22.2 No. 199314 Wiring Diagram 991.0530.011 H90-503 D00004494_00 991.0530.011 H90-503 D00004494_00
