USER MANUAL PC100USBHR2 FOSTEX

This guarantee is valid only in Japan.

Volume controller PC100USB-HR2 Thank you very much for purchasing a Fostex product. This manual provides instructions for basic use of the unit. Read this before using the unit for the first time. © FOSTEX COMPANY All Rights Reserved

(606999) Owner's Manual English2

WARNINGS and PRECAUTIONS

• CAUTION: The symbol To prevent electric shock hazard, do not connect to mains power supply while grille is removed.

• WARNING: An apparatus with CLASS I construction shall be connected to a MAINS socket outlet with a protective earthing connection.

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specified may result in hazardous radiation exposure.

• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.

• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.

• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

• WARNING: Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

• Do not mix old and new batteries. Do not mix alkaline, standard (carbonzinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

• Do not start up your computer while wearing headphones. Furthermore, when you use headphones, do not turn the volume up too high. CAUTION

SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the

manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves,

or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A

polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at

plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or

table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tipover.

13) Unplug this apparatus during lightning storms or

when unused for long periods of time.

14) Refer all servicing to qualified service personnel.

Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) The apparatus shall be used in an open area.

16) Apparatus shall not be exposed to dripping or splashing and that no

objects filled with liquids, such as vases, shall be placed on apparatus.

17) Mains plug is used as disconnect device. It shall remain readily operable and

should not be obstructed during intended use. To completely disconnect the apparatus from supply mains, the main plug of the apparatus shall be disconnected from the mains socket outlet completely.3 English Introduction

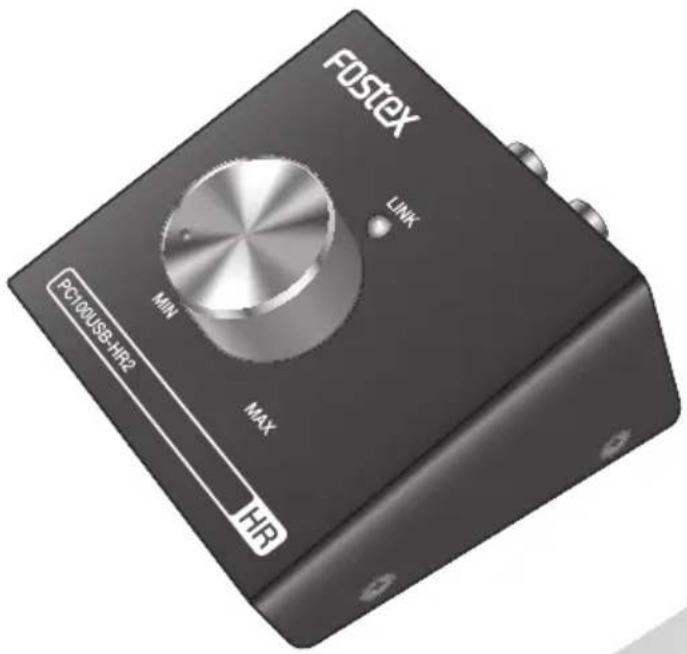

• Volume controller which supports USB input.

• Can remotely control the volume of headphones and speaker systems.

• Can be used as is - no additional cables are required.

• Can be used as an OS standard driver for Windows and Mac OS X.

• Supports maximum 96 kHz/24 bit (PCM) input using a playback application compatible with high resolution sound or similar.

Accessories Supplied accessories are listed below. Confirm that these accessories are present after purchase.

Computer requirements Computers that will be connected to the unit must have the following specifications.

• OS: Windows 7 or above, Mac OS X V10.6 or above

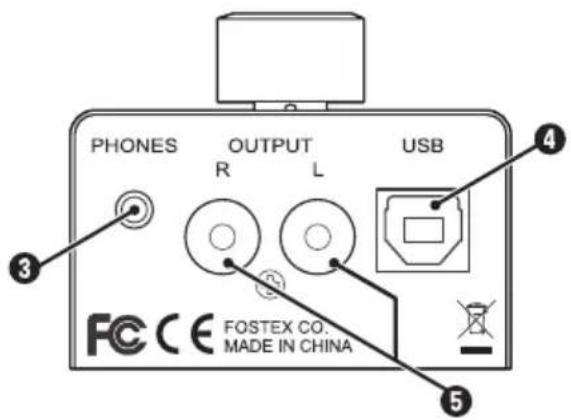

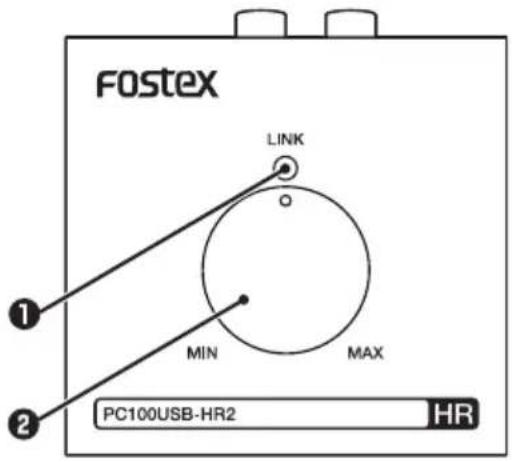

• USB: USB2.0 compatible Specifications [OUTPUT] (L/R) terminals Connector RCA pin jack Adapted load impedance 10 kΩ or more Standard output level +6 dBV (0 dBFS) [PHONES] terminal Connector Φ3.5 stereo mini jack Adapted load impedance 32 Ω or more Rated output 30 mW + 30 mW (32 Ω load, THD 0.5% or less) [USB] terminal Connector USB type B connector Supported sampling frequencies (kHz) 32, 44.1, 48, 88.2, 96 Quantization bit rate 16/24 bit Power USB bus power (5 V, 500 mA) Power consumption 2.5 W maximum Weight Approx. 210 g (not including cables) External dimensions 66 mm (Width) × 44 mm (Height) × 70 mm (Depth)4 Part names and functions Top panel Rear panel ❶ [LINK] indicator Lights when the computer connected by USB cable recognizes the unit correctly. The color differs according to the sampling frequency. Lit in green: 32 kHz to 48 kHz Lit in orange: 88.2 kHz, 96 kHz Unlit: the computer is turned off, hibernating or in standby. ❷ Volume knob Adjusts the output level of the unit. It works for the [PHONES] terminal and the [OUTPUT] terminals. ❸ [PHONES] output terminal Connect to headphones. ❹ [USB] input terminal Connect to a computer using the supplied USB cable. When you connect, the computer recognizes the unit automatically, and registers the unit as sound output device. When an audio signal is input, power is supplied at the same time. For a stable power supply, connect the unit to the computer directly, not via a USB hub. ❺ [OUTPUT] (L/R) terminals (RCA pin jack) Analog audio signals are output. Connect to the line level input terminal of a powered monitor or audio amplifier. When you connect headphones to the [PHONES] terminal, no signal is output from the [OUTPUT] (L/R) terminals.5 English Connecting to devices

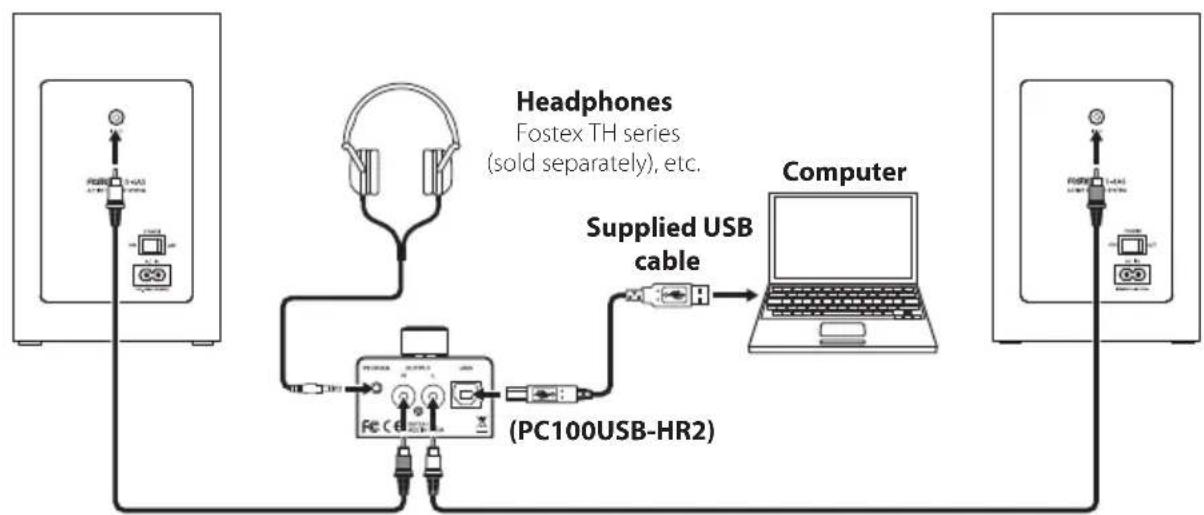

• Minimize the volume of each device before turning on the power. (Connection example) Headphones Fostex TH series (sold separately), etc. (PC100USB-HR2) Computer Supplied USB cable Supplied RCA pin cableSupplied RCA pin cable 1 Connecting the unit to a computer. Connect the [USB] input terminal of the unit to a USB terminal on the computer using the supplied USB cable. 2 Connecting the unit to headphones or a powered monitor.

• To connect headphones: Connect the [PHONES] output terminal of the unit to a pair of headphones.

• To connect a powered monitor: Connect the [OUTPUT] (LR) output terminals of the unit to a powered monitor.6 Configuring computer settings To play sound with the unit, the unit must be specified as the output destination on your computer. ✐Memo
• Adjust the sound output level of your computer in accordance with your usage environment.

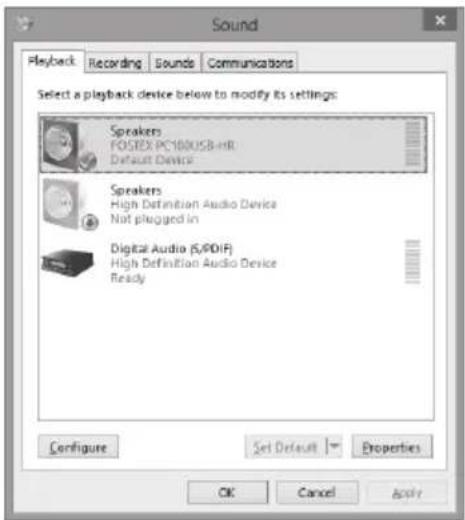

For Windows 8/Windows 7 Output device settings Advanced settings

1) Select “Hardware and Sound” in the Control

4) Select “FOSTEX PC100USB-HR” as the playback

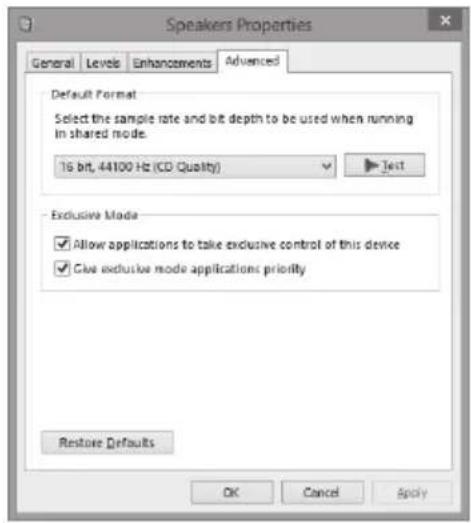

When you click “Properties” in the “Sound” window, the “Speakers Properties” window is displayed. You can set the sampling rate and bit rate if necessary.7 English

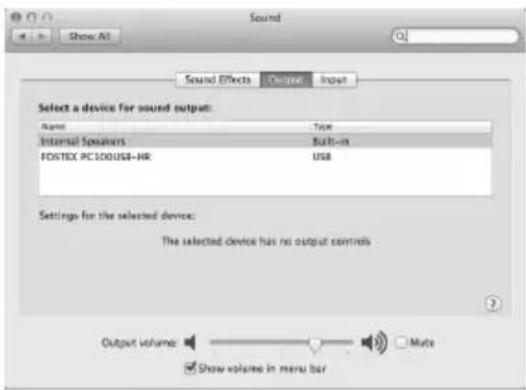

1) Select “System Preferences…” from the apple

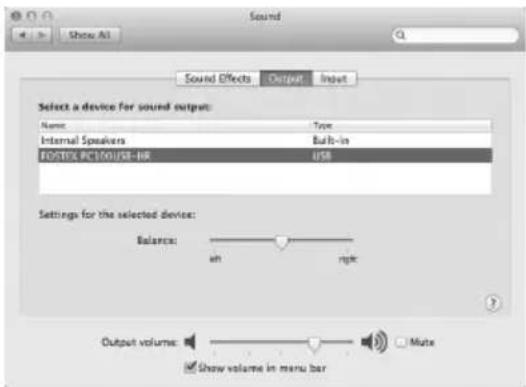

4) Select “FOSTEX PC100USB-HR” in the “Select a

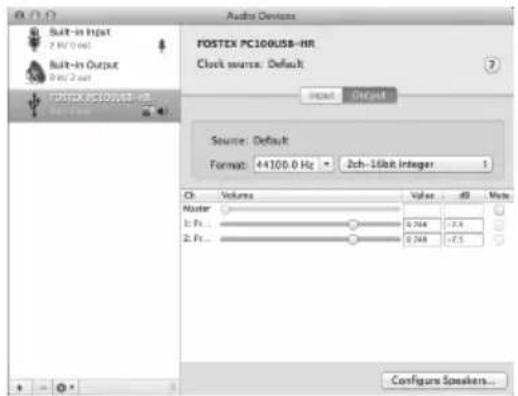

device for sound output” list. Open “Audio MIDI Setup” in the “Utilities” folder (found in the “Applications” folder). You can set the sampling rate, bit rate and right- left volume if necessary.FOSTEX CO. 1-1-109, Tsutsujigaoka, Akishima City, Tokyo, 196-8550, Japan Declaration of EC Directive This equipment is compatible with the EMC Directive (2004/108/EC) - Directive on approximation of member nation's ordinance concerning the electromagnetic compatibility and with the Low Voltage Directive (2006/95/EC) - Directive on approximation of member nation's ordinance concerning electric equipment designed to be used within the specified voltage range. The Affect of Immunity on This Equipment The affect of the European Specification EN61000-6-1 (coexistence of electromagnetic waves - common immunity specification) on this equipment are as shown below. In the electrical fast transient/burst requirements, surge, conducted disturbances by radio-frequency fields, power frequency magnetic field, radiate electromagnetic field requirements and static electricity discharging environment, this could be affected by generation of noise in some cases.
