Product Type	Active Studio Monitor Speaker
Brand	Fostex
Model	PM0.4cB
Speaker Configuration	2-way bi-amplified
Woofer	4-inch (10 cm) cone
Tweeter	1-inch (2.5 cm) soft dome
Amplifier Power	15 W + 15 W RMS
Frequency Range	60 Hz - 20 kHz
Input Connectors	Balanced XLR, unbalanced RCA
Input Impedance	10 kΩ
Crossover Frequency	2.5 kHz
Dimensions (W x H x D)	150 mm × 230 mm × 180 mm
Weight	3.5 kg per speaker
Power Supply	AC 100-240 V, 50/60 Hz
Volume Control	Front panel rotary knob
Power Switch	Rear panel toggle
Enclosure Type	Bass reflex with rear port
Mounting Options	Desk stand or optional wall bracket
Maintenance	Clean with a soft, dry cloth
Safety Features	Overload and thermal protection
Repair	No user-serviceable parts; contact technician

Frequently Asked Questions - PM0.4cB FOSTEX

How do I connect my PM0.4cB to a computer?

Connect the speaker to your computer's audio interface using a balanced XLR or unbalanced RCA cable. If the computer has only a headphone jack, use a suitable adapter to connect to the RCA input.

What power supply does the PM0.4cB require?

The speaker uses an AC 100-240 V power supply with a frequency of 50/60 Hz. Connect the included IEC power cable to a wall outlet.

Why is there a hum when my speaker is on?

Hum is often caused by a ground loop. Ensure all connected audio devices are plugged into the same power outlet or use a ground lift adapter on the audio source. Also check that cables are not running parallel to power cords.

Can I use the PM0.4cB with a subwoofer?

Yes. The speaker can be used as a satellite with a subwoofer. However, there is no direct subwoofer output. Use the volume control to balance the levels.

What is the best placement for the speakers?

Place the speakers at ear level and form an equilateral triangle with your listening position. Keep them away from walls to reduce bass buildup. Use the rear bass port distance to adjust low-frequency response.

How do I clean the speaker cabinet?

Use a soft, dry cloth to wipe the cabinet and grille. Avoid water or cleaning agents. Do not spray liquids directly onto the speaker; instead, dampen the cloth slightly.

Does the speaker have any LED indicators?

Yes, a power LED on the front panel lights up when the speaker is on. The LED may change color or blink to indicate thermal protection mode.

Can I mount the PM0.4cB on a wall?

Yes, the cabinet has mounting points for optional wall brackets. Ensure the bracket supports at least 3.5 kg. Follow the manufacturer's instructions for safe installation.

How do I adjust the bass and treble?

The PM0.4cB has no physical bass/treble controls. Instead, use the room EQ on your mixer or audio interface. The rear panel may include trim switches for low-frequency adjustment.

What should I do if one speaker is not producing sound?

Check the audio cable connection to that speaker. Swap the left and right inputs to verify if the speaker itself is faulty. Ensure the volume knob is turned up and the power switch is on.

USER MANUAL PM0.4cB FOSTEX

Thank you very much for purchasing a Fostex product. This manual provides instructions for basic use of the unit. Read this before using the unit for the first time.

■ WARNINGS and PRECAUTIONS

• CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
• WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
• CAUTION: Use of any controls or adjustments or performance of procedures other than those herein specified may result in hazardous radiation exposure.
• WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
• WARNING: Do not place the unit on top of any soft, porous, or sensitive surfaces to avoid damaging the surface. Use a protective barrier between the unit and surface to protect the surface.
• WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause.
• CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

• WARNING: Do not install this equipment in a confined space such as a book case or similar unit.

• WARNING: Mains plug is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely.

• Do not mix old and new batteries. Do not mix alkaline, standard (carbonzinc), or rechargeable (ni-cad, ni-mh, etc) batteries.

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

■ IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11) Only use the power cable/AC adapter/attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tipover.
13) Unplug this apparatus during lightning storms or when unused for long periods of time.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15) The apparatus shall be used in an open area.
16) Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on apparatus.
17) Mains plug is used as disconnect device. It shall remain readily operable and should not be obstructed during intended use. To completely disconnect the apparatus from supply mains, the main plug of the apparatus shall be disconnected from the mains socket outlet completely.

■ FCC (U.S.A.) & ICES-003 (Canada) INFORMATION

1. IMPORTANT NOTICE

This product, when installed as indicated in the instructions contained in this manual, meets FCC and ICES-003 requirements. Changes or modifications not expressly approved by Fostex Company for compliance could void the user's authority to operate the equipment. DO NOT MODIFY THIS PRODUCT.

1. IMPORTANT

In order to comply with FCC and ICES-003 requirements, use high quality shielded cables for connection to accessories and / or another products. If any cables are supplied with this product, they MUST be used. Follow all installation instructions. Failure to do so could void your FCC / ICES-003 authorization to use this product in the USA / Canada.

1. NOTE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
  which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

• Compliance with Part 15 of FCC Rules and Canadian ICES-003.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

PM0.4c are active speakers with high efficiency, high-quality sound.

You can enjoy music with PM0.4c in various situations such as DTM, DJ, listening to PC audio, watching TV and listening to portable audio players.

■ Features of the PM0.4c

• 2 way configuration of woofer (low range) and tweeter (high range).
- Uses a rolled rubber edge for 100 mm-diameter glass fiber woofer diaphragm, which realizes clear and powerful sound.
• 19 mm-diameter dome tweeter generates rich, natural sound at high frequencies.
- Compact, rear bass reflector type wooden enclosure realizes natural, deep bass sound.

■ Accessories

The following are supplied with the PM0.4c.

After purchasing the unit, check all accessories are included in the package.

• Power cord (2.0 m) × 1
• Speaker cable (red/black, 1.5 m) × 1
• RCA-Φ6 mm TS phone cable (red/black, 1.5 m) × 1
- Owner's manual (this book) × 1
- Safety information × 1

Parts names and functions

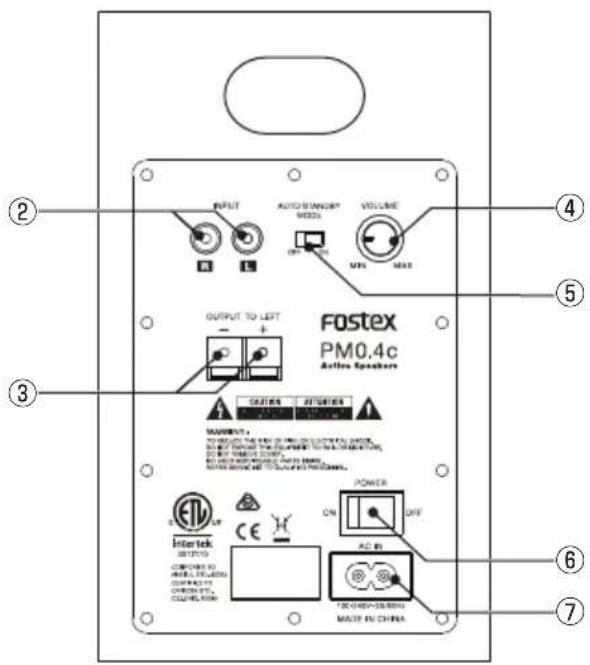

Active speaker (R channel)

Equipped with stereo power amplifier, plays back right channel of input signal.

Front Back

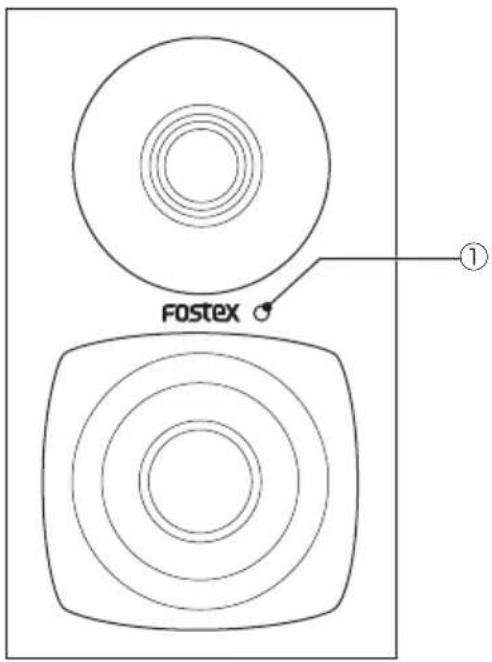

① Power indicator

Indicates power state.

Blue: normal state

Red: standby state

Unlit: power is off

② [INPUT] (L, R) terminal

Connects to the output of external device.

③ [OUTPUT TO LEFT] terminal

Connects to the [LEFT] terminal of the passive speaker using the supplied speaker cable. Connect (+) and (+), and (−) and (−) of the active speaker and passive speaker. Left channel of signal input from [INPUT] (L, R) terminal is sent to the passive speaker via the internal amplifier.

④ [VOLUME] knob

Adjusts the volume.

⑤ [AUTO STANDBY MODE] switch

Switches the auto standby function ON/OFF. Switch "ON" to enable the function, and switch "OFF" to disable the function.

Auto standby function

When the auto standby function is ON, the unit automatically goes into standby state and the power indicator lights in red if input to the unit stays below a certain level for approximately 15 minutes. In standby state, the power consumption is reduced to below 0.5 W. The unit will revert to its normal state and the power indicator lights in blue when an input signal is received again.

⑥ [POWER] switch

Turns ON/OFF the unit.

⑦ [AC IN] terminal

Connects to an outlet using the supplied power cord.

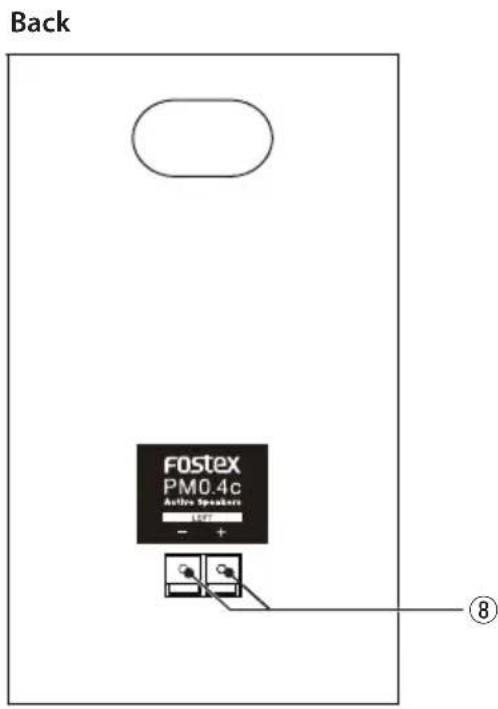

Passive speaker (L channel)

As the unit is not equipped with an amplifier, play back the left channel of the input signal by connecting to the active speaker using the supplied speaker cable.

⑧ [LEFT] terminal

Connects to the [OUTPUT TO LEFT] terminal of the active speaker using the supplied speaker cable.

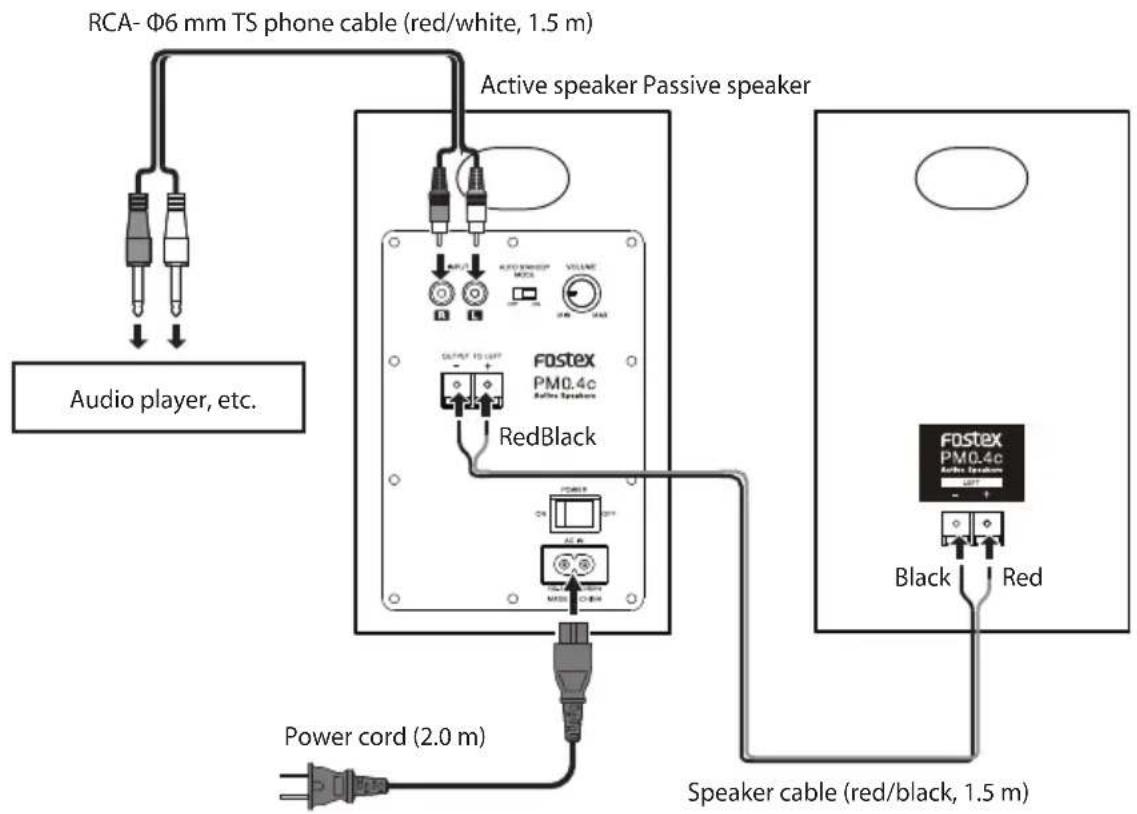

Connection

Caution

• Turn off the power of all devices before connecting.
• Do not use a power cord other than the supplied power cord.

Caution

Do not connect a product other than the passive speaker of PM0.4c to the [OUTPUT TO LEFT] terminal of the active speaker. Doing so may cause a malfunction.

Specifications

Speakers

Enclosure 2way bass reflex
Low range driver 100 mm (4 inch) cone speaker
High range driver 19 mm (3/4 inch) soft dome tweeter
Frequency characteristic 60 Hz to 20 kHz
Crossover frequency 1.6 kHz

Amplifier (active speaker only)

Input terminal RCA pin jack, 320 mV (input sensitivity)

Input impedance 10 kΩ or more

Rated output 30 W + 30 W

Distortion factor (THD) Less than 0.05% (2 W output)

General

Power (AC IN) 100 to 240 V 50/60 Hz ~

Power consumption 15 W (normal state), 0.5 W or less (standby state)

External dimension (mm) 130 (width) × 220 (height) × 169 (depth)(not including protrusions)

Weight 2.4 kg (active speaker), 2.1 kg (passive speaker)

Declaration of EC Directive

This equipment is compatible with the EMC Directive (2004/108/EC) - Directive on approximation of member nation's ordinance concerning the electromagnetic compatibility and with the Low Voltage Directive (2006/95/EC) - Directive on approximation of member nation's ordinance concerning electric equipment designed to be used within the specified voltage range. This equipment is also compatible with the Ecodesign Directive (2009/125/EC) - Directive on approximation of member nation's ordinance concerning the ecodesign requirement for energy-using products and with EU RoHS 2 Directive (2011/65/EU) - Directive on approximation of member nation's ordinance concerning the restriction of the use of certain hazardous substances in electric equipment.

The Affect of Immunity on This Equipment

The affect of the European Specification EN61000-6-1 (coexistence of electromagnetic waves - common immunity specification) on this equipment are as shown below.

In the electrical fast transient/burst requirements, surge, conducted disturbances by radio-frequency fields, power frequency magnetic field, radiate electromagnetic field requirements and static electricity discharging environment, this could be affected by generation of noise in some cases.
