T900A - Loudspeaker FOSTEX - Free user manual and instructions

Product Type	Passive bookshelf loudspeaker
Enclosure Type	Bass reflex with rear port
Woofer	4 inch paper cone
Tweeter	1 inch soft dome
Frequency Response	50 Hz - 30 kHz
Impedance	8 ohms
Sensitivity	86 dB (2.83 V/1 m)
Recommended Amplifier Power	20 - 100 watts per channel
Crossover Frequency	3.5 kHz
Connectors	Single pair of binding posts (bi-wire capable)
Dimensions (H x W x D)	300 x 180 x 250 mm (11.8 x 7.1 x 9.8 in)
Weight	5.0 kg (11 lb) each
Finish	Black wood grain vinyl
Accessories Included	Removable grille, rubber feet
Maintenance	Clean cabinet with soft dry cloth; do not use solvents
Safety Warnings	Keep away from water and heat sources; avoid magnet near sensitive devices
Repair and Parts	Contact authorized Fostex service center for genuine replacement drivers
Warranty	Limited 2-year manufacturer warranty

Frequently Asked Questions - T900A FOSTEX

How do I connect the Fostex T900A speakers to my amplifier?

Turn off your amplifier, then connect the positive terminal of the speaker to the positive output of the amplifier and the negative to negative. Ensure the impedance selector on your amplifier matches the 8 ohm rating of the T900A.

What is the recommended amplifier power for the T900A?

The T900A is best driven with 20 to 100 watts per channel. Using an amplifier with slightly higher power than the speaker's rating is acceptable, but avoid continuous high-volume playback to prevent driver damage.

Can I place the T900A on a bookshelf or should I use stands?

Bookshelf placement is acceptable, but for optimal stereo imaging, use sturdy speaker stands so the tweeter is at ear level. Avoid corners, as bass can become boomy.

How do I break in new Fostex T900A speakers?

Play music at a moderate volume for the first 20-30 hours. This helps the driver surrounds and suspension loosen and stabilizes the frequency response.

How do I clean the speaker cabinet?

Use a soft, lint-free cloth slightly dampened with water. Do not use volatile solvents like alcohol or benzene, which can damage the finish.

Can I use the T900A in a home theater system?

Yes. The T900A is a fine front or rear channel speaker. Ensure the receiver's crossover setting is appropriate (e.g., 60-80 Hz) if used with a subwoofer.

What is the impedance of the T900A and will it work with my A/V receiver?

The nominal impedance is 8 ohms, which is compatible with most receivers and amplifiers designed for 8 to 16 ohm loads. Check your receiver's speaker impedance selector.

How do I bi-wire the T900A speakers?

Remove the metal jumpers between the two sets of binding posts. Connect the tweeter and woofer terminals separately to two amplifier channels or use two runs of speaker cable. This can reduce interference between frequency bands.

What maintenance is required for the Fostex T900A drivers?

Keep the drivers away from dust and moisture. Use a soft brush to gently clean the grille and cone. Do not touch the dome tweeter; it is delicate.

Is the T900A magnetically shielded?

The T900A does not feature magnetic shielding. If placed very close to a CRT television or magnetic media, it may cause discoloration. Use a shielded subwoofer or keep at least 30 cm away from magnets.

USER MANUAL T900A FOSTEX

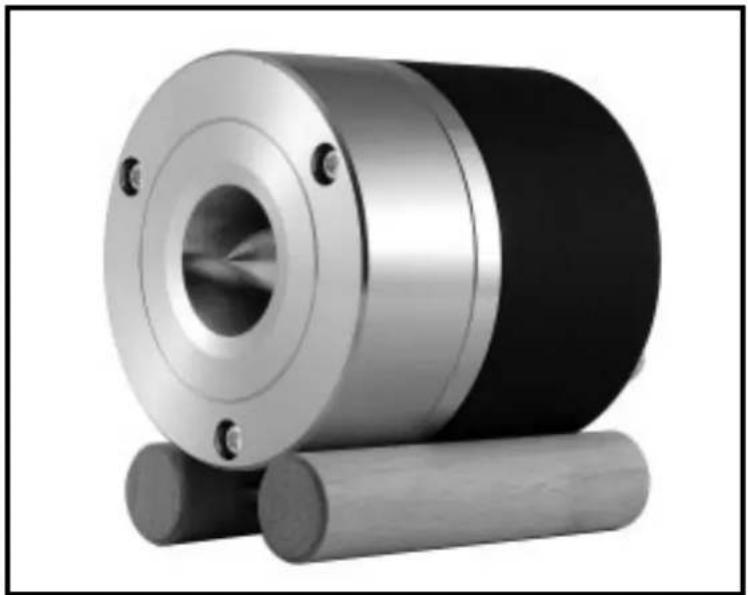

♦Horn Super Tweeter
♦8 ohm impedance
◆5kHz to 38kHz frequency response
◆106dB sensitivity at 1W/1m (3.3ft)
◆3.55kg (7.826 lb) net weight

Specifications

Impedance : 8 ohm

Reproduction Frequency Response: 5kHz - 38kHz

S.P.L. : 106dB/W (m)

Music Power : 60W

Cutoff Frequency : 3.6kHz

Recommended Cross-over Frequency: more than 7kHz

Magnet Weight : 240g (0.529 lb)

Net Weight : 3.5kg (7.826 lb)

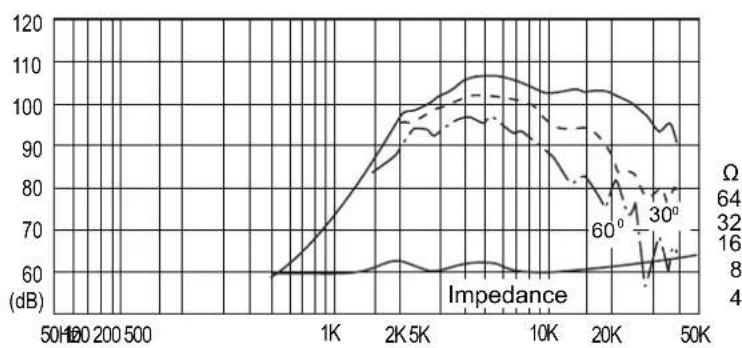

Frequency Response / Impedance

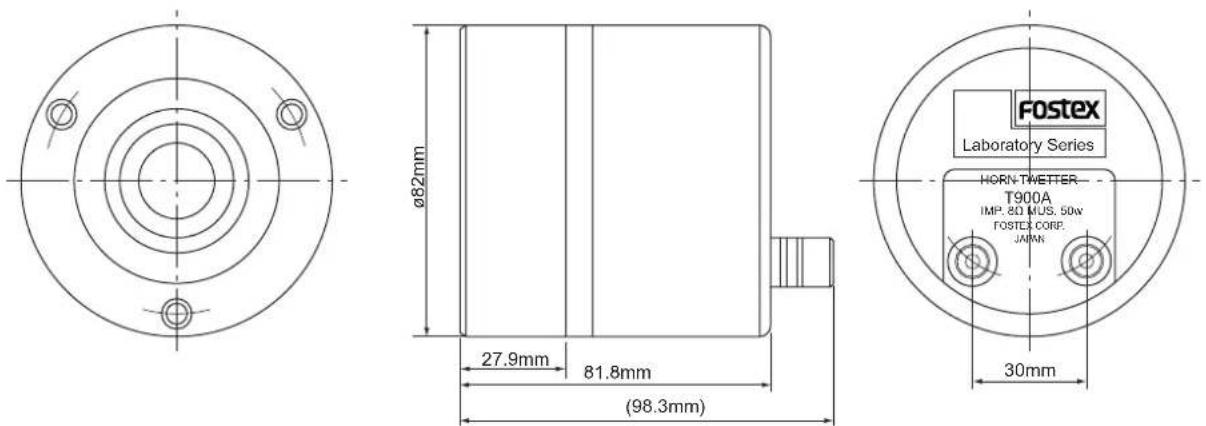

Dimensions & Mounting Information
