FT96H - Loudspeaker FOSTEX - Free user manual and instructions

Product Type	Horn-type loudspeaker
Brand	Fostex
Model	FT96H
Impedance	8 ohms
Frequency Response	2,000 Hz to 20,000 Hz
Sensitivity	96 dB (1W/1m)
Power Handling	20 W RMS
Driver Diameter	96 mm (3.5 in)
Mounting Type	Flush mount / Screw-on
Dimensions (H x W x D)	200 mm x 200 mm x 150 mm
Weight	2.5 kg
Material	Die-cast aluminum housing
Recommended Crossover Frequency	2,500 Hz
Power Source	Passive (external amplifier required)
Primary Functions	High-frequency playback for home audio systems
Maintenance	Clean diaphragm with soft dry cloth; avoid moisture
Safety	For indoor use only; keep away from heat sources
Spare Parts & Repairability	Diaphragm assembly and gaskets available separately
General Information	Designed for DIY audio projects and speaker enclosures

Frequently Asked Questions - FT96H FOSTEX

What is the Fostex FT96H?

The FT96H is a horn-type loudspeaker from Fostex, designed for high-frequency sound reproduction in audio systems.

What is the frequency range of the FT96H?

The FT96H covers a frequency range of 2,000 Hz to 20,000 Hz, making it suitable for treble and upper-midrange applications.

What amplifier power do I need to drive it?

A nominal power handling of 20 W RMS is recommended. Amplifiers with at least 10 W RMS per channel will work well, while more power provides headroom.

How do I connect the FT96H to my audio system?

Connect the speaker terminals to the amplifier output using standard speaker wire. Ensure the impedance matches your amplifier's rating (8 ohms).

Does the FT96H require a crossover network?

Yes, for best performance in a multi-way system, use a crossover with a cutoff around 2,500 Hz to blend smoothly with midrange drivers.

How should I maintain the speaker?

Gently wipe the diaphragm and housing with a soft, dry cloth. Avoid liquids and abrasive cleaners. Keep the unit dust-free when not in use.

Can the FT96H be used in a custom speaker enclosure?

Absolutely, the FT96H is a component speaker ideal for DIY enclosures or horn-loaded cabinets, offering flexible mounting options.

What is the sensitivity of the FT96H?

With a sensitivity of 96 dB (1W/1m), the FT96H is highly efficient, producing high output even with low-wattage amplifiers.

What materials are used in the FT96H housing?

The housing is made from die-cast aluminum, ensuring durability and reduced resonance for cleaner sound reproduction.

Where can I find spare parts for this speaker?

Spare parts such as diaphragm assemblies and gaskets can be sourced through Fostex authorized dealers or aftermarket audio parts suppliers.

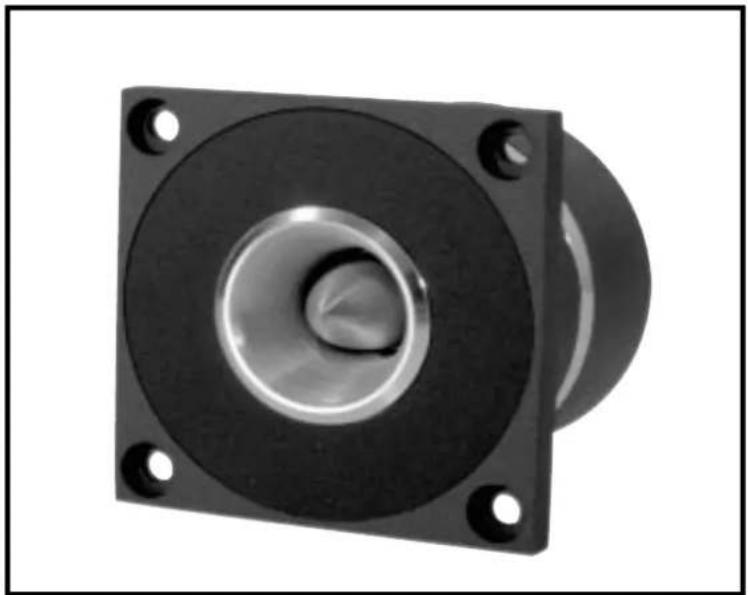

USER MANUAL FT96H FOSTEX

♦Horn Super Tweeter
♦8 ohm impedance
◆4kHz to 33kHz frequency response
◆100dB sensitivity at 1W/1m (3.3ft)
◆0.6kg (1.32 lb) net weight

Specifications

Impedance : 8 ohm

Reproduction Frequency Response: 4kHz - 33kHz

S.P.L. : 100dB/W (m)

Music Power : 50W

Cutoff Frequency : 3.9kHz

Recommended Cross-over Frequency: more than 8kHz

Magnet (alnico)Weight : 34g (0.07 lb)

Net Weight : 600g (1.32 lb)

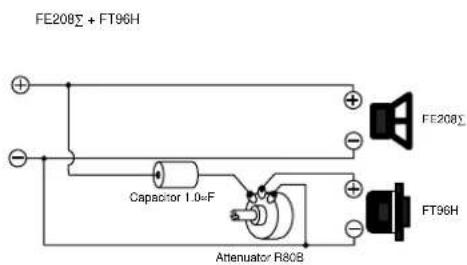

Configuration Example

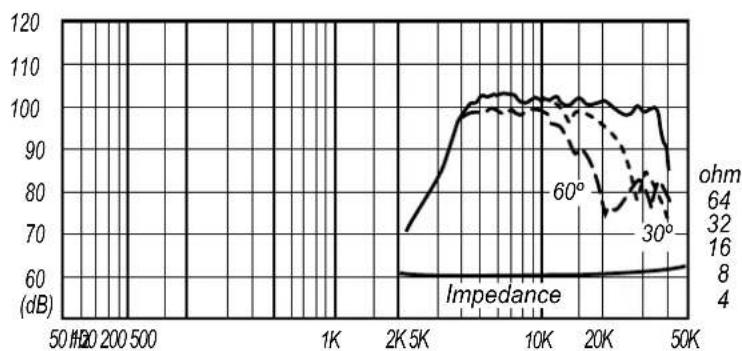

Frequency Response / Impedance

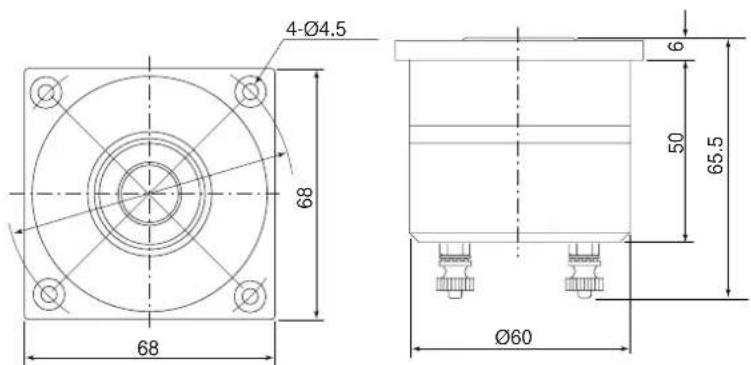

Dimensions & Mounting Information
