TOU6+ - Earplug EDIFIER - Free user manual and instructions

Product type	True wireless headphones
Brand	Edifier
Model	TO-U6+
Power - Charging case	5V 500mA (via USB Type-C or wireless charging)
Power - Earbuds	5V 55mA (charging in case)
Wireless charging	Yes, supported
Charging port	USB Type-C (case)
LED indicator	Orange: solid when charging, off when full, fast blinking when pairing
Control button	On case (pairing, reset, L/R connection)
Pairing	Open case, hold button for 3s, select 'EDIFIER TO-U6+ L' or 'R'
Reset	Earbuds in case, open, hold button for 10s, orange LED for 3s
Left/right connection	Earbuds in case, open, hold button for 8s, orange LED blinks slowly
Low battery notification	Audible: place earbuds in case to charge
Included accessories	USB Type-C charging cable
Reference	EDF200085
Manufacturer	Edifier International Limited, Hong Kong
Warning	Do not charge if sweat or liquid is present in the port

Frequently Asked Questions - TOU6+ EDIFIER

How to pair the Edifier TOU6+ earbuds with my phone?

Place the earbuds in the case, open the lid, then press and hold the button on the case for 3 seconds. The orange LED will blink rapidly. On your phone, enable Bluetooth and select "EDIFIER TO-U6+ L" or "EDIFIER TO-U6+ R". The connection is established when the LED blinks twice every 5 seconds.

How to reset the earbuds?

With the earbuds in the case and the lid open, press and hold the button on the case for 10 seconds. The orange LED will light solid for 3 seconds, then turn off, erasing all pairing records.

What does the blinking orange LED mean?

Rapid blinking orange LED indicates the earbuds are in pairing mode. Slow blinking (twice every 5 seconds) means the Bluetooth connection is established. Solid orange LED means the earbuds or case are charging.

How to charge the charging case?

Connect the provided USB Type-C cable to the case and to a power source (5V 500mA). The orange LED lights solid during charging and turns off when the battery is full. The case also supports wireless charging.

How long does the earbud battery last?

The manual does not specify the exact battery life. Generally, true wireless earbuds in this range offer several hours of listening. When the battery is low, an audible notification prompts you to place them in the case to recharge.

Are the earbuds compatible with wireless charging?

Yes, the charging case supports wireless charging. You can use a compatible Qi wireless charger to recharge the case.

How to connect the left and right earbuds to each other?

Place both earbuds in the case, open the lid, then press and hold the button on the case for 8 seconds. The orange LED will blink rapidly, then the earbuds will connect to each other. Once connected, the LED will blink gently.

What to do if only one earbud works?

Try resetting the earbuds by holding the case button for 10 seconds. If the problem persists, perform a left/right connection by holding the button for 8 seconds. Make sure both earbuds are properly in the case before proceeding.

Can I use the earbuds individually?

Yes, you can take out a single earbud from the case for mono use. It will automatically connect to the last paired device. The control on the single earbud will work normally.

How to clean the earbuds and case?

Use a soft, dry cloth to clean the surfaces. Avoid liquids and abrasive cleaners. Do not clean the charging port with metal objects. Make sure the port is dry before charging.

USER MANUAL TOU6+ EDIFIER

True Wireless In-Ear Headphones

EN

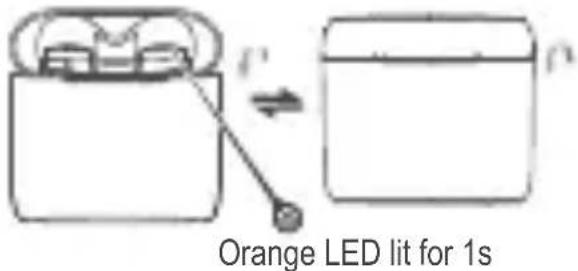

Power ON/OFF

1. Power ON when taken out of the case.
2. Power OFF when placed in the case.

Pairing

Button

1. Earbuds placed in the case, open the case lid, press and hold the button of the case about 3s to wait until earbuds Orange LED blink rapidly.
2. Select "EDIFIER TO-U6+ L" or "EDIFIER TO-U6+ R" in your device setting to connect, earbuds Orange LED will blink twice in 5s after connected.
3. Take out one or both earbuds as needed for use.

Note:

For subsequent use, the earbuds will auto-connect to device used last time.

Reset

Earbuds placed in the case, open the case lid, press and hold the button of the case about 10s, earbuds Orange LED will be steady lit for about 3s, then the pairing record will be cleared.

Left & Right connection

1. Both earbuds placed in the case and open the case lid, press and hold the button of the case about 8s to wait until the earbuds Orange LEDs blink rapidly, then left & right will start connecting.
2. Earbuds Orange LEDs will blink slowly after connected.

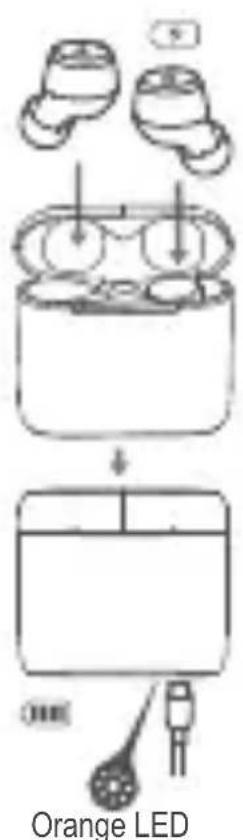

Charge

Earbuds

1. When hearing low battery prompt tone, please place the earbuds in the case for charging.
2. Orange LED is steady lit when charging and off when fully charged.

Charging case

1. Please connect the case to power source with the included Type-C charging cable for charging.
2. Orange LED is steady lit when charging and off when fully charged.

Input: 5V 55mA(Earbuds) 5V 500mA(Charging case)

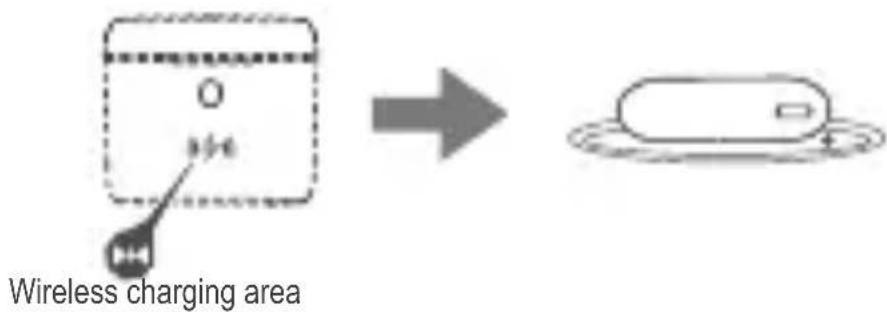

Wireless charging supported

Controls(Wearing both earbuds)

Note:

1. Please do not charge the product when there is sweat or other liquids inside the charging port, which may damage the product.
2. Images are for illustrative purposes only and may differ from the actual product.

For more information, please visit our website:

www.edifier.com

@EdifierGLOBAL @EdifierGLOBAL@Edifierglobal

Model: EDF200085

Edifier International Limited

P.O.Box6264

General Post Office

Hong Kong

www.edifier.com

2022 Edifier International Limited. All rights reserved.

Printed in China

NOTICE:

For the need of technical improvement and system upgrade, information contained herein may be subject to change from time to time without prior notice.

Products of EDIFIER will be customized for different applications. Pictures and illustrations shown on this manual may be slightly, different from actual product.

If any difference is found, the actual product prevails.

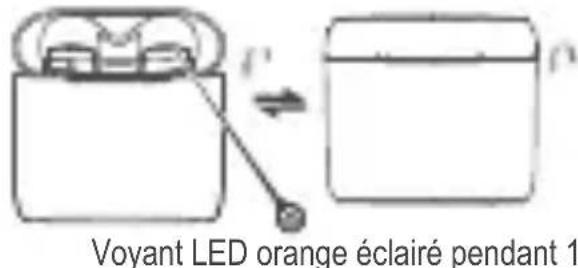

FR Allumer/Éteindre
