Product Type	Robot Vacuum
Brand	eufy
Model	RoboVac 25C Max
Dimensions	33 x 33 x 7.6 cm
Weight	2.8 kg
Power Supply	Lithium-ion battery 2600 mAh
Battery Run Time	100 minutes
Charging Time	300 minutes
Dustbin Capacity	0.6 L
Suction Power	2000 Pa
Noise Level	55 dB
Connectivity	Wi-Fi 2.4 GHz
Compatibility	Amazon Alexa, Google Assistant
Sensors	Infrared, anti-collision, anti-slip
Cleaning Modes	Auto, edge, spot, scheduled
Filter	High efficiency (HEPA type)
Maintenance	Clean sensors and dustbin
Safety	Drop detection, obstacle detection
Replacement Parts	Filter, side brush, dustbin
Repairability	Battery replaceable by a professional

Frequently Asked Questions - RoboVac 25C Max eufy

How to install the eufyHome app?

Download the eufyHome app from the App Store or Google Play. Create an account and follow the on-screen instructions to add your RoboVac.

How to connect RoboVac to Wi-Fi?

Make sure your RoboVac is powered on and near the charging base. Open the app, tap 'Add Device', select RoboVac 25C Max, then follow the prompts to connect to your 2.4 GHz Wi-Fi network.

What to do if RoboVac does not charge?

Check that the charging contacts on the robot and base are clean. Make sure the base is plugged in and the robot is properly positioned. If the problem persists, contact eufy support.

How to clean the sensors?

Use a soft, dry cloth to wipe the infrared sensors located on the top and front of the robot. Avoid abrasive products.

How to schedule a cleaning?

In the eufyHome app, go to the 'Schedule' tab. Set the time, days, and cleaning mode. Tap 'Save' to activate the schedule.

Why does RoboVac go in circles?

This may be due to obstructed sensors. Clean the sensors and make sure there are no obstacles. If the problem persists, reset the robot by holding down the power button for 10 seconds.

How to replace the battery?

Battery replacement should be carried out by a qualified technician. Open the bottom compartment, disconnect the old battery and install the new one observing polarity. Refer to the manual for more details.

The robot does not return to the charging base.

Check that the charging base is placed against a wall and unobstructed. Make sure the robot is not stuck and that the contacts are clean. Restart the robot and the base.

How to reset RoboVac?

Hold down the power button for about 10 seconds until the light flashes. Release, then press again to turn on. The reset restores factory settings.

What to do in case of an error code?

Error codes are displayed on the robot or in the app. Refer to the 'Troubleshooting' section of the manual to identify the cause. For example, code 3 indicates a blocked wheel.

USER MANUAL RoboVac 25C Max eufy

For FAQs and more information, please visit:

www.eufylife.com

Owner's Manual

RoboVac

English

Table of Contents

02 Important Safety Instructions
15 About Your RoboVac

What's In the Box
RoboVac Anatomy
LED Indication

19 Using Your RoboVac

Important Tips Before Use
Preparation
Charge Your RoboVac
Use Your RoboVac with the EufyHome App
Start/Stop Cleaning
Select a Cleaning Mode
Use Your RoboVac with Amazon Alexa /
the Google Assistant

28 Cleaning and Maintenance

Clean the Dust Collector and Filter

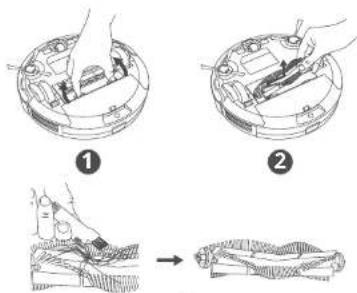

Clean the Rolling Brush
Clean the Side Brushes
Replace the Side Brushes
Clean the Sensors and Charging Pins
Clean the Swivel Wheel

35 Troubleshooting
40 Specifications
41 Customer Service

Thank you for purchasing RósoVac. Read all instructions before using this product, and keep it properly for future reference.

EnglishEng

Important Safety Instructions

To reduce the risk of injury or damage, read these safety instructions carefully and keep them at hand when setting up, using, and maintaining this device.

WARNING SYMBOLS USED

This is the safety alert symbol. This symbol alerts you to potential hazards that could result in property damage and/or serious bodily harm or death.

• For household and indoor use only.
• Use only as described in this manual. Only use attachments recommended by the manufacturer.
• Do not use this device with damaged cord or plug. If this device is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run this device over the cord. Keep the cord away from any heated surfaces.
• Do not unplug the device by pulling on cord. To unplag, grasp the plug, not the cord.
• Do not handle the plug or the device with wet hands.
• Do not put any object into openings. Do not use this device with any opening blocked.
• Keep hair, loose clothing, fingers, and all parts of your body away from open and moving parts.
• Turn off all controls before unplugging.
  Use extra care when cleaning on stairs.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.
• Place the cords from other appliances out of the area to be cleaned.
• Do not operate this device in a room where an infant or child is sleeping.
• Do not operate this device in an area where there are fragile objects on the floor to be cleaned.

0203

Do not operate this device in a room that has lit candles on furniture that the vacuum may accidentally hit or bump into.
- Do not use this device on a wet surface.
- Do not use this device without a dust collector and/or filters in place.
- Prevent unintentional starting by ensuring the switch is in the off-position before picking up or carrying the device.
- Under extreme conditions, liquid may eject from the battery; if this occurs, avoid all contact. If contact accidentally occurs, thoroughly wash with water and soap. If the liquid makes contact with your eyes, seek medical help immediately. Liquid from the battery may cause irritation or burns.
- Do not expose this device to fire or excessive temperature. Exposure to fire or temperature above 130^ / 265^ may cause an explosion.
- Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.
- Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.
- Do not modify or attempt to repair this device except as indicated in the instructions for use and care.
This device can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of this device in a safe way and understand the hazards involved.
Children should be supervised to ensure they do not play with this device.
- Cleaning and maintenance shall not be performed by children without adult supervision.
- The plug must be removed from the socket-outlet before cleaning or maintaining this device.
This device contains the battery that is only replaceable by skilled persons.
- This device must be disconnected from the supply mains when removing the battery.

C

EnglishEng

Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note:This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: (1) Reorient or relocate the receiving antenna. (2) Increase the separation between the equipment and receiver. (3) Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. (4) Consult the dealer or an experienced radio / TV technician for help.

The following importer is the responsible party (for FCC matters only).

Company Name: POWER MOBILE LIFE, LLC

Address: 400 108th Ave NE Ste 400, Bellevue, WA 98004-5541

Telephone: [phone]

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

ISED Compliance Statement

This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada's licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.

Declaration of Conformity

Hereby, Anker Innovations Limited declares that the product type T2132 is in compliance with Directives Directive 2014/53/EU.

The full text of the EU declaration of conformity is available at the following internet address: https://www.eufylife.com/

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

Maximum output power: 14 dBm

Frequency band: 2.4G band (2.4000GHz - 2.4835GHz)

Trademark Notice

Amazon, Echo, Alexa and all related logos are trademarks of Amazon.com, Inc. or its affiliates.
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
- Google Play and the Google Play logo are trademarks of Google Inc.
Google Home is a trademark of Google Inc.

FrancaisFra

Chargng Base Remote Coniro
(AAA Battery ×2)

Power Adapter

Additional Filer Cable Ties (x5) Owner's Manual &

Other Documents

EnglishEng

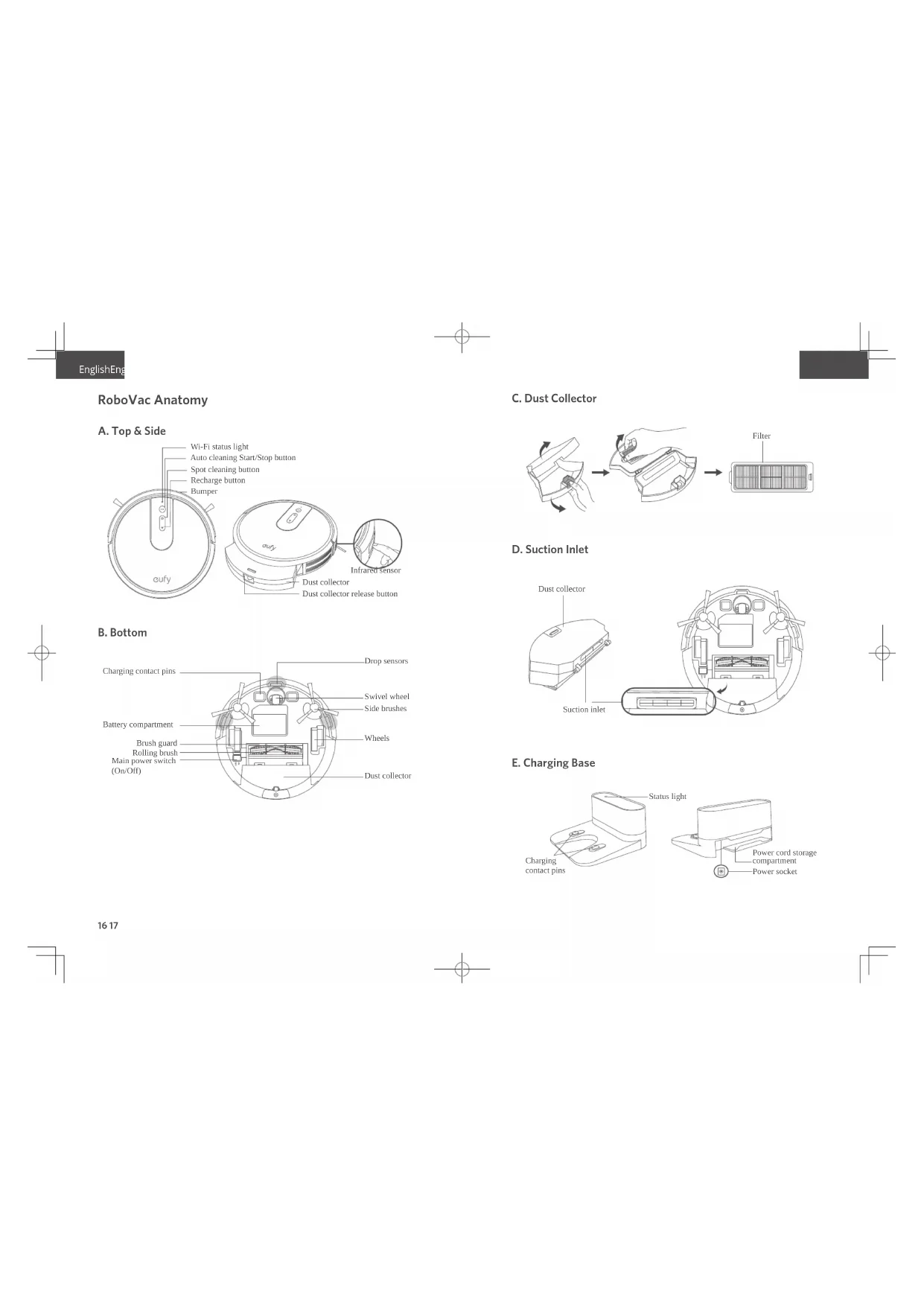

RoboVac Anatomy

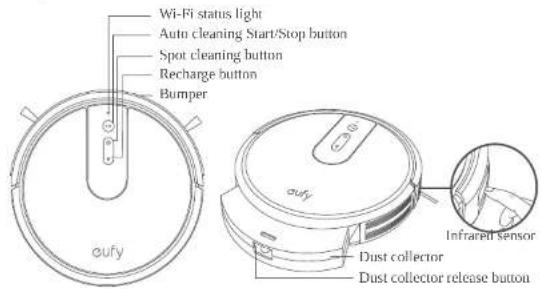

A. Top & Side

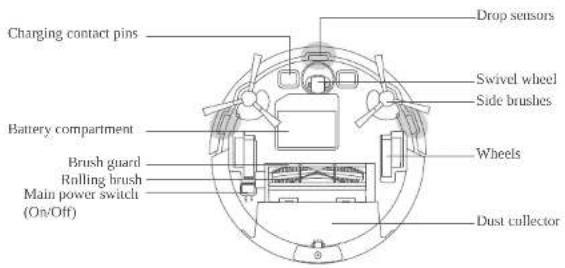

B. Bottom

C. Dust Collector
D. Suction Inlet

E. Charging Base

EnglishEng

Remote Control

1 Return RoboVac to Charging Base
Adjust suction power level
3 Start Auto cleaning/Stop cleaning

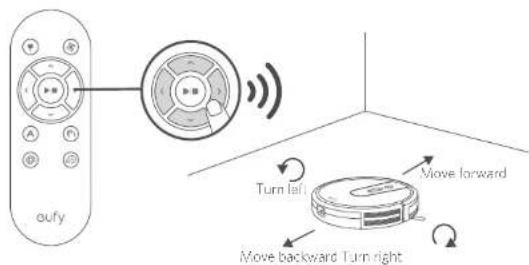

4 Controlclearing direction manuayly
5 Start Auto cleaning
6 Start Edge cleaning
7 Start Spoil cleaning

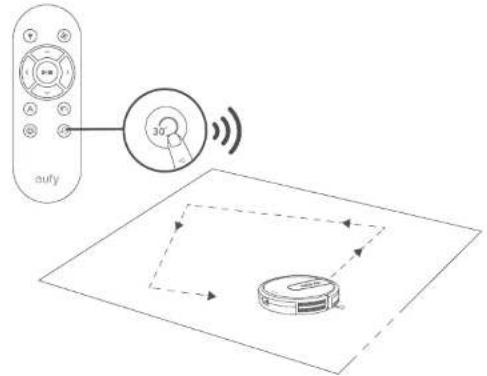

8 Start Quick cleaning

install 2 AAA batteries before using the remote control for the first time. Make sure the positive and negative ends are facing the correct polarity direction as marked in the battery compartment.

Buttons & Indicators

	Start/Stop Cleaning Reset the Wi-Fi Connection (Press and hold for 10 seconds until RoboVac beeps) • Solid Blue: standby or cleaning • Flashing/Solid red: error ‘Refer to the “Troubleshooting”>Error Tone” section in this manual for solutions.

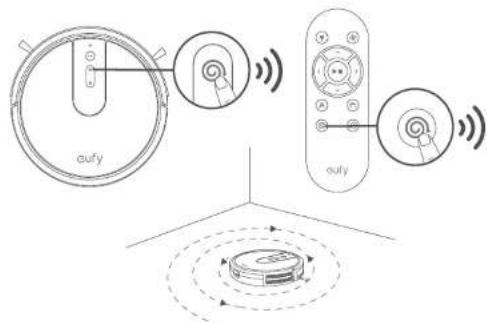

	Spot Cleaning • Flashing blue: Spot Mode
	Return to Charging Base • Flashing blue: returning to charging base • Flashing orange: low power and returning to charging base • Breezing orange (when docked to charging base): charging • Solid blue (when docked to charging base), fully charged
When you use the Find My Robot function via the EutyHome app, all three LED indicators flash blue and RoboVac beeps once. To conserve power, all LED indicators automatically turn off when: • RoboVac is not docked to the Charging Base and has been inactive for 10 minutes; • RoboVac is fully charged for 10 minutes.

(Wi-Fi Status Light)	Status
Slowly flashing blue waiting for connection
Rapidly flashing blue Connecting with your wireless router
Solid blue Connected to your wireless router

Using Your RoboVac

Important Tips Before Use

a

6

C

d

e

f

• Remove power cords and small objects from the floor that may entangle RoboVac. You can use the supplied cable ties to organize your wires and power cords.
  5 Fold tasseled edges of area rugs undereath to prevent tanging RoboVac. Avoid clearing very dark-colored rugs or high-pile rugs thicker than 1.02 in/26 mm as they may cause RoboVac to malfunction.
  Keos Robovac away from spaces lower than 2.87 in/73 mm to prevent RoVoVac from getting stuck. If necessary, place a physical barrier to block off the problem areas.
  Keep RoboVac away from wet areas during clearing.
  RoboVac may climb on top of objects less than 0.63 in/16 mm in height. Remove these objects if possible.

EnglishEng

1 Anti-drop sensors can prevent RoboVac from jumping down stairs and sleep drops in most cases. They may work less effectively if dirty or used on reflective/very dark-colored floors. It is recommended to place physical barriers to block off areas where RoboVac may fail, such as slats covered by carpets or the rounded edges of wood floors.

Place physical barriers in front of fireplaces and areas that may cause damage to RoboVac if entered.

Preparation

1 Install the side brushes before use.

Turn on the main power switch on the bottom of RoboVac.

Remove the sticker next to the power switch, and the foam blocks beside the bumper before use.

Place the Chnging Base on a hard, level surface and agaisn: a wall.

4 Remove objects within 3 ft/1 m of the left and right side and within 6 ft/2 m of the front of the Charging Base. If you cannot remove the objects, check whether RoboVac can return to the Charging Base normally; if not, contact easily customer service for help.

Connect the round connector of the adapter into the power socket on the Charging Base and the other end into a wall outlet.

When the Charging Base connects to AC power, the LED indicator on the Charging Base is SOLID WHITE.

• 'mull the Chongqing Base in a lairful of that. Roboovc can easysly access. It is recommended to place the Chongqing base against a wall, and on a hand-elev surface to return that on suigs or corpora.
• 'Always keep the Chongqing Base plugged in, otherwise Robovc will not automatically return it.

Charge Your RoboVac

Robovac has a pre-installed rechargeable battery that has to be fully charged before use.
RoboVac returns to the Charging Base at the end of a clearing cycle or when its battery is running low.

EnglishEng

Method 1: Attach RoboVac to the Charging base by aligning its charging pins with the charging pins on the base.

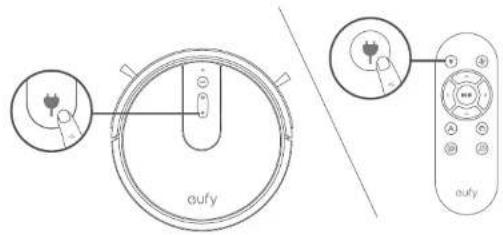

Method 2: Press in RoboVac on the remote control to return RoboVac to the Charging Base.

Turn off the main power switch if RoboVac will not be used for a long period of time. To preserve the battery's lifespan, recharge at least once every 6 months.

Use Your RoboVac with the EufyHome App

To enjoy all available features, it is recommended to control your RoboVac via the Eufy-lorme app.

Before you start, make sure that:

• Your smartphone or tablet is connected to a Wi-Fi network.
• Your smartphone or tablet is running iOS 9.0 (or above) or Android 5.0 (or above).
  The 2.4GHz band wireless signal is enabled on your wireless router.
  The Wi-Fi status light on RoboVac is slowly flashing blue.
• The main power switch on the bottom is turned on and RoboVac is attached to the Charging Base to ensure it has enough power during setup.

22 23

Download the Fully home app from the App Store (iOS devices) or Google Play (Android devices).
2 Open the app and create a user account.
3 Tap the ^+ icon to add RoboVac to your FiftyHome account
4 Follow the instructions in the app to set up the Wi-Fi connection.

After connecting successfully, you can control RoboVac via the app.

With the app, you can select a cleaning mode, set the time, schedule a cleaning, view the system status, receive notifications and access additional features.

Wi-Fi Status Light

Slowly flashing blue Waiting for connection

Rapidly flasing blue Connecting with your wireless router

Solid blue Connected to your wireless router

If you have any problems during the Wi-Fi setup process, refer to the "Troubleshooting" > Wi-Fi connection" section in this manual.

• If RoboVac gets stuck in any space, tap Find My Robot in the app to find the machine. This function is available in the tap only.

Reset the Wi-Fi Connection

Press and hold RoboVac for 10 seconds until RoboVac beeps to reset the Wi-Fi connection if necessary.

You will hear a bee when the Wi-Fi connection has been reset and the Wi-Fi status light will slowly flash a bee. Now you can follow the Wi-Fi instructions in the Fully Home app for set up the Wi-Fi connection.

EnglishEng

Schedule Cleaning

With the EufyHome app, you can schedule RoboVac to start cleaning at a particular time

You can set the time and customize the cleaning schedules from Sunday to Saturday of the Eutlyhome app. This function is available in the app only.

Start/Stop Cleaning

• Make sure the main power switch on the bottom of RobuVac is turned on before use.
• You can also start or stop cleaning via the Eurohome app.

PressRoboVac or A on the remote control to start cleaning in Auto Mode.

Press RoboVac or remote control to stop cleaning.

Select a Cleaning Mode

You can also select a cleaning mode via the EufyHome app.

1. Auto cleaning

Robovac optimizes its cleaning path by selecting different cleaning modes automatically until cleaning is complete. This is the most commonly used cleaning mode.

Press RoboVac on the remote control to start cleaning in Auto Mode.

RoboVac will return to its charging base automatically when the battery level becomes low or when RoboVac finishes a charging.

By default, RoboVac starts in Auto cleaning mode when it is turned on.

BoostIQ™ Feature

When the BoostIQTM feature is enabled, RoboVac will automatically increase the suction power if it detects stronger power is needed to ensure the best clean. BoostIQTM is ideal for cleaning thick carcases and hard-to-sweep masses, which will reduce the total cleaning time, but increase the noise level. If the vacuuming noise caused by BoostIQTM disturbs you, you can disable this feature. This feature only works in Auto and Quick casing modes.

In Auto or Quick cleaning mode, press the remote control repeatedly to adjust the suction power level.

The corresponding icon is displayed on the remote control.

Suction Power Level Beeps
Standard power	●
Bosii IQ® (Default, automatically switches between Standard and Enhanced power)	●●
Maximum power	●●●

EnglishEng

When RoboVac starts cleaning in Auto or Quick mode the next time, it will clean according to the suction power level you previously selected.

2. Spot cleaning

RoboVac intensively cleans a specific area in a spiral pattern, useful if there is a concentrated area of dust or debris. In Spot mode, RoboVac will stop cleaning after 2 minutes.

Press on RoboVac or on the remote control to start clearing in Spot Mode.

3. Edge cleaning

RoboVac reduces its speed when it detects a wall and then follows the wall to ensure the edge is cleared thoroughly. In edge mode, RoboVac will clean for 20 minutes and return to the Charging Base.

Press for the remote control to start cleaning in Edge Mode.

26 27

4. Quick cleaning

RoboVac will automatically stop cleaning after 30 minutes and return to the Charging Base in this mode. If any small room or area needs to be cleaned, it is recommended to select this mode to save time and power.

Press the remote control to start quick cleaning mode.

5. Manual cleaning

You can direct RoboVac to clean a particular area by using the directional buttons on the remote control.

EnglishEng

Use Your RoboVac with Amazon Alexa / the Google Assistant

Currently this feature only supports English, German, French, and Spanish. You could check regularly if more languages are supported at: https://www.euifylife.com/support/.

Amazon Alexa and the Google Assistant are smart voice assistants that enable you to control RoboVac with your voice.

Before you start, make sure that:

RoboVac is attached to the Charging Base to ensure there is enough power
- RoboVac is connected with the EufyHome app.
- You have an Alexa-enabled device (i.e. Amazon Echo, Echo Dot and Amazon Tap, Echo Show, Echo Spot) or a device enabled with the Google Assistant (i.e. Google Home, Google Home Mini). These devices are sold separately.
- The Amazon Alexa app or Google Home app is already installed on your smart device, and you have created an account.

To control RoboVac with Amazon Alexa or the Google Assistant

Open the EufyHome app and tap "Smart Integrations" in the top left.

Follow the on screen instructions to complete the setup.

Ferroni information about how RoboVac works with Amazon Alexa / Ihu Google Assistant, visit https://www.eufyife.com/support/t/ for details.

Cleaning and Maintenance

For optimal performance, follow the instructions below to clean and maintain RoboVac regularly. The cleaning/replacement frequency will depend on your usage habits of RoboVac.

Recommended cleaning/replacement frequency

RoboVac Part Cleaning Frequency Replacement Frequency
Dust Collector After each use
Filler	Once every week (Twice a week if you have a pack)	Every 2 months
Rolling Brush Once every month Every 6-12 months
Side Brushes	Once every month Every 3-6 months (or when visibly worn)

Brush Guard	Once every month	Every 3-6 months (or when the silicone rubber strip on the brush guard becomes viscny worn)
Sensors	Once every month -
Charging Pins	Once every month -
Swivel Wheel	Once every month -

Clean the Dust Collector and Filter

Press the dust collector release button to pull the dust collector out.

Open and empty the dust collector.

Take out the filter.

EnglishEng

4 Rinse the filter thoroughly with water.

Do not use a brush, hot water, or any detergent to clean the filter.

5 Air-dry the filter completely before next use. You may change to use the other filter if the original one is not completely dry.

Put the filter back into the dust collector

30 31

7 Push the dust collector back into the main unit.

Clean the Rolling Brush

1 Pull on the release tab to unlock the brush guard as shown.
2 Lift the rolling brush to remove.
Clean the rolling brush with the provided cleaning tool or a vacuum cleaner.
4 Reinstall the rolling brush by inserting the fixed protruding end first and then clicking into place.
Press down to snap the brush guard into place.

3
4
5

EnglishEng

Clean the Side Brushes

Foreign substances, such as hair, can easily get tangled in the slide brushes, and dirt may adhere to them. Be sure to clean them regularly.

1 Remove the side brushes.

Carefully unwind and pull of any hair or string that is wrapped between the ruin unit and the side brushes.
Use a cloth dampened with warm water to remove dust from the brushes or to gently reshape them.

Only use the side brushes when they are completely dry. To protect your wooden or carpeted floor, our side brushes are made of soil materials and may become cured after use for some time, but it will not affect the cleaning effect.

Replace the Side Brushes

The side brushes may become bent or damaged after being used for a period of time. Follow the instructions below to replace them.
- Full of the old side brushes and snap the new ones into place.

Clean the Sensors and Charging Pins

To maintain the best performance, clean the bumper, sensors and charging pins regularly.
- Dust of the hummer, sensors and charging contact pins using a dry cloth or cleaning brush.

Clean the Swivel Wheel

Hair or dust particles can easily get entangled in the swivel wheel. Be sure to clean the swivel wheel periodically and as needed.

EnglishEng

Pull out The swivel wheel.

Cleem any hair or debris wrapped around the wheel or entangled inside the wheel cavity.
Reinstal the wheel and push in until it clicks into place.

• Use can clean the swivel wheel with water
• Use the swivel wheel only when it is completely dry.

Troubleshooting

Frequently asked questions:

The solutions below are for general questions. If your problem persists, visit www.euylife.com or contact [e-mail] for help.

Problems Solutions
RoboVac cannot be activated.	Make sure the main power switch is in the ON position. Make sure the battery is fully charged. Replace the batteries (2 AAA) in the remote control. Make sure the remote control is within range (16 ft/5 m) of RoboVac. If you still have trouble, turn off the main power switch and then turn it back on.
The remote control does not work.	Replace the batteries in the remote control. Make sure RoboVac is turned on and fully charged.
RoboVac stops working suddenly.	Check if RoboVac is trapped or stuck on an obstacle. Check if the battery level is too low. Check the "Error Tones" section to find the solution. If you still have trouble, turn off the main power switch, wait for 2 seconds, and then turn it back on.
You cannot schedule cleanings.	Make sure the main power switch on the bottom of RoboVac is turned on. You can set the time of day and scheduled cleaning time via the EufyHome app. Make sure the scheduled time has been set correctly. Check if RoboVac's power is too low to start cleaning. Cleaning schedules are erased when RoboVac is powered off. If RoboVac is powered on without Internet access, cleaning schedules will not synchronize and must be reset via the app.
Suction power is weak	Check if any obstructions are blocking the suction inlet. Empty the dust collector. Check if the filters are wet due to water or other liquid on the floor. Air-dry the filters completely before use.

Problems Solutions

RoboVac cannot be charged.	·Check if the indicator on the Charging Base lights up. If not, contact the eufy service center to repair or replace the Charging Base. ·Check if the indicator on RoboVac is solid red and there is no beep during charging. If yes, it indicates the battery has failed. Reinstall the battery, then turn RoboVac on and off. If the problem persists, contact the eufy service center to repair or replace the battery. ·Dust off the charging contact pins with a dry cloth. ·Check if you can hear a beep when RoboVac is docked onto the Charging Base. If not, contact the eufy service center to repair or replace the Charging Base.
RoboVac cannot return to the Charging Base.	·Remove objects within 3 ft/1 m to the left and right side and within 6 ft/2 m of the front of the Charging Base. ·When RoboVac is in the vicinity of the Charging Base, it will return more quickly. However, if the Charging Base is located far away, RoboVac will need more time to return. Please be patient as it works its way back. ·Clean the charging contact pins.
The rolling brush does not rotate.	·Clean the rolling brush. ·Check if the rolling brush and brush guard have been installed properly.
RoboVac's movements or travel path are abnormal	·Clean the sensors carefully with a dry cloth. ·Restart RoboVac by turning the power switch off and on.
RoboVac's cleaning time becomes shorter or is less than 100 minutes.	·Make sure RoboVac is fully charged (indicated by a solid blue LED light) before cleaning. ·The cleaning time will be affected by the suction mode and floors/carpots to be cleaned. ·Standard suction mode (on hardwood floors): approx. 100 minutes of cleaning ·Boost-QTM mode (on carpeting): approx. 60 minutes of cleaning ·Max suction mode (on medium-plate carpets): approx. 40 minutes of cleaning. ·If your cleaning time is much less than the time mentioned above, contact eufy customer service for help.

Problems Solutions

RoboVac cannot connect to a Wi-Fi network.	Make sure you entered the Wi-Fi password correctly. Make sure your RoboVac, router, and mobile phone are close enough to ensure a strong signal strength. Make sure your Wi-Fi router supports the 2.4GHz and 802.11b/g/n bands; the 5GHz band is not supported. For details, refer to the "Troubleshooting > Wi-Fi connection" section in this manual.
You cannot control RoboVac with Amazon Alexa.	Check if there are any Internet connection problems. Check whether you have installed the Amazon Alexa app onto your smart device and enabled "EufyHome - RoboVac" Skill in the Amazon Alexa app. For details, refer to the "Smart Integrations" page in the Eufy Home App. Make sure you have an EufyHome account and have connected to RoboVac. Make sure you are using correct Alexa voice-commands.
You cannot control RoboVac with the Google Assistant.	Check if there are any Internet connection problems. Check if you have installed the Google Home app onto your smart device and initiated the "Eufy Home" action in the Google Home app. For details, refer to the "Smart Integrations" page in the Eufy Home App. Check if you are using the proper commands when talking to the Google Assistant. When making your request, first say the wake words "Ok Google". Repeat your question. Speak clearly to the Google Assistant.

Error Tones

When RobVar is in trouble, it will emit a series of short or long beeps and the red indicator on the can be solid or flashing.

Flashing red indicator light

Error Tone Cause Solution
One drop	• RoboVac is stuck and one of the wheels is not making contact with the floor (hanging in mid-air). • RoboVac may be in an extremely large room and the bumper is not registering obstacles.	Restart cleaning in a new location.
Two beeps	RoboVac's bumper is stuck.	Tag RoboVac's bumper several times to dislidge any debris that may be trapped underneath
Three beeps	RoboVac can get stuck in the following scenarios: ·When RoboVac does not have enough power to reverse when on the edge of a staircase that is covered by a rug. ·When RoboVac tries to reverse due to exposure to strong sunshine, but cannot reverse due to physical barriers in the way. ·When RoboVac reverses due to exposure to strong sunshine, but continues to be exposed to strong sunshine after reversing for 3 seconds.	·Restart cleaning in a new location. ·Use a physical barrier to block off the problem area.
Four beeps	RoboVac's power level is too low.	Manually charge RoboVac for at least 5 hours.

Solid red indicator light

Error Tone Cause Solution
One beeep	RoboVac's left/right, whee! is stuck.	Turn off RoboVac and remove any hair or debris from the left/right whee!
Two beeps	RoboVac's side brush is stuck.	Turn off RoboVac and remove any hair or debris from the side brush.
Three beeps	RoboVac's suction fan is stuck.	Turn off RoboVac, then remove and empty the dust collector. Make sure the suction inlet is not blocked by any hair or debris.
Four beeps	RoboVac's rolling brush is stuck.	Turn off RoboVac and remove any hair or debris from the rolling brush.

Wi-Fi Connection

Before WI-HI setup, make sure RoboVac and your WI-HI network meet the following requirements.

Wi-Fi Setup Requirements

RoboVac:
RoboVac is fully charged and the main power switch on the bottom of RoboVac is turned on.
Wi-Fi status light slowly flashes blue
Wi-Fi Network
Use the correct password for your network.
- Do not use a VPN (Virtual Private Network) or Proxy Server.
Your Wi-Fi router supports 802.11b/g/r and Pv4 protocol.
- You are using a 2.4GHz router or a dual-band router that is configured to support a 2.4GHz frequency band. BobVan does not support 5GHz (frequency band).
- If RoboVac cannot connect to the Wi-Fi network and you are using a 2.4/5GHz mixed network, switch to a 2.4GHz network for Wi-Fi setup. You can switch back once your setup is complete.
When connecting to a hidden network, make sure you enter the correct network name.SSID (case sensitive), and connecting to a 2.4G12 wireless network. When using a network extender/repeater, make sure the network name (SSID) and password are the same as your primary network.
The firewal and port settings of your Wi-Fi router allow RabiVac to connect with the Euy's servers.

Network Security Requirement

WFA and WPA2 using TKIP, PSK, AES/CCMP encryption

Wi-Fi Channels

The FCC requires that all wireless devices in the United States operate on the 1-11 wireless spectrom channels.
Some countries outside North America can use spectrum channels higher than channel TI. Refer to your local regulatory agency to determine which channels are accessible.
A feature software release will support access to channels above 11 for users outside North America, Until then, use channels:1-3.

If you cannot control RoboVac with your smartphone, try the solutions below to solve the problem. If the problem persists, contact the suy service carier for help.

Wi-Fi Status Light Cause Solutions
Solid blue	RoboVac has connected to your router, but cannot access the Internet.	Check if your router is connected to the Internet. Check with your Internet provider to see if there is any Internal connection problem.
Rapidly flashing blue	RoboVac cannot connect to your wireless router.	Check if you have modified your network name and password. Reset Wi-Fi connection if necessary. Refer to the "Use Your RoboVac with the EufyHome App > Reset the Wi-Fi Connection" section in this manual.
Slowly flashing blue	Wi-Fi connection is reset or has not been set up before.	Set up Wi-Fi connection with RoboVac. Refer to the "Use Your RoboVac with the EufyHome App" section in this manual. Reset Wi-Fi connection if necessary. Refer to the "Use Your RoboVac with the EufyHome App > Reset the Wi-Fi Connection" section in this manual.
Off	• RoboVac is turned off. • RoboVac's power level is low. • RoboVac is in Sleep mode.	Charge RoboVac by attaching it to the Charging Base. Make sure the main power switch on the bottom of RoboVac is turned on.

Specifications

Input 19 V	=0.6 A
Battery Voltage DC 14.2 V
Power Consumption 40 W
Battery Type	DC 14.4V Unon 2600 mAh
Dust Collector Capacity	0.6 L
Cleaning Time Max 100 mins
Charging Time 300 - 360 mins
Charging Temperature 5°C - 40°C
Storage Temperature -70°C - 60°C
Input 19 V 0.6 A
Output	19 V =0.6 A

Customer Service

For FAQs and more information, please visit www.eufylife.com.

品 [e-mail]

[e-mail] (For Middle East and Africa Only)
[e-mail]

www.eufylife.com

() + 1 (800)9887973 Mon-Fri 9:00am-5:00pm (PT)

UK+4401604936200Mon-Fri6:00-11:00GMT)

(DE) [phone] Mo-Fr 6:00 - 11:00

（中国）[phone]周一至周五9:00-17:30

(Egypt) [phone] Sun-Thu 7:00 -15:30 (GMT+2)

(KR) + 8202 - 1670 - 7098 Mon-Fri 10:00-17:00 (GMT+1)

(AU) [phone] Mon-Fri 8:30-17:00 (AEST)

Arker Innovations Limited

Room 1318-19, Holywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

EspanolEgi

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

Download on the App Store

GET IT ON Google Play

Anker Innovations Limited

Room 1318-19, Hollywood Plaza, 610 Nathan Road, Mongkok, Kowloon, Hong Kong

Maksimum cikis gucu: 14 dBm

Frekans bandi: 2,4 G bandi (2,4000 GHz - 2,4835 GHz)

Ticari Marka Bildirimi

Download on the App Store

GETITON Google Play

App Store/Android (iOS) chazlar (ip) vya Google Play Gen (Android chazlar (ip)
2 Uygulamayi agin ve bilkanici hesabioqturun.
3 RonoVacI FulyHome hesabn za ekim kicin +simgesine dolurun
Wi-Fi baglantism kurnak icin uygulamadaki talmadari uygulayin.

Bapanyla bagland kkan sonra RoboVacuyugulama uzerinden kontrl ebeiliriz.

SSeti tarafindan by Garanti He geslin in vermemes durnnda tkeic Gumruk

ve Tcaret BakaniG Tuketdinin Korunmasi ve Plyaasa Gozetmi Genel Mudurluguro

basvaturil.

Türk

GARANTI GEÇERLILIK KOSULLARI

1. Czhin mont veysea onanianin fmmse zykkil servissirlin haincde yagtin in ya da cianaz agidjiniri esbuli halide garuti gezerst ilacukr.

2. Himmamz terafindan vienen GARANTI Soz Ionusu cihazn amadlan digna vya anomal sartiard kullan Imasindan dogacak anzalarin ng derimesini kopsamadi gbl ayagida behent emarzlar da gamarii ddir.

aChazim kulenna kavuzunde yeva monai kailuzunde yer aian hususlara aykeni kulinnarhalanin, kazedin myedine gelen hasar ve anirana.

Volajuy uyytszukju, hatai elekurk dinamir. ilie zucu elkurinde yazir vojaiden farki volaji ul kullan denyedi mya cer geckar zer ozler.
