| Brand | Airforce |
| Model | BOx 90 TSE |
| Product type | Extractor hood |
| Width | 90 cm |
| Estimated weight | 15 kg |
| Power supply | 220-240 V, 50/60 Hz, 30 mA differential |
| Motor power | Not specified, max flow rate > 650 m³/h |
| Suction speeds | 4 speeds + automatic mode (sensor) |
| Lighting | LED, ON/OFF button |
| Functions | Timer 5 min, heat detector, filter saturation indicator |
| Exhaust version | Extracting (outside) or recirculating (charcoal) |
| Grease filter | Metallic, dishwasher safe (low temperature cycle) |
| Charcoal filter | Activated, non-washable, replace every 6 months |
| Minimum distance from cooktop | 50 cm (electric), 65 cm (gas or mixed) |
| Maintenance | Clean the hood with a cloth soaked in denatured alcohol or neutral detergent |
| Safety | Automatic shut-off after 4 h of inactivity, last speed timeout (7 min) |
| Repairability | LED not replaceable by user, contact customer service |
| Power cable | Length 1.25 m with or without plug |
| Standards | Compliant with WEEE directive (2002/96/EC) |
Frequently Asked Questions - BOx 90 TSE Airforce
User questions about BOx 90 TSE Airforce
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Basket in PDF format for free! Find your manual BOx 90 TSE - Airforce and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BOx 90 TSE by Airforce.
USER MANUAL BOx 90 TSE Airforce
| GB | INSTRUCTIONS ON MOUNTING AND USE |
| F | PRESCRIPTIONS DE MONTAGE ET MODE D'EMPLOI |
| NL | MONTAGEVOORSCHRIFTEN EN GEBRUIKSAANWIIZING |
| ES | MONTAJE Y MODO DE EMPLEO |
| I | ISTRUZIONI DI MONTAGGIO E D'USO |
| NÁVOD K MONTÁŽI A POUŽITÍCZ |


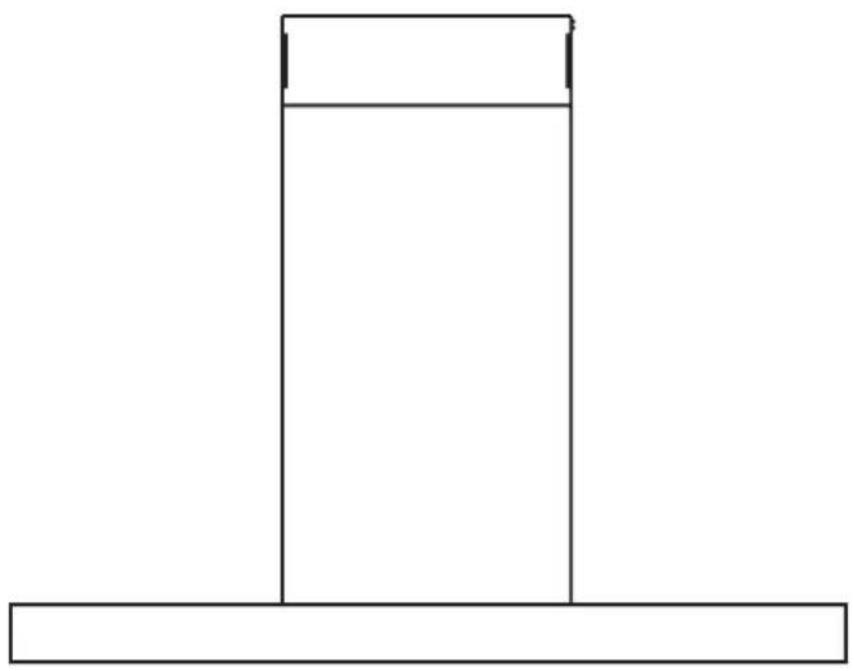

OPTIONAL
Warnung
The appliance should not be used by children under 8 years of age and by persons with reduced physical, sensory and mental capabilities, or lack of experience and knowledge, unless they are supervised or have received instructions regarding the safe use of the appliance and are aware of the possible risks. Children must not play with the appliance. Any intended cleaning and maintenance by the user should not be carried out by children unless supervised. The hood should never be used without without the grid properly fitted! Never use the hood without the grill properly fitted!
The accessible components can overheat when the cooktop is in use.
The hood must not be connected to the flues of other appliances that run on gas or other fuels. When the hood is used at the same time as other appliances that run on gas or other fuels, provision must be made for an adequate supply of air. No food must be cooked flambé underneath the hood. The use of an unprotected flame could cause damage to the filters and could cause fires, so should be avoided. When frying food, never leave the pan unattended because the cooking oil could flare up. Please comply with the technical and safety provisions set forth by your local competent authorities regarding the ventilation of hoods.
This appliance conforms to European Directive 2002/96/EC, Waste Electrical and Electronic Equipment (WEEE). Please dispose of this product correctly in the interest of health and the environment.
The symbol 📁 on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal. For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product. If the power cable is damaged you should, in the interest of safety, contact the manufacturer or the manufacturer's technical assistance service to request a replacement, or ask someone who is similarly qualified.
Check also the drawings on the initial pages with the alphabetical and numerical references in the explanatory text. Closely follow the instructions in this manual. We cannot accept liability for any faults, detriment or fire damage to the appliance due to non-compliance with the manual's instructions.
You should affix the hood to a wall of sufficient weight-bearing capacity, so not to one made of plasterboard.
The cooker hood must be placed at a minimum distance of 65 cm from the cooking plane for electric cookers and 50 cm for gas or mixed cookers. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. Do not tile, grout or silicone this appliance to the wall. Surface mounting only. Do not fix chimney flue to furniture or fly over shelves unless the chimney flue can be easily removed, in case maintenance is ever required.

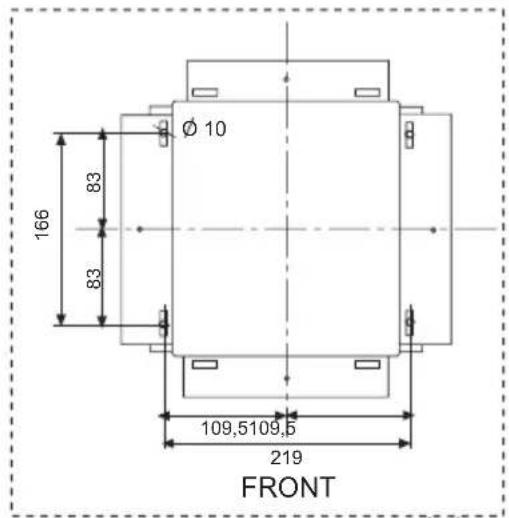

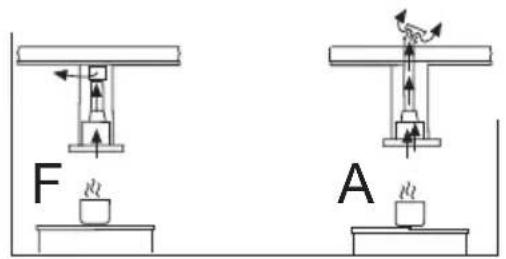

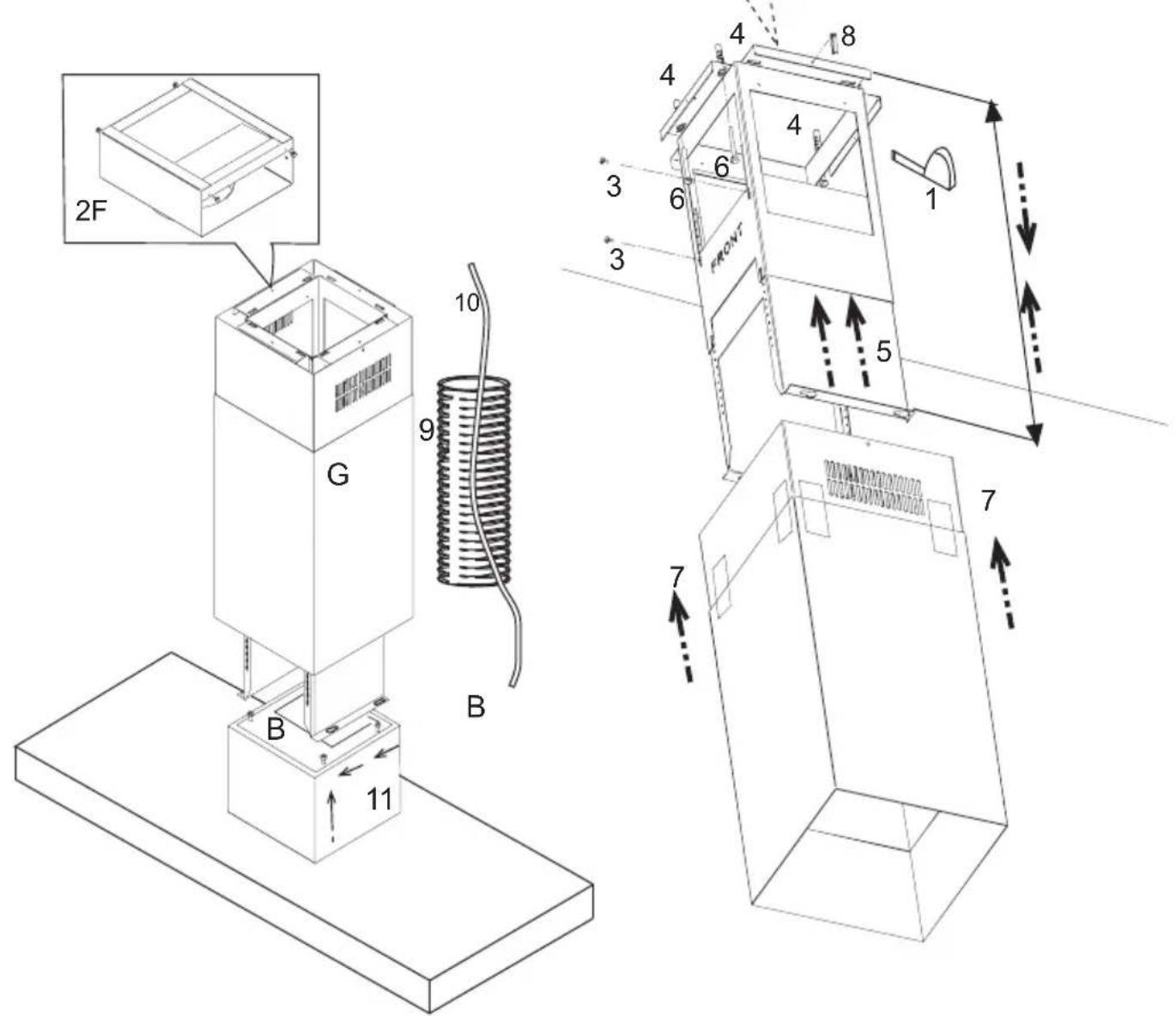

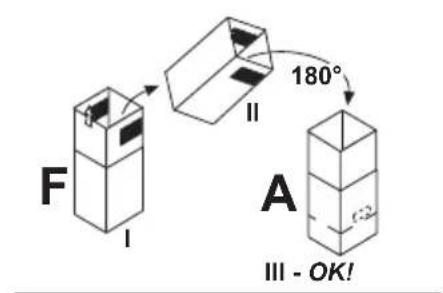

The cooker hood is provided with an upper air exit B for discharging fumes externally for models including chimney flue C (Suction Version A- exhaust pipe not supplied). If cooking fumes and vapours cannot be externally discharged, the cooker hood can be used in the recirculating version F: the installation of 1 active charcoal filter F allows the recirculation of fumes and vapours through the upper grid G.
Make sure that there is a power socket near the hood and that the system has a 30 mA differential. The mains voltage must be the same as that on the label inside the hood. The hood has a 1250 mm power cable with or without plug: if it does have a plug, connect the hood to an accessible approved socket; or if it does not (connection direct to the mains), fit an approved bipolar switch with a minimum contact opening of no less than 3 mm (accessible). This installation and electrical connection must be executed by a qualified technician.
If the cooking top is in use, the cooker hood must always operate.
Product performance test carried out in accordance with standard (EU) No 65/2014-Ref: IEC 61591
Maximum performance is achieved by placing the mobile panels, if any, in the open position.
TSE
A B C D E F
A: Light ON/OFF key: press this touch sensor to switch on or off the lights of the hood.
B: Motor ON/OFF key (4 speed): press this touch sensor to switch on the hood extractor fan at the same speed as it was when last switched off. Use the „D“ and „C“ keys to vary the speed (power) of extraction.
C: Decrease extraction speed (power) key: press this touch sensor to reduce the extraction speed of the hood.
D: Increase extraction speed (power) key: press this touch sensor to increase the extraction speed of the hood.
E: Timer key: irrespective of the extraction speed selected, touching the key will activate the timer function for 5 minutes (during this phase a dot will flash on and off on the display). To reset the timer operate the E motor key.
F: Filters reset key: touching this key will reset the metal anti-grease filter (1) saturation and carbon filter replacement (2) warning. (1) After the hood has been operating for 40 hours, the "FG" or "G" symbol on the display will begin to flash, indicating the need to clean the metal antigrease filters. (2) After the hood has been operating for 120 hours, the "FC" or "C" symbol on the display will begin to flash, indicating the need to clean the active carbon filters.
Automatic Sensor: tapping both "C" and "D" keys at the same time will activate the "Automatic Sensor" function. This function, indicated with an "A" on the display, automatically sets the hood at the best extraction speed, depending on the cooking going on. To return to manual operation, press "C" or "D" button.
Note: 4 hours after the last key touch, the fan will automatically turn off.
All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.
T6b13
A
B
General notes: Any function can be activated by pressing softly the button under the symbol.
A. ON/OFF light button: By essing this button the hood's lights switch on.
B. ON/OFF motor button: By pressing this button the extracting motor can be activated/stopped.
1.2.3.4. Speed regulator button: By progressing this button the hood activates the selected extracting speed.
Funzione Timer: By pressing once again the Selectedspeed button, the timer will last for 5 minutes. This function can be applied to all 4 available speeds.
Grease filter saturation: After every 40 hours of use of the hood, the button B or 3+4 indicator shows byflashing slowly that the grease filters need to be washed.
Charcoal filter saturation: After every 120 hours of use of the hood, the button B or 3+4 indicator by flashing fast shows that the charcoal filters need to be replaced.
Note: By pressing for at least 5 minutes the button 3+4 will reset the filters saturation indicator.
Attention! This function should only be used after performing the maintenance of the filters.
Automatic functioning through the heath sensor:
By pressing the button 1 2 at the same time, the hood starts the automatic functioning. The indicators of the 4 speeds will flash in sequence. After more or less 30 seconds the temperature sensor will start the motor choosing the right extracting speed. The speed will change according to the heath coming from the hob.
By pressing B the manual functioning can be restored.
Always clean the glass of the control for a correct functioning.
All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.
Maintenance
Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet.
Cleaning
The hood must be cleaned frequently both inside (apart from the area behind the grease filter) and outside. Use a cloth moistened with denatured alcohol or neutral liquid detergents. Never use products containing abrasives.
Warning
Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the filters may cause fire risks. Therefore we recommend observing these instructions.

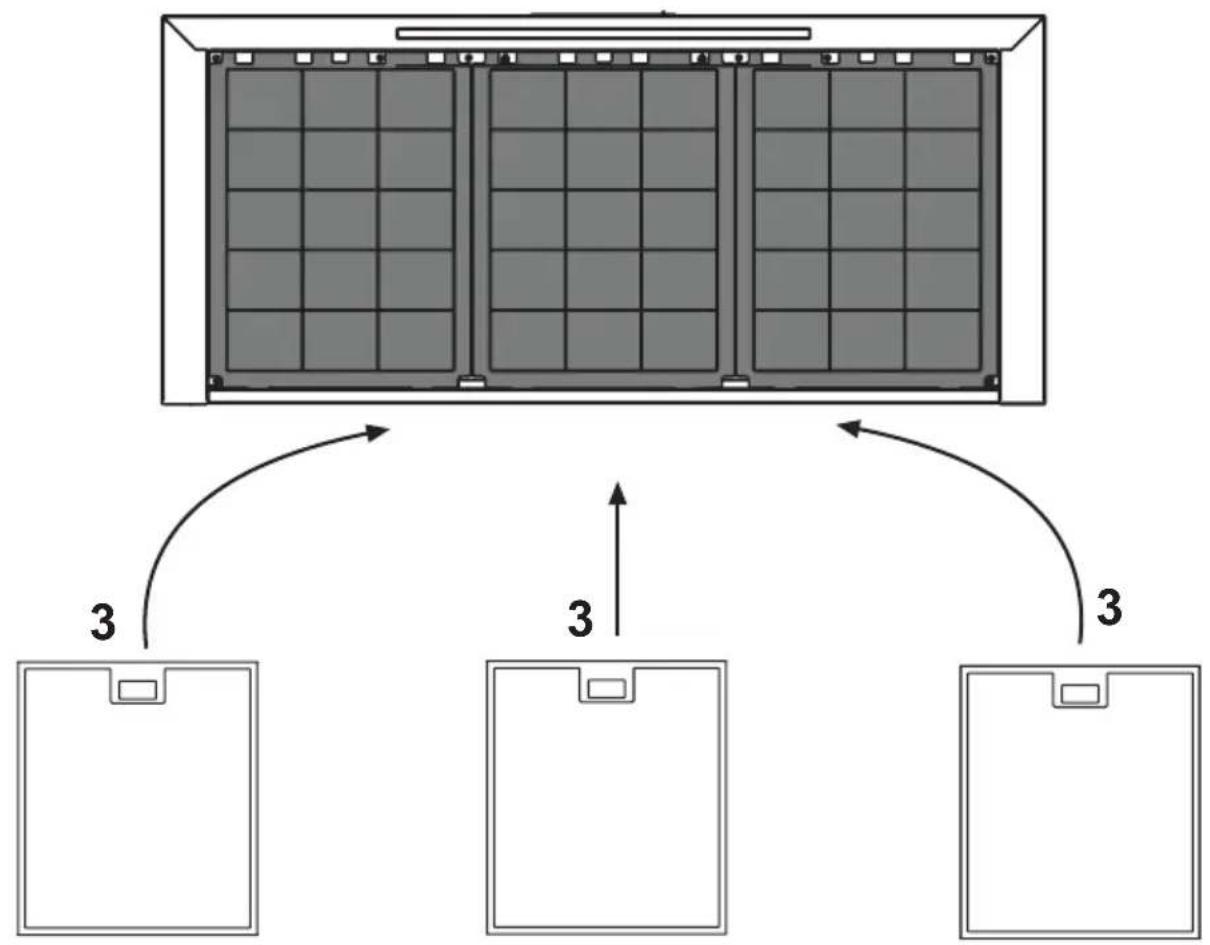

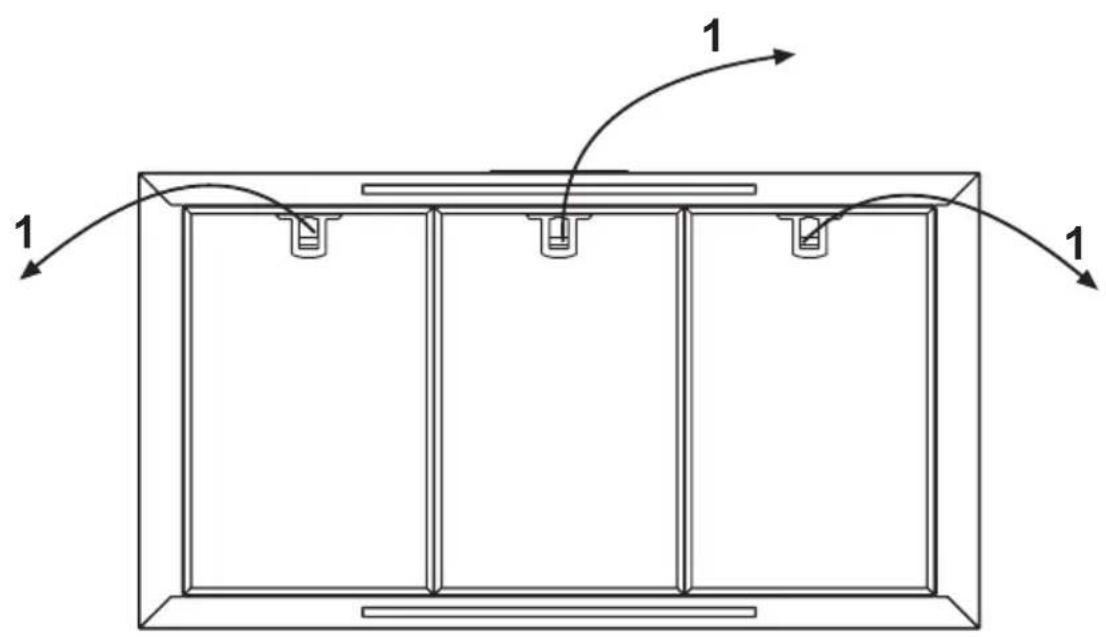

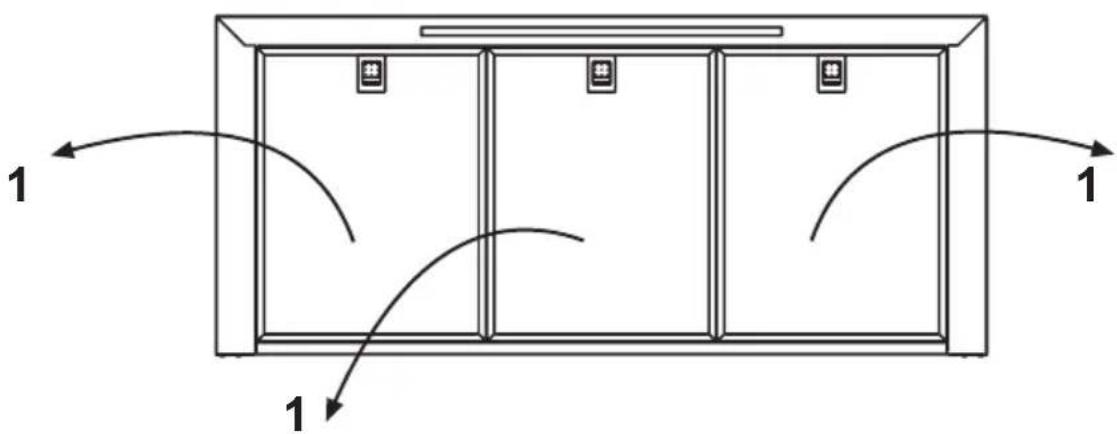

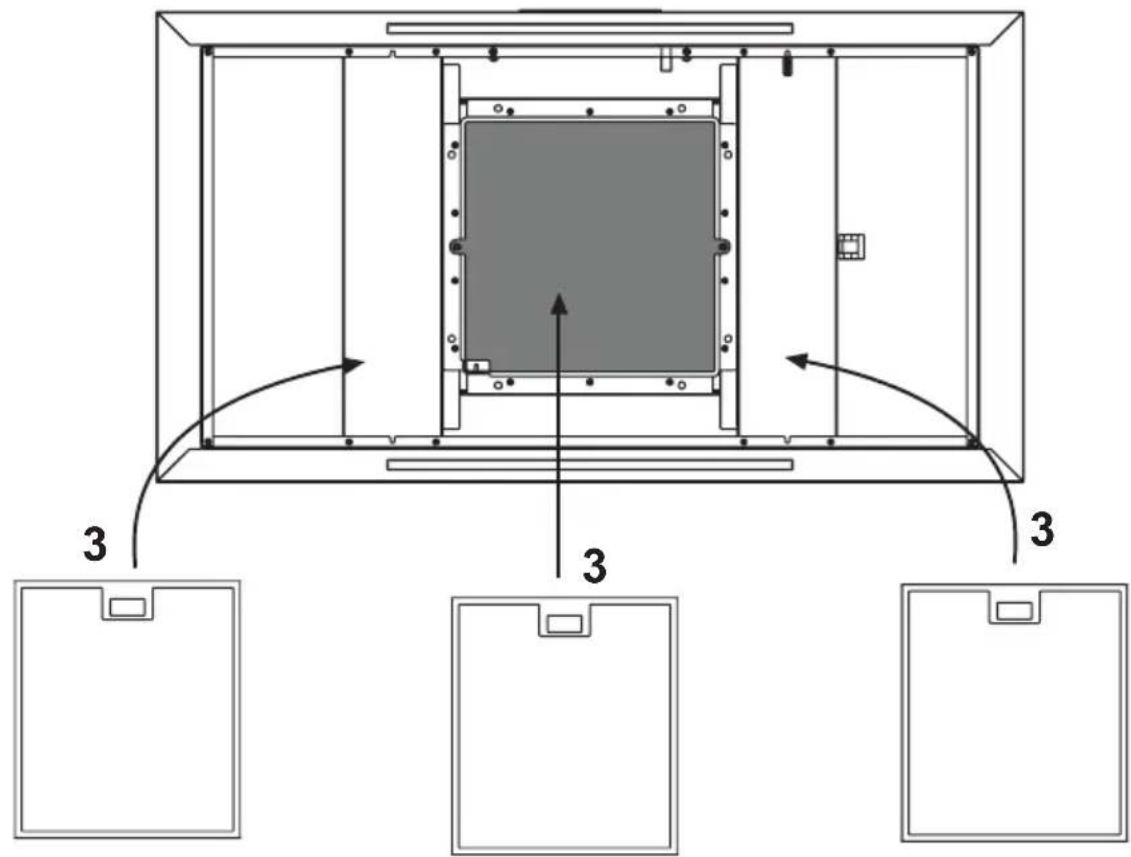

Anti-grease Filter
must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

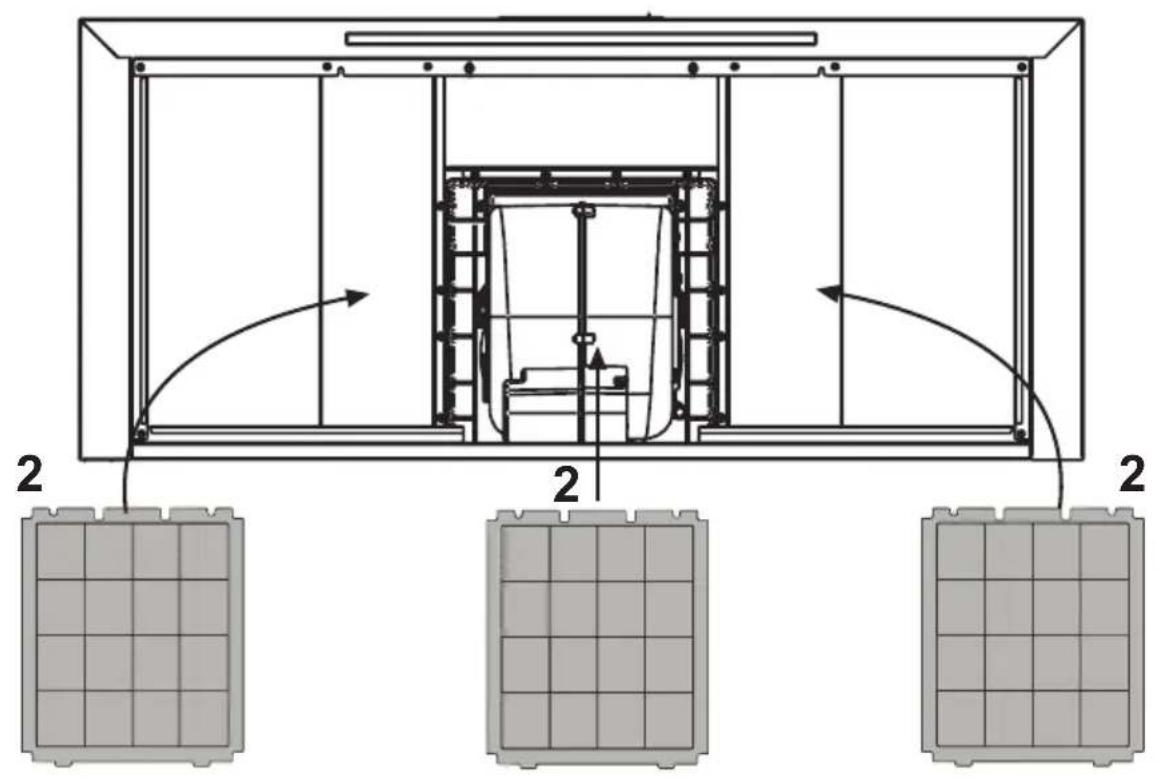

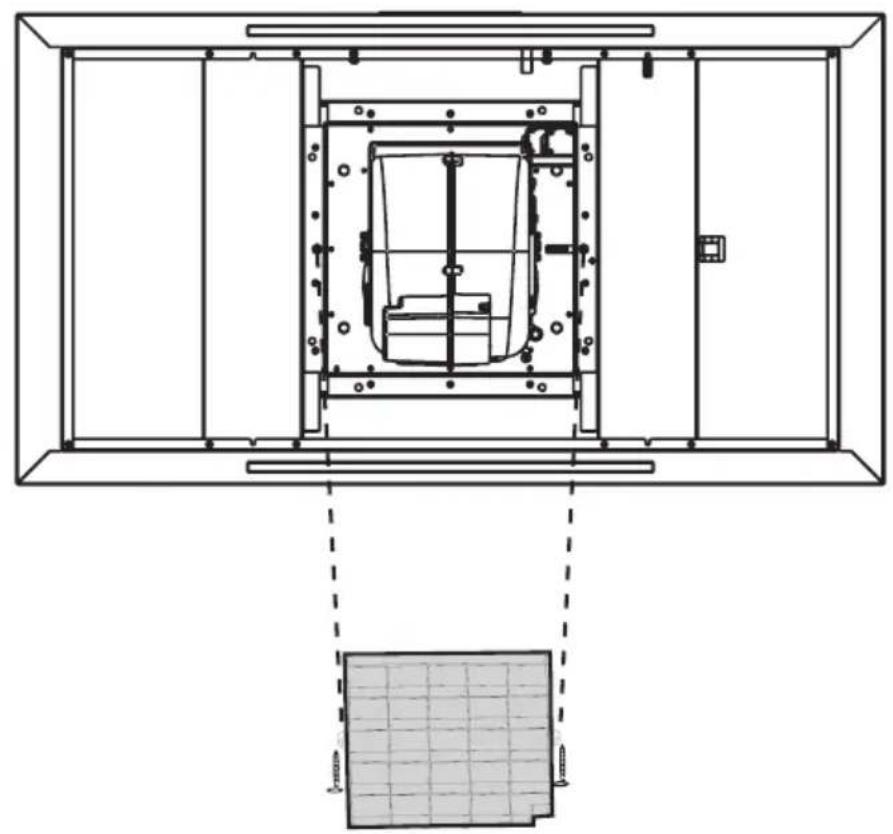

Charcoal Filter - (only for filter version)
The active charcoal filters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal filters capture unpleasant cooking odours.
Replacing lightbulbs
Warning! Prior to touching the light bulbs ensure they are cooled down.
Led Light
If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.
Reducing environmental impact:
To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch off the lights if you leave the cooking area.
Attention
All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed.
