Product type	Folding transport cart
Brand	Waldbeck
Model	Greyjoy
Dimensions (unfolded)	47 x 49 x 112 cm
Dimensions (folded)	50 x 77 x 20 cm
Weight	10 kg
Maximum load	70 kg
Article number(s)	10030587, 10030603, 10030604, 10030877
Main material	Steel and polyester fabric
Included accessories	Carrying bag
Use	Transport of loads up to 70 kg
Assembly	Unfolding and locking the wheels
Disassembly	Folding using the strap and attaching closures
Maintenance	Clean with a damp cloth
Safety	Do not exceed the maximum load; do not use for transporting people
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany
Importer (United Kingdom)	Chal-Tec UK limited
Warranty	2 years

Frequently Asked Questions - Greyjoy Waldbeck

How to unfold the Greyjoy cart?

Open the handles of the carrying bag, remove the folding cart, then pull the frame until it is fully unfolded. Spread the rear wheels until they click into place.

What is the maximum load capacity?

The maximum load is 70 kg. Never exceed this limit to avoid any risk of damage or injury.

How to fold the cart after use?

First push the rear wheels back to their original position. Pull the strap in the middle of the cart while letting the front wheels turn. Once the wheels are aligned, press the frame to fold it and secure the handles with the hook-and-loop straps.

Can I transport children or animals in this cart?

No, this cart is designed only for transporting loads. It must not be used to transport people or animals.

How to maintain the Greyjoy cart?

Clean it with a damp cloth and mild soap if necessary. Dry it completely before storing. Avoid using abrasive products.

Is the cart delivered with a carrying bag?

Yes, a carrying bag is included to store and transport the cart once folded.

What are the article numbers for this model?

The article numbers are: 10030587, 10030603, 10030604, 10030877. Refer to the label on the product to identify yours.

What to do if a part is damaged or missing?

Contact the manufacturer Chal-Tec GmbH (Wallstraße 16, 10179 Berlin, Germany) or customer service to obtain replacement parts.

Is the cart suitable for outdoor use?

Yes, it is designed for outdoor use on flat surfaces. Avoid rough terrain or unstable ground to ensure stability.

How can I get the user manual in another language?

On the notice-facile.com page, you can request a translated version by choosing your language and providing your email address.

USER MANUAL Greyjoy Waldbeck

10030587 10030603 10030604 10030877

Greyjoy

The Green

The Orange

The Blue

Bollerwagen

Handcart

Carrito

Chariot de transport

Carretto

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Assembly 8

Disassembly 9

Manufacturer & Importer (UK) 10

TECHNICAL DATA

Item number 10030587, 10030603, 10030604, 10030877

Dimensions open 47 x 49 x 112 cm

Dimensions folded 50 x 77 x 20 cm

Weight 10 kg

Max. load capacity 70 kg

ASSEMBLY

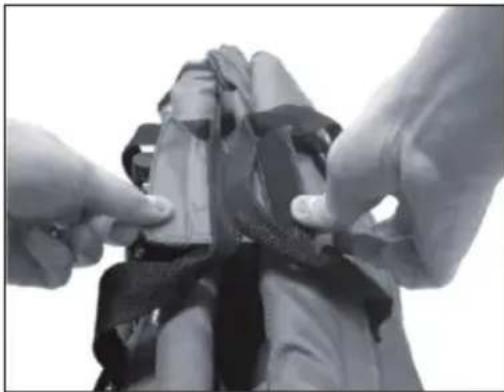

Open the handles of the transport bag and remove the folding trolley.

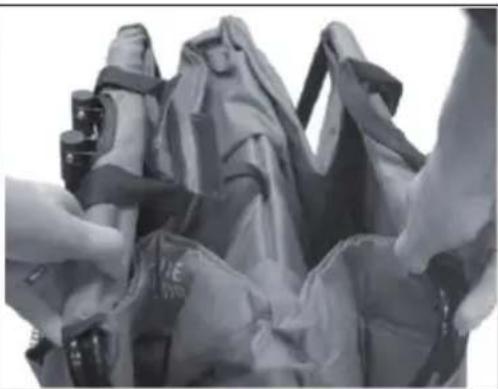

Pull the frame apart until the car is fully extended.

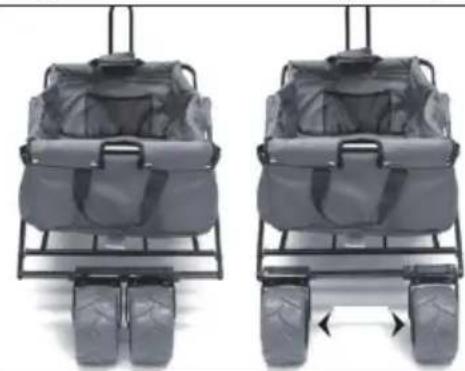

Slide the rear wheels apart until you hear them engage.

DISASSEMBLY

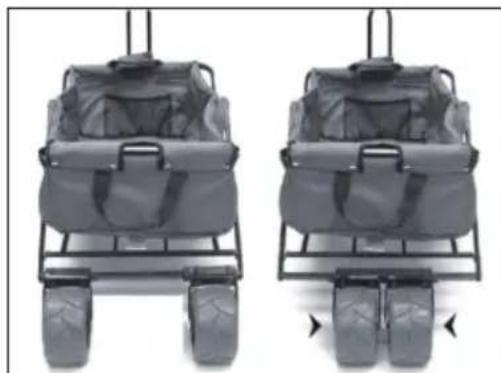

First push the rear wheels back into their starting position.

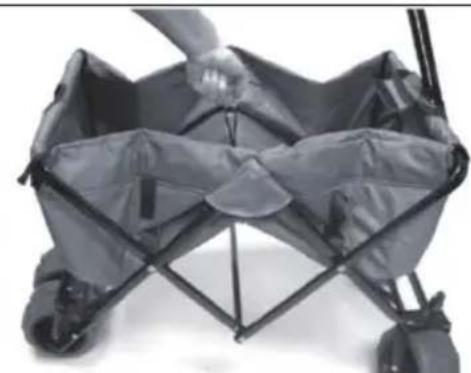

Pull the belt in the middle of the trolley while allowing the front wheels to rotate (not load).

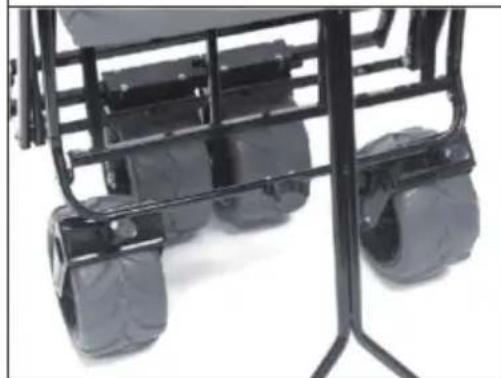

When the wheels are back in line, squeeze the frame together and secure the handles with the Velcro fasteners. Use the carrying bag for protected transport of the trolley.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN436RE

United Kingdom
