IAN 102935 - Lamp MELINERA - Free user manual and instructions

Brand	Melinera
Model	IAN 102935
Product type	Decorative solar lamp
Use	Decorative outdoor lighting
Protection rating	IP44 (protected against liquid splashes)
Nominal voltage	1.2 V
Battery type	1 x NiMH, type AA, 1.2 V / 600 mAh (replaceable by 1600 mAh)
Bulb	1 x tricolor LED (non-replaceable)
Functions	Automatic activation at dusk, automatic color change (red, blue, green)
Lighting duration	Up to 6-8 hours (depending on conditions)
Commissioning	Assembly by snapping the rods together, insert into ground, set switch to AUTO/OFF
Cleaning	Dry non-fraying cloth, do not use solvents
Safety instructions	Do not use if damaged, keep out of reach of children, battery safety (short circuit, explosion)
Spare parts	Replaceable battery (type AA NiMH), other parts non-replaceable
Package contents	1 decorative cap, 1 lower rod, 1 connection plug, 1 middle rod, 1 rod with LED lamp, 1 stake, 1 battery, 1 instruction manual
Recycling	Do not dispose of with household waste, take to a recycling center or collection point
Model numbers	102935-14-01, 102935-14-02, 102935-14-03, 102935-14-04

Frequently Asked Questions - IAN 102935 MELINERA

How does the Melinera solar lamp work?

The integrated solar cell converts daylight into electrical energy to charge the battery. At nightfall, the lamp automatically turns on and changes color (red, blue, green).

What is the maximum lighting duration?

Under optimal conditions (direct sunlight, vertical angle), the lighting duration can reach 6 to 8 hours.

What to do if the lamp does not turn on at night?

Check that the switch is set to AUTO. Make sure the lamp is not near an artificial light source (street lighting, etc.) that could interfere with the sensor. Place it in a well-sunlit location during the day.

How to replace the battery?

Set the switch to OFF. Remove the decorative cap and the rod with the LED lamp. Open the battery compartment by unscrewing the two screws with a Phillips screwdriver. Replace the old battery with a new one (NiMH AA, 1.2 V, 600-1600 mAh) observing polarity. Close and reassemble.

Why does the lamp light up briefly or not at all?

This may be due to a worn battery or insufficient sunlight. Try replacing the battery or moving the lamp to a location with better sun exposure.

Can I replace the LED bulb?

No, the LED bulb is integrated and cannot be replaced. In case of failure, the lamp must be replaced.

How to clean the solar lamp?

Use a dry non-fraying cloth. For stubborn stains, a well-wrung cloth moistened with mild detergent. Never use solvents or gasoline.

What does the IP44 rating mean?

IP44 means the lamp is protected against water splashes from all directions. It is therefore suitable for outdoor use but is not submersible.

How to dispose of the lamp at the end of its life?

Do not throw the lamp in household waste. Take it to a recycling center or collection point for electronic devices. Used batteries must be recycled separately.

Can the lamp be used under a tree or an eave?

It is not recommended because shade reduces sunlight incidence on the solar cell, which decreases charging and thus the lighting duration. Place it in an open area directly exposed to sunlight.

USER MANUAL IAN 102935 MELINERA

Decorative Solar Light

GB IE

Decorative Solar Light

Operation and Safety Notes

SE

Dekorativa solcellslampor

Dekorative solcellelamper

GB/IEOperation and Safety NotesPage 6

Description of parts.. 7

Technical data

Includes.. 8

Safety information.. 8

Safety instructions for rechargeable batteries... Page 9

Functioning

Starting up

Assembling and setting up the light.. Page 11

Changing the rechargeable battery.. Page 12

Trouble-shooting.. Page 13

Cleaning and care Page 14

Disposal

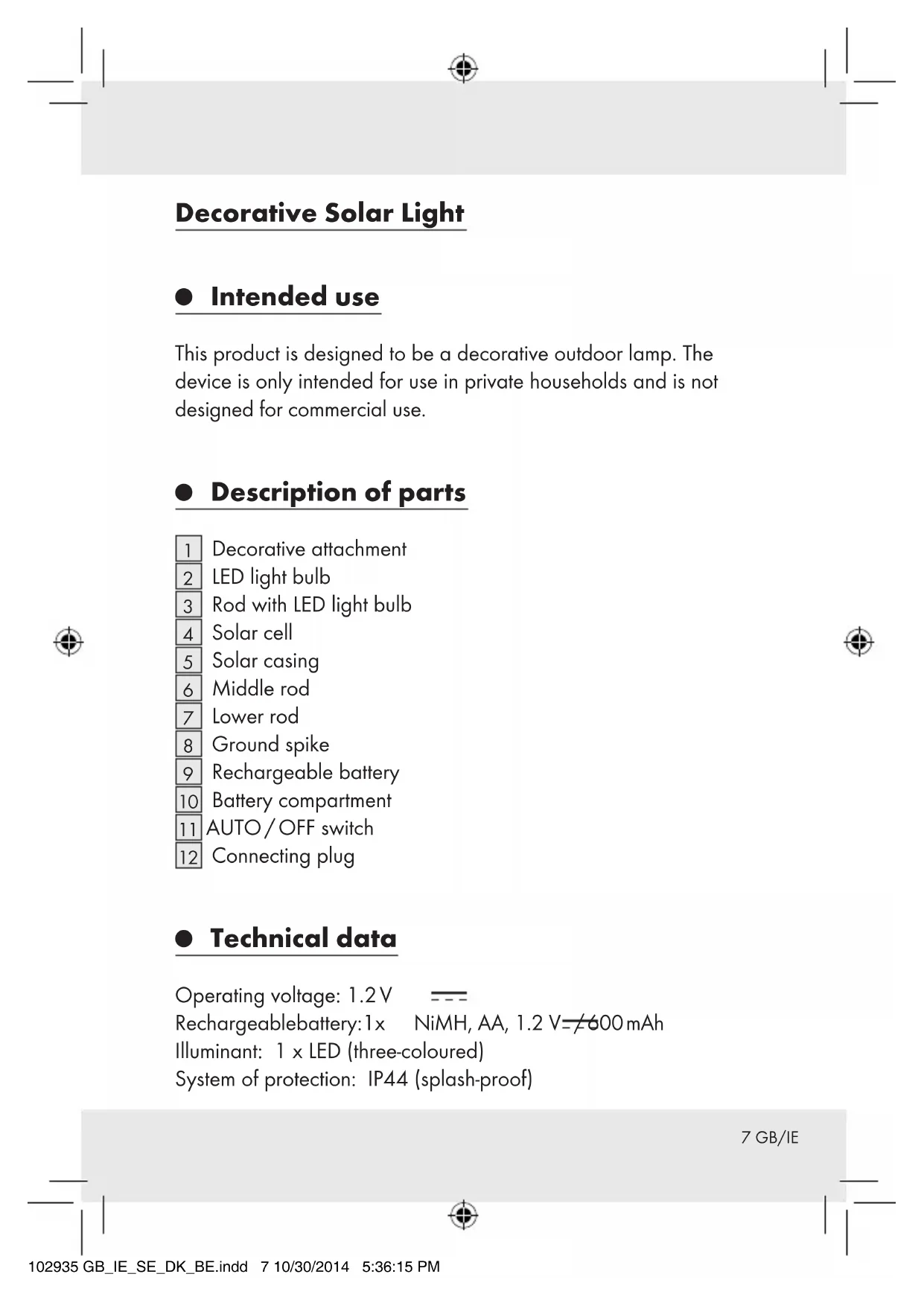

Decorative Solar Light

- Intended use

This product is designed to be a decorative outdoor lamp. The device is only intended for use in private households and is not designed for commercial use.

Description of parts

1 Decorative attachment
2 LED light bulb
3 Rod with LED light bulb
4 Solar cell
5 Solar casing
6 Middle rod
7 Lower rod
Ground spike
Rechargeable battery
10 Battery compartment
11 AUTO/OFF switch
12 Connecting plug

- Technical data

Operating voltage: 1.2 V

Rechargeablebattery:1x

NiMH,AA,1.2V=600mAh

Illuminant: 1 × LED (three-coloured)

System of protection: IP44 (splash-proof)

7GB/IE

Model no.: 102935-14-01
102935-14-02
102935-14-03
102935-14-04

- Includes

Immediately after unpacking please check the package contents for completeness and if all parts and the product are in good condition. Do not assemble the product if the package contents are incomplete.

1 Decorative attachment
1 Lower rod
1 Connecting plug
1 Middle rod
1 Rod with LED light bulb
1 Ground spike
1 Rechargeable battery, NiMH, AA, 1.2 V-600 mAh
1 Operating instructions

Safety information

In the case of damage resulting from non-compliance with these operating instructions the guarantee claim becomes invalid! No liability is accepted for consequential damage! In the case of material damage or personal injury caused by incorrect handling or non-compliance with the safety instructions, no liability is accepted!

8 GB/IE

WARNING! DANGER OF DEATH AND ACCIDENTS FOR TODDLERS AND CHILDREN!

Never leave children unsupervised with the packaging

material. The packaging material represents a danger of suffocation. Children frequently underestimate the dangers. Please keep children away from the device at all times.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
Never use your lamp if you notice any damage to it.
The LED light bulb cannot be replaced.

Safety instructions for rechargeable batteries

AFARAZAR! Do not allow

rechargeable batteries to short-circuit. Otherwise the rechargeable batteries may overheat, become

a fire hazard or explode.

WARNING! RISK OF EXPLOSION! Never

throw rechargeable batteries into fire or water.

Chemical fluids that damage the product may leak out of outdated or used rechargeable batteries. Remove, therefore, the rechargeable battery when the lamp is not required for any length of time.

9GB/IE

Use protective gloves! Leaky or damaged rechargeable batteries could cause chemical burns upon contact with skin; that is why you should use suitable

protective gloves.

Only use rechargeable batteries of the right size and of the recommended type (see section on "Technical data").
Ensure correct polarity. This is indicated in the battery compartment [10].
Rechargeable batteries should not be disposed of with domestic waste. Please dispose of used rechargeable batteries in an environmentally friendly way.
Always switch off the product before removing or inserting the rechargeable battery 9.

Functioning

The integrated solar cell 4 of the article converts solar radiation into electrical energy and stores it in the NiMH rechargeable battery 9. The light switches itself on when it starts to get dark. The integrated LED 2 is an energy-saving illuminant with a very long life. The burn time depends on the solar radiation, the angle of incidence of the light falling onto the solar cell 4 and the temperature (due to the temperature dependence of the capacity of the rechargeable batteries). The ideal situation is a vertical angle. Given the best conditions, a burn time of 6-8 hours can be achieved. The rechargeable battery 9 will only achieve its maximum capacity after several charging and discharging cycles.

10 GB/IE

Starting up

- Assembling and setting up the light (Fig. A)

Install the light in accordance with Fig. A.
Place the light with the assembled rods into the ground (lawn, flower bed, etc).

Note: Ensure that the product stands firmly in place. Do not use any force when assembling or setting up the product, e.g. hammer blows. This damages the product.

Note: For the best results, put the light in a place where the solar cell 4 is exposed to direct sunlight for as long as possible. Do not put the light under bushes, trees, canopies etc. as this reduces the incidence of incoming sunlight. Position the lamp in such a way that the solar cell 4 is not covered or in the shade.

Note: Make sure that the solar is not near another source of light such as street or garden lighting as the light will otherwise not switch itself on automatically when it starts to get dark.

Switch the AUTO/OFF switch on the bottom of the solar casing 5 into the AUTO or OFF position to switch the lamp on or off.

Note: The LED light b will automatically switch between the colours red, blue and green.

Note: Switch the lamp off (OFF position) if the lamp will be in the dark for any length of time (e.g. when transporting it with a rechargeable battery inserted) or the burn time is not satisfactory due to a very short incidence of light.

Open the solar casing into a horizontal position.
Switch the AUTO/OFF switch on the bottom of the solar casing into the AUTO position to recharge the rechargeable

battery 9.

- Changing the rechargeable battery

Note: You will need a crosshead screwdriver for this step.

First push the AUTO/OFF switch to the OFF position.
Take the decorative attachment off the rod with the LED light bulb 3
Pull the rod with the LED light bulb off the middle rod 6
Open the battery compartment on the bottom of the solar casing 5. To do so, unscrew both screws using a crosshead screwdriver
Remove the used rechargeable battery.
Insert a new rechargeable battery (NiMH, AA, 1.2V/600 mAh) into the battery compartment [10].

Note: Ensure correct polarity. This is indicated in the battery compartment 10.

Close the battery compartment. To do so, screw in both screws using a crosshead screwdriver
When you close the case make sure that the cables are not pinched.
Place the rod with the LED light bul onto the middle rod 6 again.
Place the decorative attachment back onto the LED light bulb 2.

12 GB/IE

- Trouble-shooting

= Problem
Cause
O = Solution

The light does not come on when it is dark, even though it was exposed to sunlight all day.
Artificial sources of light such as street lighting or similar are making the Photosensor believe it is still daylight.
Place the lamp somewhere where it is shielded from artificial sources of light.
The lamp only comes on for a short time or not at all.
The rechargeable battery 9 is flat or there is not enough daylight to recharge the rechargeable battery 9.
Replace the rechargeable battery or place the lamp in a sunnier position.

This product has some very sensitive electrical parts. That is why interference may occur if the product is set up near devices that transmit radio signals. They include, among other things, mobile Phones, walkie-talkies, CCB radios, remote controls and microwave ovens. Remove these devices if interference occurs.

Electrostatic discharge may possibly cause disturbances to the product. If such disturbances occur, remove the rechargeable battery 9 for a few seconds and then re-insert it (see "Changing the rechargeable battery").

- Cleaning and care

Do not use any solvents, petrol or similar. This would cause damage to the device.
Only use a dry, lint-free cloth to clean the product.
If the product is more severely soiled, you may have to use a slightly damp cloth and a mild detergent.

- Disposal

The packaging is made entirely of recyclable materials, which you may dispose of at local recycling facilities.

Contact your local refuse disposal authority for more details of how to dispose of your worn-out product.

To help protect the environment, please dispose of the product properly when it has reached the end of its useful life and not in the household waste. Information on collection points and their opening hours can be obtained from your local authority.

Defective or used rechargeable batteries have to be recycled in line with Directive 2006 / 66 / EC. Return rechargeable batteries and / or the device via the recycling facilities provided.

Do not dispose of rechargeable batteries with your household refuse!

14 GB/IE

Rechargeable batteries must not be disposed of with the household refuse. They may contain toxic heavy metals and require to be handled as special waste. The chemical symbols of heavy metals are: Cd = cadmium, Hg = mercury, Pb = lead.
