Brand	Klarstein
Model	Klingenthal
Product type	Automatic watch winder
Dimensions (W x H x D)	31.5 x 55 x 33 cm
Weight	7.7 kg
Power supply	4 V, 1.2 mAh power adapter (included)
Cable length	160 cm
Capacity	12 watches (12 independent rotors)
Package contents	Device, power supply, instruction manual
Preset TPD programs	360, 672, 864, 960, 1080, 1200, 1440, 1800, 2181
Manual TPD adjustment	From 16 to 9999 rotations per day
Rotation direction	Clockwise (CW), counterclockwise (CCW), alternating (CW+CCW)
Lighting	RGB, 7 colors (red, green, blue, cyan, yellow, purple, white)
Safety	Do not expose to water, humidity, or extreme temperatures; do not manually turn the winder
Care and cleaning	Clean with a soft, dry cloth; do not use abrasive products
Recycling	Do not dispose of with household waste; take to a collection point for electrical equipment
Article number	10029402, 10029479

Frequently Asked Questions - Klingenthal Klarstein

How many watches can I wind simultaneously?

The device can hold up to 12 watches on 12 independent rotors. Each rotor can be started and stopped separately.

How do I set the rotation direction of a rotor?

Press the ROTOR button repeatedly to select the rotor (from [00] to [12]), then use the 2 button to choose the direction: clockwise (CW), counterclockwise (CCW), or alternating (CW+CCW).

What does TPD mean and how do I adjust it?

TPD stands for Turns Per Day. You can select a preset program (360, 672, etc.) by pressing the TPD button, or adjust it manually from 16 to 9999 TPD by holding down the TPD button and then using the arrow buttons.

How do I turn the device on and off?

Plug the power adapter into the back, then press the On/Off button located on the back of the device. To turn off, press the button again.

Can I use a different power adapter?

No, use only the supplied power adapter (4 V, 1.2 mAh) to avoid damaging the device.

How do I change the lighting color?

Press the lighting button (bulb symbol) repeatedly to cycle through the 7 colors: red, green, blue, cyan, yellow, purple, white.

What should I do if a rotor does not work?

Check that the selected rotor is not set to [00] (general stop) and that it is started via the start button. If the problem persists, contact customer service.

Can I leave the device running continuously?

Yes, but if you are not using it for a long period, it is recommended to turn it off to save energy and preserve the components.

How do I clean the watch winder?

Use a soft, dry cloth to wipe the surface. Never use abrasive products or liquids, and do not expose the device to water or humidity.

What to do in case of a power outage?

The device does not have a backup battery. When power is restored, the previous settings (rotors, TPD, color) are saved in memory and the device resumes operation.

USER MANUAL Klingenthal Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

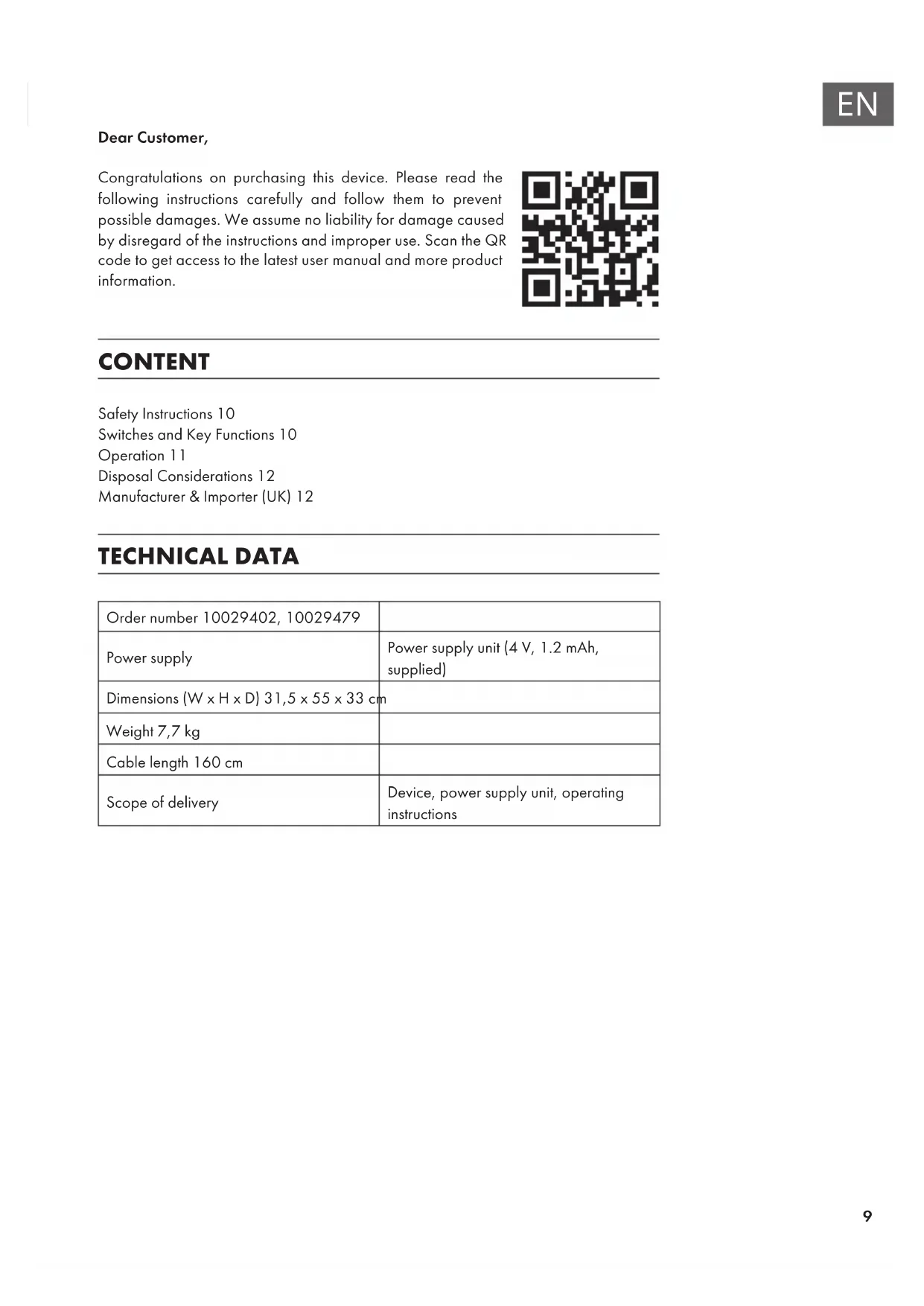

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Safety Instructions 10

Switches and Key Functions 10

Operation 11

Disposal Considerations 12

Manufacturer & Importer (UK) 12

TECHNICAL DATA

Order number 10029402, 10029479
Power supply	Power supply unit (4 V, 1.2 mAh, supplied)
Dimensions (W x H x D) 31,5 x 55 x 33 cm
Weight 7,7 kg
Cable length 160 cm
Scope of delivery	Device, power supply unit, operating instructions

SAFETY INSTRUCTIONS

• Children aged 8 and over, mentally, sensory and physically handicapped persons may only use the device if they have been thoroughly familiarised with its functions and safety precautions by a supervisor responsible for them and understand the associated risks.
• Only use the supplied power supply unit.
• Do not turn the watch winder manually as this may damage the watch winder.
• Do not place the watch winder in direct sunlight and do not expose it to water, moisture or extreme temperatures to damage the box.

SWITCHES AND KEY FUNCTIONS

Switch on the back side

Mains connection for the adapter

On/Off switch

Display and key functions

360 turns RGB
ROTOR	Press the ROTOR button several times to select one of the 12 watch winders. You can choose between [00]-[12]. The arrangement of the rotors is as follows:
	(1) Row 1 left (2) Row 1 middle (3) Row 1 right
	(4) Row 2 left (5) Row 2 middle (6) Row 2 right
	(7) Row 3 left (8) Row 3 middle (9) Row 3 right
	(10) Row 4 left (11) Row 4 middle (12) Row 4 right

09	The rotor display shows which watch winder you have selected.
1	To start or stop the rotor, press this button. Each rotor can be started and stopped separately. When the rotor display shows [00], all rotors are started and stopped simultaneously.
2	Press the button repeatedly to select the direction of rotation: clockwise only (CW), counterclockwise only (CCW), clockwise + counterclockwise (CW + CCW).
TPD	Press the TPD button repeatedly to select one of the preset turning programs: 360, 672, 864, 960, 1080, 1200, 1440, 1800 or 2181 TPD (turns per day
▲	Adjust rotations per day manually: Press and hold the TPD button, then press and hold the TPD button until [00] is displayed. Then press the arrow buttons to adjust the TPD value in increments of 16 in the range of 16-9999 TPD (turns per day). Press and hold the arrow buttons to adjust the value faster.
▼
	Press the Light button repeatedly to change the light color as follows: Red > Green > Blue > Cyan Blue > Yellow > Purple > White.

OPERATION

Note: If you do not use the device for a long time, switch it off. Make sure the unit is turned off before removing the holder. Do not turn or shake the appliance during operation.

Starting up

• Connect the mains adapter to the rear of the device and plug the plug into the socket.
• Open the front cover and carefully pull out the watch holder with your thumb and index finger.
• Attach the watch to the watch holder and push it back into the unit.
• Close the cover again and press the On/Off button.

Note: When you open the cover, all rotors stop and the display automatically lights for 30 seconds.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom
