Sindelfingen - Watch accessory Klarstein - Free user manual and instructions

Product Type	Automatic Watch Winder
Brand	Klarstein
Model	Sindelfingen
Model Numbers	10029111, 10029112, 10029114, 10040049, 10040050
Power Supply	100-240 V ~ 50-60 Hz
Output voltage of adapter	4 V / 550 mA
Dimensions (L x H x D)	132 x 156 x 188 mm
Capacity	1 watch
Operation modes	4 modes (A: 650, B: 900, C: 1200, D: 1500 turns per day)
Rotation direction	Clockwise and counterclockwise
Compatible watch type	Automatic watches
Package contents	Watch winder, power adapter, cushion, instruction manual
Usage	Indoor
Maintenance	Clean with a soft dry cloth
Safety	Do not expose to water, sunlight or extreme temperatures. Do not rotate manually.
Recycling	Do not dispose with household waste. Drop off at WEEE collection point.
Manufacturer	Chal-Tec GmbH, Wallstraße 16, 10179 Berlin, Germany

Frequently Asked Questions - Sindelfingen Klarstein

How to install my watch on the winder?

Open the front cover, take out the cushion by aligning it with the side mark. Attach the watch to the cushion by pressing the spring on each side, then slide the watch onto the cushion. Replace the cushion in the watch winder until you hear a click. Close the cover.

How to select the rotation mode?

Use the selection switch at the back of the device to choose between modes A (650 tpd), B (900 tpd), C (1200 tpd) and D (1500 tpd). Use the on/off switch to set the rotation direction (clockwise or counterclockwise).

Can I use a different adapter than the one provided?

No, use exclusively the provided power adapter or an adapter with the same voltage (4 V / 550 mA). An unsuitable adapter could damage the device.

What to do if the winder does not work?

Check that the adapter is properly connected and the outlet is powered. Make sure the cushion is properly engaged. If the problem persists, contact customer service.

Can the winder damage my watch?

No, the winder is designed for automatic watches and simulates wrist movements. Never rotate the winder manually as this could damage it and void the warranty.

How to clean the winder?

Use a soft dry cloth to clean the exterior. Do not use abrasive products, solvents or water. Do not immerse the device in water.

Can I leave the winder on continuously?

Yes, you can leave it on continuously. However, it is recommended to turn off the device if not used for extended periods to save energy and extend its lifespan.

What to do in case of a power outage?

The winder has no backup battery. When power returns, it will resume operation with the last selected mode and direction.

Is the winder noisy?

The winder operates silently. A slight rotation noise may be audible, which is normal. Ensure it is placed on a stable surface to minimize vibrations.

How to recycle the device at end of life?

Do not dispose of the device with household waste. Take it to a collection point for recycling electrical and electronic equipment (WEEE). Contact your local municipality for collection points near you.

USER MANUAL Sindelfingen Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom

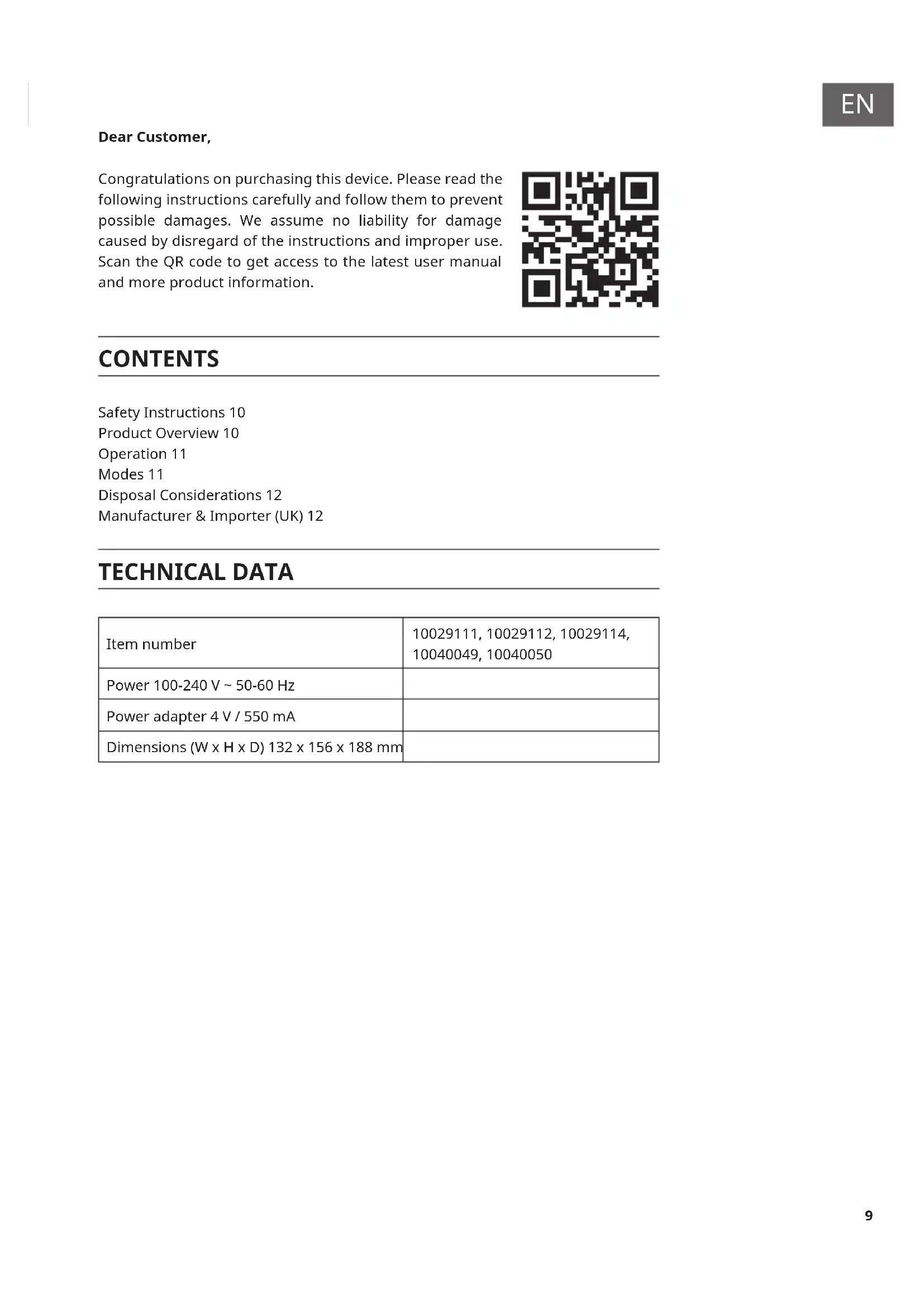

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENTS

Safety Instructions 10

Product Overview 10

Operation 11

Modes 11

Disposal Considerations 12

Manufacturer & Importer (UK) 12

TECHNICAL DATA

Item number	10029111, 10029112, 10029114, 10040049, 10040050
Power 100-240 V ~ 50-60 Hz
Power adapter 4 V / 550 mA
Dimensions (W x H x D) 132 x 156 x 188 mm

SAFETY INSTRUCTIONS

• Children aged 8 and over, mentally, sensory and physically handicapped persons may only use the device if they have been thoroughly familiarised with its functions and safety precautions by a supervisor responsible for them and understand the associated risks.
• Only use the supplied power supply unit.
• Do not turn the watch winder manually as this may damage the watch winder.
• Do not place the watch winder in direct sunlight and do not expose it to water, moisture or extreme temperatures to damage the box.

Important hints on use

• If you do not use this product for a long time, please switch off the unit.
• Make sure to turn the unit off completely before attempting to pull out the watch pillow.
• Don't shake or rotate when winder is stationary.

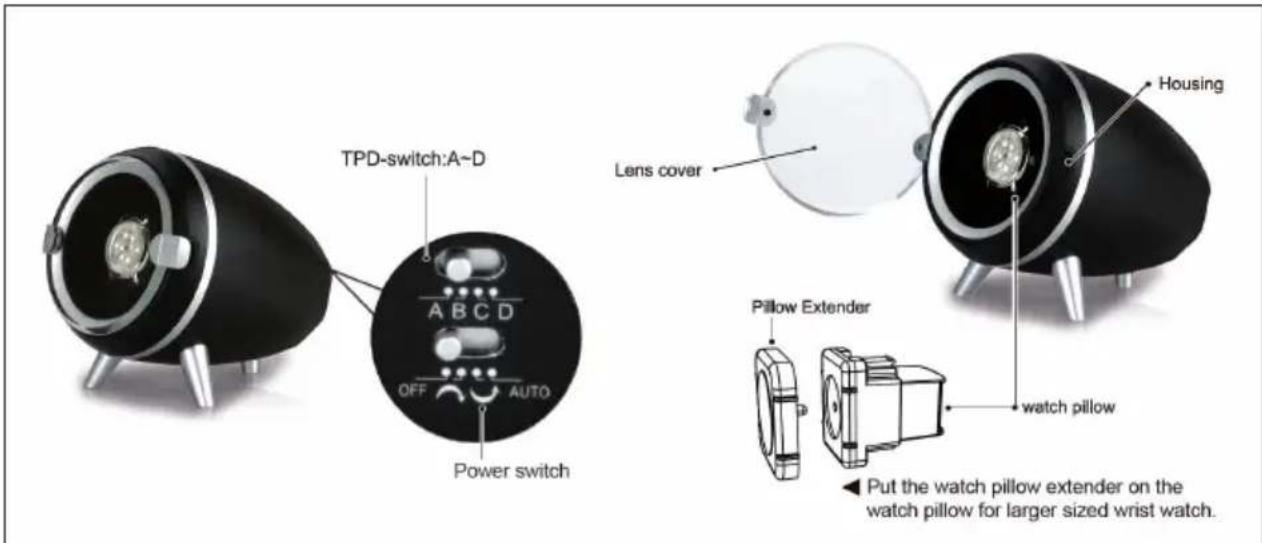

PRODUCT OVERVIEW

OPERATION

1. Insert the plug into the socket.
2. Open the front cover. Grab the watch cushion with your thumb and forefinger at the side markings and pull it out.
3. Attach the watch to the cushion by compressing the spring. Then pull the clock over the cushion and release it again (see picture).
4. Once the watch is attached to the cushion, place the cushion back into the watch winder. Push it in until it clicks into place.
5. Close the cover. Use the selection switch from the back of the unit to select one of the A-D modes. Use the on/off switch to select whether the watch should rotate clockwise or counterclockwise.

MODES

Mode Description

A 650 Turns per day

B 900 Turns per day

C 1200 Turns per day

D 1500 Turns per day

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford, OX1 9UW

United Kingdom
