Product Type	Rotating watch winder (watch winder)
Brand	Klarstein
Model	Lugano
Article Number	10032007
Power Supply	4 V / 550 mAh (power adapter included)
Dimensions (approx.)	20 x 20 x 20 cm
Weight (approx.)	1 kg
Main Material	Plastic and faux leather (cushion)
Number of Watches Supported	1
Rotation Modes	4 modes: A (650 t/d), B (900 t/d), C (1200 t/d), D (1500 t/d)
Rotation Cycle	7 minutes of rotation, followed by a variable pause depending on the mode
Mode Selector	Yes, rotary
On/Off Switch	Yes
Cushion Type	Removable, with tension springs for strap
Power Adapter	Included, exclusive use
Noise Level	Low (silent motor)
Maintenance	Clean with a soft, dry cloth. Do not use water or chemicals.
Safety	Use only the provided adapter. Turn off the device when not in use for extended periods. Do not move while operating.
Recycling	Do not dispose of with household waste. Deposit at a WEEE collection point. The built-in battery must be recycled separately.
Warranty	2 years

Frequently Asked Questions - Lugano Klarstein

How do I install my watch on the winder?

Remove the cushion by opening the front cover and releasing the sides with your index fingers and thumbs. Attach the watch to the cushion by pulling the springs at the back, place the watch, then release the springs. Reinsert the cushion into the winder until it clicks.

What are the different rotation modes?

Four modes are available: Mode A (650 turns/day), Mode B (900 t/d), Mode C (1200 t/d) and Mode D (1500 t/d). Each mode alternates 7 minutes of rotation with a variable pause.

Can I use the device without a watch?

Yes, it is possible, but it serves no purpose. The device will operate normally but without displaying a watch.

How long does it take to wind a watch?

The device winds the watch continuously according to the selected mode. There is no set time; it keeps the automatic movement in regular rotation.

Is the power adapter included?

Yes, the power adapter is included with the device. It is imperative to use it exclusively to avoid any damage.

Can I use another adapter?

No, using a different adapter may damage the device or pose a fire risk. Only use the provided adapter.

How do I clean the winder?

Clean it with a soft, dry cloth. Avoid any contact with water or chemicals, as they could damage the case or cushion.

What should I do if the device does not turn on?

Check that the adapter is properly connected to the device and to the outlet. Make sure the on/off switch is set to 'On'. If the problem persists, contact customer service.

Is the winder noisy?

No, the motor is designed to operate silently. A slight rotation noise is normal, but it remains discreet.

Can I attach my watch directly without the cushion?

No, the cushion is necessary to hold the watch in place and allow safe rotation. Always attach the watch to the cushion using the springs.

USER MANUAL Lugano Klarstein

ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN

KLARSTEIN

www.klarstein.com

Member of Berlin Brands Group

Handwerkerstr. 11

15366 Dahlwitz-Hoppegarten

Deutschland

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX19UW

United Kingdom

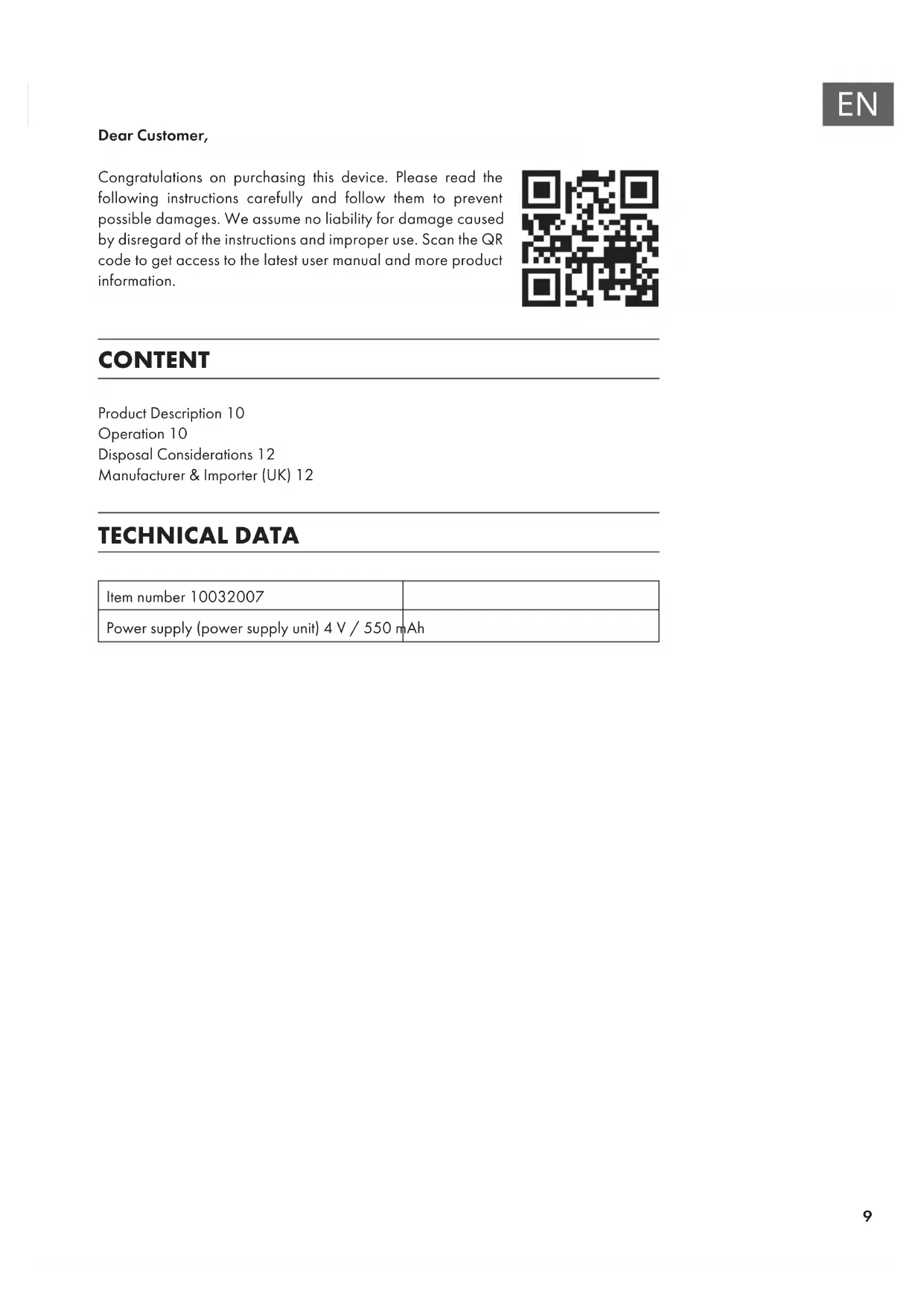

Dear Customer,

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

CONTENT

Product Description 10

Operation 10

Disposal Considerations 12

Manufacturer & Importer (UK) 12

TECHNICAL DATA

Item number 10032007
Power supply (power supply unit) 4 V / 550 mAh

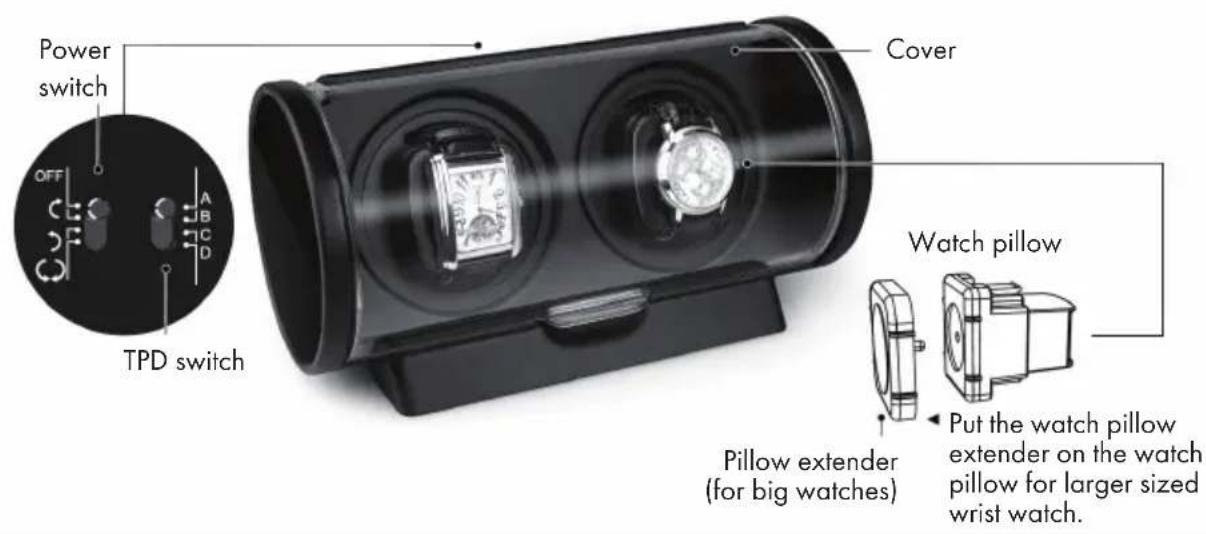

PRODUCT DESCRIPTION

OPERATION

1. Insert the adapter into the adapter port and plug it into the electrical outlet.

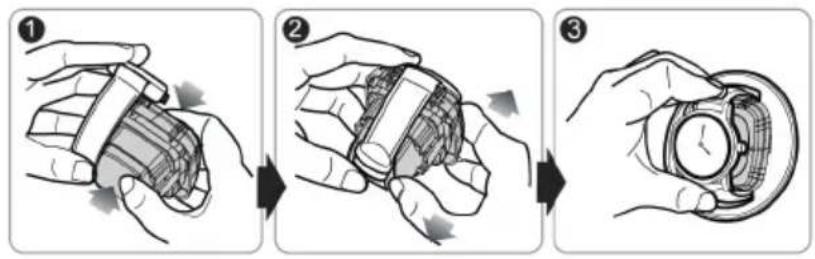

2. Open the front cover, then use your index finger and thumb to hold the watch pillow from the two sides of the pillow hitch marked with two arrows. With some force, pull out the watch pillow.
3. Place the watch on the pillow by pushing in the spring on the back of the pillow, then put your watch around the pillow and let go of the spring.
4. Once the watch is on the pillow, place the pillow back into the winder.
5. Use the switches on the unit to select as below:

Note: Use Power switch to select winder rotating direction or turn off the unit. Use TPD switch to select the TPD you wanted.

TPD (Turns Per Day) Modes

Mode A: 650TPD, rotates 7 minutes, rest 104 minutes and then repeat.
Mode B: 900TPD, rotates 7 minutes, rest 73 minutes and then repeat.
Mode C: 1200TPD, rotates 7 minutes, rest 53 minutes and then repeat.
Mode D: 1500TPD, rotates 7 minutes, rest 41 minutes and then repeat.

Important Hints

• If you do not use this product for a long time, please switch off the unit.
• Make sure to turn the unit off completely before attempting to pull out the watch pillow.
• Please use the AC adapter supplied with the unit.
• Remove the adapter when the winder is not in use.
• Don't shake the watch winder when the winder is in operation.

DISPOSAL CONSIDERATIONS

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Ltd

PO Box 1145

Oxford,OX1 9UW

United Kingdom
