USER MANUAL St. Gallen Klarstein
ONNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNNN
KLARSTEIN
www.klarstein.com
Berlin Brands Group UK Ltd
PO Box 1145
Oxford,OX1 9UW
United Kingdom
SICHERHEITSHINWEISE

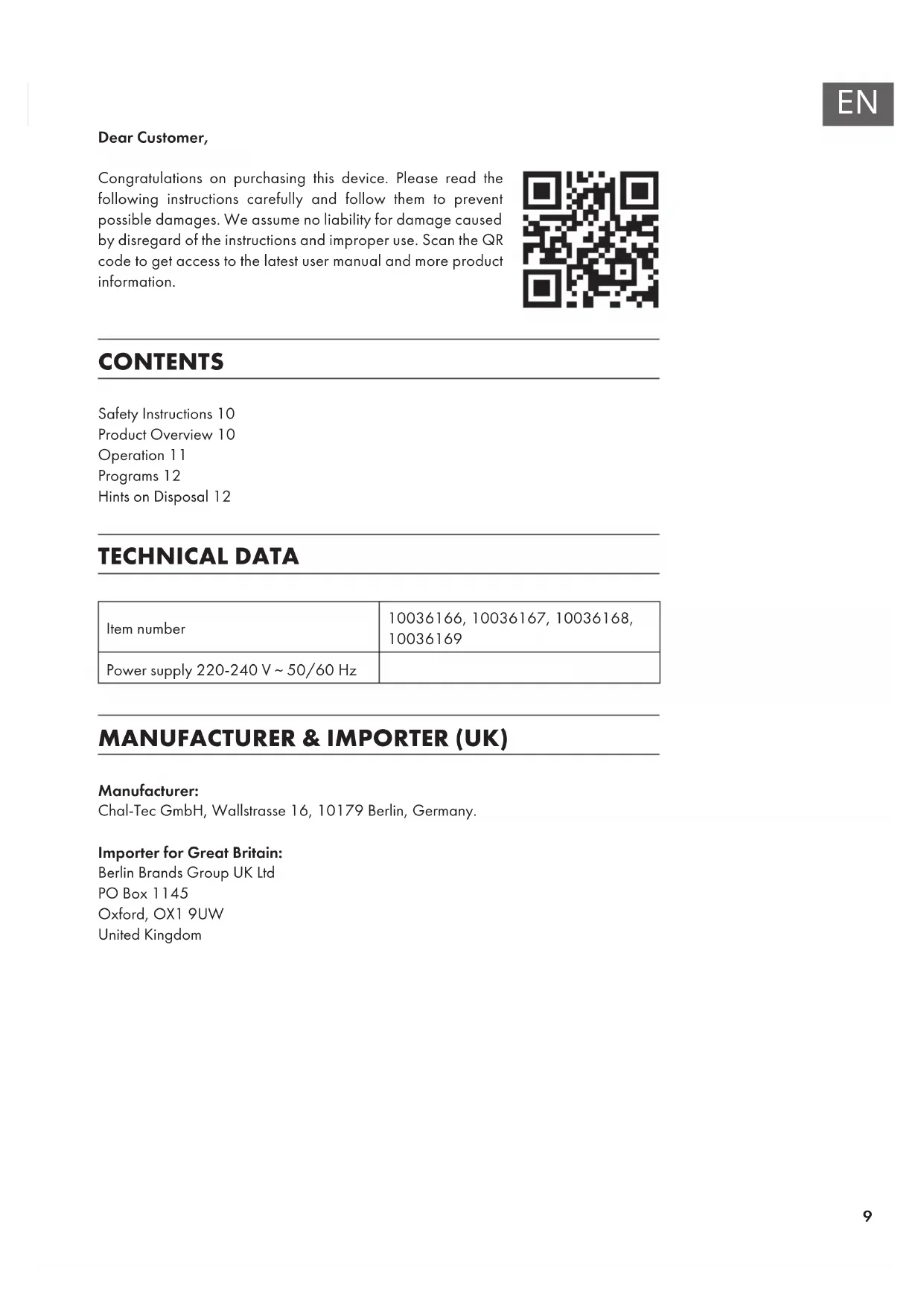

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.
CONTENTS
Safety Instructions 10
Product Overview 10
Operation 11
Programs 12
Hints on Disposal 12
TECHNICAL DATA
| Item number | 10036166, 10036167, 10036168, 10036169 |
| Power supply 220-240 V ~ 50/60 Hz |
MANUFACTURER & IMPORTER (UK)
Manufacturer:
Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.
Importer for Great Britain:
Berlin Brands Group UK Ltd
PO Box 1145
Oxford,OX19UW
United Kingdom
SAFETY INSTRUCTIONS
- Read all instructions carefully and keep the manual in a safe place for future reference.
- Only use the AC power adaptor supplied.
If you do not use this product for a long time, please switch off the unit. - Remove the adapter when the winder is not in use.
- Make sure the watch winder is switched off before attempting to pull out the watch holder.
Always turn off the power when inserting or removing watches. - Do not shake the watch winder when the winder is in operation.
- Do not remove the watch when the watch winder is rotating.

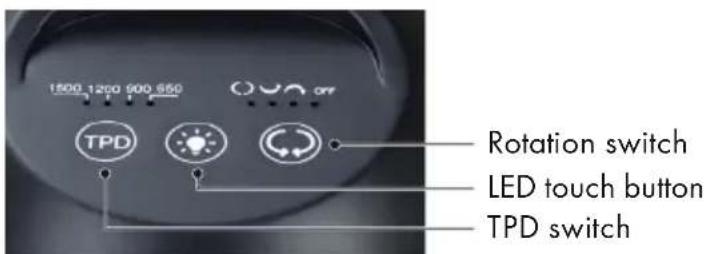

PRODUCT OVERVIEW
Note: The power supply connector is located on the back of the unit.
Put the watch holder extender on the watch holder for larger size wrist watch.
Place the watch holder into the winder. Push until you hear a "CLICK" signifying that it is securely in the winder.
OPERATION
- Insert the adapter into the adapter port and plug it into the electrical outlet.

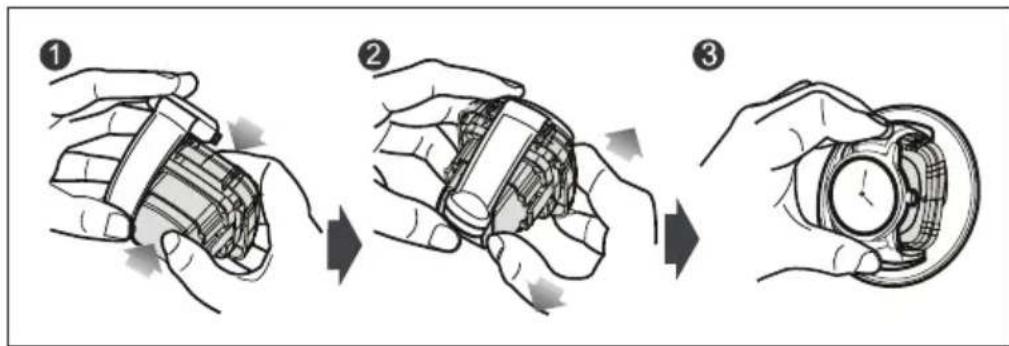

- Open the front cover, then use your index finger and thumb to hold the watch holder from the two sides of the holder hitch marked with two arrows. With some force, pull out the watch holder.
- Place the watch on the holder by pushing in the spring on the back of the holder, then put your watch around the holder and let go of the spring.
- Once the watch is on the holder, place the holder back into the winder. Push until you hear a click signifying that it is securely in the winder.
- Press the Rotation touch button to select the winding direction Clockwise, Counterclockwise or Auto (both directions).
- Press the TPD touch button to select the desired turns per day (TPD).
PROGRAMS
| Program A | 650 turns per day | Rotate 7 minutes (50 turns), rest 104 minutes and then repeat. |
| Program B | 900 turns per day | Rotate 7 minutes (50 turns), rest 73 minutes and then repeat. |
| Program C | 1200 turns per day | Rotate 7 minutes (50 turns), rest 53 minutes and then repeat. |
| Program D | 1500 turns per day | Rotate 7 minutes (50 turns), rest 41 minutes and then repeat. |
HINTS ON DISPOSAL
If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.
