USER MANUAL Scorpion+ DIRT DEVIL

Congrats on purchasing your new Dirt Devil Scorpion Hand Vac. Inside, you'll find everything you want to know from the tools to how to.

So what are you waiting for? LET'S GO.

PRODUCT REGISTRATION

Warranty Registration

Be sure to register your product online at www.DirtDevil.com or call 1-800-321-1134 to register by phone.

Hint: Attach your sales receipt to this Owner's manual. Verification of date of purchase may be required for warranty service of your Dirt Devil® product.

For quick reference, please record your product information below.

Model #:

Mfg. Code:

(Mfg. code located on the back or bottom of product)

Find Genuine Replacement Parts at www.dirtdevil.com

This product uses the following parts: FILTER

F117

TABLE OF CONTENTS

1·2·3…

Quick Start Assembly -6

Tools-7

How to -8

Filter Removal and Replacement 10

Troubleshooting-11

Limited Warranty—12

WARNING

THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF USED COMMERCILICALLY WARRANTY IS VOID.

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should always be followed, including the following:

• READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
• ALWAYS FOLLOW THESE SAFETY INSTRUCTIONS.
  DO NOT LEAVE CLEANER UNATTENDED.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:

• Fully assemble before operating.
• Operate cleaner only at voltage specified on data plate on back of cleaner.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Not intended for use by children age 12 and under. Close supervision is necessary when used near children. To avoid injury or damage, keep children away from product, and do not allow children to place fingers or other objects into any openings.
• Use only as described in this manual. Use only manufacturer's recommended attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, return it to a service center for inspection. Call 1-800-321-1134 for the nearest service center.
• Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor. Do not place cleaner on stairs or furniture, as it may result in injury or damage.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or fine wood sandings or use in areas where they may be present.
  Always turn off this appliance before connecting or disconnecting motorized nozzle.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot ashes.
• Store the product indoors. Put the product away after use to prevent tripping accidents.
• Do not use without filters and/or dirt cup in place.
• WARNING: this product contains chemicals, known to the state of California to cause cancer and birth defects or other reproductive harm. WASH HANDS AFTER USING.
• Any other servicing should be done by an authorized service representative.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before servicing.

WASH HANDS AFTER USING.

CAUTION: TO REDUCE THE RISK OF DAMAGE:

• Avoid picking up hard, sharp objects with this product, as they may cause damage.
• Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.

SAVE THESE INSTRUCTIONS

WARNING:

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician to install the proper outlet. Do not change the plug in any way.

• Please read these instructions carefully before using your product.
• Let us help you put your product together, order parts and accessories or answer any questions.
• Please Do Not Return This Product To The Store.

NOTICE

A THERMAL PROTECTOR HAS BEEN DESIGNED INTO YOUR CLEANER TO PROTECT IT FROM OVERHEATING. WHEN THE THERMAL PROTECTOR ACTIVATES THE CLEANER WILL STOP RUNNING.

If this happens proceed as follows:

1. Turn cleaner OFF and unplug it from the electrical outlet.
2. Empty dirt cup.
3. Inspect the nozzle inlet, hose connector, hose, dirt cup inlet, cyclonic filter, rinsable filter, and HEPA filter. Clear obstructions if present.
4. When cleaner is unplugged and motor cools for 30 minutes, the thermal protector will deactivate and cleaning may continue.

If the thermal protector continues to activate after following the above steps, your cleaner needs servicing.

QUICK START

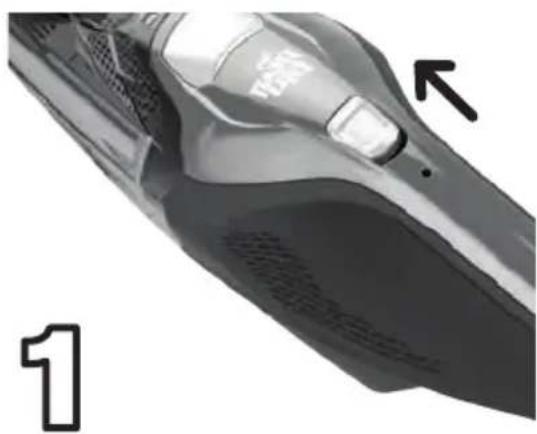

PLUG IN AND SLIDE HERE TO POWER ON (I=ON), SLIDE SWITCH TO OFF (O=OFF).

2

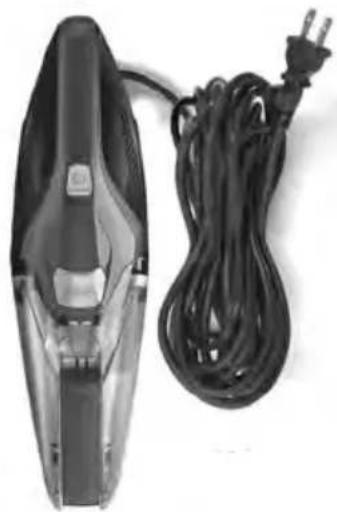

WHEN FINISHED CLEANING, UNPLUG AND NEATLY WRAP THE CORD.

YOUR HAND VAC IS READY TO CLEAN! LET'S GO.

NEED HELP?

Go to dirtdevil.com/support or contact our Customer Service Department at [phone]

Pick up the conversation on...

Facebook.com/DirtDevil

Twitter@DirtDevil

TOOLS

1

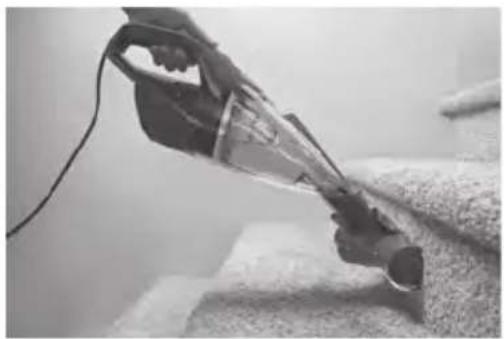

STAIR TOOL*: use on carpeted stairs, upholstery and in your car. Adjusts for convenient cleaning.

Vertical and horizontal cleaning.

2

QUICKFLIP CREVICE TOOL

3

HOSE WITH CREVICE TOOL DUSTING BRUSH

HOW TO USE

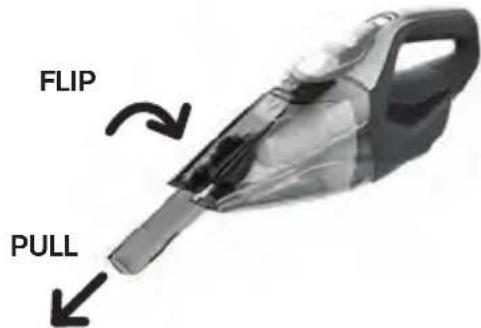

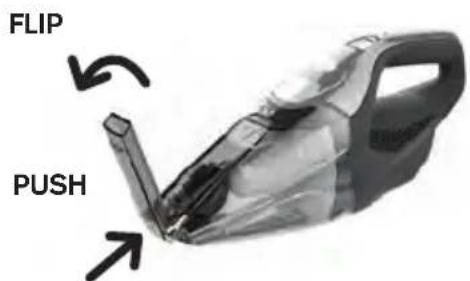

QUICK FLIP™ CREVICE TOOL

Easily clean cracks and crevices.

1. Flip the crevice tool out and push in to clean cracks and crevices.

1. To store crevice tool: gently pull the tool away from the dust cup and flip the tool up toward the unit & press down until you feel it lock into place.

POWERED STAIR & UPHOLSTERY TOOL*

Easily clean stairs, upholstery and more.

1. Push powered brushroll into hand vac nozzle to attach. TIP: When unit is on, the powered brushroll will be on.

1. To remove powered brushroll, gently pull tool away from the hand vac.

NOTE: The powered brushroll has its own motor and a motor protective device: should debris jam the brushroll and stop it from rotation, switch unit OFF, remove the powered brushroll from the unit, remove the debris jamming the brushroll and reassemble the powered brushroll. Then wait a few minutes prior to turning the unit ON again.

WARNING

To reduce the risk of injury from moving parts, remove powered brushroll before cleaning or servicing.

*Not all models have this feature

HOW TO USE

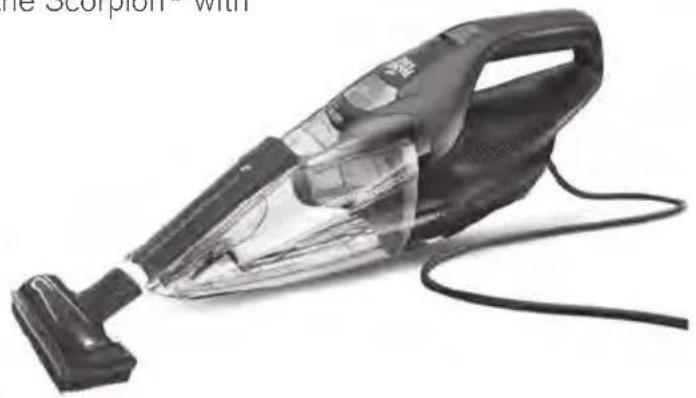

THE DUSTING BRUSH

Insert dusting brush into the Scorpion® with the crevice tool closed.

1

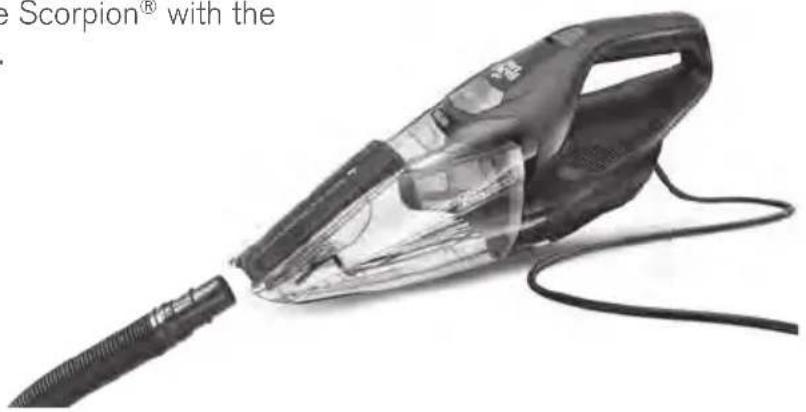

THE HOSE

Insert hose into the Scorpion® with the crevice tool closed.

2

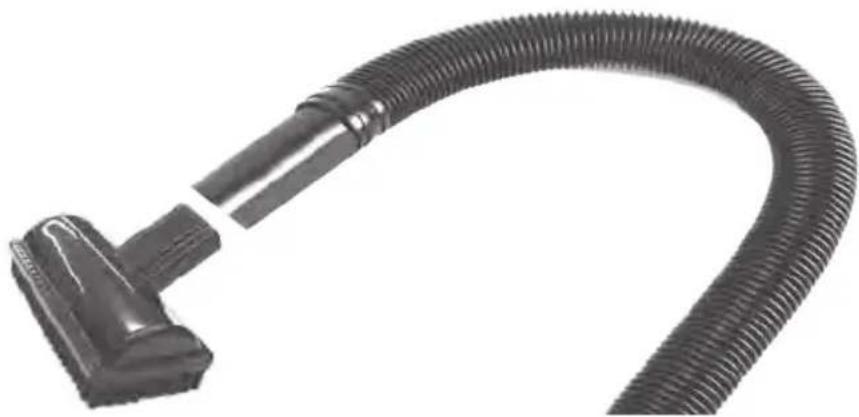

THE DUSTING BRUSH WITH THE HOSE

Insert dusting brush into the other end of the hose.

3

FILTER REMOVAL AND REPLACEMENT

TIP: To maintain performance, filter should be changed every 3-6 months, or as needed.

1. While holding the dirt cup and handle, press dirt cup release button.

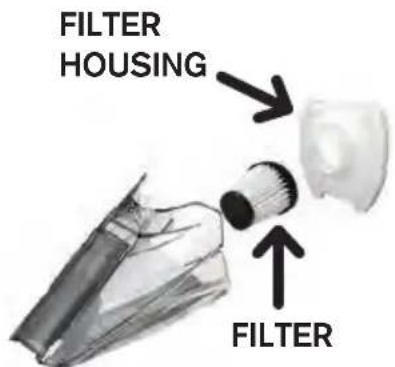

1. Remove filter assembly from dirt cup & separate the white filter from the filter housing. Tap filter over a trash can to remove debris. Be sure to also wipe debris from the filter housing.

NOTE: Do not discard filter or filter housing.

1. Remove the dirt cup to access filter.

1. Put the filter back into the filter housing and place filter assembly back into the dirt cup. Reassemble dirt cup to body, align bottom first and rotate up until it clicks.

NOTE: Filter is rinseable with water. Do not use soap/detergent. Let filter air dry for 24 hours or until completely dry.

LUBRICATION The motor is equipped with bearings which contains sufficient lubrication for its lifetime. The addition of lubricant could cause damage. Do not add lubricant to motor.

For replacement filter F101 visit dirtdevil.com or call us at [phone].

WARNING

To reduce the risk of personal injury, turn power switch off before cleaning or servicing. Do not use vacuum without dirt cup or filters in place.

TROUBLESHOOTING

Any other servicing should be done by an authorized service representative. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a service center prior to continuing use.

WARNING

To reduce the risk of personal injury - Turn power switch off before cleaning or servicing.

PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION

Vacuum won't run	1. Power cord not firmly plugged into outlet.	1. Plug unit in firmly.
	2. Blown fuse or tripped breaker.	2. Check fuse or breaker in home. Replace fuse/breaker in home.
	3. No voltage in wall plug.	3. Replace fuse/reset breaker in home.
	4. Thermal Protector activated.	4. Unplug and allow vacuum to cool for 30min. (This will reset the thermal protector)
Dust escaping from vacuum	1. Dirt cup full.	1. Empty dirt cup.
	2. Dirt cup not installed correctly.	2. Review Dirt Cup removal & replacement.
	3. Rinsable and/ or Filter made with HEPA media not installed completely.	3. Review Filter Removal and Cleaning.
Smokey burning smell detected	1. Belt broken or stretched. 1. Call customer service: 1-800-321-1134
	2. Stair tool is clogged 2. Clear/remove debris from brush roll.
Vacuum tools won't pick-up	1. Dirt cup full 1. Empty dirt cup.
	2. Filter is clogged. 2. Remove filter and clean.
	3. Stair tool not spinning.	3. Review 'how to' section.
Poor suction	1. Dirt cup not completely sealed.	1. Resinall dirt cup, make sure lid is closed completely.
	2. Filter is clogged. 2. Remove filter and clean.
Vacuum running warm	1. Dirty filter. 1. Clean filter, rinse, dry and re-assemble.
	2. Low suction. 2. Locate clog and remove.

LIMITED WARRANTY

WHAT THIS WARRANTY COVERS

When used and maintained in normal household use and in accordance with the Owner's Manual, your Dirt Devil® product is warranted against original defects in material and workmanship. During the Warranty Period, We will provide labor and parts, at no cost to you, to correct any such defect in products purchased in the United States, U.S. Military Exchanges and Canada.

HOW TO MAKE A WARRANTY CLAIM

If this product is not as warranted, take or send the product to a Dirt Devil® Authorized Warranty Service Dealer along with proof of purchase. For an automated referral to authorized service outlets in the U.S.A., phone: [phone] OR visit Dirt Devil® online at www.DirtDevil.com. For additional assistance or information concerning this Warranty or the availability of warranty service outlets, phone the Dirt Devil® Consumer Response Center, Phone [phone], Mon-Fri 8am-7pm EST.

WHAT THIS WARRANTY DOES NOT COVER

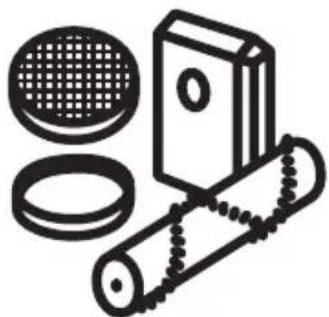

This Warranty does not cover: use of the product in a commercial operation (such as maid, janitorial and equipment rental services), brushroll, belt, bags, filters, improper maintenance of the product, damage due to misuse, acts of God, nature, vandalism or other acts beyond the control of Royal Appliance Mfg. Co. ("Royal", "we"), owner's acts or omissions, use outside the country in which the product was initially purchased and resales of the product by the original owner. This warranty does not cover pick up, delivery, transportation or house calls. This warranty does not apply to products purchased outside the United States, including its territories and possessions, outside a U.S. Military Exchange and outside of Canada. This warranty does not cover products purchased from a party that is not an authorized retailer, dealer, or distributor of Royal products.

OTHER IMPORTANT TERMS

This Warranty is not transferable and may not be assigned. This Warranty shall be governed and construed under the laws of the state of Ohio. The Warranty Period will not be extended by any replacement or repair performed under this Warranty. THIS WARRANTY IS THE EXCLUSIVE WARRANTY AND REMEDY PROVIDED BY ROYAL. ALL OTHER WARRANTYES, EXPRESSED OR IMPLIED, INCLUDING WARRANTYES OF MERCHANTABILITY OR FITNESS FOR PARTICULAR PURPOSE, ARE DISCLAIMED. IN NO EVENT WILL ROYAL BE LIABLE FOR ANY SPECIAL, INDIRECT, INCIDENTAL OR CONSEQUENTIAL DAMAGES OF ANY KIND OR NATURE TO OWNER OR ANY PARTY CLAIMING THROUGH OWNER, WHETHER BASED IN CONTRACT, NEGLIGENCE, TORT OR STRICT PRODUCTS LIABILITY OR ARISING FROM ANY CAUSE WHATSOEVER. Some states do not allow the exclusion of consequential damages, so the above exclusion may not apply to you. This warranty gives you specific rights; you may also have others that vary from state to state.

Find Genuine Replacement Parts at www.dirtdevil.com

This product uses the following parts: PRE-MOTOR FILTER F117

Call our Customer Service Department at [phone] 8:00 a.m. - 7:00 p.m. EST Mon. - Fri.

www.dirtdevil.com

OUR VACS SPEAK VOLUMES

Pick Up the Conversation On...

Facebookcom/DirtDevil

Twitter@DirtDevil

SCORPION®

PROBLÉME CAUSE POSSIBLE SOLUTION POSSIBLE

PROBLEMA CAUSA POSIBLE SOLUCION POSIBLE

© 2022 Techtronic Floor Care Technology Limited

All Rights Reserved.

Distributed by,

Hoover, Inc., Charlotte, NC 28262
