USER MANUAL ProBlitz Airmover ProTeam

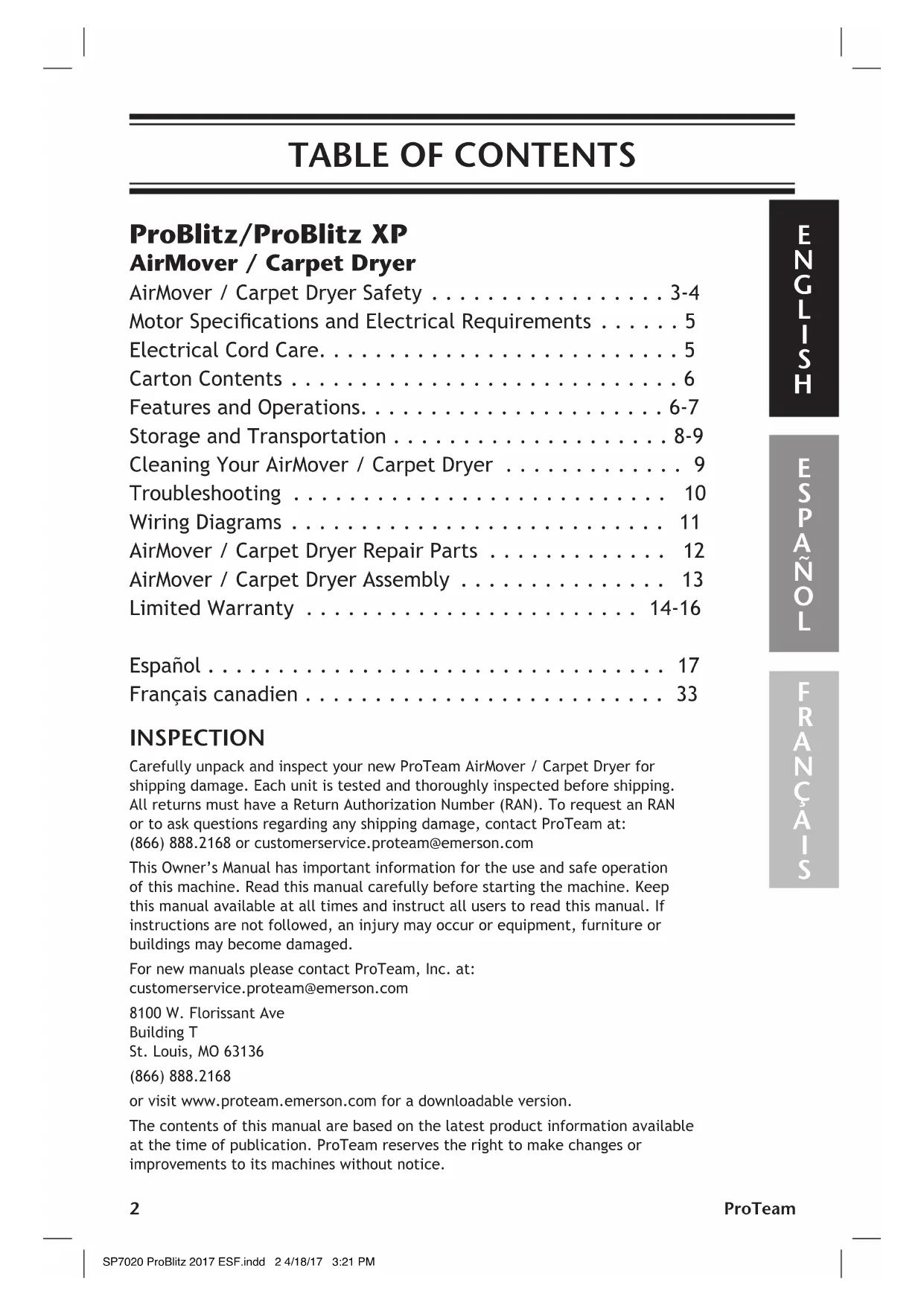

• ProBlitz/ProBlitz XP AirMover / Carpet Dryer AirMover / Carpet Dryer Safety p. 3
• -4 Motor Specications and Electrical Requirements p. 5
• Electrical Cord Care p. 5

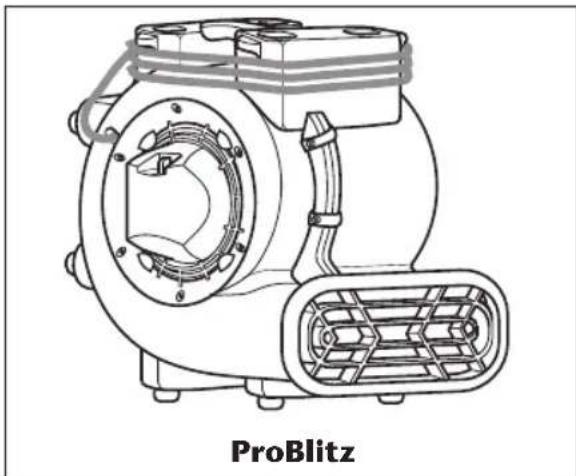

• Carton Contents p. 6
• Features and Operations p. 6
• -7 Storage and Transportation p. 8
• -9 Cleaning Your AirMover / Carpet Dryer p. 9
• Troubleshooting p. 10

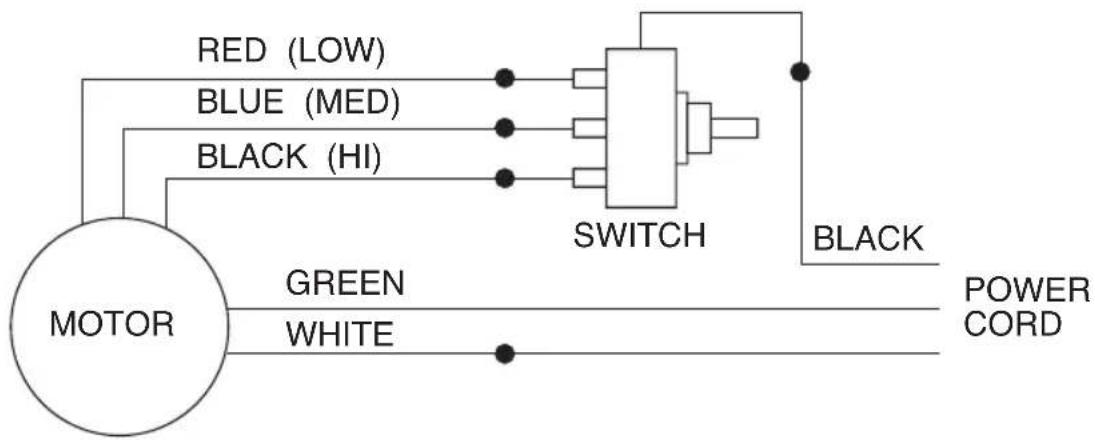

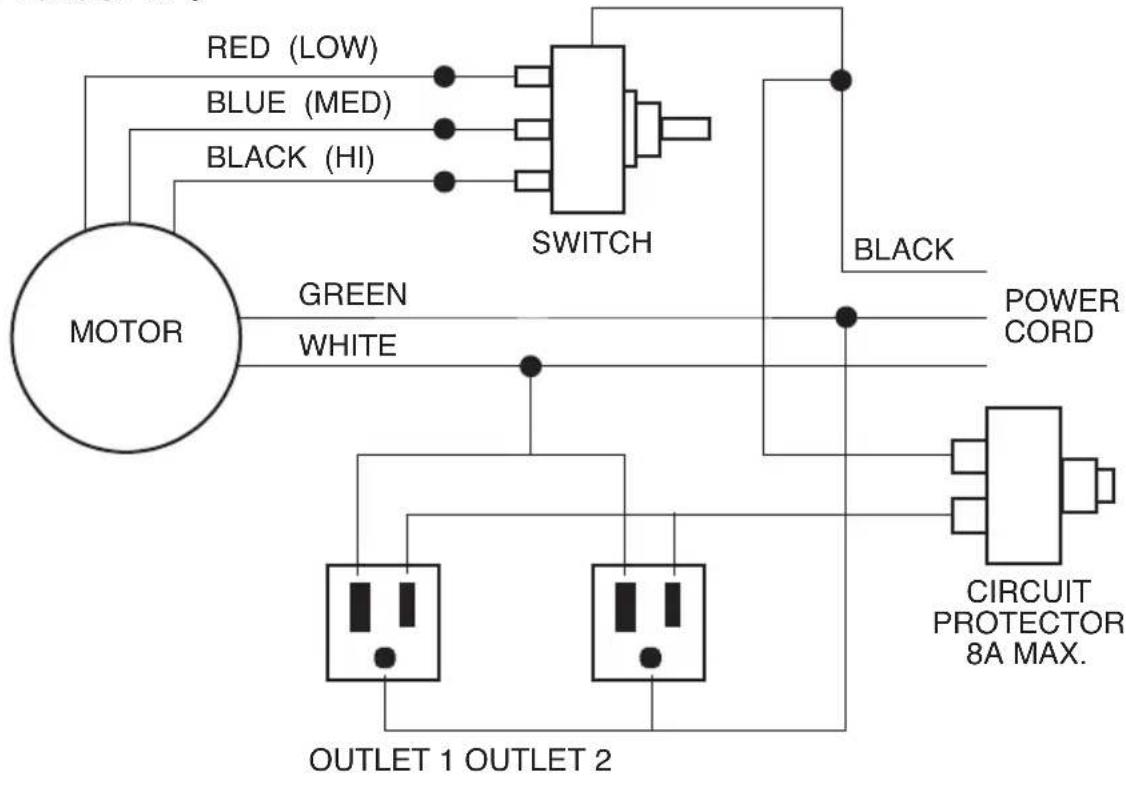

• Wiring Diagrams p. 11
• AirMover / Carpet Dryer Repair Parts p. 12
• AirMover / Carpet Dryer Assembly p. 13
• Limited Warranty p. 14
• -16 Español p. 17
• Français canadien INSPECTION Carefully unpack and inspect your new ProTeam AirMover / Carpet Dryer for shipping damage. Each unit is tested and thoroughly inspected before shipping. All returns must have a Return Authorization Number (RAN). To request an RAN or to ask questions regarding any shipping damage, contact ProTeam at: [phone] or [e-mail] This Owner’s Manual has important information for the use and safe operation of this machine. Read this manual carefully before starting the machine. Keep this manual available at all times and instruct all users to read this manual. If instructions are not followed, an injury may occur or equipment, furniture or buildings may become damaged.For new manuals please contact ProTeam, Inc. at: [e-mail]8100 W. Florissant Ave Building T St. Louis, MO 63136(866) 888.2168or visit www.proteam.emerson.com for a downloadable version.The contents of this manual are based on the latest product information available at the time of publication. ProTeam reserves the right to make changes or improvements to its machines without notice. p. 33

Safety is a combination of using common sense, staying alert, and knowing how your AirMover / Carpet Dryer works. Safety Signal Words DANGER Indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING Indicates a hazardous situation which, if not avoided, could result in death or serious injury. CAUTION Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. When using your AirMover / Carpet Dryer, always follow basic safety precautions including the following: – Toreducetheriskofre,electricshock,orinjury:

• Read and understand this manual and all labels on the AirMover / Carpet Dryer before operating.

• Use only as described in this manual.

• To reduce the risk of electric shock, do not expose to rain, or immerse in or use in standing water. Store indoors only.

• Total amperage through accessory power outlets should not exceed 8.0 Amps.

• Do not daisy chain more than 2 units.

• Use only with GFCI-protected outlets.

• Do not stack AirMover / Carpet Dryers more than 2 units high.

• Do not use an extension cord with this AirMover / Carpet Dryer.

• Electrical appliances can ignite ammable vapors or dust. Do not use near combustible liquids, gases, or dusts.

• Do not leave plugged into outlet when not in use or when servicing. Turn off before unplugging.

• To reduce the risk of stirring up and inhaling toxic vapors, do not use near toxic or hazardous materials.

• Never operate with safety grills removed.

• This unit has an automatically-operated protective device which may shut down the unit during operation. Unplug before servicing or cleaning.

• Do not use with solid state speed control device.

• Do not allow to be used as a toy. Close attention is necessary when used by or near children.

• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

• Do not use with damaged cord, plug, or other parts. WARNING

SAVE THESE INSTRUCTIONS

Violation of any of these instructions may void any and all warranties. SP7020 ProBlitz 2017 ESF.indd 3 4/18/17 3:21 PM4 ProTeam

IMPORTANT SAFETY INSTRUCTIONS

• If your AirMover / Carpet Dryer is not working as it should, has missing parts, has been dropped, damaged, left outdoors, or dropped into water, contact Customer Service.

• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around sharp edges or corners. Keep cord away from heated surfaces.

• Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from trafc area and where it will not be tripped over.

• Do not handle plug, switch, or the AirMover / Carpet Dryer with wet hands.

• Do not lift AirMover / Carpet Dryer by retractable handle.

• Do not use retractable handle and wheels for going up and down stairs. Use carrying handle on top of motor housing.

• Do not use unit as a hand truck or moving dolly.

• Do not put any object into air intake openings.

• Keep hair, loose clothing, ngers, and all parts of body away from openings and moving parts.

• Direct air discharge only at work area. Do not direct air at bystanders.

SAVE THESE INSTRUCTIONS

Violation of any of these instructions may void any and all warranties. Observe the following warnings that appear on the motor housing of your AirMover / Carpet Dryer: WARNING Toreducetheriskofelectricshock,connectonlytoaGFCI protectedoutlet.Donotexposetowaterorrain. CAUTION

• This fan has an automatic motor shutoff device; it may restart without notice. To reduce the risk of injury, unplug before servicing.

• Do not use an extension cord with this fan.

• To reduce the risk of tip-over during storage or transport, stack 2-high only.

• Total amperage through accessory power outlets should not exceed 8.0 amps.

• Do not daisy chain more than 2 units. CAUTION

• For dusty operations, wear dust mask.

• Do not move or carry AirMover / Carpet Dryer when it is operating.

• Only operate on a level and stable surface to prevent it from falling and possibly causing injury or damage to unit. SP7020 ProBlitz 2017 ESF.indd 4 4/18/17 3:21 PMProTeam 5

120 Volt, 60 Hz. AirMover / Carpet Dryer Information This AirMover / Carpet Dryer is provided with a 3-speed, 120 volt, 60 Hz induction motor with a grounding conductor. It is thermally protected and will automatically shut down if over-heated. Once it cools, the motor will restart automatically if not unplugged. In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This AirMover / Carpet Dryer is equipped with an electric cord having an equipment grounding conductor and a grounding plug. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all local codes and ordinances. Do not modify the plug provided. If it will not t the outlet, have the proper outlet installed by a qualied electrician. When AirMover / Carpet Dryer use is complete, unplug the cord and wrap it around cord wrap tabs on top of the housing. If the power cord is damaged, it must be replaced by ProTeam or the local ProTeam authorized dealer to reduce the risk of accident. NEVER stretch the cord tightly between the AirMover / Carpet Dryer and the outlet. A cord that is stretched or pulled will not function properly and creates an electrical and tripping hazard. DO NOT wind up the cord by wrapping it around your hand and elbow. Use only the designated ProTeam replacement cord. Cord jacket type should be SJTW or better. SP7020 ProBlitz 2017 ESF.indd 5 4/18/17 3:21 PM6 ProTeam CARTON CONTENTS

FEATURES AND OPERATIONS

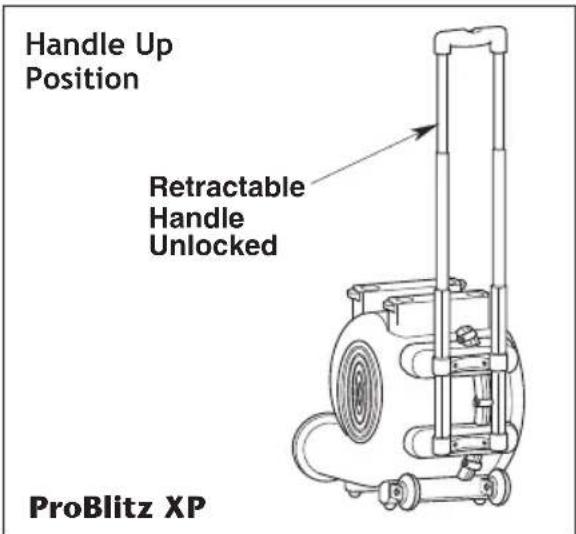

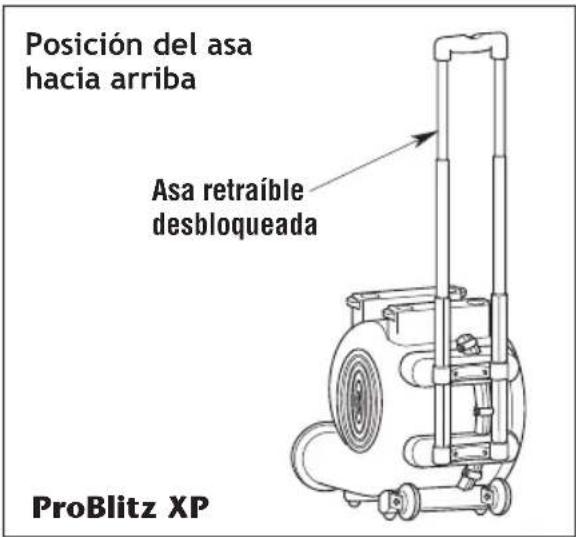

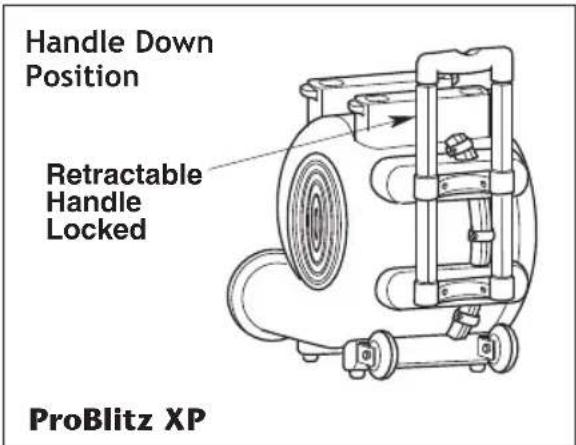

Carefully unpack and inspect your AirMover / Carpet Dryer. Contact ProTeam Customer Service if any parts are damaged or missing. If your AirMover / Carpet Dryer includes a retractable handle (ProBlitz XP), it comes packaged with the retractable handle in a locked, downward position. ProBlitz Retractable Handle Unlocked ProBlitz XP Retractable Handle Locked ProBlitz XP AirMover / Carpet Dryers Interconnection ProTeam AirMover / Carpet Dryers (1075960) can be interconnected in series using the 1075960 convenience outlets. If utilizing the series interconnection feature, only use AirMovers / Carpet Dryer that total less than the recommended

7.9 Amp maximum convenience outlet

rating. The 8.0 Amp on-board circuit breaker will allow up to two (2) additional ProTeam AirMover / Carpet Dryers to run on the rst AirMover / Carpet Dryer at the same time. NOTE: This AirMover / Carpet Dryer 1075960 is equipped with convenience outlets with an on-board 8.0 Amp circuit breaker. If the convenience outlet overloads, the circuit breaker will trip. If the circuit breaker does trip, turn the switch to the off position and unplug all units then press the circuit breaker reset button. Plug the units back into the power source. The on-board convenience outlets on the AirMover / Carpet Dryer will be actively powered when the AirMover / Carpet Dryer is plugged in and the circuit breaker is properly reset. HandleUp Position HandleDown Position SP7020 ProBlitz 2017 ESF.indd 6 4/18/17 3:21 PMProTeam 7

FEATURES AND OPERATIONS

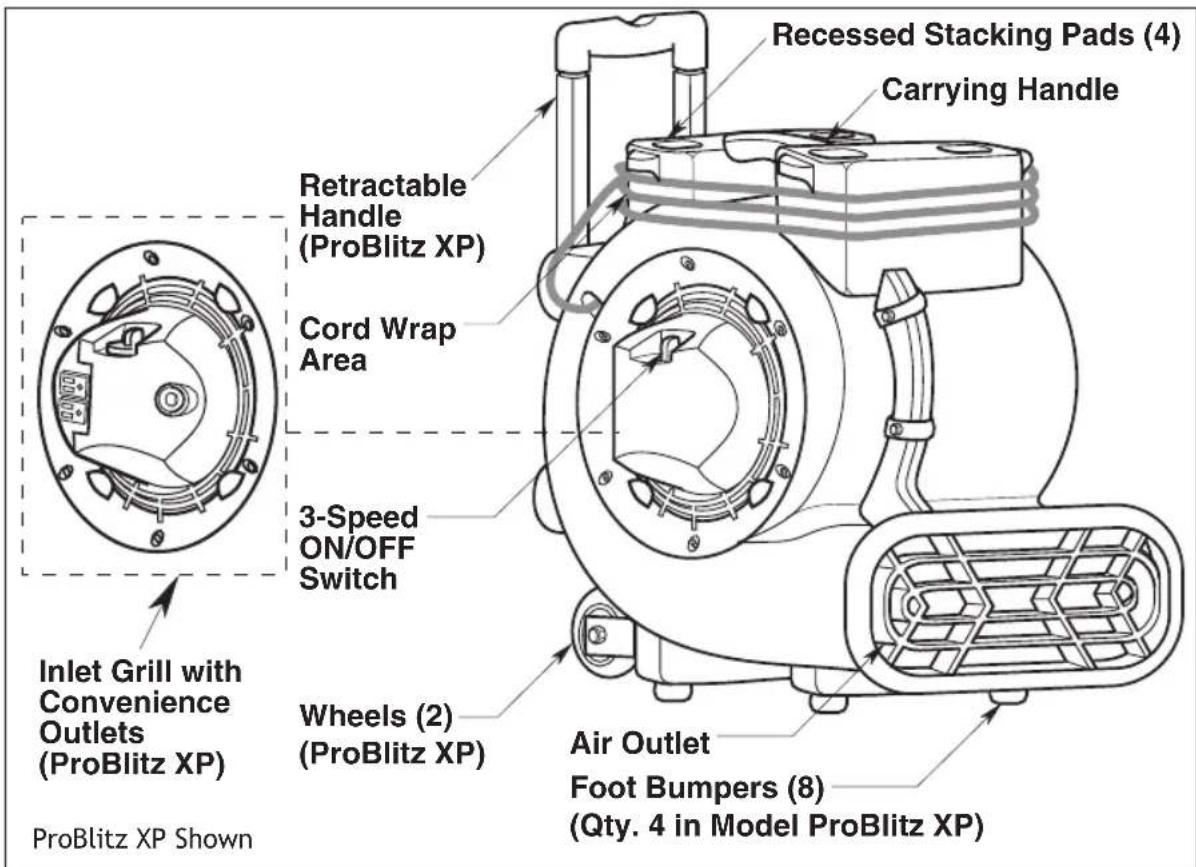

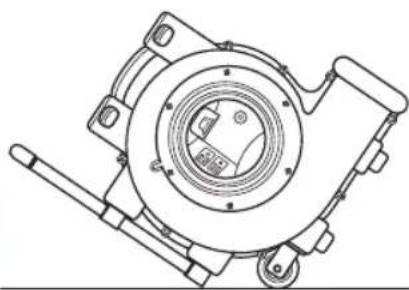

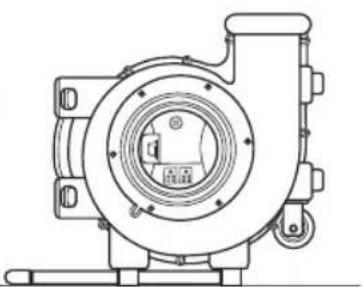

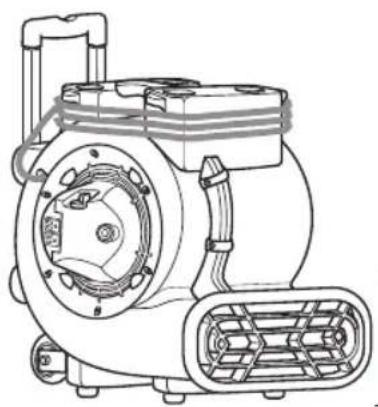

AirMovers / Carpet Dryers are designed to move large volumes of air. They are used to dry wet carpets, oors and furniture. They may also be used for ventilation. Carrying Handle Recessed Stacking Pads (4) Air Outlet Retractable Handle (ProBlitz XP) Cord Wrap Area 3-Speed ON/OFF Switch Wheels (2) (ProBlitz XP) Foot Bumpers (8) (Qty. 4 in Model ProBlitz XP) Inlet Grill with Convenience Outlets (ProBlitz XP) ProBlitz XP Shown ProBlitz XP Shown 45° Walls&Furniture NOTE:Collapseretractable handleforsafety 90° Ceilings&Ventilation NOTE:Collapseretractable handleforsafety Place ProBlitz AirMover / Carpet Dryer in desired operating position: Floor & Carpet SP7020 ProBlitz 2017 ESF.indd 7 4/18/17 3:21 PM8 ProTeam

STORAGE AND TRANSPORTATION

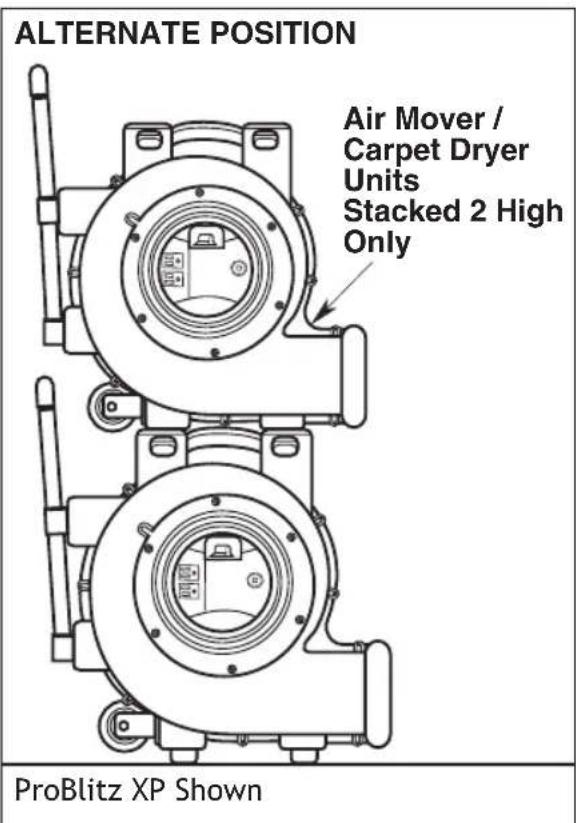

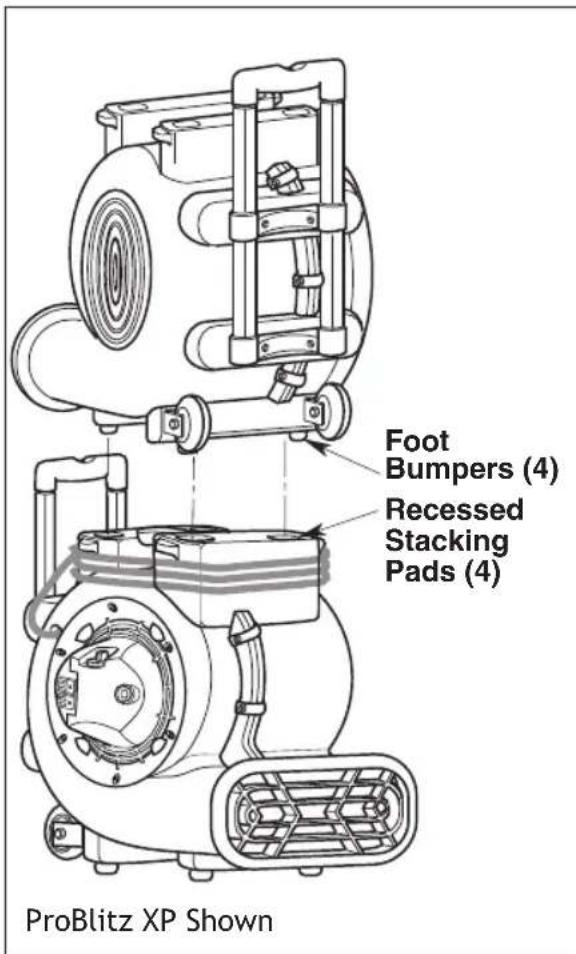

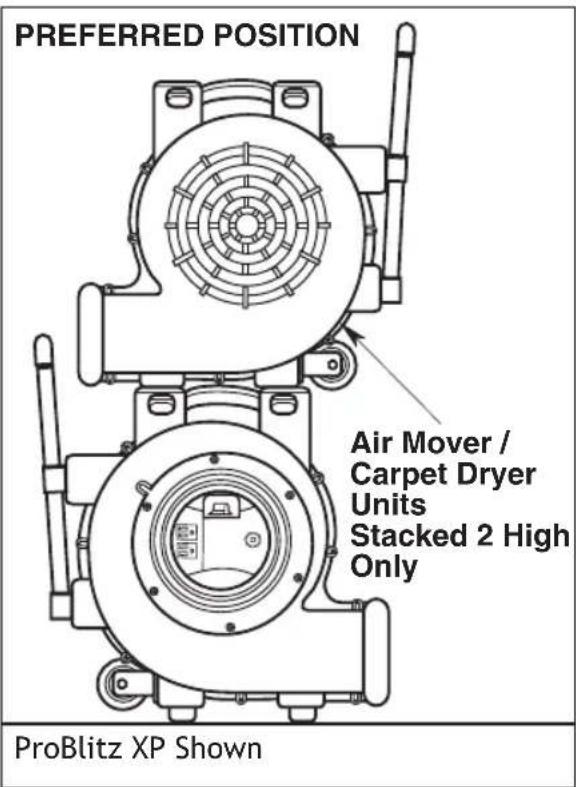

When stacking units, position the four foot bumpers on the recessed, stacking pads (Figure A). CAUTION Be sure to secure AirMover / Carpet Dryer over with strapping / rope / tiedowns when storing or transporting in a vehicle. The ProBlitz AirMover / Carpet Dryers stack in either of the orientations shown in Figures B and C. CAUTION Do not operate AirMover / Carpet Dryer when stacked on top of each other. Do not stack more than 2 high. Air Mover / Carpet Dryer Units Stacked 2 High Only Recessed Stacking Pads (4) Foot Bumpers (4) Air Mover / Carpet Dryer Units Stacked 2 High Only ProBlitz XP Shown ProBlitz XP Shown ProBlitz XP Shown Figure B Figure A Figure C PREFERRED POSITION ALTERNATE POSITION SP7020 ProBlitz 2017 ESF.indd 8 4/18/17 3:21 PMProTeam 9

STORAGE AND TRANSPORTATION

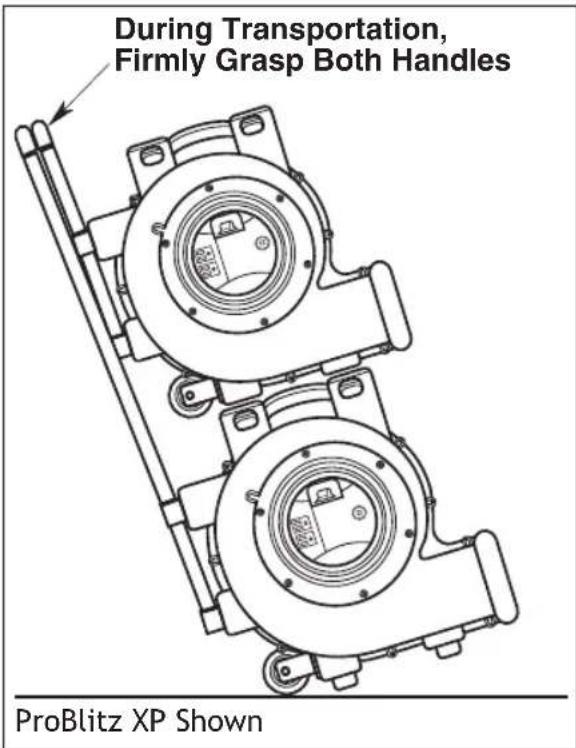

ProBlitzXPTransportation: To transport the units in a stacked position, fully extend the bottom AirMover / Carpet Dryer handle (Figure D). Grasp handles of each unit rmly, and tilt units backwards and move to desired location.

CLEANING YOUR AIRMOVER / CARPET DRYER

During Transportation, Firmly Grasp Both Handles If the polypropylene housing becomes soiled, it may be wiped off with a damp cloth. WARNING After servicing, any safety device (including grilles, impeller, etc.) should be reinstalled or remounted. ProBlitz XP Shown Figure D SP7020 ProBlitz 2017 ESF.indd 9 4/18/17 3:21 PM10 ProTeam TROUBLESHOOTING

3. Switch is faulty.

4. Faulty/broken cord or

2. Place in “ON” position.

4. Perform continuity check, using

volt/amp meter. Unit runs but air mover makes loud scraping noise.

1. Unit has been severely jolted

causing blower wheel to rub against housing.

2. Unit has been severely jolted

causing housing to deform.

1. Remove motor and replace damaged

Unit runs but vibrates excessively.

1. Severe jolt has bent motor

shaft, causing unit to be out of balance.

2. Blower wheel blade damaged.

3. Dirt built up on one side of

Unit runs but blower wheel does not turn.

1. Blower wheel is jammed

2. Capacitor wire has broken/

come loose, capacitor has failed.

3. Housing has been damaged

such that it presses on blower wheel.

Unit runs briey, then shuts off on overload.

1. Motor bearings are failing

or motor has developed an internal electrical fault.

2. Intake grille and /or exhaust

grille is obstructed.

2. Remove obstruction.

Convenience outlet not working. (if equipped)

SP7020 ProBlitz 2017 ESF.indd 13 4/18/17 3:21 PM14 ProTeam LIMITED WARRANTY This limited warranty applies to all ProTeam®, Inc. products, including, without limitation, Backpacks, Canisters, Hipstyles, Uprights, Air Movers, and Wet/Dry product lines, and certain batteries and chargers (collectively, the “products”). Specic warranty terms for certain product parts, motors, batteries and accessories are stated below. If you have any questions or need assistance regarding the warranty of your product, please call ProTeam Customer Service department at [phone] between the hours of 8:00 a.m. - 5:00 p.m. Central Time or at any time via email or fax. Customer service hours may vary and will be updated on the ProTeam website at proteam.emerson.com. LimitedWarranty ProTeam, Inc., located at 8100 W. Florissant Ave, Building T, St. Louis, MO 63136 (“ProTeam” or “we”) warrants to the original purchaser only (“you”or“your”), subject to “WarrantyExclusions” (as applicable), that the product parts, motor, battery and/or charger identied below will be free from defects in materials and workmanship, including labor costs in connection therewith, when under normal use and service beginning on the original date of purchase and continuing for the corresponding period (each a “WarrantyPeriod”). This limited warranty terminates if you transfer the product to any other person or entity. MoldedBodyParts

• All molded body parts, except as indicated below – expected lifetime of the product

• Backpacks (other than specied below), Canisters, Uprights and GoCart- Vac® products – 3 years or 1400 hours, whichever comes rst, subject to your compliance with the following carbon brush replacement and maintenance schedule. Proof of such compliance may be required:

• 1st change – after the rst 800 hours of operation

• 2nd change – after the next 400 hours of operation

• 3rd change – after the next 200 hours of operation

• ProGuard® Wet/Dry 10, 15, 16 MD, 20 – 3 years or 1400 hours, whichever comes rst, subject to your compliance with the following carbon brush replacement and maintenance schedule. Proof of such compliance may be required:

• 1st change – after the rst 400 hours of operation

• 2nd change – after the next 400 hours of operation

• 3rd change – after the next 300 hours of operation

• Super HalfVac Pro – 1 year

• GoFree® Flex Pro 12 Ah and 6 Ah – 2 years

• ProForce® Uprights – brush roll motor – 2 years

• ProGuard 4 Portable Wet/Dry – 1 year

• GoFree Flex Pro 12 Ah and 6 Ah battery pack and charger – 2 years

• GoCartVac batteries – 6 months

• GoCartVac charger and battery control module – 1 year

• ProGuard LI 3 – 1 Year on battery and charger (see Limited Warranty for Lithium Ion Battery below) AdditionalLimitedWarrantyforLithiumIonBatteryChargerforProGuardLI3Cordless

• 90-day Satisfaction Guarantee – In addition to the limited warranty above during the rst 90 days of ownership, with respect to the charger only, the charger may be returned for full refund or exchange. ComponentParts

• All component parts not otherwise listed above – 3 years SP7020 ProBlitz 2017 ESF.indd 14 4/18/17 3:21 PMProTeam 15 LIMITED WARRANTY WhatisNotCovered-WarrantyExclusions This limited warranty does not extend to and expressly excludes:

• Normal wear and tear on the product and/or attachments and accessories including without limitation, extension cords, hoses, lters, switches, carbon motor brushes and other vacuum attachments and accessories not specically listed.

• Damage or burnout of the product motor resulting from failure to clear a blockage occurring during the normal course of use.

• Loss or damage to the product resulting from conditions beyond ProTeam’s control includin without limitation, misuse, accident, abuse, neglect, negligence (other than ProTeam’s), use beyond listed capacity, or improper installation, maintenance or application.

• Unauthorized modication or alteration.

• Loss or damage to the product resulting from failure to follow the required maintenance schedule, or failure to use the product in accordance with ProTeam’s written instructions, guidelines or the terms of its Owner’s Manual.

• Lithium Ion Battery Charger limited warranty applies only to defects arising under normal usage. All other damages are expressly excluded. HowtoNotifyProTeam If you discover that your product has a defect that you believe is covered by this limited warranty, you must notify ProTeam or the ProTeam authorized dealer who sold you the product within the applicable Warranty Period. You may contact ProTeam Customer Service department at [phone] between the hours of 8:00 a.m. and 5:00 p.m. Central Time or at any time via the fax number or the email address listed in your Owner’s Manual or at proteam.emerson.com. Customer service hours may vary and will be updated on the ProTeam website. In order for a warranty claim to be processed as quickly as possible, we suggest that you complete the registration card made available to you on the ProTeam website at proteam.emerson.com. If you do not complete a registration card, you will be required to present a dated sales receipt in order to receive warranty service. Warranty coverage for all products is subject to your compliance with the listed notication and repair procedures. Notication procedures for the GoFree Flex Pro backpack battery pack are set forth below. WhatWeWillDotoCorrectProblems ProTeam or your local ProTeam authorized dealer will determine whether your claim is covered by this limited warranty, subject to the limitations or exclusions described above, and whether the claim is within the applicable Warranty Period. For all warranty claims other than for the GoFree Flex Pro backpack battery pack, provided your claim is covered under this limited warranty, ProTeam or its authorized dealer will, at ProTeam’s sole option and discretion, (a) repair or replace the defective portion of your product or (b) replace your entire product. For GoFree Flex Pro backpack battery packs, your local ProTeam authorized dealer will repair your product, ship your product to an authorized repair facility, or contact ProTeam for a replacement. If ProTeam is unable repair your product or GoFree Flex Pro backpack battery pack or provide you with a suitable replacement, you will receive a refund of your purchase price or a credit to be used toward the purchase of a new product or GoFree Flex Pro backpack battery pack. Products repaired or replaced during the Warranty Period shall be covered for the remainder of the original Warranty Period. Unauthorized repairs or modications, or use of any parts other than genuine ProTeam parts, will nullify this limited warranty. GoFreeFlexProBackpackBatteryPackNoticationProcedures The GoFree Flex Pro backpack battery pack is not eld serviceable and must receive special handling instructions for shipping. Contact ProTeam Customer Service at 866.888.2168 for shipping instructions and service options. A Return Authorization Number (RAN) must be issued prior to shipping a product. Please call the Customer Service department number above or visit the ProTeam website to request a RAN. If you have not submitted a completed registration card, you must include a dated, written proof-of-purchase and a statement explaining the nature of the malfunction with the RAN. If there is no local ProTeam authorized dealer, ProTeam’s Customer Service department will give you the name and address of the nearest eld service representative or will provide you with the RAN and instructions for shipping your product to the ProTeam repair facility. SP7020 ProBlitz 2017 ESF.indd 15 4/18/17 3:21 PMLIMITED WARRANTY NoOtherExpressWarrantyApplies THE LIMITED WARRANTIES PROVIDED ABOVE ARE THE SOLE AND EXCLUSIVE WARRANTIES PROVIDED BY PROTEAM TO YOU, AND ARE IN LIEU OF ALL OTHER WARRANTIES, WRITTEN OR ORAL, EXPRESS OR IMPLIED, WHETHER ARISING BY OPERATION OF LAW OR OTHERWISE, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, WHETHER OR NOT THE PURPOSE HAS BEEN DISCLOSED AND WHETHER OR NOT THE PRODUCT HAS BEEN SPECIFICALLY DESIGNED OR MANUFACTURED FOR YOUR USE OR PURPOSE. THE FOLLOWING SENTENCE APPLIES ONLY TO CONSUMER PURCHASERS: DISCLAIMERS OF IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION, IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, SHALL NOT TAKE EFFECT UNTIL THE END OF THE WARRANTY PERIOD. No employee, agent, dealer, or other person is authorized to alter this limited warranty or make any other warranty on behalf of ProTeam. The terms of this limited warranty shall not be modied by ProTeam, the original owner, or their respective successors or assigns. LimitationofLiability TO THE EXTENT PERMITTED BY LAW, IN NO EVENT SHALL PROTEAM BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, INCLUDING ANY ECONOMIC LOSS, WHETHER RESULTING FROM NONPERFORMANCE, USE, MISUSE OR INABILITY TO USE THE PRODUCT OR PROTEAM’S NEGLIGENCE. SELLER SHALL NOT BE LIABLE FOR DAMAGES CAUSED BY DELAY IN PERFORMANCE AND IN NO EVENT, REGARDLESS OF THE FORM OF THE CLAIM OR CAUSE OF ACTION (WHETHER BASED IN CONTRACT, INFRINGEMENT, NEGLIGENCE, STRICT LIABILITY, OTHER TORT OR OTHERWISE), SHALL PROTEAM’S LIABILITY TO YOU AND/OR YOUR CUSTOMERS EXCEED THE PURCHASE PRICE PAID BY YOU FOR THE PRODUCT. The term “consequential damages” shall include, but not be limited to, loss of anticipated prots, business interruption, loss of use or revenue, cost of capital or loss or damage to property or equipment. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation may not apply to you. This limited warranty gives you specic legal rights, and you may also have other rights which vary from State to State. This limited warranty is governed by the laws of the State of Missouri, U.S.A., without regard to conicts of law provisions. ProTeam, Inc. [e-mail] 8100 W. Florissant Ave • Building T • St. Louis, MO 63136 [phone] SP7020 Printed03/17 SP7020 ProBlitz 2017 ESF.indd 16 4/18/17 3:21 PMMANUAL DEL USUARIO
