Product Type HiFi system with active subwoofer and passive speakers
Brand Auna
Model Cube 1812
Subwoofer dimensions (W x H x D) 55 x 60 x 41 cm
Passive speaker dimensions (W x H x D) 41.5 x 60.5 x 34 cm
Tripod dimensions (W x H x D) 77 x 126-190 x 70 cm
Total weight 37.5 kg
Power supply 230 V ~ 50 Hz
Maximum power consumption 1600 W
Output power (RMS) 500 W
Peak power 1000 W
Impedance 8 Ω
Frequency response (subwoofer) 40 Hz - 20 kHz
Frequency response (passive speakers) 30 Hz - 20 kHz
Connections 1 microphone input 6.3 mm, 1 line output 6.3 mm, 1 line input RCA, 1 line output RCA, 2 NLS inputs, satellite speaker outputs
Control functions Microphone echo control, microphone volume, treble, bass, subwoofer volume, master volume
Audio inputs Microphone (6.3 mm), Line (RCA), AUX
Audio outputs Line (RCA), satellite speakers
Care and cleaning Clean with a dry cloth. Do not use chemicals.
Safety Do not open the housing, avoid moisture, unplug during thunderstorms, keep out of reach of children
Disposal Do not dispose of with household waste. Take to a collection point for electrical equipment.

Frequently Asked Questions - Cube 1812 Auna

What is the power of the Auna Cube 1812 system?
The system delivers an RMS output power of 500 W and a peak power of 1000 W.
How to connect a microphone to the Auna Cube 1812?
Plug your microphone into the 6.3 mm microphone input located on the front or rear panel. Use the volume and echo controls to adjust the sound.
What are the dimensions of the subwoofer?
The subwoofer measures 55 x 60 x 41 cm (W x H x D).
Can I use the Auna Cube 1812 outdoors?
No, the device must not be exposed to rain or moisture. Use it only in a dry indoor location.
How to adjust bass and treble?
Use the Bass adjustment and Treble adjustment knobs on the control panel to customize the sound to your preference.
What to do if the device does not turn on?
Check that the power cord is properly connected and that the wall outlet works. Make sure the fuse has not blown. If the problem persists, contact a qualified technician.
The device produces an odor when first plugged in. Is this normal?
Yes, a slight odor may appear during first use. This is normal and disappears after a few minutes of operation.
How to clean the Auna Cube 1812?
Clean the device with a dry cloth. Never use chemicals or cleaning sprays.
Can I connect additional speakers?
Yes, the device has outputs for satellite speakers. You can connect the supplied passive speakers (2 x 30 cm) to them.
How to dispose of the device at end of life?
Do not dispose of the device with household waste. Take it to an approved collection point for recycling of electrical and electronic appliances.

User questions about Cube 1812 Auna

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Hi-fi system in PDF format for free! Find your manual Cube 1812 - Auna and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. Cube 1812 by Auna.

USER MANUAL Cube 1812 Auna

Cube 1512 / 1812 PA Lautsprecher set PA Speaker Set 10032277 10032278

a u

www.auna-multimedia.com

Auna Cube 1812 - 1

bar | Category | Value | |---|---| | Category 1 | 100 | | Category 2 | 100 | | Category 3 | 100 | | Category 4 | 100 | | Category 5 | 100 | | Category 6 | 100 | | Category 7 | 100 | | Category 8 | 100 | | Category 9 | 100 | | Category 10 | 100 | | Category 11 | 100 | | Category 12 | 100 | | Category 13 | 100 | | Category 14 | 100 | | Category 15 | 100 | | Category 16 | 100 | | Category 17 | 100 | | Category 18 | 100 | | Category 19 | 100 | | Category 20 | 100 | | Category 21 | 100 | | Category 22 | 100 | | Category 23 | 100 | | Category 24 | 100 | | Category 25 | 100 | | Category 26 | 100 | | Category 27 | 100 | | Category 28 | 100 | | Category 29 | 100 | | Category 30 | 100 | | Category 31 | 100 | | Category 32 | 100 | | Category 33 | 100 | | Category 34 | 100 | | Category 35 | 100 | | Category 36 | 100 | | Category 37 | 100 | | Category 38 | 100 | | Category 39 | 100 | | Category 40 | 100 | | Category 41 | 100 | | Category 42 | 100 | | Category 43 | 100 | | Category 44 | 100 | | Category 45 | 100 | | Category 46 | 100 | | Category 47 | 100 | | Category 48 | 100 | | Category 49 | 100 | | Category 50 | 100 | | Category 51 | 100 | | Category 52 | 100 | | Category 53 | 100 | | Category 54 | 100 | | Category 55 | 100 | | Category 56 | 100 | | Category 57 | 100 | | Category 58 | 100 | | Category 59 | 100 | | Category 60 | 100 | | Category 61 | 100 | | Category 62 | 100 | | Category 63 | 100 | | Category 64 | 100 | | Category 65 | 100 | | Category 66 | 100 | | Category 67 | 100 | | Category 68 | 100 | | Category 69 | 100 | | Category 70 | 100 | | Category 71 | 100 | | Category 72 | 100 | | Category 73 | 100 | | Category 74 | 100 | | Category 75 | 100 | | Category 76 | 100 | | Category 77 | 100 | | Category 78 | 100 | | Category 79 | 100 | | Category 80 | 100 | | Category 81 | 100 | | Category 82 | 100 | | Category 83 | 100 | | Category 84 | 100 | | Category 85 | 100 | | Category 86 | 100 | | Category 87 | 100 | | Category 88 | 100 | | Category 89 | 100 | | Category 90 | 100 | | Category 91 | 100 | | Category 92 | 100 | | Category 93 | 100 | | Category 94 | 100 | | Category 95 | 100 | | Category 96 | 100 | | Category 97 | 100 | | Category 98 | 100 | | Category 99 | 100 | | Total (Total) |

INHALTSVERZEICHNIS

Technische Daten 4

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

TECHNISCHE DATEN

natural_image Diagram of three audio equipment units connected to a display panel (no text or symbols present)

RÜCKSEITE

1 MIC ECHO MIC LEVEL TREBLE BASS SUB LEVEL VOLUME -∞ MAX -∞ MAX -12 +12 -12 +12 -∞ MAX -∞ MAX INPUT LINE SPEAKER OUTPUT MIC LINE L R IN OUT 7 8 9 10 11 SAT 1 SAT 2 MINIMUM LOAD 8 OHM

natural_image Symbol of a trash bin crossed with a diagonal line, representing no waste or discharge (no text or labels)

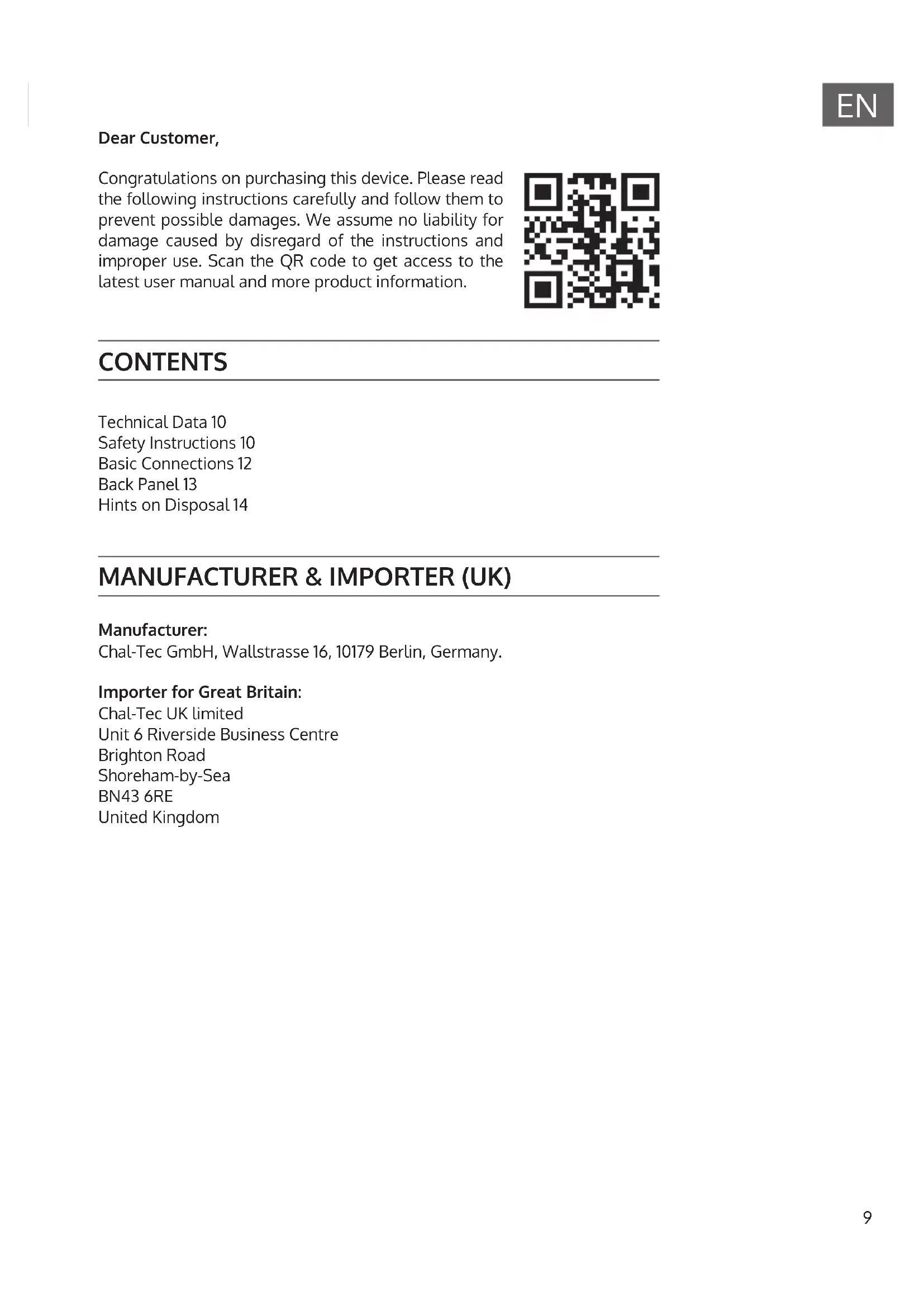

Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Technical Data 10

Safety Instructions 10

Basic Connections 12

Back Panel 13

Hints on Disposal 14

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

TECHNICAL DATA

Item number 10032277 10032278
Item name Cube 1512 Cube1812
Power supply 230 V~ 50 Hz
Power consumption 1200 Wmax 1600 W max
Impedance 8 Ω
Active subwoofer 38 cm (15") 46 cm (18")
Output power 300 W 500 W
Peak power 600 W 1000 W
Frequency response 40 Hz- 20 kHz
Connections1 x 6.3 mm microphone input,1 x 6.3 mm line input, 1 x line in RCA,1 x line out RCA, 2 x NLS input
Passive speaker (2x)30 cm (12")
Output power300 W
Peak power600 W
Frequency response 30 Hz- 20 kHz
Sound pressure level1 W / 1 m 92 (± 2 dB)
Max. sound pressure level121 dB
Dimensions- Subwoofer- Speaker- Speaker tripod(W x H x D, approx.)49,5 x 60 x 41 cm41,5 x 60,5 x 34 cm77 x 126-190 x 70 cm(W x H x D, approx.)55 x 60 x 41 cm41,5 x 60,5 x 34 cm77 x 126-190 x 70 cm
Weight36 kg37,5 kg

SAFETY INSTRUCTIONS

  • Prior to using the product, please ask advice from a specialist. When the product is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
  • The product contains voltage carrying parts. Therefore do NOT open the housing.

- Do not place metal objects or pour liquids into the product. This may cause electrical shock and malfunction.

- Do not place the product near heat sources such as radiators, etc. Do not place the product on a vibrating surface. Do not cover the ventilation holes.

- The product is not suitable for continuous use.

- Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.

- When unplugging the product from a mains outlet, always pull the plug, never the lead.

- Do not plug or unplug the product with wet hands.

- If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.

- If the product is damaged to such an extent that internal parts are visible, do NOT plug the product into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the product to a rheostat or dimmer.

- To avoid fire and shock hazard, do not expose the product to rain and moisture.

- All repairs should be carried out by a qualified technician only.

- Connect the product to an earthed mains outlet (220-240 V ac / 50 Hz) protected by a 10-16 A fuse.

- During a thunderstorm or if the product will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.

- If the product has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the product in humid rooms or outdoors.

- To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

- Do not repeatedly switch the product on and off. This shortens the life time.

- Keep the product out of the reach of children. Do not leave the product unattended.

- Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.

- Do not force the controls.

- If this product is with speaker inside which can cause magnetic field. Keep the product at least 60 cm away from computer or TV.

- If the product has built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the unit for a long period of time. Or the battery may be damaged.

- If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.

- If the product has fallen, always have it checked by a qualified technician before you switch the product on again.

  • Do not use chemicals to clean the unit. They damage the varnish. Only clean the product with a dry cloth.
  • Keep away from electronic equipment that may cause interference.
  • Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
  • Switch the product off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the product.
    • Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
  • The mains voltage is 220-240 V\~/50 Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this product.
  • Keep the original packing material so that you can transport the product in safe conditions.

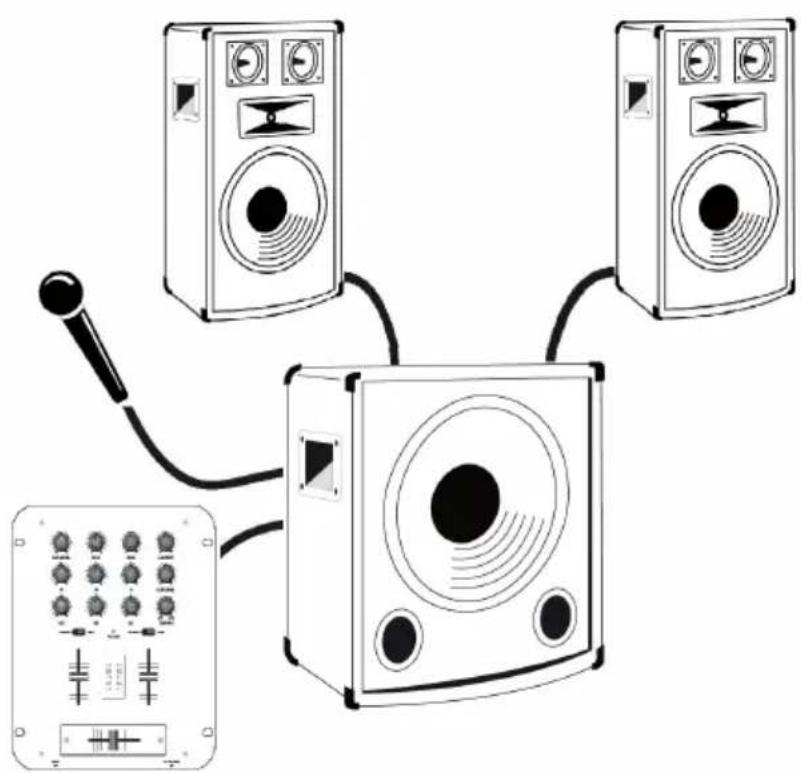

BASIC CONNECTIONS

Auna Cube 1812 - BASIC CONNECTIONS - 1

natural_image Diagram of three audio equipment units connected to a speaker and display panel (no text or symbols)

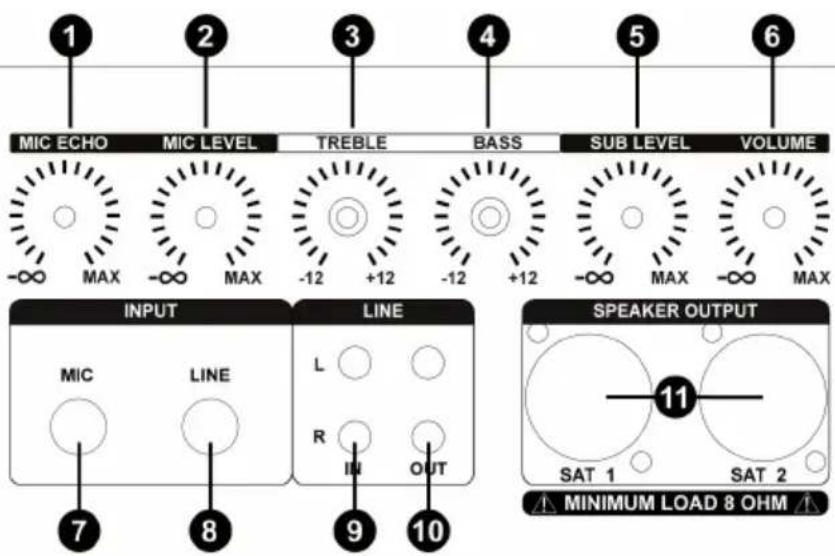

BACK PANEL

1 MIC ECHO MIC LEVEL TREBLE BASS SUB LEVEL VOLUME -∞ MAX -∞ MAX -12 +12 -12 +12 -∞ MAX -∞ MAX INPUT LINE SPEAKER OUTPUT MIC LINE L R IN OUT 7 8 9 10 11 SAT 1 SAT 2 MINIMUM LOAD 8 OHM

1 Microphone Echo Control
2 Microphone Volume
3 Treble Control
4 Bass Control
5 Sub. Volume
6 Master Volume
7 Microphone Input
8 LINE Input
9 AUX Input
10 AUX Output
11 Satellite Speaker Outputs

HINTS ON DISPOSAL

Auna Cube 1812 - HINTS ON DISPOSAL - 1

natural_image Symbol of a trash bin crossed with a diagonal line, representing no waste or elimination (no text or labels present)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

Estimado cliente:

ÍNDICE

Datos técnicos 10

Chal-Tec UK limited.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

DATOS TÉCNICOS

natural_image Symbol of a trash bin crossed with a diagonal line, no text or labels present

Cher client, chère cliente,

SOMMAIRE

Fiche technique 10

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

Royaume-Uni

FICHE TECHNIQUE

natural_image Diagram of three speakers connected to a speaker with audio equipment (no text or symbols)

PANNEAU ARRIÈRE

1 MIC ECHO MIC LEVEL TREBLE BASS SUB LEVEL VOLUME -∞ MAX -∞ MAX -12 +12 -12 +12 -∞ MAX -∞ MAX INPUT LINE SPEAKER OUTPUT MIC LINE L R IN OUT 7 8 9 10 11 SAT 1 SAT 2 MINIMUM LOAD 8 OHM

natural_image Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.

INDICE

Dati tecnici 10

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

Regno Unito

DATI TECNICI

natural_image Symbol of a trash bin crossed out by a diagonal line, with no text or labels present.
