USER MANUAL Streetstar 12 Auna

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENTS Technical Data 18 Safety Instructions 19 Controls and Connections 20 Remote Control for the Media Player 22 Getting Started 23 Media Player 24 UHF Wireless Microphones 25 Mobility Features 26 Disposal Considerations 27 Declaration of Conformity 2718

• Read the safety instructions and the manual carefully, before operating the appliance.

• Keep the instructions manual in a safe play, so you can refer to it later.

• Follow all necessary operating steps.

• Do not place the appliance in a humid location, neither a place which with electromagnetic elds, direct sunlight, and do not expose it to high temperatures.

• If you do not use the appliance for a ling time, pull the plug and take the batteries out of the microphone.

• Pull the plug before cleaning the unit. Do not use volatile gasses, thinners or other chemical cleaners.

• Only use accessories produced by the manufacturer.

• The appliance must only be powered according the ratings on the rating label.

• Do not carry out maintenance and repairs by yourself. The dangerous voltage in the appliance can cause an electric shock, when being opened. Repairs must only be carried out by the qualied customer service.

• If a part must be replaced, it must comply with the manufacturer’s specication or be an original spar part.

• If the appliance is broken or does not function properly, contact the customer service. Do not open the housing to make any repairs. Designated use

• This device is for the transmission of speech and singing. It is solely designed and may only be used for this purpose. It may only be used in the manner described in this manual.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• The microphone system includes microphones with an integrated transmitter, which serve wireless transmission to the receiving unit. The systems operate within the UHF range (863.1 MHz & 864.5MHz). The transmission range is 50 m and depends on the local conditions. The appliance are designed for indoor use only.20

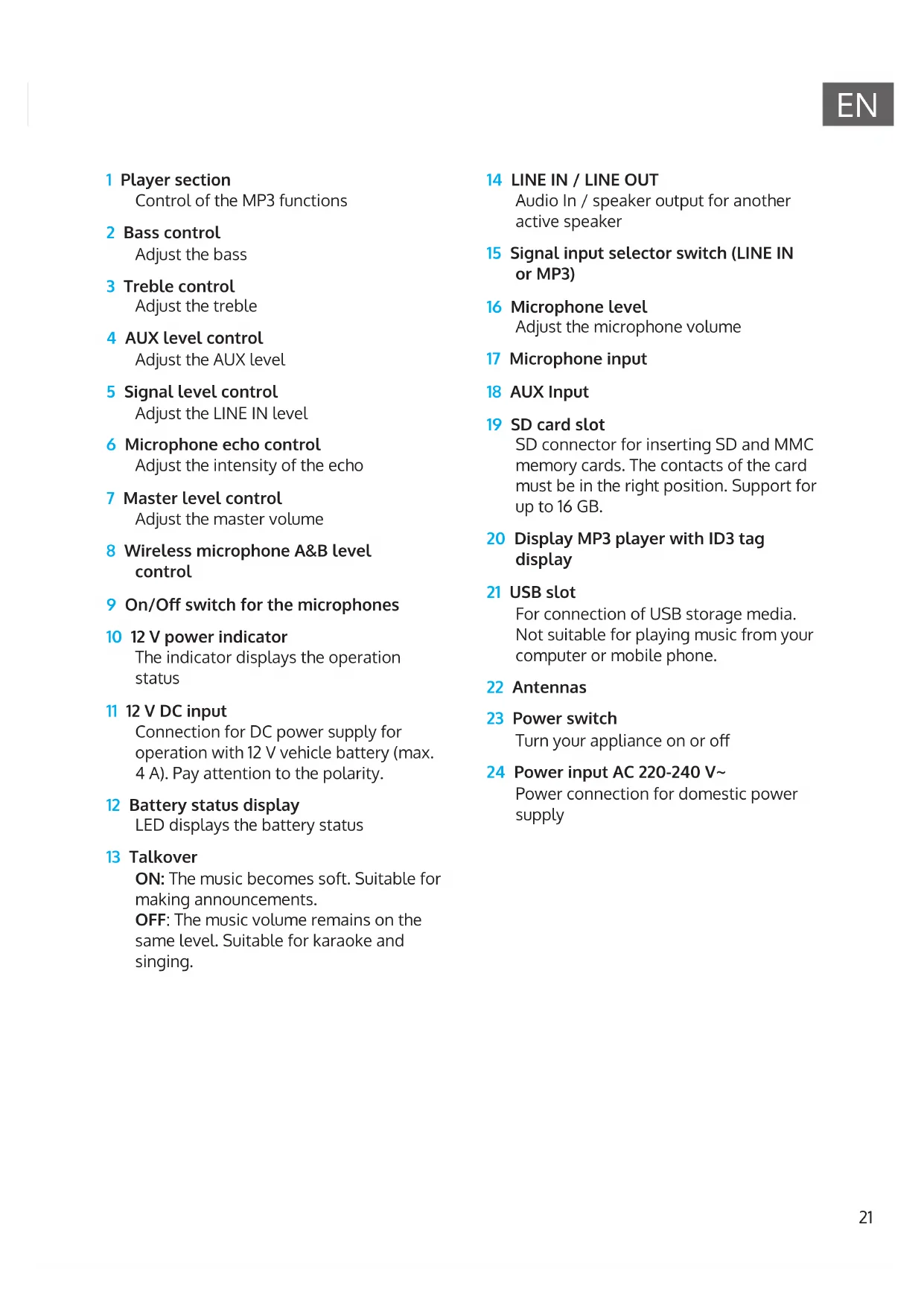

1 Player section Control of the MP3 functions 2 Bass control Adjust the bass 3 Treble control Adjust the treble 4 AUX level control Adjust the AUX level 5 Signal level control Adjust the LINE IN level 6 Microphone echo control Adjust the intensity of the echo 7 Master level control Adjust the master volume 8 Wireless microphone A&B level control 9 On/O switch for the microphones 10 12 V power indicator The indicator displays the operation status 11 12 V DC input Connection for DC power supply for operation with 12 V vehicle battery (max. 4 A). Pay attention to the polarity. 12 Battery status display LED displays the battery status 13 Talkover ON: The music becomes soft. Suitable for making announcements. OFF: The music volume remains on the same level. Suitable for karaoke and singing.

14 LINE IN / LINE OUT

Audio In / speaker output for another active speaker 15 Signal input selector switch (LINE IN or MP3) 16 Microphone level Adjust the microphone volume 17 Microphone input 18 AUX Input 19 SD card slot SD connector for inserting SD and MMC memory cards. The contacts of the card must be in the right position. Support for up to 16 GB. 20 Display MP3 player with ID3 tag display 21 USB slot For connection of USB storage media. Not suitable for playing music from your computer or mobile phone. 22 Antennas 23 Power switch Turn your appliance on or o 24 Power input AC 220-240 V~ Power connection for domestic power supply22

Keys a Mode Press this key to select Bluetooth/USB/SC. b Play / Pause Switch between play and pause. c Folder Press this key to browse through the folder tree. d Repeat Press key to repeat one or several titles. e Previous Skip to the previous title f Next Skip to the next title g Equalizer h Numeric buttons Direct number input i SCN j Volume + Increase the volume k Volume - Decrease the volume l Mute Press to mute the sound m On/O23

GETTING STARTED First use / charging the battery This device is equipped with a with a rechargeable battery. The battery will be charged automatically as soon as the device is connected to power. After recharging, the device switches to trickle charging. However, do not leave the device constantly connected to a socket. Turning o the device via remote control switches it to standby mode, which consumes more power than switching it completely o at the panel of the appliance. ATTENTION: Before rst use, fully charge the battery for at least 8 hours. Only after having charged the battery for 3 times, the battery reaches its full capacity. Charge the battery before and after each usage for a lasting battery performance. When the device is turned o with the remote control, it is still in standby mode and uses more power than when you turn the device o completely. Be sure to fully charge the internal battery of the device before your rst mobile use (without grid power). Connect the device to an ordinary wall socket via power adapter. The charging time is about 5-8 hours. The state of charge is indicated by the LED (“CHARGE”) on the back. The LED will got out when the battery is fully charged. Bluetooth

1. Set the search function of the Bluetooth unit from which you wish to

2. Press the MODE key until AUX is shown in the display. Activate the

Bluetooth function of the media player.

3. Select the Bluetooth device “AUNA” from the list of your device and

make a connection. If there is a password to be used, enter “0000”.24

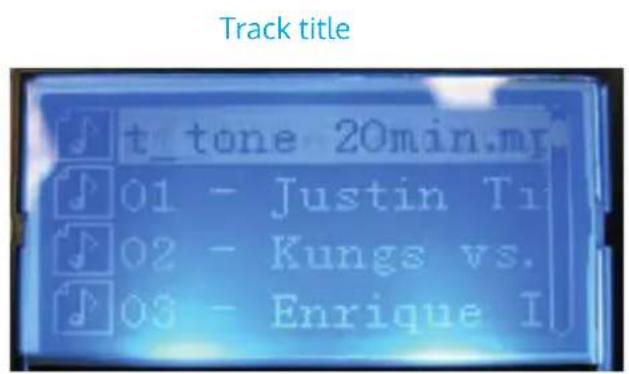

MEDIA PLAYER SD/USB inserted MP3 bit rate Play mode Time passed MP3 le name Track title Time remaining Equalizer Play mode Play / delete Folder Record USB port Display SD Card slot (for SD cards / max. 64 GB) Input selection On/o button Next track/ Increase volume Previous track/ reduce volume25

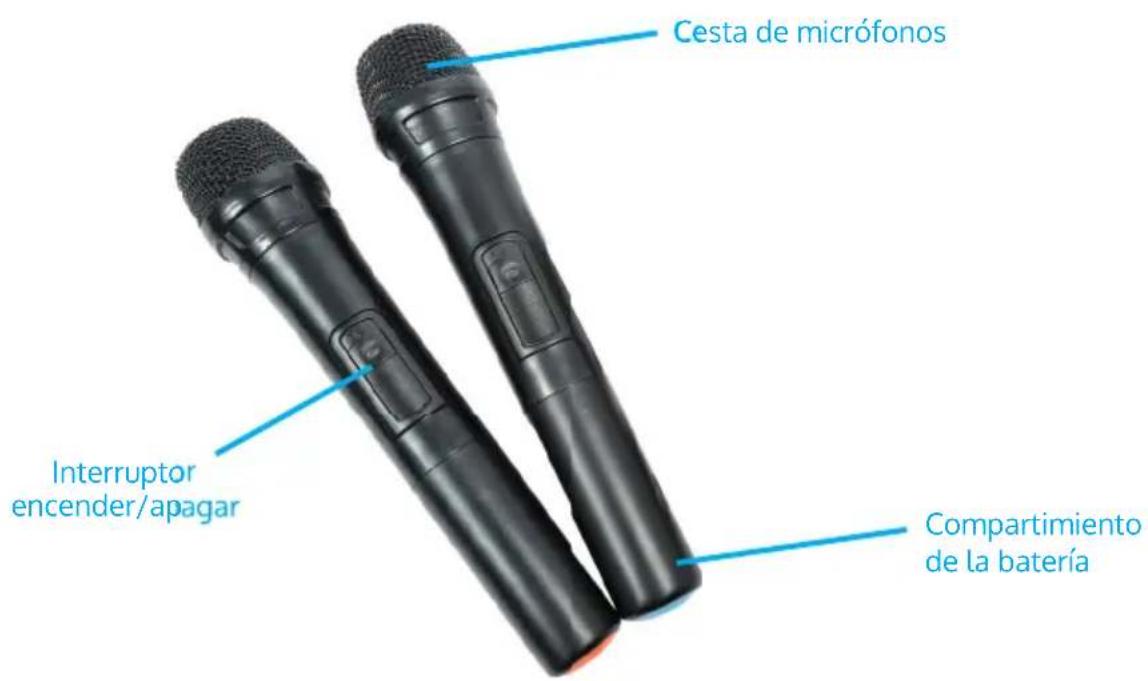

The orange microphone operates at 863.1 MHz and the blue microphone at

865.5 MHz. The operation range is up to 50 m.

Putting into Operation Unscrew the battery cover on the lower part of the microphone. Insert 2batteries and mind the polarity. Set the volume to the minimum. Power the system on so that the power LED lights up. Switch the microphone on and set the volume control to the desired position. Use Check for microphone feedback (howling). Reduce the treble signal. If the problem still occurs, reduce the speakers or move the audio system. Do not hold the microphone near the speakers. On/o switch Microphone grille Battery compartment On/o switch Microphone grille26

MOBILITY FEATURES Wheels Tripod socket Carrying handle Carrying handle Trolley handle27

DISPOSAL CONSIDERATIONS If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service. This product contains batteries. If there is a legal regulation for the disposal of batteries in your country, the batteries must not be disposed of with household waste. Find out about local regulations for disposing of batteries. By disposing of them in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences.

DECLARATION OF CONFORMITY

Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom The complete declaration of conformity of the manufacturer can be found at the following link: https://use.berlin/1003156729
