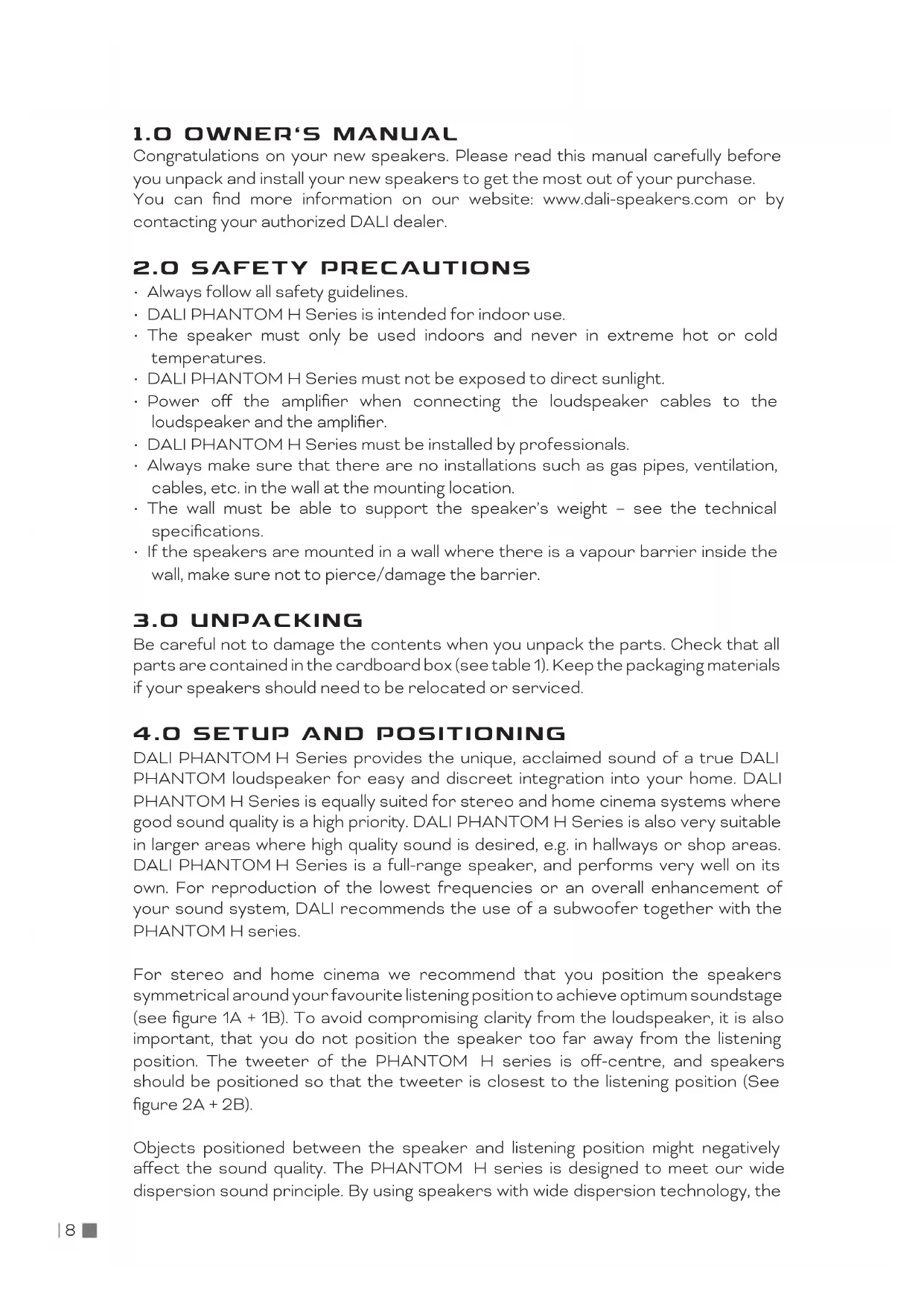

USER MANUAL Phantom H60 R Dali

Congratulations on your new speakers. Please read this manual carefully before you unpack and install your new speakers to get the most out of your purchase. You can find more information on our website: www.dali-speakers.com or by contacting your authorized DALI dealer.

• DALI PHANTOMH Series is intended for indoor use.

• The speaker must only be used indoors and never in extreme hot or cold temperatures.

• DALI PHANTOMH Series must not be exposed to direct sunlight.

• Power o the amplifier when connecting the loudspeaker cables to the loudspeaker and the amplifier.

• DALI PHANTOMH Series must be installed by professionals.

• Always make sure that there are no installations such as gas pipes, ventilation, cables, etc. in the wall at the mounting location.

• The wall must be able to support the speaker’s weight – see the technical specifications.

• If the speakers are mounted in a wall where there is a vapour barrier inside the wall, make sure not to pierce/damage the barrier.

Be careful not to damage the contents when you unpack the parts. Check that all parts are contained in the cardboard box (see table 1). Keep the packaging materials if your speakers should need to be relocated or serviced.

4.0 SETUP AND POSITIONING

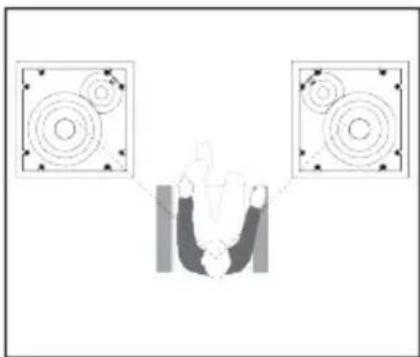

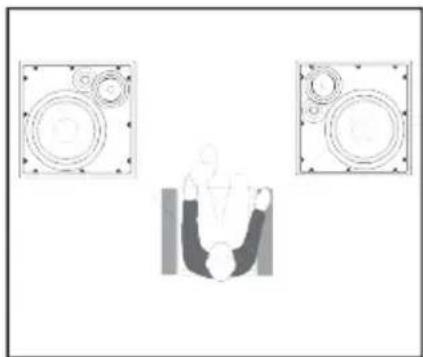

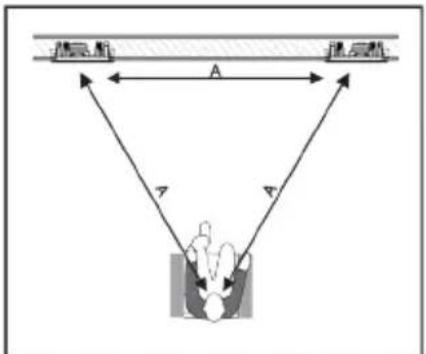

DALI PHANTOMH Series provides the unique, acclaimed sound of a true DALI PHANTOM loudspeaker for easy and discreet integration into your home. DALI PHANTOMH Series is equally suited for stereo and home cinema systems where good sound quali is a high priori. DALI PHANTOMH Series is also very suitable in larger areas where high quali sound is desired, e.g. in hallways or shop areas. DALI PHANTOMH Series is a full-range speaker, and performs very well on its own. For reproduction of the lowest frequencies or an overall enhancement of your sound system, DALI recommends the use of a subwoofer together with the PHANTOMH series. For stereo and home cinema we recommend that you position the speakers symmetrical around your favourite listening position to achieve optimum soundstage (see figure 1A + 1B). To avoid compromising clari from the loudspeaker, it is also important, that you do not position the speaker too far away from the listening position. The tweeter of the PHANTOM H series is o-centre, and speakers should be positioned so that the tweeter is closest to the listening position (See figure 2A + 2B). Objects positioned between the speaker and listening position might negatively aect the sound quali. The PHANTOM H series is designed to meet our wide dispersion sound principle. By using speakers with wide dispersion technology, the9 UK DE DK CN FR ES distortion in the main listening area will be lowered and the room integration will be beer. The wide dispersion principle will also ensure that sound is spread evenly within a large area in the listening room. Every room has its own distinctive acoustics, which influence the way we experience sound from a speaker. The sound you hear consists of both direct sound from the speakers and reflected sound from the floor, and walls. The laer will aect how you experience the sound. As a basic rule, try to avoid large, hard and reflective areas in the immediate vicini of your loudspeakers as it will pically cause strong reflections, which might disturb the precision and spatial eect of the sound reproduction. So items such as carpets, curtains etc. might help if the sound is too bright. Both the amount and quali of the deep bass depend on the size and shape of the room, and the position of the speakers. Positioning the speakers near a side or back wall will accentuate the bass. A corner location will accentuate it even more, but will also increase the reflections. NOTE: The flow damping foam material mounted on the back of the DALI PHANTOMH Series should not be removed. It will assist in managing bass/midrange reproduction by damping resonances in the cavi behind the open-back woofer.

4.1 Mounting the dogleg brackets

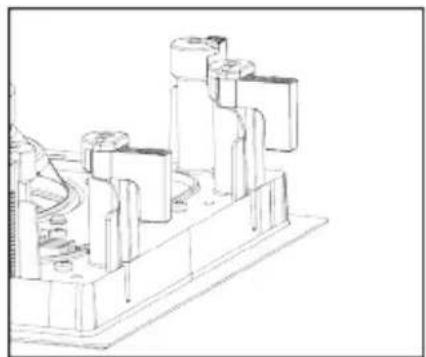

DALI PHANTOM H Series incorporates dogleg brackets for wall mounting. The brackets aach the loudspeaker firmly to the rear of the surface on which it is mounted. The dogleg brackets extend out at a 90-degree angle when the screws are tightened (see figure 3). The screws should be tightened so that the loudspeaker sits securely in place – but be careful not to over tighten the screws. To tighten the screws, use the 3mm Allen key (enclosed in the package). If using an Allen bit it should be used with a hand bit screwdriver or a drilling machine with build-in torque seing. If using a drilling machine, set the torque to the minimum seing. The screws are appropriately tightened, when the gasket on the rear of the speaker is compressed and the bezel of the speaker is flush with the mounting surface. If you need to remove the loudspeaker, loosen the screws approximately 5 to 20 turns counter clockwise and the brackets will loosen their grip. NOTE: Do not unscrew more than 20 to 25 turns or the brackets may fall o the screws. If you are mounting the loudspeaker in very thick wall material, it might be needed to dismount the dogleg brackets from the screws and aerwards mounting them upside down. Opposite mounting of the doglegs will make it possible to mount the loudspeaker in boards with up to 2.75”/70 mm thickness (see figure 4).10

The metal grille is aached by means of magnets incorporated in the top of the speaker. Carefully place the grille so that it covers the top of the speaker, and the magnets will secure it. NOTE: On the inside of the grille there is a piece of non-woven. The non-woven is on the grille to protect the drivers against dust and dirt. Therefore the non-woven must remain on the grille. The supplied DALI logo badge can optionally be mounted on the grille. To mount the logo badge, remove the protective film from the rear side of the logo badge and position the logo on the grille in the desired position (see figure 5).

4.3 Connection of Cables/Selection of Cables

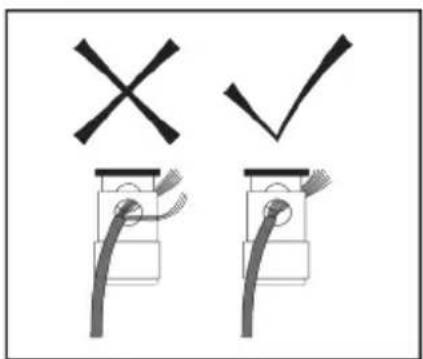

Your choice of cables is a crucial element in your installation. Be aware that replacing cables aer installation is a dicult task. Therefore, select quali cables from the beginning. Please consult your authorized DALI dealer for further advice on which cable to select. When connecting the cable to the loudspeaker and the amplifier, it is important that the loudspeaker is connected in correct phase. The red (+) loudspeaker terminal must be connected to the red (+) amplifier terminal. The black (-) loudspeaker terminal must be connected to the black (-) amplifier terminal. If the loudspeakers are not connected in correct phase, the soundstage will pically be diuse and the bass will be weak. To insert the cable end into the spring loaded terminals of the speaker, remove cable insulation so that approx. ½” / 12 mm of bare wire is exposed. Press the top of the terminal down and insert the bare wire into the opening. When the wire is fully in place with no loose strands exposed, release the terminal (see figure 6).

5.0 CUT-OUT TEMPLATE

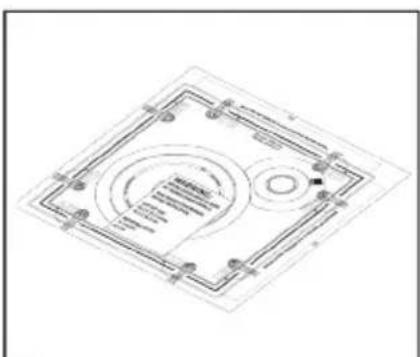

The enclosed cut-out template (see figure 7) can be used to initially visualize how your speakers should be mounted and for marking where the cut-out should be made. Tape the template at the preferred mounting position, so that you can mark the necessary opening. The minimum mounting depth for the DALI PHANTOMH-50, H-60, H-60 R and H-80 R is 95 mm / 3.7”, for the DALI PHANTOMH-80 it is 106 mm / 4.2” and for the DALI PHANTOMH-120 it is 168 mm / 6.7”.

Please study and follow the safe guidelines found in chapter 2.0 of this manual! The DALI PHANTOMH Series must be installed by a trained professional to ensure that all safe requirements are met and to prevent the speaker from falling. NOTE: Earth Quake Safe Hook: DALI PHANTOMH Series is equipped with an earth quake safe hook. To prevent injury or damage from a fall, a non-elastic steel wire should be aached safely by11 UK DE DK CN FR ES a trained professional. The wire must aach the speaker’s earth quake safe hook to a solid support in the house (ceiling beam, wall stud, etc.). The wire must be covered with plastic material to avoid the risk for electrical short-circuits and to prevent speaker damages, scratches etc. The following tools and items are necessary for proper installation:

• Pencil and saw or knife

• 3 mm Allen wrench/bit

• Hand bit screwdriver (optional)

• Cut-out template When the correct placement has been found, tape the mounting template to the surface. Outline the cut-out area with a pencil. Remove the template and drill holes for insertion of saw or knife. Saw/cut carefully along the line marked with pencil. When the hole for the loudspeaker is made, make sure that the loudspeaker cable is not hanging loose inside the wall. It must be securely fastened to the inside of the wall to prevent tension on the cable when the cable is connected with the terminals of the loudspeaker. If le unsupported, cable can gradually come loose, creating a poor electrical connection between wire and terminals (see figure 6 for correct fastening of the cable). When the loudspeaker cable is fastened and the hole for the loudspeaker is prepared, you are ready to connect the speaker cables. Connect cable to the terminals - being careful to connect the amplifier’s red (+) terminal to the loudspeaker’s red (+) terminal and the amplifier’s black (-) terminal to the loudspeaker’s black (-) terminal. Please refer to chapter 4.3 of this manual. When the cables are connected, turn on the system and listen to the loudspeakers before final mounting to make sure that all connections are correct. Finally insert the loudspeaker in the wall opening. NOTE: Be careful not to touch the drivers during installation. When the loudspeaker is aligned, tighten the screws in the loudspeaker brackets with a 3mm Allen key/bit so that the speaker is firmly mounted in place. Be careful to avoid over-tightening the screws and shredding the threads.

You should expect the sound quali from your new speakers to gradually improve during the first period of use. Nothing particular has to be done in order to run in the speakers – but expect up to 100 hours of playback (depending on playback level) before full performance level is reached.12

8.0 MAGNETIC SHIELDING

The speaker drive units produce a magnetic field which may interfere with CRT televisions/monitors, hard drives, audio and video tapes as well as swipe cards etc. Therefore keep such items away from the speakers to avoid damage. LCD and plasma televisions/monitors are not aected by magnetic fields.

Cleaning the speaker surfaces can be done with ordinary household cleaning agents. Avoid using products that are abrasive, or contain acid, alkali or anti- bacterial agents. Avoid using aerosols. Avoid using cleaning agents directly on the drive units and clean them with extreme care, particularly the tweeter. The grille may be cleaned using a vacuum cleaner or a normal clothes brush.

10.0 ENVIRONMENTAL INFORMATION AND

DISPOSAL DALI products are designed to meet the international directives concerning Restriction of Hazardous Substances (RoHS) and disposal of Waste Electrical and Electronic Equipment (WEEE). The waste symbol indicates that the speakers meet the directives (see figure 8). The speakers must be processed or recycled appropriately. Please consult your local waste authori for guidance.

11.0 TECHNICAL SPECIFICATIONS

In Table 2 you will find most common specifications for our speakers. Please bear in mind, that the sound quali from a speaker cannot be judged by technical specifications only. To compare the dierent speakers, we recommend you to listen to the dierent speakers in question. Enjoy your new DALI PHANTOMH Series Speaker!13 UK DE DK CN FR ES INHALT
