DR 470 N - Radio ALBRECHT - Free user manual and instructions

Product type	Internet radio with FM receiver
Brand	Albrecht
Model	DR 470 N
Dimensions (W x H x D)	200 x 110 x 118 mm
Weight	800 g
Power supply	Mains adapter 12 V / 1200 mA
Standby consumption	< 1 W
Display	Color TFT screen 320 x 240 pixels (2.4 inches)
Network	WiFi 802.11b/g/n, WEP/WPA/WPA2 (PSK), WPS
Radio bands	FM 87.5 - 108.0 MHz
Supported audio formats	MP3, WMA, WAV
Speaker power	3 W
Main functions	Internet radio, FM radio, Auxiliary input, UPnP/DLNA, Media center, Weather and financial information center, AirMusic Control app, Alarms and timer, Equalizer
Connectors	DC IN, Auxiliary input 3.5 mm, Line output 3.5 mm
Maintenance and cleaning	Unplug before cleaning, use a soft dry cloth, avoid strong solvents and liquids
Safety	Do not expose to drops, liquids or humidity; use only the provided adapter; do not disassemble
Operating temperature	0 °C to 35 °C
Spare parts and repairability	Built-in troubleshooting guide; reset possible; software update via Internet
General information	2-year warranty; CE declaration included; WEEE recycling

Frequently Asked Questions - DR 470 N ALBRECHT

How do I connect the radio to my WiFi network?

When first powering on, select your language and then the WiFi network. Enter the WEP or WPA key if required. You can also configure the network via the menu Settings > Network.

What to do if I hear no sound?

Check that the volume is not at minimum or muted. Ensure the audio source is enabled (radio, FM, AUX). Test another station or source. If the problem persists, restart the device.

How to save a station as a favorite?

While listening to a station, press and hold the FAVORITE button on the remote control. The station is then added to your favorites list. You can also add it from the station list by pressing ▶ then Add to Favorite.

Why does the radio not find any Internet stations?

Check that your WiFi connection is active and the router is working. Ensure that the firewall does not block access. Some stations may be temporarily unavailable; try again later or choose another station.

How to set the alarm?

Go to Settings > Alarm. Enable the desired alarm (Alarm 1, Alarm 2 or NAP), set the time, frequency (daily, once, specific days) and ringtone (Beep, Melody or Radio). Confirm with OK.

FM reception is poor or noisy, what to do?

Reorient the provided FM antenna. Move the radio away from interference sources (computers, screens). Try moving the device to another location. You can also switch to mono mode in FM Settings.

How to use the AirMusic Control app?

Download the AirMusic Control app on Android or iOS from the stores. Connect your smartphone to the same WiFi network as the radio. Launch the app and follow the on-screen instructions to control the radio and stream music.

How to stream music from my PC?

Connect your PC to the same network as the radio. On the PC, enable media sharing (e.g., Windows Media Player 11+). In the radio menu, go to Media Center > UPnP and select your PC to play shared music.

How to reset the radio to factory settings?

Go to Settings > Reset. Confirm the operation. The radio will restart and you will need to select the language and configure the network again. All personal settings will be erased.

Can I use headphones with the radio?

The radio has a 3.5 mm line output (LINE OUT), but it is not recommended to connect headphones directly. Instead, use the built-in speaker or connect the line output to an external amplifier.

USER MANUAL DR 470 N ALBRECHT

Black portable radio device with digital display showing 'Internet Radio' and control knobs (no readable text beyond branding)

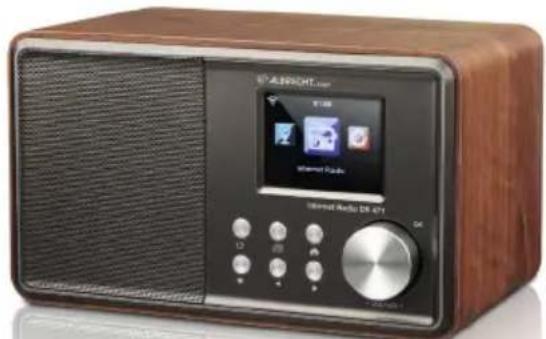

Exterior view of a wooden radio with a digital display showing 'Internet Radio DR 471' and control knobs (no readable text beyond branding)

Anleitung / Manual

Deutsch / English

Français / Italiano

Inhalt

02:18 Would you like to configure Network now? YES Yes(WPS) NO

02:18 Enable 'Check Network when Power On' ? YES NO

iRadio Add to My Favorite Auto Scan Play 1/3

iRadio Global Top 20 Genre Country/Location 1/3

iRadio Search Radio Station Add New Radio Station 1/2

02:18 01 91.70 MHz TURN ↓ ← SEEK →

02:18 Link to "my mediaU" account not set or account not exist. PIs visit www.mediayou.net

Windows Media Player Library sharing Do you want to allow the device to order connected from your Windows Media Player Library? You can customize the music, picture, and video to share. Microsoft Disk 10 Allow settings... Allow Cancel

Show As/Down Show As/Down, Software, and Other in your network. Setting settings Show as to continue Settings... Save Cancel Help

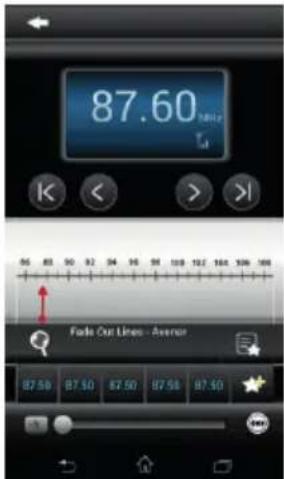

87.60 Fade Cut Lines - Avenue

Screenshot of a mobile phone control interface with playback controls and mode selection panel

13. Einstellungen

13.1. Anzeigemodus

02:18 Connecting to network ...

14 Deutsch

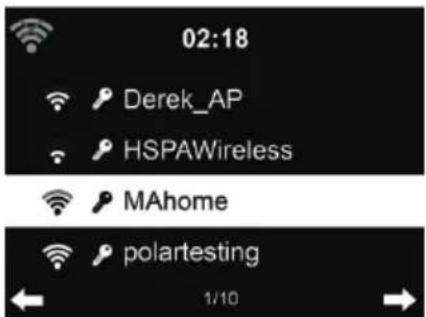

02:18 Derek_AP HSPAWireless MAhome polartesting 1/10

02:18 Enter Password h 6 1 c 3 5/5 ← MOVE → INPUT: ↑ ↓ OK ←

02:18 Please press the WPS button on your router within 120 Secs.

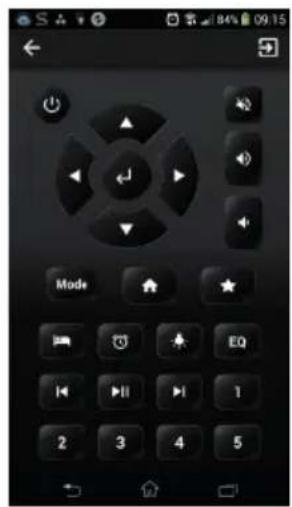

13.3.3. Manuelle Konfi guration

02:18 Set Date and Time Set Time Format Set Date Format Daylight Saving Time (DST) 1/5

02:18 Alarm1(Turn Off) Alarm2(Turn Off) NAP Alarm (Turn Off) Alarm Volume 1/4

02:18 01:00

02:18 Power Saving ● Turn On ← 2/2 ←

02:18 ● 2 Seconds 4 Seconds 8 Seconds 1/3

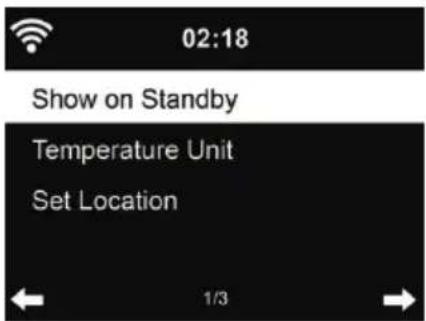

02:18 Show on Standby Temperature Unit Set Location 1/3

02:18 Off ● Repeat all Repeat one Shuffle 2/4

02:18 ● Normal Flat Jazz Rock 1/8

02:18 Are you sure to reset to default settings ? YES NO

Black portable radio device with a digital display showing an Apple Music Radio interface (no visible text or symbols on the device body)

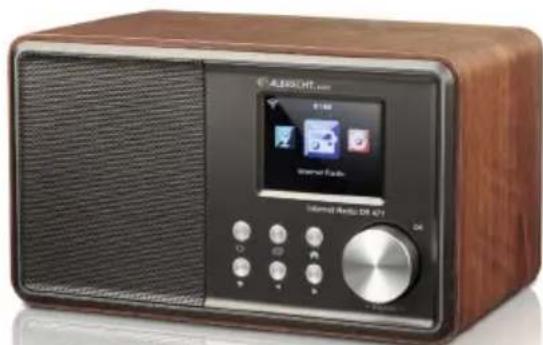

Exterior view of a wooden radio with a digital screen displaying 'Internet Audio DR 471' (no visible text beyond branding)

Manual

English

Table of Content

1. Before you start....29

1.1. Network Requirement....29
1.2. Safety Precautions 29

1. Appearance and Key Descriptions .... 30

2. Getting Started .... 31

3. Main Menu....33
4. Internetradio 33

5.1.My Favorite....33
5.2. Radio Station / Music 34
5.3. Local Station....34
5.4. History 34
5.5. Service 34

1. FM-Radio 35

2. AUX IN....35

3. My mediaU 36
4. Music-Streaming....36

9.1. UPnP 36

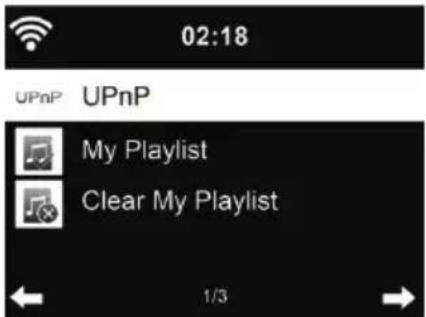

1. Media-Center 37

10.1. UPnP 37
10.2. My Playlist 38
10.3. Clear My Playlist....38

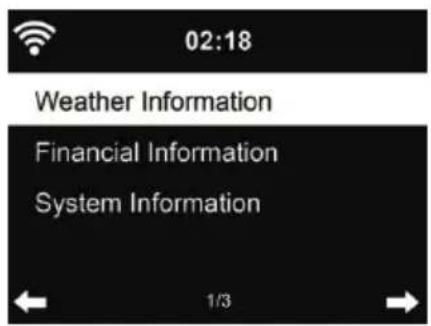

1. Information-Center 38

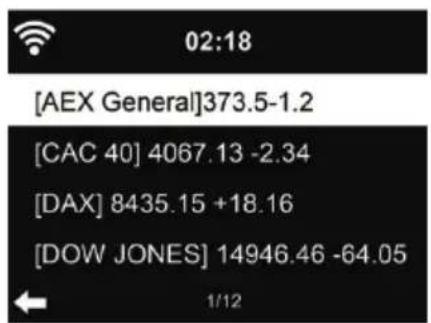

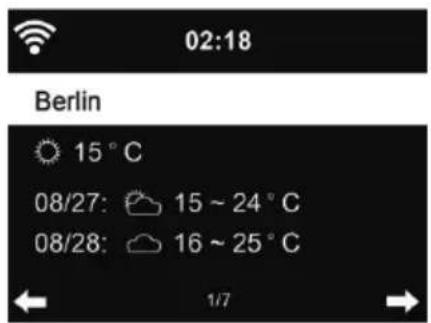

11.1. Weather Information 38
11.2. Financial Service 38
11.3. System Information....39

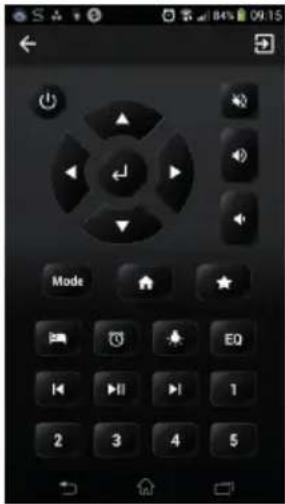

1. AirMusic Control App 39

2. Settings....39

13.1.Time Display 39

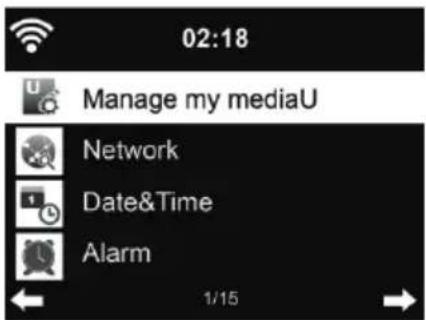

13.2.Manage my mediaU 40

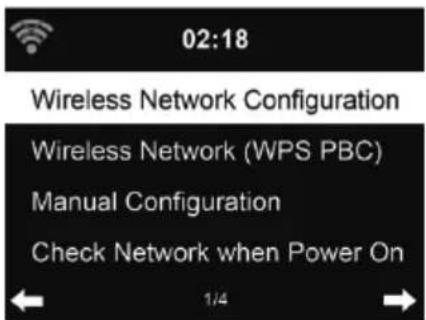

13.3. Network 40

13.3.1. Wireless Network Configuration 40
13.3.2. Wireless Network (WPS) 41
13.3.3. Manual Configuration....41
13.3.4. Check Network when Power On....41

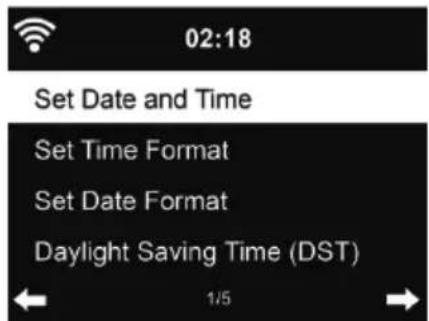

13.4. Date & Time....42

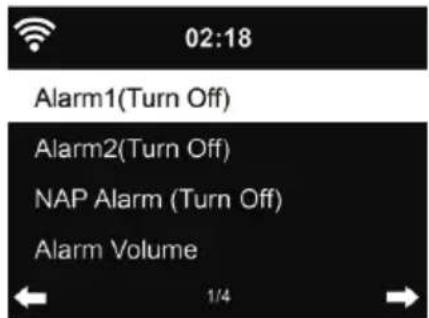

13.5. Alarm 42
13.6. Timer 43
13.7. Language 43
13.8. Dimmer 43
13.9. Display....44
13.10. Power Management 44

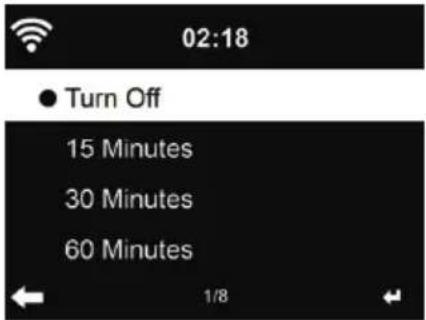

13.11. Sleeptimer....44
13.12. Buffer 44
13.13. Weather 45
13.14.FM Setup 45
13.15. Local Radio Setup 45
13.16. Playback Setup 45
13.17.DLNA-Setup 46
13.18. Equalizer 46
13.19. Resume When Power On....46
13.20. Software-Update 46
13.21. Reset 46

1. Main Menu....47
2. Troubleshooting....48
3. Specifications 49
4. Warranty and Recycling Information 50

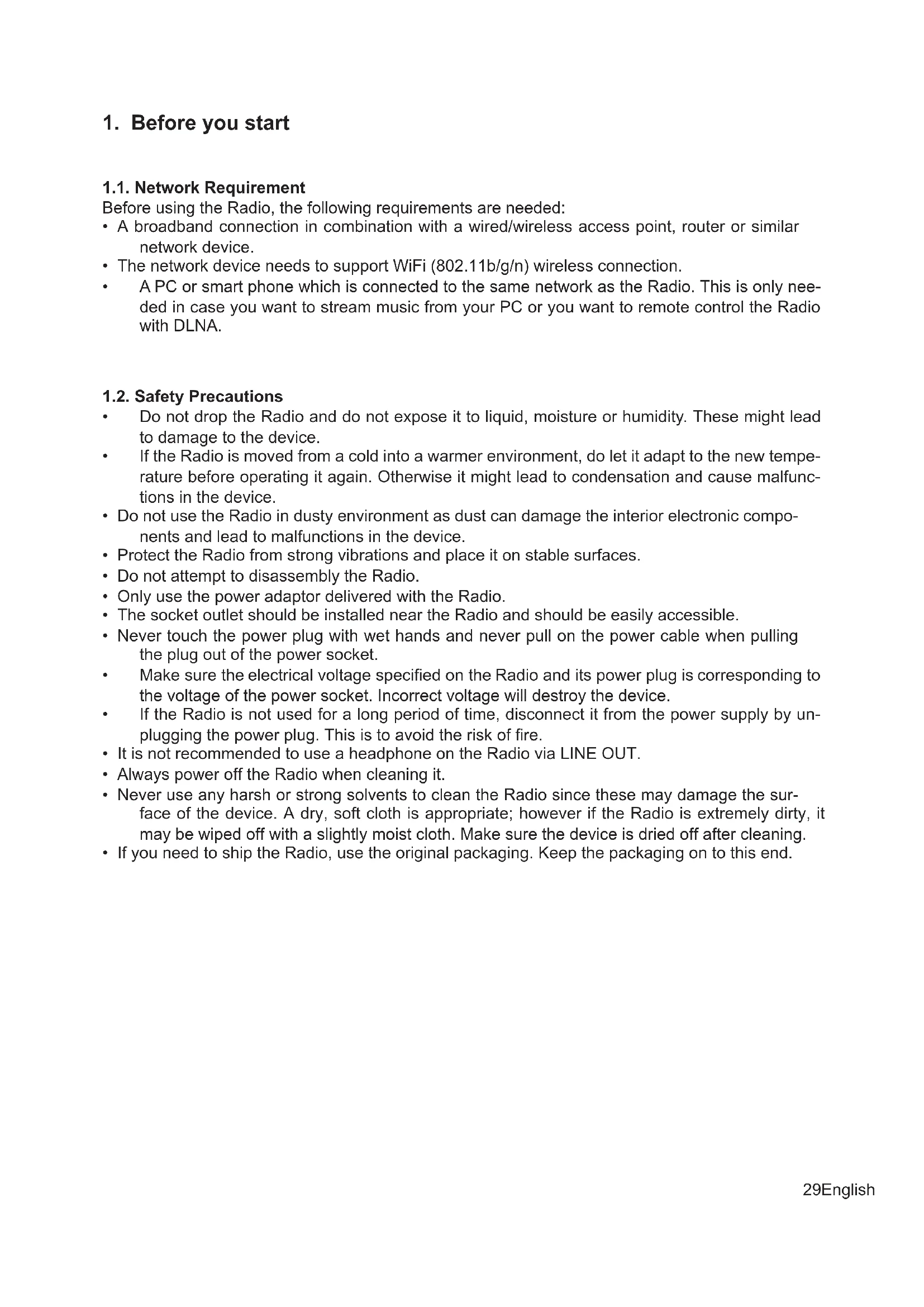

1. Before you start

1.1. Network Requirement

Before using the Radio, the following requirements are needed:

• A broadband connection in combination with a wired/wireless access point, router or similar network device.
• The network device needs to support WiFi (802.11b/g/n) wireless connection.
• A PC or smart phone which is connected to the same network as the Radio. This is only needed in case you want to stream music from your PC or you want to remote control the Radio with DLNA.

1.2. Safety Precautions

• Do not drop the Radio and do not expose it to liquid, moisture or humidity. These might lead to damage to the device.
• If the Radio is moved from a cold into a warmer environment, do let it adapt to the new temperature before operating it again. Otherwise it might lead to condensation and cause malfunctions in the device.
• Do not use the Radio in dusty environment as dust can damage the interior electronic components and lead to malfunctions in the device.
• Protect the Radio from strong vibrations and place it on stable surfaces.

- Do not attempt to disassembly the Radio.

- Only use the power adaptor delivered with the Radio.

- The socket outlet should be installed near the Radio and should be easily accessible.

- Never touch the power plug with wet hands and never pull on the power cable when pulling the plug out of the power socket.

• Make sure the electrical voltage specified on the Radio and its power plug is corresponding to the voltage of the power socket. Incorrect voltage will destroy the device.

- If the Radio is not used for a long period of time, disconnect it from the power supply by unplugging the power plug. This is to avoid the risk of fire.

- It is not recommended to use a headphone on the Radio via LINE OUT.

• Always power off the Radio when cleaning it.

- Never use any harsh or strong solvents to clean the Radio since these may damage the surface of the device. A dry, soft cloth is appropriate; however if the Radio is extremely dirty, it may be wiped off with a slightly moist cloth. Make sure the device is dried off after cleaning.

- If you need to ship the Radio, use the original packaging. Keep the packaging on to this end.

2. Appearance and Key Descriptions

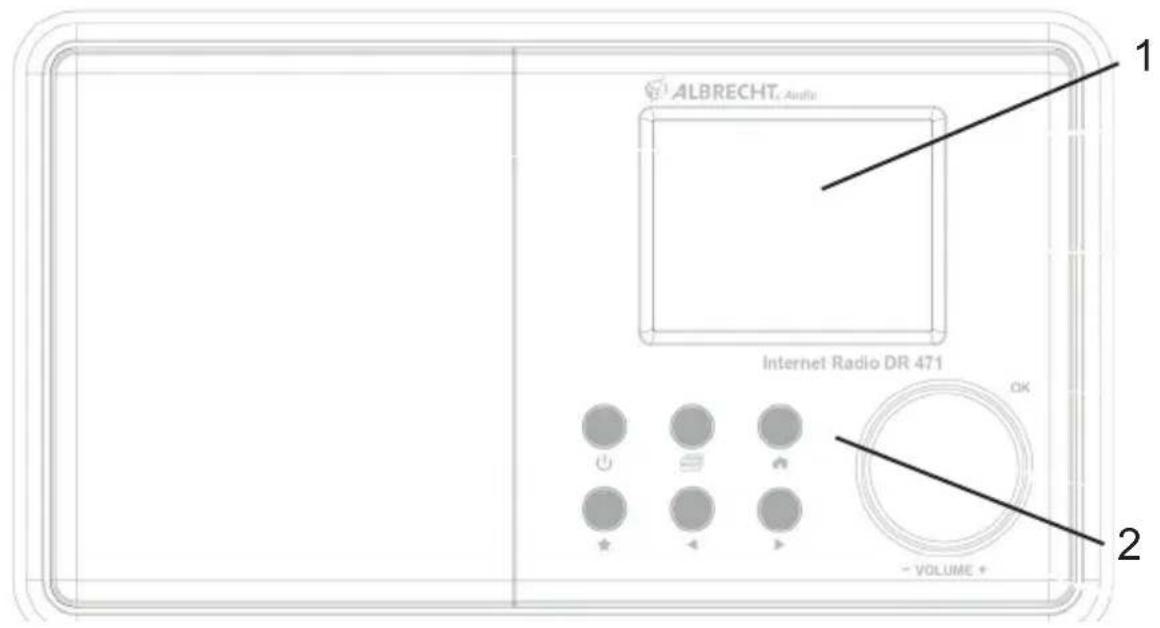

Front view

ALBRECHT Internet Radio DR 471 OK -VOLUME +

Back view

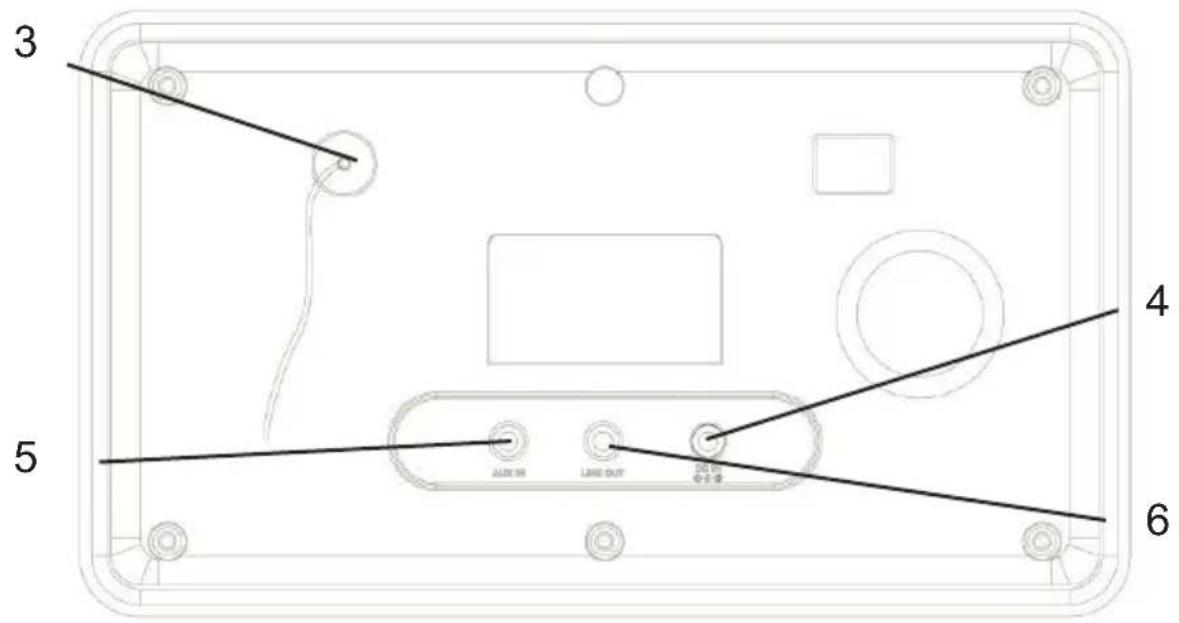

3 5 6 4 JUMI 50 LARGE OUT 200 GB Φ1.5 GB

No. Description Functions
1 2,4” TFT-Screen display
2 Buttons and Reel control the OS operations
3 Antenna enhance FM reception
4 DC-IN power supply
5 Aux in (Stereo) 3.5mm aux in jack
6 Line out (Stereo) 3.5mm line out jack

Remote Control

Use you thumb to press the lid of the battery compartment and pull it out. Insert the AAA batteries, the polarity is shown in the battery compartment.

Dispose of used batteries according to the instructions.

3. Getting Started

The packaging box contains the following items:

• DR470N / DR471
• Remote Control with AAA batteries
• Power adaptor
• 3.5mm audio cable
• User Manual

Get the network ready

• For wireless LAN (WIFI) network connection:
• Check if WIFI LINK/ACT light of the wired/wireless access point or router is illuminated. Consult the user guide of that for any questions.

Note: WiFi allows data transfer over short distances within 20 meters without

the need of cabling between the devices. Any walls or ceilings may reduce the strength of the WiFi connectivity.

Therefore try to locate the DR470N / DR471 and/or the access point within the distance mentioned above, and avoid any obstacles between two devices.

- Connect the power adaptor to the back of the DR470N / DR471 and plug it into the power socket

When it is the first time running the device, the system will ask you to set Language and Network Configurations.

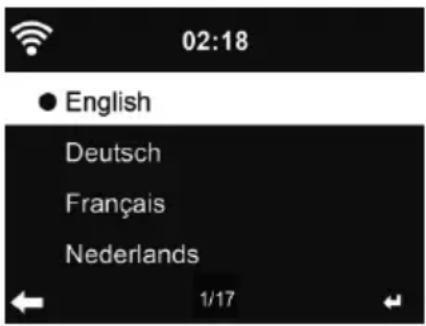

02:18 ● English Deutsch Français Nederlands 1/8

02:18 Would you like to configure Network now? YES Yes(WPS) NO

02:18 Enable 'Check Network when Power On' ? YES NO

See 13.3 for detailed network configurations.

You may setup the network connection immediately, or set it later.

- Press ⏻(STANDBY) to enter standby mode. The time, date and any active alarm times display on the screen.

27/08/2013 Tue 12 9 3 6 [06.30] [08.00]

- If you have setup a network connection, and use DR470N / DR471 again within the network, it will automatically establish the connection. In case you desire to change the network, enter configuration to setup the corresponding connection.

- Enter the characters from the keypad of the remote control or ▲ and ▼.Once you are on the letter you want, press ▶ to move to the next entry. When you are at the end the input, press OK to confirm. You may press ◀ to move to the previous entry

4. Main Menu

02:18 My mediaU

In the main menu you can select the following modes: My mediaU, Internet Radio, Media Center, FM, Aux In, Information Center and Conf i guration.

5. Internetradio

After connecting any station, the bit rate and the format of the station are displayed on the playing screen.

5.1. MyFavorite

Create a list of your favorite preset stations. It supports 250 favorite entries including station and folder.

During the station playing screen, press and hold ★ on the remote control to save the station as my favorite. You may replace the previous saved station to the new one.

You can also save the station to your favorites while scrolling through the station list. When the station is highlighted you can press ▶ to enter this menu where you can add the station to your favorites.

iRadio Add to My Favorite Auto Scan Play 1/3

If the selected station has been saved, you cannot save it again.

Under the preset station list, move to your station, press OK to listen. You may also press ▶ to enter its submenu to Delete, Shift Up/Down along the list, Rename or Play.

5.2. Radio Station / Music

iRadio Global Top 20 Genre Country/Location 1/3

Stations are categorized into Global Top 20, Genre and Country/Location. Enter to continue the subcategories and choose the station to listen.

For each station, press OK to play directly. You may press ▶ to enter its submenu – you can Add to Favorite, Auto Scan or Play.

When you choose Auto Scan, the radio introduces every station in the list by playing it for 30 seconds. This is stopped when every station is played or you press the OK button.

5.3. Local Station

In this menu all stations of your local area will be displayed. You can set the local radio setup as described in chapter 12.14. In the default setting the radio recognizes your location automatically.

5.4. History

Shows you a list of last listened stations. It can save up to 10 history stations.

5.5. Service

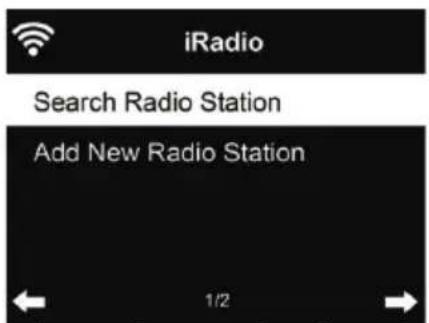

iRadio Search Radio Station Add New Radio Station 1/2

Search radio station - Enter your keyword to search radio station from the list.

Add new radio station - The added stations will be stored in My Favorite. Note that the maximum character of the station name is 250.

Tips: It may take a few seconds for the radio to load the data from the server, especially when the WiFi connection is bad. As long as the data isn't loaded the display shows Empty.

6. FM-Radio

02:18 01 91.70 MHz ↑ TURN ↓ ← SEEK →

FM radio mode receives analogue radio from the FM band.

Press ◀/▶ to search for FM stations. The frequency display starts to run up/down as DR470N / DR471 scans the FM band. It stops when it has received a station.

You may press ▲/▼ on the remote control to tune station manually. Each step moves 0.05MHz.

Press and hold the ★ on the remote control or the device to save the station.

You can save up to 20 stations. Press ★, then press ▲/▼ on the remote control or the device to choose the saved station. Or choose from the number pad on the remote control a preset station directly.

Alternatively, you can let the system scan ALL stations for you by pressing OK, the searched stations will automatically be stored in preset station list.

7. AUX IN

Aux in mode plays audio from an external source such as an MP3 player.

To play audio with Aux in mode:

- Turn the volume low on both DR470N / DR471 and, if adjustable, the audio source device.

- Connect the external audio source to the Aux in 3.5mm stereo socket.

- Either press MODE until the display shows AUX IN or select AUX IN in the Main menu.

- Adjust the volume of DR470N / DR471 (and, if necessary, the audio source device) as required.

8. MymediaU

Display and playback your own mediaU station list on the mediaU server. Set your account fi rst.

02:18 Link to "my mediaU" account not set or account not exist. PIs visit www.mediayou.net

To activate your own station list, follow the steps below:

1. Access http://www.mediayou.net/
2. Join my mediaU membership
3. Login to the website
4. Enter the wireless MAC addresses of DR470N / DR471 to the mediaU website. This information can be obtained in Information Center > System Information > Wireless Info
5. After successfully configuring, you are able to save and view your own mediaU station playlist(s). Username and password are not required to enter to DR470N / DR471.
6. If there are different accounts stored in DR470N / DR471, you can choose the one you currently use under Confi guration menu.
7. Each time you have made any updates on the playlist from the website, go to Confi guration

9. Music-Streaming

ALBRECHT DR470N / DR471 is the default device name for DLNA, and you may rename it as you like. (See section 13.17)

The information below is the introduction of how to setup up media streaming from PC or other media server. Study the own instruction of the software or apps you use to enjoy music streaming if necessary. Make sure the music files are in the format of MP3, WMA, WAV or AAC for music streaming to DR470N / DR471.

9.1. UPnP

• To enjoy music streaming from your PC, the following steps are to be done on the PC:
- Connect the PC to the network.
- Ensure the DR470N / DR471 is powered on and connected to the same network.
- Open the UPnP platform Windows Media Player (11 or later). Alternatively, other platforms or server such as Windows Media Connection may be used.

Microsoft Media Player Library Startup Do you want to switch the device to access content from your Windows Media Player Library? You can choose the new, pictures, and video to share. Version: 2016 Making settings... Enable future notifications Allow Only

- Allow to share your media to ALBRECHT DR470N / DR471.

Show remote button, and else in your network. Drawing settings Show to continue Settings... OK Cancel Help

Add the audio fi les and folders you want to share with DR470N / DR471 to the media library.

You may also enjoy the streaming music from other music server, such as smart phone (Android platform):

• Connect the mobile to the network
• Search and install media sharing apps from Google Play.
• Add the audio fi les from your mobile you want to share.

After setup the shared server, choose the music and control playback on the DR470N / DR471.

10. Media-Center

02:18 UPnP UPnP My Playlist Clear My Playlist 1/3

10.1. UPnP

If you have set up shared media, you should see the shared media from UPnP. If you have more than one computer sharing media, the alternatives are listed. Select the shared media you want to play.

On the main menu, select Media Center and choose UPnP. It may take a few seconds for the radio to complete the scan for available UPnP servers, especially when the WiFi connection is bad. If no UPnP servers are found, it will show Empty. After a successful scan is done, select your UPnP server.

The radio will show the media categories available from the UPnP server, e.g. 'Music', 'Playlists' etc. Choose the media fi les that you wish to play.

Press |◀◀/▶▶| on the remote control to play previous/next music track, press ▶ to stop or play Press Info to view the display information of the playing track.

Tips: The radio can only read the track of file names with less than 40 characters. And the characters should be in European language. If you encounter failure of reading the track under UPnP mode, you may try to rename the file.

However, if the track is still unable to play, you can try converting the file to a different format.

10.2. My Playlist

You can create a playlist of favorite music from UPnP. When you play the music, press and hold OK to save it into My Playlist.

10.3. Clear My Playlist

You can delete all tracks from the playlist

11. Information-Center

02:18 Weather Information Financial Information System Information 1/3

11.1. Weather Information

There are weather information and forecasts for 5000 cities. Select the country and then the city for the weather details.

02:18 Berlin 15 °C 08/27: 15 ~ 24 °C 08/28: 16 ~ 25 °C 1/7

Press ◀/▶ to see the weather forecasts.

It is able to display the weather information on the standby mode. On the weather information page, press OK to set the city to displaying on the standby mode. Then turn on the weather display as mentioned in 13.13.

11.2. FinancialService

02:18 [AEX General]373.5-1.2 [CAC 40] 4067.13 -2.34 [DAX] 8435.15 +18.16 [DOW JONES] 14946.46 -64.05 1/12

View the stock index from around the world.

11.3. System Information

Check out the version of the system, and the details of connected network. The information includes MAC address which you are required to fill in when registration of my mediaU membership.

12. AirMusic Control App

The DR470N / DR471 can be controlled with your smartphone via WiFi. It is recommended to use the AirMusic Control App. Additionally to controlling the radio, the app is able to play the smartphone's local music fi les on the DR470N / DR471. Due to frequent updates of the app the manual is only available online. Please visit www.alan-electronics.de and enter the article number 27471 into the search. You will find the DR470N / DR471 product page. On the tab Bedienungsanleitungen you will fi nd the AirMusic Control Manual.

The app itself is available for Android and iOS. It can be downloaded from here:

Android:

Apple iOS:

Lokale Station Internet Radio Media-Center FM AUX

87.60 Fade Out Lines - Avenue

Mobile phone control panel with navigation buttons and mode selection

13. Settings

13.1. Time Display

Choose the style of clock during standby mode: Analog or Digital.

02:18 Analog • Digital 1/2

13.2. Manage my mediaU

When it is enabled, My mediaU will be shown on the main menu.

If various mediaU accounts exist in the DR470N / DR471, Select the default login account in here.

Refer to 8 below for more information of mediaU account setup.

02:18 Manage my mediaU Network Date&Time Alarm 1/15

13.3. Network

02:18 Wireless Network Configuration Wireless Network (WPS PBC) Manual Configuration Check Network when Power On 1/4

13.3.1. Wireless Network Configuration

Enable / disable WiFi network. When you enable the WiFi network, the system will automatically connect to the network.

02:18 Connecting to network ...

Select your required AP.

02:18 Derek_AP HSPAWireless MAhome polartesting 1/10

Enter WEP or WPA code to connect the WiFi.

If it is accidentally pressed ▶ to move a redundant entry, press ◀ to correct.

02:18 Enter Password h 6 1 c 3 5/5 ← MOVE → INPUT: ↑ ↓ OK ←

13.3.2. Wireless Network (WPS)

If you are using a router with WPS/QSS button, you may set up the network connection simple via WPS function. Enter it and go to press the WPS/QSS button on your router within 120 seconds.

The connection between the router and the DR470N / DR471 will then be configured automatically.

02:18 Please press the WPS button on your router within 120 Secs.

13.3.3. Manual Configuration

You can choose DHPC (which IP assigned automatically) or manually input IP address for wireless network connection.

When you select manual setting for wired connection, the followings have to be entered:

1. SSID (the name of Access Point);
2. IP Address;
3. Subnet Mask;
4. Default Gateway;
5. Preferred DNS Server;
6. Alternate DNS Server.

You may choose (Manage) specific network if you have setup more than one network connection within an area.

13.3.4. Check Network when Power On

"Enable / disable WiFi network":

When you enable the WiFi network, the system will automatically search the available AP. Select your required AP.

Enter WEP or WPA code to connect the WiFi.

If the wireless network connection is not existed or failed, the icon at the top left corner will have a cross on it.

13.4. Date & Time

02:18 Set Date and Time Set Time Format Set Date Format Daylight Saving Time (DST) 1/5

• Press Set Date and Time between Manual Setup and Auto Detect. When Auto Detect is chosen, the time is determined automatically, therefore deleted pont 4 (DST)
• Setup the date and time
• Set time format display as 12 Hour or 24 Hour (default). Only for manual setup required.
• Set date format in the positions of YY (year), MM (month) and DD (day) – YY/MM/DD, (default) or MM/DD/YY.
  • Turn on/off (default) the Daylight Saving Time (DST). Available only on manual setup

With a wireless network connected, GMT (+00:00) time is a time reference of time setting. Add or deduce the hour according to your time zone when you set the time.

13.5. Alarm

02:18 Alarm1(Turn Off) Alarm2(Turn Off) NAP Alarm (Turn Off) Alarm Volume 1/4

There are three independent alarms - 2 alarms of absolute time setting (Alarm 1 and Alarm 2) and 1 alarm for relative time setting (NAP Alarm). Press Alarm on the remote control to enter this menu directly.

The first two alarms are similar to the normal alarm, turn on then set the time and set it alarms every day, once or every specific day of week. Choose Sound to set the sound to Beep, Melody or Radio.

Note that the alarm source is from the last listened or preset Internet radio if Alarm Sound is set to Radio. It can only set one station for both alarms. When it reaches the alarm time, the unit connects to the Internet if the set network is available. Therefore there may be some delay from the alarm to the radio play. If no network is connection in one minute, the alarm will change to Melody automatically.

After Alarm NAP is set, it alarms once in 5/10/20/30/60/90/120 minutes depending on which one you have set.

You may choose Alarm Volume to configure the volume of the alarms.

When the alarm(s) is/are set, there will be a clock icon at the top of the display. The clock icon with alarm time will also clearly display on the standby mode screen.

During alarm, press any key to enter snooze mode. It will alarm again in 5 minutes. Press the STANDBY key to stop the alarm.

13.6. Timer

02:18 01:00

Press ◀/▶ to set the timer, press OK to start. The timer will count down and beep sound when it reaches 00:00. To cancel the timer, enter the timer screen and press OK again.

13.7. Language

02:18 ● English Deutsch Français Nederlands 1/17

Select one of 17 OSD languages: English / Deutsch / Español / Français / Português / Nederlands / Italiano / Русский / Svenska / Norsk / Dansk / Magyar / Český / Slovenský / Polski / Türkçe / Suomi.

13.8. Dimmer

02:18 Power Saving ● Turn On 2/2

Confi gure the brightness of backlight on the display.

If you select Power Saving you can select the level to which the display is dimmed down when the radio enters the Standby mode or when the radio gets no key input for 15 seconds.

The Turn On options keeps the display illumination always. If you select it you can choose how bright the display shall be.

13.9. Display

Choose the style of display: Color or Monochrome

02:18 ● Color Monochrome 1/2

13.10. Power Management

Choose the power management timer (5/15/30mins) to set the duration of the radio to switch to the standby mode automatically when no network connection is available.

Choose "Turn off" to ignore the power management function.

13.11. Sleeptimer

02:18 ● Turn Off 15 Minutes 30 Minutes 60 Minutes ← 1/8 ←

Turn off or set the sleep time to 15/30/60/90/120/150/180 minutes. Once the time is set, there will be a bed icon with remaining minutes at the top right corner. The DR470N / DR471 will shut down once the time runs out. Press Sleep on the remote control for the shortcut of this function.

13.12. Buffer

02:18 ● 2 Seconds 4 Seconds 8 Seconds 1/3

Confi gure the buffer time of the music playback, 2/4/8 seconds.

13.13. Weather

02:18 Show on Standby Temperature Unit Set Location 1/3

DR470N / DR471 is able to display current weather information (refer to 11.11) under standby mode. Turn on Standby Display and set Temperature Unit (°C or °F) to get the weather displayed at the standby mode.

When it is turned on, the display will switch between time and weather while being in standby mode.

13.14. FM Setup

Choose Mono/Stereo and enable/disable threshold.

13.15. Local Radio Setup

02:18 Manual Setup • Auto Detect 1/2

There is a shortcut Local Radio under Internet Radio (see section 5.3) so that you can easily go to the station list of your location.

You may Manual Setup your location, or let the system Auto Detect your current location. The system detects the location according to the IP address of your connected network.

Press Local Station to enter this local radio list directly.

13.16. Playback Setup

02:18 Off ● Repeat all Repeat one Shuffle 2/4

Select the playback mode of media center – Off (no repeat or shuffl e), Repeat all, Repeat one, or Shuffl e.

13.17. DLNA-Setup

02:18 Rename(Albrecht DR470) 1/1

The default device name for DLNA is ALBRECHT DR470N / DR471. You may rename it for DLNA setup on the PC or mobile.

13.18. Equalizer

02:18 ● Normal Flat Jazz Rock 1/8

Default equalizer is Rock, you may change to Normal, Jazz, Flat, Soundtracks, Classical, Pop, or News.

13.19. Resume When Power On

The system is default to resume internet radio playback if you were listening to internet radio or media center before switch off the unit. If turn this setting off, the system will remain in the main menu when switching on the unit.

13.20. Software-Update

Update software. If there is an updated software version on the server, the system will notify you when you return to the main menu.

13.21. Reset

Restore the default settings.

02:18 Are you sure to reset to default settings ? YES NO

After DR470N / DR471 is reset, the system will move to Language setting menu. And it will automatically turn to Network setting menu once the OSD language is elected.

14. Main Menu

Standby

Main Menu

5 Internet Radio

10 Media Center

6 FM

11 Information Center

7 AUX

13 Configuration

5 Local Radio

8 My mediaU

5.1 My Favorite

5.2 Radio Stadion/Music

5.3 Lokale Radio

5.4 History

5.5 Service

10.1 UPnP

10.2 My Playlist

10.3 Clear My Playlist

6 Playlist with *, Preset

11.1 Weather Information

11.2 Financial Information

11.3 System Information

13.1 Time Display

13.2 Manage my mediaU

13.3 Netzwork

13.4 Date & Time

13.5 Alarme

13.6 Timer

13.7 Language

13.8 Dimmer

13.9 Display

13.10 Power Management

13.11 Sleep Timer

13.12 Buffer

13.13 Weather

13.14 FM-Setup

13.15 Local Radio Setup

13.16 Playback Setup

13.17 Device

13.18 Equaliser

13.19 Resume When Power On

13.20 Software Update

13.21 Reset to Default

Schortcut zu 5.3

8 <----> Submenü

15. Troubleshooting

Error Remedy
The device does not switch on. 1.	Check if the power adaptor is connected properly.2. The device may malfunction when used in areas with strong radio interference. The device will work properly again once there is no more interference.
No sound 1. Turn on the sound as	it may be muted2. Increase the volume.
No network connection can be established.	1. Check the WIFI function.2. Try to set an IP address at the device.3. Activate the DHCP function on the router and make the connection again at the device.4. A firewall is activated on the network – set the respective program in such a way that access is possible.5. Reboot the unit to try.
WIFI connection cannot be established.	1. Check the availability of WIFInetwork on the access point.2. Place the device closer to the router.3. Make sure the WEP/WPA password is correct.
No station is found. 1. Check the	network as well as the access point and firewall.2. The station may not be available currently, try it again later or select another station.3. The link of the station is changed or the station no longer transmits – ask the provider for information.4. The link of manual added station is not correct, make sure it is correct and re-enter.
Hiss in FM mode. 1. Check/move	the FM antenna.2. Move the radio to a different location.
Alarm does not work. 1. Switch on	the alarm.2. Due to the volume setting, refer to the solutions of “No sound”.3. The source of alarm was set to be station but there is no network connection. Change the source of alarm or reconfigure the connection.
Unable to do DLNA streaming. 1.	Check the connection of the network. DR470N / DR471 and your device need to be in the same net-work; and test if the network in good condition.2. Make sure the settings on your device are correct.
System freezes suddenly. 1. Diso	connect the power plug for 1 minute, then restart the device.2. If the error has then not been resolved, reset the unit to the factory setting (see chapter 13.21.).

16. Specifications

Model number DR470N / DR471
Description Internet Radio
Display 320 x 240 TFT color display
Network supported 802.11b/g/n (WIFI)
WIFI key WEP, WPA, WPA2 (PSK) and WPS
Streaming UPnP, DLNA
Supported playback formats WMA, MP3, WAV
FM 87,5 – 108,0 MHz
Speaker power output	3 W
Power adaptor	5 V/1200 mA
Standby mode power consumption	< 1 W
Operating temperature	0 °C - 35 °C
Connections	DC IN power supply socket3.5mm aux in3.5mm line out
Dimensions	200mm(L) x 110mm(H) x 118mm(D)
Weight	880g

17. Warranty and Recycling Information

We are legally obliged to include disposal and warranty information as well as EU declaration of conformity with the use instructions in different countries for every unit. Please find this information on the following pages.

2-Year Warranty from Date of Purchase

The manufacturer/retailer guarantees this product for two years from date of purchase. This warranty includes all malfunctions caused by defective components or incorrect functions within the warranty period excluding wear and tear, such as exhausted batteries, scratches on the display, defective casing, broken antenna and defects due to external effects such as corrosion, over voltage through improper external power supply or the use of unsuitable accessories. Defects due to unintended use are also excluded from the warranty.

Please contact your local dealer for warranty claims. The dealer will repair or exchange the product or forward it to an authorized service center. You can also contact our service partner directly. Please include your proof of purchase with the product and describe the malfunction as clearly as possible.

WEEE and Recycling

The European laws do not allow any more the disposal of old or defective electric or electronic devices with the household waste. Return your product to a municipal collection point for recycling to dispose of it. This system is financed by the industry and ensures environmentally responsible disposal and the recycling of valuable raw materials.

Service Address And Technical Hotline (for units sold in Germany)

Contact our service hotline by phone [phone] / 9841 - 66 (regular costs for German fixed network) or e-mail at [e-mail]

Conformity Declaration

Hereby, Alan Electronics GmbH declares that the radio equipment type DR470N / DR471 / is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://service.alan-electronics.de/CE-Papiere/

Printing errors reserved.

Information in this user manual are subject to change without prior notice.

ALBRECHT® Audio

Black Audi Radio portable radio with digital display and control knobs (no visible text or symbols on device body)

Exterior view of a wooden radio with a digital screen displaying 'Internet Audio DR-471' and control knobs (no visible text beyond branding)

Manuelle

Français

6. Inhalt

3 5 4 6 ALAB 50 LIME OUT DO BL @ 5-8

02:18 Would you like to configure Network now? YES Yes(WPS) NO

02:18 Enable 'Check Network when Power On' ? YES NO

iRadio Add to My Favorite Auto Scan Play 1/3

iRadio Global Top 20 Genre Country/Location 1/3

iRadio Search Radio Station Add New Radio Station 1/2

02:18 01 91.70 MHz TURN ↓ ← SEEK →

02:18 Link to "my mediaU" account not set or account not exist. PIs visit www.mediayou.net

Windows Media Player Library Sharing Do you want to allow the device to deliver content from your Windows Media Player library? You can maximize the music, pictures, and video to choose. Microsoft DR/10 Sharing settings... Allow Cancel Disable Future notifications

Send to Settings Show local, network, and remote or your network. Setting settings: ● Include any settings Settings... OK Cancel Apply

Screenshot of a mobile phone control panel with playback buttons and mode selection

14. Confi guration

02:18 Connecting to network ...

02:18 Derek_AP HSPAWireless MAhome polartesting 1/10

02:18 Enter Password h 6 1 c 3 5/5 ← MOVE → INPUT: ↑ ↓ OK ←

02:18 Please press the WPS button on your router within 120 Secs.

14.3.3. Confi guration manuelle

02:18 Set Date and Time Set Time Format Set Date Format Daylight Saving Time (DST) 1/5

02:18 Alarm1(Turn Off) Alarm2(Turn Off) NAP Alarm (Turn Off) Alarm Volume 1/4

02:18 Power Saving ● Turn On 2/2

02:18 ● 2 Seconds 4 Seconds 8 Seconds 1/3

02:18 Show on Standby Temperature Unit Set Location 1/3

02:18 Off ● Repeat all Repeat one Shuffle 2/4

02:18 ● Normal Flat Jazz Rock 1/8

02:18 Are you sure to reset to default settings ? YES NO

10.3 Clear My Playlist

6 Playlist with *, Preset

11.1 Weather Information
11.2 Financial Information
11.3 System Information

13.1 Time Display

13.2 Manage my mediaU
13.3 Netzwork
13.4 Date & Time
13.5 Alarme
13.6 Timer
13.7 Language
13.8 Dimmer
13.9 Display

13.10 Power Management
13.11 Sleep Timer
13.12 Buffer
13.13 Weather
13.14 FM-Setup
13.15 Local Radio Setup
13.16 Playback Setup
13.17 Device
13.18 Equaliser
13.19 Resume When Power On
13.20 Software Update
13.21 Reset to Default

Schortcut zu 5.3

8 <----> Submenü

02:18 Would you like to configure Network now? YES Yes(WPS) NO

02:18 Enable 'Check Network when Power On' ? YES NO

27/08/2013 Tue 12 9 3 6 [06:30] [08:00]

iRadio Add to My Favorite Auto Scan Play 1/3

iRadio Global Top 20 Genre Country/Location 1/3

iRadio Search Radio Station Add New Radio Station 1/2

02:18 01 91.70 MHz TURN ↓ ← SEEK →

02:18 Link to "my mediaU" account not set or account not exist. PIs visit www.mediayou.net

Windows Media Player Library Sharing Do you want to allow the device to click content from your Windows Media Player Library? You can customize the most, pictures, and video to share. Microsoft SQL70 Sharing settings... Disable future notifications Allow Delay

Media Sharing Share links, packets, and video process network. Sharing settings □ Sharey media links Settings Sharey Media Options Add Delete Customize OK Cancel Help

87.60 mph Fade Cut Lines - Answer

Screenshot of a mobile phone control panel with navigation buttons and mode selection

12. Confi gurazione

02:18 Connecting to network ...

02:18 Derek_AP HSPAWireless MAhome polartesting 1/10

02:18 Enter Password h 6 1 c 3 5/5 ← MOVE → INPUT: ↑ ↓ OK ↓

12.3.2. Rete wireless (WPS)

02:18 Please press the WPS button on your router within 120 Secs.

02:18 Set Date and Time Set Time Format Set Date Format Daylight Saving Time (DST) 1/5

02:18 Alarm1(Turn Off) Alarm2(Turn Off) NAP Alarm (Turn Off) Alarm Volume 1/4

02:18 01:00

02:18 Power Saving ● Turn On ← 2/2 ←

02:18 ● 2 Seconds 4 Seconds 8 Seconds 1/3

02:18 Show on Standby Temperature Unit Set Location 1/3

02:18 Off ● Repeat all Repeat one Shuffle 2/4

02:18 ● Normal Flat Jazz Rock 1/8

02:18 Are you sure to reset to default settings ? YES NO

10.3 Clear My Playlist

6 Playlist with *, Preset

11.1 Weather Information

11.2 Financial Information

11.3 System Information

13.1 Time Display

13.2 Manage my mediaU

13.3 Netzwork

13.4 Date & Time

13.5 Alarme

13.6 Timer

13.7 Language

13.8 Dimmer

13.9 Display

13.10 Power Management

13.11 Sleep Timer

13.12 Buffer

13.13 Weather

13.14 FM-Setup

13.15 Local Radio Setup

13.16 Playback Setup

13.17 Device

13.18 Equaliser

13.19 Resume When Power On

13.20 Software Update

13.21 Reset to Default

Schortcut zu 5.3

8 <----> Submenü
