USER MANUAL F153 Clock Airforce

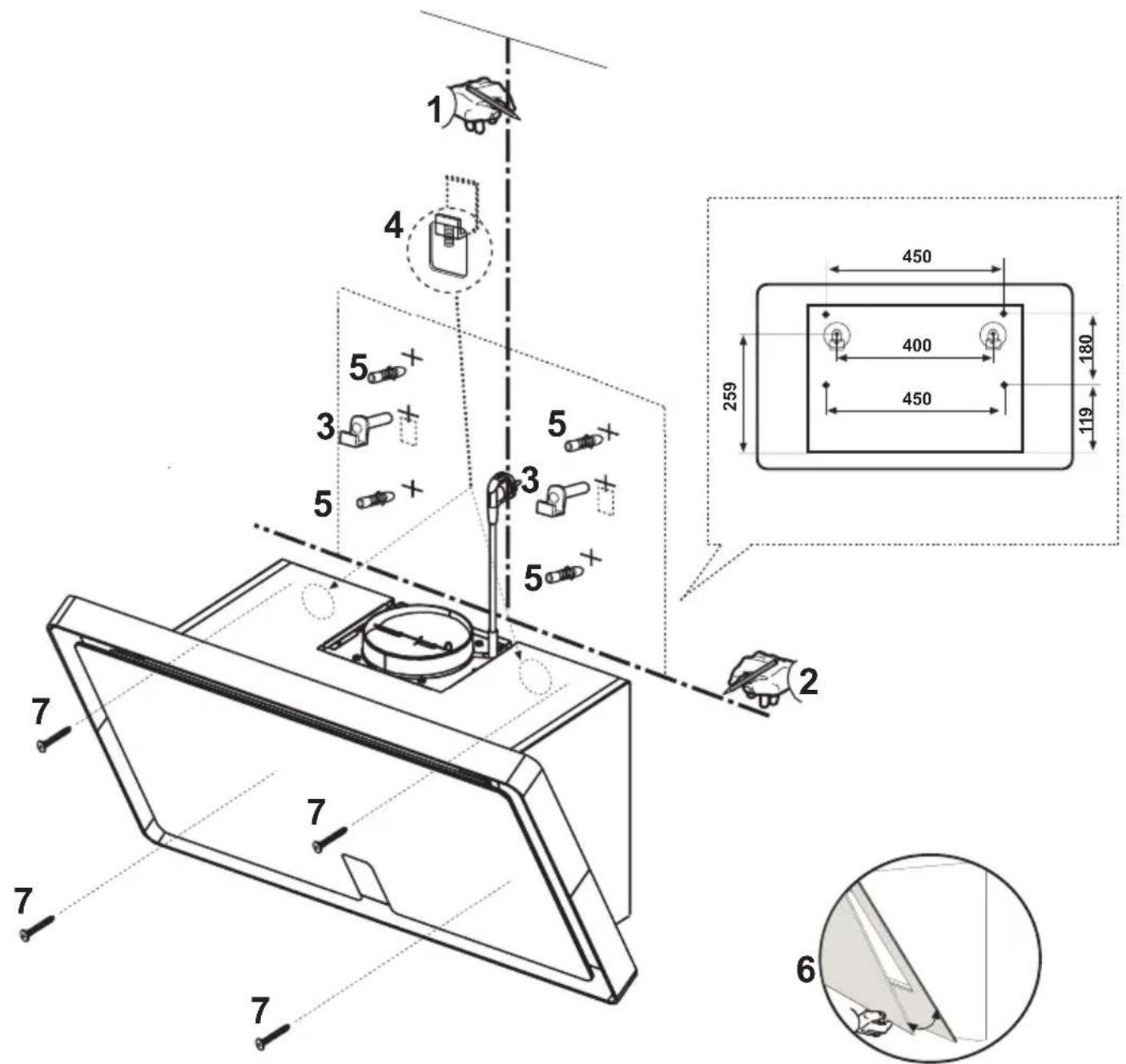

INSTRUCTIONS ON MOUNTING AND USE

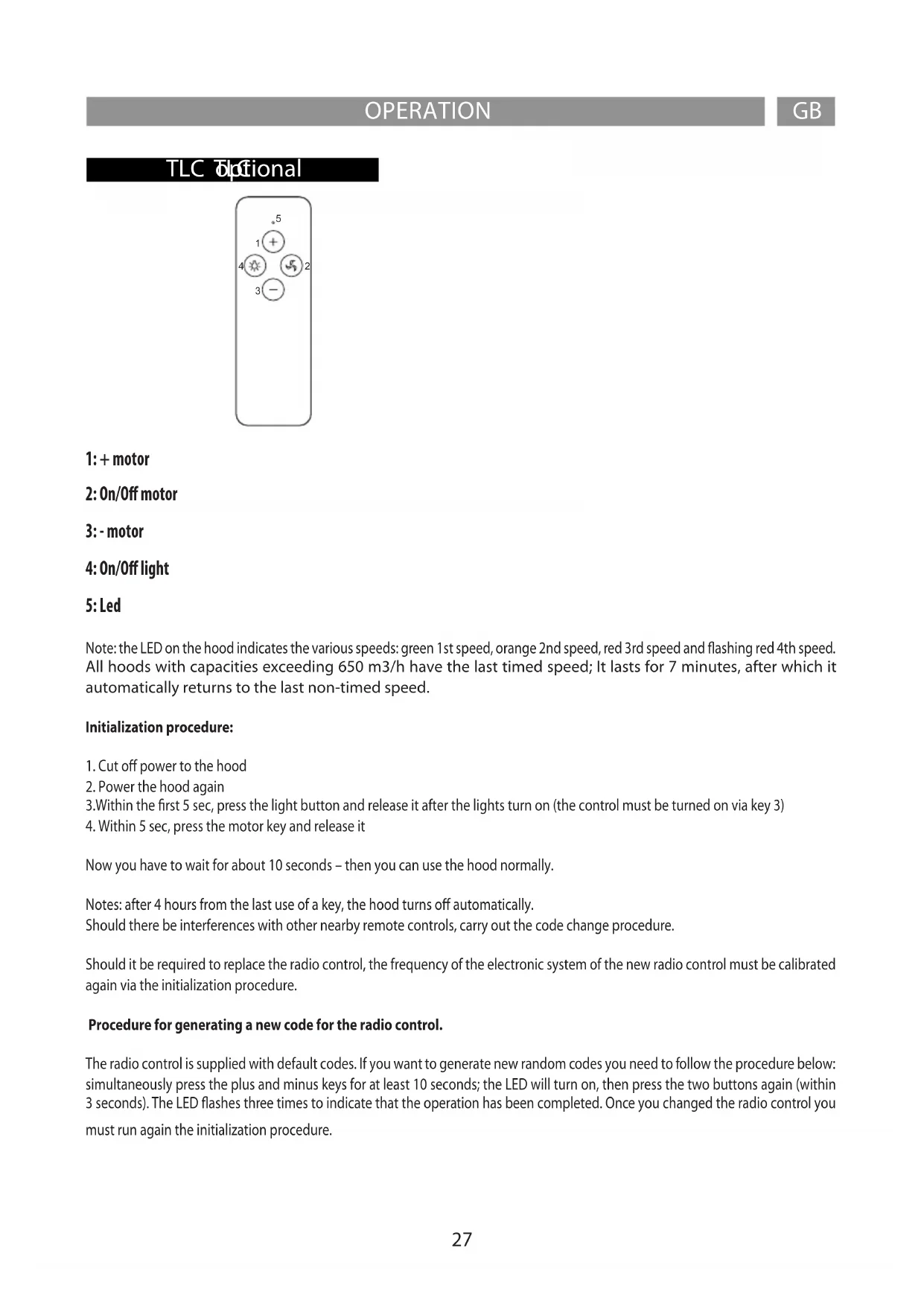

TLC OPERATION 1: + motor 2: On/O motor 3: - motor 4: On/O light 5: Led Note: the LED on the hood indicates the various speeds: green 1st speed, orange 2nd speed, red 3rd speed and ashing red 4th speed. All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed. Initialization procedure:

1. Cut o power to the hood

2. Power the hood again

3.Within the rst 5 sec, press the light button and release it after the lights turn on (the control must be turned on via key 3)

4. Within 5 sec, press the motor key and release it

Now you have to wait for about 10 seconds – then you can use the hood normally. Notes: after 4 hours from the last use of a key, the hood turns o automatically. Should there be interferences with other nearby remote controls, carry out the code change procedure. Should it be required to replace the radio control, the frequency of the electronic system of the new radio control must be calibrated again via the initialization procedure. Procedure for generating a new code for the radio control. The radio control is supplied with default codes. If you want to generate new random codes you need to follow the procedure below: simultaneously press the plus and minus keys for at least 10 seconds; the LED will turn on, then press the two buttons again (within 3 seconds). The LED ashes three times to indicate that the operation has been completed. Once you changed the radio control you must run again the initialization procedure.

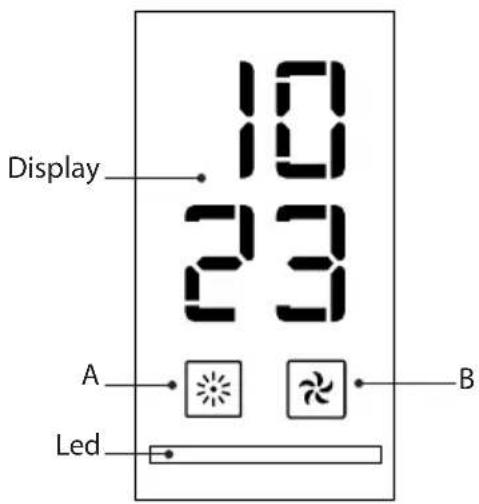

Display Led A.Light ON/OFF key: press this key to switch on or o the hood lights. B.Motor ON/OFF key: press this key to start/stop the motor and scroll cyclically among the extraction speeds. (0-1-2-3-timed intensity-0) Time adjustment: to set the time, simultaneously press keys A and B, the display starts to ash. Use key A to adjust the hours, key B the minutes. Once the time is set, simultaneously press A and B to end the procedure. Note: the LED on the hood indicates the various speeds: green 1st speed, orange 2nd speed, red 3rd speed and ashing red 4th speed. All hoods with capacities exceeding 650 m3/h have the last timed speed; It lasts for 7 minutes, after which it automatically returns to the last non-timed speed. This product is equipped with a receiver that allows operating it from a distance via remote control (available as optional) or from the hob (sold separately). If you do not have the remote control, follow the procedure below to disable the receiver and prevent any interferences: 1 Unplug the device for at least 10 seconds 2 Plug it back in 3 Press the light key on the hood control panel until the lights turn on 4 Press the start key. If all the lights are o, it means that the receiver has been disabled successfully. To re-enable the receiver, follow the remote control or hob pairing procedure. OPERATIONGB CRISALIDEDISPLAY29 OPERATION GB Maintenance Prior to any maintenance operation ensure that the cooker hood is disconnected from the electrical outlet. Cleaning The hood must be cleaned frequently both inside (apart from the area behind the grease lter) and outside. Use a cloth moistened with neutral liquid detergents. Never use products containing abrasives. Warning Failure to carry out the basic standards of the cleaning of the cooker hood and replacement of the lters may cause re risks. Therefore we recommend observing these instructions. Anti-grease Filter must be cleaned once a month, with non abrasive detergents, by hand or in dishwasher on low temperature and short cycle. When washed in a dishwasher, the grease lter may discolour slightly, but this does not aect its ltering capacity. Charcoal Filter - (only for lter version) The active charcoal lters F are not washable nor regenerative. It should be changed every 6 months in normal use. The active charcoal lters capture unpleasant cooking odours. Reducing environmental impact: To reduce energy consumption, we recommend you always use the lowest suction speed among those suitable for the cooking mode currently active, avoid leaving the appliance running for more than 15 minutes after burner shutdown and switch o the lights if you leave the cooking area. Replacing lightbulbs Led Light If the lighting group LED does not work, please contact the technical service center in order to replace the whole group.30 TLC F ENTRETIEN 1: + motor 2: On/O motor 3: - motor 4: On/O light 5: Led Remarque : la LED sur la hotte indique les diérentes vitesses : vert 1ère vitesse, orange 2ème vitesse, rouge 3ème vitesse et rouge clignotant 4ème vitesse. La dernière vitesse est temporisée sur toutes les hottes ayant un débit supérieur à 650 m3/h ; elle a une durée de sept minutes après quoi on revient automatiquement à la dernière vitesse non temporisée. Procédure d’aliation :
