USER MANUAL K 180 Güde

Translation of the original instructions Compressor

Blue industrial air purifier device with control panel and ventilation slots (no visible text or symbols)

K 18-0

58419

GÜDE GmbH & Co. KG

Birkichstrasse 6

74549 Wolpertshausen

Deutschland

Güde

ENGLISH Please read the instructions carefully before starting the machine.

Scanned document page with placeholder text and a blue circular icon containing a logo

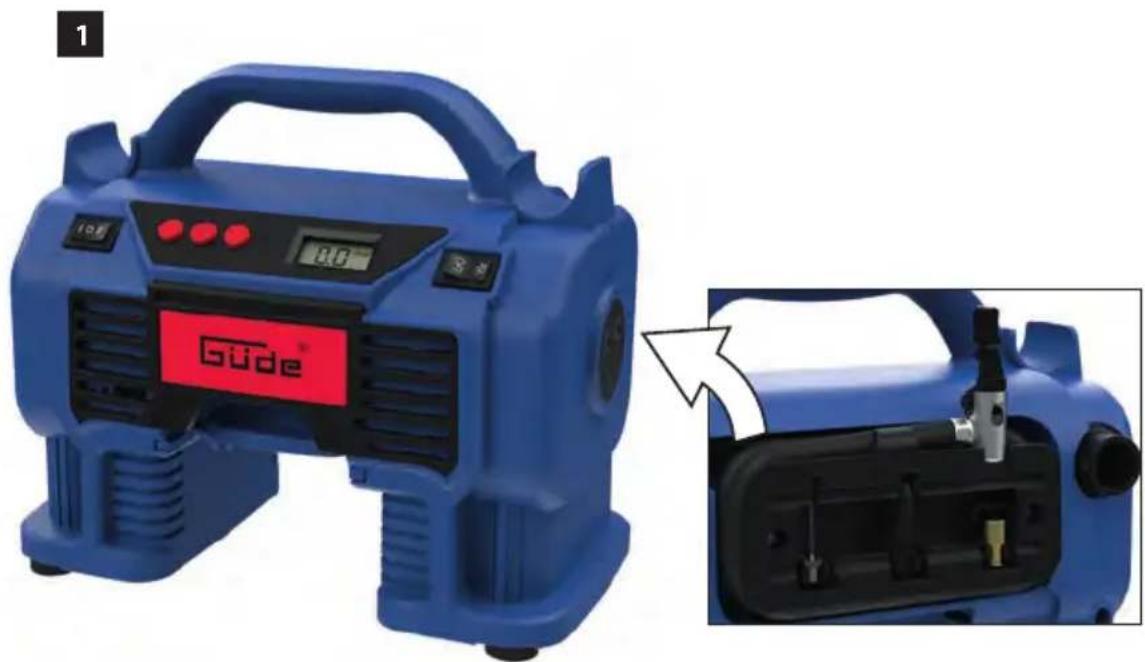

Blue Guede air purifier device with digital display and internal components, shown from side to front (no text or symbols visible)

2

Black plastic pipe fitting with threaded ends and a small protrusion at the end (no text or symbols visible)

Deutsch Technische Daten / Gerätebeschreibung / Sicherheitshinweise / Bestimmungs-gemäße Verwendung / Verhalten im Notfall / Symbole / Wartung / Entsorgung / Gewährleistung / Service ____ 12
English Technical Data / Device description / Safety Warnings / Specified Conditions of Use / Emergency procedure / Symbols / Maintenance / Disposal / Guarantee / Service ____ 17
Français Caractéristiques techniques / Description du dispositif / Instructions De Sécurité Particulieres / Utilisation conforme aux prescriptions / Conduite en cas d'urgence / Symboles / Entretien / Elimination / Garantie / Service ____ 22
Italiano Dati tecnici / Descripción del dispositivo / Norme Di Sicurezza / Utilizzo conforme / Comportamento in caso d'emergenza / Simboli / Manutenzione / Smaltimento / Garanzia / Servizio ____ 27
Español Datos técnicos / Descripción del dispositivo / Indicaciones de seguridad / Aplicación de acuerdo a la finalidad / Comportamento in caso d'emergenza / Símbolos / Mantenimiento / Eliminación / Garantía / Servicio ____ 32
Nederlands Technische gegevens / Beschrijving van het apparaat / Veiligheidsadviezen / Voorge-schreven gebruik van het systeem / Handelswijze in noodgeval / Symbolen / Onderhoud / Afvoer / Garantie / Service ____ 37
Čeština Technická data /Popis zařízení / Speciální Bezpečnostní Upozornění / Oblast Využití / Chování v případě nouze / Symboly / Údržba / Likvidace / Záruka / Servis ____42
Slovenský Technické údaje /Opis zariadenia / Špeciálne Bezpečnostné Pokyny / Použitie podľa predpisov / Správanie v prípade núdze / Symboly / Údrzba / Likvidácia / Záruka / Servi ____ 47
Polski Dane techniczne / Opis urządzenia / Instrukcje Dotyczące Bezpieczeństwa / Warunki użytkowania / Postępowanie w nagłym przypadku / Symbole / Utrzymanie I Konserwacja / Utylizacja / Gwarancja / Serwis ____ 52
Magyar Műszaki Adatok / Eszközleírás / Rendeltetés szerinti használat / Biztonsági utasítások / Karbantartás / Jótállás ____ 57

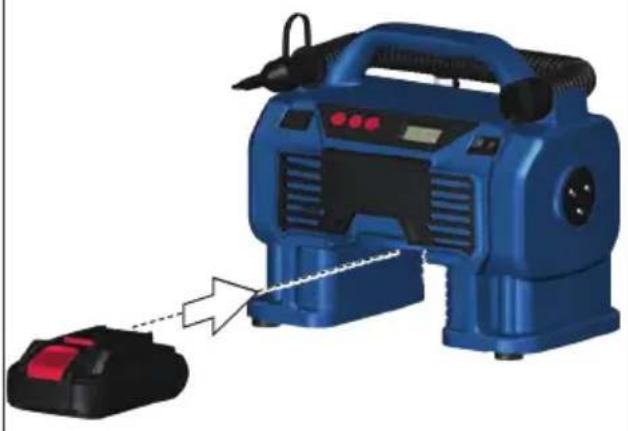

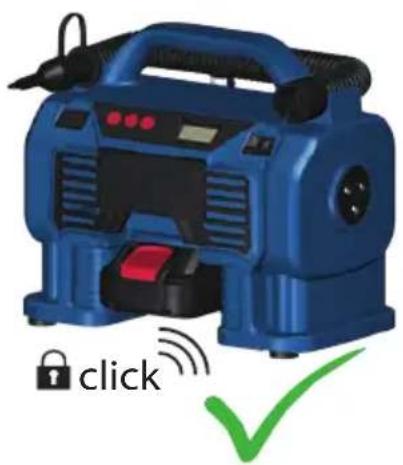

Inbetriebnahme

EN starting-up the device FR Mise en service IT Messa in funzione

ES Puesta en marcha NL Toestel in gebruik nemen cz Uvedení do provozu

		58555	2,0 Ah	AP 18-20
		58556	3,0 Ah	AP 18-30
		58557	4,0 Ah	AP 18-40

1

Blue industrial air purifier with a black sensor device emitting a white arrow (no text or symbols visible)

2

Blue industrial air purifier with a lock icon and 'click' checkmark (no text or symbols on the device itself)

1

Blue industrial air purifier with control panel and red button, no visible text or symbols

2

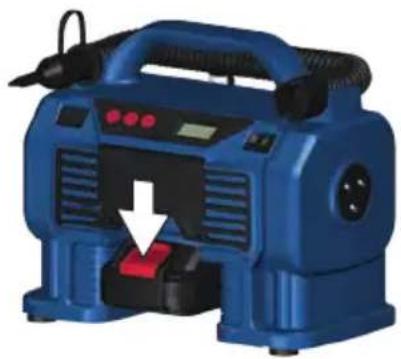

Blue industrial air purifier with a black base and red control knob, connected to a white arrow indicating a connection or disconnection (no text or symbols visible)

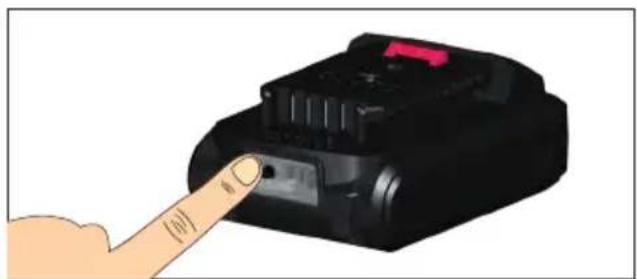

Hand pointing at a black L4801 battery with a red clip, no visible text or symbols

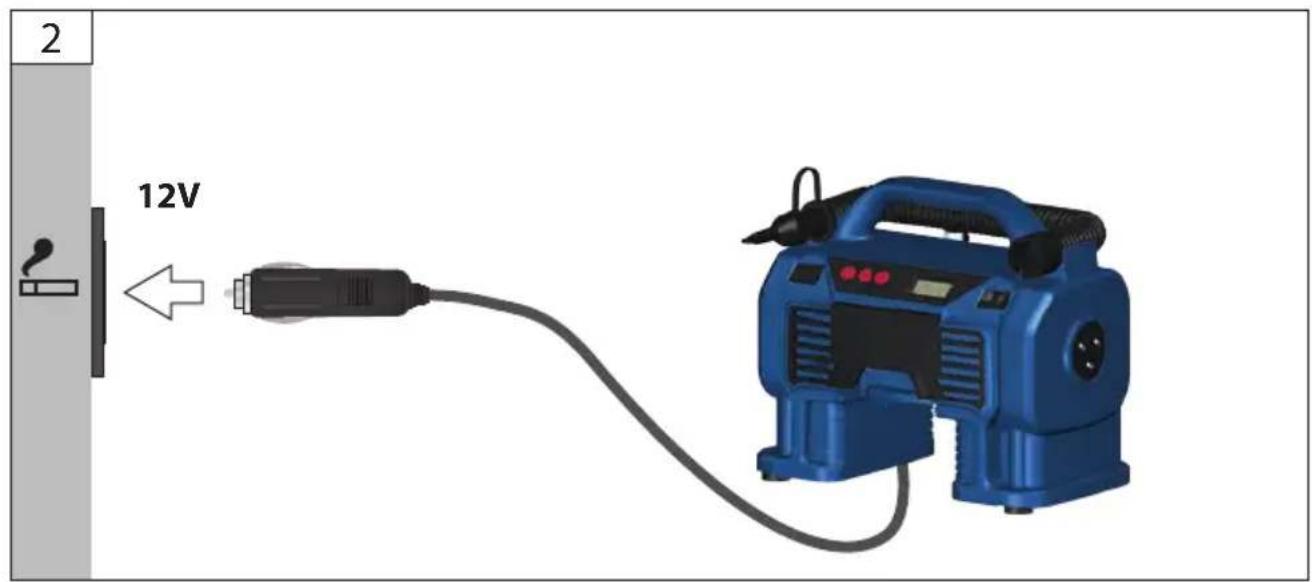

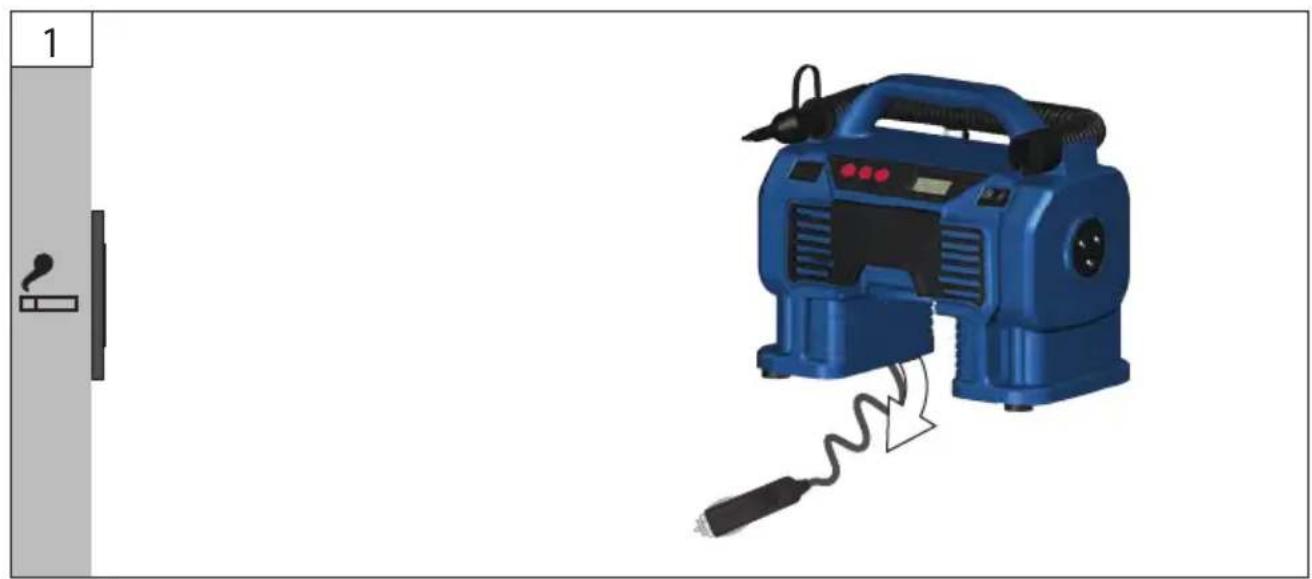

Blue industrial air purifier with attached power plug, shown without any text or symbols

2 12V

1

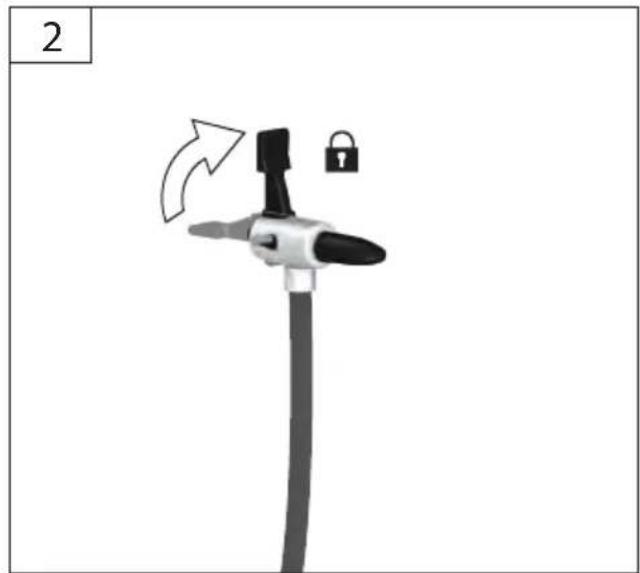

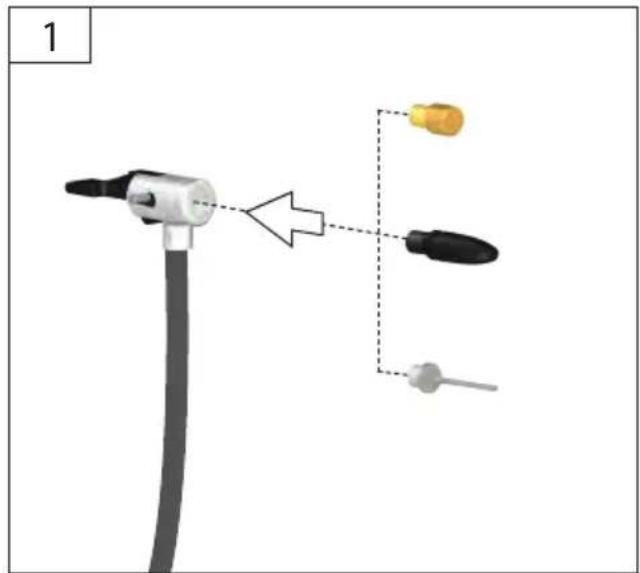

Illustration of a hand holding a device with a lock and directional arrow, no text or symbols present

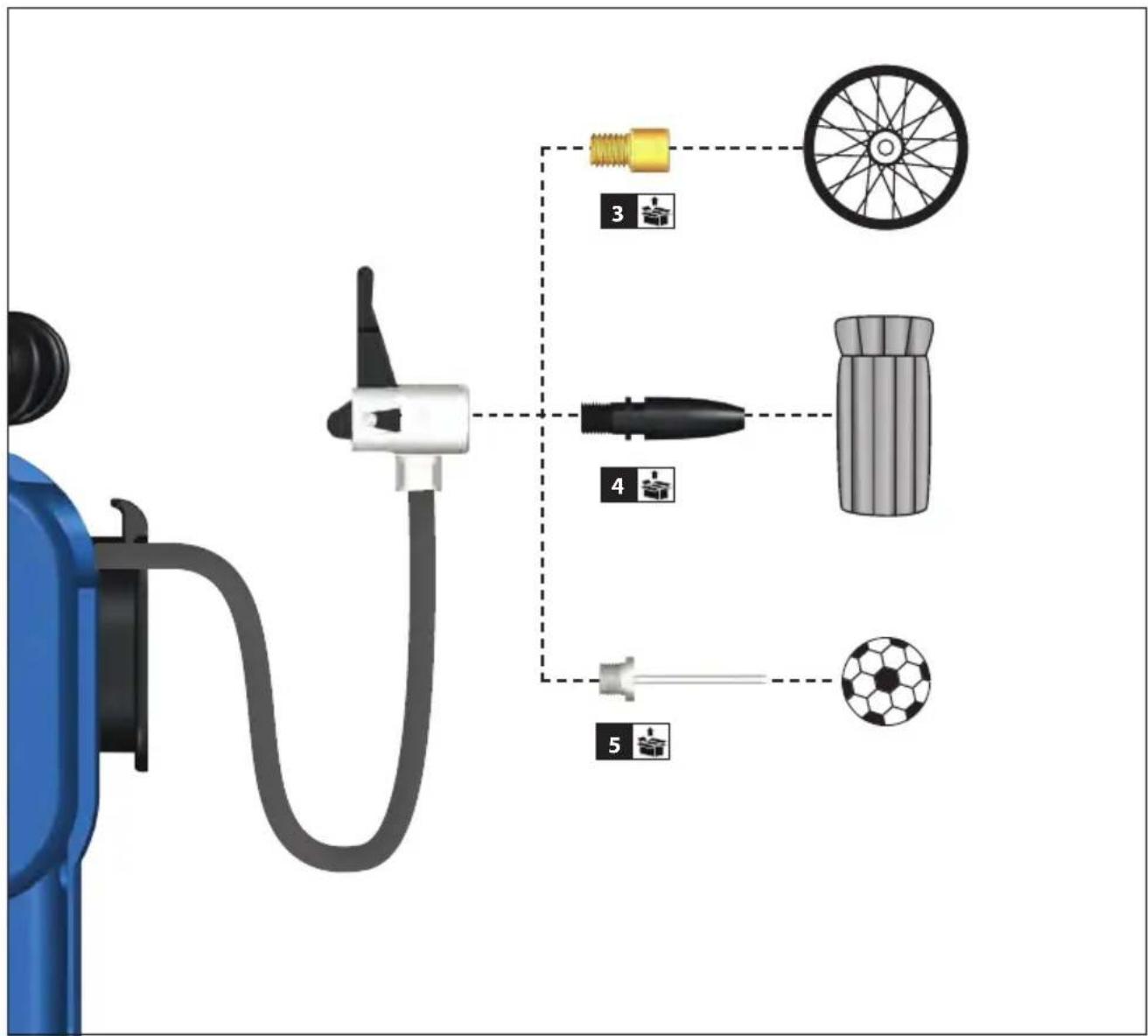

Diagram illustrating the components of a fuel pump, showing parts labeled 3, 4, and 5 with corresponding icons.

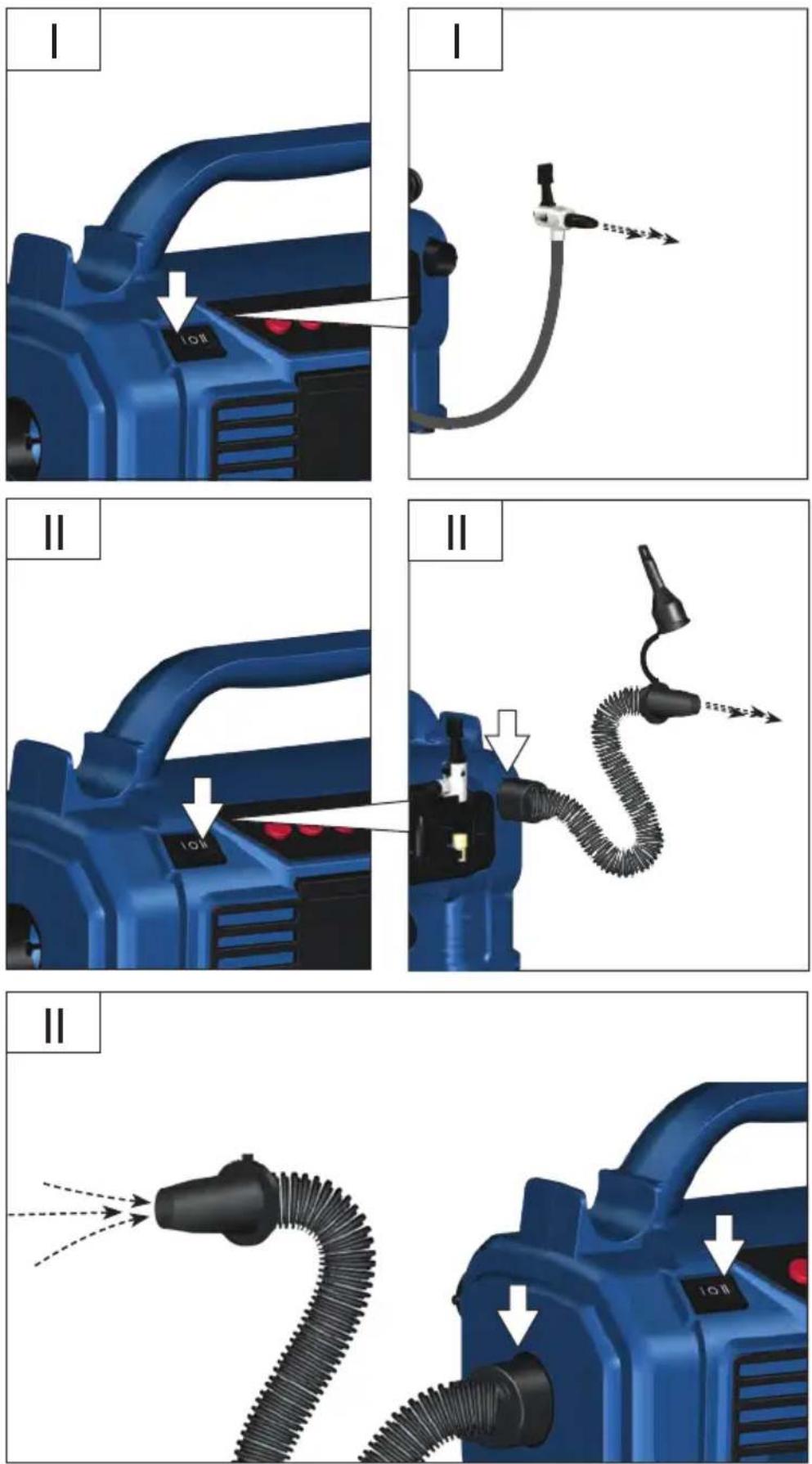

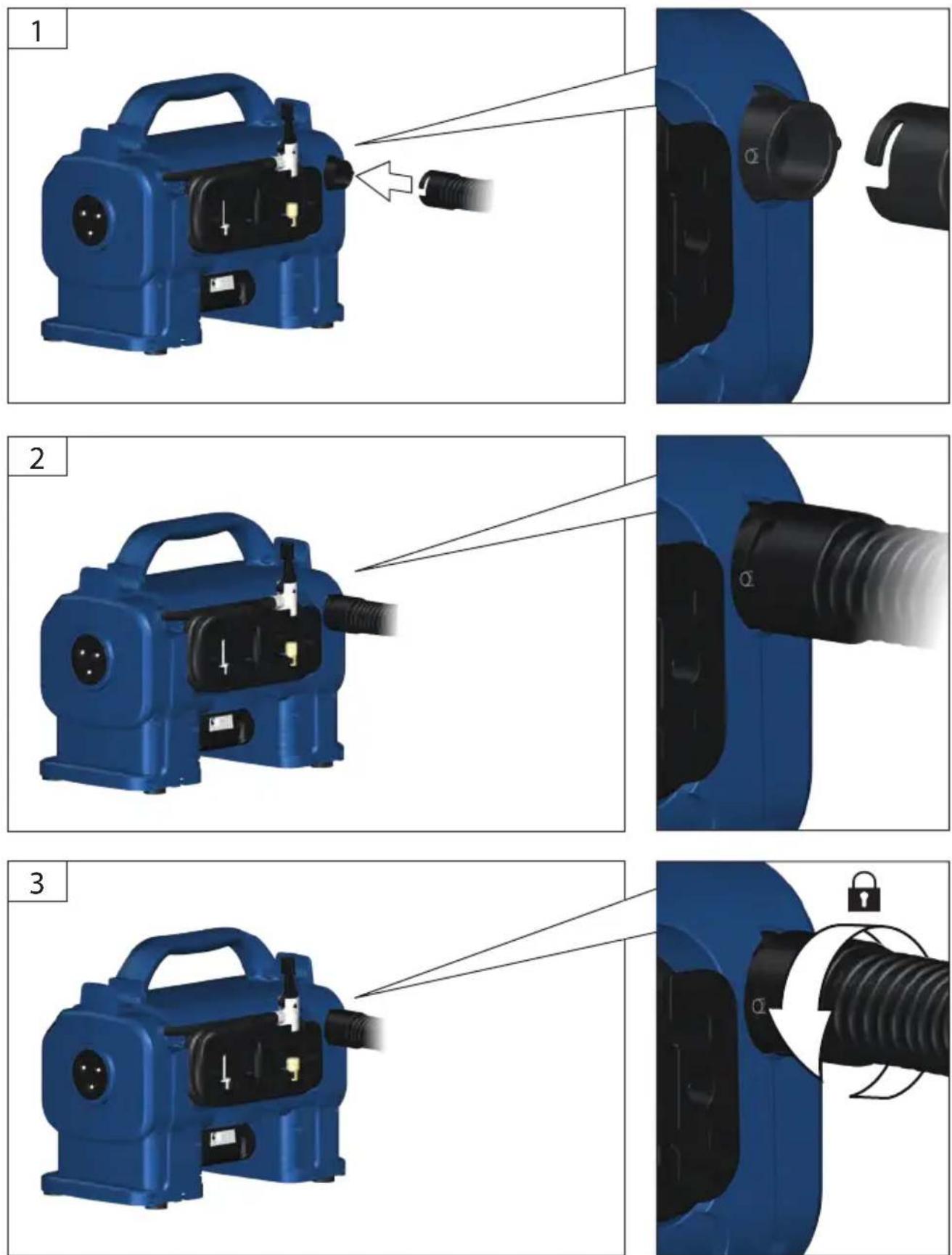

Technical illustration of a blue industrial machine connected to an inflatable boat, with no visible text or symbols.

Close-up of a blue car interior with a black button labeled 'S' and an arrow pointing to it, no readable text or symbols present.

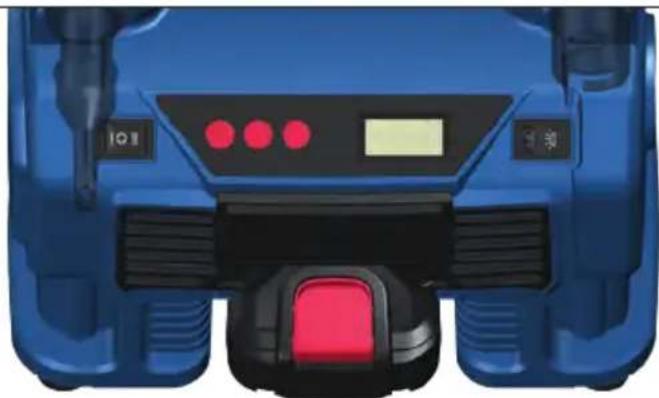

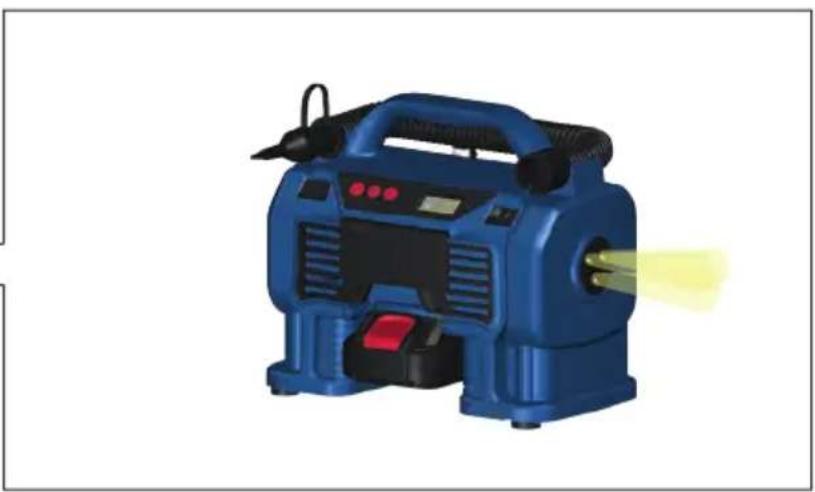

Blue industrial power tool with yellow emission cone and red control panel (no text or symbols visible)

Front view of a blue robotic device with red buttons and a black handle (no visible text or symbols)

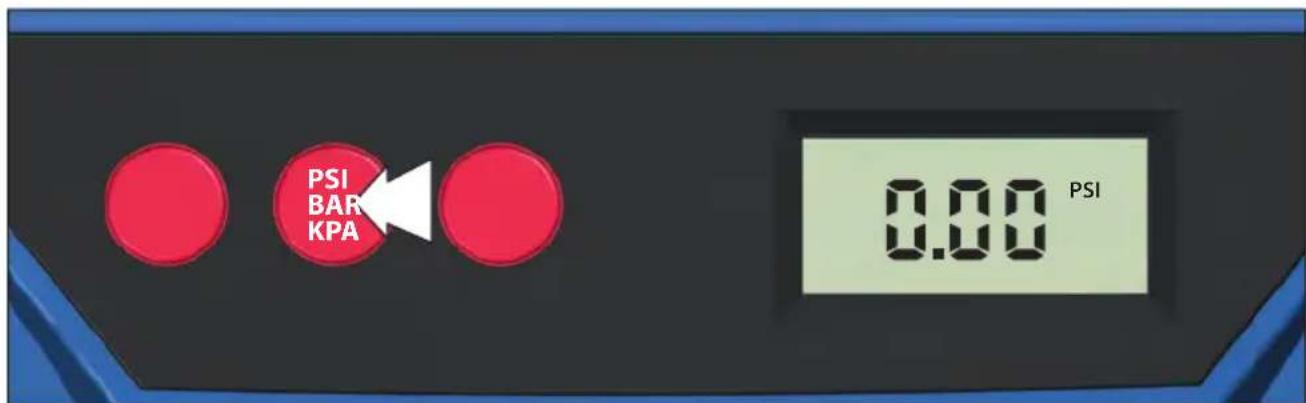

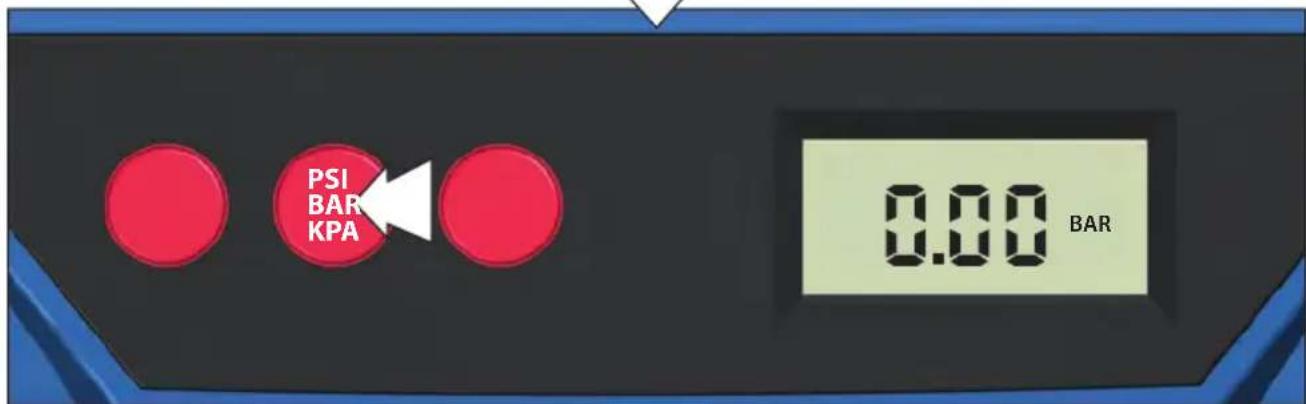

PSI BARKPA 0.00 PSI

PSI BAR KPA 0.00 BAR

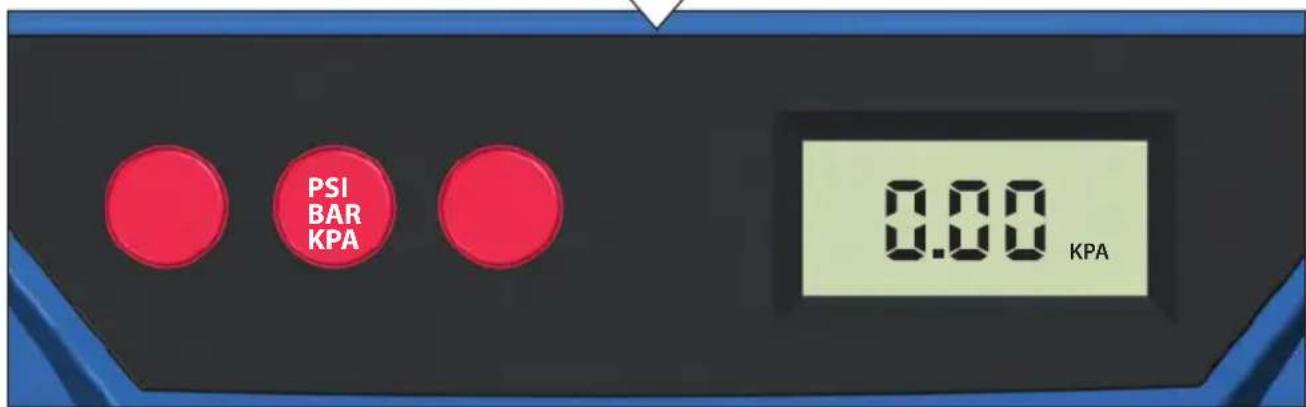

PSI BAR KPA 0.00 KPA

Autostop

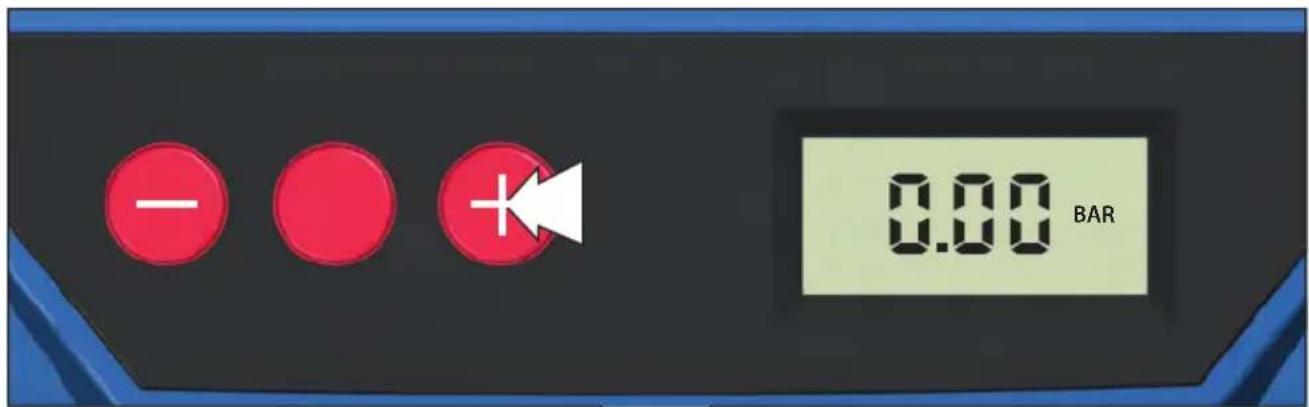

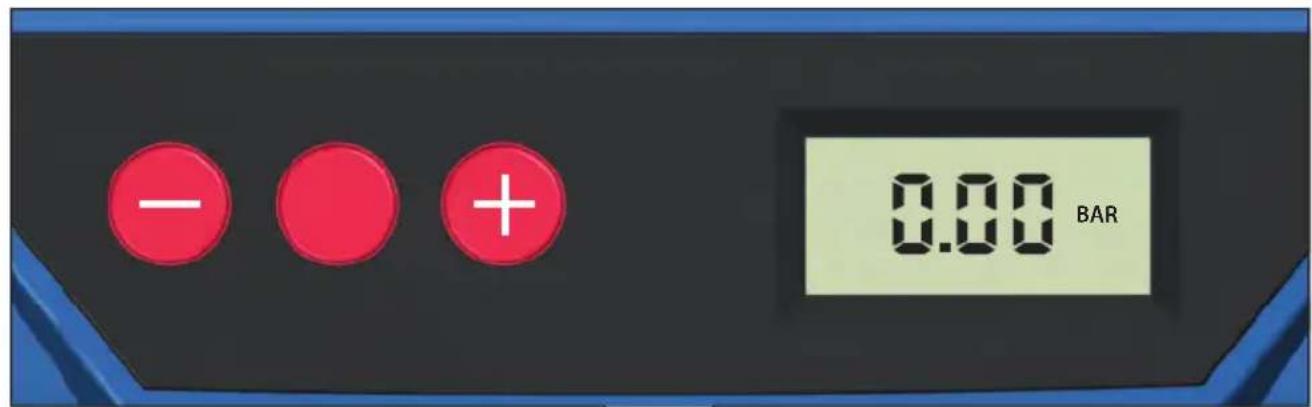

- + 0.00 BAR

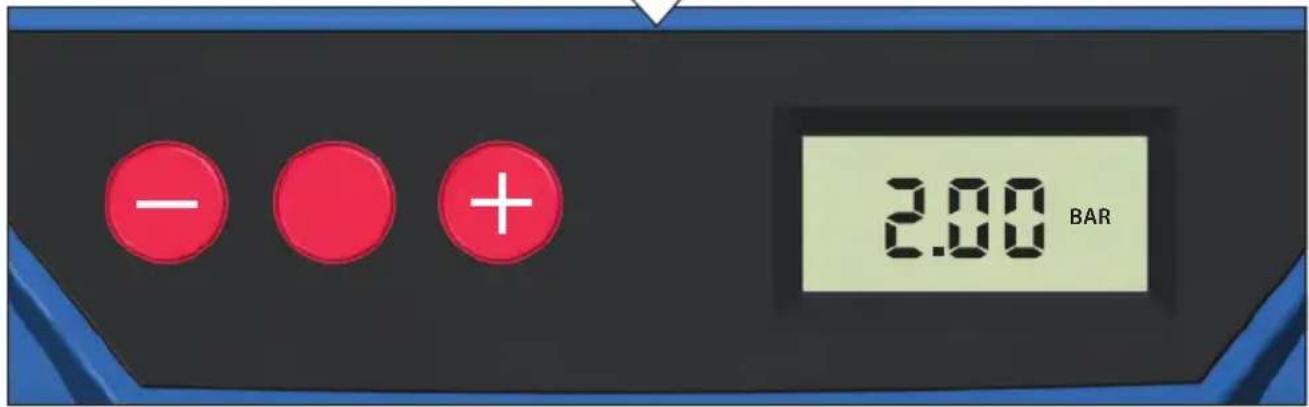

- + 2.00 BAR

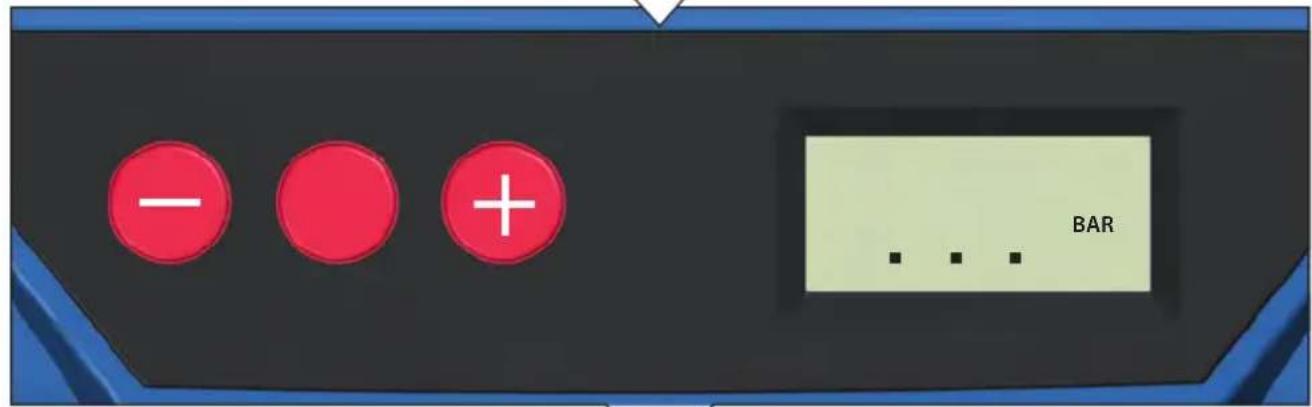

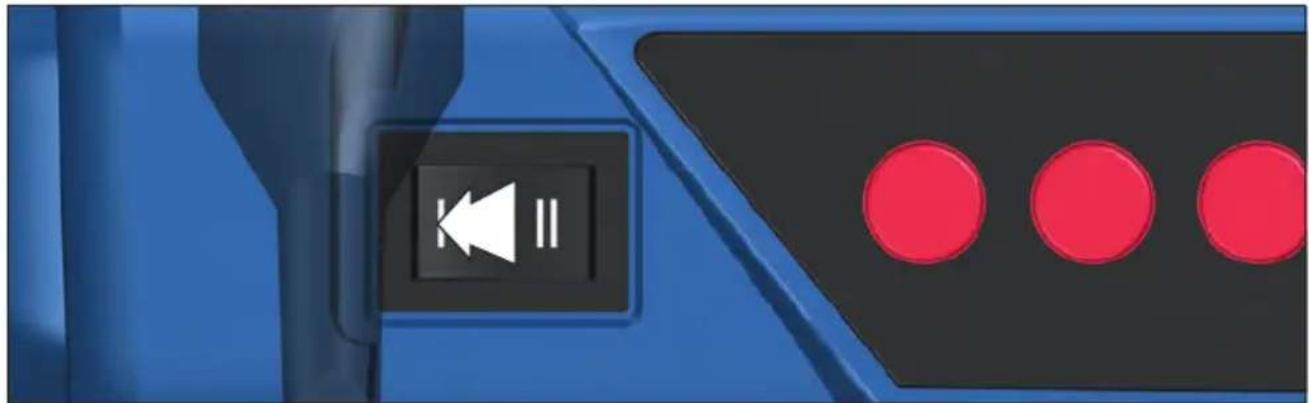

Close-up of a blue industrial control panel with directional arrows and three red circular indicators (no text or symbols)

Autostop

- + 0.00 BAR

- + BAR

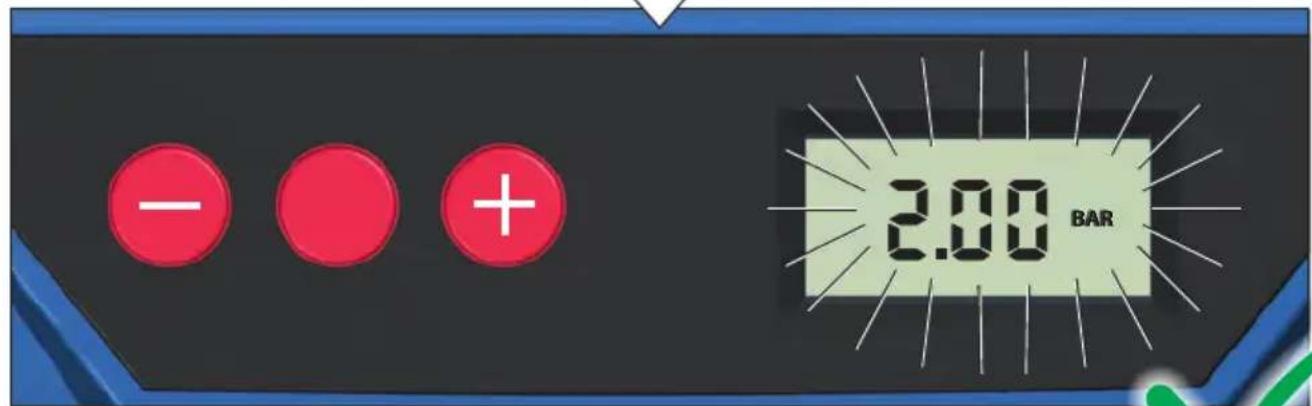

- + 2.00 BAR

Illustration of a hand cleaning a blue industrial machine with a green checkmark indicating inspection (no text or symbols on the machine itself)

Blue industrial air purifier with red spray nozzle and connecting pipe (no text or symbols visible)

Technische Daten

Compressor K 18-0
Art. No 58419
Supply voltage 18 V or cigarette lighter
Compressor
Real quantity delivered 0 bar 10 l/min
max. Pressure 11 bar

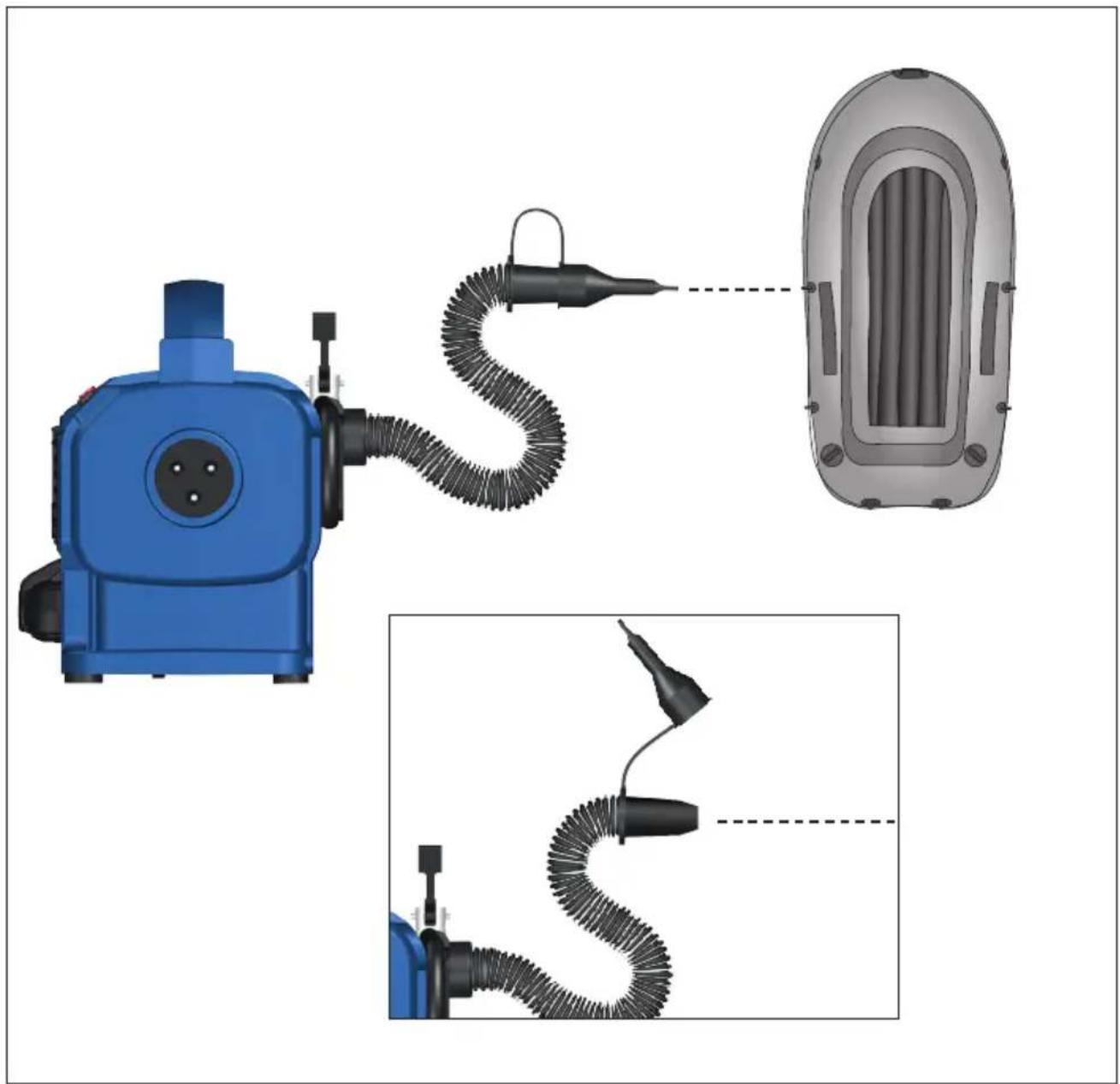

Air pump
Air delivery rate 22 m^3/h
Dimensions L x W x H 240 x 145 x 205 mm
Weight without battery (Net/gross) 1,4 / 1,9 kg
Noise details
Sound pressure level L_pA	76 dB (A)
Measured sound power level L_WA	85 dB (A)
Guaranteed sound power level L_WA	88 dB (A)
Measured according to EN ISO 12100:2010 ; Uncertainty K = 3 dB (A)
Wear ear protectors!

Read and understand the operating instructions before using the appliance. Familiarise with the control elements

and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties.

The operator is responsible for accidents or risks to third parties.

Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education.

In case of any doubts about connection and operation refer please to our customer center

This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or insufficient experience and/or knowledge unless they are supervised by a person who is responsible for their safety or have been instructed by them in the safe use of the appliance.

Children must be supervised in order not to play with the machine.

Specified Conditions of Use

The compressor may only be used to generate compressed air for household and hobby use. – Respecting technical data and safety precautions.

The compressed air produced by the unit cannot used in the pharmaceutical, food or hospital sectors and must not be used to fill diving gas cylinders.

The appliance must be used in suitable rooms (well ventilated, with a room temperature between +5°C and 0°C), never in the presence of dust, acids, vapours, corrosive or flammable gases.

Not observing general regulations in force and instructions from this manual does not make the manufacturer liable for damages.

Please note that our equipment has not been designed for commercial, craft or industrial use. If the equipment is used in commercial, craft or industrial operation or for similar activities, we cannot assume any liability.

The machine may only be used in a technically perfect condition and taking into account all safety information.

Residual Risk

Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks.

Emergency procedure

Conduct a first-aid procedure adequate to the injury and summon qualified medical attendance as quickly as possible. Protect the injured person from further harm and calm them down.

If you seek help, state the following pieces of information

1. Accident site,
2. Accident type,
3. Number of injured persons,
4. Injury type(s)

Requirements for operating staff

This appliance has not been designed to be used by persons (including children) with reduced physical, sensory or mental capabilities or with a lack of knowledge or experience.

Qualification: : Apart from the detailed instructions by a professional, no special qualification is necessary for appliance using.

Minimum age: : Persons over 16 years of age can only work on the appliance. An exception includes youngsters trained in order to reach knowledge under supervision of the trainer during occupational education. Training: : Using the appliance only requires corresponding training by a professional or the Operating Instructions. No special training is necessary.

General Power Tool Safety Warnings

WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes..
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

1) Electrical safety

a) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded..

b) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

2) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

3) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

4) Battery tool use and care

a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.

5) Service

Have your power tool serviced by a qualified repair person using only identical replacement parts.

This will ensure that the safety of the power tool is maintained.

Safety Warnings

WARNING! Electric shock! There is a risk of an injury caused by electric shock!

Check the voltage. Technical data given on the type label must correspond with electric network voltage.

Check the electric cable for damage before putting the unit into operation.

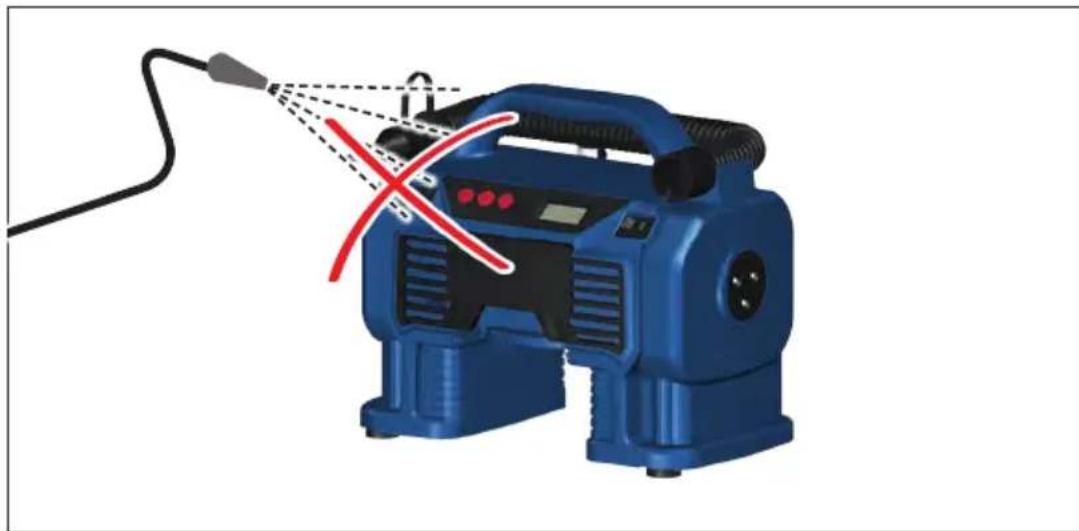

The compressor must not come into contact with water or other liquids. In addition, the liquid jet coming out of the tools connected to the compressor must never be directed at the compressor itself. The appliance is live and electric shocks or short circuits could occur.

Do not operate the appliance barefoot or with wet hands

and feet.

Compressed air is a potentially dangerous form of energy, therefore it is essential to exercise caution when using the compressor and its accessories.

This appliance is not intended for use by persons (including children) with limited physical, sensory or mental capabilities or insufficient experience and/or knowledge unless they are supervised by a person who is responsible for their safety or have been instructed by them in the safe use of the appliance.

Children should be supervised to ensure that they do not play with the appliance. Instruct children and unauthorised persons to keep away from the appliance at all times.

Never operate the compressor unattended.

Never direct the compressed air/liquid jet at people, animals or yourself.

Never hold the air jet in body orifices, this can cause fatal injuries!

Keep the work area tidy at all times.

The running compressor must be placed on a stable surface.

Only use the compressor in a vertical position.

Protective goggles should be worn while using the compressor to protect the eyes from foreign bodies thrown up by the compressed air jet.

Always carry the compressor by the handle only.

The use of compressed air for the various intended purposes requires knowledge of and compliance with the specific regulations in each case.

This compressor has been designed for intermittent operation as indicated on the technical data plate (e.g. S3-25 means 2.5 minutes of operation and 7.5 minutes of standstill) to prevent the electric motor from overheating. In the event of overheating, the motor's thermal protection device switches on and automatically cuts off the power supply. When normal operating temperature is restored, the motor switches on again automatically.

Do not leave the compressor on overnight, the unit could become a source of danger.

At the end of the working day, always switch off at the on/off switch and disconnect the compressor from the power supply.

Never leave the appliance exposed to adverse weather conditions (rain, sun, fog, snow).

If the compressor is used outdoors, it must be stored in a covered place or in a closed room after use.

Do not use the compressor outdoors in rain or bad weather!

Do not place flammable objects or objects made of nylon and fabric near and/or on the compressor.

Do not cover the air intake openings on the compressor.

The compressor must not be installed in a vehicle for commercial purposes without prior acceptance by an expert!

Store unused machines and tools safely in a dry place, out of the reach of children.

Symbols

Read the operating instructions to reduce the risk of injury.

Wear ear protectors!

Wear eye protective goggles!

Remove battery.

Safety class III

Any damaged or disposed devices must be delivered to appropriate collection centres.

Dispose of old oil in an environmentally friendly manner.

Make sure the oil products do not enter the soil.

CE marking

Maintenance

Take the replaceable battery from the appliance before any extension, cleaning and servicing works.

Never clean the machine and its components with solvents, flammable or toxic liquids. Us only a damp cloth making.

Oil-free

No need to fill up with oil for operation

Only a regularly maintained and treated

appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

Repairs and works specified in these Instructions may only be performed by qualified authorised staff.

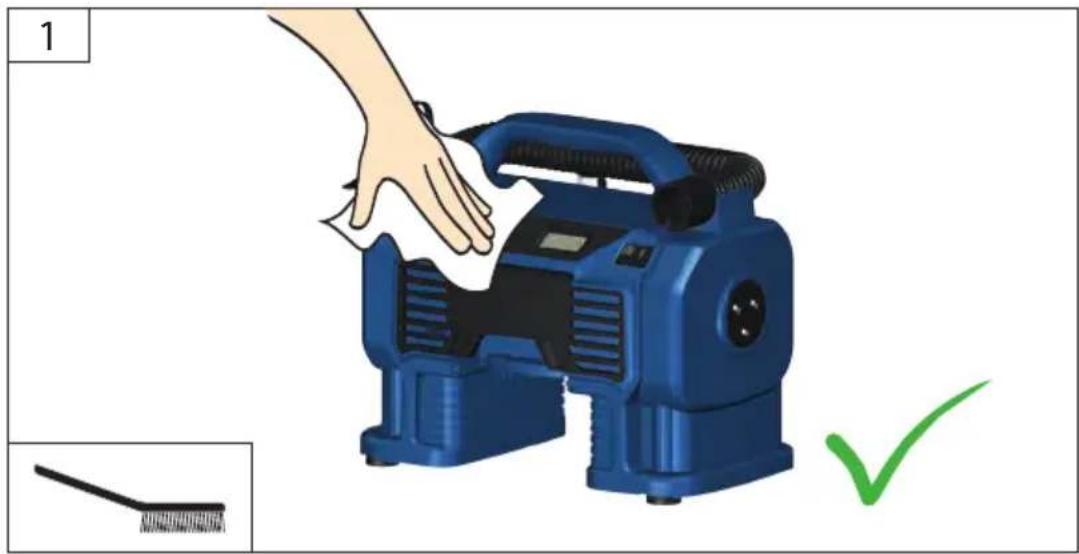

Keep the device, in particular the air vents, clean at all times. Never spray water on the device body!

Do not clean the plastics with solvents, flammable or toxic fluids. For cleaning, use a damp cloth only.

Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insufficient maintenance and care can lead to unforeseen accidents and injuries.

If necessary, a list of spare parts can be found at www.guede.com.

Transportation and Storage

Secure the device against shifting and toppling during transport.

Handling equipment to be used only when handling the machine.

Machine to be stored in a dry place.

Disposal

Any damaged or disposed devices must be delivered to appropriate collection centres.

Transport packaging disposal

The packaging protects the machine against damage during transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children. Risk of suffocation!

Keep parts of the packagings out of reach of children and dispose them as soon as possible.

Guarantee

Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

The guarantee solely covers inadequacies caused by material defect or manufacturing defect. Original payment voucher with the sales date needs to be submitted for any claim in the guarantee period.

Important information for the customer

Please note that returns within or outside the warranty period should always be in the original packaging. This measure effectively avoids unnecessary transport damage and any associated disputed ruling. Your equipment is optimally protected only in the original box, and keeping it in that box will ensure smooth processing.

Service

Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label.

Tel.: [phone] / 700-360

Fax: [phone]

Email: [e-mail]

Failure removal

Failures Causes Removal
Compressor does not start when switched on	Battery is empty Check battery and charge occasionally
Compressor unit becomes too hot Supply air is not sufficient Ensure sufficient ventilation (minimum distance from the wall 40 cm)
	Operating time too long Switch off compressor
Compressor unit is overheated and the compressor switches off	Compressor unit is overloaded Notify Güde Service
	Compressor unit is defective Notify Güde Service
	Undervoltage present at the compressor unit	Charge the battery

Translation of the EC-Declaration of Conformity

We, hereby declare the conception and construction of the below mentioned appliances correspond - at the type of construction being launched - to appropriate basic safety and hygienic requirements of EC Directives.

In case of any change to the appliance not discussed with us the Declaration expires.
