USER MANUAL K 180 Güde

Translation of the original instructions Compressor

2,0 Ah 3,0 Ah 4,0 Ah AP 18-20 AP 18-30 AP 18-40

II8 KPA BAR PSI PSI BAR KPA PSI BAR KPA PSI BAR KPA9 BAR BAR Autostop10 BAR BAR BAR BAR Autostop11

76 dB (A) Measured sound power level L

85 dB (A) Guaranteed sound power level L

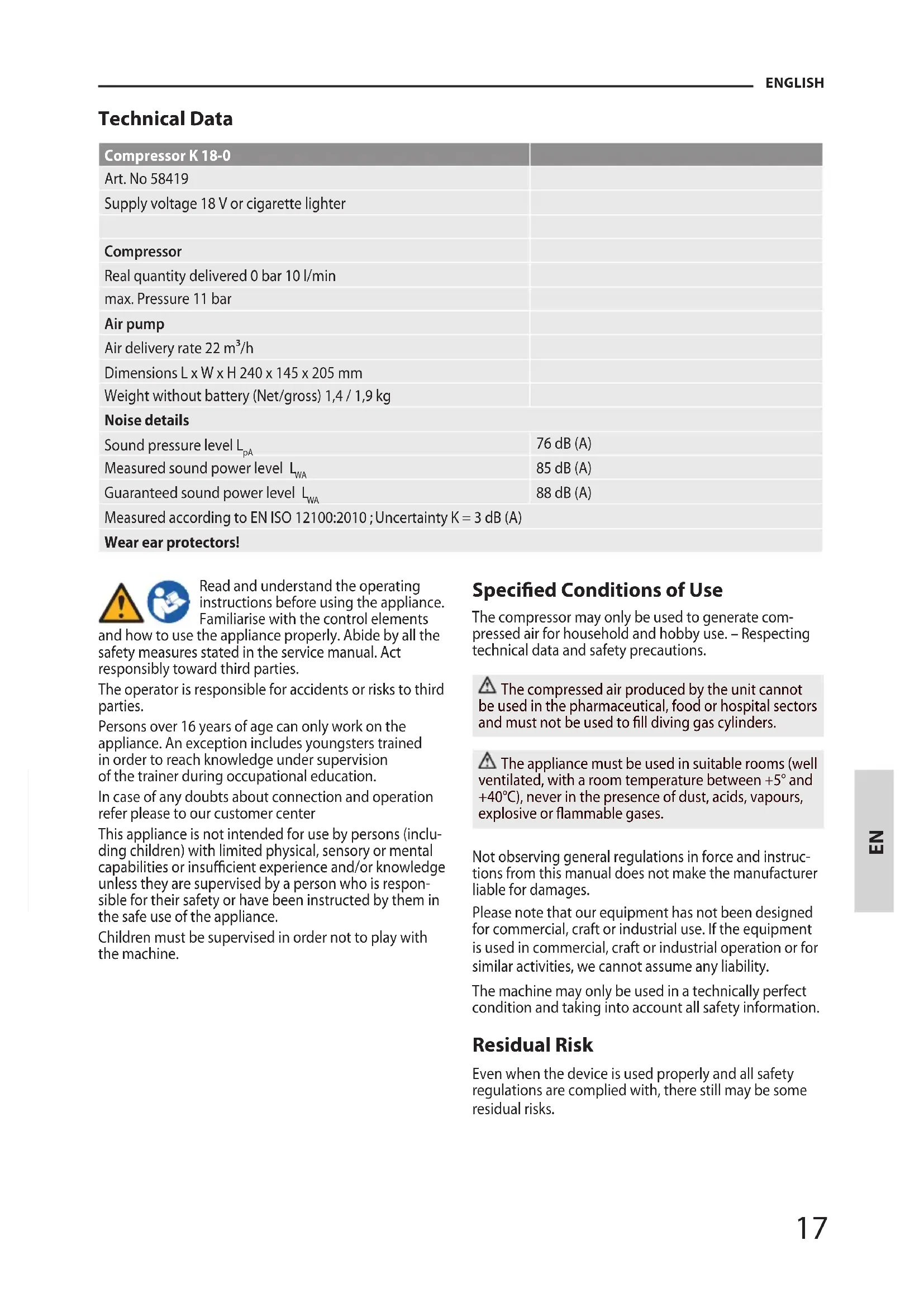

88 dB (A) Measured according to EN ISO 12100:2010 ; Uncertainty K = 3 dB (A) Wear ear protectors! Read and understand the operating instructions before using the appliance. Familiarise with the control elements and how to use the appliance properly. Abide by all the safety measures stated in the service manual. Act responsibly toward third parties. The operator is responsible for accidents or risks to third parties. Persons over 16 years of age can only workon the appliance.An exception includes youngsters trained in order to reachknowledge under supervision of the trainer duringoccupational education. In case of any doubts about connection and operation refer please to our customer center This appliance is not intended for use by persons (inclu

ding children) with limited physical, sensory or mental capabilities or insucien t experience and/or knowledge unless they are supervised by a person who is respon- sible for their safety or have been instructed by them in the safe use of the appliance. Children must be supervised in order not to play with the machine. Specied Conditions of Use The compressor may only be used to generate com- pressed air for household and hobby use. – Respecting technical data and safety precautions. The compressed air produced by the unit cannot be used in the pharmaceutical, food or hospital sectors and must not be used to ll diving gas cylinders. The appliance must be used in suitable rooms (well ventilated, with a room temperature between +5° and +40°C), never in the presence of dust, acids, vapours, explosive or ammable gases. Not observing general regulations in force and instruc- tions from this manual does not make the manufacturer liable f or damages. Please note that our equipment has not been designed for commercial, craft or industrial use. If the equipment is used in commercial, craft or industrial operation or for similar activities, we cannot assume any liability. The machine may only be used in a technically perfect condition and taking into account all safety information. Residual Risk Even when the device is used properly and all safety regulations are complied with, there still may be some residual risks. ENGLISH18

Emergency procedure Conduct a rst-aid procedure adequate to the injury and summon qualied medical attendance as quickly as possible. Protect the injured person from further harm and calm them down. If you seek help,state the following pieces ofinforma- tion

3. Number of injured persons,

Requirements for operating sta This appliance has not been designed to be used by per- sons (including children) with reduced physical, sensory or mental capabilities or with a lack of knowledge or experience. Qualication:: Apart from the detailed instructions by aprofessional, no special qualication is necessary forappliance using. Minimum age:: Persons over 16 years of age can only workon the appliance.An exception includes young

sters trained in order to reachknowledge under supervi- sion of the trainer duringoccupational education. Training:: Using the appliance only requires corre- spondingtraining by a professional or the Operating

nstructions. Nospecial training is necessary. General Power Tool Safety Warnings WARNING Read all safety warnings, instructions, illustrations and specications provided with this po- wer tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term „power tool“ in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. Work area safety

eep work area clean and well lit. Cluttered or dark areas invite accidents.

Do not op erate power tools in explosive atmospheres, such as in the presence of ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.. c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

1) Electrical safety

void body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded..

Do not e xpose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

tay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

se personal protective equipment. Always wear eye protection. Protectiveequipment such as dust mask, non-skid safety shoes, hard hat, or hearing protectionused for appropriate conditions will reduce personal injuries.

revent unintentional starting. Ensure the switch is in the o-position beforeconnecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your nger on the switch or energising power tools that have the switch on invites accidents.

Remo ve any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

ress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

f devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards. h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

3) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. b) Do not use the power tool if the switch does not turn it on and o. Any power tool that cannot be controlled with the switch is dangerous and must be repaired. c) Disconnect the plug from the power source and/ or the battery pack from thepower tool before making any adjustments, changing accessories, or storingpower tools. Such preventive safety measures reduce the risk of starting the power tool accidentally. d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. ENGLISH19

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may aect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools. f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control. g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations dierent from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

4) Battery tool use and care

a) Recharge only with the charger specied by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack. b) Use power tools only with specically designated battery packs. Use of any other battery packs may create a risk of injury and re. c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re. d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact acciden- tally occurs, ush with water. If liquid contacts eyes, additionally seek medic al help.Liquid ejected from the battery may cause irritation or burns.

Have your power tool serviced by a qualied repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. Safety Warnings WARNING! Electric shock! There is a risk of an injury caused by electric shock! Check the voltage. Technical data given on the type label must correspond with electric network voltage. Check the electric cable for damage before putting the unit into operation. The compressor must not come into contact with water or other liquids. In addition, the liquid jet coming out of the tools connected to the compressor must never be directed at the compressor itself The appliance is live and electric shocks or short circuits could occur. Do not operate the appliance barefoot or with wet hands and feet. Compressed air is a potentially dangerous form of energy, therefore it is essential to exercise caution when using the compressor and its accessories. This appliance is not intended for use by persons (inclu- ding children) with limited physical, sensory or mental capabilities or insucien t experience and/or knowledge unless they are supervised by a person who is responsible for their safety or have been instructed by them in the safe use of the appliance. Children should be supervised to ensure that they do not play with the appliance. Instruct children and unauthori- sed persons to keep away from the appliance at all times. Nev er operate the compressor unattended. Never direct the compressed air/liquid jet at people, animals or yourself. Never hold the air jet in body orices, this can cause fatal injuries! Keep the work area tidy at all times. The running compressor must be placed on a stable surface. Only use the compressor in a vertical position. Protective goggles should be worn while using the com

pressor to protect the eyes from foreign bodies thrown up

y the compressed air jet. Always carry the compressor by the handle only. The use of compressed air for the various intended purposes requires knowledge of and compliance with the specic regulations in each case. This compressor has been designed for intermittent ope

ration as indicated on the technical data plate (e.g. S3-25 means 2.5 minut es of operation and 7.5 minutes of stand- still) to prevent the electric motor from overheating. In the event of overheating, the motor‘s thermal protection device switches on and automatically cuts o the power supply. When normal operating temperature is restored, the motor switches on again automatically. Do not leave the compressor on overnight, the unit could become a source of danger. At the end of the working day, always switch o at the on/ o switch and disconnect the compressor from the power supply. Never leave the appliance exposed to adverse weather conditions (rain, sun, fog, snow). If the compressor is used outdoors, it must be stored in a covered place or in a closed room after use. Do not use the compressor outdoors in rain or bad weather! Do not place ammable objects or objects made of nylon and fabric near and/or on the compressor. Do not cover the air intake openings on the compressor. The compressor must not be installed in a vehicle for com

mercial purposes without prior acceptance by an expert!

tore unused machines and tools safely in a dry place, out of the reach of children. ENGLISH20

Symbols Read the operating instructions to reduce the risk of injury. Wear ear protectors! Wear eye protective goggles ! Remove battery. Safety class III Any damaged or disposed devices must be delivered to appropriate collection centres. Dispose of old oil in an environmentally friendly manner. Make sure the oil products do not enter the soil. CE marking Maintenance Take the replaceable battery from the appliance before any extension, cleaning and servicing works. Never clean the machine and its components with solvents, ammable or toxic liquids. Us only a damp cloth making. Oil-free No need to ll up with oil for operation Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient maintenance and care can lead to unforeseen accidents and injuries. Repairs and works specied in these Instructions may only be performed by qualied authorised sta. Repairs and works specied in these Instructions may only be performed by qualied authorised sta. Keep the device, in particular the air vents, clean at all times. Never spray water on the device body! Do not clean the plastics with solvents, ammable or toxic uids. For cleaning, use a damp cloth only. Only a regularly maintained and treated appliance can serve as a satisfactory aid. Insucient maintenance and care can lead to unforeseen accidents and injuries. If necessary, a list of spare parts can be found at www. guede.com. Transportation and Storage Secure the device against shifting and toppling during transport. Handling equipment to be used only when handling the machine. Machine to be stored in a dry place. Disposal Any damaged or disposed devices must be delivered to appropriate collection centres. Transport packaging disposal The packaging protects the machine against damage dur ing transport. Packaging materials are usually chosen based on environment aspects and waste treatment principles and are therefore recyclable. Returning the packaging into material circulation saves raw materials and reduces waste production. Parts of packagings (e.g. foils, styropor®) can be dangerous for children. Risk of suocation! Keep parts of the packagings out of reach of children and dispose them as soon as possible

Guarantee Warranty period of 12 months applies to commercial use and 24 months applies to private use and commences on the day of purchase of the device. The guarantee solely covers inadequacies caused by ma- terial defect or manufacturing defect. Original payment

oucher with the sales date needs to be submitted for any claim in the guarantee period. The guarantee solely covers inadequacies caused by ma- terial defect or manufacturing defect. Original payment

oucher with the sales date needs to be submitted for any claim in the guarantee period. Important information for the customer Please note that returns within or outside the warranty period should always be in the original packaging. This measure eectively avoids unnecessary transport damage and any associated disputed ruling. Your equipment is optimally protected only in the original box, and keeping it in that box will ensure smooth processing. ENGLISH21 Service Do you have any technical questions? Any claim? Do you need any spare parts or operating instructions? We will quickly help you and without needles bureaucracy at our web pages at www.guede.com in the Servicing part. Please help us be able to help you. In order to identify your device in case of claim we need the serial No., product No. and year of production. All this data can be found on the type label. Tel.: +49 (0) 79 04 / 700-360 Fax: +49 (0) 79 04 / 700-51999 Email: support@ts.guede.com Failure removal Failures Causes Removal Compressor does not start when switched on Battery is empty Check battery and charge occasionally Compressor unit becomes too hot Supply air is not sucient Ensure sucient ventilation (mini- mum distance from the wall 40 cm) Oper ating time too long Switch o compressor Compressor unit is overheated and the compressor switches o Compressor unit is overloaded Notify Güde Service Compressor unit is defective Notify Güde Service Undervoltage present at the com

pressor unit Char ge the battery
