USER MANUAL F 1200 Rommelsbacher

Circular abstract pattern with interlocking lines forming a symmetrical design (no text or symbols)

ROMMELSBACHER

D Bedienungsanleitung
GB Instruction manual
F Mode d'emploi
NL Gebruikshandleiding

Black-and-white photo of a DMNelsbacher stand mixer with cutlery and various food items on a table (no text or symbols visible)

F 1200F 1200

A ON STANDBY B Chocolate C Cheese D F Temp E G

	D GB F NL
A	Sensortaste für „ON/STANDBY”	Touch key for “ON/STANDBY”	Touche « ON/STANDBY »	Sensortoets voor „ON/STANDBY“
B	Sensortaste zur Wahl des Programmes „Chocolate“	Touch key for the programme “Chocolate”	Touche pour sélectionner le programme « Chocolate »	Sensortoets voor de keuze van het programma „Chocolate“
C	Sensortaste zur Wahl des Programmes „Cheese“	Touch key for the programme “Cheese”	Touche pour sélectionner le programme « Cheese »	Sensortoets voor de keuze van het programma “Cheese“
D	Sensortaste zur Wahl des Programmes „Fondue“	Touch key for the programme “Fondue”	Touche pour sélectionner le programme « Fondue »	Sensortoets voor de keuze van het programma “Fondue“
E	Temperaturanzeige Temperature scale Echelle de température Temperatuurindicatie
F	Sensortaste „-“ zum Reduzieren der Temperaturstufe	Touch key “ - “ for reducing the temperature	Touche « - » pour réduire la température	Sensortoets „-“ voor het verlagen van het temperatuurniveau
G	Sensortaste „+“ zum Erhöhen der Temperaturstufe	Touch key “ + ” for increasing the temperature	Touche « + » pour augmenter la température	Sensortoets „+“ voor het verhogen van het temperatuurniveau

General safety instructions....17

Safety instructions for using the appliance ....18

Introduction....19

Intended use....19

Technical data....19

Scope of supply....19

Packing material 19

Disposal/recycling of the appliance....20

Disposal/recycling of used fats/oils 20

Prior to initial use ....20

Programmes / temperature ranges....20

How to start up the appliance ....21

Residual heat indication 21

Limitation of operating time ....21

Connect the appliance to the mains 21

Filling the fondue pot 22

Switch on the appliance and heat up the contents of the pot....22

Start the fondue....22

Increase / reduce the temperature during operation 23

Switch the programme resp. the temperature range During operation 23

Switch off the appliance 23

Empty the fondue pot ....23

Switch off the appliance completely 23

Cleaning and care 24

Error description 24

Tips and notes 25

Recipes 25

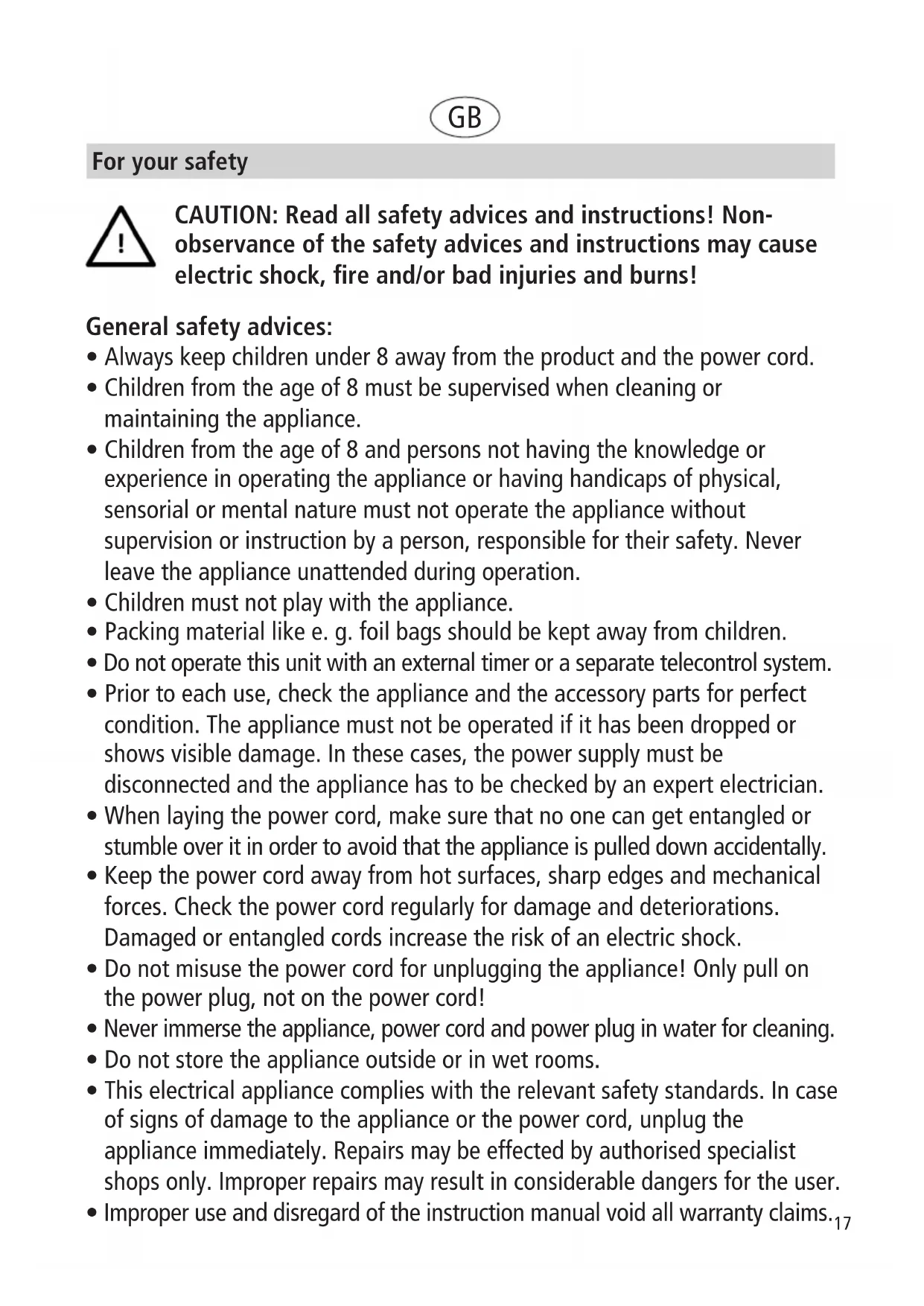

CAUTION: Read all safety advices and instructions! Non-observance of the safety advices and instructions may cause electric shock, fire and/or bad injuries and burns!

General safety advices:

• Always keep children under 8 away from the product and the power cord.
- Children from the age of 8 must be supervised when cleaning or maintaining the appliance.
- Children from the age of 8 and persons not having the knowledge or experience in operating the appliance or having handicaps of physical, sensorial or mental nature must not operate the appliance without supervision or instruction by a person, responsible for their safety. Never leave the appliance unattended during operation.
• Children must not play with the appliance.
- Packing material like e. g. foil bags should be kept away from children.
- Do not operate this unit with an external timer or a separate telecontrol system.
- Prior to each use, check the appliance and the accessory parts for perfect condition. The appliance must not be operated if it has been dropped or shows visible damage. In these cases, the power supply must be disconnected and the appliance has to be checked by an expert electrician.
- When laying the power cord, make sure that no one can get entangled or stumble over it in order to avoid that the appliance is pulled down accidentally.
- Keep the power cord away from hot surfaces, sharp edges and mechanical forces. Check the power cord regularly for damage and deteriorations. Damaged or entangled cords increase the risk of an electric shock.
- Do not misuse the power cord for unplugging the appliance! Only pull on the power plug, not on the power cord!
- Never immerse the appliance, power cord and power plug in water for cleaning.
- Do not store the appliance outside or in wet rooms.
- This electrical appliance complies with the relevant safety standards. In case of signs of damage to the appliance or the power cord, unplug the appliance immediately. Repairs may be effected by authorised specialist shops only. Improper repairs may result in considerable dangers for the user.
- Improper use and disregard of the instruction manual void all warranty claims. _17

Safety advices for using the appliance

CAUTION: Hazard of injury and burns!

• Base unit, fondue pot, pot contents and other accessory parts are getting hot during operation!
• Hot surfaces are initially still hot, even after switch-off!
  • Take care when handling hot fat and oil!

Thus, act with care!

• We recommend using pot cloths for protection!
• Therefore, food containing fats and oils may only be prepared under supervision!
• Only use types of fat/oil, which are suitable for deep-frying!
• Overheated or contaminated fat/oil might catch fire - therefore, replace the fat/oil in time!

Attention! If the fat/oil ignites because of overheating, close the pot with a suitable cover or porcelain plate and pull the mains plug. Never try to extinguish the fire with water!

- Observe the min/max mark when fi lling the fondue pot. Never exceed the maximum fi lling quantity!

- Only use the fondue pot which is included in the scope of supply. Other cooking vessels must not be used!

- Do not operate the fondue pot with other sources of heat!

- Heating plate and fondue pot must be clean and dry before use!

- Do not use the appliance's upper side as depositing rack or working top as it will get hot when operating the appliance! As protection against fire, do generally not put any objects made of paper, plastic, fabric or other infl ammable material on hot surfaces!

- Do not cover the appliance with aluminum foil during use!

- Do not use the appliance as space heater.

- Appliance as well as accessory parts must have cooled down completely before cleaning resp.moving them!

- Observe the following when setting up the appliance:

o Place the appliance on a heat-resistant, stable and even surface (no varnished surfaces, no tablecloths, etc.).
o Place it beyond children's reach.
o Leave a ventilation distance of at least 10 cm to all sides and 1 m above the appliance to avoid damage by heat or fat splatters and to grant an

unobstructed work area. Unhindered air supply has to be ensured.

o Do not operate the appliance in the vicinity of sources of heat (oven, gas flame, etc.) or in explosive environments, where infl ammable liquids or gases are located.

o This appliance is not qualified for installation into worktops.

- Pull the power plug after each use for a safe switch-off.

Introduction

We are pleased you decided in favour of this superior electrical fondue and we would like to thank you for your confi dence. Its easy operation and wide range of applications will certainly please you as well. To make sure you can enjoy using this appliance for a long time, please read through and carefully observe the following information. Keep this instruction manual safely. Hand out all documents to third persons when passing on the appliance. Thank you very much.

Intended use

The appliance designed to be used in the household and similar areas, like for example:

• staff kitchens in shops, offices and other small commercial areas
• agricultural holdings
• guests in hotels, motels, B&Bs and further similar living environments.

Other uses or modifications of the appliance are not intended and may constitute considerable risks of accident.

For damage arising from any improper use, the manufacturer does not assume liability. The appliance is designed for warming, heating and preparing food. The appliance is not suitable for commercial use.

Technical data

Only connect the appliance to an isolated ground receptacle installed according to regulations. The mains voltage must comply with the details on the rating label. Only connect to alternating current!

Nominal voltage: 220 V - 240 V \~ 50/60 Hz

Nominal power, approx. 1200 W

Protection class: 1

max. fi lling quantity for the pot: 1.2 liters

min. fi lling quantity for the pot: 0.8 liter resp. 200 g chocolate

Scope of supply

Check the scope of supply for completeness as well as the product and all components (see product description page 2) for damage immediately after unpacking.

Packing material

Do not simply throw the packing material away but recycle it.

Deliver paper, cardboard and corrugated cardboard packing to collecting facilities.

Also put plastic packing material and foils into the intended collecting basins.

PE-HD

PE-LD

PP

PS

In the examples for the plastic marking:

PE stands for polyethylene, the code fi gure 02 for PE-HD, 04 for PE-LD, PP for polypropylene, PS for polystyrene.

Disposal/recycling of the appliance

According to the Waste Electrical and Electronic Equipment Directive, do not dispose this product with your normal domestic waste at the end of its life span. Therefore, please deliver it at no charge to your appropriately licensed local collecting facilities (e.g. recycling yard) concerned with the recycling of electrical and electronic equipment. Please approach your local authorities for how to dispose of the product.

Disposal/recycling of used fats/oils

Do not dispose of used oils and fats via wastewater. For environmental reasons, dispose them in a suitable container with your domestic waste. You can also ask your local authorities for special disposal options.

Prior to initial use

• Please remove any protective films, advertising materials and packaging material from the appliance and from the accessory parts. Clean the appliance and all removable accessory parts according to the cleaning instructions in this manual.
• Then heat up the heating plate without pot at maximum setting for approx. 5 minutes.

Note: Please do not be bothered by the slight, harmless smoke and smell that will be generated for a short while. Make sure that the room is well-aerated during this time.

- After the appliance has cooled down, please clean the heating plate and the inside of the base unit with a moist cloth. Let it dry thoroughly.

Programmes/temperature ranges

This appliances is suitable for preparing all common variants of fondue. Depending on the contents in the pot, the indicated temperatures may vary.

• For a fast heating up, you can start the appliance in the high temperature range and then switch back to the necessary temperature on time.
• By a clever switching between the 3 temperature ranges, you can decide yourself for the necessary temperature for your preparation.

Chocolate fondue – perfect for those who love it sweet. Pieces of fruits from banana to grapes are covered with melted chocolate.

For the function "Chocolate", a temperature of approx. 45 °C is preset.

The temperature may be modified individually with the touch keys "+" resp. "-"

approx. 35 °C

approx. 40 °C

approx. 45 °C

approx. 50 °C

approx. 55 °C

Cheese fondue – the classical variation. Small pieces of white bread or baguette are dipped into the melted cheese.

For the function "Cheese", a temperature of approx. 90 °C is preset.

The temperature may be modified individually with the touch keys "+" resp. "-"

approx. 70 °C

approx. 80 °C

approx. 90 °C

approx. 100 °C

approx. 110 °C

Bouillon fondue – besides beef, pork or chicken, also vegetables like cauliflower, broccoli, pepper, zucchini or mushrooms are suitable to be cooked in bouillon.

Fat/oil fondue – particularly suitable for cooking in fat is beef, pork or chicken.

For the function "Fondue", a temperature of approx. 170 °C is preset.

The temperature may be modified individually with the touch keys "+" resp. "-"

approx. 150 °C

approx. 160 °C

approx. 170 °C

approx. 180 °C

approx. 190 °C

Starting up the appliance

CAUTION: Hazard of injury and burns!

• Base unit, fondue pot, pot contents and other accessory parts are getting hot during operation!
• Hot surfaces are initially still hot, even after switch-off!
  • Take care when handling hot fat and oil!

Depending on the quantity and texture of the food to be heated as well as on the set temperature, the appliance requires 15-30 minutes for heating-up. Therefore we recommend to start the preparations in good time prior to serving the fondue.

Residual heat indication

The appliance is equipped with a residual heat indication. It shows whether the heating plate may be eventually still hot.

• If the temperature on the cooking zone has reached a value of more than 60 °C due to the waste heat emitted by the pot, the pilot lamp in the middle of the tempeature scale lights up continuously.
• If the temperatures falls below 60 °C, the pilot lamp extinguishes.

NOTE: If the appliance is cut off the power supply, the pilot lamp extinguishes in any case.

Operating time limitation

• The operating time limitation will cause the unit to switch automatically in the “Standby” mode if the settings have not been changed for a period of 3 hours. This happens independently of the respectively set function.
• After an automatic switch-off, the unit can be switched on once again and the maximum operating time will be active again.

Connecting the appliance to the power supply

- Plug the mains plug to a sufficiently secured socket in order to connect the appliance with the power supply. When laying the power cord, make sure that no one can get entangled or stumble over it in order to avoid that the appliance is pulled down accidentally.

Filling the fondue pot

• First, take the fondue pot from the base unit.
• Fill the fondue pot with the required amount of ingredients according to your recipe.
  CAUTION: When filling, observe the MIN and MAX marks inside of the pot. The marks mustn't be deceeded resp. exceeded (except chocolate: at least 200 g).
• Place the anti-splash insert onto the fondue pot.
  TIP: Cover with a suitable lid in order to reach the requested temperatur quicker and to save energy.
• Insert the filled fondue pot carefully into the base unit.

Switching on the appliance and heating up the contents of the pot

	→ For switching-on, activate the touch key "ON/STANDBY". Activating the touch key is confirmed by a signal tone.→ The pilot lamps of the 3 touch keys for the programme selection are flashing.NOTE: If no further setting is made within the next 60 seconds, the appliance will switch off automatically.
	· Select the requested programme by activating the corresponding touch key.→ Activating the touch key is confirmed by a signal tone.→ The pilot lamp of the selected touch key lights up permanently.· The middle temperature level of the selected programme is indicated by default.→ The first 3 pilot lamps on the temperature scale are flashing.[IMAGE]
	· By actuating the touch key "+" , the temperature can be increased.[IMAGE]· By actuating the touch key "-" , the temperature can be reduced.· If no further setting is made, the appliance starts operation automatically after 5 seconds.→ The start of the programme is confirmed by a double signal tone.→ On the temperature scale, the pilot lamps light up continuously according to the selected temperature level.

Starting the fondue

• You can start the fondue dinner once the temperature is reached.
  • Take off carefully the lid eventually placed.
  NOTE: Please note that hot steam may escape when removing the lid.
  WARNING: Take care that no condensation water is dropping into the hot fat/oil!
• Skewer the food on the fondue forks and place it carefully in the pot.
  NOTE: Please note that the forks are very sharp-ended at the front.
• Make sure that the food to be cooked has drained well before being cooked in a fondue with fat/oil.
  Dap very humid food with kitchen paper if necessary. Frozen products must be completely thawed.
• Do not use this appliance as a fryer and do not use it to prepare fries or donuts.

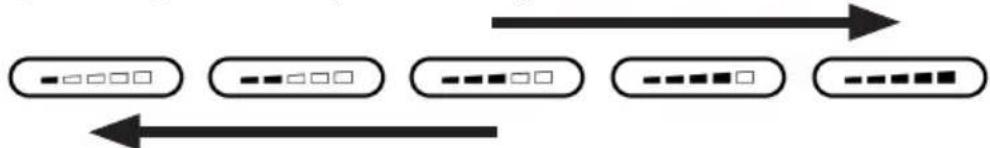

Increasing/reducing the temperature during operation

- Depending on the ingredients quantity, the temperature can be reduced or increased.

NOTE: When your fondue session is drawing to a close and the liquid, cheese or chocolate has become considerably less, it is mostly necessary to re-adjust the temperature control to a lower setting.

- By actuating the touch key “+”, the temperature can be increased.

- By actuating the touch key “-”, the temperature can be reduced.

- If no further setting is made, the appliance starts operation automatically after 5 seconds.

→ On the temperature scale, the pilot lamps light up continuously according to the selected temperature level.

Switching the programme/temperature range during operation

• Depending on the quantity of ingredients, it may happen that the temperature range of the selected programme is not sufficient to keep the contents of the fondue pot at the preferred temperature.
• Then we recommend to change the programme resp. temperature range in order to achieve the desired results.
• By a clever switching between the 3 temperature ranges, you can decide yourself about the necessary temperature for your preparation.

Example: You have selected the programme "Fondue" with temperature level "1", the content is cooking highly instead of only simmering. Switch to programme "Cheese" and select the temperature level "4" or "5" and continue.

Switching the appliance OFF

• For switching off, activate the touch key "On/Standby".
  → Activating the touch key is confirmed by a signal tone.
• The appliance is in standby mode now.

Emptying the fondue pot

• Allow the fondue pot and the remaining contents to cool down before emptying it.
• Use pot cloths to remove the fondue pot from the base unit.
  • Empty the pot carefully.

Note: Fats and oils can be used several times. Fill the fats/oils into a suitable container and store them in a suitable place for the next use.

Switching the appliance off completely

For a safe switch-off, pull the power plug after each use!

Cleaning and maintenance

CAUTION: Hazard of injury and burns!

• Always unplug the appliance before cleaning!

CAUTION: Hazard of injury and burns!

• Always let the appliance cool down before cleaning!

CAUTION: Hazard of injury and burns!

- Do not immerse appliance, power cord and power plug in water nor clean it under running water!

• Please clean fondue pot, anti-splash insert and fondue forks in warm water with some dishwashing detergent and wipe dry. From time to time you can clean all removable parts in the dishwasher.
• NOTE: Discoloration of the bottom or the rim of the pot is a normal reaction of stainless steel to high temperatures. This is not a reason for complaint!
• Use a moist cloth to clean the base unit and also the heating plate and wipe them dry afterwards. Make sure that no steam or water can get into the base unit from below!
• Never use abrasives, solvents or sharp objects!
• Do not use steel wool or metal sponges!
• Do not use oven cleaners!
• Do not treat the appliance or accessory parts with a steam cleaner!

Error description

• The temperature of the selected function is not sufficient to heat up the liquid or keep at a boiling constantly, although the highest temperature setting has already been set.
  → Self-help: Choose the next higher temperature range.
• The temperature of the selected function is too high, the liquid is boiling too much, although the lowest temperature has already been set.
  → Self-help: Choose the next lower temperature range.
• During operation, all pilot lamps at the control panel are flashing and a repetitive signal tone sounds.
  → Self-help: Not possible - unplug the power plug and get in contact with the service department of your dealer.
• During operation, all pilot lamps go out and the appliance is not heating any more.
  → Self-help: Not possible - unplug the power plug and get in contact with the service department of your dealer.

Tips and notes

• Check the temperature of fat/oil by immersing a wooden skewer. When bubbles start to form around it, the temperature required for fondue has been reached.
• Stir delicate foods like cheese or chocolate again and again so they will not burn to the pot bottom.
• To boil up water or bouillon we recommend using a fitting lid on the pot in order to save energy.
  • Take care that the used food is not too humid, as this may cause the oil to foam and overflow.
• The individual ingredients of the fondue should be cut into pieces of the same size to ensure that the food cooks evenly and thoroughly.
• Also try out the preparation of coated food or food in batter.
• Do not overfill the pot.
• Do not mix oils and fats.
• Dispose of old resp. often used fat/oil completely and correctly. Do not mix old fat/oil with new ones!

Recipes

You will find a variety of recipes for various types of fondue in bookshops and on the internet. Here are a few recipe ideas to try out:

Fondue with mixed meat \*with alcohol\*

- 200 g each of beef fillet, pork fillet, veal, chicken breast or veal liver

- 60 g of fat bacon

• 1 bunch of spring onions
- 1 / 2 head of lettuce
- 1 / 2 bunch of parsley
- 800 ml of chicken broth

• 2 tbsp. of soy sauce
  • 3 tbsp. of Sherry

Wrap the meat separately in foil and let it freeze in the freezer for about 20 minutes. Wash and dry the spring onions, the lettuce and the parsley, lightly chop the lettuce. Cut the meat - preferably with a bread machine or an electric knife - into wafer-thin slices. Arrange it with the prepared vegetables. Bring the chicken broth in the fondue pot to a boil. Cut the bacon into fine cubes and cook it in the fondue pot. Season the broth with soy sauce and sherry. The broth must cook slightly while you cook the meat and vegetables in it.

Cheese Fondue \*with alcohol\*

• 250 g each of Emmentaler and Gruyère cheese, coarsely grated

- 750 g black or white bread

• 1 clove of garlic
• if necessary, 1 tsp. of Lemon juice

• Pepper from the mill, nutmeg

• 200 ml of dry white wine
  • 2 small glasses of kirsch

• 2 tsp. cornstarch

Cut the clove of garlic into halfs and rub the fondue pan with it.

Pour in the wine and let boil (highest level in the "Fondue" programme). Add the cheese with a wooden spoon with a hole, stir in the shape of an eight so that there will be no clumps. If the wine is not acidic enough, add a little lemon juice so that the cheese dissolves better. Mix the cornstarch with the kirsch and stir into the cheese until the fondue is smooth and bound. Now it must continue to cook (programme "Cheese"), the guests keep stirring with a piece of bread on the fork until they start eating. Every guest dips his bread cubes into the cheese cream. Finally loosen the crust in the middle of the pot with the fondue fork.

Fish Fondue \*with alcohol\*

• 600 g solid sea fish without bones
• 4 large peeled scampi and 4 peeled shrimps
  • 8-12 cooked mussels
• 3 sage leaves

• 1 onion loaded with clove and bay leaf
- 6 peppercorns
• 1 bunch of parsley
- 1 / 2 tsp. dill
- salt

• 400 ml vegetable stock
  • 400 ml of dry white wine
  • 1 tbsp. aniseed schnapps or cognac
• 2 tbsp. cream

Cut the fish meat into cubes and arrange it with the seafood. Prepare the broth and bring the onion loaded with clove and bay leaf to a boil. Add the other spices, cover and let steep for 30 minutes. Add the wine to the brew and take out the spices. Guests skewer fish or seafood, or use a broth basket and cook them in the broth. Finally, refine the fish stock with aniseed schnapps or cognac and cream and serve it in soup cups.

Chocolate Fondue

• 200 g white and blue grapes
- 2 small bananas
• 2 mandarins, alternatively oranges

• 2 tbsp. lemon juice
• 1 apple
• 1 pear

• 200 g strawberries

• 8 finger biscuits

• 300 g Toblerone (chocolate with honey, almonds, rum)
  • 200 ml of sweet cream

Prepare the fruits and divide them into bite-size pieces. Put the prepared fruit mix in 4 small bowls.Spread the finger bisuits on the fruit bowls. Heat the cream in the fondue pot, then break the chocolate into small pieces and add them while stirring constantly. Dip out with fruits and cookies.

Mocha Fondue \*with alcohol\*

• 200 g milk chocolate
• 3 tbsp. cream

• 125 ml hot strong coffee (espresso)

• 3 tbsp. cognac
• 1 / 2 tsp cinnamon powder

Fill the hot coffee in the fondue pot, break the chocolate into small pieces and let them melt in the hot coffee. Mix with a wooden spoon until creamy. Add cream, cognac and cinnamon and stir everything evenly.

Suitable for dipping is: Marshmallows, cubes of sand cake, biscuits, cookies, pineapple pieces or slices of peach.

Vanilla Fondue

• 3 mango or papaya

• 500 g blackberries
  • 1 vanilla pod

• 100 ml of cream

• 50 g of sugar
• 30 g pf flour

• 4 egg yolks
- 500 ml of milk
- 1 pinch of salt

Peel, core and cut the mango/papaya into pieces. Wash the blackberries carefully and pat them dry. Slit the vanilla pod lengthways with a sharp knife and add it to the pot with the milk, add the salt. Heat up the milk, do not bring to a boil. Let the vanilla pod soak in the meat for about 10 minutes, keeping the whole thing warm. Whisk the egg yolk with the sugar until frothy and then mix in the flour. Take the vanilla bean out of the milk. Mix the egg yolk cream into the milk, stirring constantly. Stir in the cream until the sauce gets thick. Dip the fruits into it.

We wish you lots of fun with your ROMMELSBACHER Electric Fondue

Table des matières

Seite

The appliance designed to be used in the household and similar areas, like for example:
