USER MANUAL KG 2000 Rommelsbacher

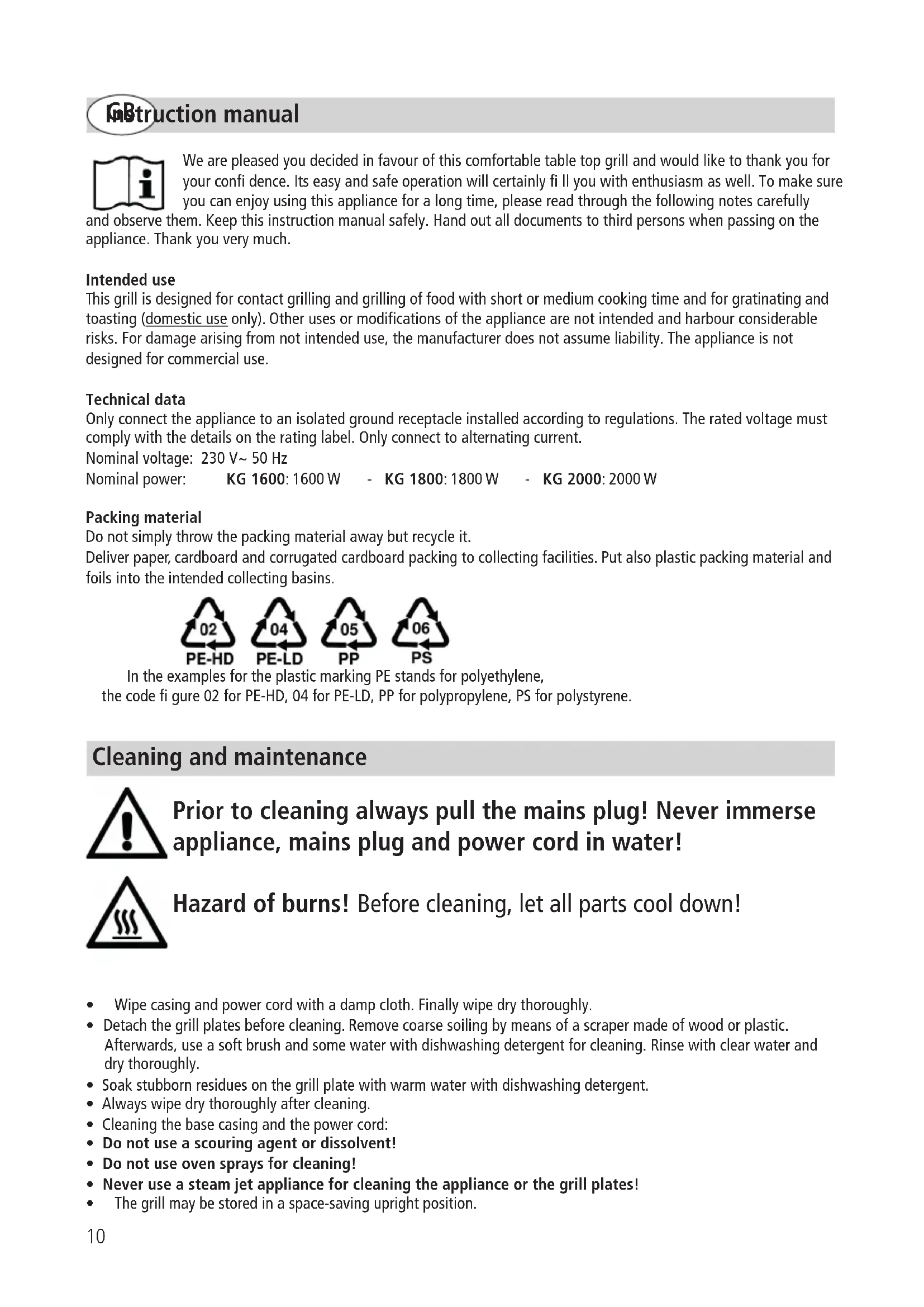

We are pleased you decided in favour of this comfortable table top grill and would like to thank you for your confidence. Its easy and safe operation will certainly fit you with enthusiasm as well. To make sure you can enjoy using this appliance for a long time, please read through the following notes carefully

and observe them. Keep this instruction manual safely. Hand out all documents to third persons when passing on the appliance. Thank you very much.

Intended use

This grill is designed for contact grilling and grilling of food with short or medium cooking time and for gratinating and toasting (domestic use only). Other uses or modifications of the appliance are not intended and harbour considerable risks. For damage arising from not intended use, the manufacturer does not assume liability. The appliance is not designed for commercial use.

Technical data

Only connect the appliance to an isolated ground receptacle installed according to regulations. The rated voltage must comply with the details on the rating label. Only connect to alternating current.

Nominal voltage: 230V 50Hz

Nominal power: KG 1600: 1600 W - KG 1800: 1800 W - KG 2000: 2000 W

Packing material

Do not simply throw the packing material away but recycle it.

Deliver paper, cardboard and corrugated cardboard packing to collecting facilities. Put also plastic packing material and foils into the intended collecting basins.

In the examples for the plastic marking PE stands for polyethylene, the code figure 02 for PE-HD, 04 for PE-LD, PP for polypropylene, PS for polystyrene.

Cleaning and maintenance

Prior to cleaning always pull the mains plug! Never immerse appliance, mains plug and power cord in water!

Hazard of burns! Before cleaning, let all parts cool down!

• Wipe casing and power cord with a damp cloth. Finally wipe dry thoroughly.
• Detach the grill plates before cleaning. Remove coarse soiling by means of a scraper made of wood or plastic. Afterwards, use a soft brush and some water with dishwashing detergent for cleaning. Rinse with clear water and dry thoroughly.
• Soak stubborn residues on the grill plate with warm water with dishwashing detergent.
  Always wipe dry thoroughly after cleaning.
• Cleaning the base casing and the power cord:
• Do not use a scouring agent or dissolvent!
• Do not use oven sprays for cleaning!
• Never use a steam jet appliance for cleaning the appliance or the grill plates!
• The grill may be stored in a space-saving upright position.

For your safety

Warning: Read all safety advices and instructions. Non-observation of the safety advices and instructions may cause electric shock, fire and/or bad injuries.

Attention - Hazard of injury or burns! During operation, the appliance's surfaces are getting hot and fi rstly stay hot even after switching the appliance off. Keep this in mind when touching the appliance. Mind hot fat splatters and rising vapour during use.

NOTE: For protection, we recommend using grill gloves and cutlery made of wood or plastic!

• Packing material like e. g. foil bags should be kept away from children.
• Always keep children under 8 away from the product and the power cord.
• Children from the age of 8 must be supervised when cleaning or maintaining the appliance.
• Children from the age of 8 and persons not having the knowledge or experience in operating the appliance or having handicaps of physical, sensorial or mental nature must not operate the appliance without supervision or instruction by a person, responsible for their safety. Never leave the appliance unattended during operation.
• Children should be supervised in order to ensure that they do not play with the appliance.
• Do not at all operate this unit with an external timer or a separate telecontrol system.
• Prior to each use, check the appliance and the accessories for soundness, it must not be operated if it has been dropped or shows visible damage. In these cases, the power supply must be disconnected and the appliance has to be checked by a specialist.
• Do not operate the appliance in the vicinity of sources of heat (ovens, gas fl ames etc.) or in explosive environments where infl ammable liquids or gases are located. Ensure an unhindered circulation of air.
• Place the appliance on a stable and even surface. Keep a distance of at least 10cm to all sides and 1m above the appliance in order to avoid damage through heat or fat splatters and to grant an unobstructed work area.

• Only operate the unit with grill plates locked in place properly.

• When laying the power cord, make sure that nobody can get entangled or stumble over it so that accidentally pulling the appliance down can be avoided.

• Keep the power cord away from hot surfaces, sharp edges and mechanical forces. Check the power cord regularly for damage and deteriorations. Damaged or entangled cords increase the risk of an electric shock.
• Do not place inflammable objects like tissues, grill cutlery etc. on the hot grilling surface.
• The appliance must be completely cooled before removing grill plates or before cleaning or moving the appliance.
• Never pour cold water on the hot grill plates. Neither pour inflammable liquids on the grill plates – the appliance is not suitable for flambéing!
• For a safe cut-off pull the mains plug after each use.
• For disconnecting the appliance from the mains, only pull the plug, never the cord!
• Do not store the grill outside or in damp chambers.
• Never immerse the appliance, power cord or plug in water for cleaning.
• Only operate appliance and accessories in dry condition - especially the grill plates and the electric connections must be absolutely dry.
• This electrical appliance complies with the relevant safety standards. In case of signs of damage to the appliance or the power cord, unplug the appliance immediately. Repairs may be done by authorised specialist shops only. Improper repairs may result in considerable dangers for the user.
• Improper use and non-observation of the instruction manual will void warranty.

Grill positions

This grill is perfect for contact grilling, flat surface grilling, gratinating and toasting. It features the optimum grill position for each way of preparation.

Pos. A - Contact grilling Pos. B - Gratinating
Basic position for contact grilling of meat/steak, sausages etc. NOTE: In this position best grilling results can be achieved.	Lock position for toasting and gratinating.
Pos. C - Large fl at surface grill
Opened up providing a double grilling surface. A table top grill for use in house and garden.	ATTENTION: Never use the unit with cover opened in 90° position when the upper grill plate is hot! Danger of overheating and damage of the plastic handles!

Prior to operation

• Prior to the first grilling it is necessary to burn in the protective coating of the heating elements. To do so, heat up the appliance with inserted grill plates and in closed position (pos. A), at maximum temperature for about 15 minutes.
• Do not be bothered by the temporary formation of harmless smoke and smell. Please see for a good ventilation of the room.
  All parts of the cooled down appliance can be wiped with a moist cloth (see point "Cleaning and maintenance").
  Prior to initial use, pour once some cooking oil on a kitchen tissue and treat the upper side of the grill plates.

Detachable grill plates

Attention! Before attaching or detaching the grill plates, let the appliance cool down and disconnect it from the mains.

• Open up the grill completely (pos. C).
  For detaching push the locking spring until the grill plate disengages. Then lift the plate and take it off.
• For attaching, position both detents of the grill plate in the intended holders at the grill and push the plate downwards until the fi xing spring clinches.
  See to it that the grill plates sit properly.

Non-stick coating

The grill plates have a superior, easy to clean non-stick coating. Observe the following notes to avoid any damage:

• Never cut on the grill plates with a knife or similar object.
• Do not put aluminium trays, aluminium foil, pans, pots etc. on the grill plates.
• Do not use the grill plates for fl ambéing food.
• Do neither use cooking/grill cutlery made of metal nor pointed and edgy objects to put the food on the grill, turn it or remove it.
• Do not use abrasives, oven sprays or hard cleaning aids for cleaning the grill plate.

Operating elements

KG 1600 / KG 1800

Both grill plates are regulated together.

KG 2000 Twin Set

Both grill plates are regulated separately, with 2 regulators and 2 pilot lamps.

(1) Temperature regulator, stepless
(2) Temperature pilot lamp

Cycling on and off during operation, the pilot lamp indicates the thermostatic regulation.

A lamp not glowing does not mean that the appliance is switched off!

Grilling

Make sure the grill plates are attached firmly and properly.
- Connect the appliance to the mains and pre-heat the grill in closed position (pos. A), until the pilot lamp extinguishes for the first time.
If the desired temperature has been reached, the grill position can be changed as required (pos. A, B, C).
- With the temperature regulator(s), the temperature can be increased or reduced at any time.
- For healthy low-fat grilling both grill plates feature a fat drain groove around the plate. Place a heat resistant vessel (e.g. a plate) below the drain outlet to collect the draining oil or fat.
- If the desired cooking or grilling result is achieved, switch the appliance off (turn the temperature regulator to "0" position) and pull the mains plug.
- Let the appliance cool down and clean it (see point "Cleaning and maintenance").

Grilling chart

Grilling times and temperature settings depend heavily on the thickness of the food and especially on your personal taste. Therefore, recommended settings are only reference values!

	KG 1600 KG 1800	KG 2000 M	Meat Shashlik	Poultry	Fish		Ham- bugs	Sausages
Level 1		max.	KEEP W ARM
Level 2	-3		○●	○○●	○
Level 4	-5		●○	●●○	●
Time (min)			5-7 8-	10 10-15 4	-10 3-8 4-	6

Note: In open position, the heat can escape more quickly and the food will take more time until done as if grilled in closed position.
